bluetooth TOYOTA CAMRY 2009 XV40 / 8.G Navigation Manual

OTHER FUNCTIONS
144
Touch “Settings” to display “Settings”
screen.
You can change the settings of the
phone.(a) Registering the speed dial
You can register the desired telephone
number from phone book, dialed num-
bers
and received calls. Up to 17 speed
dial numbers can be registered.
The 6th entry is the speed dial for redialing.
1. Touch “Speed Dial” to display the
“Speed Dial Settings” screen.
2. Touch “Register” of “Speed Dial”.
3. Select the data you want to register.
— Change the settings of
the Bluetooth phone

OTHER FUNCTIONS
152

Auto answer
When a call is received, the display au-
tomatically changes to the talking
screen and you can start to talk on the
phone (without touching any button) af-
ter the preset time.
Touch “ON” of “Auto Answer” and “”
or “+” to adjust the waiting time of auto
answer within 1 60 seconds.
The Bluetooth connection status at
startup
Vehicles with smart key system —
When the “ENGINE START STOP”
switch is in ACCESSORY or IGNITION
ON mode and the Bluetooth is auto-
matically connected, the connection
check is displayed.
Vehicles without smart key system —
When the engine switch is in “ACC” or
“ON” position and the Bluetooth  is au-
tomatically connected, the connection
check is displayed.
Touch “ON” or “OFF” of “Show
Bluetooth∗ connection status at start
up”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.

OTHER FUNCTIONS
154

Transferring a telephone number
You can transfer the telephone num-
bers in your Bluetooth phone to the
system. Up to 1000 person’s data (up to
2 numbers a person) can be registered
in the phone book.
Transfer it while the engine is running.
1. Touch “T ransfer” to display the “Se-
lect Group” screen.
2. Select the group you want to trans-
fer the data to.
3. Touch “Overwrite” or “Add To”.
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel” . If the transfer-
ring is interrupted on the way, the phone
book data transferred until then can be
memorized in the system.
5. When this screen is displayed, the
transfer is completed.
When this screen is displayed, try the
transfer operation again.

OTHER FUNCTIONS
168

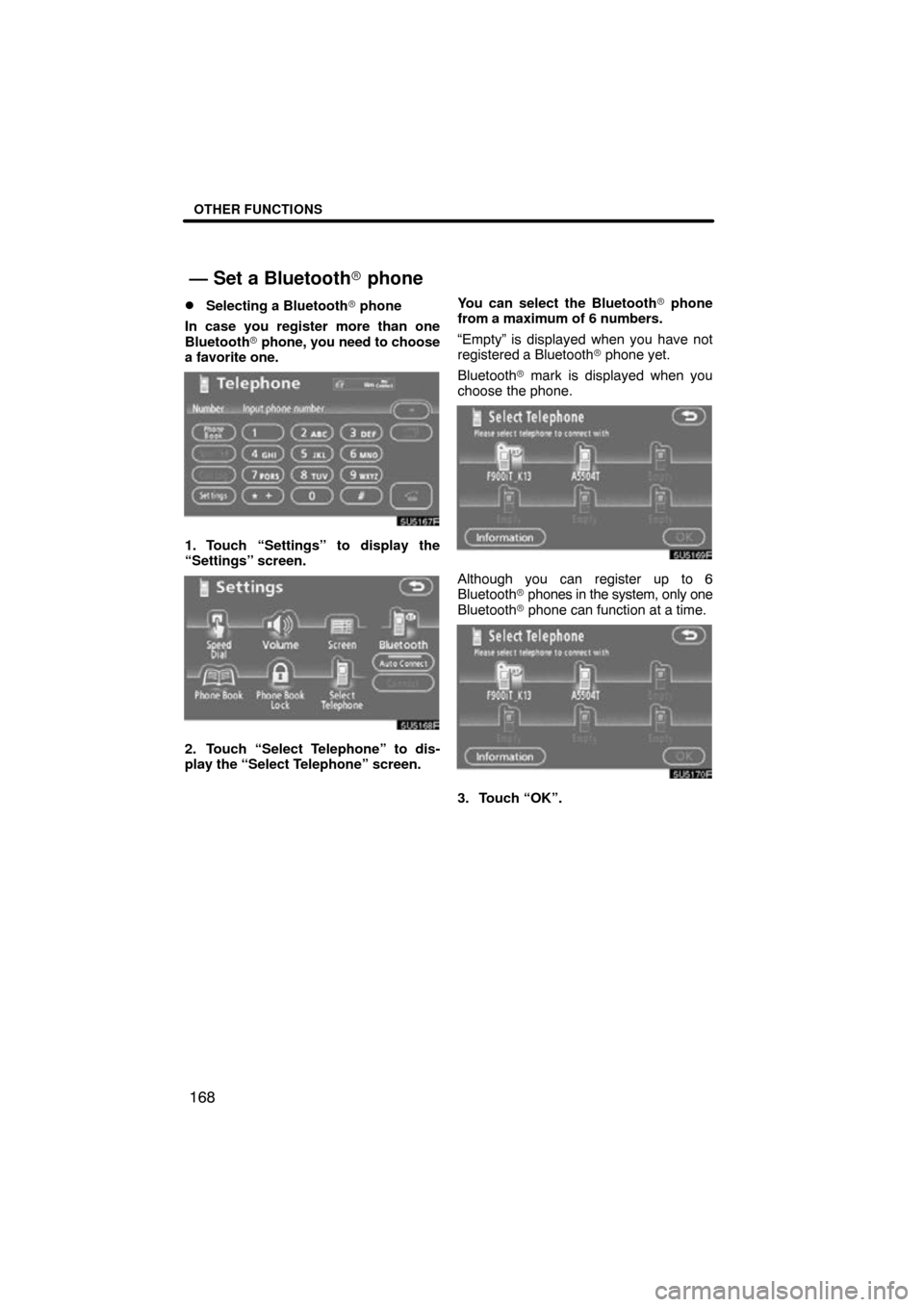

Selecting a Bluetooth
 phone
In case you register more than one
Bluetooth  phone, you need to choose
a favorite one.
1. Touch “Settings” to display the
“Settings” screen.
2. Touch “Select Telephone” to dis-
play the “Select Telephone” screen. You can select the Bluetooth
 phone
from a maximum of 6 numbers.
“Empty” is displayed when you have not
registered a Bluetooth  phone yet.
Bluetooth  mark is displayed when you
choose the phone.
Although you can register up to 6
Bluetooth  phones in the system, only one
Bluetooth  phone can function at a time.
3. Touch “OK”.
— Set a Bluetooth phone

OTHER FUNCTIONS
169

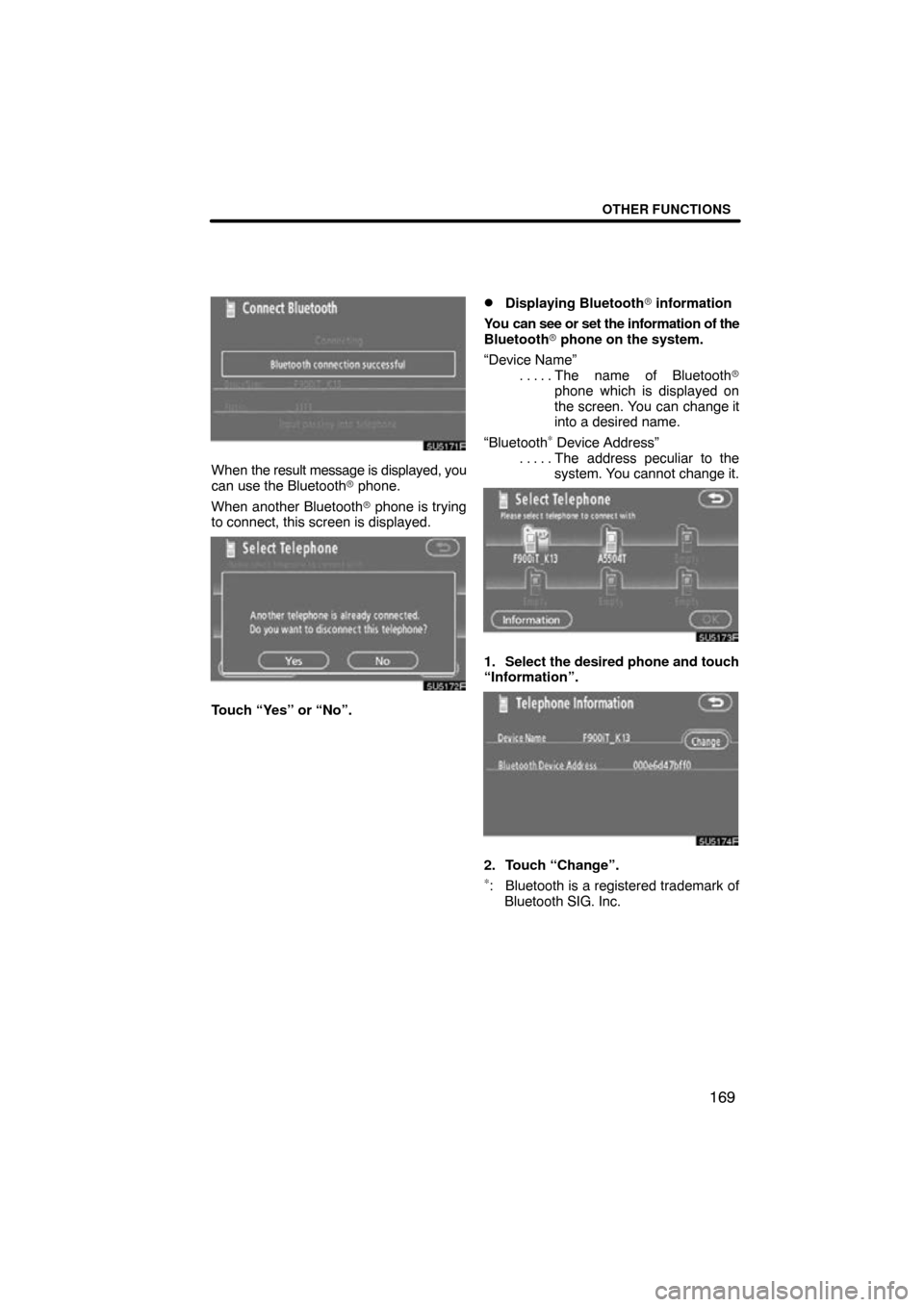

When the result message is displayed, you
can use the Bluetooth  phone.
When another Bluetooth  phone is trying
to connect, this screen is displayed.
Touch “Yes” or “No”.
Displaying Bluetooth information
You can see or set the information of the
Bluetooth  phone on the system.
“Device Name” The name of Bluetooth
. . . . .
phone which is displayed on
the screen. You can change it
into a desired name.
“Bluetooth
∗ Device Address” The address peculiar to the
. . . . .
system. You cannot change it.
1. Select the desired phone and touch
“Information”.
2. Touch “Change”.∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

OTHER FUNCTIONS
171

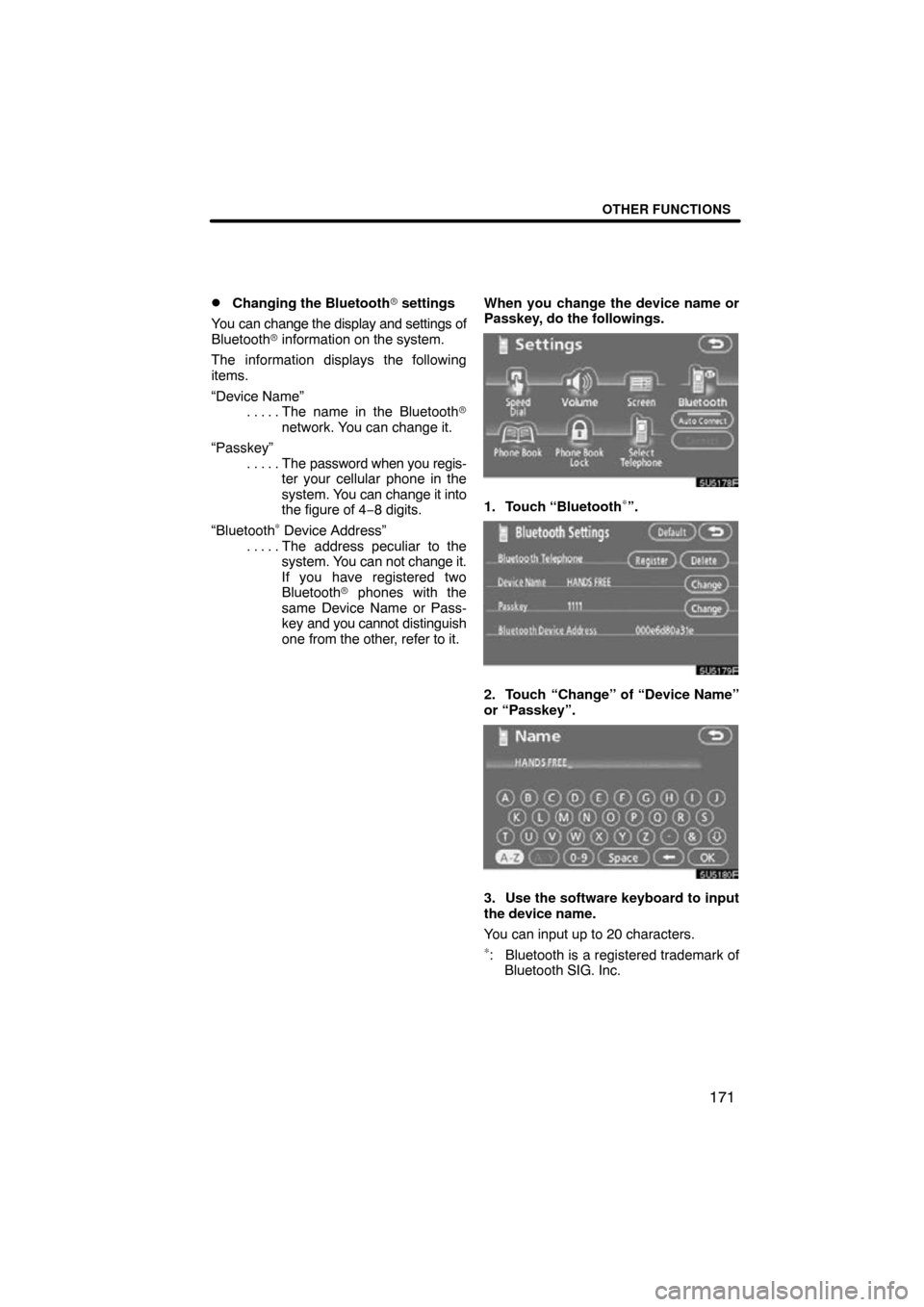

Changing the Bluetooth
settings
You can change the display and settings of
Bluetooth  information on the system.
The information displays the following
items.
“Device Name” The name in the Bluetooth
. . . . .
network. You can change it.
“Passkey” The password when you regis-
. . . . .
ter your cellular phone in the
system. You can change it into
the figure of 4− 8 digits.
“Bluetooth
∗ Device Address” The address peculiar to the
. . . . .
system. Y ou can not change it.
If you have registered two
Bluetooth  phones with the
same Device Name or Pass-
key and you cannot distinguish
one from the other, refer to it. When you change the device name or
Passkey, do
the followings.
1. Touch “Bluetooth∗”.
2. Touch “Change” of “Device Name”
or “Passkey”.
3. Use the software keyboard to input
the device name.
You can input up to 20 characters.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

OTHER FUNCTIONS
172

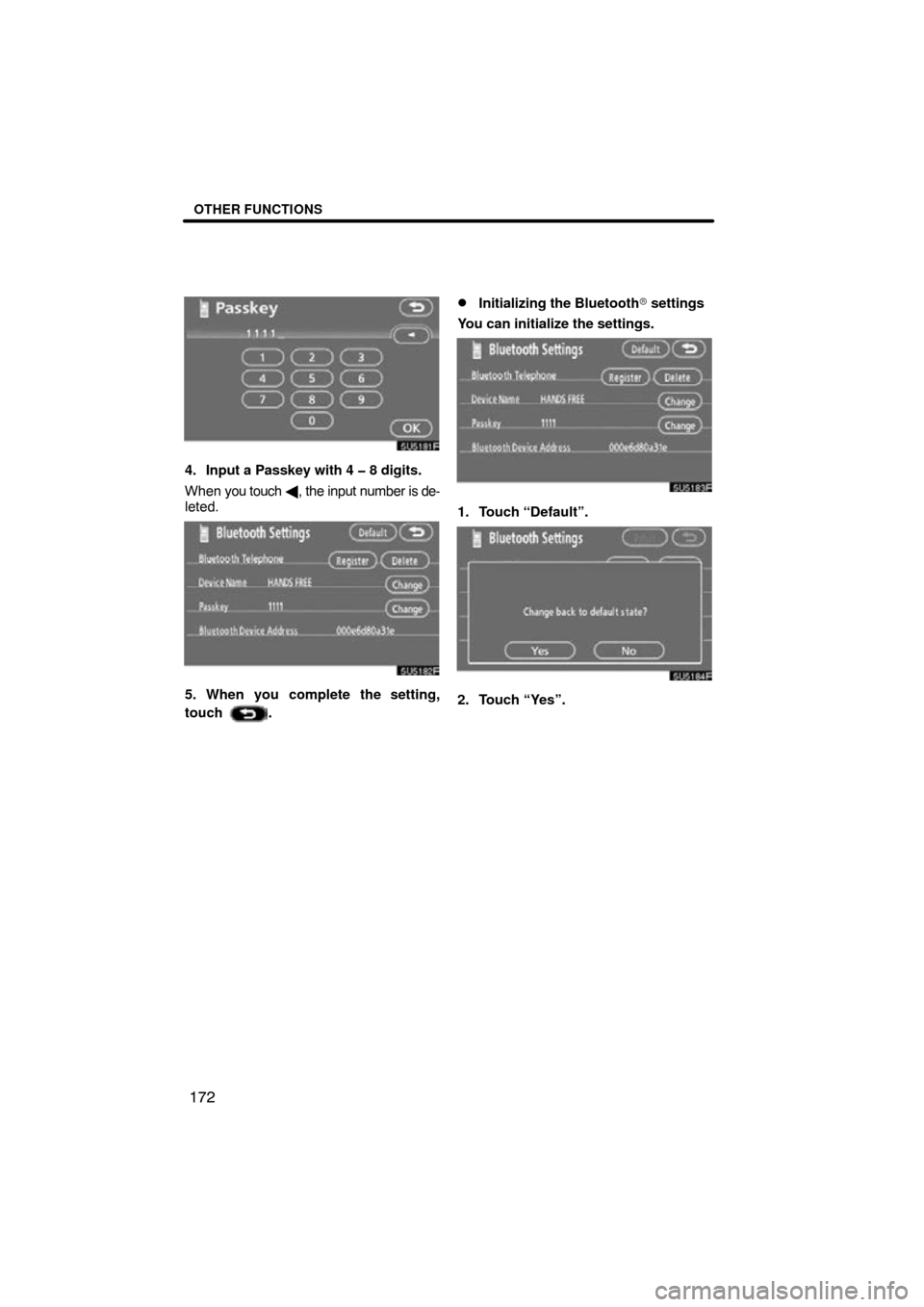

4. Input a Passkey with 4 8 digits.
When you touch  , the input number is de-
leted.
5. When you complete the setting,
touch
.
Initializing the Bluetooth  settings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”.

OTHER FUNCTIONS
173

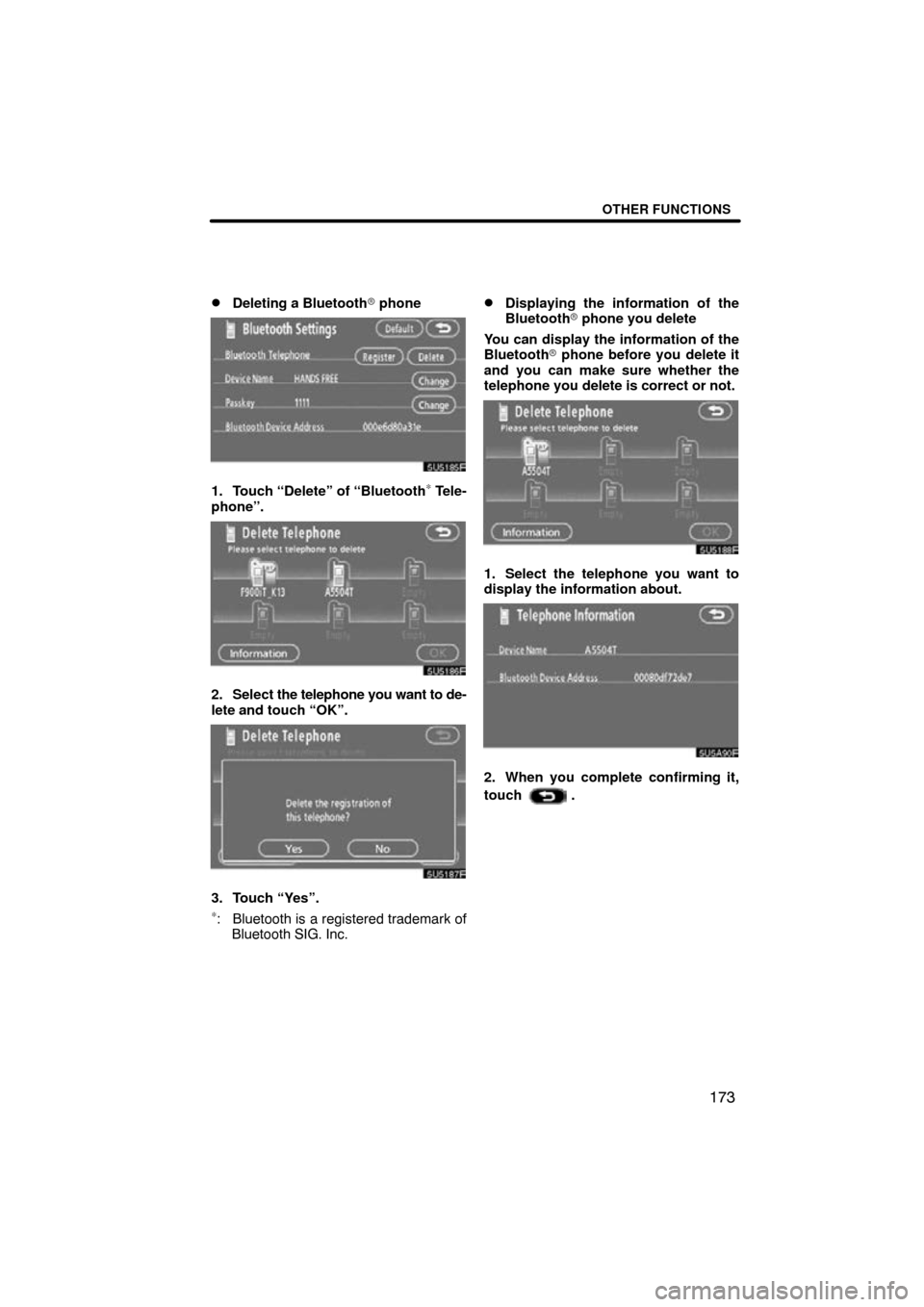

Deleting a Bluetooth
phone
1. Touch “Delete” of “Bluetooth∗ Tele-
phone”.
2. Select the telephone you want to de-
lete and touch “OK”.
3. Touch “Yes”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
Displaying the information of the
Bluetooth  phone you delete
You can display the information of the
Bluetooth  phone before you delete it
and you can make sure whether the
telephone you delete is correct or not.
1. Select the telephone you want to
display the information about.
2. When you complete confirming it,
touch
.

OTHER FUNCTIONS
181

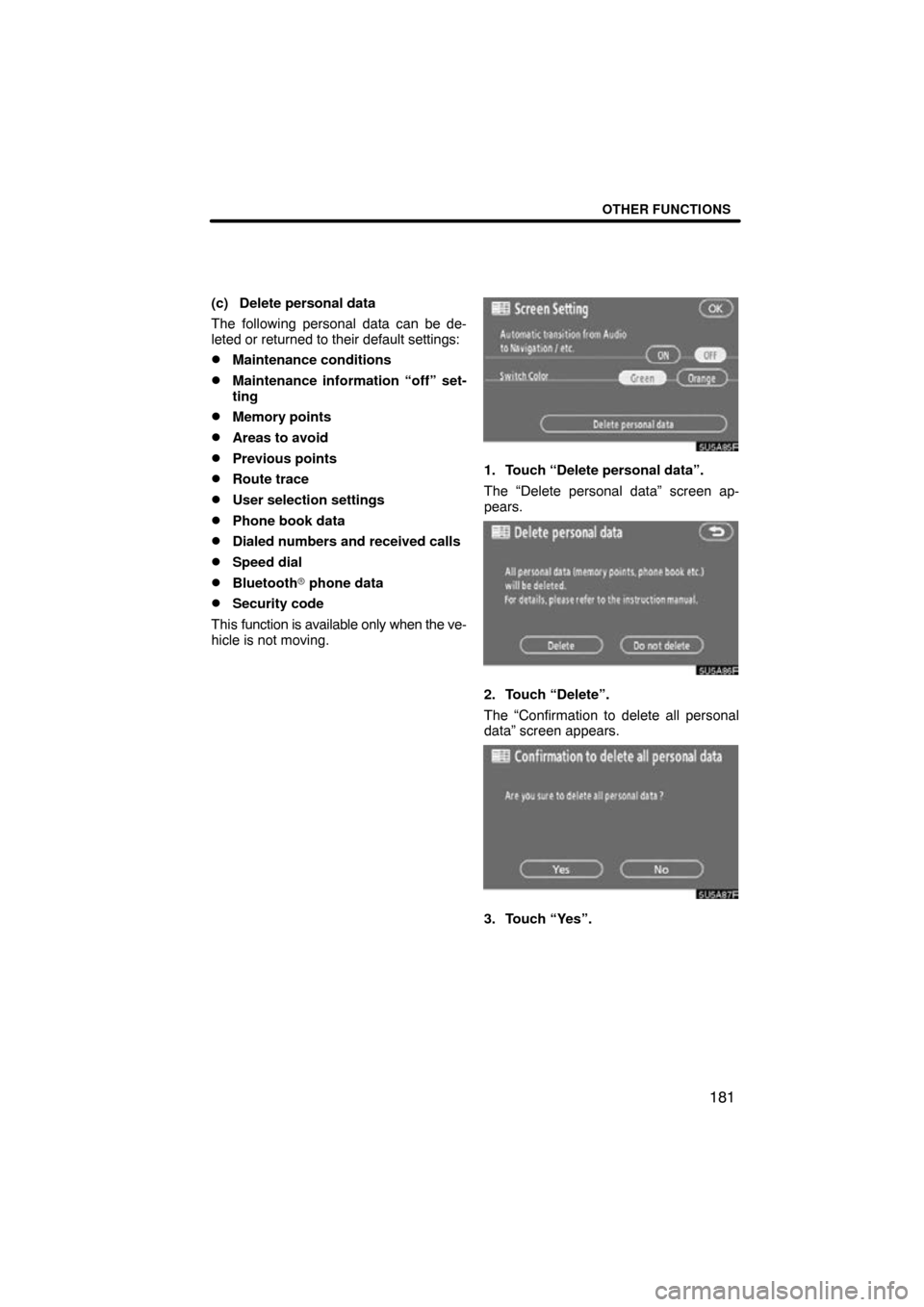

(c) Delete personal data
The following personal data can be de-
leted or returned to their default settings:
Maintenance conditions
Maintenance information “off” set-
ting
Memory points
Areas to avoid
Previous points
Route trace
User selection settings
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
This function is available only when the ve-
hicle is not moving.
1. Touch “Delete personal data”.
The “Delete personal data” screen ap-
pears.
2. Touch “Delete”.
The “Confirmation to delete all personal
data” screen appears.
3. Touch “Yes”.
