TOYOTA CAMRY 2009 XV40 / 8.G Scheduled Maintenance Guide

00505-SMG09-CAMR2 | Second Printing | 03/08
2009
Scheduled Maintenance Guide
Printed in the USA
Customer Experience Center
1-800-331-4331
142979_09b_Camry SMG Cover_032008.indd 1-23/26/08 9:11:41 AM

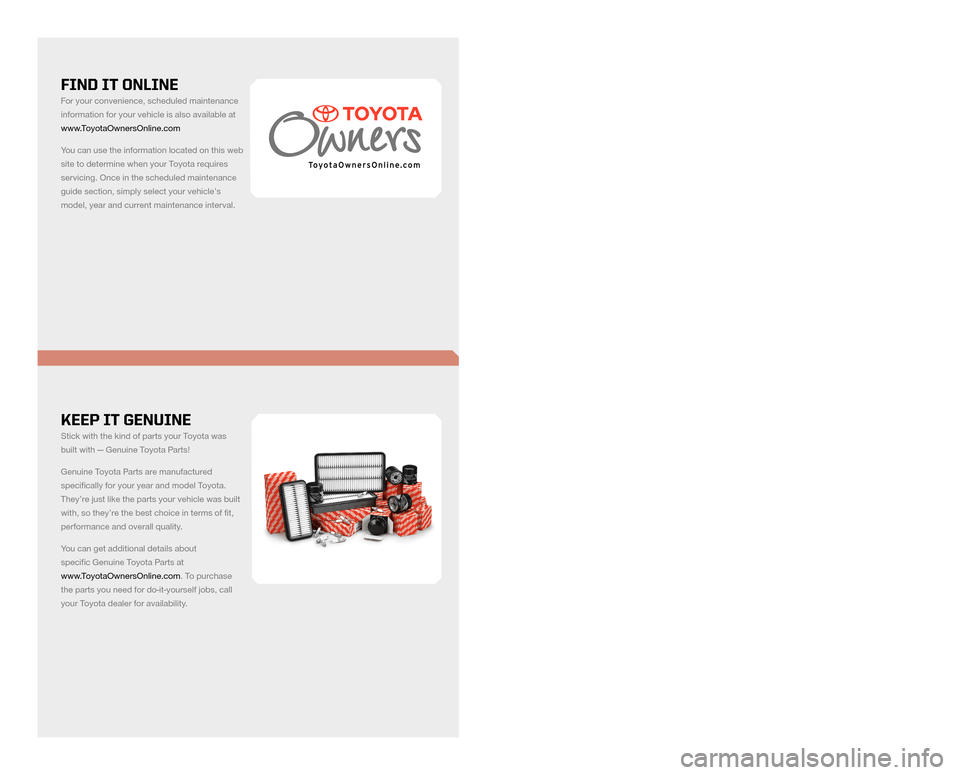

KEEP IT GENUINE
Stick with the kind of parts your Toyota was
built with — Genuine Toyota Parts!
Genuine Toyota Parts are manufactured
specifically for your year and model Toyota.
They’re just like the parts your vehicle was built
with, so they’re the best choice in terms of fit,
performance and overall quality.
You can get additional details about
specific Genuine Toyota Parts at
www.ToyotaOwnersOnline.com. To purchase
the parts you need for do-it-yourself jobs, call
your Toyota dealer for availability.
FIND IT ONLINE
For your convenience, scheduled maintenance
information for your vehicle is also available at
www.ToyotaOwnersOnline.com
You can use the information located on this web
site to determine when your Toyota requires
servicing. Once in the scheduled maintenance
guide section, simply select your vehicle’s
model, year and current maintenance interval.
142979_09b_Camry SMG Cover_032008.indd 3-43/26/08 9:11:41 AM

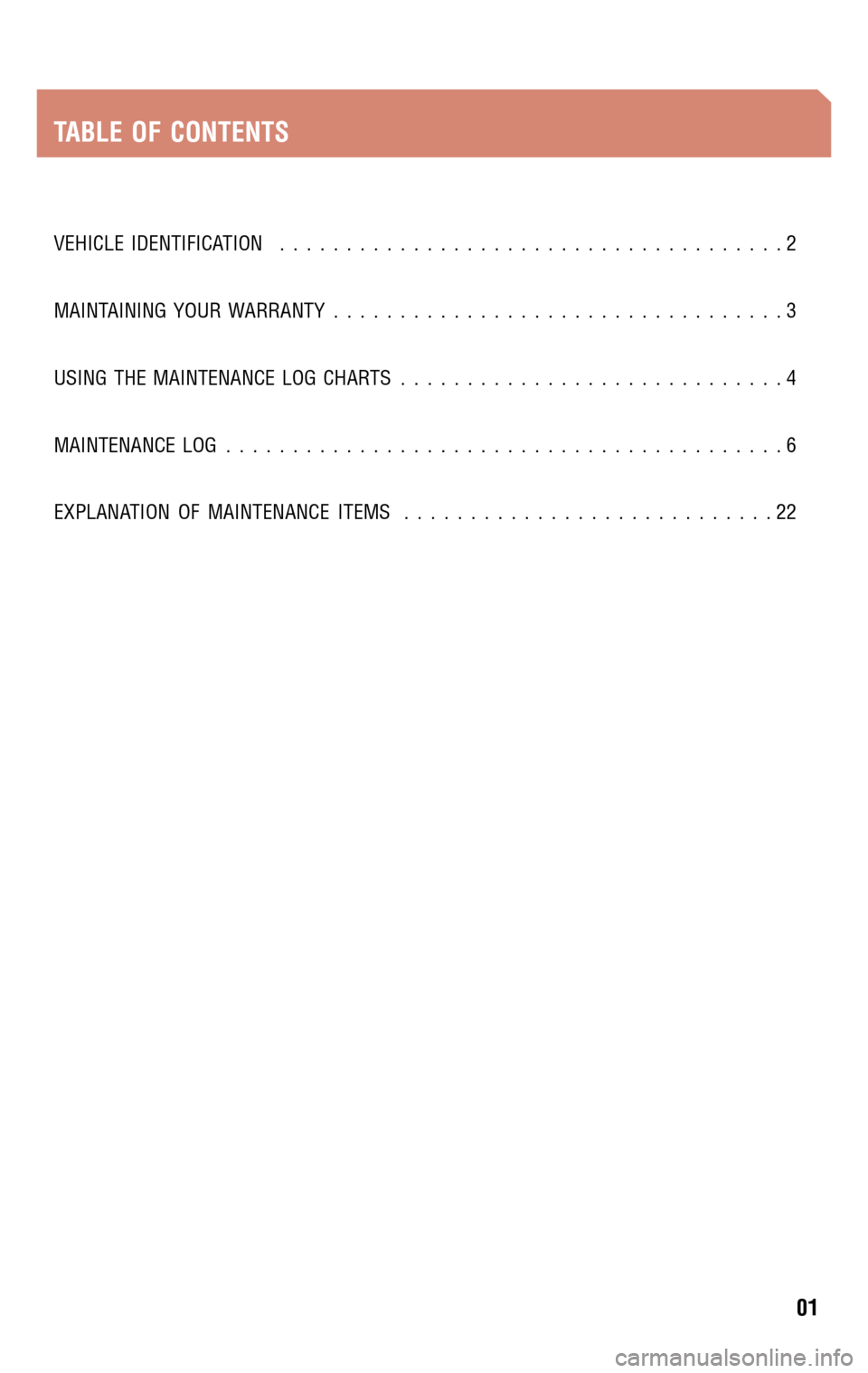

VEHICLE IDENTIFICATION......................................2
MAINTAINING YOUR WARRANTY ..................................3
USING THE MAINTENANCE LOG CHARTS .............................4
MAINTENANCE LOG ..........................................6
EXPLANATION OF MAINTENANCE ITEMS ............................22
TABLE OF CONTENTS
01

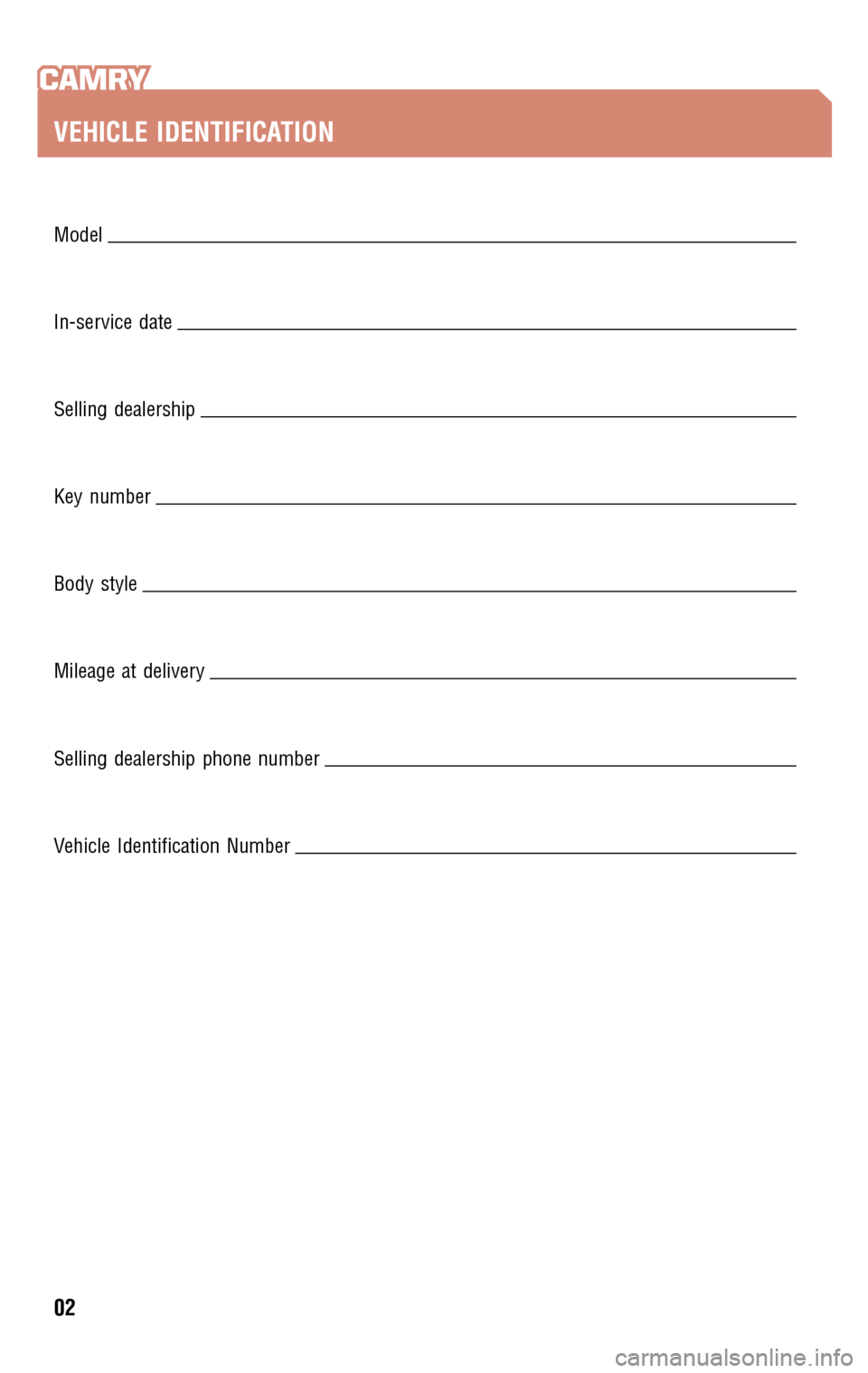

Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
VEHICLE IDENTIFICATION
02

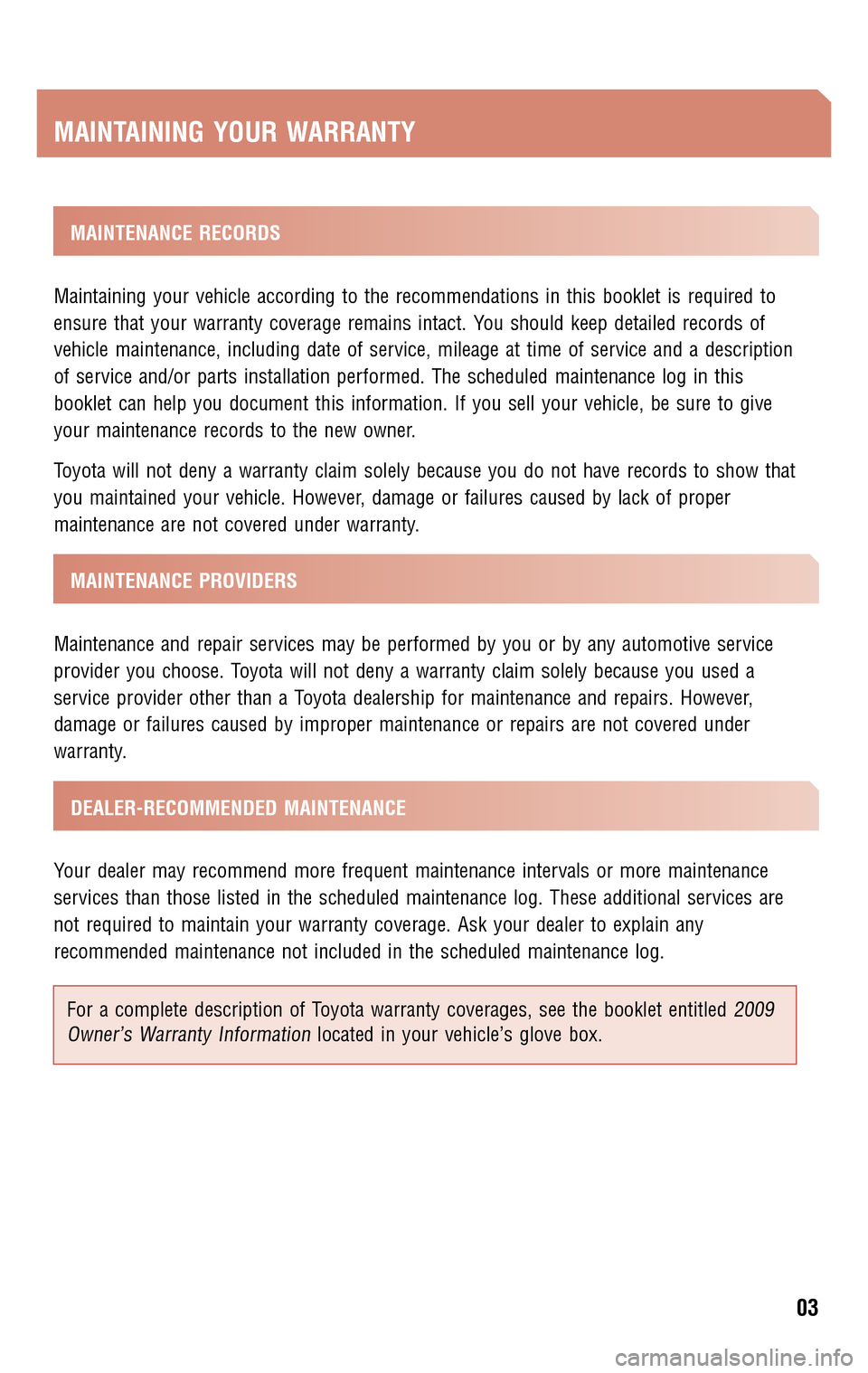

MAINTENANCE RECORDS
Maintaining your vehicle according to the recommendations in this booklet is required to
ensure that your warranty coverage remains intact. You should keep detailed records of
vehicle maintenance, including date of service, mileage at time of service and a description
of service and/or parts installation performed. The scheduled maintenance log in this
booklet can help you document this information. If you sell your vehicle, be sure to give
your maintenance records to the new owner.
Toyota will not deny a warranty claim solely because you do not have records to show that
you maintained your vehicle. However, damage or failures caused by lack of proper
maintenance are not covered under warranty.
MAINTENANCE PROVIDERS
Maintenance and repair services may be performed by you or by any automotive service
provider you choose. Toyota will not deny a warranty claim solely because you used a
service provider other than a Toyota dealership for maintenance and repairs. However,
damage or failures caused by improper maintenance or repairs are not covered under
warranty.
DEALER-RECOMMENDED MAINTENANCE
Your dealer may recommend more frequent maintenance intervals or more maintenance
services than those listed in the scheduled maintenance log. These additional services are
not required to maintain your warranty coverage. Ask your dealer to explain any
recommended maintenance not included in the scheduled maintenance log. For a complete description of Toyota warranty coverages, see the booklet entitled
2009
Owner’s Warranty Information
located in your vehicle’s glove box.
MAINTAINING YOUR WARRANTY
03

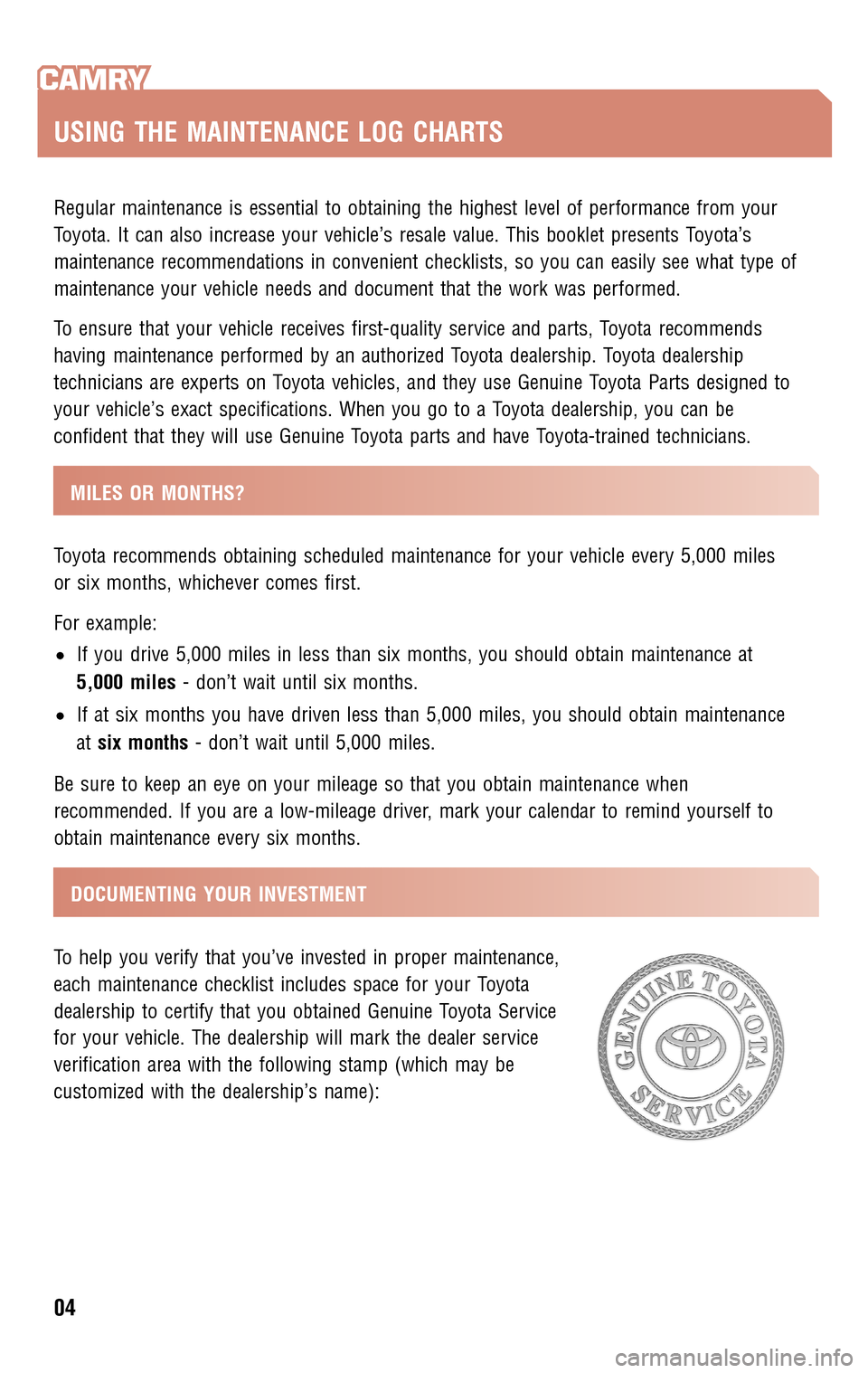

Regular maintenance is essential to obtaining the highest level of performance from your
Toyota. It can also increase your vehicle’s resale value. This booklet presents Toyota’s
maintenance recommendations in convenient checklists, so you can easily see what type of
maintenance your vehicle needs and document that the work was performed.
To ensure that your vehicle receives first-quality service and parts, Toyota recommends
having maintenance performed by an authorized Toyota dealership. Toyota dealership
technicians are experts on Toyota vehicles, and they use Genuine Toyota Parts designed to
your vehicle’s exact specifications. When you go to a Toyota dealership, you can be
confident that they will use Genuine Toyota parts and have Toyota-trained technicians.
MILES OR MONTHS?
Toyota recommends obtaining scheduled maintenance for your vehicle every 5,000 miles
or six months, whichever comes first.
For example:
• If you drive 5,000 miles in less than six months, you should obtain maintenance at
5,000 miles - don’t wait until six months.
• If at six months you have driven less than 5,000 miles, you should obtain maintenance
at six months - don’t wait until 5,000 miles.
Be sure to keep an eye on your mileage so that you obtain maintenance when
recommended. If you are a low-mileage driver, mark your calendar to remind yourself to
obtain maintenance every six months.
DOCUMENTING YOUR INVESTMENT
To help you verify that you’ve invested in proper maintenance,
each maintenance checklist includes space for your Toyota
dealership to certify that you obtained Genuine Toyota Service
for your vehicle. The dealership will mark the dealer service
verification area with the following stamp (which may be
customized with the dealership’s name):
USING THE MAINTENANCE LOG CHARTS
04

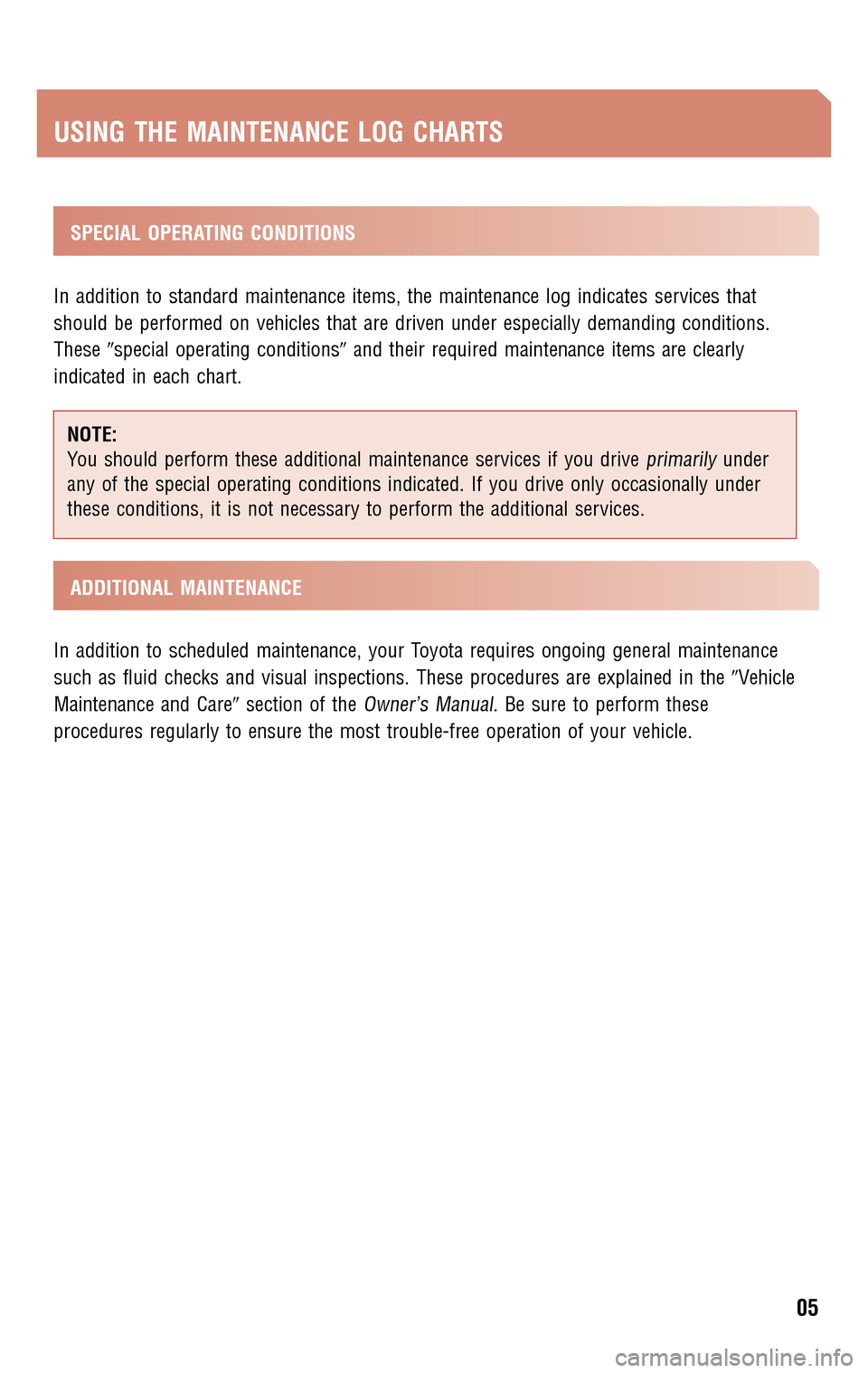

SPECIAL OPERATING CONDITIONS
In addition to standard maintenance items, the maintenance log indicates services that
should be performed on vehicles that are driven under especially demanding conditions.
These special operating conditions and their required maintenance items are clearly
indicated in each chart.
NOTE:
You should perform these additional maintenance services if you drive
primarilyunder
any of the special operating conditions indicated. If you drive only occasionally under
these conditions, it is not necessary to perform the additional services.
ADDITIONAL MAINTENANCE
In addition to scheduled maintenance, your Toyota requires ongoing general maintenance
such as fluid checks and visual inspections. These procedures are explained in the Vehicle
Maintenance and Care section of the
Owner’s Manual.Be sure to perform these
procedures regularly to ensure the most trouble-free operation of your vehicle.
USING THE MAINTENANCE LOG CHARTS
05

5,000 Miles or 6 months
Replace engine oil and filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
Driving while towing:
Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:MILEAGE:
10,000 Miles or 12 months
Replace engine oil and filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
Driving while towing:
Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:MILEAGE:
MAINTENANCE LOG
06

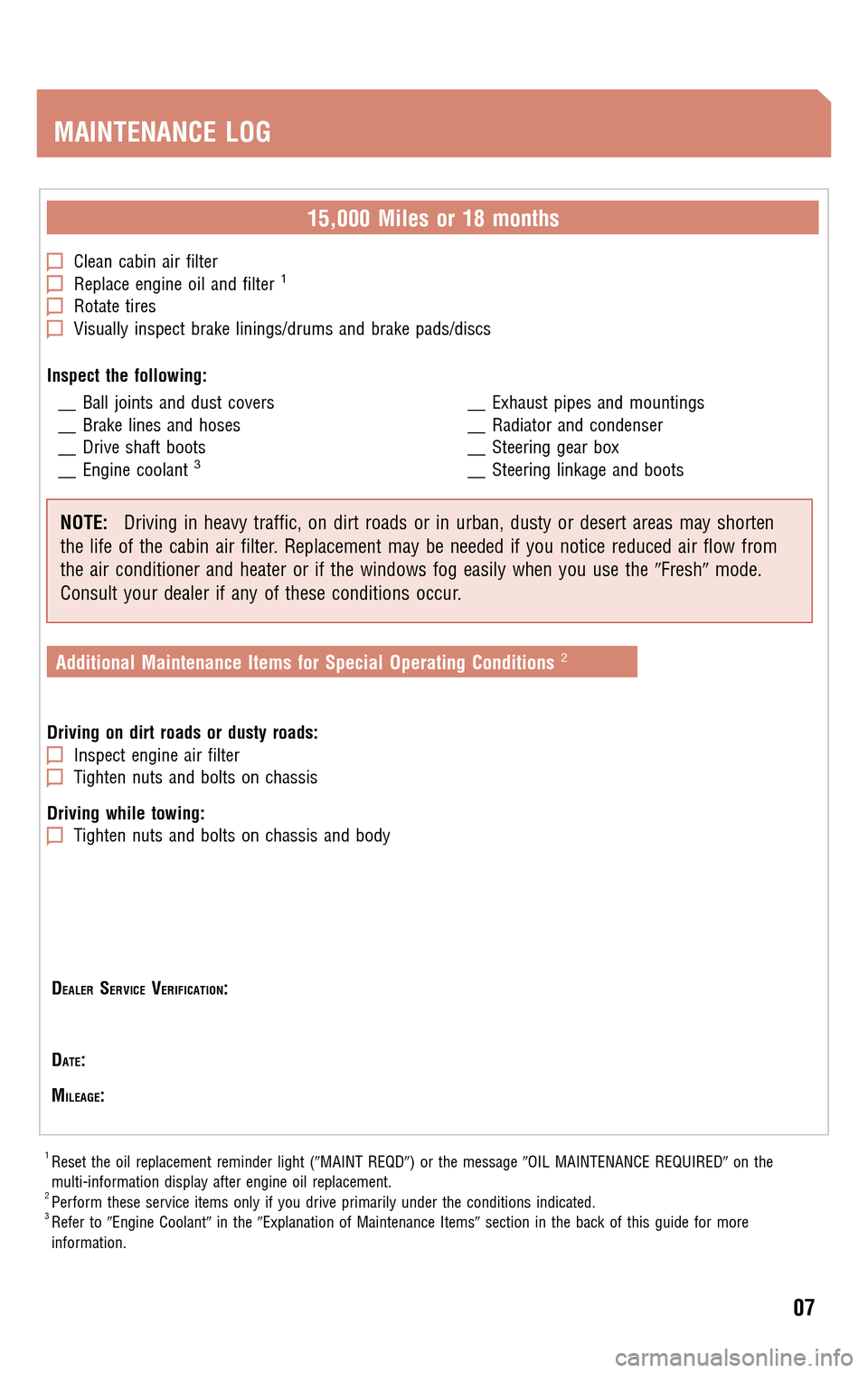

15,000 Miles or 18 months
Clean cabin air filterReplace engine oil and filter1
Rotate tiresVisually inspect brake linings/drums and brake pads/discs
Inspect the following: __ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
3
__ Exhaust pipes and mountings
__ Radiator and condenser
__ Steering gear box
__ Steering linkage and boots
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from
the air conditioner and heater or if the windows fog easily when you use the Freshmode.
Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterTighten nuts and bolts on chassis
Driving while towing:
Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
MAINTENANCE LOG
07
1Reset the oil replacement reminder light ( MAINT REQD) or the messageOIL MAINTENANCE REQUIRED on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to Engine Coolant in theExplanation of Maintenance Items section in the back of this guide for more
information.

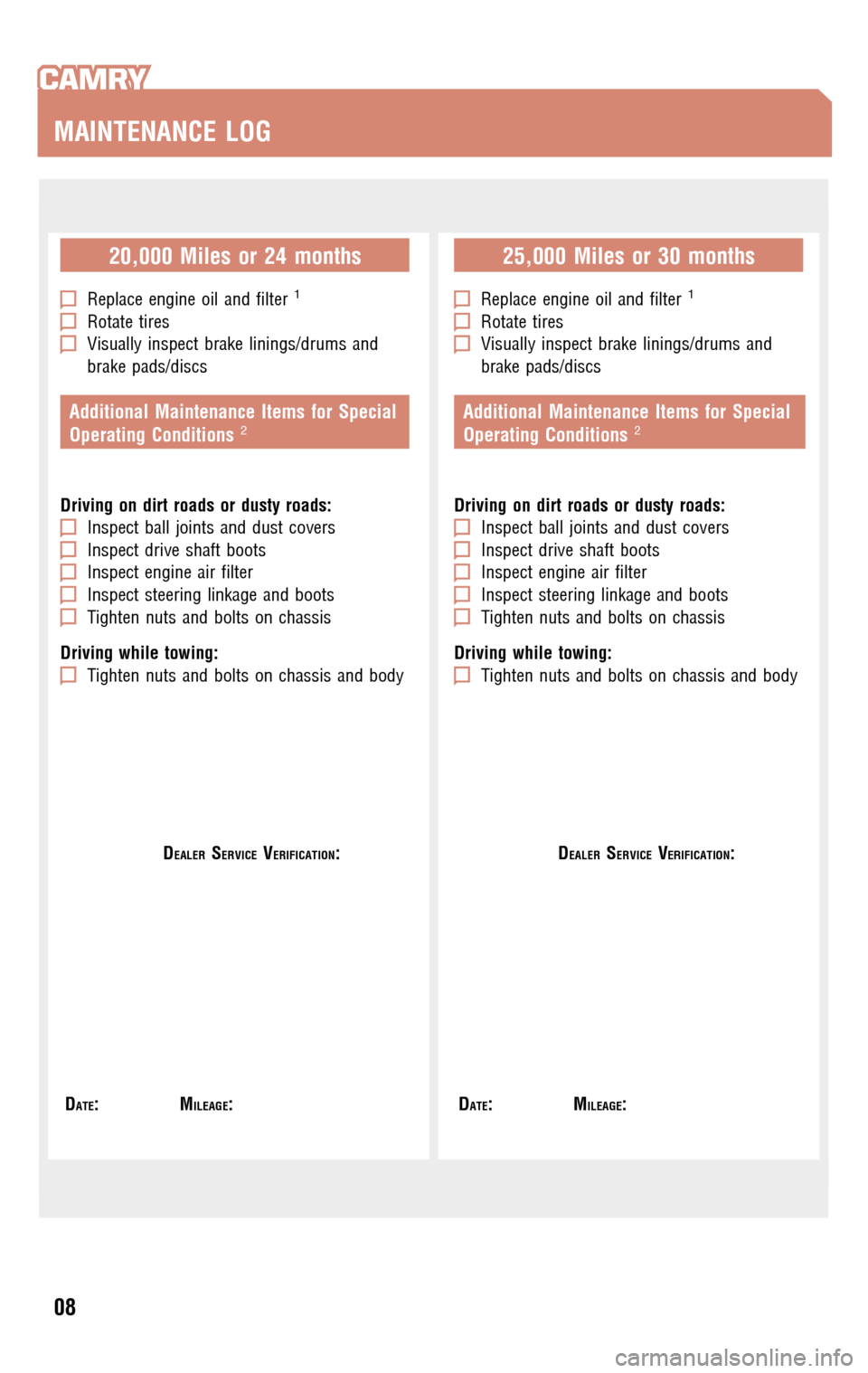

20,000 Miles or 24 months
Replace engine oil and filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
Driving while towing:
Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:MILEAGE:
25,000 Miles or 30 months
Replace engine oil and filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
Driving while towing:
Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:MILEAGE:
MAINTENANCE LOG
08
