display TOYOTA CAMRY 2009 XV40 / 8.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2009 Camry Quick Reference Guide
Engine maintenance 9Fuel tank door release and cap 8Hood release 9Indicator symbols 5Instrument cluster 4Instrument panel 2-3Keyless entry1,26Light control-Instrument panel 8
Smart Key system1,27
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions210Automatic Transmission 10Clock 18Cruise control 16Cup holders 22Garage door opener (HomeLink®)316Lights1& turn signals 14Moonroof 12Multi-information display 15Parking brake 11Power outlets-12V DC 15Seat adjustments-Front 13Seat adjustments-Rear 13Seat heaters 19Seats-Head restraints 12Steering lock release 11Steering wheel switches 21Sunshade-Rear 17Telephone controls (Bluetooth®)17Tilt and telescopic steering wheel 11Windows-Power 12
Windshield wipers & washers 14
Child comfort guide 24Door locks 23Doors-Child safety locks 23Seat belts 23Seat belts-Shoulder belt anchor 24Spare tire & tools 25Tire Pressure Warning System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
OVERVIEW
Instrument panel
Steering wheel audio controls2
Steering wheel climate controls1
Multi-information display button1
Voice command button1,2
Telephone controls1,2
“ENGINE START STOP” button (Smart Key)1
Engine switch (standard key)1
Headlight and turn signal controls/Headlight, turn signal and front fog
light1 controls
Wiper and washer controls
Emergency flasher button
Steering wheel controls
Steering wheel controls
XLE and LE models
SE model

4
OVERVIEW
Instrument cluster
Engine coolant temperature
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Multi-information display
Automatic Transmission shift position indicator
Sequential shift display*
Odometer, two trip meters and outside temperature display
* If equipped
With multi-information display
Without multi-information display

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

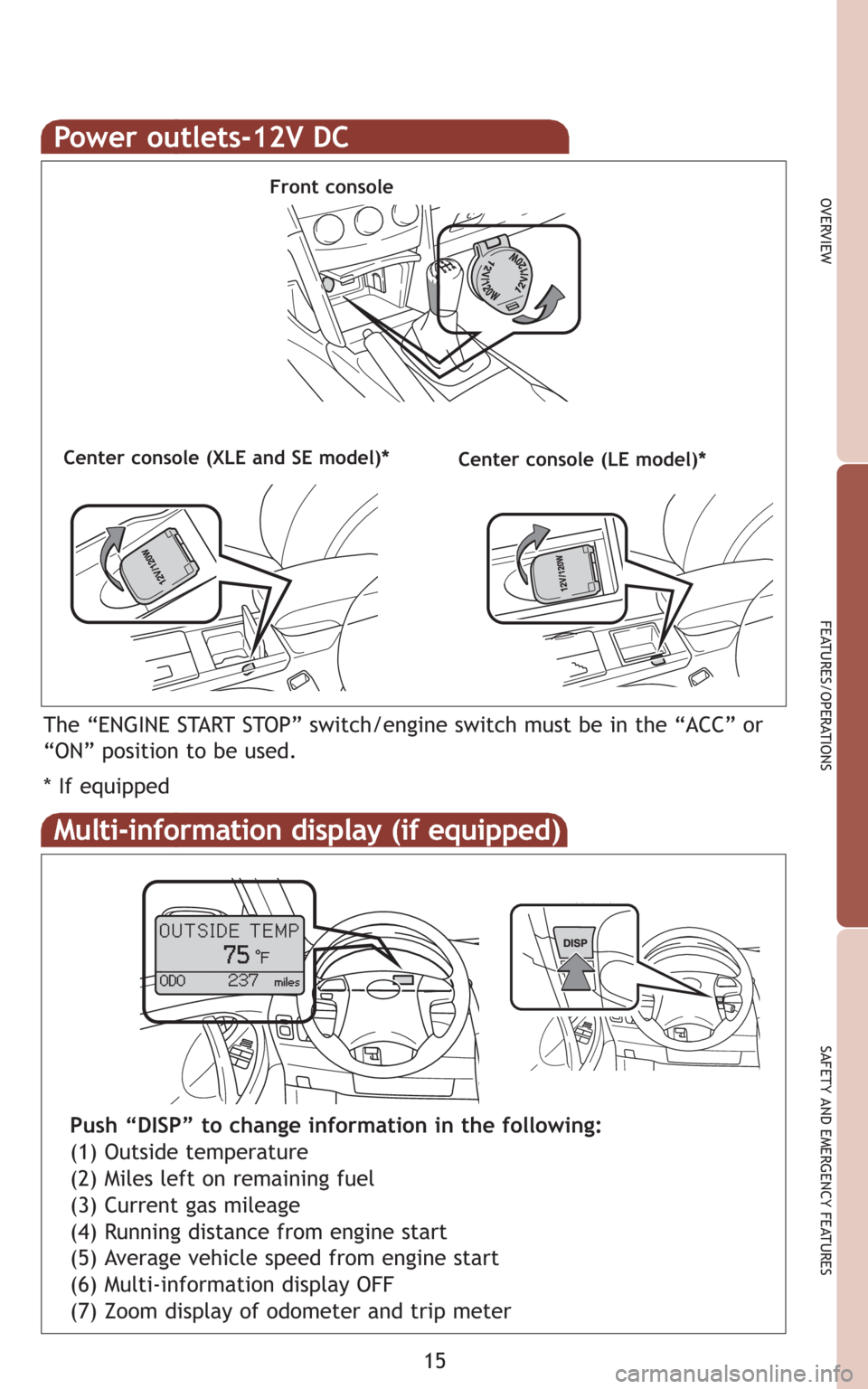

Power outlets-12V DC
Front console
Center console (LE model)*
The “ENGINE START STOP” switch/engine switch must be in the “ACC” or
“ON” position to be used.
* If equipped
Center console (XLE and SE model)*
Multi-information display (if equipped)
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multi-information display OFF
(7) Zoom display of odometer and trip meter
