TOYOTA CAMRY 2010 XV40 / 8.G Navigation Manual

TELEPHONE AND INFORMATION
121
INFORMATION
This system supports the following
service.
Bluetooth  Specification
Ver.1.1 or higher
(Recommended: Ver.2.0+EDR or
higher)
 Profiles
 HFP (Hands Free Profile)
Ver.1.0 or higher
(Recommended: Ver .1.5 or high-
er)
 OPP (Object Push Profile)
Ver.1.1
 PBAP (Phone Book Access Pro-
file) Ver.1.0
If your cellular phone does not
support HFP, you cannot enter the
Bluetooth  phone, and take OPP or
PBAP service individually.
Please go to “http://www.toyota.lets-
talk.com/” to find approved
Bluetooth  phones for this system.
 Type A
Type B
By pushing the telephone switch above,
you can receive a call or hang up without
taking your hands off the steering wheel.

TELEPHONE AND INFORMATION
122
You can use the microphone above
when talking on the phone.
The other party’s voice outputs from the
front speaker. When the received calls or
received voice outputs, the audio from the
audio system or voice guidance from the
navigation system will be muted.
INFORMATION
Talk alternately with the other party
on the phone. If you talk at the
same time, the voice may not
reach each other. (It is not a mal-
function.)
Keep the volume of receiving voice
down. Otherwise, echo is com-
ing up. When you talk on the
phone, speak clearly tow ards the
microphone.
In the following situations, your voice may not reach the other
party.
 Driving on unpaved road. (Mak-
ing a traffic noise.)
 Driving at the high speed.
 The window is open.
 Turning the airconditioning
vents towards the microphone.
 The sound of the aircondition-
ing fan is loud.
 There is an effect from the net-
work of the cellular phone.

TELEPHONE AND INFORMATION
123
1Indicates the condition of
Bluetooth connection.
“Blue” indicates an excellent connection
to Bluetooth .
“Yellow” indicates a bad connection to
Bluetooth , resulting in possible deteriora-
tion of voice quality.
: No connection to Bluetooth .
2Indicates the amount of battery
charge left.
Empty Full
This is not displayed when the Bluetooth
is not connected.
The amount left does not always corre-
spond with the one of your cellular phone.
The amount of battery charge left may not
be displayed depending on the phone you
have. This system doesn’t have a charg-
ing function.
3Indicates the receiving area.
“Rm” is displayed when receiving in
Roaming area.
“Hm” is displayed when receiving in
Home area.
The receiving area may not be displayed
depending on the phone you have.
4Indicates the level of reception.

Poor Excellent
The level of reception does not always cor-
respond with the one of your cellular
phone.
The level of reception may not be dis-
played depending on the phone you have.
When you are out of the service area or in
a place inaccessible by radio waves, “No
Service” is displayed.
An antenna for the Bluetooth  connec-
tion is built in the display. The indica-
tion of the Bluetooth connection may
turn yellow and the system may not
function when you use the Bluetooth
phone in the following conditions and
places.
Your cellular phone is hiding behind the display (behind the seat or in the
glove box and console box).
Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed.

TELEPHONE AND INFORMATION
124
About the phonebook in this system
The following data is stored for every regis-
tered phone. When another phone is con-
necting, you cannot read the registered
data.
Phonebook data
Voice tag
All of call history
Speed dial
When you delete the phone, the
above −mentioned data is also deleted.
When you release your car:
A lot of personal data is registered
when you use the Handsfree system.
When you release your car, initialize
your data. (See “ Delete personal
data” on page 210.)
If you initialize it, the former state will never
come back again. Pay much attention
when initializing the data.
You can initialize the following data in the
system.
Phonebook data
Call history data
Speed dial data
Voice tag data
Bluetooth  phone data
Volume setting
Details setting

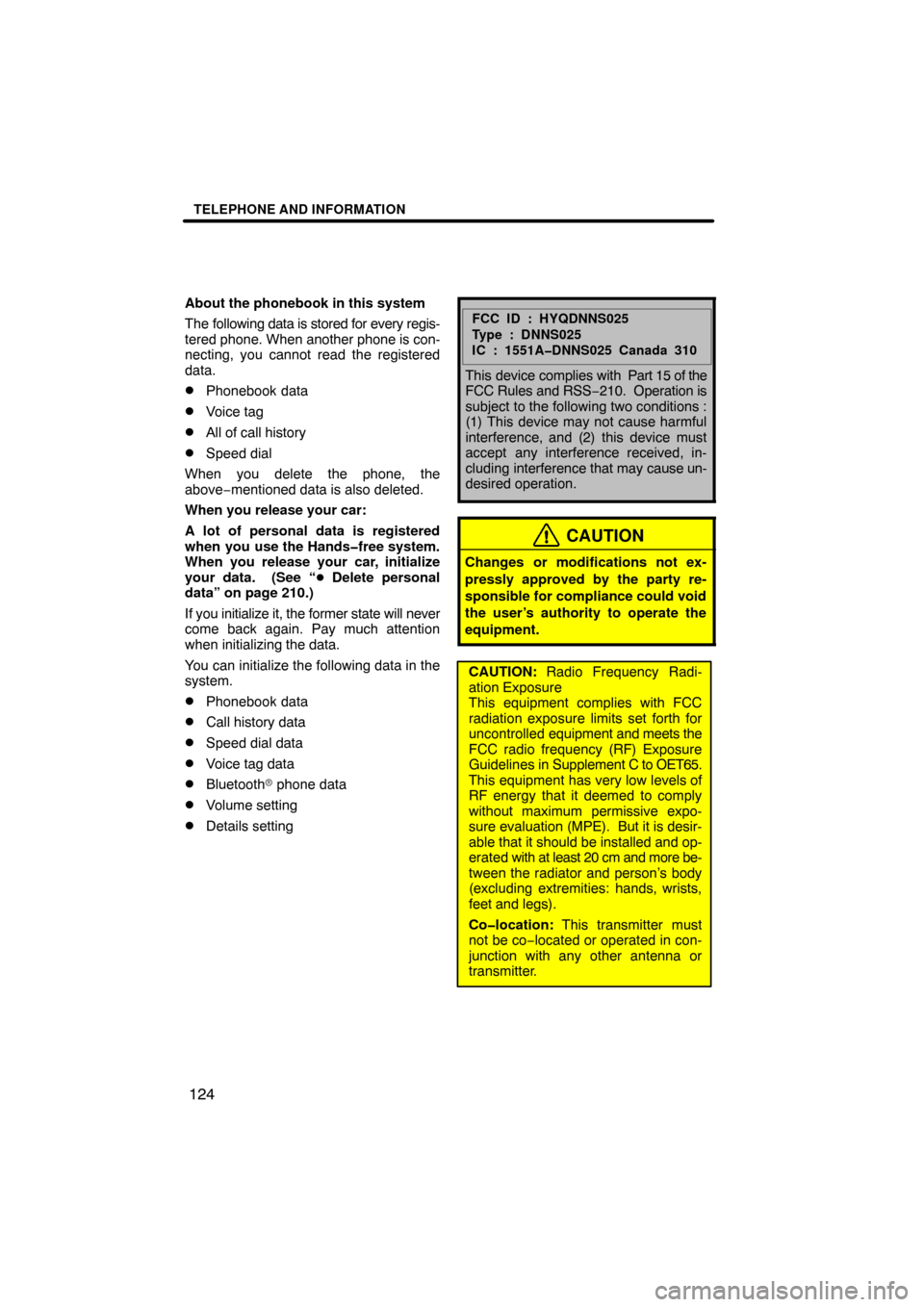

FCC ID : HYQDNNS025
Type : DNNS025
IC : 1551ADNNS025 Canada 310
This device complies with Part 15 of the
FCC Rules and RSS −210. Operation is
subject to the following two conditions :
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, in-
cluding interference that may cause un-
desired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.
CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive expo-
sure evaluation (MPE). But it is desir-
able that it should be installed and op-
erated with at least 20 cm and more be-
tween the radiator and person’s body
(excluding extremities: hands, wrists,
feet and legs).
Colocation: This transmitter must
not be co −located or operated in con-
junction with any other antenna or
transmitter.

TELEPHONE AND INFORMATION
125

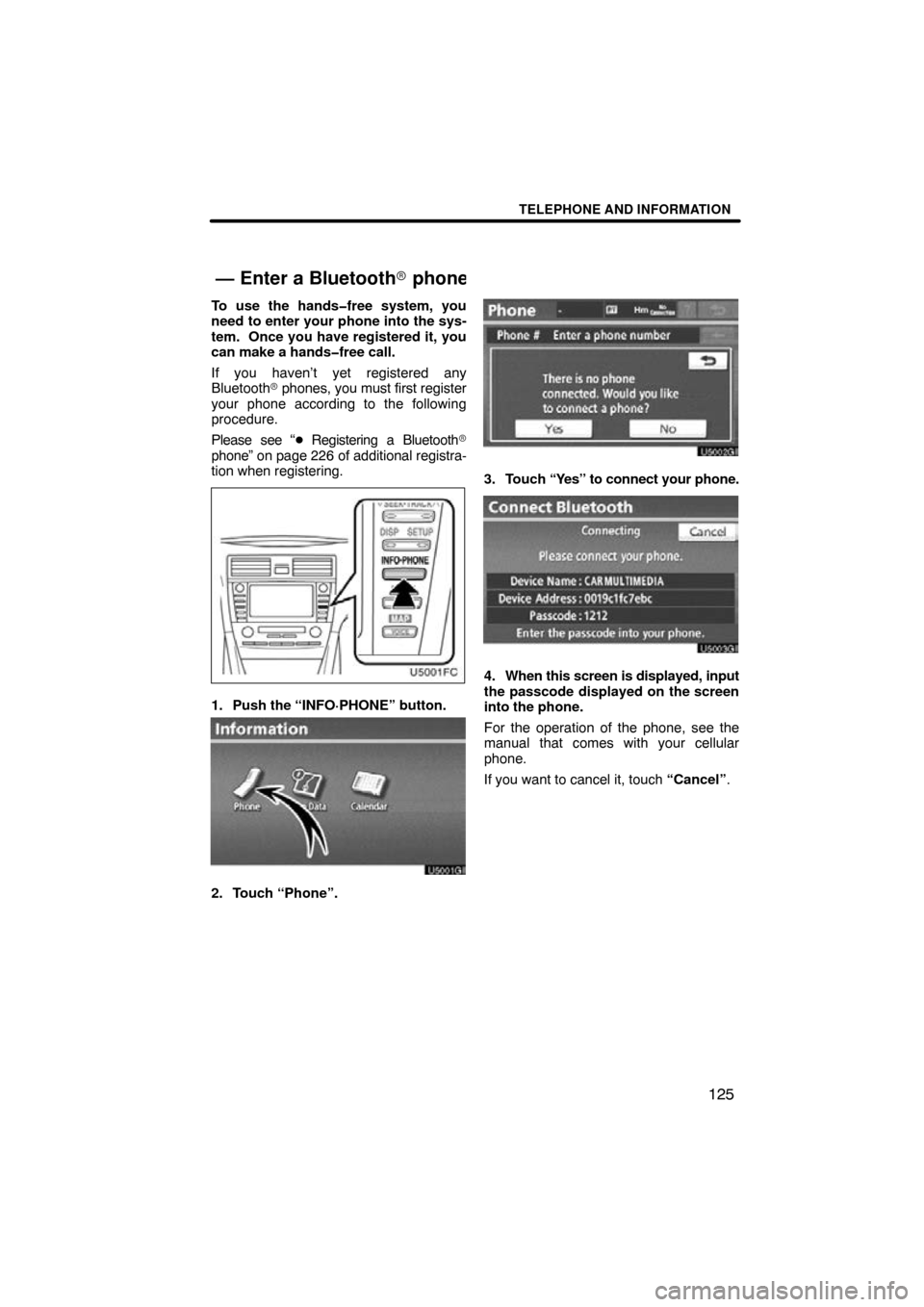

To use the handsfree system, you
need to enter your phone into the sys-
tem. Once you have registered it, you
can make a handsfree call.
If you haven’t yet registered any
Bluetooth phones, you must first register
your phone according to the following
procedure.
Please see “  Registering a Bluetooth
phone” on page 226 of additional registra-
tion when registering.
1. Push the “INFO·PHONE” button.
2. Touch “Phone”.
3. Touch “Y es” to connect your phone.
4. When this screen is displayed, input
the passcode displayed on the screen
into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
— Enter a Bluetooth phone

TELEPHONE AND INFORMATION
126

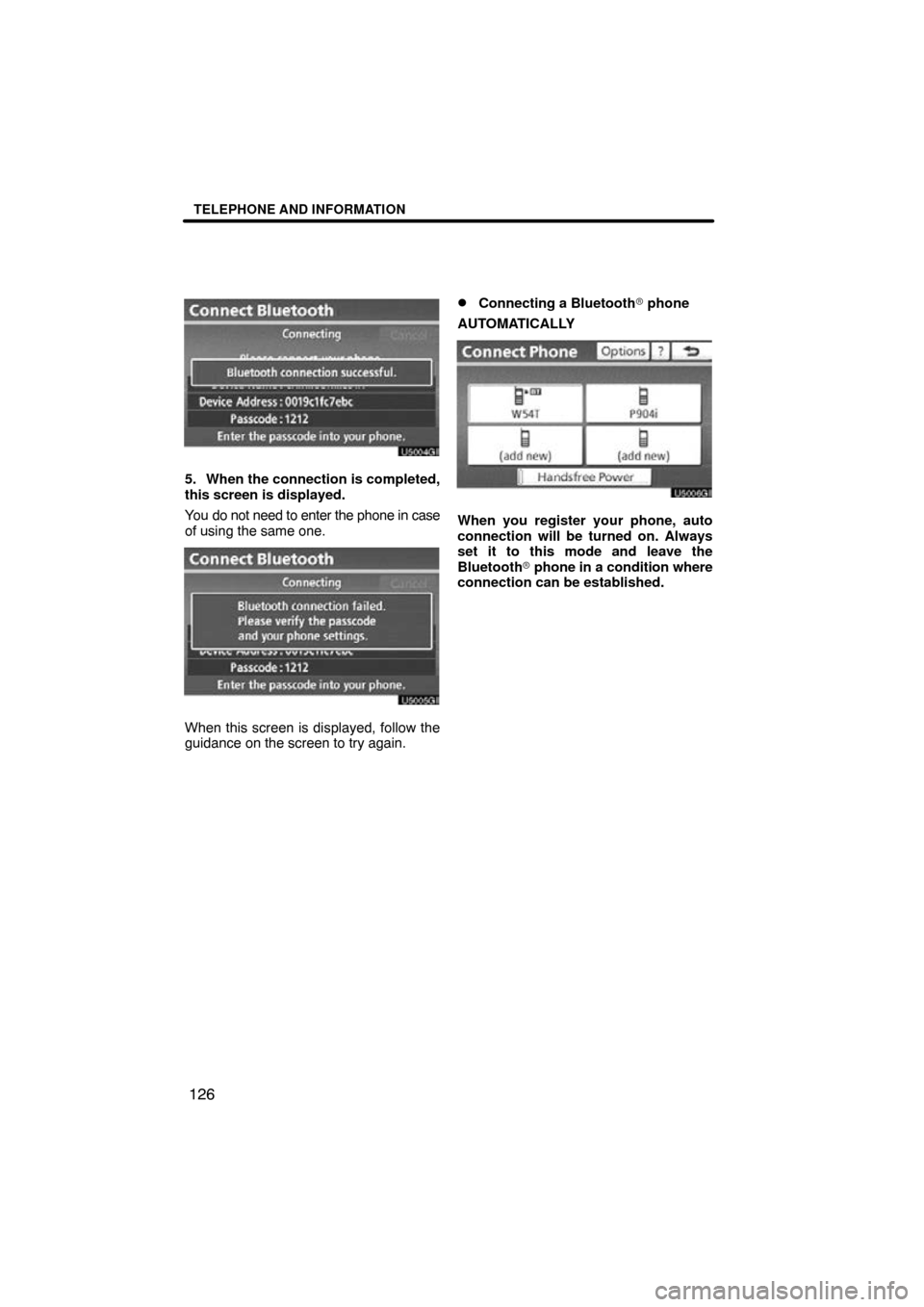

5. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case
of using the same one.
When this screen is displayed, follow the
guidance on the screen to try again.
Connecting a Bluetooth phone
AUTOMATICALLY
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the
Bluetooth  phone in a condition where
connection can be established.

TELEPHONE AND INFORMATION
127
Vehicles with smart key system—
When the “ENGINE START STOP”
switch is in ACCESSORY or IGNITION
ON mode, a nearby cellular phone you
have registered is searched for.
Next, the system automatically con-
nects with the latest of the phones con-
nected to in the past.
Then, the connection result is dis-
played.
This screen appears when the Bluetooth
phone is first connected after the “ENGINE
START STOP” switch is in ACCESSORY
or IGNITION ON mode.
Vehicles without smart key system—
When the engine switch is in the “ACC”
or “ON” position, a nearby cellular
phone you have registered is searched
for.
Next, the system automatically con-
nects with the latest of the phones con-
nected to in the past.
Then, the connection result is dis-
played.
This screen appears when the Bluetooth
phone is first connected after the engine
switch is in the “ACC” or “ON” position.
INFORMATION
It may take time, the phone connec-
tion is carried out during Bluetooth
audio play.

TELEPHONE AND INFORMATION
128

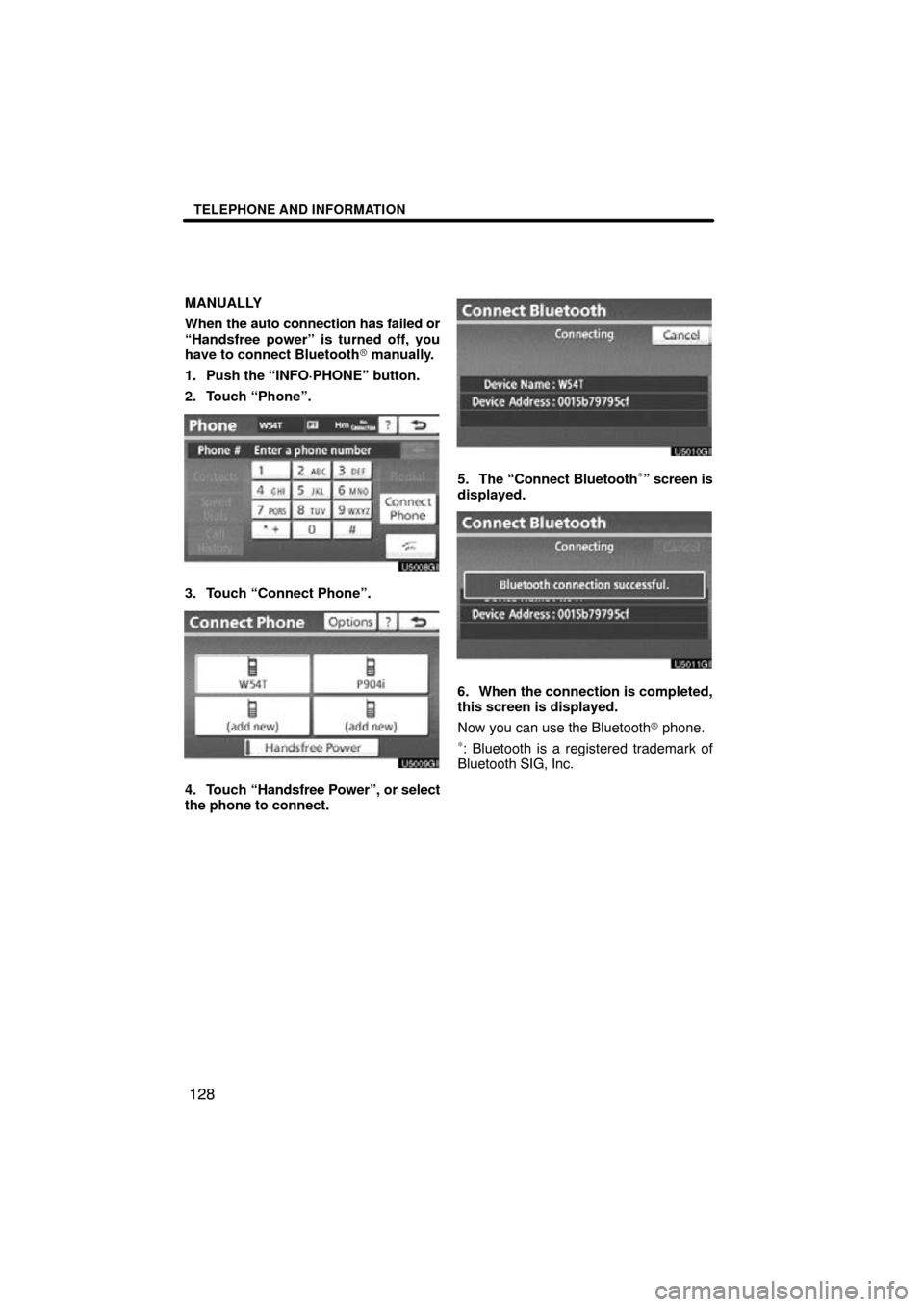

MANUALLY
When the auto connection has failed or
“Handsfree power” is turned off, you
have to connect Bluetooth  manually.
1. Push the “INFO·PHONE” button.
2. Touch “Phone”.
3. Touch “Connect Phone”.
4. Touch “Handsfree Power”, or select
the phone to connect.
5. The “Connect Bluetooth∗” screen is
displayed.
6. When the connection is completed,
this screen is displayed.
Now you can use the Bluetooth  phone.
∗: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.

TELEPHONE AND INFORMATION
129
When you connect the phone while
Bluetooth audio is playing
This screen is displayed, and the
Bluetooth  audio will stop temporarily.
Reconnecting the Bluetooth
phone
Vehicles with smart key system—
If the Bluetooth phone is
disconnected with a poor reception
from the Bluetooth network when the
“ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode,
the system automatically reconnects
the Bluetooth phone. In this case, the
connection result is not displayed.
Vehicles without smart key system—
If the Bluetooth phone is discon-
nected with a poor reception from the
Bluetooth  network when the engine
switch is in the “ACC” or “ON” position
the system automatically reconnects
the Bluetooth phone. In this case, the
connection result is not displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth  phone again.
Enter the Bluetooth  phone.

TELEPHONE AND INFORMATION
130
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 6 methods
described below.
By dial
You can call by inputting the phone
number.
This cannot be operated while driving.
1. Push the “INFO·PHONE” button.
You can also push
of the steering
wheel to display the “Phone” screen.
2. Touch “Phone”.
3. Touch the desired key to input the
phone number.
Each time you touch
, an inputted
digit is deleted.
When you touch “Redial” , the number you
called last is inputted.
Touch
or push of the steering
wheel.
— Call on the Bluetooth
phone
