Page 1 of 26

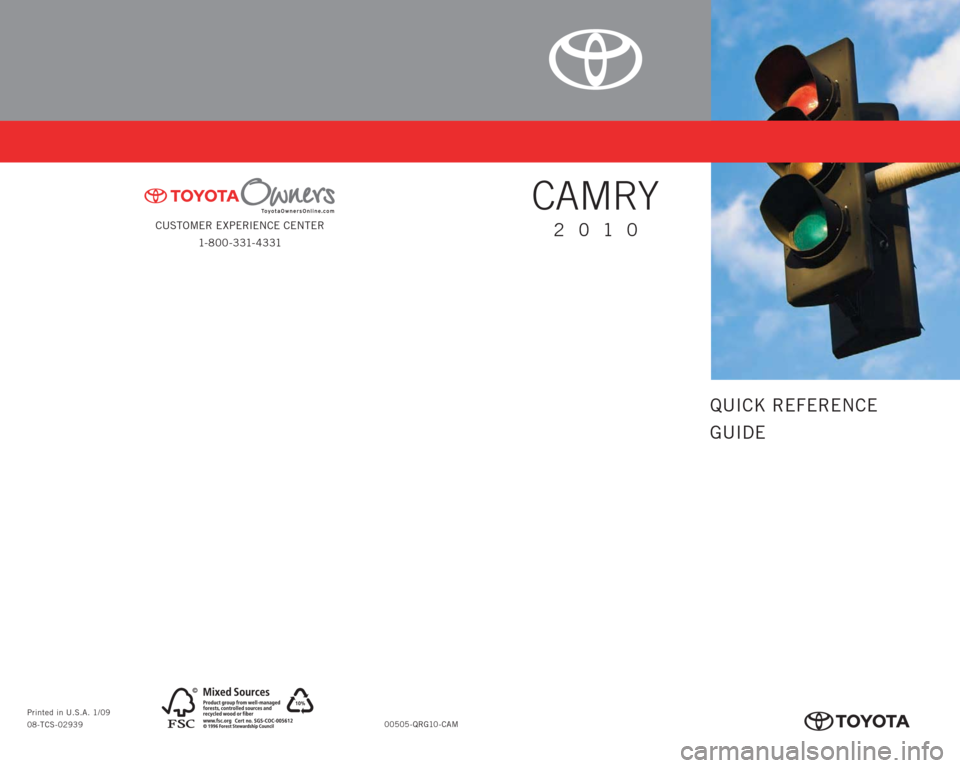

TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
00505-QRG10-CAM Printed in U.S.A. 1/09
08-TCS-02939
413262M2.indd   21/8/09   10:25:07 AM
QUICK REFERENCE
GUIDE
CAMRY
2010
413262M2_r1.indd   31/12/0

Page 2 of 26

TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide 2010
Camry
!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use

Page 3 of 26

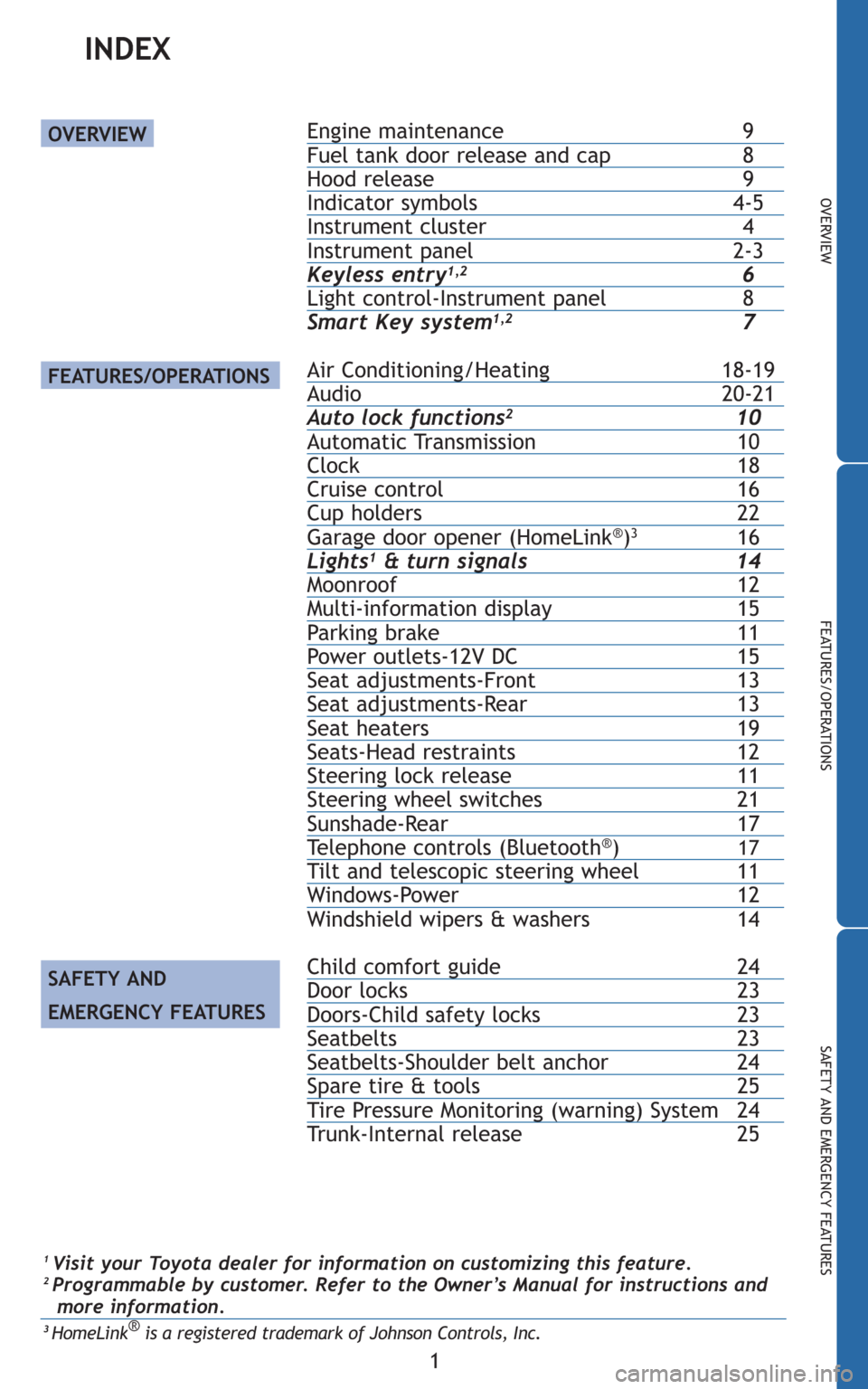

TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide 1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap 8Hood release  9Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyle

Page 4 of 26

TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide 2
OVERVIEW
Instrument panel
Steering wheel audio controls2
Steering wheel climate controls1
Multi-information display button1
Voice command button1,2
Telephone controls1,2
“ENGINE START STOP” butt

Page 5 of 26

TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide 3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Audio system2
Tire Pressure Monitoring (warning) System
Cruise control
Tilt and telescopic steering lock release
VSC OFF switch
Power outsi

Page 6 of 26

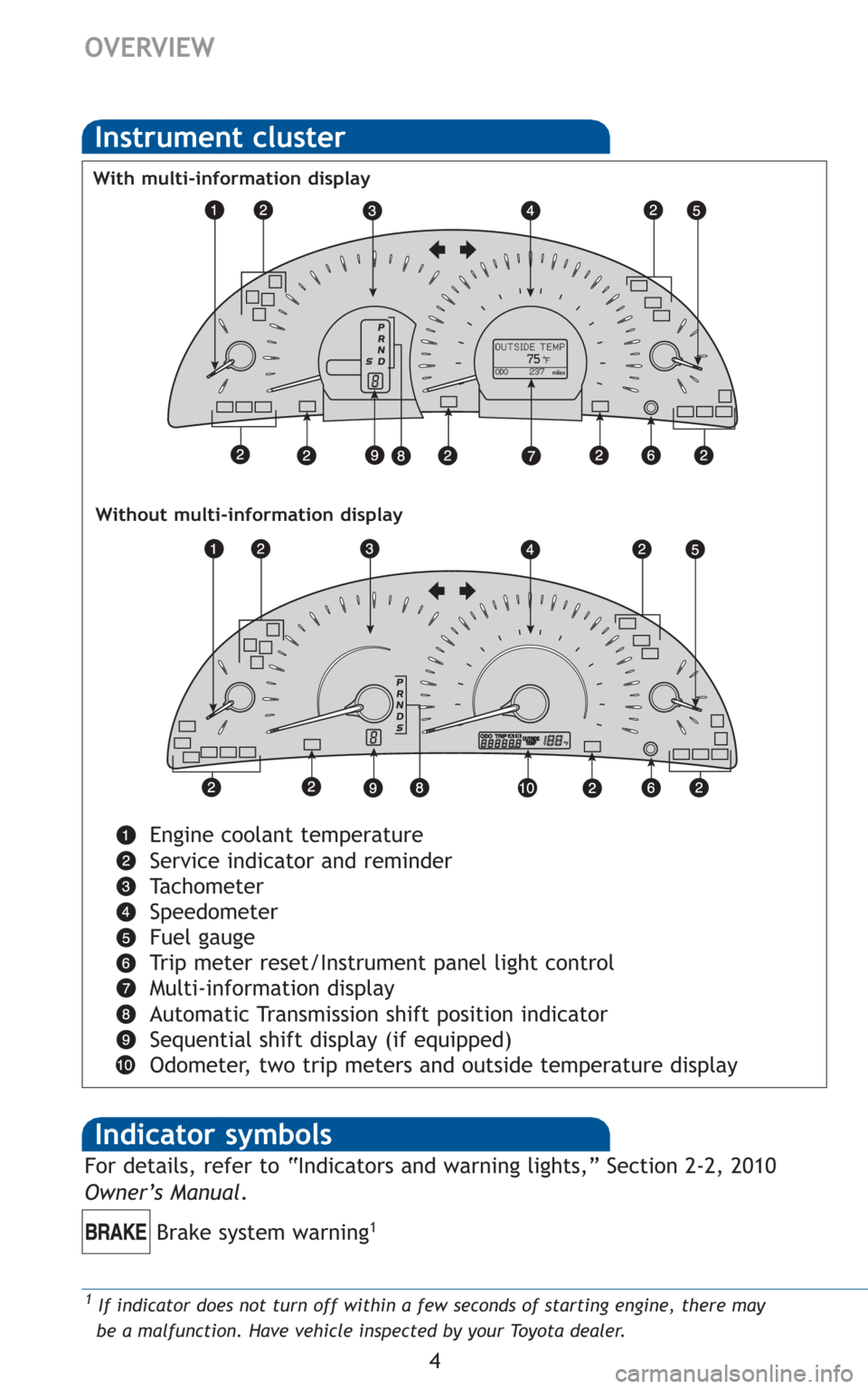

TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide 4
OVERVIEW
Instrument cluster
Engine coolant temperature
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Multi-information display
Au

Page 7 of 26

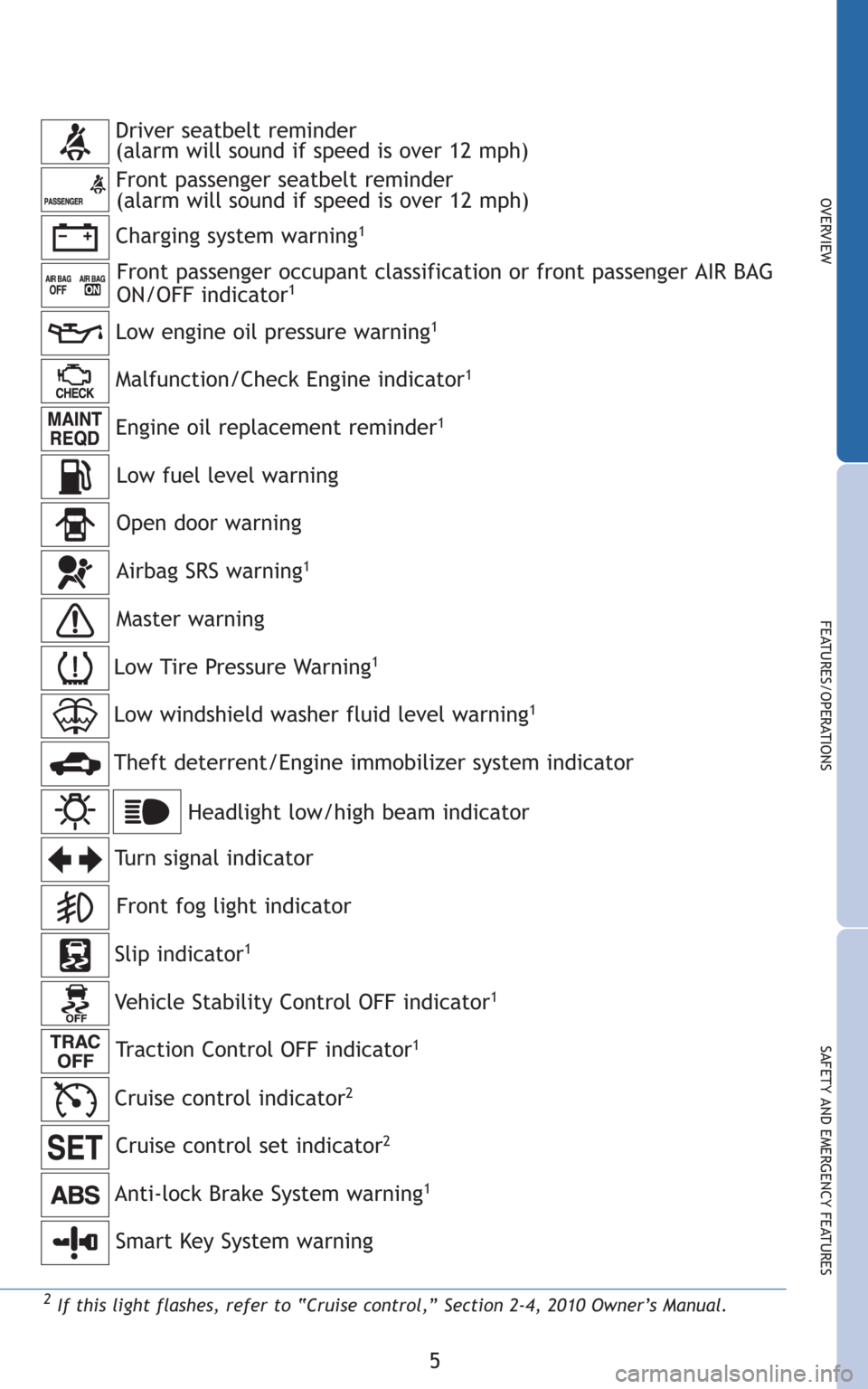

TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide 5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Charging system warning1
Front passenger occupant classification or front passenger AIR BAG
ON/OFF indicator1
2If this light flashes, refer

Page 8 of 26

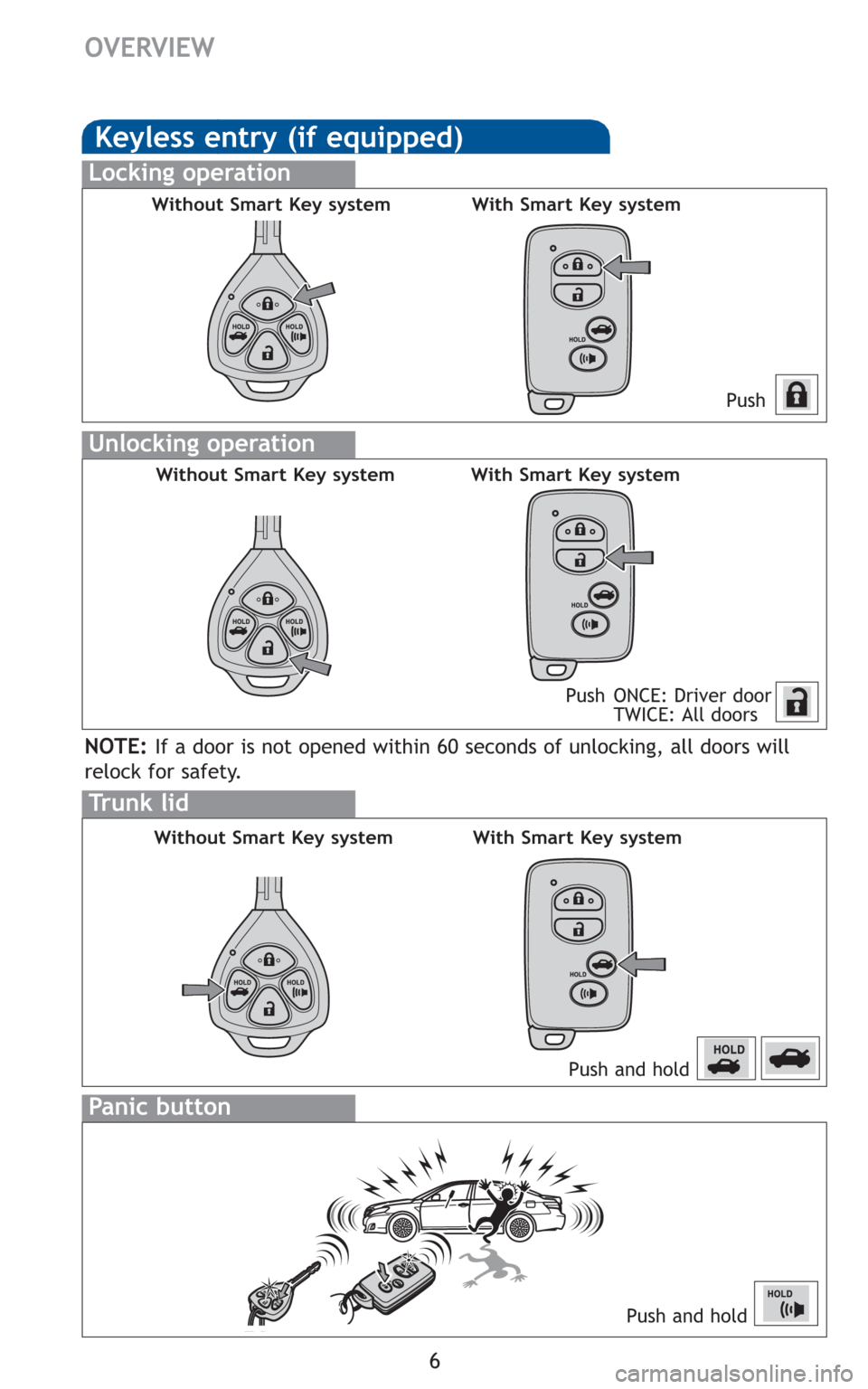

TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide 6
OVERVIEW
Keyless entry (if equipped)
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Without Smart Key system With Smart Key system
Without Smart Key system With S

Page 9 of 26

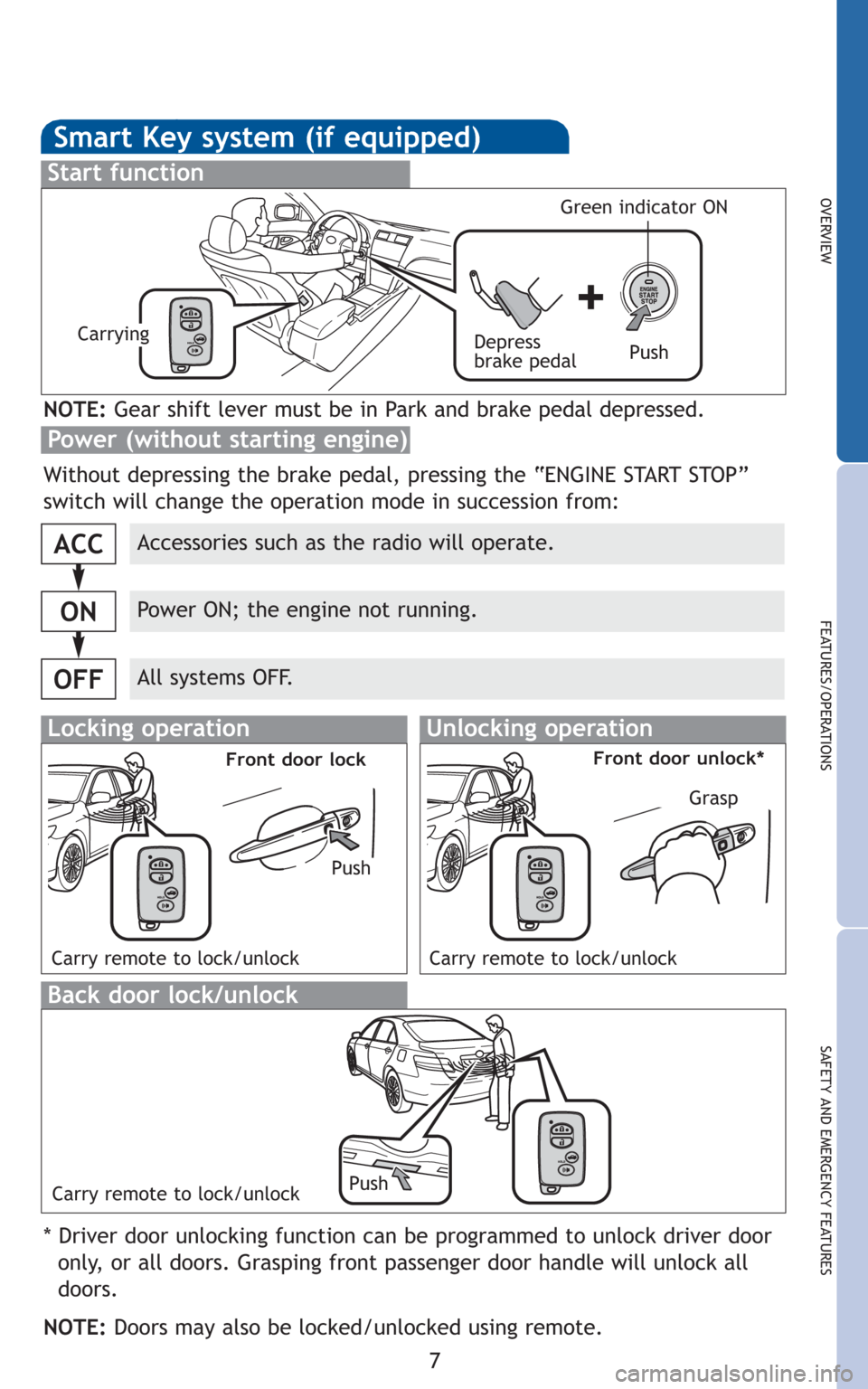

TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide 7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF

Page 10 of 26

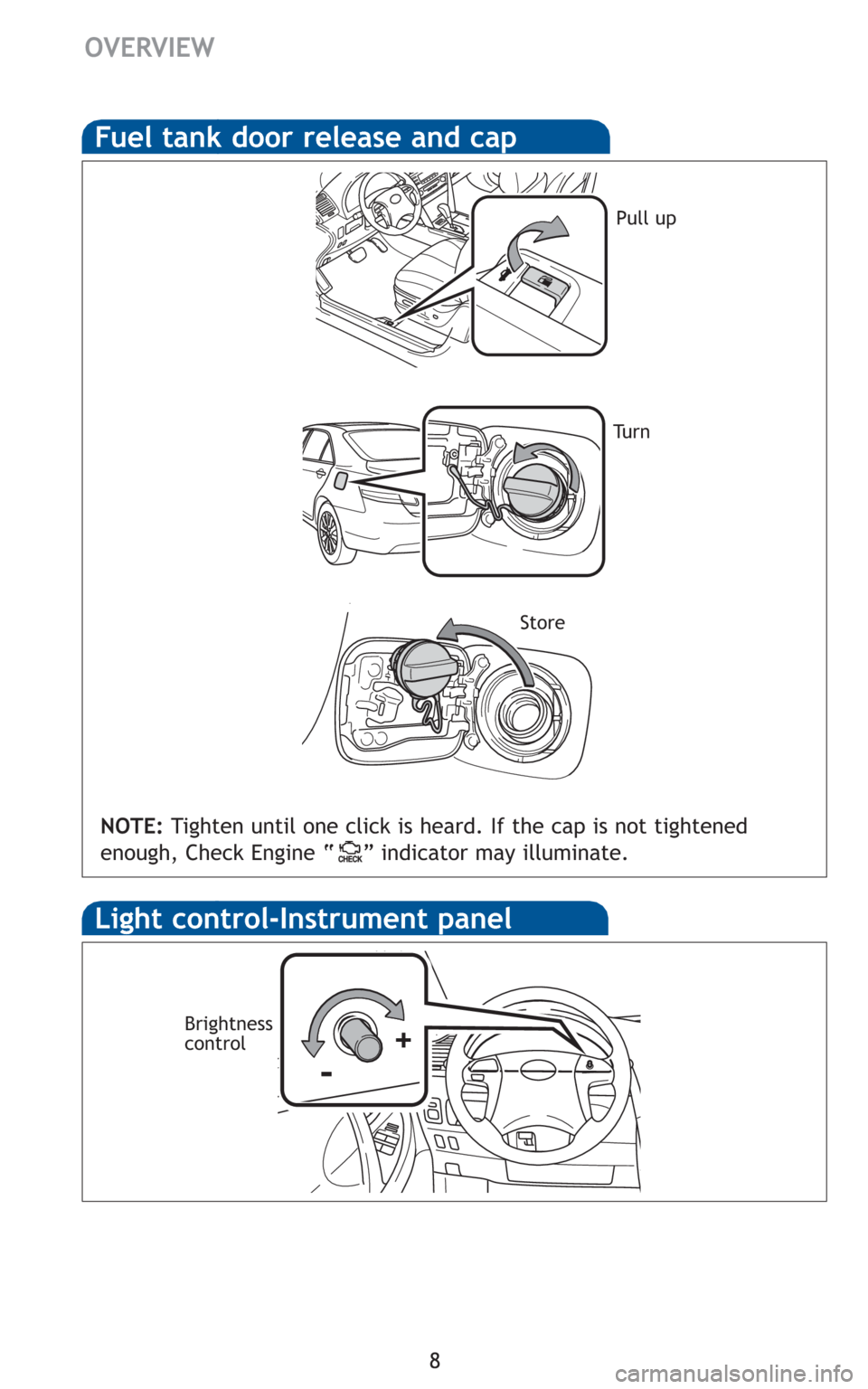

TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide 8
Fuel tank door release and cap
NOTE:Tighten until one click is heard. If the cap is not tightened
enough, Check Engine “    ” indicator may illuminate.
Pull up
Tu r n
Store
Light control-Instrum
