maintenance TOYOTA CAMRY 2010 XV40 / 8.G Navigation Manual

8
8 Setup
General settings206
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Clock settings 211
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Voice settings 212
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Navigation settings 214
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Detailed navigation settings 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telephone settings 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Volume setting 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Manage phone 226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Phonebook 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Setting the phonebook 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speed dials setting 243
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting call history 249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the voice tag 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Details 259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio settings 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Select portable player 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Settings Bluetooth  audio 265
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle settings 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Maintenance 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
9 Appendix
Limitations of the navigation system 276
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 278
. . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 287
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Index 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .

19
During route guidancePage
Pausing route guidance89
Adjusting route guidance volume213
Deleting the destination69, 83
Displaying the entire route map85
Useful functions
Address bookPage
Registering your own address book entries106
Marking icons on the map108
InformationPage
Displaying vehicle maintenance270
Displaying the calendar140
Handsfree system (for cellular phone)Page
Initiating Bluetooth125
Making a call on the Bluetooth  phone130
Receiving a call on the Bluetooth  phone137
Speech command systemPage
Operating the system with your voice44

22
The items shown on the “Setup” screen can be set. To display the “Setup” screen, push
the “SETUP” button.
1“General”
Settings are available for language selec-
tion, operation sounds, automatic screen
change, etc. 206
. . . . . . . . . . . . . . . . . . . .
2“Clock”
Used for changing settings for time zones,
daylight saving time, etc. 211
. . . . . . . . . .
3“Voice”
Voice guidance can be set. 212 . . . . . . .
4“Navi.”
Settings are available for average cruising
speed, displayed screen contents, POI
icon categories, etc. 214
. . . . . . . . . . . . . .
5“Vehicle”
Settings are available for vehicle informa-
tion such as maintenance information. 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6“Audio”
Settings are available for portable audio
devices, Bluetooth  audio devices etc.
262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Phone”
Bluetooth  phones and phone numbers
can be registered, and the receiver volume
can be adjusted. 224
. . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

BASIC FUNCTIONS
27

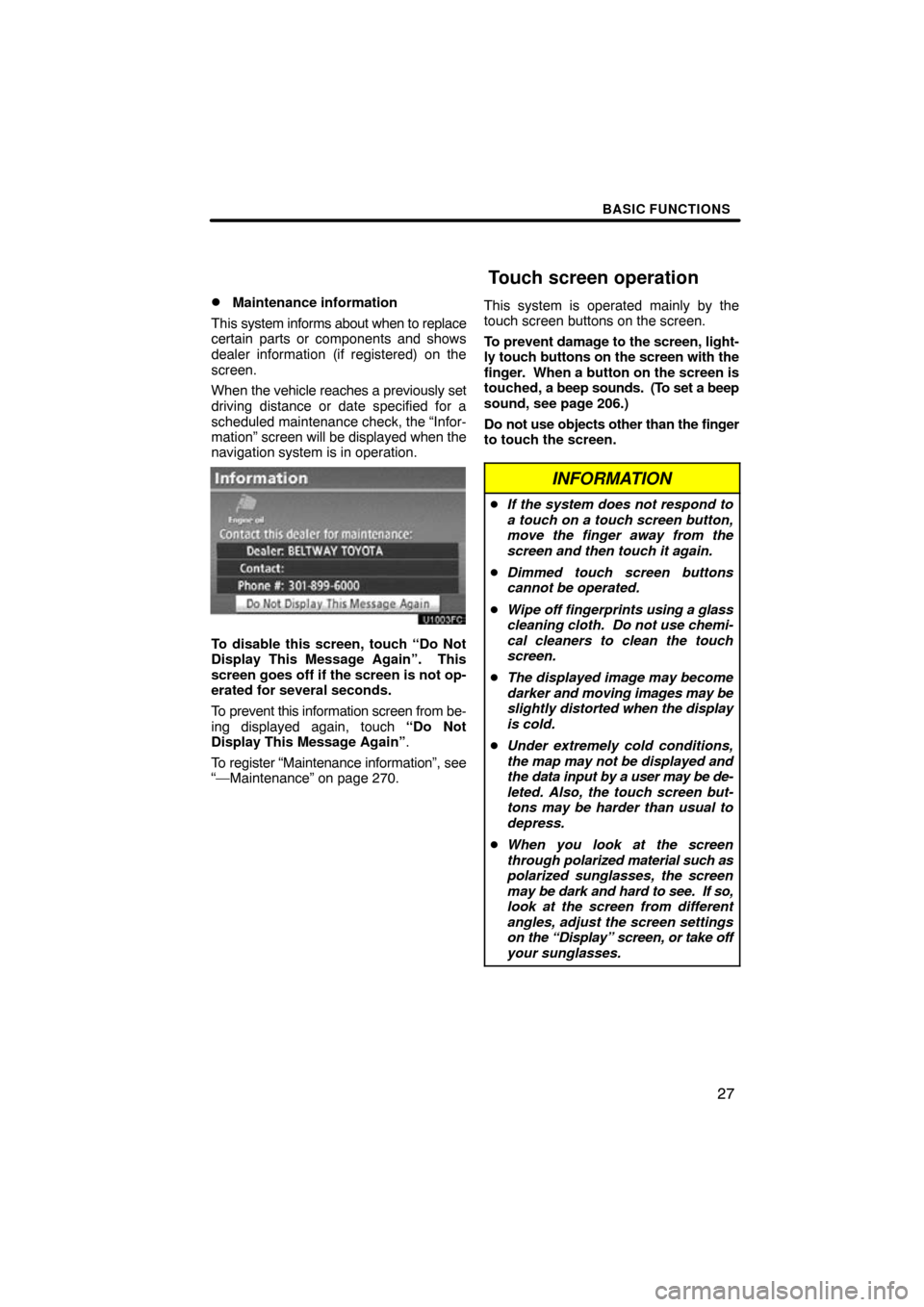

Maintenance information
This system informs about when to replace
certain parts or components and shows
dealer information (if registered) on the
screen.
When the vehicle reaches a previously set
driving distance or date specified for a
scheduled maintenance check, the “Infor-
mation” screen will be displayed when the
navigation system is in operation.
To disable this screen, touch “Do Not
Display This Message Again”. This
screen goes off if the screen is not op-
erated for several seconds.
To prevent this information screen from be-
ing displayed again, touch “Do Not
Display This Message Again” .
To register “Maintenance information”, see
“—Maintenance” on page 270. This system is operated mainly by the
touch screen buttons on the screen.
To prevent damage to the screen, light-
ly touch buttons on the screen with the
finger. When a button on the screen is
touched, a beep sounds. (To set a beep
sound, see page 206.)
Do not use objects other than the finger
to touch the screen.
INFORMATION

If the system does not respond to
a touch on a touch screen button,
move the finger away from the
screen and then touch it again.
 Dimmed touch screen buttons
cannot be operated.
 Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.
 The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.
 Under extremely cold conditions,
the map may not be displayed and
the data input by a user may be de-
leted. Also, the touch screen but-
tons may be harder than usual to
depress.
 When you look at the screen
through polarized material such as
polarized sunglasses, the screen
may be dark and hard to see. If so,
look at the screen from different
angles, adjust the screen settings
on the “Display” screen, or take off
your sunglasses.
Touch screen operation

SETUP
210

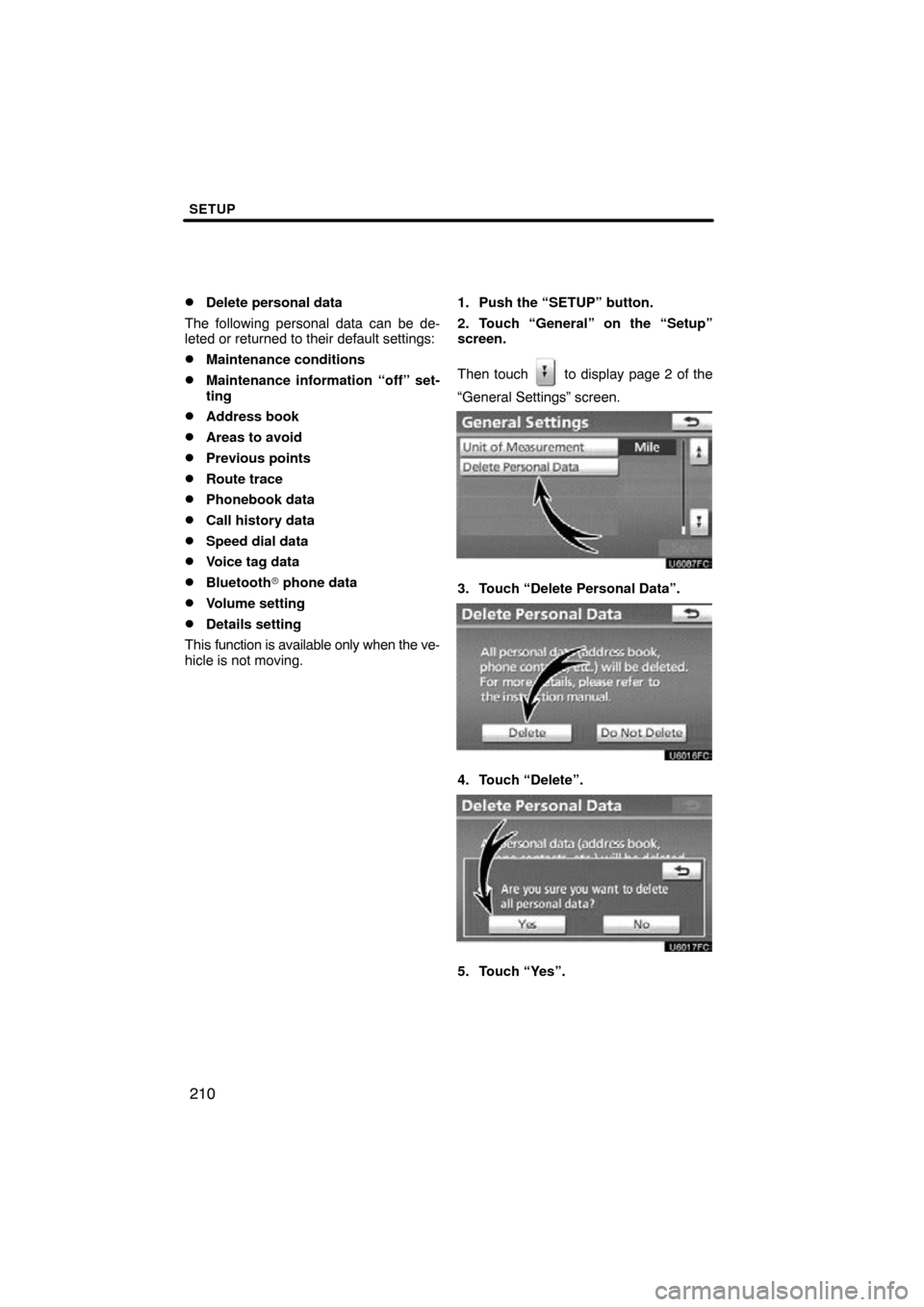

Delete personal data
The following personal data can be de-
leted or returned to their default settings:
Maintenance conditions
Maintenance information “off” set-
ting
Address book
Areas to avoid
Previous points
Route trace
Phonebook data
Call history data
Speed dial data
Voice tag data
Bluetooth  phone data
Volume setting
Details setting
This function is available only when the ve-
hicle is not moving. 1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
Then touch
to display page 2 of the
“General Settings” screen.
3. Touch “Delete Personal Data”.
4. Touch “Delete”.
5. Touch “Yes”.

SETUP
270

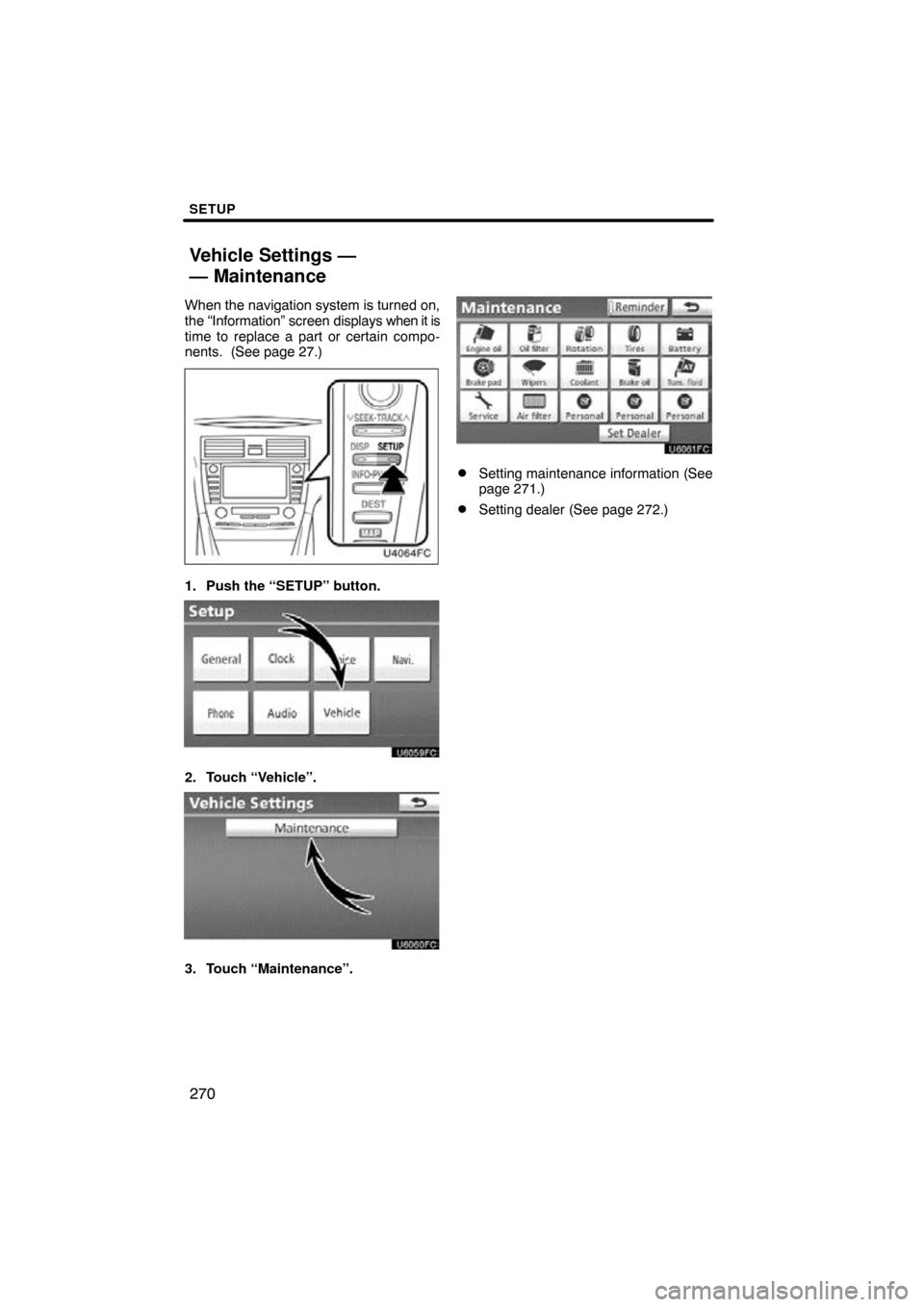

When the navigation system is turned on,
the “Information” screen displays when it is
time to replace a part or certain compo-
nents. (See page 27.)
1. Push the “SETUP” button.
2. Touch “Vehicle”.
3. Touch “Maintenance”.
Setting maintenance information (See
page 271.)
Setting dealer (See page 272.)
Vehicle Settings —
— Maintenance

SETUP
271

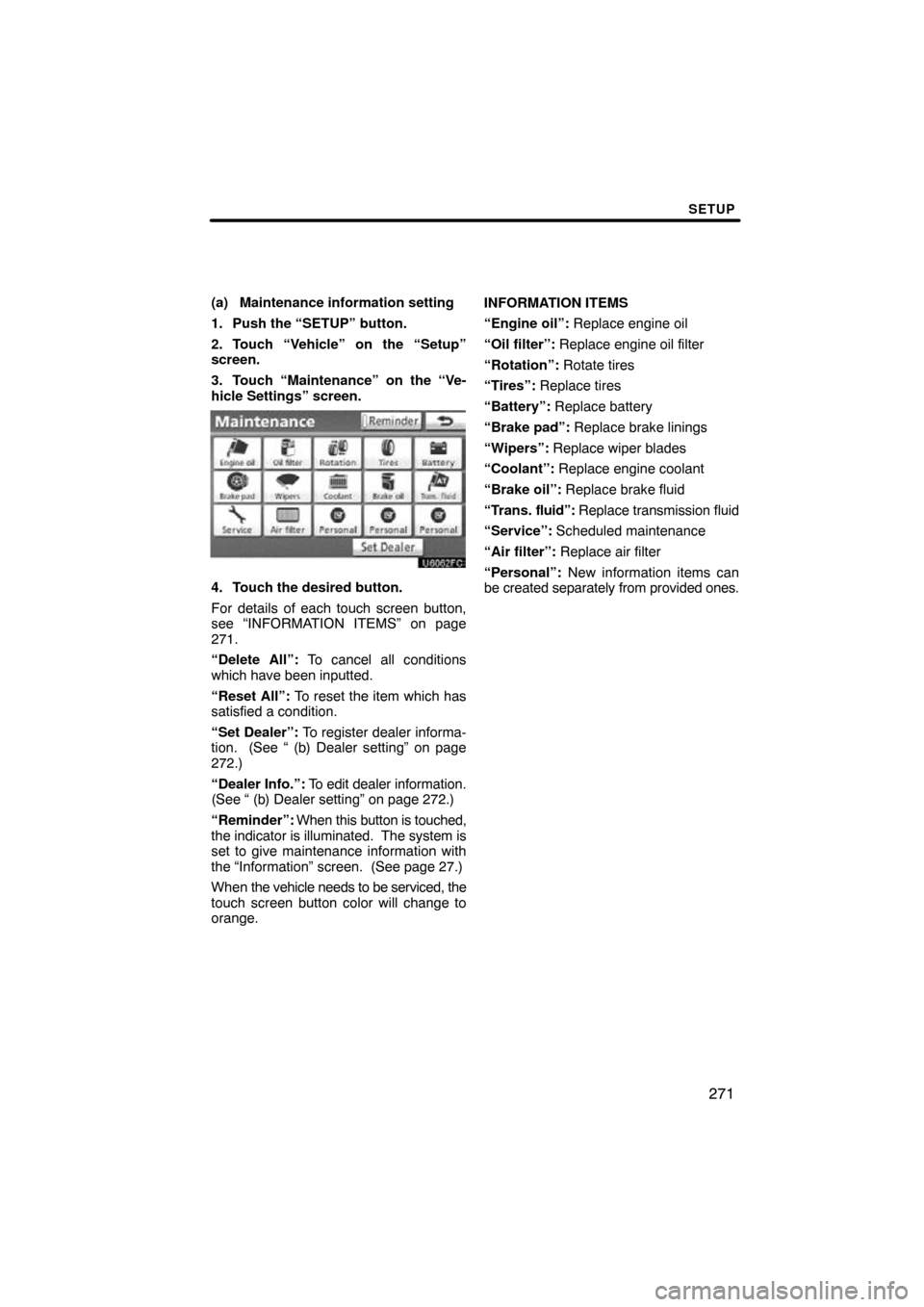

(a) Maintenance information setting
1. Push the “SETUP” button.
2. Touch “Vehicle” on the “Setup”
screen.
3. Touch “Maintenance” on the “Ve-
hicle Settings” screen.
4. Touch the desired button.
For details of each touch screen button,
see “INFORMATION ITEMS” on page
271.
“Delete All”: To cancel all conditions
which have been inputted.
“Reset All”: To reset the item which has
satisfied a condition.
“Set Dealer”: To register dealer informa-
tion. (See “ (b) Dealer setting” on page
272.)
“Dealer Info.”: To edit dealer information.
(See “ (b) Dealer setting” on page 272.)
“Reminder”: When this button is touched,
the indicator is illuminated. The system is
set to give maintenance information with
the “Information” screen. (See page 27.)
When the vehicle needs to be serviced, the
touch screen button color will change to
orange. INFORMATION ITEMS
“Engine oil”: Replace engine oil
“Oil filter”: Replace engine oil filter
“Rotation”:
Rotate tires
“Tires”: Replace tires
“Battery”: Replace battery
“Brake pad”: Replace brake linings
“Wipers”: Replace wiper blades
“Coolant”: Replace engine coolant
“Brake oil”: Replace brake fluid
“Trans. fluid”: Replace transmission fluid
“Service”: Scheduled maintenance
“Air filter”: Replace air filter
“Personal”: New information items can
be created separately from provided ones.

SETUP
272

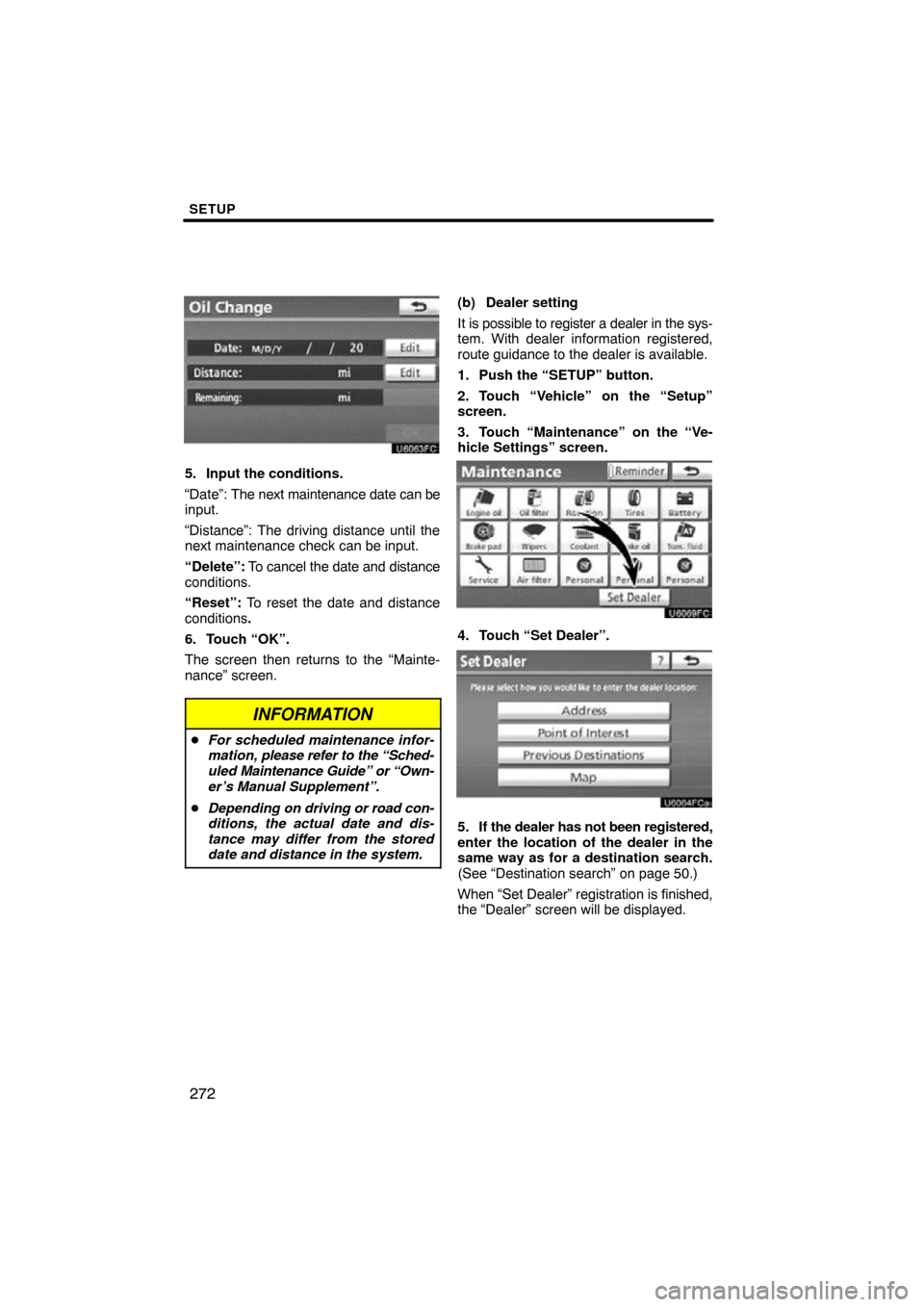

5. Input the conditions.
“Date”: The next maintenance date can be
input.
“Distance”: The driving distance until the
next maintenance check can be input.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance
conditions .
6. Touch “OK”.
The screen then returns to the “Mainte-
nance” screen.
INFORMATION
 For scheduled maintenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.
 Depending on driving or road con-
ditions, the actual date and dis-
tance may differ from the stored
date and distance in the system.
(b) Dealer setting
It is possible to register a dealer in the sys-
tem. With dealer information registered,
route guidance to the dealer is available.
1. Push the “SETUP” button.
2. Touch “Vehicle” on the “Setup”
screen.
3. Touch “Maintenance” on the “Ve-
hicle Settings” screen.
4. Touch “Set Dealer”.
5. If the dealer has not been registered,
enter the location of the dealer in the
same way as for a destination search.
(See “Destination search” on page 50.)
When “Set Dealer” registration is finished,
the “Dealer” screen will be displayed.

INDEX
292
H
Hands
−free system 120
. . . . . . . . . . . . . . . .
Hands −free system for
cellular phone 120
. . . . . . . . . . . . . . . . . . .
Heading −up 10,43
. . . . . . . . . . . . . . . . . . . . . .
Heading −up symbol 43
. . . . . . . . . . . . . . . . .
Help 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HFP (Hands Free Profile) 120
. . . . . . . . . . .
Home 12,101
. . . . . . . . . . . . . . . . . . . . . . . . . .
I
If the player malfunctions 173
. . . . . . . . . . .
Important information about
this manual 3
. . . . . . . . . . . . . . . . . . . . . . .
Incoming call display 260
. . . . . . . . . . . . . . .
INFO·PHONE button 10,23
. . . . . . . . . . . . . .
Information about the icon 35
. . . . . . . . . . . .
Information items 271
. . . . . . . . . . . . . . . . . .
Information screen 23
. . . . . . . . . . . . . . . . . .
Initial screen 26
. . . . . . . . . . . . . . . . . . . . . . .
Initializing the Bluetooth
audio settings 269
. . . . . . . . . . . . . . . . . . .
Initializing the Bluetooth phone
settings 258
. . . . . . . . . . . . . . . . . . . . . . . .
Initializing the detailed phone
settings 262
. . . . . . . . . . . . . . . . . . . . . . . .
Input numbers 28
. . . . . . . . . . . . . . . . . . . . . .
Input symbols 29
. . . . . . . . . . . . . . . . . . . . . .
Inputting letters and numbers/List
screen operation 28
. . . . . . . . . . . . . . . . . .
Inserting discs 161
. . . . . . . . . . . . . . . . . . . . .
Interrupt call 139
. . . . . . . . . . . . . . . . . . . . . .
Intersection & Freeway button 20,65
. . . . . .
Intersection guidance screen 39,77
. . . . . . .
iPod  compatibility 190
. . . . . . . . . . . . . . . . .
iPod  player operation 181
. . . . . . . . . . . . . .
L
Last 5 cities 55,61
. . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation
system 276
. . . . . . . . . . . . . . . . . . . . . . . . .
List 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
List All Categories button 59,62,91,219
. . .
List screen operation 28
. . . . . . . . . . . . . . . .
Listening to satellite radio 156
. . . . . . . . . . .
Listening to the radio 150
. . . . . . . . . . . . . . .
Local POI list 92
. . . . . . . . . . . . . . . . . . . . . . .
M
Maintenance 270
. . . . . . . . . . . . . . . . . . . . . .
Maintenance information 27
. . . . . . . . . . . . .
Maintenance information setting 271 . . . . . .
Manage phone 226
. . . . . . . . . . . . . . . . . . . .
Map button 20,68
. . . . . . . . . . . . . . . . . . . . . .
Map Data button 23
. . . . . . . . . . . . . . . . . . . .
Map database information and updates 278
. . . . . . . . . . . . . . . . . . . .
Map DVD− ROM 287
. . . . . . . . . . . . . . . . . . .
Map icons 43
. . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 41
. . . . . . . . . . . . . . . . . . . . . . . . .
Map screen 10
. . . . . . . . . . . . . . . . . . . . . . . .
Map screen operation 33
. . . . . . . . . . . . . . .
MAP/VOICE button 10,33,80
. . . . . . . . . . . .
Mark button 10,34
. . . . . . . . . . . . . . . . . . . . . .
Memory point names 110
. . . . . . . . . . . . . . . .
Message button 152
. . . . . . . . . . . . . . . . . . .
Microphone 45,122
. . . . . . . . . . . . . . . . . . . . .
Mid 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MP3 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
My places 99
. . . . . . . . . . . . . . . . . . . . . . . . .
N
Names of areas to be avoided 115 . . . . . . . .
Navi. button 22,100
. . . . . . . . . . . . . . . . . . . . .
Navigation settings 100,214 . . . . . . . . . . . . . .
Navigation settings screen 100 . . . . . . . . . .
Navigation system function index 18. . . . . .
North−up 10,43
. . . . . . . . . . . . . . . . . . . . . . . .
North−up symbol 43
. . . . . . . . . . . . . . . . . . .
O
Off function 10,220
. . . . . . . . . . . . . . . . . . . . .
One−touch scroll 33
. . . . . . . . . . . . . . . . . . .
Operating a Bluetooth
audio player 173
. . . . . . . . . . . . . . . . . . . .
Operating a MP3/WMA disc 168
. . . . . . . . .
Operating by voice recognition 139,233
. . . . . . . . . . . . . . . . . . .
OPP (Object Push Profile) 120
. . . . . . . . . .
Orientation of the map 43
. . . . . . . . . . . . . . .
P
Pause guidance 89 . . . . . . . . . . . . . . . . . . . .
Pausing and resuming guidance 89 . . . . . . .
PBAP (Phone Book
Access Profile) 120 . . . . . . . . . . . . . . . . . .
Phone button 22. . . . . . . . . . . . . . . . . . . . . . .
Phonebook 131,234 . . . . . . . . . . . . . . . . . . . .
Playing a Bluetooth  audio 178 . . . . . . . . . .
