set clock TOYOTA CAMRY 2010 XV40 / 8.G Navigation Manual

8
8 Setup
General settings206
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Clock settings 211
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Voice settings 212
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Navigation settings 214
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Detailed navigation settings 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telephone settings 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Volume setting 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Manage phone 226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Phonebook 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Setting the phonebook 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speed dials setting 243
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting call history 249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the voice tag 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Details 259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio settings 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Select portable player 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Settings Bluetooth  audio 265
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle settings 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Maintenance 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
9 Appendix
Limitations of the navigation system 276
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 278
. . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 287
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Index 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .

22
The items shown on the “Setup” screen can be set. To display the “Setup” screen, push
the “SETUP” button.
1“General”
Settings are available for language selec-
tion, operation sounds, automatic screen
change, etc. 206
. . . . . . . . . . . . . . . . . . . .
2“Clock”
Used for changing settings for time zones,
daylight saving time, etc. 211
. . . . . . . . . .
3“Voice”
Voice guidance can be set. 212 . . . . . . .
4“Navi.”
Settings are available for average cruising
speed, displayed screen contents, POI
icon categories, etc. 214
. . . . . . . . . . . . . .
5“Vehicle”
Settings are available for vehicle informa-
tion such as maintenance information. 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6“Audio”
Settings are available for portable audio
devices, Bluetooth  audio devices etc.
262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Phone”
Bluetooth  phones and phone numbers
can be registered, and the receiver volume
can be adjusted. 224
. . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

AUDIO SYSTEM
151

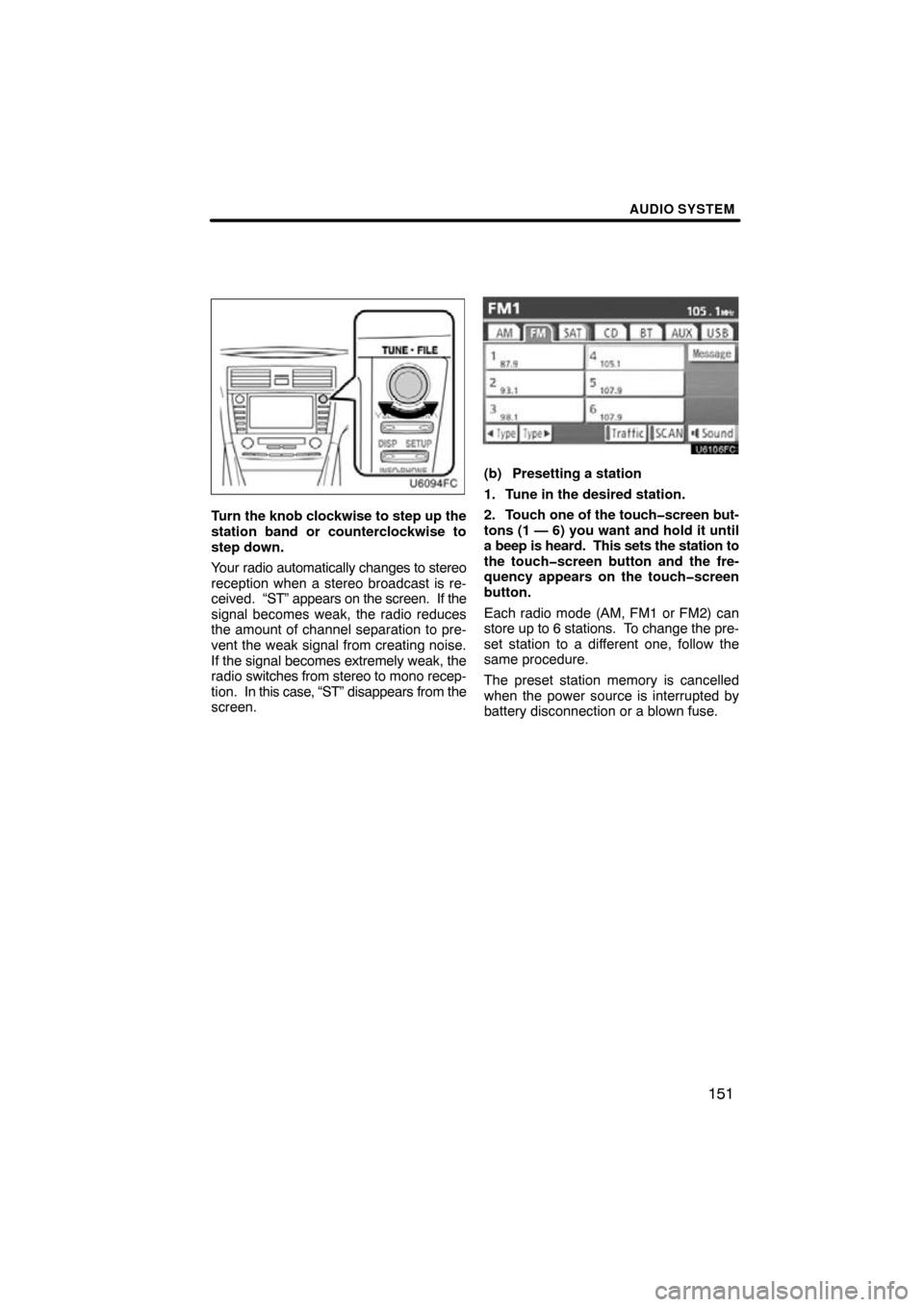

Turn the knob clockwise to step up the
station band or counterclockwise to
step down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces
the amount of channel separation to pre-
vent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. In this case, “ST” disappears from the
screen.
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the touchscreen but-
tons (1 — 6) you want and hold it until
a beep is heard. This sets the station to
the touchscreen button and the fre-
quency appears on the touchscreen
button.
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the pre-
set station to a different one, follow the
same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.

SECTION 8
SETUP
205
SETUP
Setup
General settings 206 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
(Used for language selection and the on/off settings of
operation sounds and automatic screen change.)
 Clock settings 211 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
(Used for changing time zones and the on/off settings of
daylight saving time.)
 Voice settings 212 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
(Voice guidance can be set.)
 Navigation settings 214 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(“Home” and “Preset Destinations” can be set and edited.)
 Detailed navigation settings 215 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(Average cruising speed, displayed screen contents,
and POI icon categories can be set.)
 Telephone settings 224 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(Bluetooth  phones can be registered.)
 Audio settings 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
(Settings are available for portable audio devices and
Bluetooth  audio devices players.)
 Vehicle settings 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
(Vehicle information can be set.)

SETUP
211

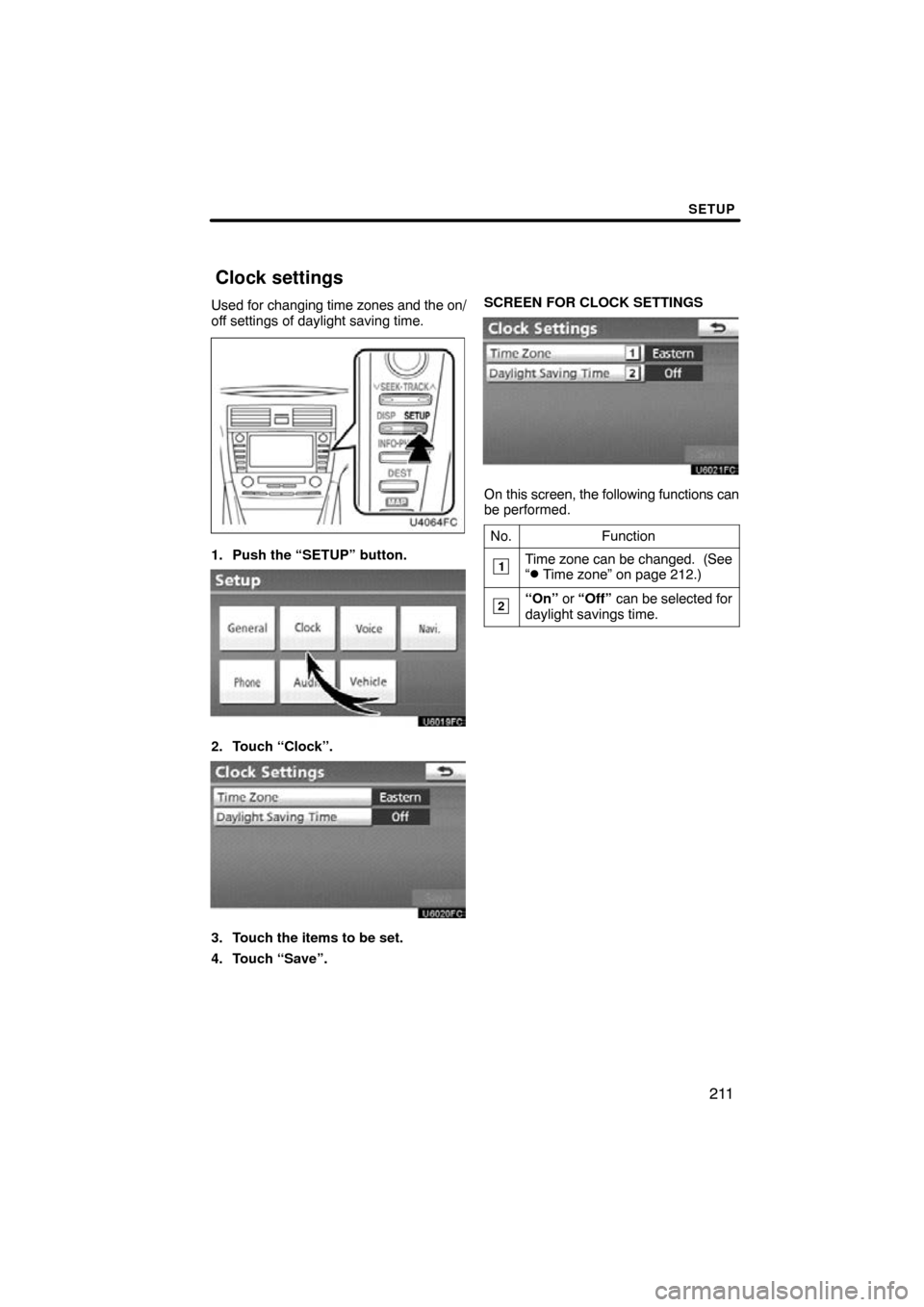

Used for changing time zones and the on/
off settings of daylight saving time.
1. Push the “SETUP” button.
2. Touch “Clock”.
3. Touch the items to be set.
4. Touch “Save”. SCREEN FOR CLOCK SETTINGS
On this screen, the following functions can
be performed.
No.
Function
1Time zone can be changed. (See
“ Time zone” on page 212.)
2“On” or “Off” can be selected for
daylight savings time.
Clock settings

SETUP
212

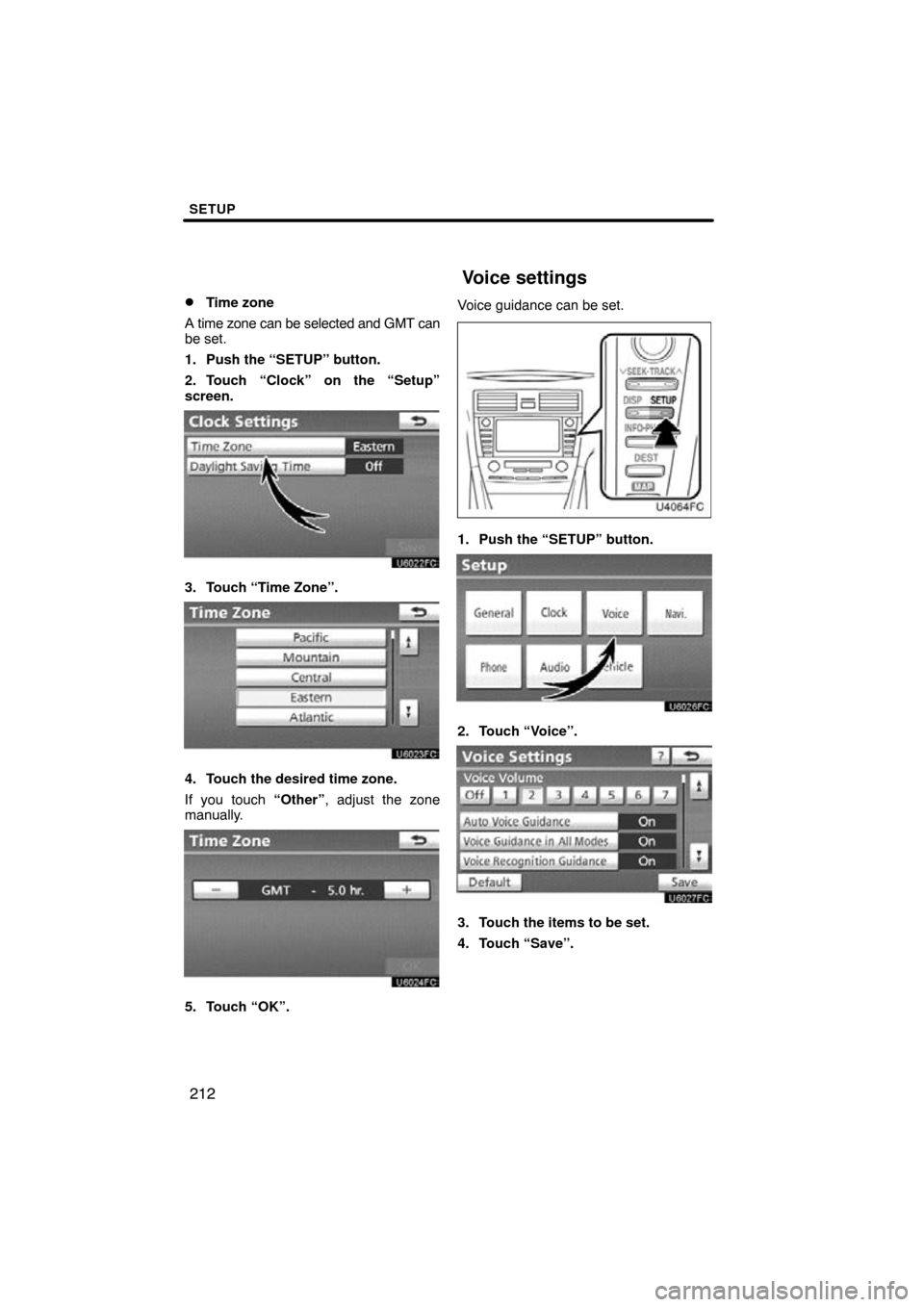

Time zone
A time zone can be selected and GMT can
be set.
1. Push the “SETUP” button.
2. Touch “Clock” on the “Setup”
screen.
3. Touch “Time Zone”.
4. Touch the desired time zone.
If you touch “Other”, adjust the zone
manually.
5. Touch “OK”. Voice guidance can be set.
1. Push the “SETUP” button.
2. Touch “Voice”.
3. Touch the items to be set.
4. Touch “Save”.
Voice settings

INDEX
290
Numbers/Symbols
? button
20,32
. . . . . . . . . . . . . . . . . . . . . . . . .
3 Routes selection 72 . . . . . . . . . . . . . . . . . .
A
A2DP(Advanced Audio
Distribution Profile) 173 . . . . . . . . . . . . . . .
Adding destinations 82
. . . . . . . . . . . . . . . . .
Address Book button 20,64
. . . . . . . . . . . . . .
Address book entry information 37 . . . . . . .
Address button 20,53
. . . . . . . . . . . . . . . . . . .
Alphabet key 28
. . . . . . . . . . . . . . . . . . . . . . .
AM button 142,150
. . . . . . . . . . . . . . . . . . . . .
AM tab 150
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Areas to avoid 113
. . . . . . . . . . . . . . . . . . . . . .
Arrow screen 39,78
. . . . . . . . . . . . . . . . . . . . .
ASL 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio button 22,142
. . . . . . . . . . . . . . . . . . . .
Auto avoid traffic 96,218
. . . . . . . . . . . . . . . . .
Audio remote controls 188
. . . . . . . . . . . . . .
Audio settings 262
. . . . . . . . . . . . . . . . . . . . .
Audio system operating hints 190
. . . . . . . .
Automatic sound levelizer 148
. . . . . . . . . . .
AUX adapter 150
. . . . . . . . . . . . . . . . . . . . . .
AUX button 142
. . . . . . . . . . . . . . . . . . . . . . .
AVRCP(Audio/Video Remote
Control Profile) 173
. . . . . . . . . . . . . . . . . .
B
Balance 148
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic function 25
. . . . . . . . . . . . . . . . . . . . . .
Bass 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  120,173,224,255
. . . . . . . . . . . . .
Bluetooth  audio operation 173
. . . . . . . . . .
Bluetooth  audio player 173
. . . . . . . . . . . . .
Bluetooth  connection
statue at start up 261
. . . . . . . . . . . . . . . .
Bluetooth  information 263
. . . . . . . . . . . . . .
Brightness 31
. . . . . . . . . . . . . . . . . . . . . . . . .
Building information 42
. . . . . . . . . . . . . . . . .
C
Calendar 140
. . . . . . . . . . . . . . . . . . . . . . . . .
Calendar button 23
. . . . . . . . . . . . . . . . . . . .
CD button 142
. . . . . . . . . . . . . . . . . . . . . . . .
CD changer operation 161
. . . . . . . . . . . . . .
Changing the map DVD −ROM 287 . . . . . . .
Calibration 221
. . . . . . . . . . . . . . . . . . . . . . . .
Call by call history 133
. . . . . . . . . . . . . . . . .
Call by dial 130
. . . . . . . . . . . . . . . . . . . . . . . .
Call by phonebook 131
. . . . . . . . . . . . . . . . .
Call by POI call 136
. . . . . . . . . . . . . . . . . . . .
Call by speed dial 132
. . . . . . . . . . . . . . . . . .
Call by voice recognition 134
. . . . . . . . . . . .
Call history 133
. . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth phone 130
. . . . . . . .
Categories 59
. . . . . . . . . . . . . . . . . . . . . . . . .
CAUTION screen 26
. . . . . . . . . . . . . . . . . . .
Cellular p hone 120
. . . . . . . . . . . . . . . . . . . . .
Change “Icon” 109
. . . . . . . . . . . . . . . . . . . . .
Change “Location” 111,116
. . . . . . . . . . . . . .
Change “Name” 115
. . . . . . . . . . . . . . . . . . . .
Change “Phone #” 111
. . . . . . . . . . . . . . . . . .
Change “Show Name” 110
. . . . . . . . . . . . . . .
Change “Size” 116
. . . . . . . . . . . . . . . . . . . . . .
Changing a device name 264
. . . . . . . . . . . .
Changing the Bluetooth settings 256. . . . .
Changing the device name 269
. . . . . . . . . .
Changing the handsfree power 256 . . . . . . .
Changing the passcode 268
. . . . . . . . . . . . .
City center 60
. . . . . . . . . . . . . . . . . . . . . . . . .
City name 53,58
. . . . . . . . . . . . . . . . . . . . . . .
City to search 53,58
. . . . . . . . . . . . . . . . . . . .
Clock button 22
. . . . . . . . . . . . . . . . . . . . . . .
Clock settings 211
. . . . . . . . . . . . . . . . . . . . . .
CLOSE button 142,161,162
. . . . . . . . . . . . . .
Command list 47
. . . . . . . . . . . . . . . . . . . . . .
Compass mode 41
. . . . . . . . . . . . . . . . . . . . .
Compass mode screen 39,41
. . . . . . . . . . . .
Connecting

a Bluetooth
audio player 176,267
. . . . . . . . . . . . . . . . .
Connecting a Bluetooth  phone 126 . . . . . .
Connecting a USB memory
player or iPod  player 181
. . . . . . . . . . . .
Contacts 131,237
. . . . . . . . . . . . . . . . . . . . . .
Contrast 31
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Coordinates button 20,69
. . . . . . . . . . . . . . . .
Current position display 33
. . . . . . . . . . . . . .
Current position/tire change calibration 221
. . . . . . . . . . . . . . . . . . . . . .
Cursor position as a destination 34 . . . . . . .
Cursor position as an
address book entry 34
. . . . . . . . . . . . . . .

INDEX
293
Playing a disc164
. . . . . . . . . . . . . . . . . . . . .
Playing a MP3/WMA disc 168
. . . . . . . . . . .
Playing a USB memory player or
iPod  player 182
. . . . . . . . . . . . . . . . . . . .
Playing an audio disc 165
. . . . . . . . . . . . . . .
POI as a destination 93
. . . . . . . . . . . . . . . . .
POI category change 219
. . . . . . . . . . . . . . .
POI information 36
. . . . . . . . . . . . . . . . . . . . .
Point of Interest button 20,57
. . . . . . . . . . . . .
POIs near the search point 62
. . . . . . . . . . .
POIs to be displayed 91
. . . . . . . . . . . . . . . .
Pop−up information 223
. . . . . . . . . . . . . . . .
Portable audio
players 150,173,181,262
. . . . . . . . . . . . . .
Position/direction c alibration 221
. . . . . . . . .
POWER·VOLUME knob 142
. . . . . . . . . . . .
Preset destination 14,52
. . . . . . . . . . . . . . . . .
Preset destination touch
screen buttons 20,52
. . . . . . . . . . . . . . . . .
Presetting a satellite radio channel 157 . . .
Presetting a station 151
. . . . . . . . . . . . . . . .
Previous Destinations button 20,63
. . . . . . .
Q
Quick reference 20,22
. . . . . . . . . . . . . . . . . .
R
Radio data system 152
. . . . . . . . . . . . . . . . .
Radio ID 155
. . . . . . . . . . . . . . . . . . . . . . . . . .
Radio operation 150,155
. . . . . . . . . . . . . . . .
RAND button 167,172,180,187
. . . . . . . . . . .
RDS 152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear view monitor system 200
. . . . . . . . . . .
Rear view monitor system camera 202 . . . .
Receive on the Bluetooth phone 137. . . . .
Reconnecting the Bluetooth
audio 178
. . . . . . . . . . . . . . . . . . . . . . . . . .
Reconnecting the Bluetooth
phone 129
. . . . . . . . . . . . . . . . . . . . . . . . . .
Registering a Bluetooth  phone 226 . . . . . .
Registering address book entries 107 . . . . .
Registering areas to avoid 113
. . . . . . . . . . . .
Registering home 12,101
. . . . . . . . . . . . . . . .
Registering preset destinations 14,104
. . . .
Registering the phonebook data 237 . . . . . .
Registering the speed dial 244
. . . . . . . . . . .
Registering the voice tag 252
. . . . . . . . . . . .
Removing a Bluetooth  audio 266 . . . . . . . .
Reordering destinations 82
. . . . . . . . . . . . . .
Resume guidance 90
. . . . . . . . . . . . . . . . . . .
Ring volume setting 225
. . . . . . . . . . . . . . . .
Route button 10,82,83,84,85,87,89
. . . . . . .
Route guidance 75
. . . . . . . . . . . . . . . . . . . . . Route
guidance screen 76
. . . . . . . . . . . . . .
Route overview 85
. . . . . . . . . . . . . . . . . . . . .
Route preference 87
. . . . . . . . . . . . . . . . . . .
Route preview 86
. . . . . . . . . . . . . . . . . . . . . .
Route trace 94
. . . . . . . . . . . . . . . . . . . . . . . .
RPT button 167,172,180,187
. . . . . . . . . . . .
S
Safety instruction 3
. . . . . . . . . . . . . . . . . . . .
SAT button 142,150,156
. . . . . . . . . . . . . . . . .
SAT tab 156
. . . . . . . . . . . . . . . . . . . . . . . . . .
Satellite radio channel category 156. . . . . .
Satellite radio tuner malfunctions 159 . . . . .
Satellite tuner 155
. . . . . . . . . . . . . . . . . . . . .
Scale indicator 10,41
. . . . . . . . . . . . . . . . . . .
SCAN button 166,171,186,187
. . . . . . . . . . .
Screen adjustment 31
. . . . . . . . . . . . . . . . . .
Screen configuration button 10,39
. . . . . . . .
Screen layout function 220
. . . . . . . . . . . . . .
Screen off 31
. . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 33
. . . . . . . . . . . . . .
Screens for clock settings 211
. . . . . . . . . . . .
Screens for general settings 206
. . . . . . . . .
Screens for navigation settings 216 . . . . . .
Searching for a desired file 186
. . . . . . . . . .
Searching for a desired folder 187 . . . . . . . .
Screens for voice settings 213
. . . . . . . . . . .
Search area 50
. . . . . . . . . . . . . . . . . . . . . . . .
Search by “Address Book” 64
. . . . . . . . . . .
Search by “Address” 53
. . . . . . . . . . . . . . . .
Search by “Category” 59
. . . . . . . . . . . . . . . .
Search by “Coordinates” 69
. . . . . . . . . . . . .
Search by “Emergency” 64
. . . . . . . . . . . . . .
Search by “Intersection & Freeway” 65 . . . .
Search by “Map” 68
. . . . . . . . . . . . . . . . . . . .
Search by “Name” 57
. . . . . . . . . . . . . . . . . .
Search by “Phone #” 62
. . . . . . . . . . . . . . . .
Search by “Point of Interest” 57
. . . . . . . . . .
Search by “Previous Destinations” 63 . . . . .
Search by Freeway Entrance/Exit 67 . . . . .
Search by Home 52
. . . . . . . . . . . . . . . . . . . .
Search by Intersection 66
. . . . . . . . . . . . . . .
Search by Preset destinations 52
. . . . . . . .
Search by street address 55
. . . . . . . . . . . .
Search point from along my route
60
. . . . .
Search point from near a
destination 61
. . . . . . . . . . . . . . . . . . . . . . .
Search point from near city center 60 . . . . .
Search point from near here 60
. . . . . . . . . .
Searching for a desired disc 166
. . . . . . . . .
Searching for a desired file 171
. . . . . . . . . .
Searching for a desired folder 171 . . . . . . . .
Searching for a desired track 166
. . . . . . . .
SEEK·TRACK button 142,157,169
. . . . . . . .
Select button 183,184
. . . . . . . . . . . . . . . . . . .
