409
4-3. Do-it-yourself maintenance
4
Maintenance and care
14 RR FOG
10 A No circuit
15 ST/AM2 30 AStarting system, GAUGE NO.2,
IGN, INJ
16 ALT 120 ARR FOG, FR DEF, HTR, ABS
NO.1, ABS NO.2, RR DEF, RR
PWR SEAT, H-LP CLN, CDS FAN,
RDI FAN, MSB, TAIL, PANEL, FR
FOG, CIG, RADIO No.2, ECU-
ACC, PWR OUTLET, GAUGE
No.1, ECU IG No.1, ECU IG No.2,
H-LP LVL, WASH, A/C No.2, S-
HTR, WIP, P/SEAT, DOOR No.2,
POWER, RR DOOR LH, RR
DOOR RH, ECU-B No.2, OBD,
FUEL OPN, PWR, STOP, S/ROOF,
TI&TE, A/C, AM1
17 STR LOCK 20 A Steering lock system
18 IG2 20 AMultiport fuel injection system/
sequential multiport fuel injection
system, starting system, GAUGE
NO.2, IGN, INJ
19 HAZ 15 ATurn signal lights, gauge and
meters
20 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
21 EFI2 30 AMultiport fuel injection system/
sequential multiport fuel injection
system
22 MAYDAY/TEL 7.5 A No circuit
23 ALT-S 7.5 A Charging system
24 AM2 7.5 A Main body ECU
FuseAmpereCircuit

412 4-3. Do-it-yourself maintenance
14 ALT120 ARR FOG, FR DEF, HTR, ABS
NO.1, FAN MAIN, ABS NO.2, RR
DEF, RR PWR SEAT, H- LP CLN,
CDS FAN, RDI FAN, MSB, TAIL,
PANEL, FR FOG, CIG, RADIO
No.2, ECU-ACC, PWR OUTLET,
GAUGE No.1, ECU IG No.1, ECU
IG No.2, H-LP LVL, WASH, A/C
No.2, S-HTR, WIP, P/SEAT, DOOR
No.2, POWER, RR DOOR LH, RR
DOOR RH, ECU-B No.2, OBD,
FUEL OPN, PWR, STOP, S/ROOF,
TI&TE, A/C, AM1
15 STR LOCK 20 A Steering lock system
16 IG2 20 AMultiport fuel injection system/
sequential multiport fuel injection
system, starting system, GAUGE
NO.2, IGN, INJ
17 HAZ 15 ATurn signal lights, gauge and
meters
18 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
19 E-ACM 10 A No circuit
20 MAYDAY/TEL 7.5 A No circuit
21 ALT-S 7.5 A Charging system
22 AM2 7.5 A Main body ECU
23 EFI MAIN 30 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2, EFI NO.3
24 AMP 25 A Audio system
25 DOOR NO.1 25 A Main body ECU
26 RADIO NO.1 15 A Audio system, navigation system
FuseAmpereCircuit

414 4-3. Do-it-yourself maintenance

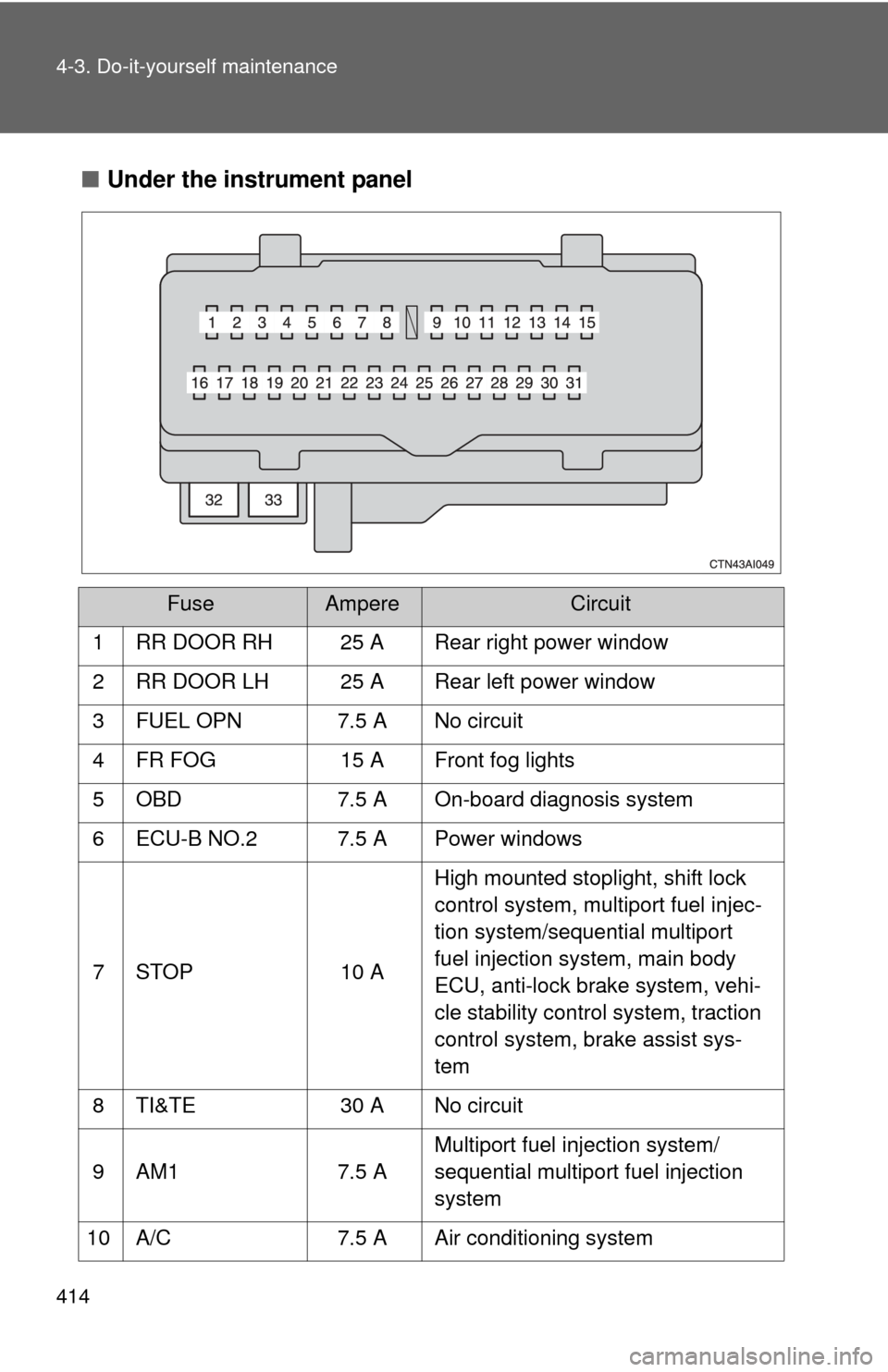

■Under the instrument panel
FuseAmpereCircuit
1 RR DOOR RH 25 A Rear right power window
2 RR DOOR LH 25 A Rear left power window
3 FUEL OPN 7.5 A No circuit
4 FR FOG 15 A Front fog lights
5 OBD 7.5 A On-board diagnosis system
6 ECU-B NO.2 7.5 A Power windows
7 STOP 10 A High mounted stoplight, shift lock
control system, multiport fuel injec-
tion system/sequential multiport
fuel injection system, main body
ECU, anti-lock brake system, vehi-
cle stability control system, traction
control system, brake assist sys-
tem
8 TI&TE 30 A No circuit
9 AM1 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system
10 A/C 7.5 A Air conditioning system
