engine TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap 8Hood release 9Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry1,26Light control-Instrument panel 8
Smart Key system1,27
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions210Automatic Transmission 10Clock 18Cruise control 16Cup holders 22Garage door opener (HomeLink®)316Lights1& turn signals 14Moonroof 12Multi-information display 15Parking brake 11Power outlets-12V DC 15Seat adjustments-Front 13Seat adjustments-Rear 13Seat heaters 19Seats-Head restraints 12Steering lock release 11Steering wheel switches 21Sunshade-Rear 17Telephone controls (Bluetooth®)17Tilt and telescopic steering wheel 11Windows-Power 12
Windshield wipers & washers 14
Child comfort guide 24Door locks 23Doors-Child safety locks 23Seatbelts 23Seatbelts-Shoulder belt anchor 24Spare tire & tools 25Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
OVERVIEW
Instrument panel
Steering wheel audio controls2
Steering wheel climate controls1
Multi-information display button1
Voice command button1,2
Telephone controls1,2
“ENGINE START STOP” button (Smart Key)1
Ignition switch (standard key)1
Headlight and turn signal controls/Headlight, turn signal and front fog
light1 controls
Wiper and washer controls
Emergency flasher button
Steering wheel controls
Steering wheel controls
XLE and LE models
SE model

4
OVERVIEW
Instrument cluster
Engine coolant temperature
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Multi-information display
Automatic Transmission shift position indicator
Sequential shift display (if equipped)
Odometer, two trip meters and outside temperature display
With multi-information display
Without multi-information display
Indicator symbols
Brake system warning1
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Charging system warning1
Front passenger occupant classification or front passenger AIR BAG
ON/OFF indicator1
2If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
Cruise control set indicator2
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning1
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Low fuel level warning
Front fog light indicator
Smart Key System warning
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping front passenger door handle will unlock all
doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Back door lock/unlock
Push
Locking operationUnlocking operation
Carry remote to lock/unlock Carry remote to lock/unlock
Push
Front door lock
Grasp
Carry remote to lock/unlock
Front door unlock*

8
Fuel tank door release and cap
NOTE:Tighten until one click is heard. If the cap is not tightened
enough, Check Engine “ ” indicator may illuminate.
Pull up
Tu r n
Store
Light control-Instrument panel
Brightness
control
-
+
OVERVIEW

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

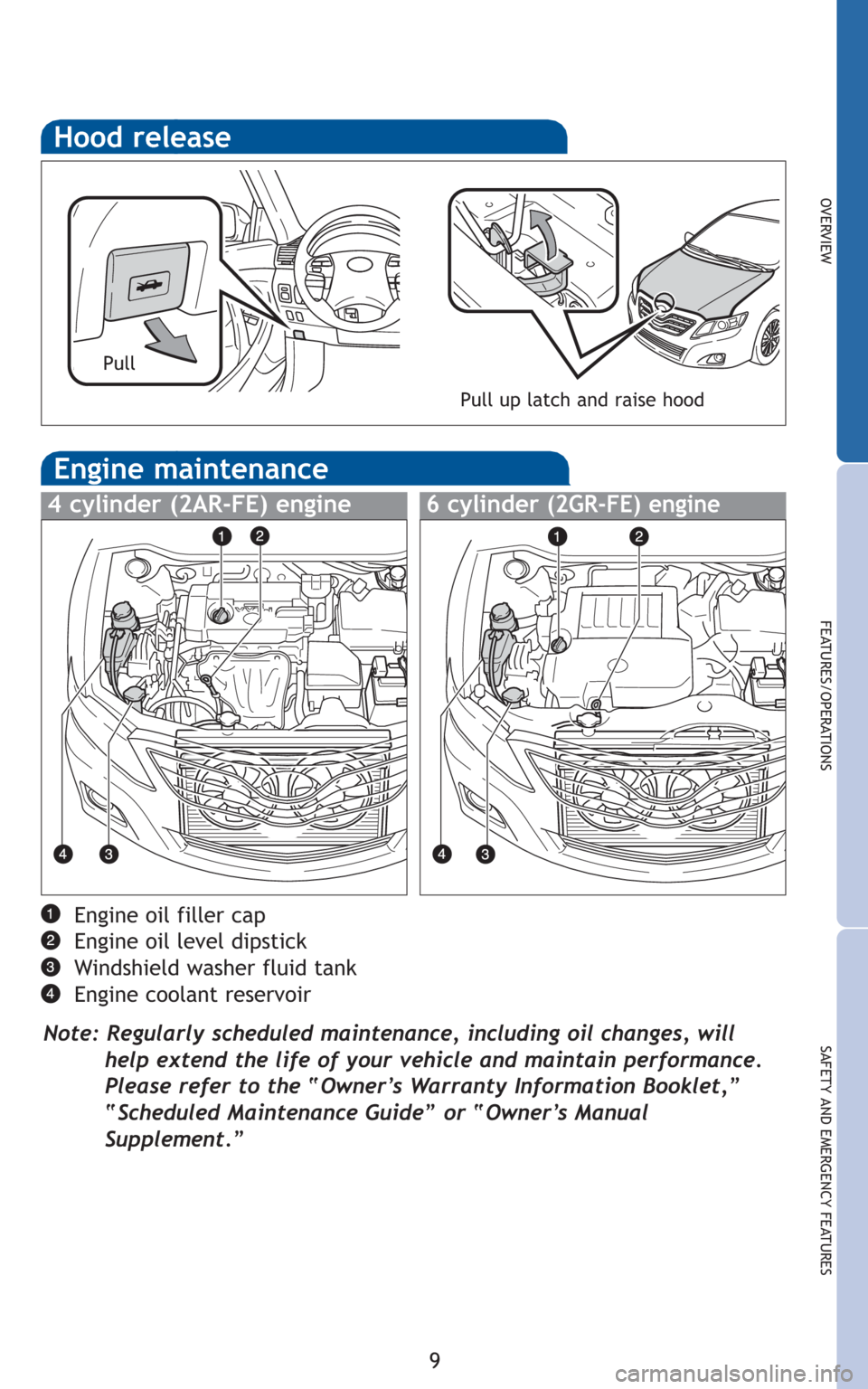

Hood release
Pull up latch and raise hood
Pull
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
4 cylinder (2AR-FE) engine6 cylinder(2GR-FE) engine

10
FEATURES/OPERATIONS

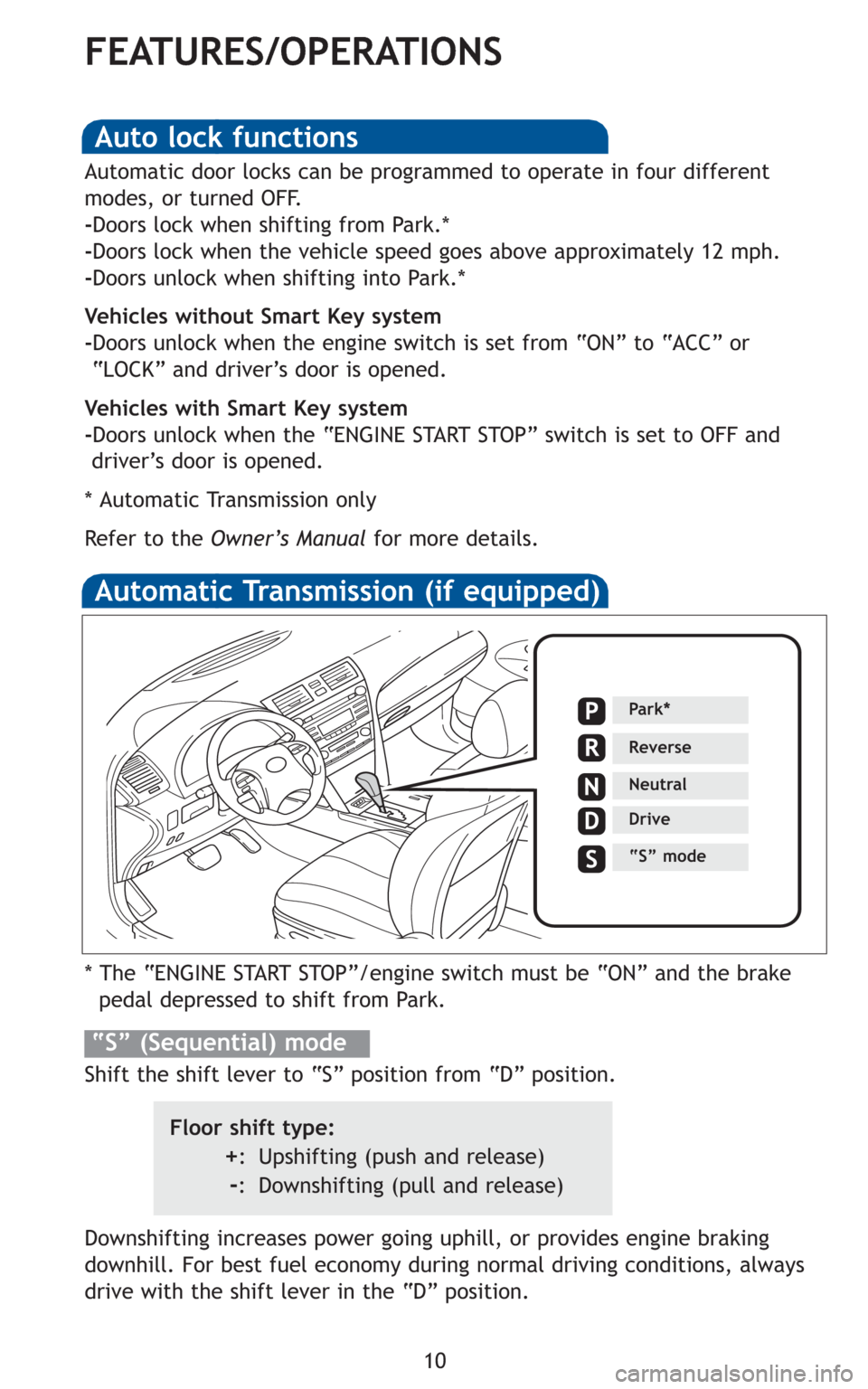

Automatic Transmission (if equipped)
* The “ENGINE START STOP”/engine switch must be “ON” and the brake
pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshifting (push and release)
-: Downshifting (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
N

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

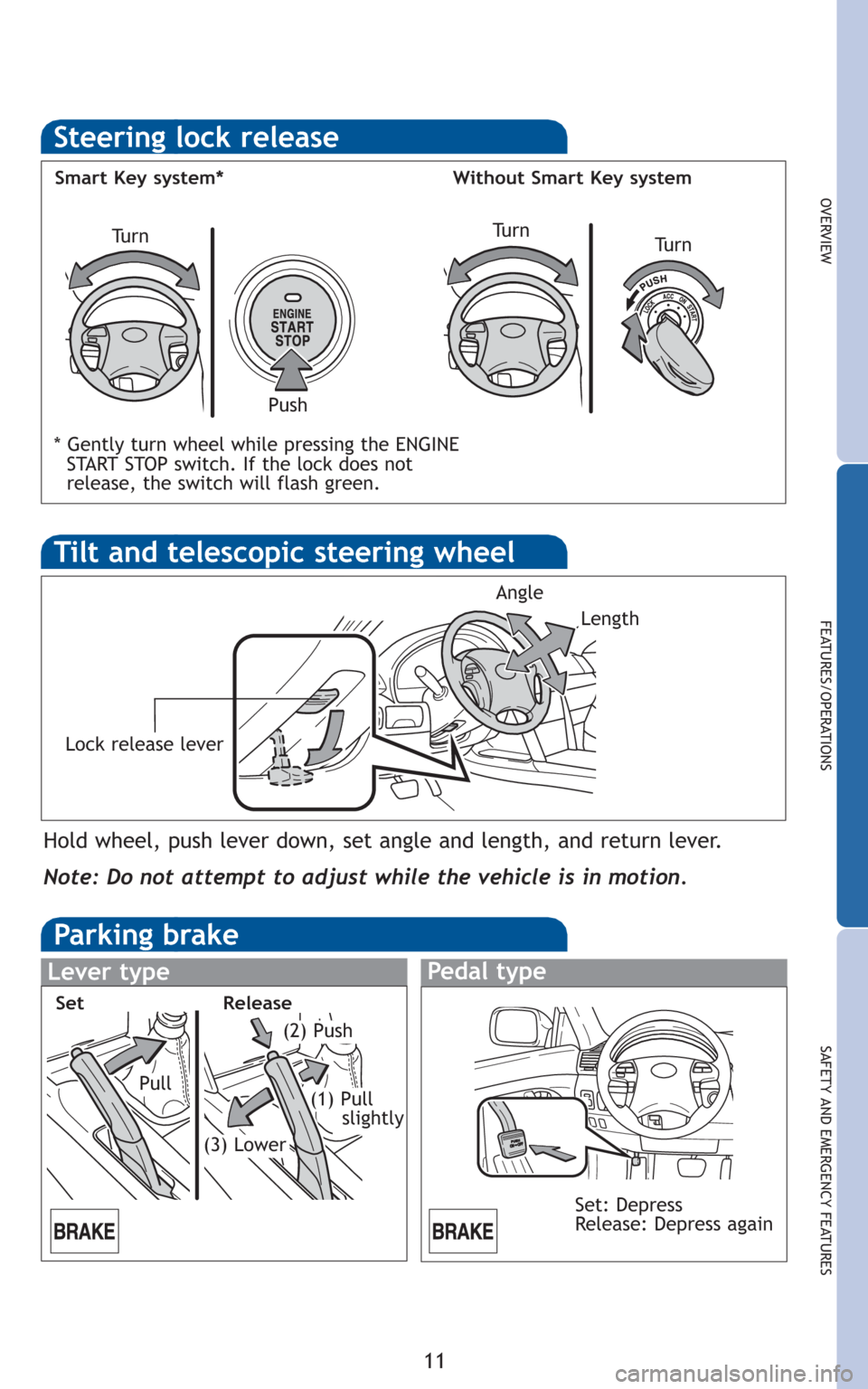

Steering lock release
Tu r n
Tu r n
Smart Key system* Without Smart Key system
Push
Tu r n
Parking brake
Lever typePedal type
Set: Depress
Release: Depress again
Pull
(2) Push
Set Release
(3) Lower
Hold wheel, push lever down, set angle and length, and return lever.
Lock release lever
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
* Gently turn wheel while pressing the ENGINE
START STOP switch. If the lock does not
release, the switch will flash green.
Angle
Length
(1) Pull
slightly

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Power outlets-12V DC
Front console
The “ENGINE START STOP” switch/engine switch must be in the “ACC” or
“ON” position to be used.
Center console (if equipped)
Multi-information display (if equipped)
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multi-information display OFF
(7) Zoom display of odometer and trip meter
