window TOYOTA CAMRY 2010 XV40 / 8.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap 8Hood release 9Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry1,26Light control-Instrument panel 8
Smart Key system1,27
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions210Automatic Transmission 10Clock 18Cruise control 16Cup holders 22Garage door opener (HomeLink®)316Lights1& turn signals 14Moonroof 12Multi-information display 15Parking brake 11Power outlets-12V DC 15Seat adjustments-Front 13Seat adjustments-Rear 13Seat heaters 19Seats-Head restraints 12Steering lock release 11Steering wheel switches 21Sunshade-Rear 17Telephone controls (Bluetooth®)17Tilt and telescopic steering wheel 11Windows-Power 12
Windshield wipers & washers 14
Child comfort guide 24Door locks 23Doors-Child safety locks 23Seatbelts 23Seatbelts-Shoulder belt anchor 24Spare tire & tools 25Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Audio system2
Tire Pressure Monitoring (warning) System
Cruise control
Tilt and telescopic steering lock release
VSC OFF switch
Power outside rearview mirror controls
Air Conditioning controls
Outside rearview mirror
1/Rear window defogger button
AUX or USB/AUX audio jack
12V DC Power outlet
Seat heater controls
1
1
If equipped2For details, refer to the “Navigation System Owner’s Manual.”
Automatic Air Conditioning
Manual Air Conditioning

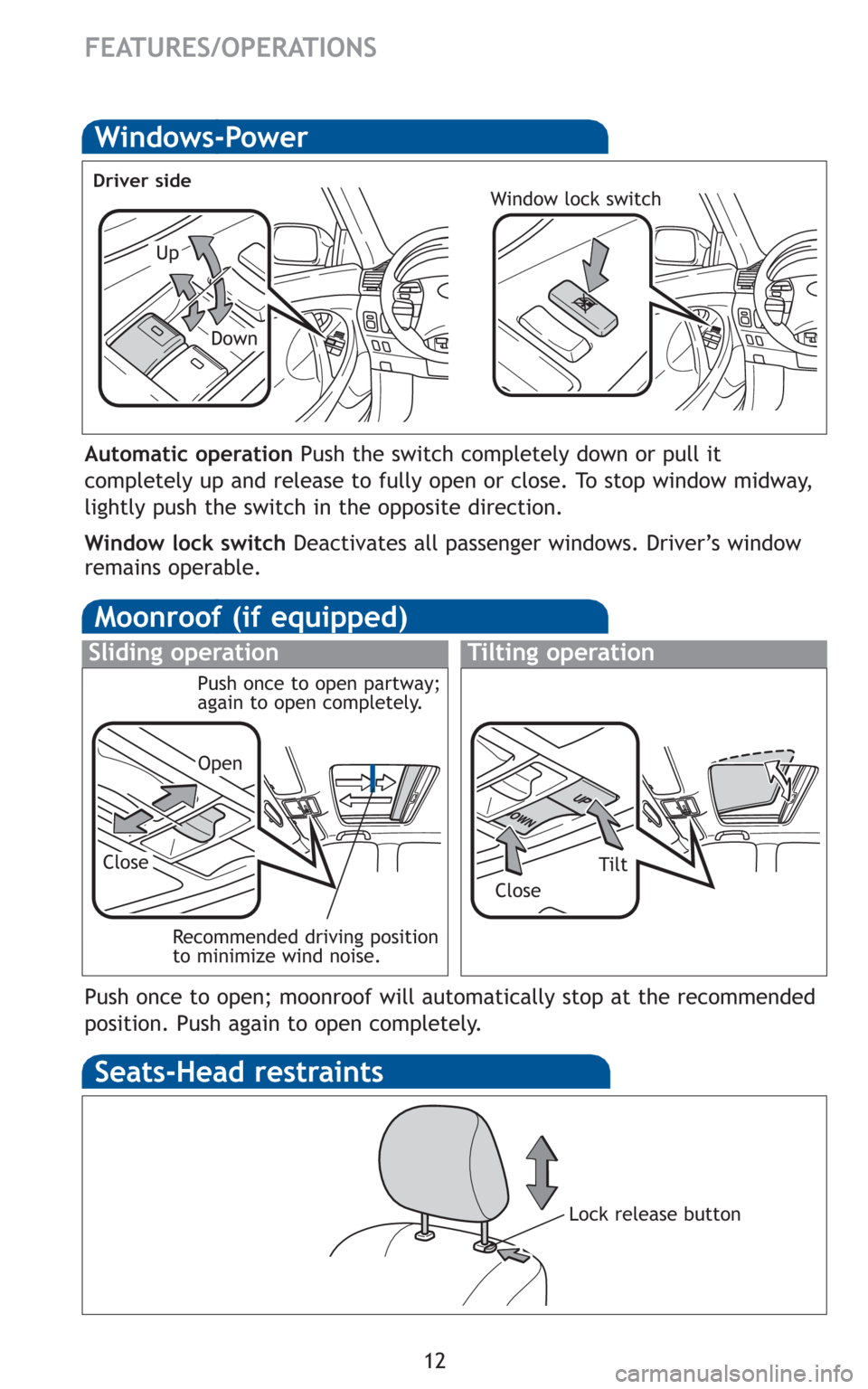

12
FEATURES/OPERATIONS
Moonroof (if equipped)
Sliding operationTilting operation
Open
Tilt
Close
Close
Recommended driving position
to minimize wind noise.
Seats-Head restraints
Lock release button
Windows-Power
Up
Down
Driver sideWindow lock switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
Push once to open partway;
again to open completely.

18
FEATURES/OPERATIONS
Air Conditioning/Heating
Manual Air Conditioning
Fan speed
Temperature selector
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Outside rearview mirror*/Rear defogger
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Select for maximum cooling. Air intake will automatically be set to
recirculate. It is not possible to change intake to fresh, or to turn A/C
OFF in this mode.
Fresh or recirculated cabin air
* If equipped
Clock
H-Hour set
M-Minute set

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Automatic Air Conditioning
Temperature selector (driver side)
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passengers.
Indicator OFF:Synchronize temperature settings for driver and
passengers.
Fan speed
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Temperature selector (passenger side)
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Outside rearview mirror/Rear defogger
Windshield airflow/defogger
Climate control OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Seat heaters (if equipped)
Driver seatFront passenger seat
