TOYOTA CAMRY 2011 XV50 / 9.G Navigation Manual

SECTION 6
AUDIO SYSTEM
141
AUDIO SYSTEM

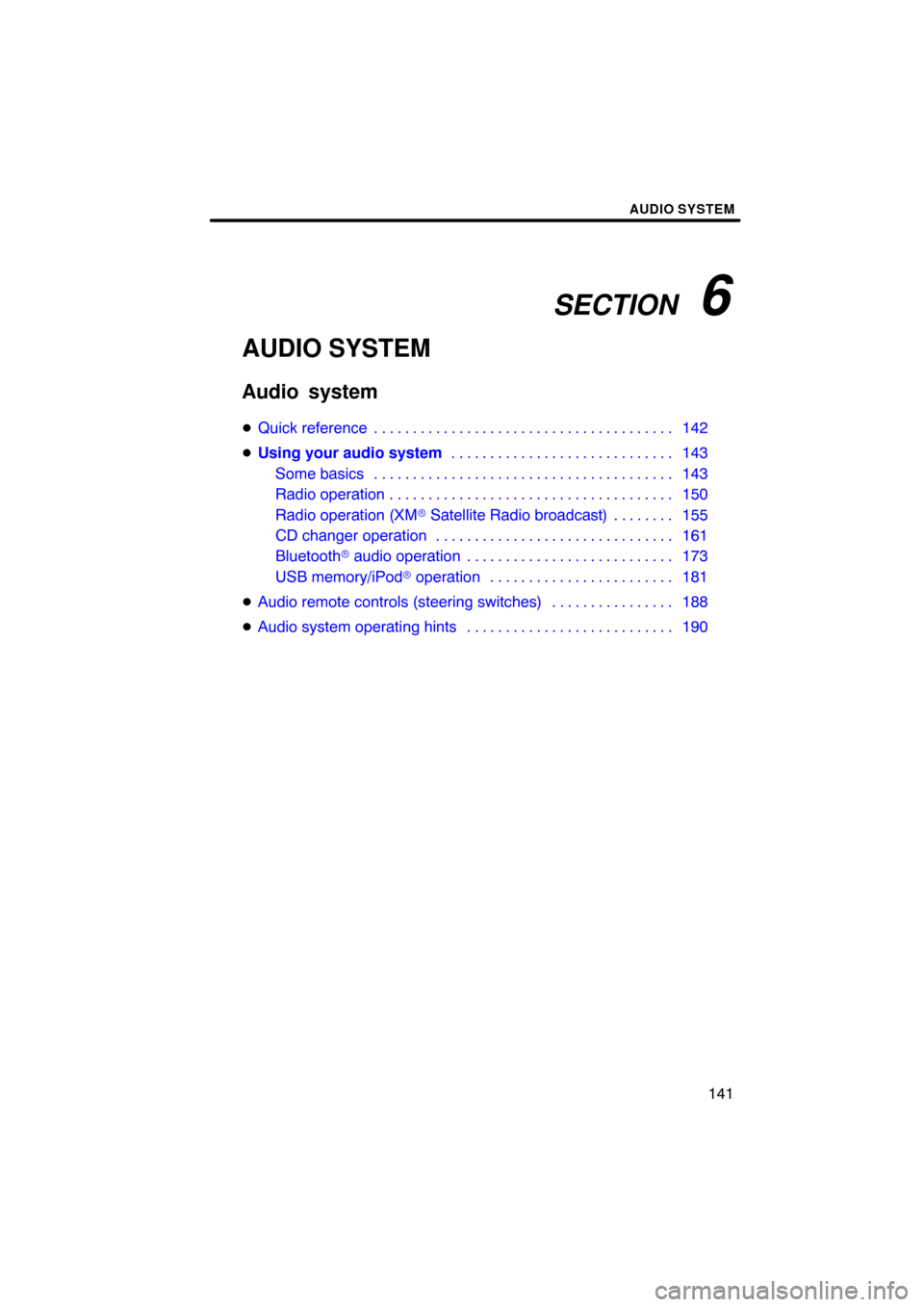

Audio system
Quick reference 142 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
 Using your audio system 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Some basics 143 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Radio operation 150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Radio operation (XM  Satellite Radio broadcast) 155 . . . . . . . .
CD changer operation 161 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  audio operation 173 . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB memory/iPod operation 181. . . . . . . . . . . . . . . . . . . . . . . .
 Audio remote controls (steering switches) 188 . . . . . . . . . . . . . . . .
 Audio system operating hints 190 . . . . . . . . . . . . . . . . . . . . . . . . . . .

AUDIO SYSTEM
142

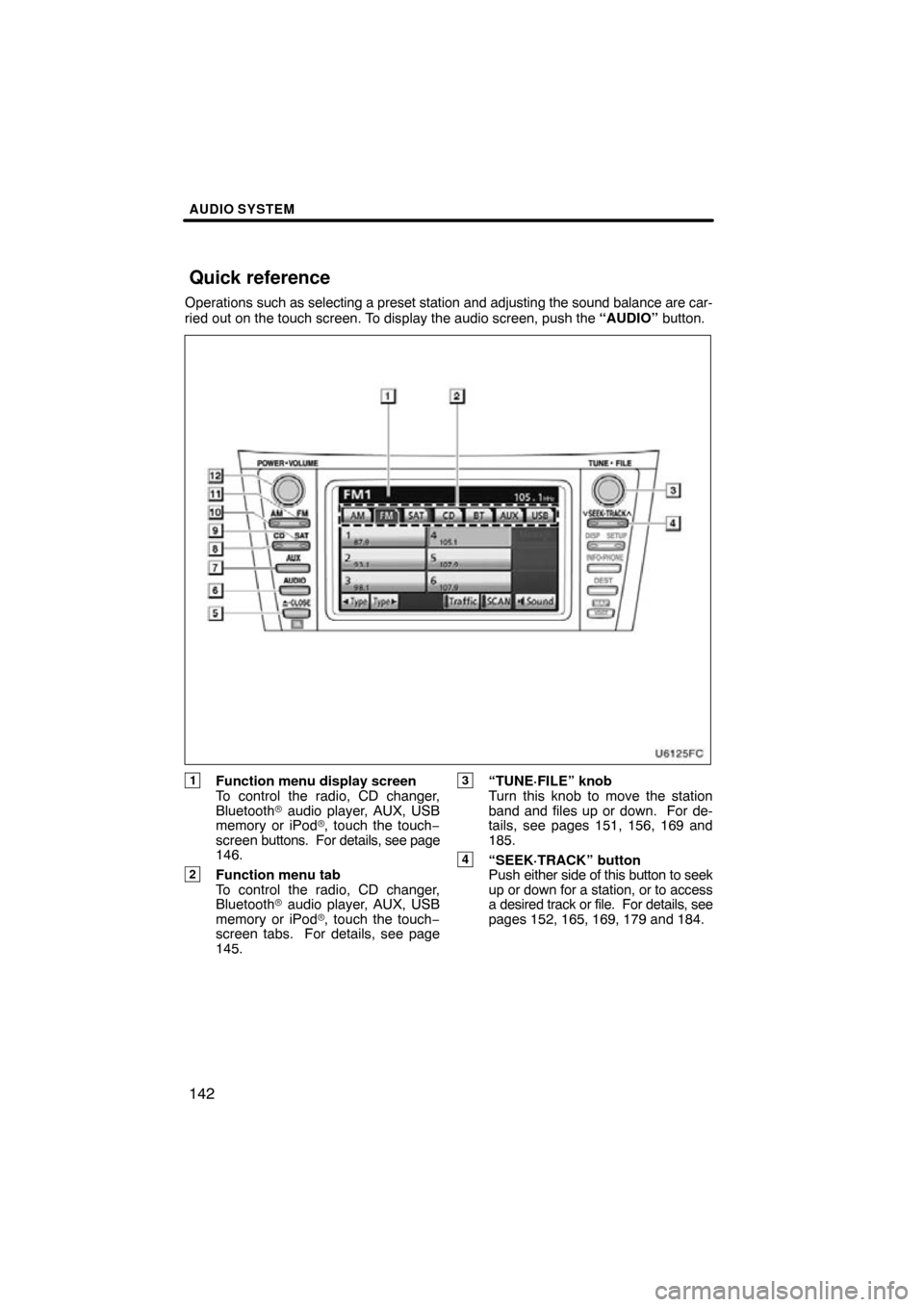

Operations such as selecting a preset station and adjusting the sound balance are c\
ar-
ried out on the touch screen. To display the audio screen, push the “AUDIO” button.
1Function menu display screen
To control the radio, CD changer,
Bluetooth audio player, AUX, USB
memory or iPod , touch the touch−
screen buttons. For details, see page
146.
2Function menu tab
To control the radio, CD changer,
Bluetooth  audio player, AUX, USB
memory or iPod , touch the touch−
screen tabs. For details, see page
145.
3“TUNE·FILE” knob
Turn this knob to move the station
band and files up or down. For de-
tails, see pages 151, 156, 169 and
185.
4“SEEK·TRACK” button
Push either side of this button to seek
up or down for a station, or to access
a desired track or file. For details, see
pages 152, 165, 169, 179 and 184.
Quick reference

AUDIO SYSTEM
143
5“·CLOSE” button
Push this button to display the
“Load·Eject” screen or close the dis-
play. For details, see page 161.
6“AUDIO” button
Push this button to display the audio
control screen. For details, see page
145.
7“AUX” button
Push this button to turn the
Bluetooth  audio player, AUX, USB
memory or iPod  on. For details, see
pages 145, 150 and 178.
8“CD” button
Push this button to turn the CD
changer on. For details, see pages
145 and 164.
9“SAT” button
Push this button to choose an SAT
station. For details, see pages 145
and 156.
10“AM” button
Push this button to choose an AM sta-
tion. For details, see pages 145 and
150.
11“FM” button
Push this button to choose an FM sta-
tion. Each time this button is pushed,
the mode switches between FM1 and
FM2. For details, see pages 145 and
150.
12“POWER·VOLUME” knob
Push this knob to turn the audio sys-
tem on and off, and turn it to adjust the
volume. For details, see page 145. This section describes some of the basic
features of your audio system. Some in-
formation may not
pertain to your system.
Vehicles with smart key system—
Your audio system works when the “EN-
GINE START STOP” switch is turned to
ACCESSORY or IGNITION ON mode.
Vehicles without smart key system—
Your audio system works when the engine
switch is turned to the “ACC” or “ON” posi-
tion.

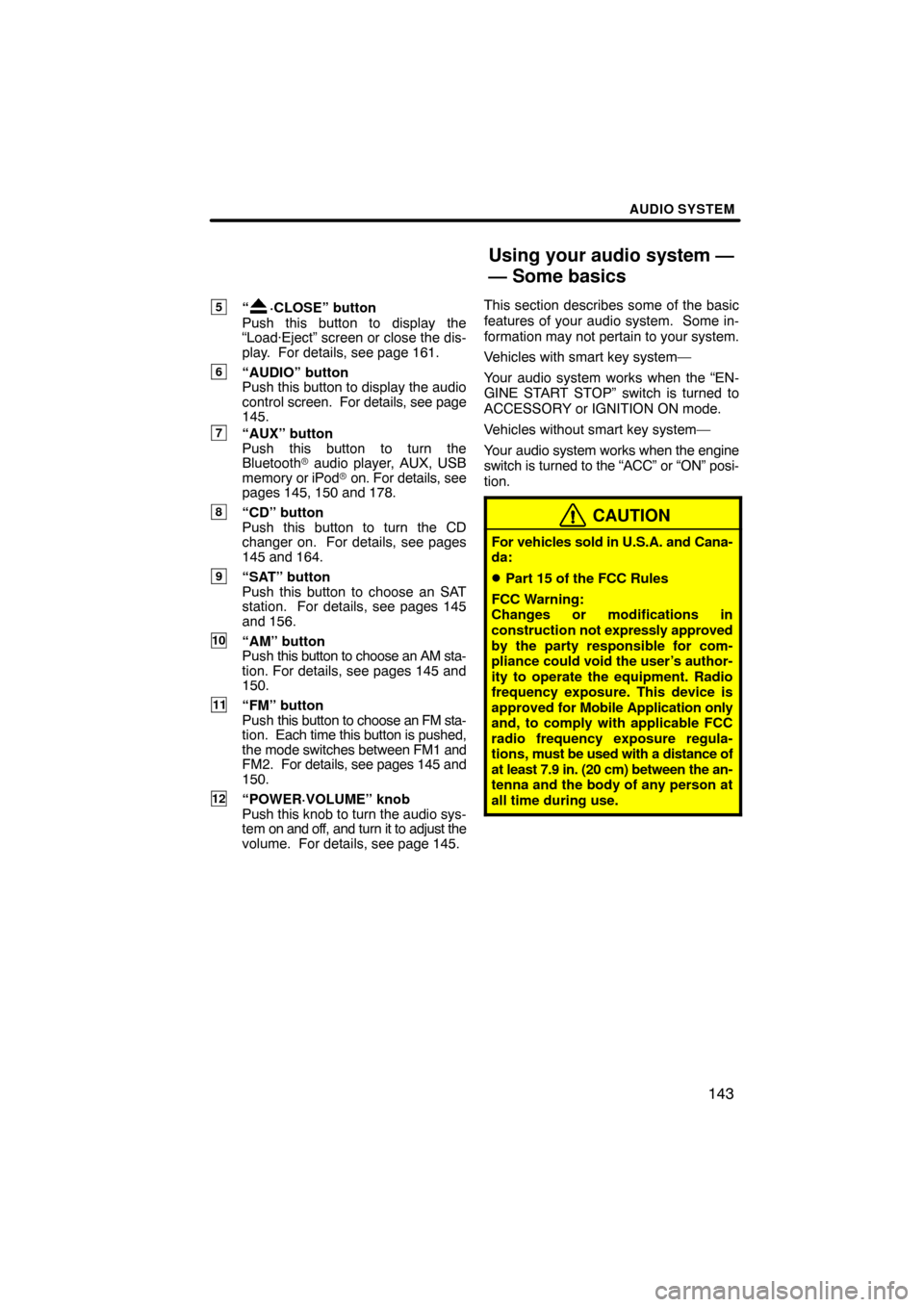

CAUTION
For vehicles sold in U.S.A. and Cana-
da:
Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in
construction not expressly approved
by the party responsible for com-
pliance could void the user’s author-
ity to operate the equipment. Radio
frequency exposure. This device is
approved for Mobile Application only
and, to comply with applicable FCC
radio frequency exposure regula-
tions, must be used with a distance of
at least 7.9 in. (20 cm) between the an-
tenna and the body of any person at
all time during use.
Using your audio system —
— Some basics

AUDIO SYSTEM
144

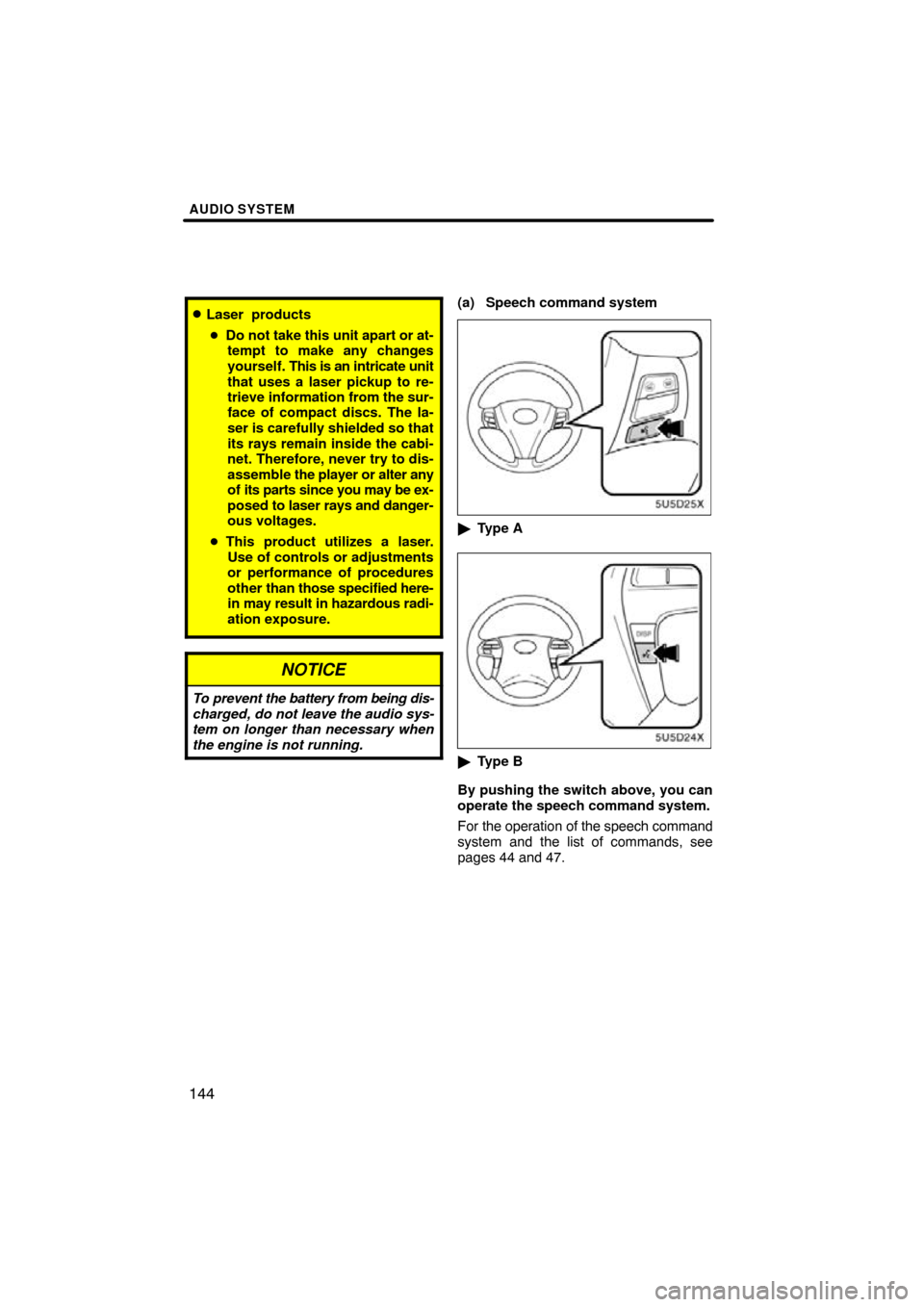

Laser products Do not take this unit apart or at-
tempt to make any changes
yourself. This is an intricate unit
that uses a laser pickup to re-
trieve information from the sur-
face of compact discs. The la-
ser is carefully shielded so that
its rays remain inside the cabi-
net. Therefore, never try to dis-
assemble the player or alter any
of its parts since you may be ex-
posed to laser rays and danger-
ous voltages.
 This product utilizes a laser.
Use of controls or adjustments
or performance of procedures
other than those specified here-
in may result in hazardous radi-
ation exposure.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio sys-
tem on longer than necessary when
the engine is not running.
(a) Speech command system
 Type A
Type B
By pushing the switch above, you can
operate the speech command system.
For the operation of the speech command
system and the list of commands, see
pages 44 and 47.

AUDIO SYSTEM
145

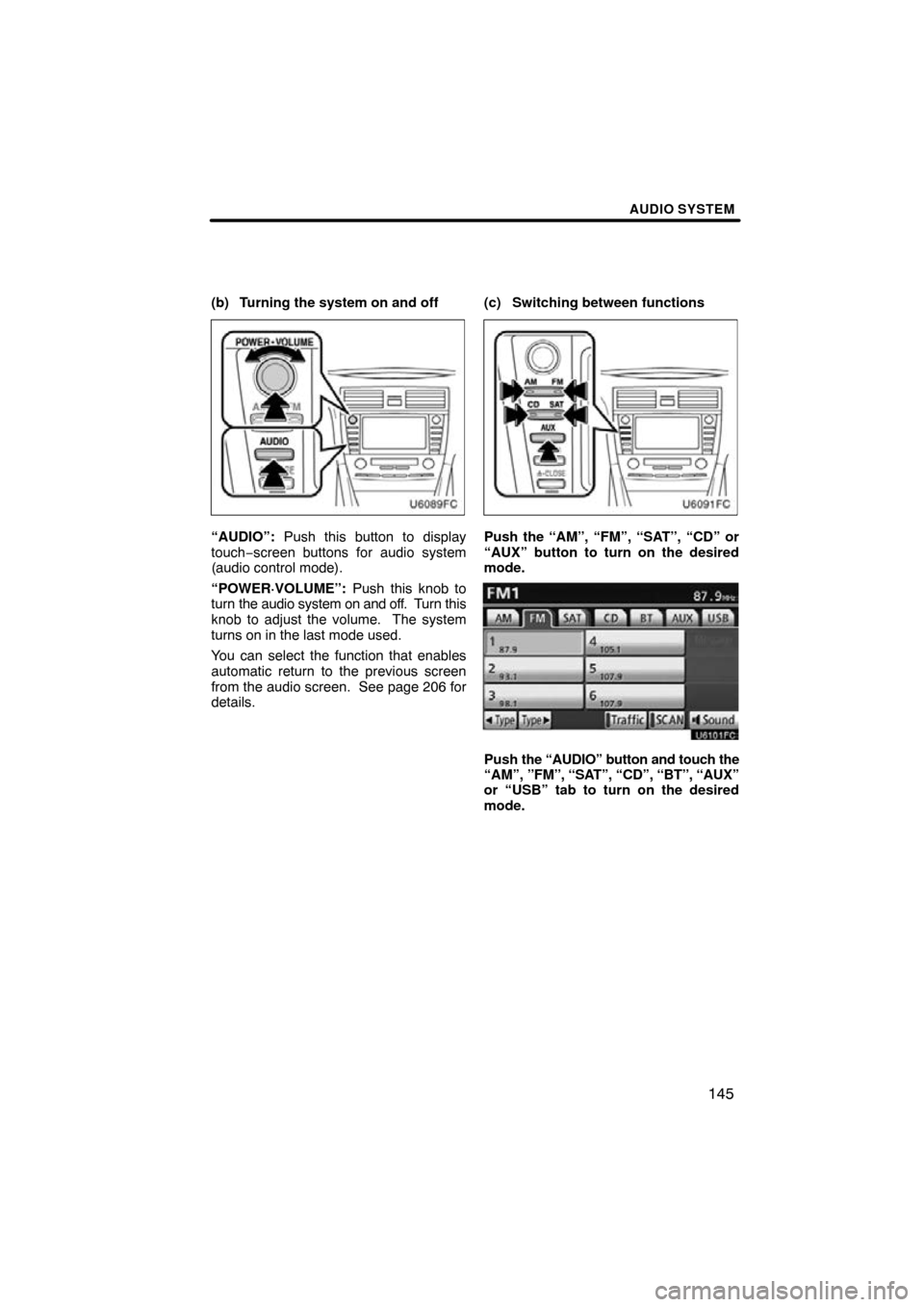

(b) Turning the system on and off
“AUDIO”: Push this button to display
touch−screen buttons for audio system
(audio control mode).
“POWER·VOLUME”: Push this knob to
turn the audio system on and off. T urn this
knob to adjust the volume. The system
turns on in the last mode used.
You can select the function that enables
automatic return to the previous screen
from the audio screen. See page 206 for
details. (c) Switching between functionsPush the “AM”, “FM”, “SAT”, “CD” or
“AUX” button to turn on the desired
mode.
Push
the “AUDIO” button and touch the
“AM”, ”FM”, “SAT”, “CD”, “BT”, “AUX”
or “USB” tab to turn on the desired
mode.

AUDIO SYSTEM
146
Push these buttons or tabs if you want to
switch from one mode to another.
If the disc is not set, the CD changer does
not turn on.
You can turn off the CD changer by eject-
ing all the discs. If the audio system was
previously off, then the entire audio system
will be turned off when you eject all the
discs. If the other function was previously
playing, it will come on again.

AUDIO SYSTEM
147

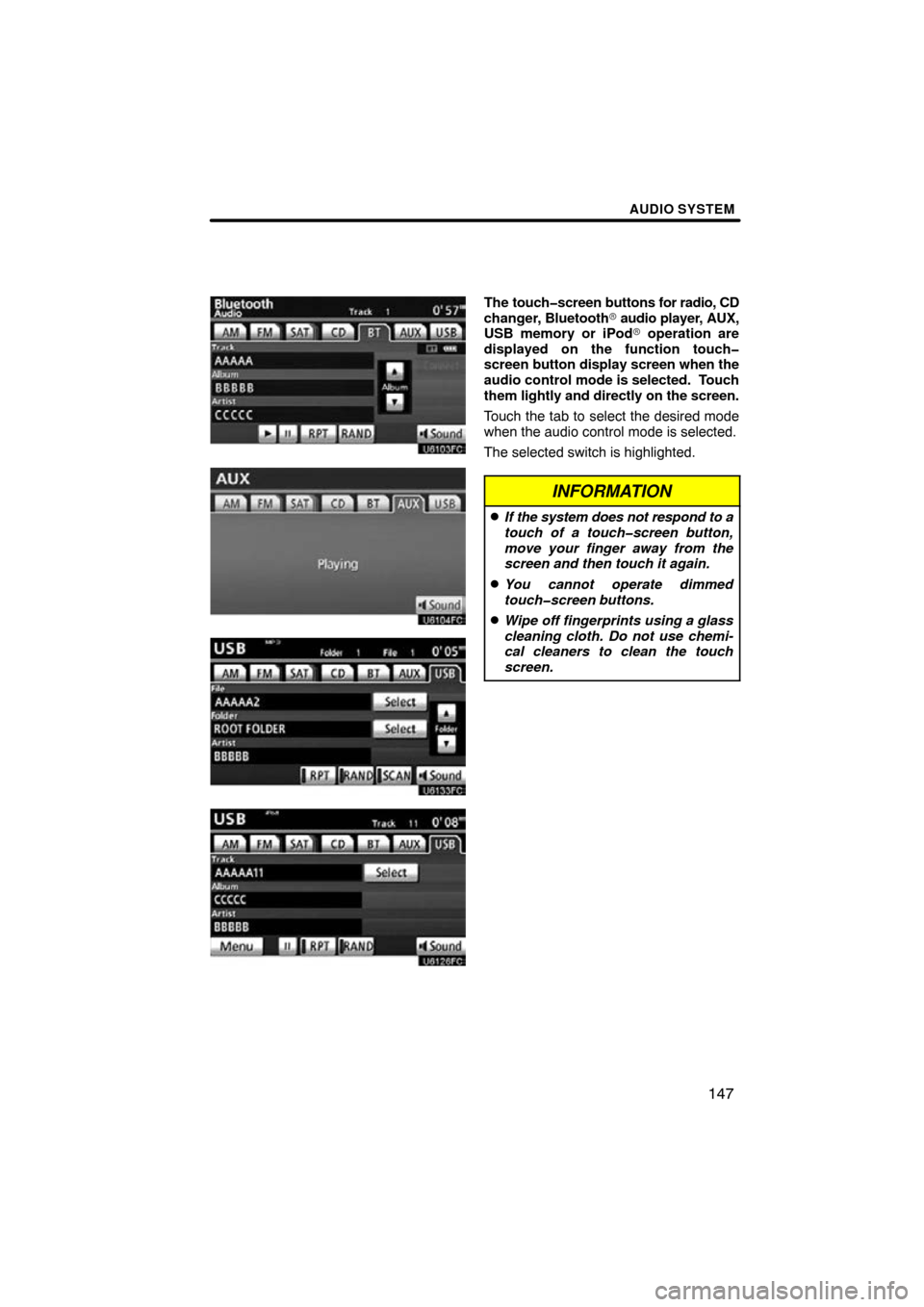

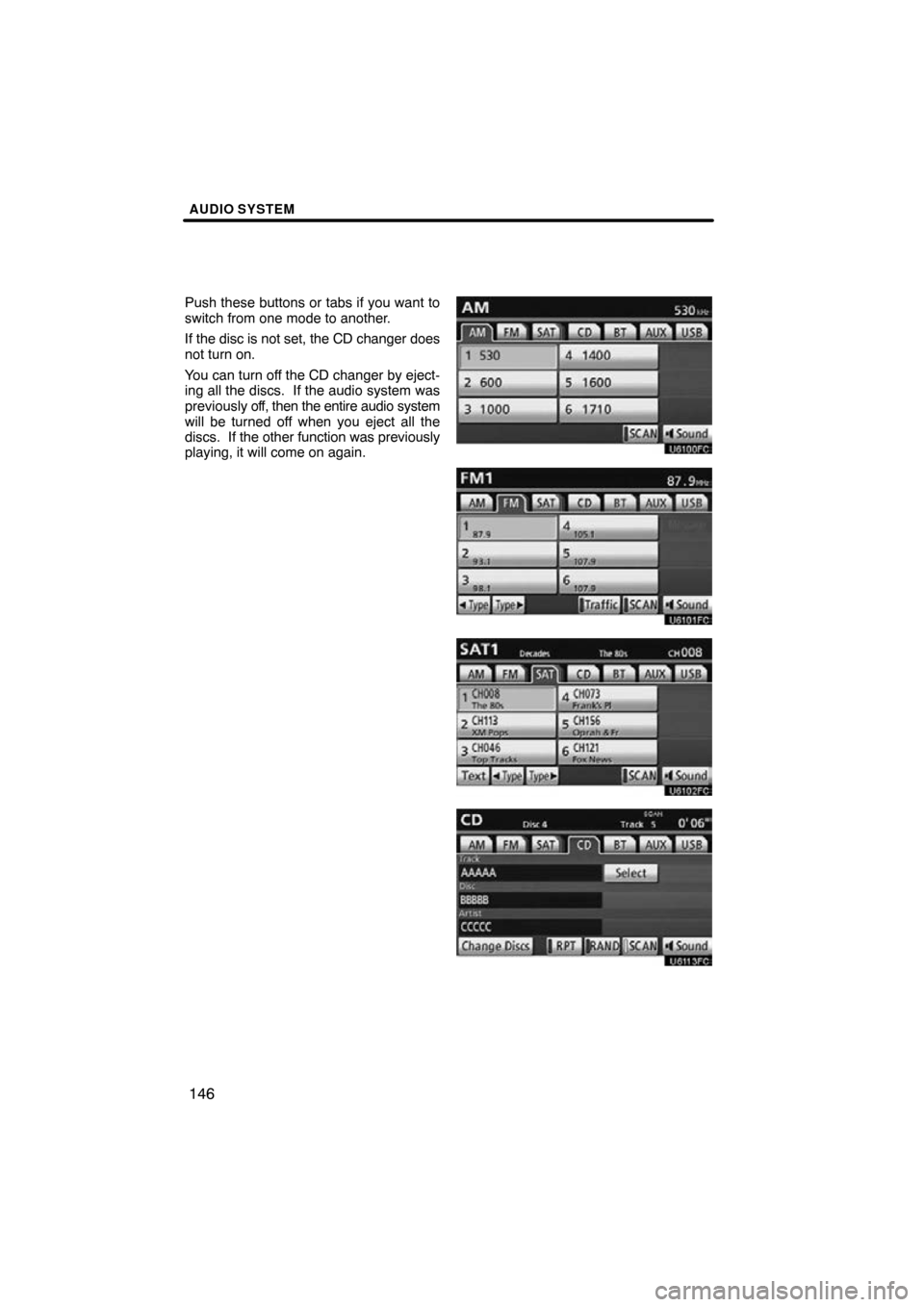

The touchscreen buttons for radio, CD
changer, Bluetooth audio player, AUX,
USB memory or iPod operation are
displayed on the function touch
screen button display screen when the
audio control mode is selected. Touch
them lightly and directly on the screen.
Touch the tab to select the desired mode
when the audio control mode is selected.
The selected switch is highlighted.
INFORMATION
If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed
touchscreen buttons.
Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.

AUDIO SYSTEM
148
(d) DSP control

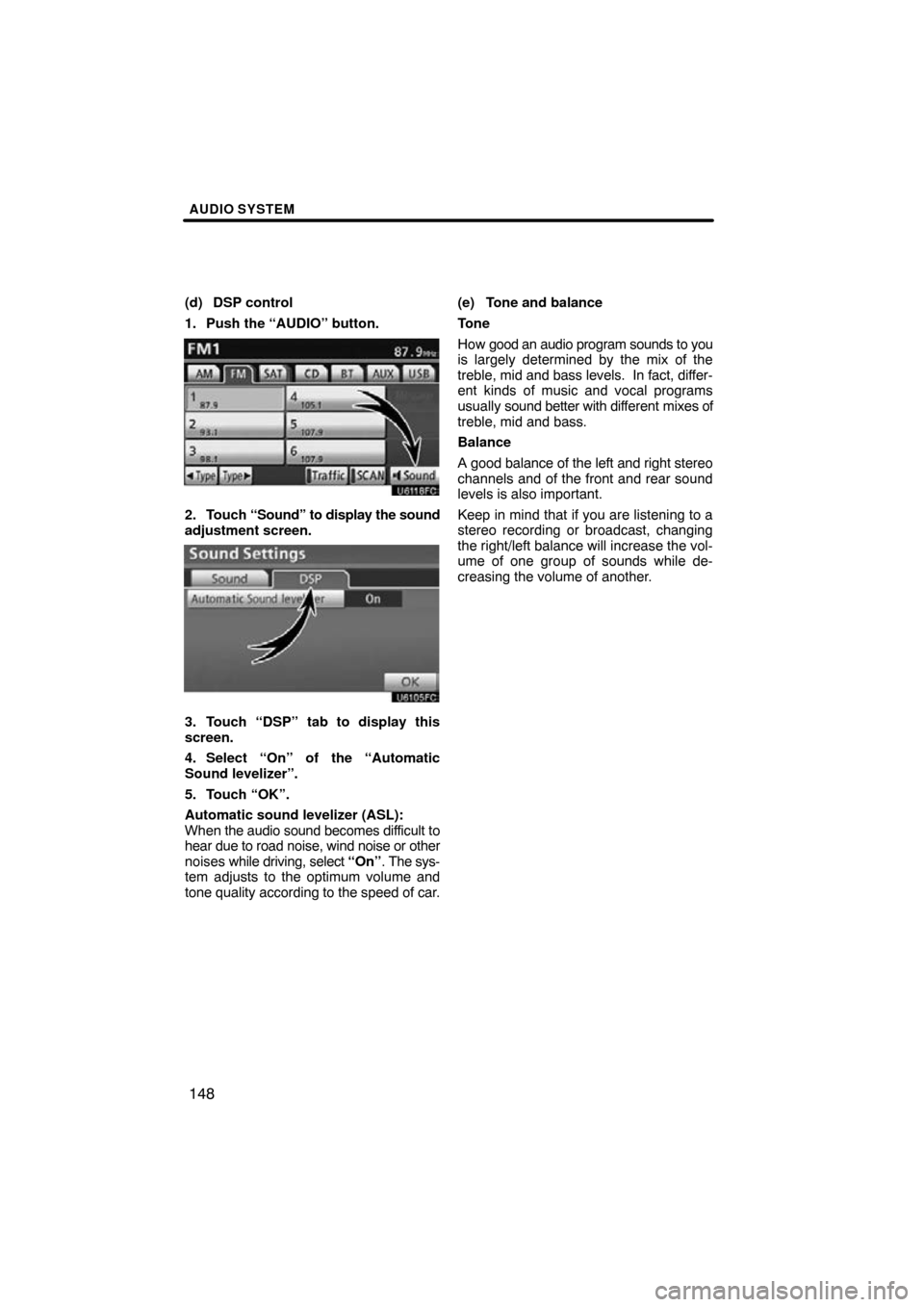

1. Push the “AUDIO” button.
2. Touch “Sound” to display the sound
adjustment screen.
3. Touch “DSP” tab to display this
screen.
4. Select “On” of the “Automatic
Sound levelizer”.
5. Touch “OK”.
Automatic sound levelizer (ASL):
When the audio sound becomes difficult to
hear due to road noise, wind noise or other
noises while driving, select “On”. The sys-
tem adjusts to the optimum volume and
tone quality according to the speed of car. (e) Tone and balance
Tone
How good
an audio program sounds to you
is largely determined by the mix of the
treble, mid and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with dif ferent mixes of
treble, mid and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.

AUDIO SYSTEM
149
U6007GS

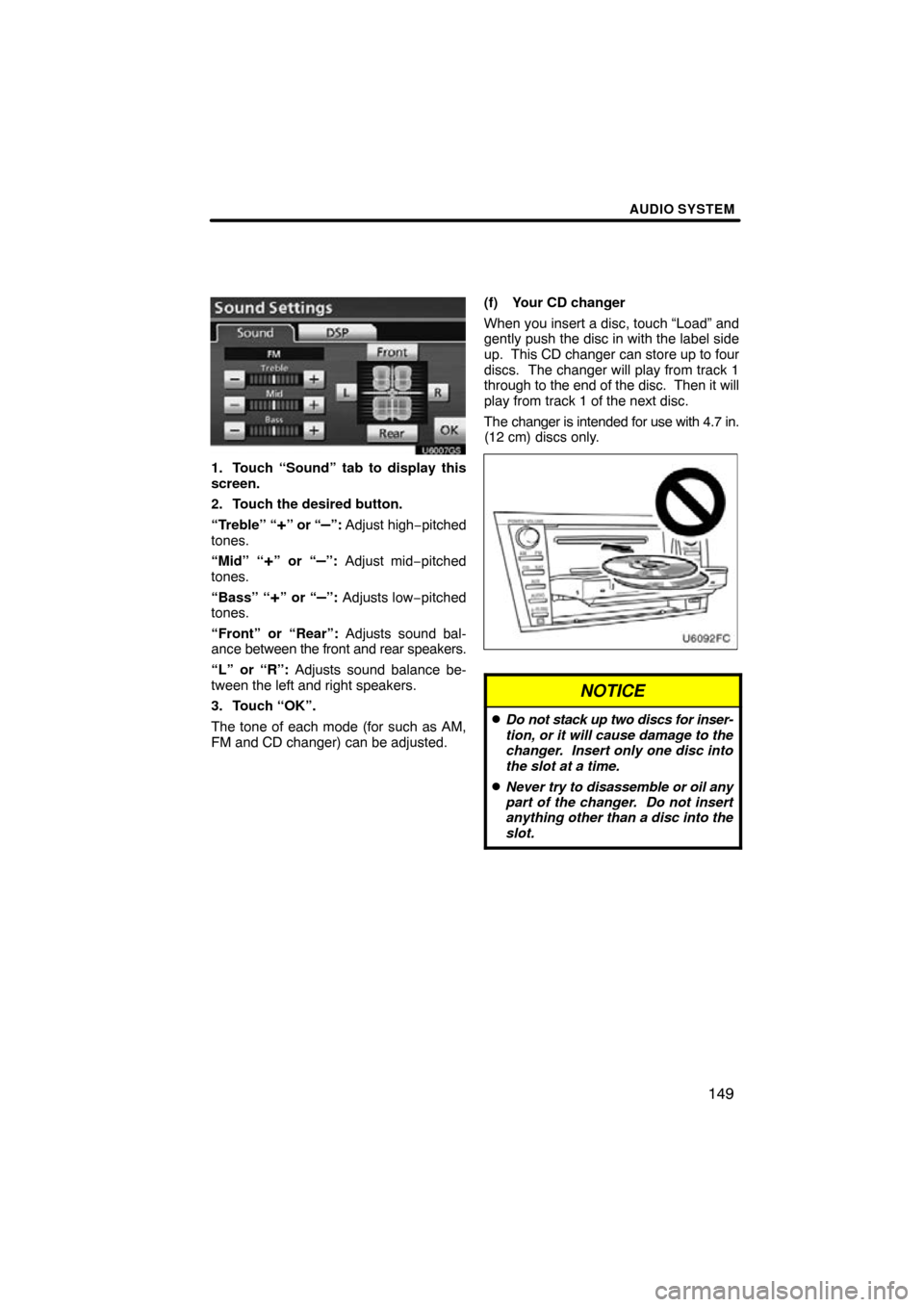

1. Touch “Sound” tab to display this
screen.
2. Touch the desired button.
“Treble” “
+” or “–”: Adjust high−pitched
tones.
“Mid” “
+” or “–”: Adjust mid−pitched
tones.
“Bass” “
+” or “–”: Adjusts low −pitched
tones.
“Front” or “Rear”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance be-
tween the left and right speakers.
3. Touch “OK”.
The tone of each mode (for such as AM,
FM and CD changer) can be adjusted. (f) Your CD changer
When you insert a disc, touch “Load” and
gently push the disc in with the label side
up. This CD changer can store up to four
discs. The changer will play from track 1
through to
the end of the disc. Then it will
play from track 1 of the next disc.
The changer is intended for use with 4.7 in.
(12 cm) discs only.
NOTICE
Do not stack up two discs for inser-
tion, or it will cause damage to the
changer. Insert only one disc into
the slot at a time.
Never try to disassemble or oil any
part of the changer. Do not insert
anything other than a disc into the
slot.

AUDIO SYSTEM
150
(g) AUX adapter
The sound of portable audio players
connected to the AUX adapter can be
enjoyed. Push the “AUX” button or push
the “AUDIO” button to display audio
screen and touch the “AUX” tab to switch
to AUX mode. When the portable audio
player is not connected to the AUX
adapter, the tab will tone down. For
details, refer to the “Owner’s Manual”. (a) Listening to the radio

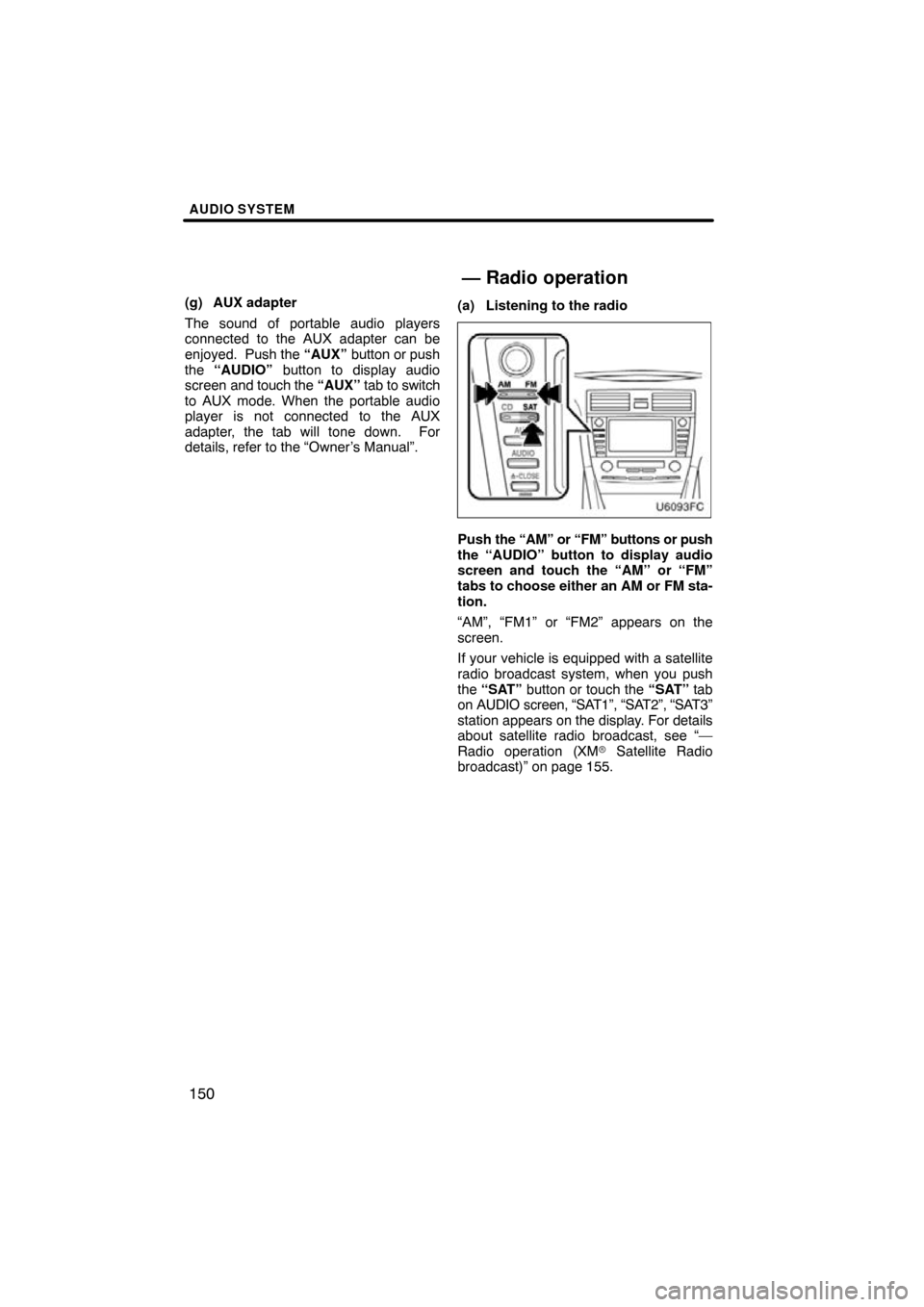

Push
the “AM” or “FM” buttons or push
the “AUDIO” button to display audio
screen and touch the “AM” or “FM”
tabs to choose either an AM or FM sta-
tion.
“AM”, “FM1” or “FM2” appears on the
screen.
If your vehicle is equipped with a satellite
radio broadcast system, when you push
the “SAT” button or touch the “SAT” tab
on AUDIO screen, “SAT1”, “SAT2”, “SAT3”
station appears on the display. For details
about satellite radio broadcast, see “—
Radio operation (XM  Satellite Radio
broadcast)” on page 155.
— Radio operation
