TOYOTA CAMRY 2011 XV50 / 9.G Quick Reference Guide

QUICK REFERENCE
GUIDE
CAMRY
2011
414508M1_r1.indd 11/8/10 2:09 PM

2011
Camry
!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for
theOwner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review theOwner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Camry.
This Quick Reference Guideis not a full description of
Camry operations. Every Camry owner should review the
Owner’s Manualthat accompanies this vehicle.
Pay special attention to the boxed
information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 9Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry1,26Light control-Instrument panel 8
Smart Key system1,27
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions210Automatic Transmission 10Clock 18Cruise control16Cup holders22Garage door opener (HomeLink®)316Lights1& turn signals14Moonroof 12Multi-information display15Parking brake 11Power outlets-12V DC15Seat adjustments-Front13Seat adjustments-Rear13Seat heaters 19Seats-Head restraints12Steering lock release 11Steering wheel switches21Sunshade-Rear 17Telephone controls (Bluetooth®)17Tilt and telescopic steering wheel 11Windows-Power 12
Windshield wipers & washers 14
Child comfort guide 24Door locks 23Doors-Child safety locks23Seat belts23Seat belts-Shoulder belt anchor24Spare tire & tools 25Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
OVERVIEW
Instrument panel
Steering wheel audio controls2
Steering wheel climate controls1
Multi-information display button1
Voice command button1,2
Telephone controls1,2
“ENGINE START STOP” button (Smart Key)1
Ignition switch (standard key)1
Headlight and turn signal controls/Headlight, turn signal and front fog
light1 controls
Wiper and washer controls
Emergency flasher button
Steering wheel controls
Steering wheel controls
XLE and LE models
SE model

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Audio system/Navigation system1,2
Tire Pressure Monitoring (warning) System
Cruise control
Tilt and telescopic steering lock release
VSC OFF switch
Power outside rearview mirror controls
Air Conditioning controls
Outside rearview mirror
1/Rear window defogger button
AUX or USB/AUX audio jack
12V DC Power outlet
Seat heater controls
1
1
If equipped2For details, refer to the “Navigation System Owner’s Manual.”
Automatic Air Conditioning
Manual Air Conditioning

4
OVERVIEW
Instrument cluster
Engine coolant temperature
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Odometer/trip meter/Instrument panel light control and trip meter
reset button
Multi-information display
Automatic Transmission shift position indicator (if equipped)
Sequential shift range display (if equipped)
Odometer, two trip meters and outside temperature display
With multi-information display
Without multi-information display
Indicator symbols
Brake system warning1
For details, refer to “Indicators and warning lights,” Section 2-2, 2011
Owner’s Manual.
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Charging system warning1
Front passenger occupant classification or front passenger AIR BAG
ON/OFF indicator
2If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.
Cruise control SET indicator2
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Low fuel level warning
Front fog light indicator
Smart Key system warning
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1

6
OVERVIEW
Keyless entry (if equipped)
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system
Panic button
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Trunk lid
Without Smart Key system With Smart Key system
Push and hold

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

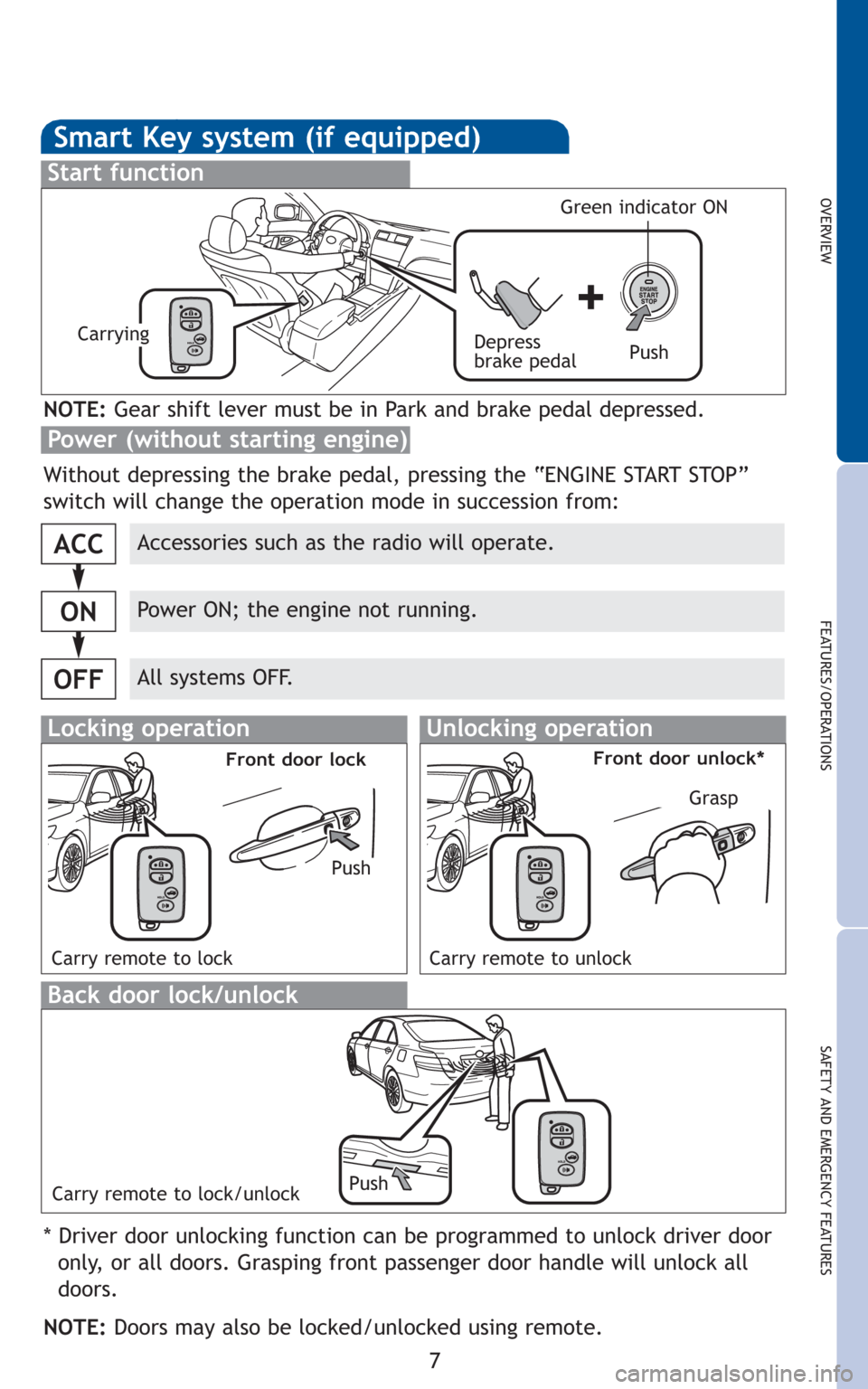

Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping front passenger door handle will unlock all
doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Back door lock/unlock
Push
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Push
Front door lock
Grasp
Carry remote to lock/unlock
Front door unlock*

8

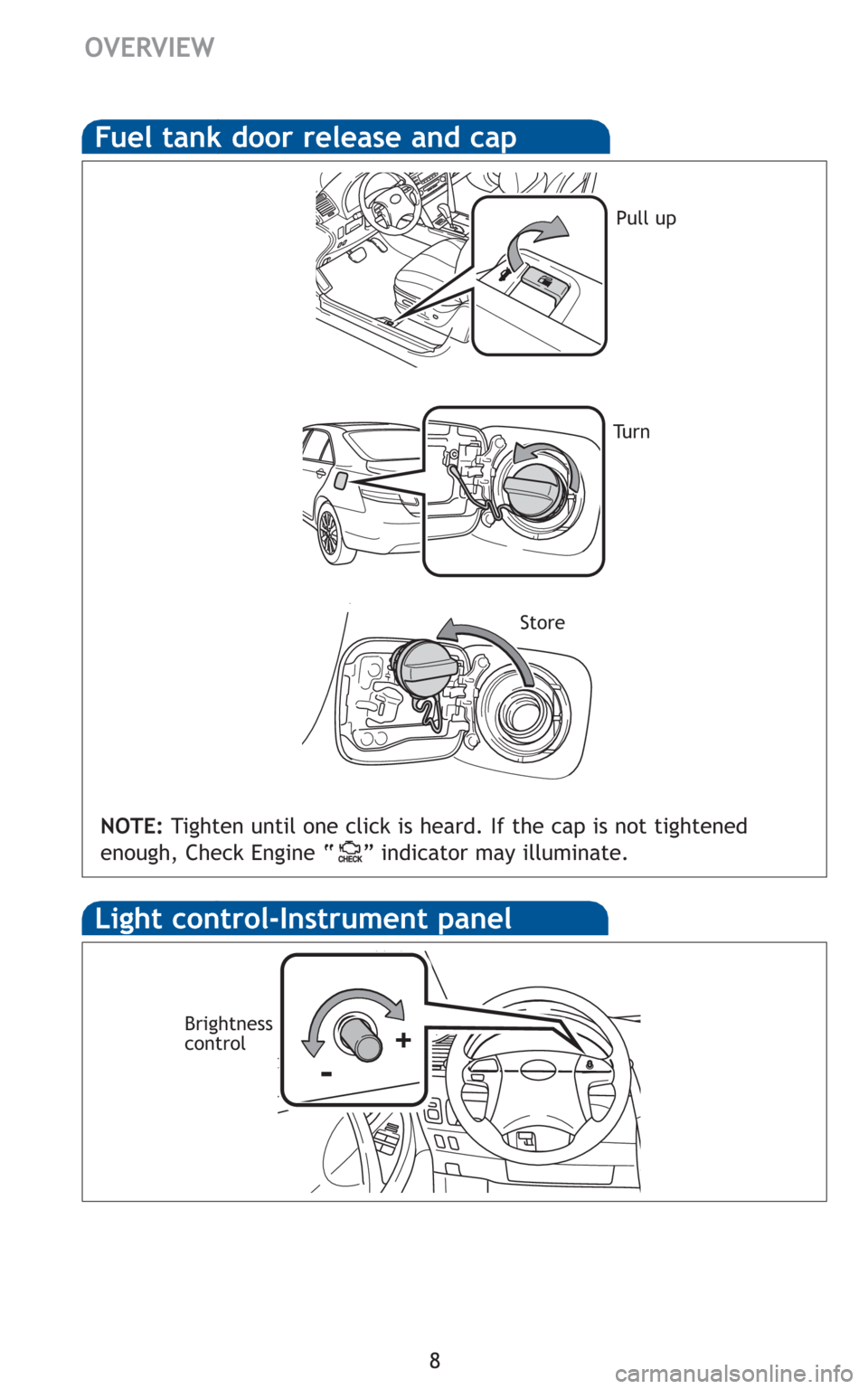

Fuel tank door release and cap
NOTE:Tighten until one click is heard. If the cap is not tightened
enough, Check Engine “ ” indicator may illuminate.
Pull up
Tu r n
Store
Light control-Instrument panel
Brightness
control
-
+
OVERVIEW
