TOYOTA CAMRY 2011 XV50 / 9.G Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

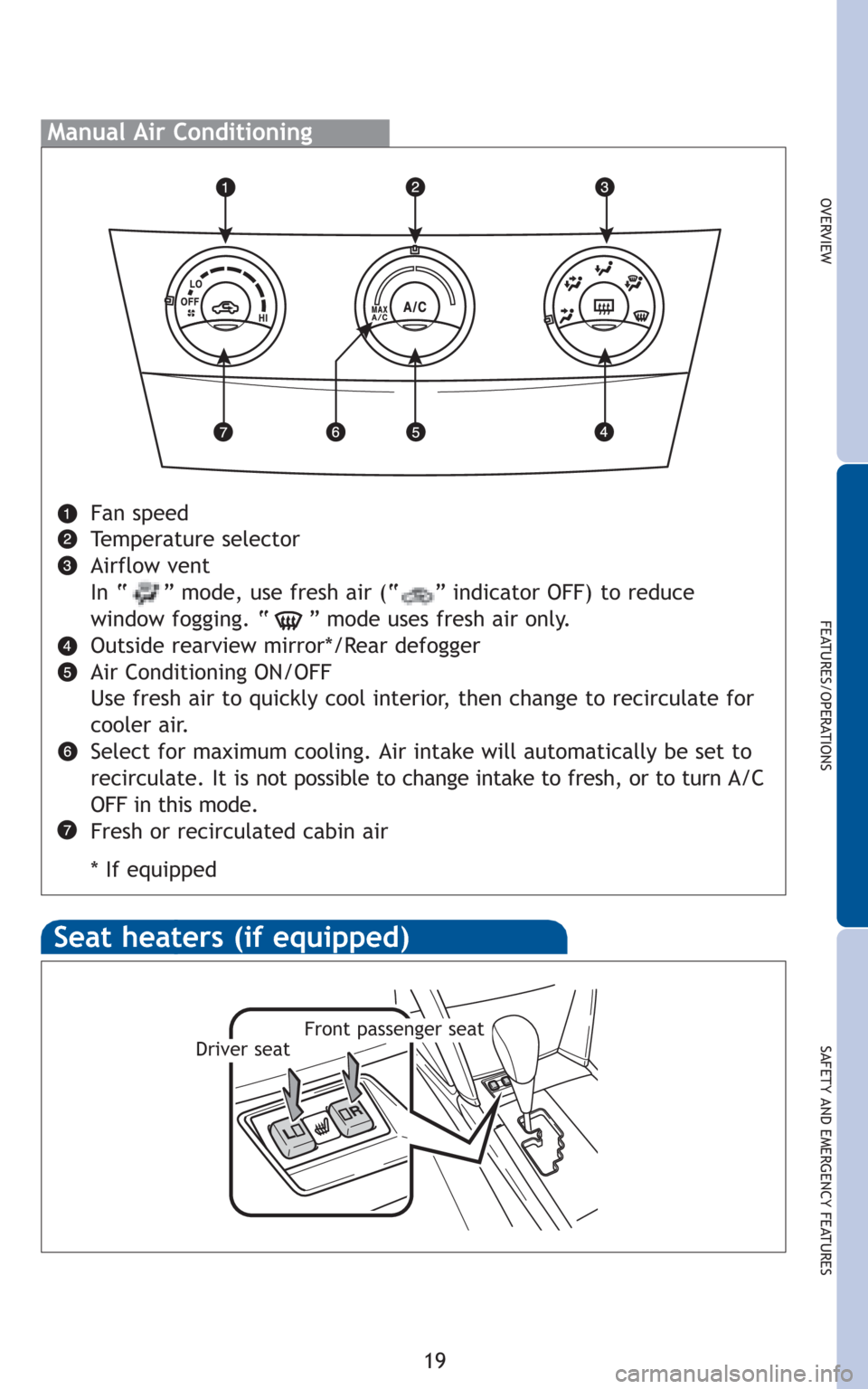

Manual Air Conditioning
Fan speed
Temperature selector
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Outside rearview mirror*/Rear defogger
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Select for maximum cooling. Air intake will automatically be set to
recirculate. It is not possible to change intake to fresh, or to turn A/C
OFF in this mode.
Fresh or recirculated cabin air
* If equipped
Seat heaters (if equipped)
Driver seatFront passenger seat

20
FEATURES/OPERATIONS

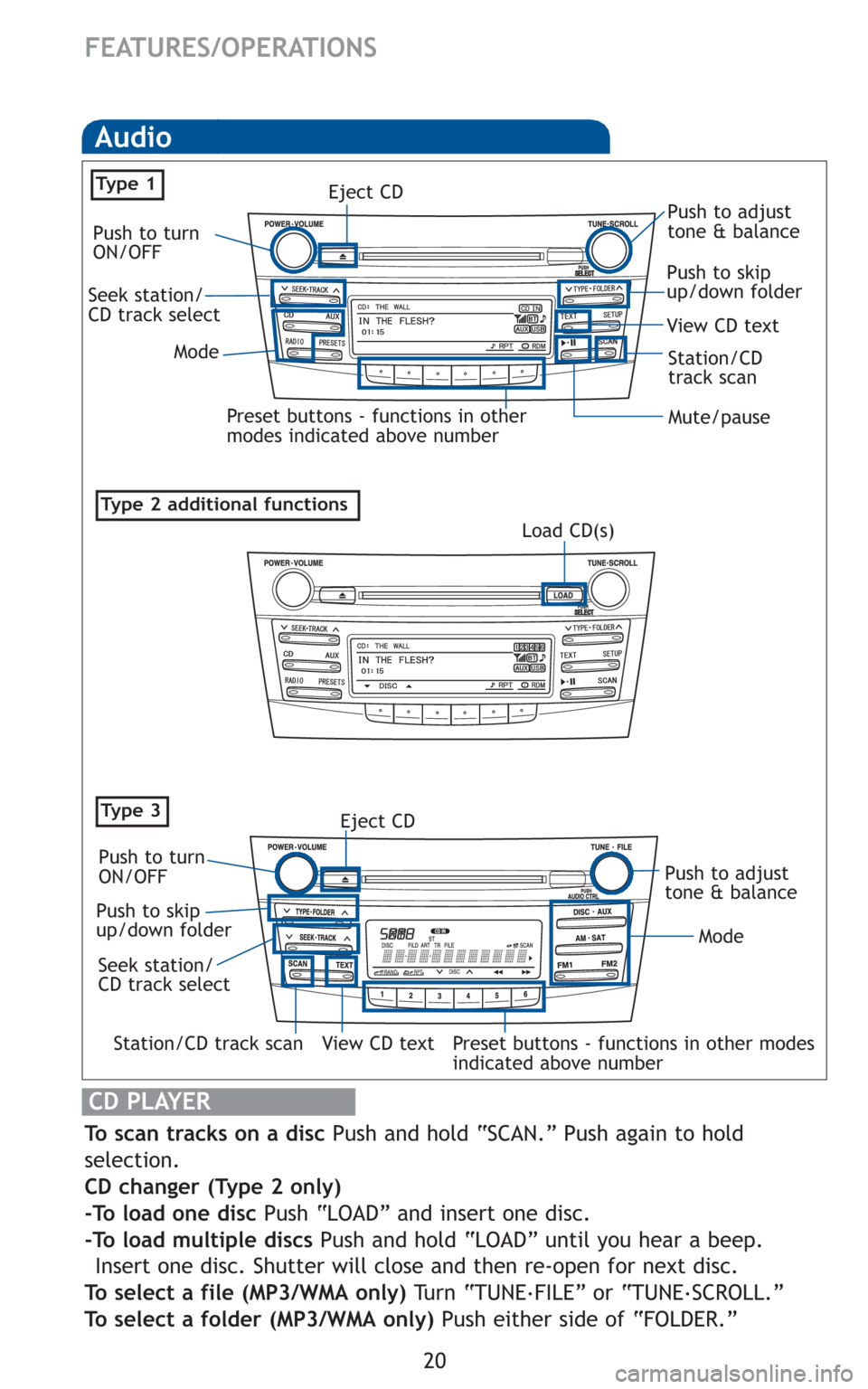

Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Tu r n “ T U N E.
FILE” or “TUNE.
SCROLL.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
Type 2 additional functions
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track select
Station/CD
track scan Mode
Preset buttons - functions in other
modes indicated above number
Load CD(s)
View CD text
Ty p e 1
Push to skip
up/down folder
Mute/pause
Ty p e 3Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track selectMode
Preset buttons - functions in other modes
indicated above number
Push to skip
up/down folder
View CD textStation/CD track scan

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

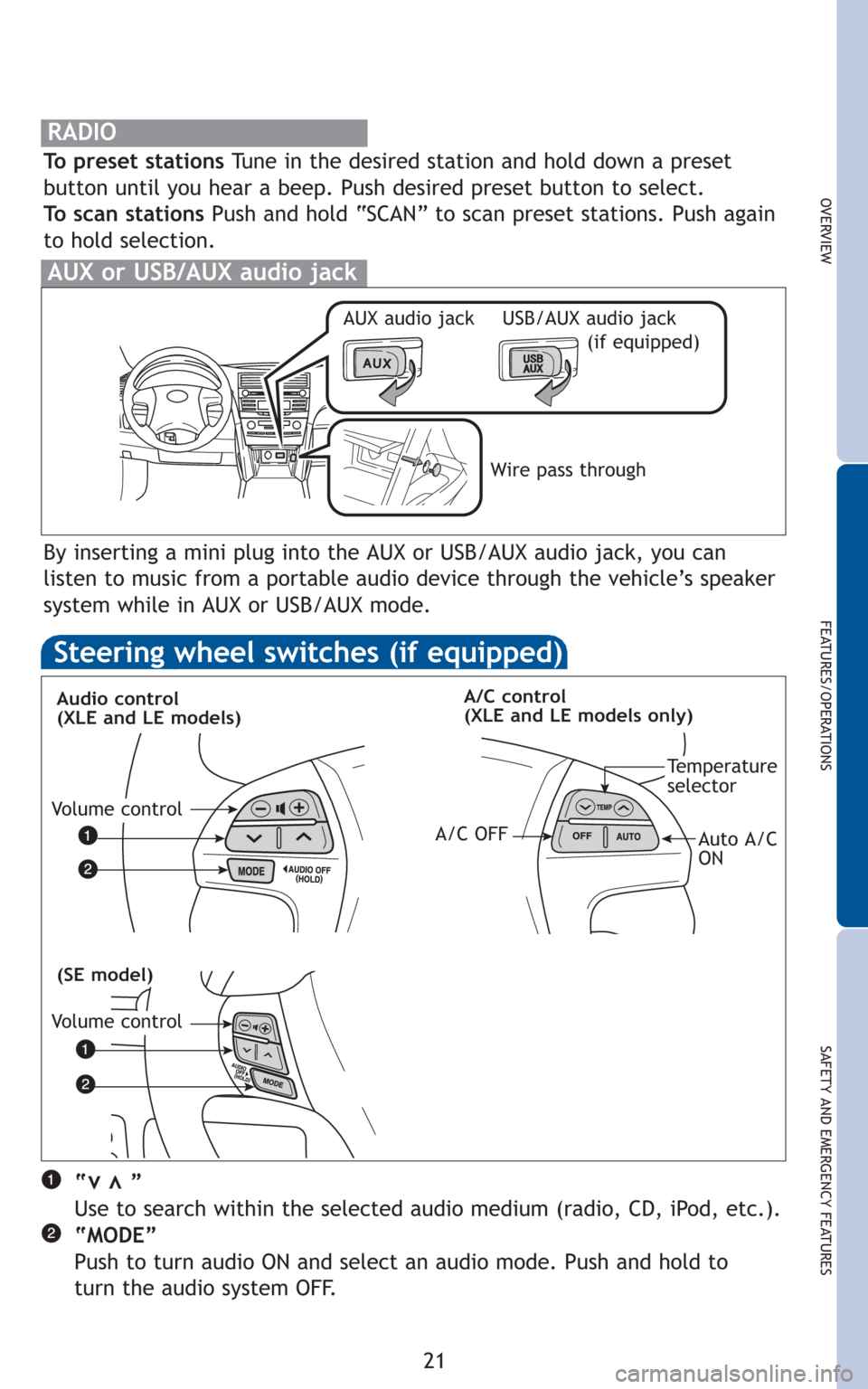

Steering wheel switches (if equipped)
Audio control
(XLE and LE models)A/C control
(XLE and LE models only)
“ ”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to
turn the audio system OFF.vv
Volume control
Temperature
selector
Auto A/C
ONA/C OFF
By inserting a mini plug into the AUX or USB/AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX or USB/AUX mode.
AUX or USB/AUX audio jack
Volume control
(SE model)
Wire pass through AUX audio jack
RADIO
To preset stations Tune in the desired station and hold down a preset
button until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
USB/AUX audio jack
(if equipped)

22
Rear
LE model XLE and SE models
FEATURES/OPERATIONS

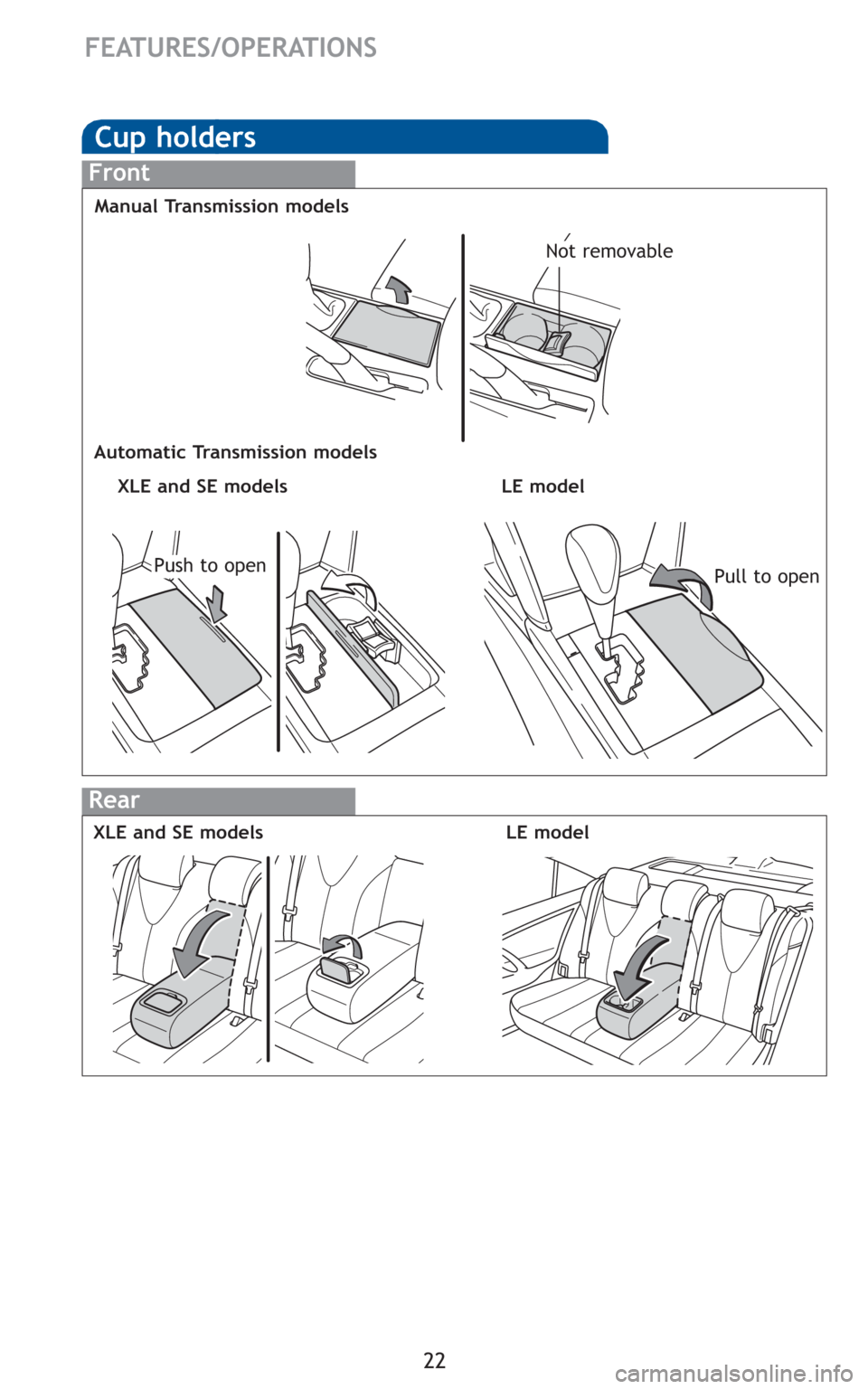

Cup holders
Front
Manual Transmission models
Not removable
Automatic Transmission models
LE model XLE and SE models
Pull to openPush to open

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

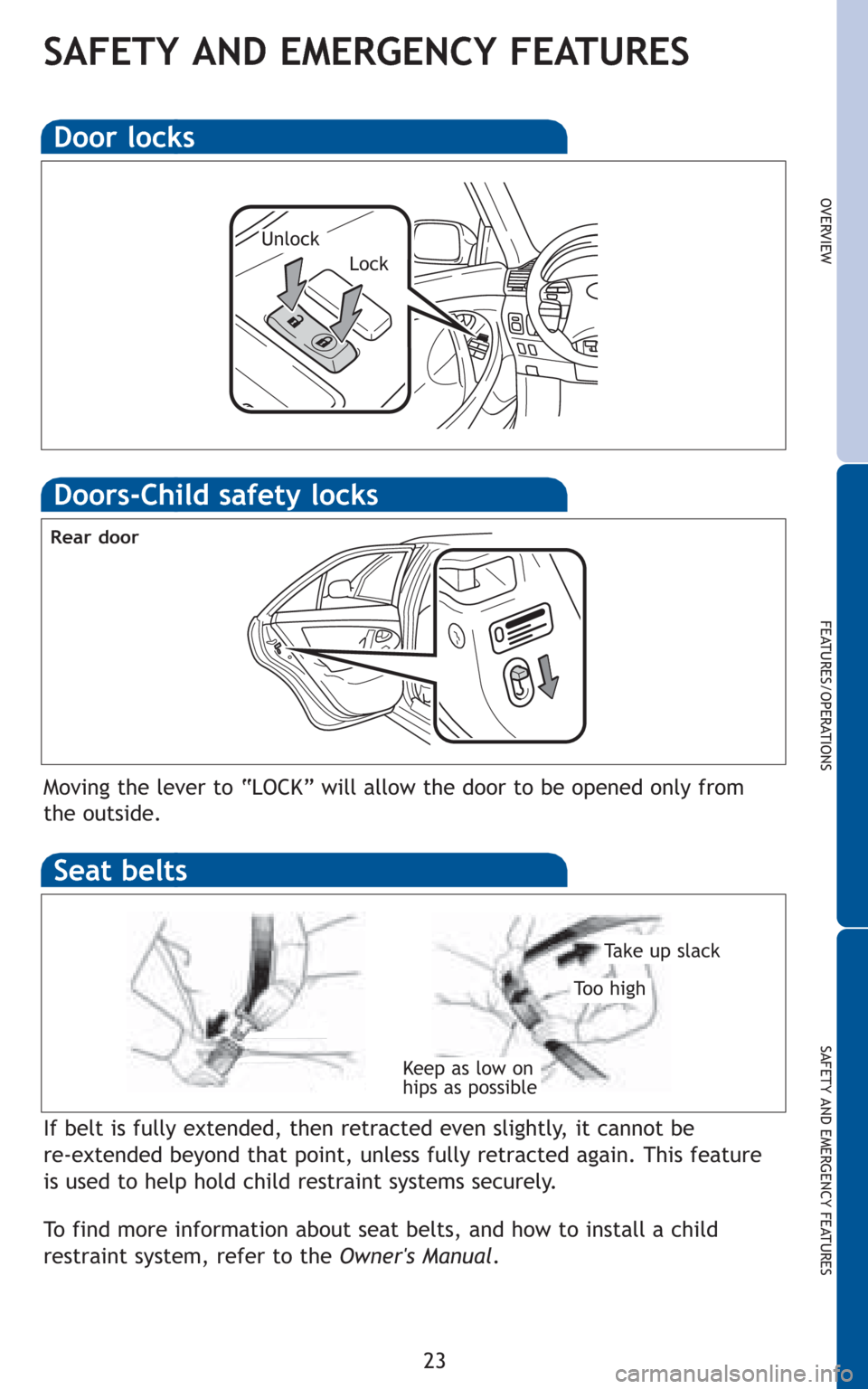

Door locks
Lock
Unlock
SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts

24
Rear seat outside
position guides provide
added comfort for
children who have
outgrown child
restraints.
Child comfort guide
SAFETY AND EMERGENCY FEATURES
Push up, or
squeeze lock
release to lower
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three
times.
2. Wait a few minutes to allow
initialization to complete.

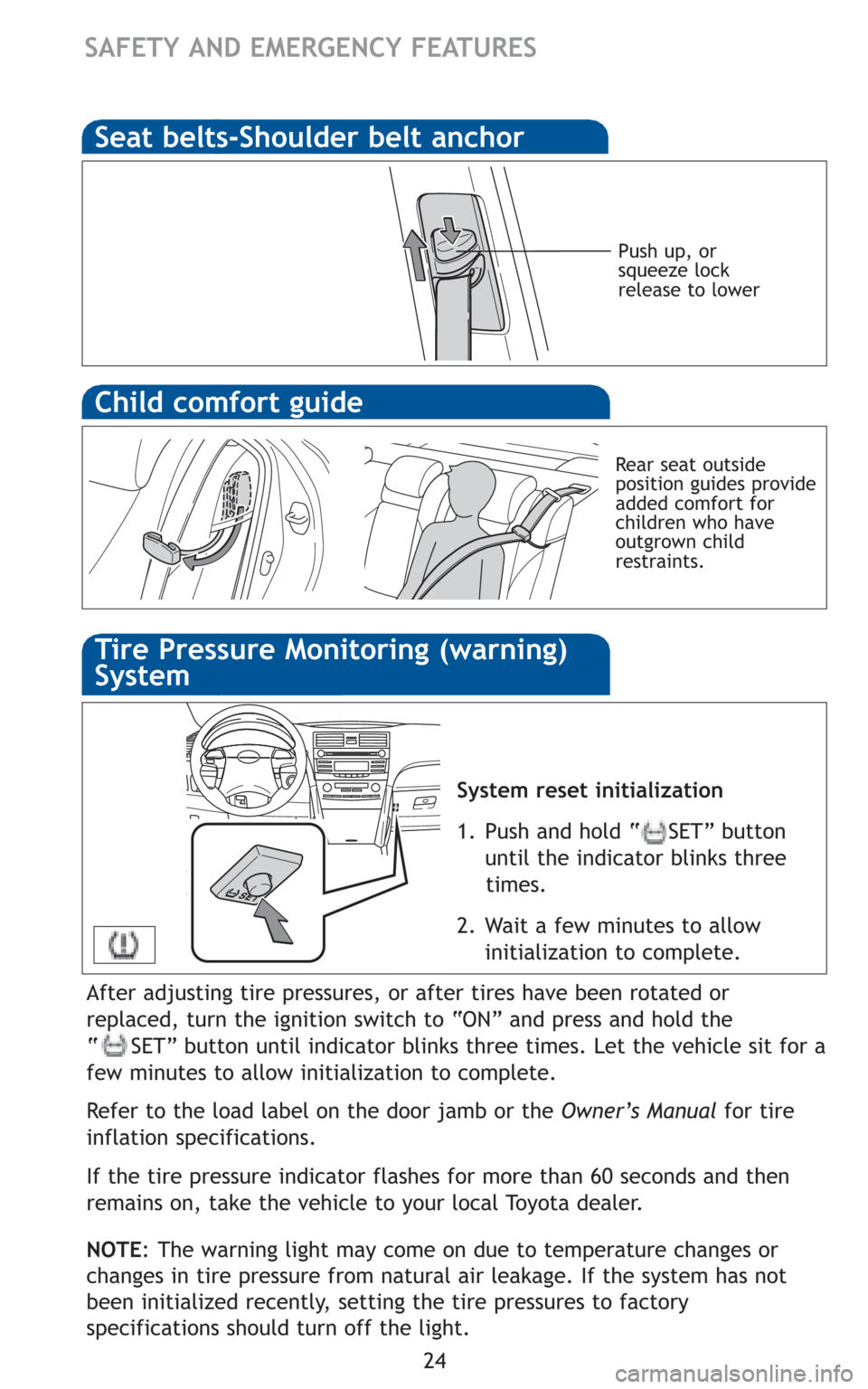

Seat belts-Shoulder belt anchor
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

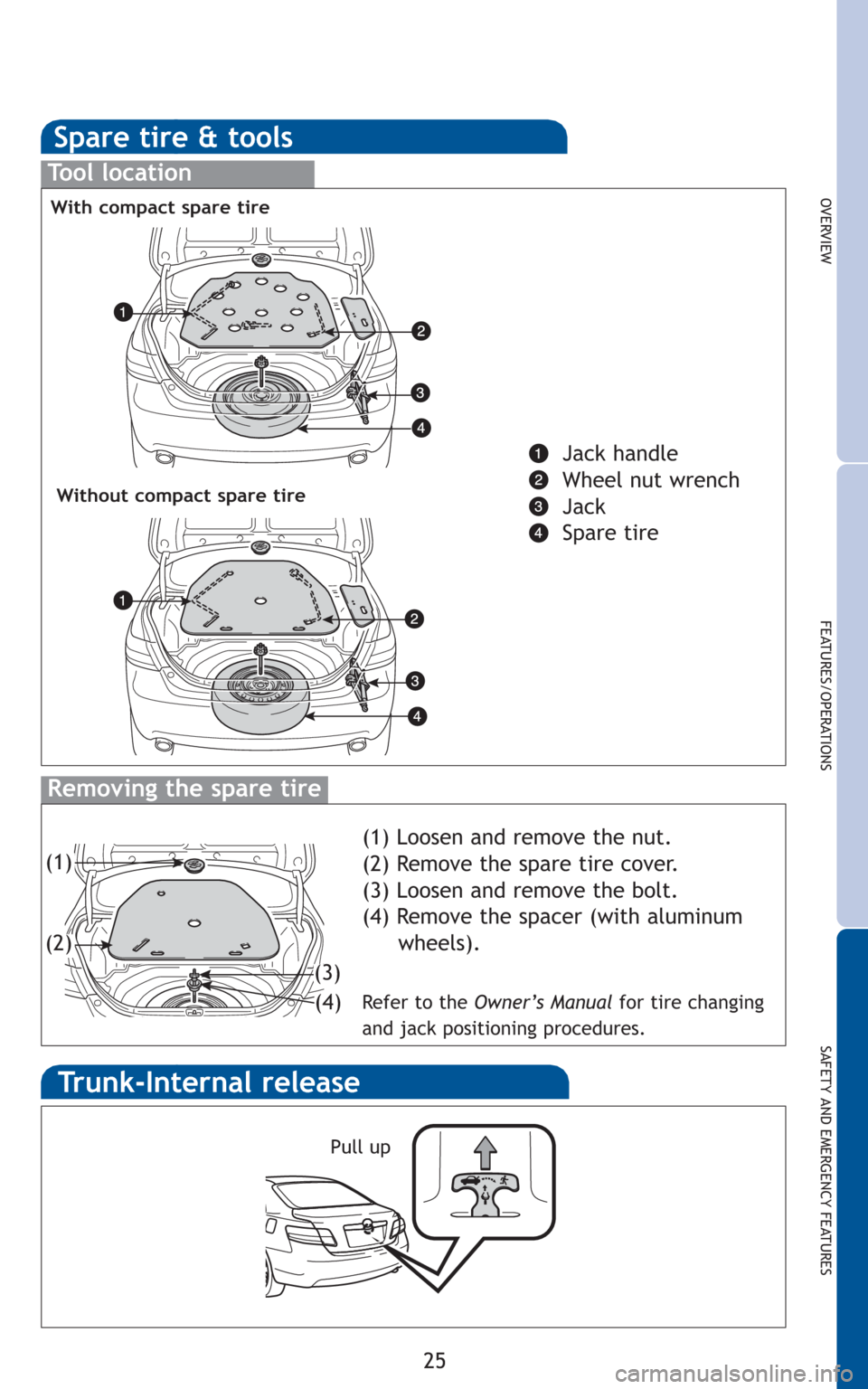

Spare tire & tools
Tool location
Jack handle
Wheel nut wrench
Jack
Spare tire
With compact spare tire
Without compact spare tire
Removing the spare tire
(1) Loosen and remove the nut.
(2) Remove the spare tire cover.
(3) Loosen and remove the bolt.
(4) Remove the spacer (with aluminum
wheels).
Trunk-Internal release
Pull up
(1)
(2)
(3)
(4)Refer to the Owner’s Manualfor tire changing
and jack positioning procedures.

CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
