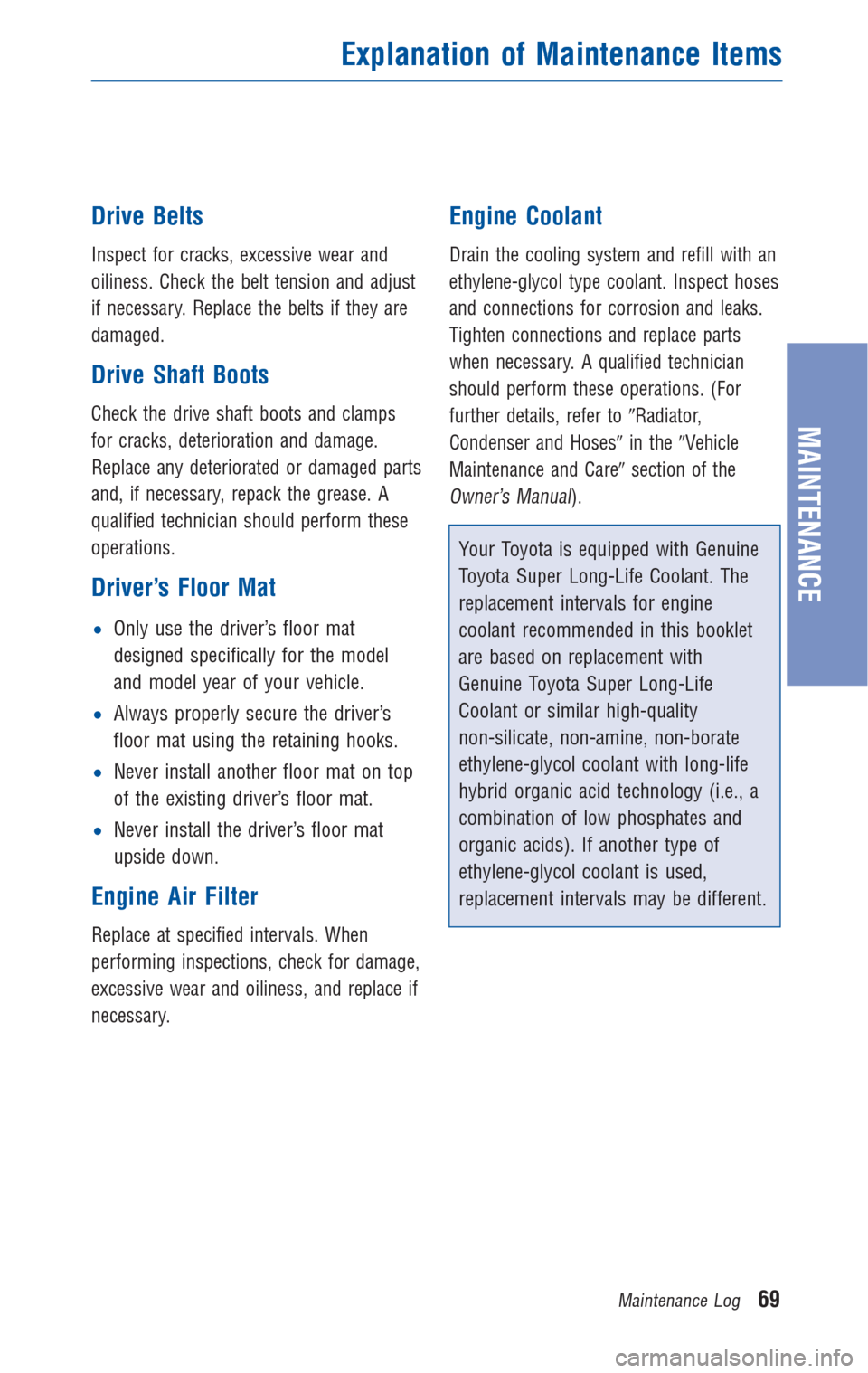

Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they are
damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged parts
and, if necessary, repack the grease. A
qualified technician should perform these
operations.
Driver’s Floor Mat
Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
Always properly secure the driver’s
floor mat using the retaining hooks.
Never install another floor mat on top
of the existing driver’s floor mat.
Never install the driver’s floor mat
upside down.
Engine Air Filter
Replace at specified intervals. When
performing inspections, check for damage,
excessive wear and oiliness, and replace if
necessary.
Engine Coolant
Drain the cooling system and refill with an
ethylene-glycol type coolant. Inspect hoses
and connections for corrosion and leaks.
Tighten connections and replace parts
when necessary. A qualified technician
should perform these operations. (For
further details, refer to Radiator,
Condenser and Hoses in the Vehicle
Maintenance and Care section of the
Owner’s Manual).
Your Toyota is equipped with Genuine
Toyota Super Long-Life Coolant. The
replacement intervals for engine
coolant recommended in this booklet
are based on replacement with
Genuine Toyota Super Long-Life
Coolant or similar high-quality
non-silicate, non-amine, non-borate
ethylene-glycol coolant with long-life
hybrid organic acid technology (i.e., a
combination of low phosphates and
organic acids). If another type of
ethylene-glycol coolant is used,
replacement intervals may be different.
Explanation of Maintenance Items
Maintenance Log69
MAINTENANCE
MAINTENANCE

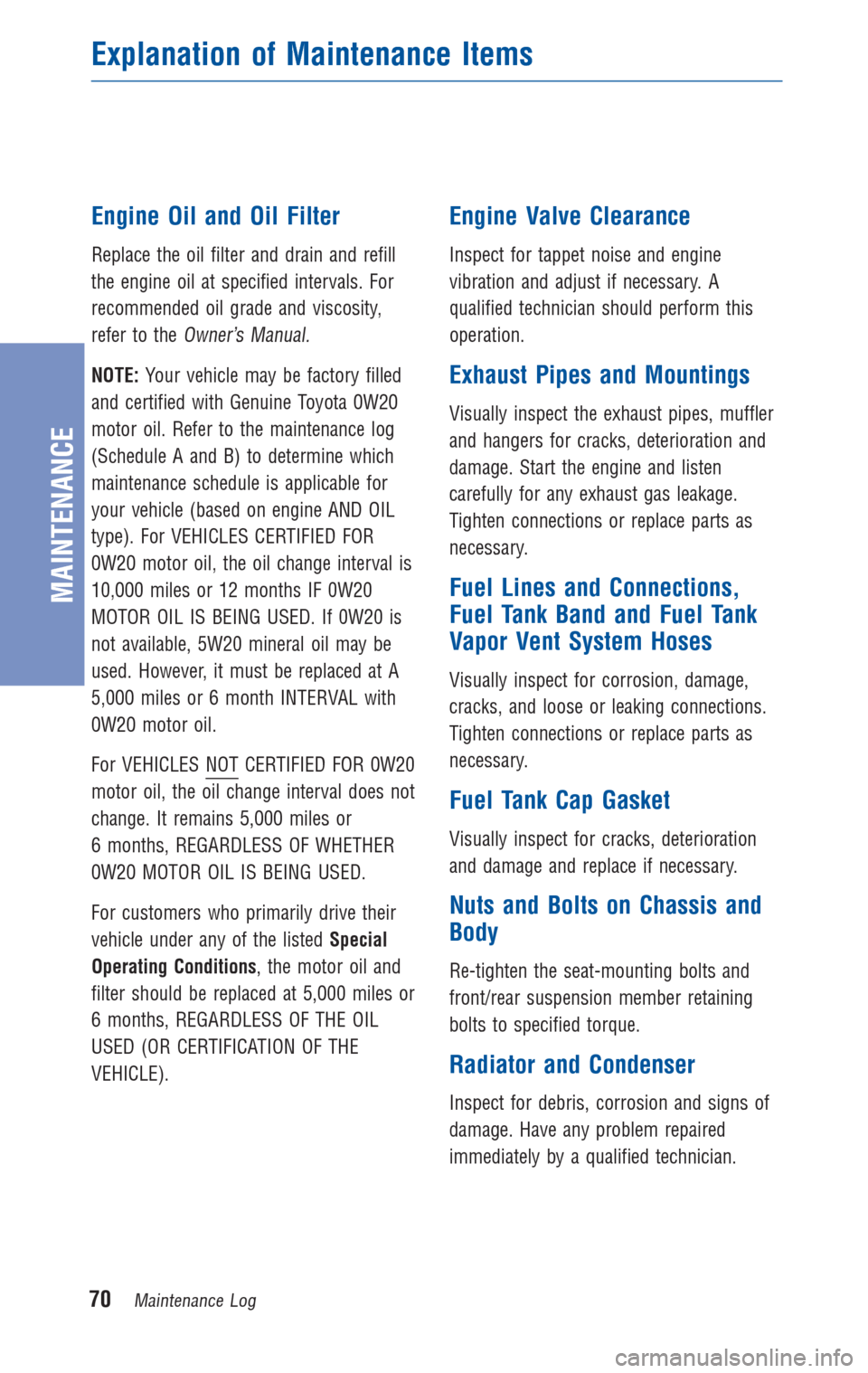

Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the
Owner’s Manual.
NOTE:Your vehicle may be factory filled
and certified with Genuine Toyota 0W20
motor oil. Refer to the maintenance log
(Schedule A and B) to determine which
maintenance schedule is applicable for
your vehicle (based on engine AND OIL
type). For VEHICLES CERTIFIED FOR
0W20 motor oil, the oil change interval is
10,000 miles or 12 months IF 0W20
MOTOR OIL IS BEING USED. If 0W20 is
not available, 5W20 mineral oil may be
used. However, it must be replaced at A
5,000 miles or 6 month INTERVAL with
0W20 motor oil.
For VEHICLES NOT CERTIFIED FOR 0W20
motor oil, the oil change interval does not
change. It remains 5,000 miles or
6 months, REGARDLESS OF WHETHER
0W20 MOTOR OIL IS BEING USED.
For customers who primarily drive their
vehicle under any of the listedSpecial
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
6 months, REGARDLESS OF THE OIL
USED (OR CERTIFICATION OF THE
VEHICLE).
Engine Valve Clearance
Inspect for tappet noise and engine
vibration and adjust if necessary. A
qualified technician should perform this
operation.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts as
necessary.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis and
Body
Re-tighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs of
damage. Have any problem repaired
immediately by a qualified technician.
Explanation of Maintenance Items
70Maintenance Log
MAINTENANCE
MAINTENANCE
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear Box
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the
Owner’s Manual.When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Explanation of Maintenance Items
Maintenance Log71
