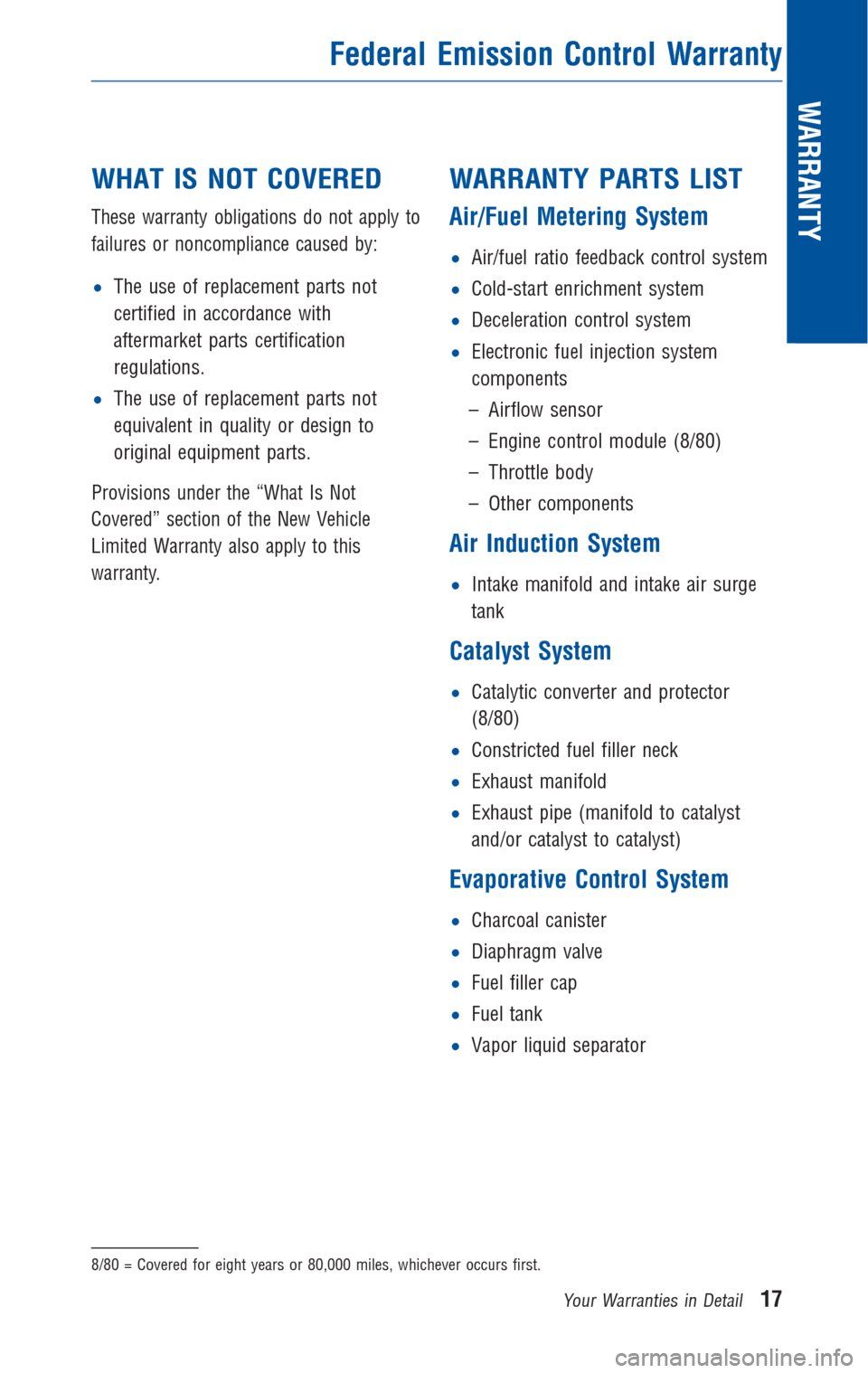

WHAT IS NOT COVERED
These warranty obligations do not apply to
failures or noncompliance caused by:
The use of replacement parts not
certified in accordance with
aftermarket parts certification
regulations.
The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
WARRANTY PARTS LIST
Air/Fuel Metering System
Air/fuel ratio feedback control system
Cold-start enrichment system
Deceleration control system
Electronic fuel injection system
components
– Airflow sensor
– Engine control module (8/80)
– Throttle body
– Other components
Air Induction System
Intake manifold and intake air surge
tank
Catalyst System
Catalytic converter and protector
(8/80)
Constricted fuel filler neck
Exhaust manifold
Exhaust pipe (manifold to catalyst
and/or catalyst to catalyst)
Evaporative Control System
Charcoal canister
Diaphragm valve
Fuel filler cap
Fuel tank
Vapor liquid separator
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
Your Warranties in Detail17
WARRANTY

Exhaust Gas Recirculation
(EGR) System
EGR gas temperature sensor
EGR valve
Associated parts
Ignition System
Distributor and internal parts
Ignition coil and ignitor
Ignition wires
Spark plugs*
Positive Crankcase Ventilation
(PCV) System
Oil filler cap
PCV valve or orifice
Other Parts Used in Above
Systems
Data link connector (8/80)
Hoses, clamps, fittings, tubing and
mounting hardware
Malfunction indicator light and bulb
(8/80)
Pulleys, belts and idlers
Sealing gaskets and devices
Sensors, solenoids, switches and
valves
MAINTENANCE
You are responsible for performance of
the required maintenance indicated in the
Owner’s Manualand this booklet. Toyota
will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
any failure or noncompliance caused by
lack of maintenance is not covered by this
warranty.
When maintenance and repairs are paid
for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs.However, any
failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
* Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
18Your Warranties in Detail
WARRANTY

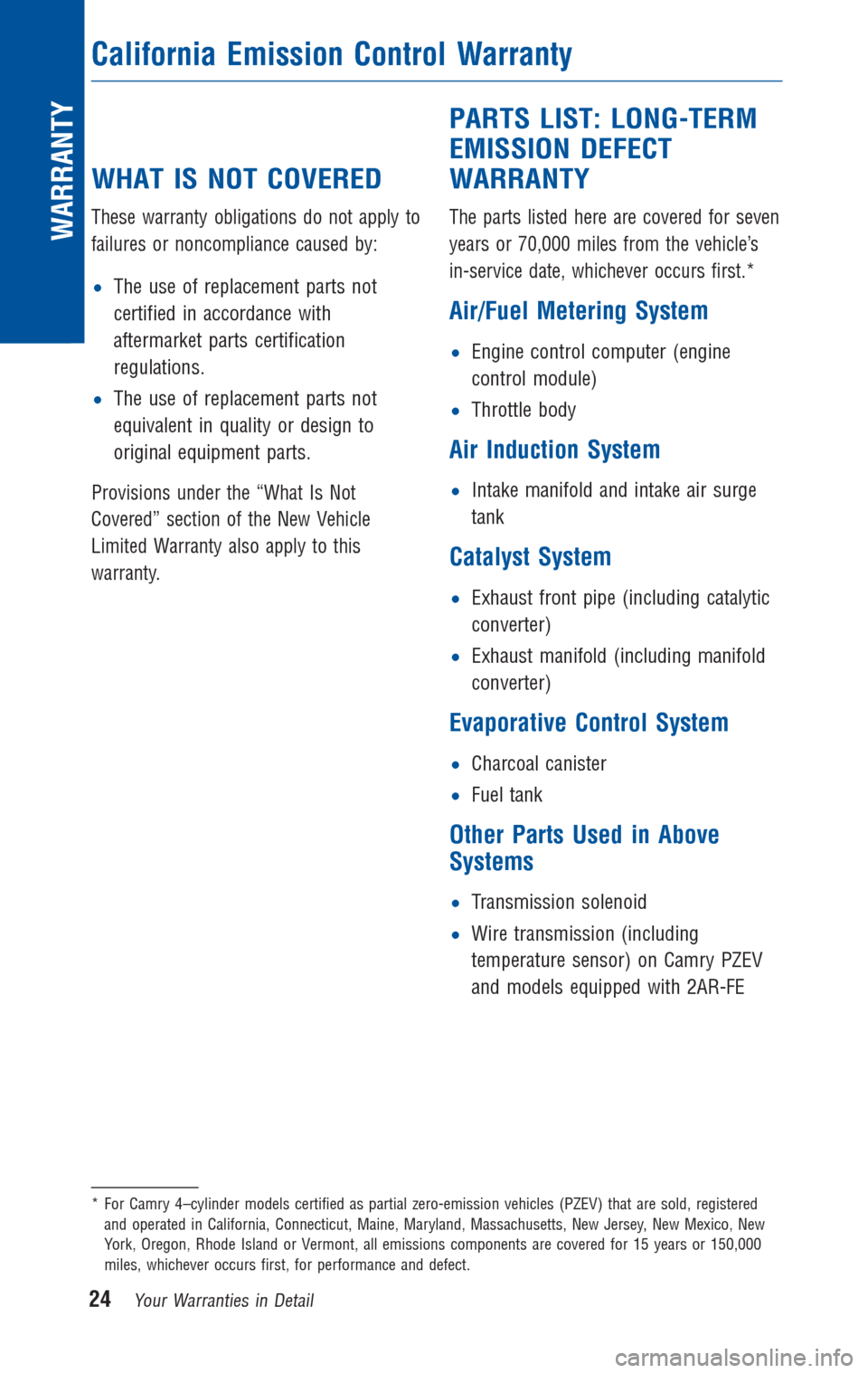

WHAT IS NOT COVERED
These warranty obligations do not apply to
failures or noncompliance caused by:
The use of replacement parts not
certified in accordance with
aftermarket parts certification
regulations.
The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
PARTS LIST: LONG-TERM
EMISSION DEFECT
WARRANTY
The parts listed here are covered for seven
years or 70,000 miles from the vehicle’s
in-service date, whichever occurs first.*
Air/Fuel Metering System
Engine control computer (engine
control module)
Throttle body
Air Induction System
Intake manifold and intake air surge
tank
Catalyst System
Exhaust front pipe (including catalytic
converter)
Exhaust manifold (including manifold
converter)
Evaporative Control System
Charcoal canister
Fuel tank
Other Parts Used in Above
Systems
Transmission solenoid
Wire transmission (including
temperature sensor) on Camry PZEV
and models equipped with 2AR-FE
* For Camry 4–cylinder models certified as partial zero-emission vehicles (PZEV) that are sold, registered
and operated in California, Connecticut, Maine, Maryland, Massachusetts, New Jersey, New Mexico, New
York, Oregon, Rhode Island or Vermont, all emissions components are covered for 15 years or 150,000
miles, whichever occurs first, for performance and defect.
