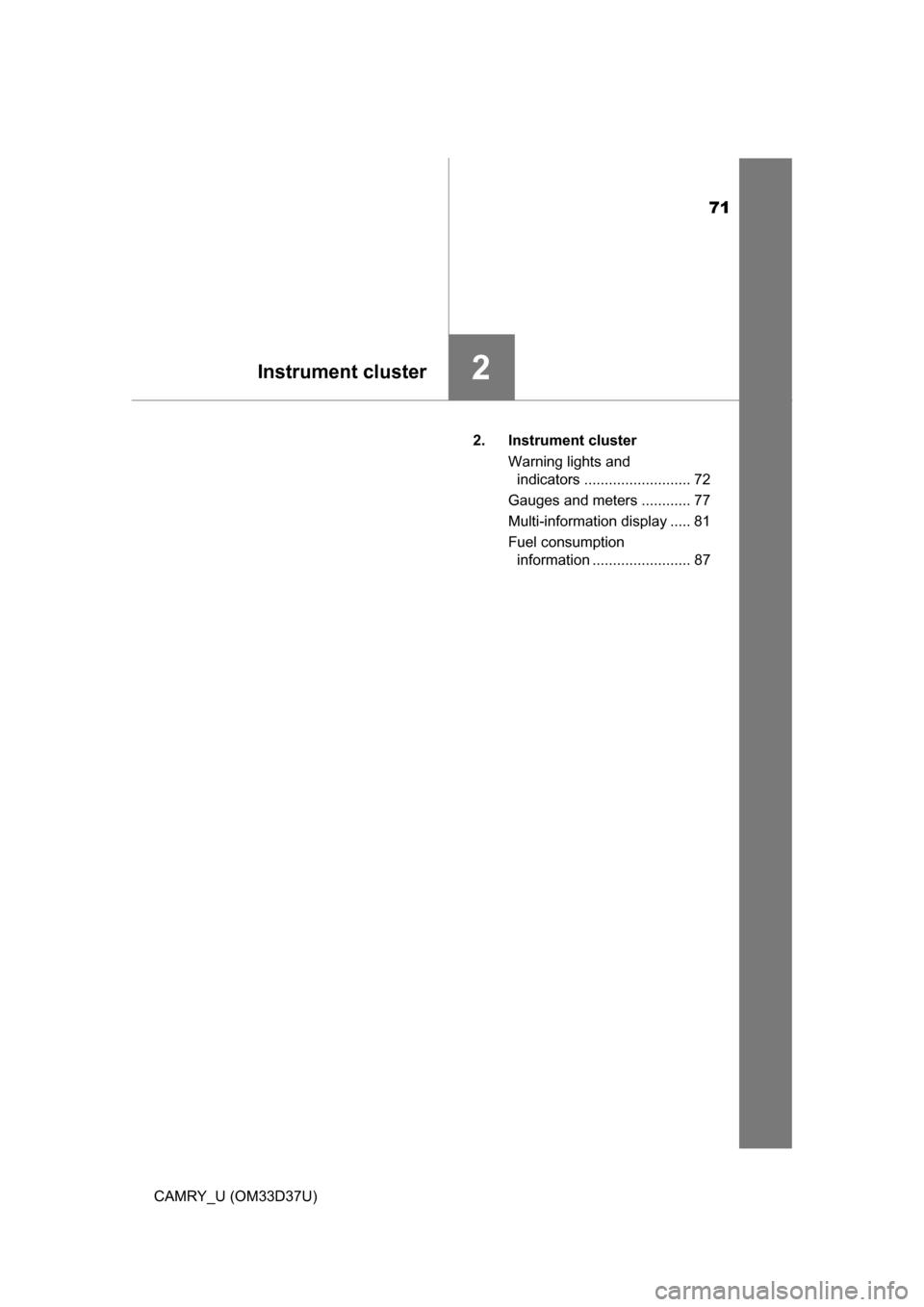

CAMRY_U (OM33D37U)2. Instrument cluster
Warning lights and indicators .......................... 72
Gauges and meters ............ 77
Multi-information display ..... 81
Fuel consumption information ........................ 87

72
CAMRY_U (OM33D37U)
2. Instrument cluster
The units used on the meters and some indicators may differ depending on
the target region.

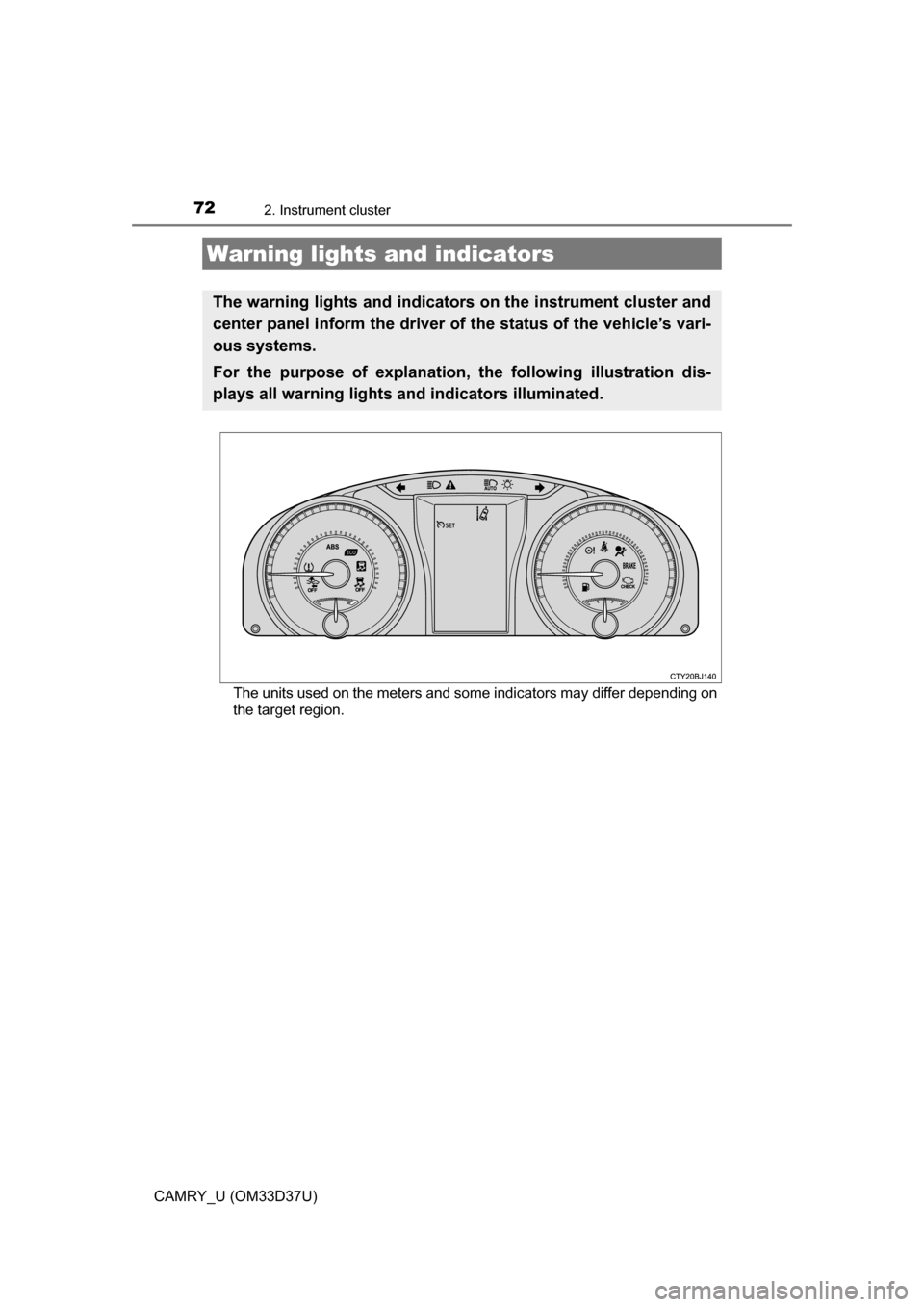

Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights a nd indicators illuminated.

732. Instrument cluster
2
Instrument cluster
CAMRY_U (OM33D37U)

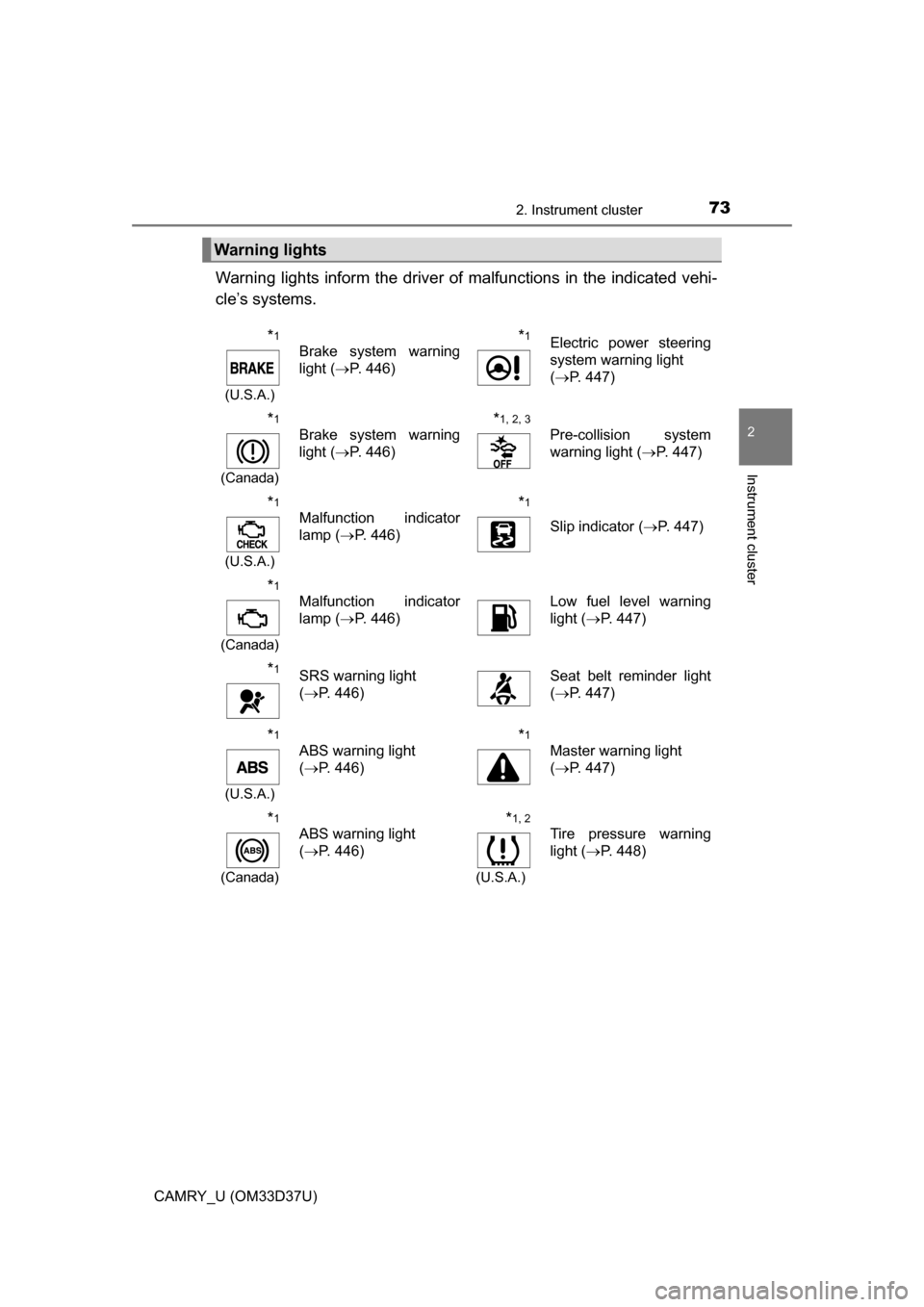

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 446)*1Electric power steering
system warning light
(P. 447)
*1
(Canada)
Brake system warning
light ( P. 446)*1, 2, 3
Pre-collision system
warning light ( P. 447)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 446)*1
Slip indicator ( P. 447)
*1
(Canada)
Malfunction indicator
lamp (P. 446)Low fuel level warning
light (P. 447)
*1SRS warning light
(P. 446)Seat belt reminder light
(P. 447)
*1
(U.S.A.)
ABS warning light
(P. 446)*1
Master warning light
(P. 447)
*1
(Canada)
ABS warning light
(P. 446)*1, 2
(U.S.A.)
Tire pressure warning
light ( P. 448)

742. Instrument cluster
CAMRY_U (OM33D37U)

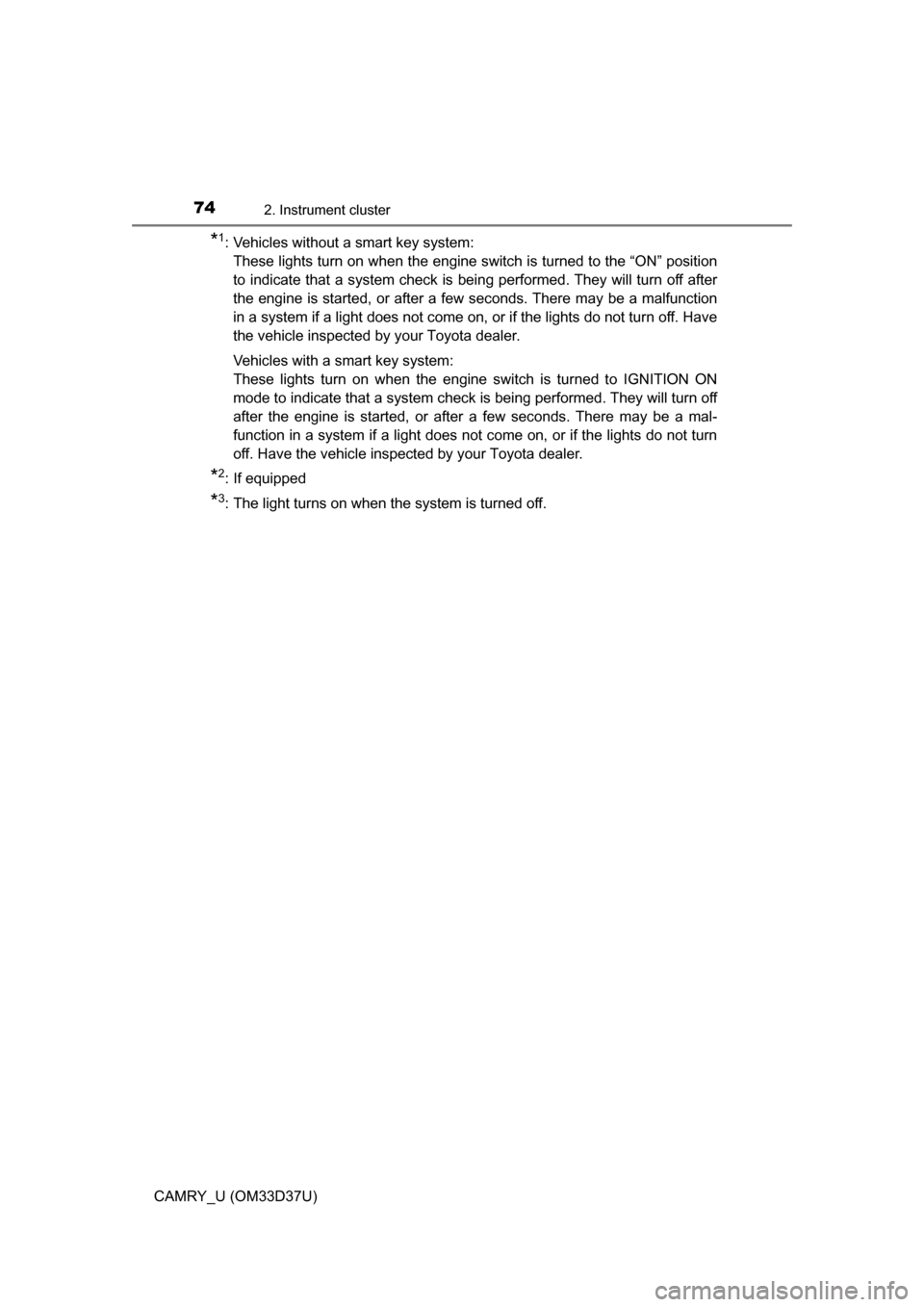

*1: Vehicles without a smart key system: These lights turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
Vehicles with a smart key system:
These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: The light turns on when the system is turned off.

752. Instrument cluster
2
Instrument cluster
CAMRY_U (OM33D37U)

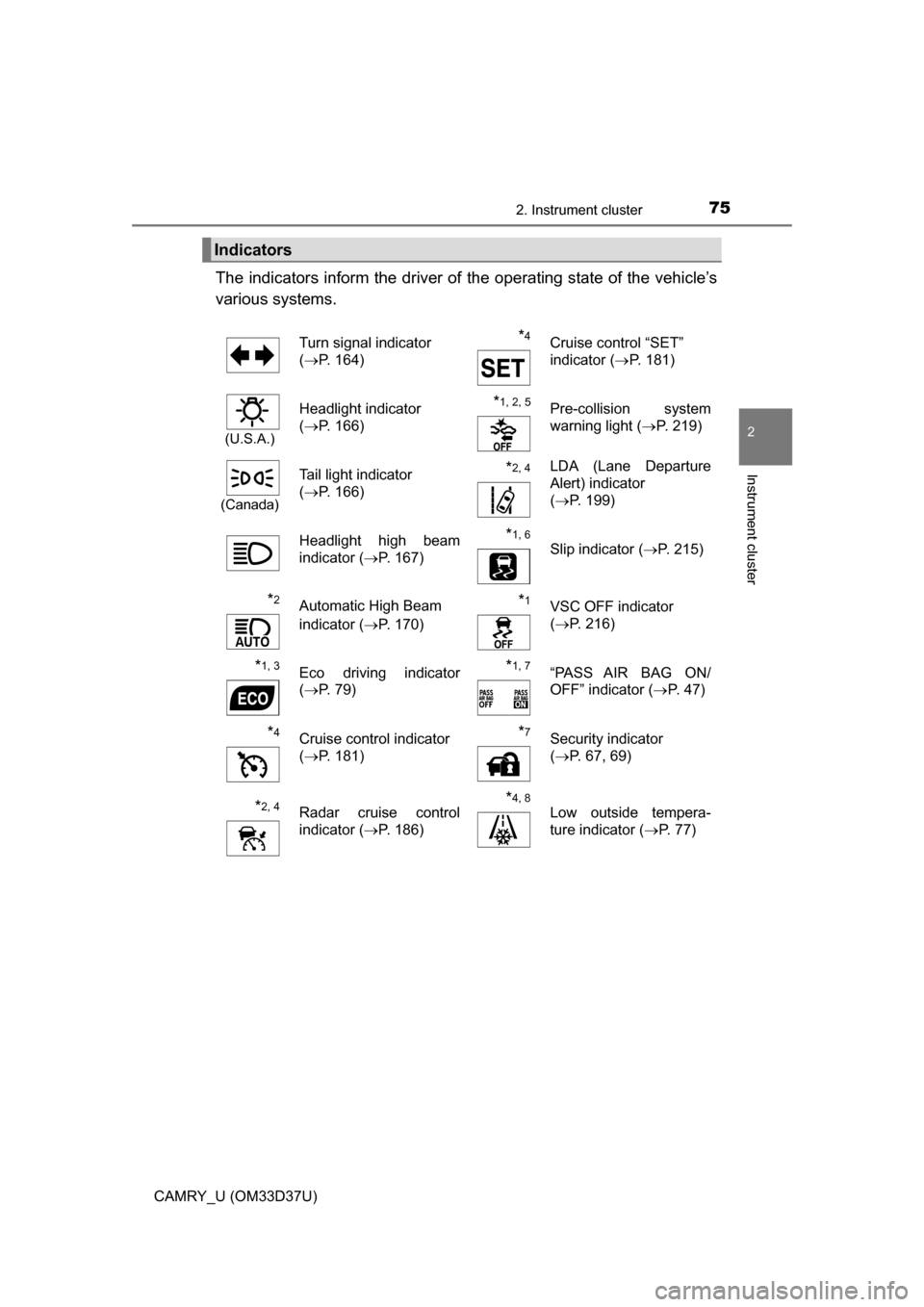

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 164)*4Cruise control “SET”
indicator ( P. 181)
(U.S.A.)
Headlight indicator
(P. 166)*1, 2, 5Pre-collision system
warning light ( P. 219)
(Canada)
Tail light indicator
(P. 166) *2, 4LDA (Lane Departure
Alert) indicator
(P. 199)
Headlight high beam
indicator ( P. 167)
*1, 6
Slip indicator ( P. 215)
*2Automatic High Beam
indicator (P. 170)*1VSC OFF indicator
(P. 216)
*1, 3Eco driving indicator
(P. 79)*1, 7“PASS AIR BAG ON/
OFF” indicator ( P. 4 7 )
*4Cruise control indicator
(P. 181)*7Security indicator
(P. 67, 69)
*2, 4Radar cruise control
indicator ( P. 186)*4, 8
Low outside tempera-
ture indicator ( P. 77)

762. Instrument cluster
CAMRY_U (OM33D37U)

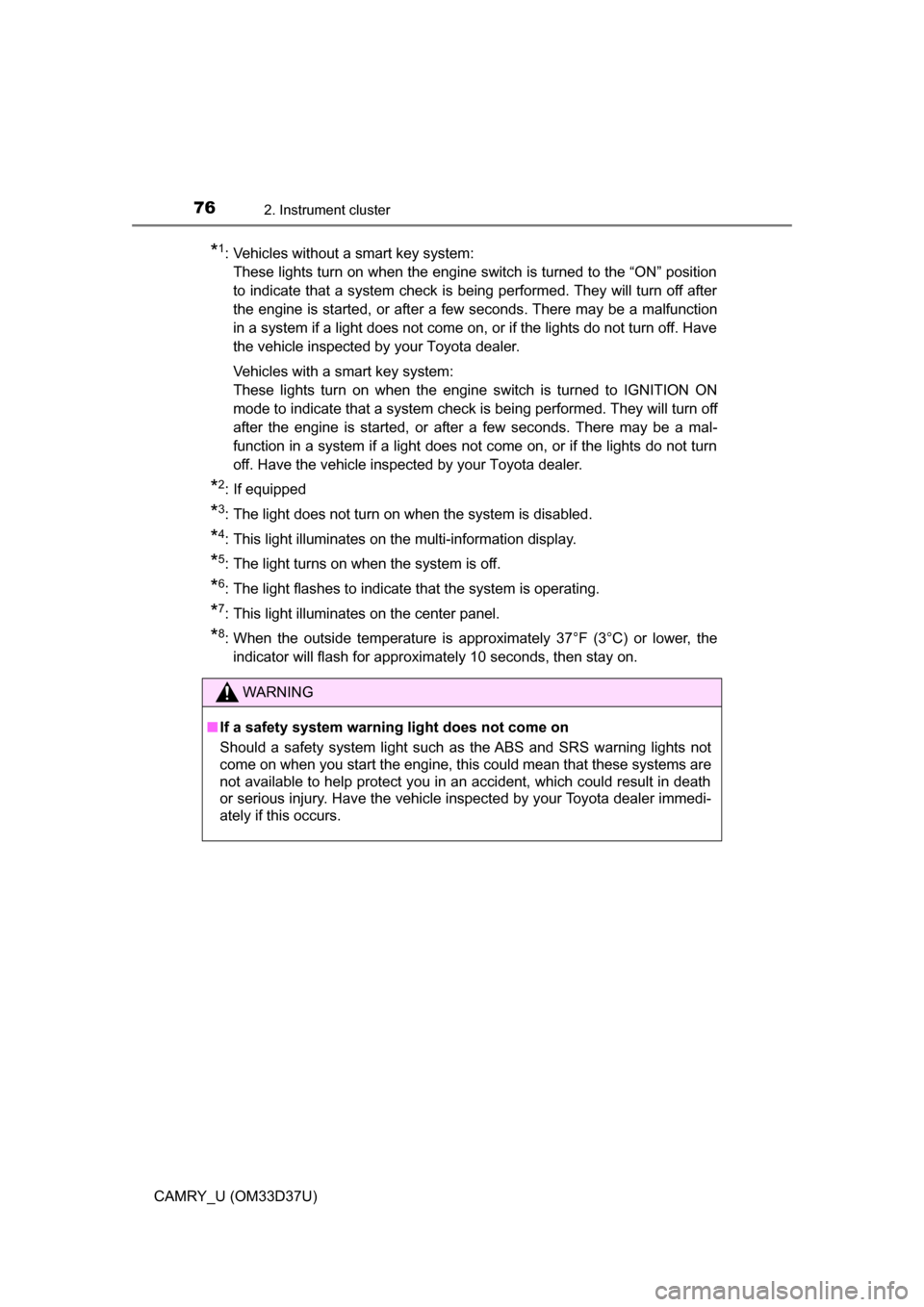

*1: Vehicles without a smart key system: These lights turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
Vehicles with a smart key system:
These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: The light does not turn on when the system is disabled.
*4: This light illuminates on the multi-information display.
*5: The light turns on when the system is off.
*6: The light flashes to indicate that the system is operating.
*7: This light illuminates on the center panel.
*8: When the outside temperature is approximately 37°F (3°C) or lower, theindicator will flash for approximately 10 seconds, then stay on.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

772. Instrument cluster
2
Instrument cluster
CAMRY_U (OM33D37U)

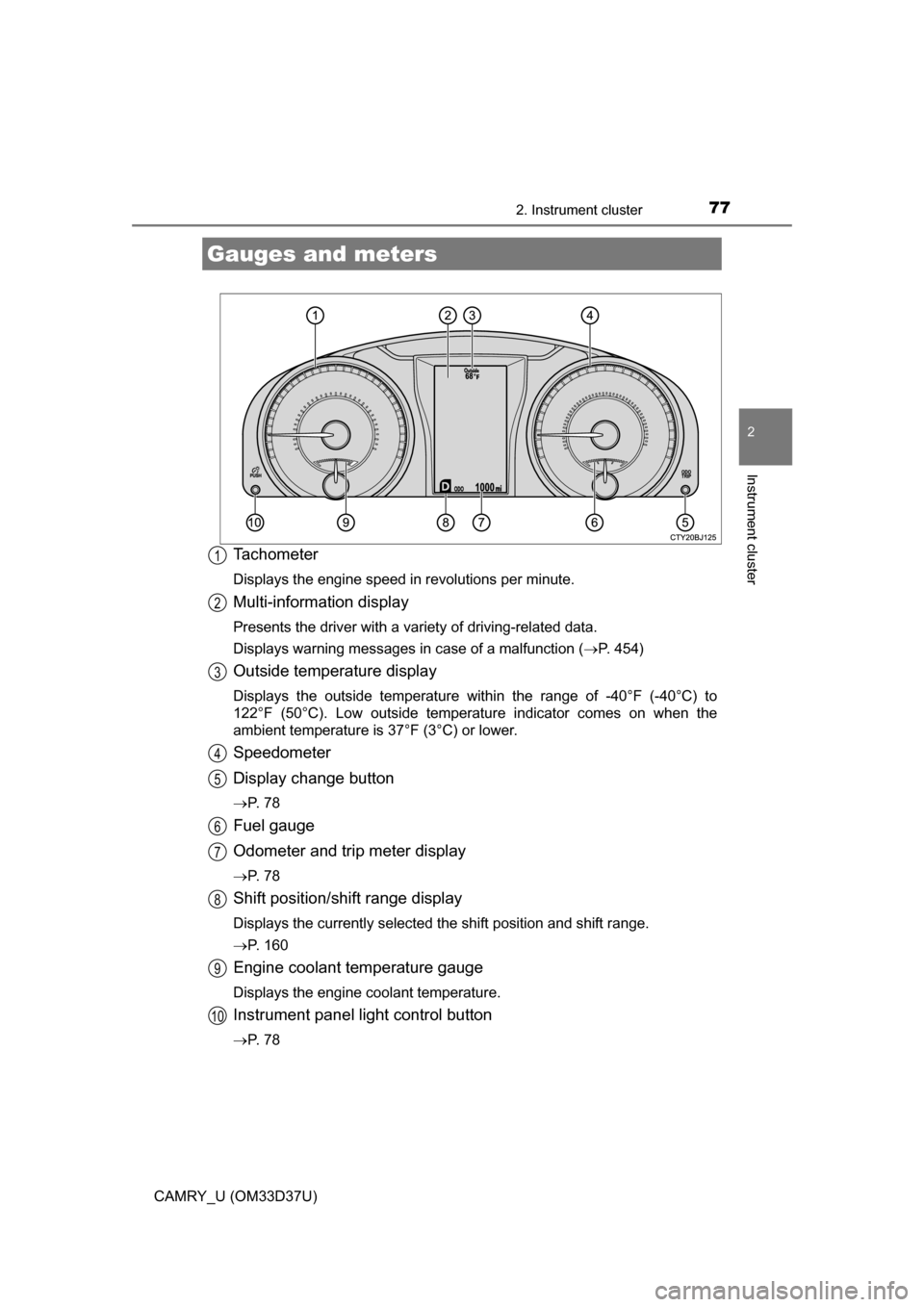

Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
Presents the driver with a variety of driving-related data.
Displays warning messages in case of a malfunction (P. 454)
Outside temperature display
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Speedometer
Display change button
P. 7 8
Fuel gauge
Odometer and trip meter display
P. 7 8
Shift position/shift range display
Displays the currently selected the shift position and shift range.
P. 160
Engine coolant temperature gauge
Displays the engine coolant temperature.
Instrument panel light control button
P. 7 8
Gauges and meters
1
2
3
4
5
6
7
8
9
10

782. Instrument cluster
CAMRY_U (OM33D37U)
Pressing the display change but-
ton changes the display as fol-
lows.
■Odometer
Displays the total distance the vehicle has been driven.
■Tr i p m e t e r A*/trip meter B*
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
*: Press and hold the display change button to reset.

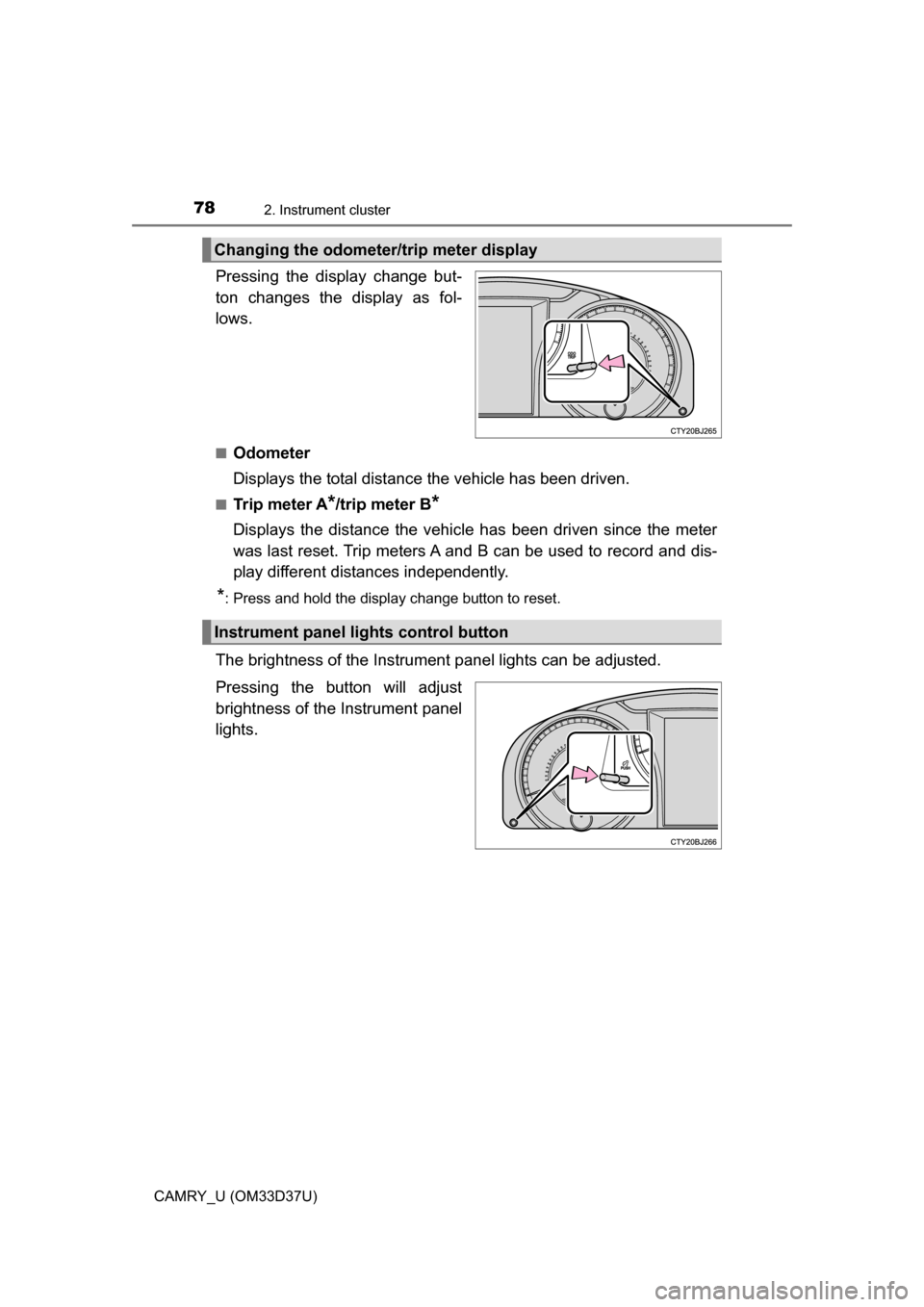

The brightness of the Instrument panel lights can be adjusted.
Pressing the button will adjust
brightness of the Instrument panel
lights.
Changing the odometer/trip meter display
Instrument panel lights control button

792. Instrument cluster
2
Instrument cluster
CAMRY_U (OM33D37U)
■Eco driving indicator light
●The paddle shift switch is used. (If equipped)
● The vehicle speed is approximately 80 mph (130 km/h) or higher.
■ The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■ The brightness of the instrument panel lights
When the tail lights are turned on, the meter’s brightness will be reduced
slightly unless the meter brightness level adjustment is set to the brightest
setting.
If the tail lights are turned on when the surroundings are dark, the met\
er’s
brightness will reduce slightly. Howe ver, when the surroundings are bright,
such as during the daytime, the meter’s brightness will not be reduced even if
the tail lights are turned on.
■ Outside temperature display
In the following situations, the correct outside temperature may not be \
dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 16 mph [25 km/h])
● When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds
the Eco driving accelerator upper limit, or
the vehicle is stopped, the light turns off.
Eco Driving Indicator Light will not operate
in the following conditions:
●
The shift lever is in anything other than
D.

802. Instrument cluster
CAMRY_U (OM33D37U)
NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 492)
