15Pictorial index
CAMRY_U (OM33D37U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 176
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 234
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 403
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
Checking/rotation/tire pressure warning system
*. . . . . . . . P. 403
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 390
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 390
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 492
Warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Headlights/halogen daytime running lights
* . . . . . . . . . . . P. 166
Front turn signal/parking lights/
LED daytime running lights
* . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Rear turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164
Stop/tail lights/rear side marker lights . . . . . . . . . . . . . . . . P. 166
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 427, Watts: P. 506)
*: If equipped
8
9
10
11
12
13
14

1644-2. Driving procedures
CAMRY_U (OM33D37U)
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
■Turn signals can be operated when
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The engine switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■ Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable features P. 529)
Turn signal lever
Operating instructions
1
2
3
4

4277-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)
Check the wattage of the light bulb to be replaced. (P. 506)
Light bulbs
You may replace the following bulb s yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
FrontRear
Headlight high beams (halogen
bulb)/daytime running lights
(halogen bulb)
Headlight low beams (halogen
bulb)
Front side marker lights
Front turn signal/parking lights
(bulb type) Back-up lights
Rear turn signal lights
Stop/tail/rear side marker
lights
License plate lights
1
2
3
4
1
2
3
4

4307-3. Do-it-yourself maintenance
CAMRY_U (OM33D37U)■
Front turn signal/parking lights (bulb type)
To ensure enough space to
perform work, turn the steer-
ing wheel to rotate the front
wheel away from the bulb to
be replaced.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Remove the fender liner
screws.
Remove the fender liner clip.After turning the clip, pull
the clip until it stops.
Turn the clip again, and
then pull out the clip.
Partly remove the fender
liner and turn the bulb base
counterclockwise.
*1: Vehicles without LED daytime running lights
*2: Vehicles with LED daytime run-ning lights
1
2
3
1
2
*1*2
4

4317-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33D37U)
Remove the light bulb.
When installing, reverse the steps listed.
■Stop/tail/rear side marker lights and rear turn signal lights
Open the trunk lid and
remove the luggage trim
cover clips. ( P. 435)
Pull the hook while depress-
ing the button.
Partly remove the luggage
trim cover.
5
6
1
2
3

4327-3. Do-it-yourself maintenance
CAMRY_U (OM33D37U)
Turn the bulb base counter-
clockwise.Rear turn signal light
Stop/tail/rear side marker
light
Remove the light bulb. Rear turn signal light
Stop/tail/rear side marker
light
When installing, reve rse the steps listed.4
1
2
5
1
2
6

5069-1. Specifications
CAMRY_U (OM33D37U)
*1: Light bulbs not listed in this table are LED bulbs.
*2: If equipped
Light bulbs*1
Light bulbsBulb No.WTy p e
ExteriorHeadlights
Low beam
(halogen bulbs)
*2
High beam
(halogen bulbs)
*2

9005 55
60A
B
Front side marker
lights W5W 5 C
Front turn signal/
parking lights
(bulb type)
*27444NA 28/8 D
Rear turn signal lights WY21W 21 D
Stop/tail/rear side
maker lights 7443 21/5 C
License plate lights W5W 5 C
Back-up lights 921 16 C
Interior Front interior/
personal lights
*2
5C
Rear interior/
personal lights
*2 8C
Interior light
*2 8E
Door courtesy lights 168 5 C
Vanity lights
*2 8C
Trunk light 194 3.8 C
A: H11 halogen bulbs
C: Wedge base bulbs (clear)
E: Double end bulbs B: HB3 halogen bulbs
D: Wedge base bulbs (amber)

557Alphabetical index
CAMRY_U (OM33D37U)
Flat tire...................................... 470
Floor mats .................................. 24
FluidAutomatic transaxle .............. 503
Brake .................................... 503
Washer ................................. 402
Front interior light ................... 340 Wattage ................................ 506
Front passenger occupant classification system .............. 47
Front personal lights ............... 340
Wattage ................................ 506
Front seats ............................... 119 Adjustment ............................ 119
Cleaning................................ 377
Correct driving posture ........... 26
Head restraints ..................... 123
Seat heaters ......................... 337
Front side marker lights.......... 166 Light switch ........................... 166
Replacing light bulbs............. 429
Wattage ................................ 506
Front turn signal lights ........... 164
Replacing light bulbs............. 430
Turn signal lever ................... 164
Wattage ................................ 506 Fuel ........................................... 178
Capacity................................ 500
Fuel gauge.............................. 77
Fuel pump shut off system ... 445
Information............................ 507
Refueling .............................. 178
Type.............................. 178, 500
Warning light......................... 447
Warning message................. 461
Fuel consumption ..................... 87
Fuel filler door ......................... 178 Refueling .............................. 178
Fuel pump shut off system..... 445
Fuses ........................................ 424
Garage door opener ................ 358
Gauges ....................................... 77
Glove box ................................. 343
Grocery bag hooks.................. 351
F
G
*: For vehicles with a navigation system or Entune Audio Plus, refer to
the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.

559Alphabetical index
CAMRY_U (OM33D37U)
Keyless entrySmart key system ........... 99, 107
Wireless remote
control........................... 99, 108
Keys ............................................ 92
Battery-saving function ......... 115
Electronic key ......................... 92
Engine switch................ 153, 155
If the electronic key does not operate properly ........... 485
If you lose your keys ............... 95
Key number plate.................... 92
Keyless entry .......................... 93
Mechanical key ....................... 94
Replacing the battery ............ 420
Warning buzzer..................... 101
Wireless remote control .......... 93
Knee airbags .............................. 34 Lane Departure Alert (LDA) .... 199
LATCH anchors ......................... 59
LDA (Lane Departure Alert) .... 199
Lever
Auxiliary catch lever.............. 390
Fuel filler door opener........... 178
Hood lock release lever ........ 390
Internal trunk release lever ... 109
Shift lever.............................. 160
Tilt and telescopic steering lock release lever ............... 125
Trunk opener ........................ 107
Turn signal lever ................... 164
Wiper lever ........................... 176
License plate lights ................. 166 Light switch ........................... 166
Replacing light bulbs ............ 434
Wattage ................................ 506
Light bulbs Replacing.............................. 427
Wattage ................................ 506
Lights Automatic High Beam
system .......... ...................... 170
Headlight switch ................... 166
Illuminated entry system ....... 341
Interior lights ......................... 340
Interior lights list.................... 339
Personal lights ...................... 340
Replacing light bulbs ............ 427
Trunk light ............................. 109
Turn signal lever ................... 164
Vanity lights .......................... 352
Wattage ................................ 506
Load capacity .......................... 150
Lock steering column ............. 125
KL
*: For vehicles with a navigation system or Entune Audio Plus, refer to
the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.

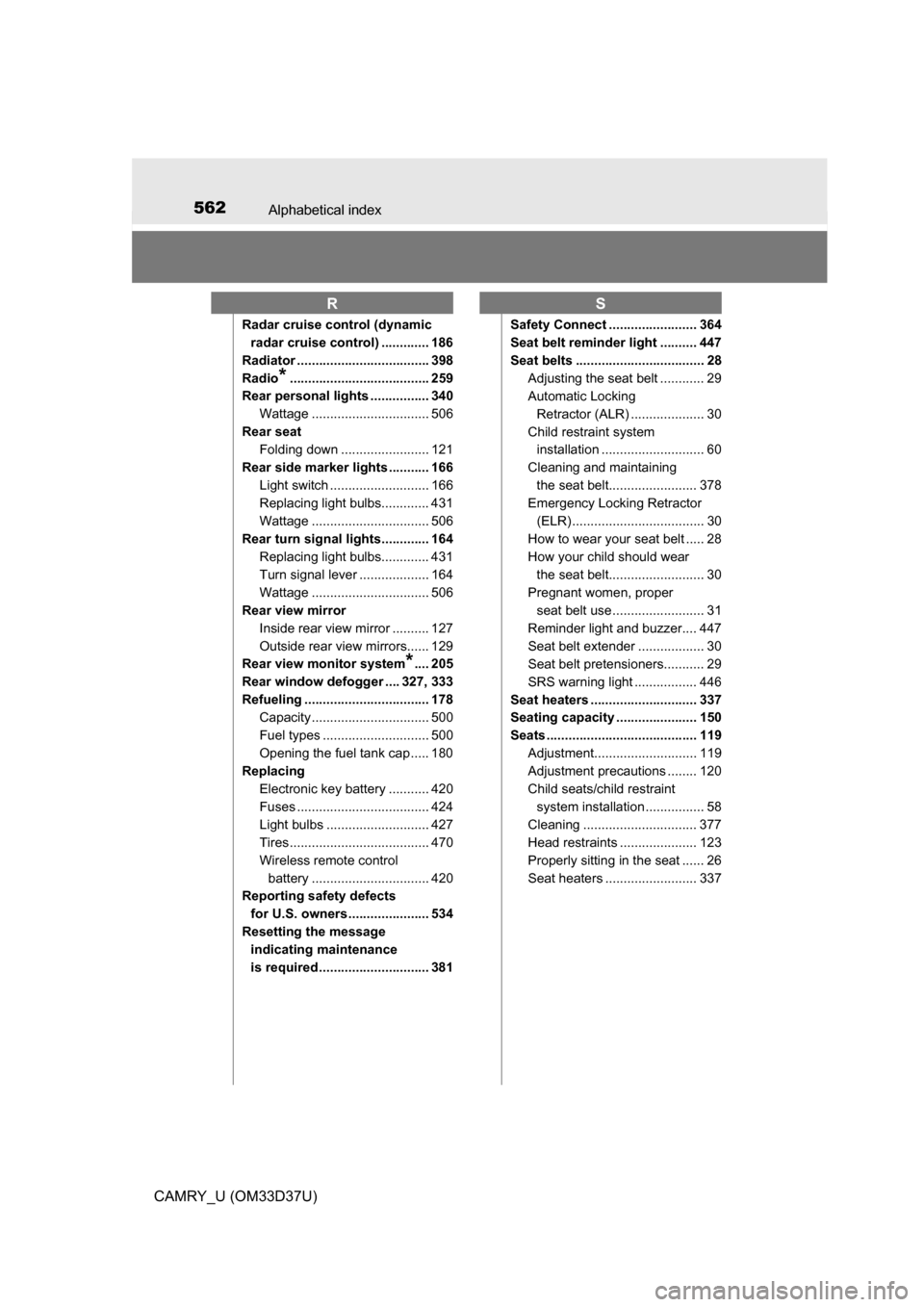

562Alphabetical index
CAMRY_U (OM33D37U)
Radar cruise control (dynamic radar cruise control) ............. 186
Radiator .................................... 398
Radio
*...................................... 259
Rear personal lights ................ 340
Wattage ................................ 506
Rear seat Folding down ........................ 121
Rear side marker lights ........... 166 Light switch ........................... 166
Replacing light bulbs............. 431
Wattage ................................ 506
Rear turn signal lights............. 164 Replacing light bulbs............. 431
Turn signal lever ................... 164
Wattage ................................ 506
Rear view mirror
Inside rear view mirror .......... 127
Outside rear view mirrors...... 129
Rear view monitor system
*.... 205
Rear window defogger .... 327, 333
Refueling .................................. 178 Capacity ................................ 500
Fuel types ............................. 500
Opening the fuel tank cap ..... 180
Replacing Electronic key battery ........... 420
Fuses .................................... 424
Light bulbs ............................ 427
Tires ...................................... 470
Wireless remote control
battery ................................ 420
Reporting safety defects
for U.S. owners ...................... 534
Resetting the message indicating maintenance
is required .............................. 381 Safety Connect ........................ 364
Seat belt reminder light .......... 447
Seat belts ................................... 28
Adjusting the seat belt ............ 29
Automatic Locking Retractor (ALR) .................... 30
Child restra int system
installation ............................ 60
Cleaning and maintaining the seat belt........................ 378
Emergency Locking Retractor
(ELR) .................................... 30
How to wear your seat belt ..... 28
How your child should wear the seat belt.......................... 30
Pregnant women, proper seat belt use ......................... 31
Reminder light and buzzer.... 447
Seat belt extender .................. 30
Seat belt pretensioners........... 29
SRS warning light ................. 446
Seat heaters ............................. 337
Seating capacity ...................... 150
Seats ......................................... 119 Adjustment............................ 119
Adjustment precautions ........ 120
Child seats/child restraint system installation ................ 58
Cleaning ............................... 377
Head restraints ..................... 123
Properly sitting in the seat ...... 26
Seat heaters ......................... 337
RS
