2. SETUP
CAMRY_NAVI_U_OM33C67U

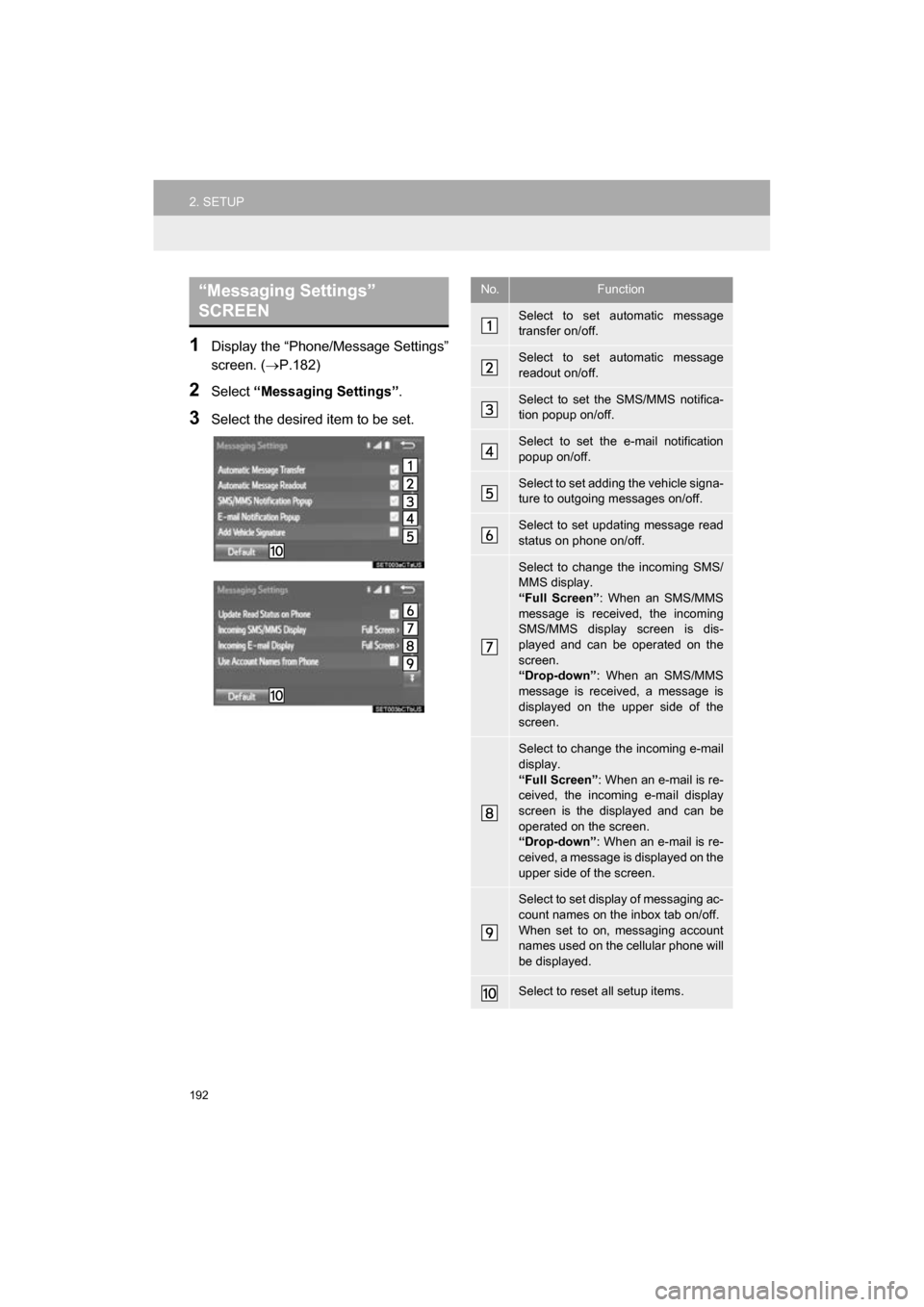

1Display the “Phone/Message Settings”
screen. (P.182)
2Select “Messaging Settings” .
3Select the desired item to be set.
“Messaging Settings”
SCREEN No.Function
Select to set automatic message
transfer on/off.
Select to set automatic message
readout on/off.
Select to set the SMS/MMS notifica-
tion popup on/off.
Select to set the e-mail notification
popup on/off.
Select to set adding the vehicle signa-
ture to outgoing messages on/off.
Select to set updating message read
status on phone on/off.
Select to change the incoming SMS/
MMS display.
“Full Screen”: When an SMS/MMS
message is received, the incoming
SMS/MMS display screen is dis-
played and can be operated on the
screen.
“Drop-down” : When an SMS/MMS
message is received, a message is
displayed on the upper side of the
screen.
Select to change the incoming e-mail
display.
“Full Screen” : When an e-mail is re-
ceived, the incoming e-mail display
screen is the displayed and can be
operated on the screen.
“Drop-down” : When an e-mail is re-
ceived, a message is displayed on the
upper side of the screen.
Select to set display of messaging ac-
count names on the inbox tab on/off.
When set to on, messaging account
names used on the cellular phone will
be displayed.
Select to reset all setup items.

193
2. SETUP
CAMRY_NAVI_U_OM33C67U
PHONE
7
1Display the phone top screen.
(P.167)
2Select “Settings” .
3Select “Messaging Settings” .
1Display the “Phone/Message Settings”
screen. (P.182)
2Select “Phone Display Settings” .
3Select the desired item to be set.
INFORMATION
●Depending on the phone, these func-
tions may not be available.

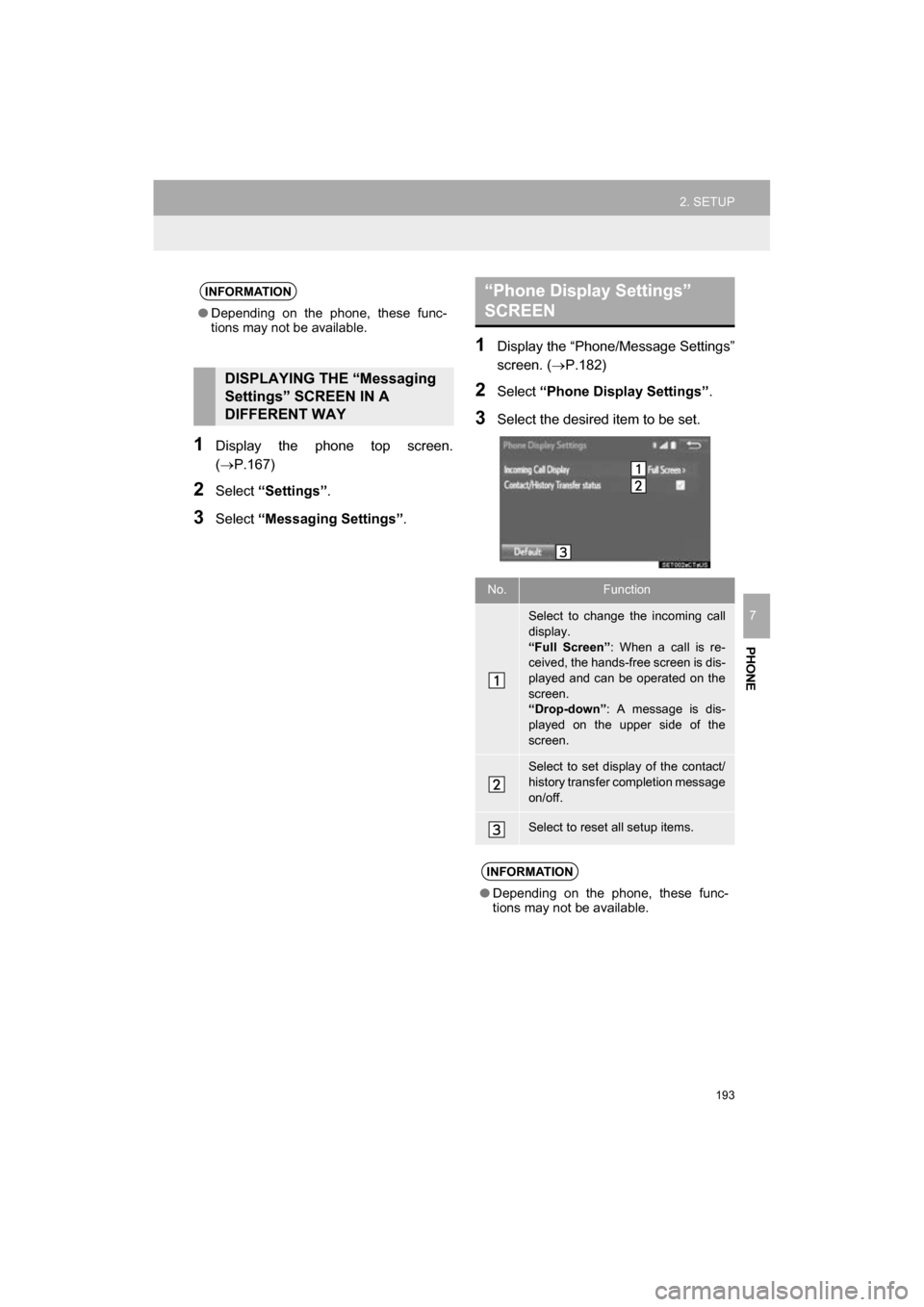

DISPLAYING THE “Messaging
Settings” SCREEN IN A
DIFFERENT WAY
“Phone Display Settings”
SCREEN
No.Function
Select to change the incoming call
display.
“Full Screen”: When a call is re-
ceived, the hands-free screen is dis-
played and can be operated on the
screen.
“Drop-down”: A message is dis-
played on the upper side of the
screen.
Select to set display of the contact/
history transfer completion message
on/off.
Select to reset all setup items.
INFORMATION
●Depending on the phone, these func-
tions may not be available.

196

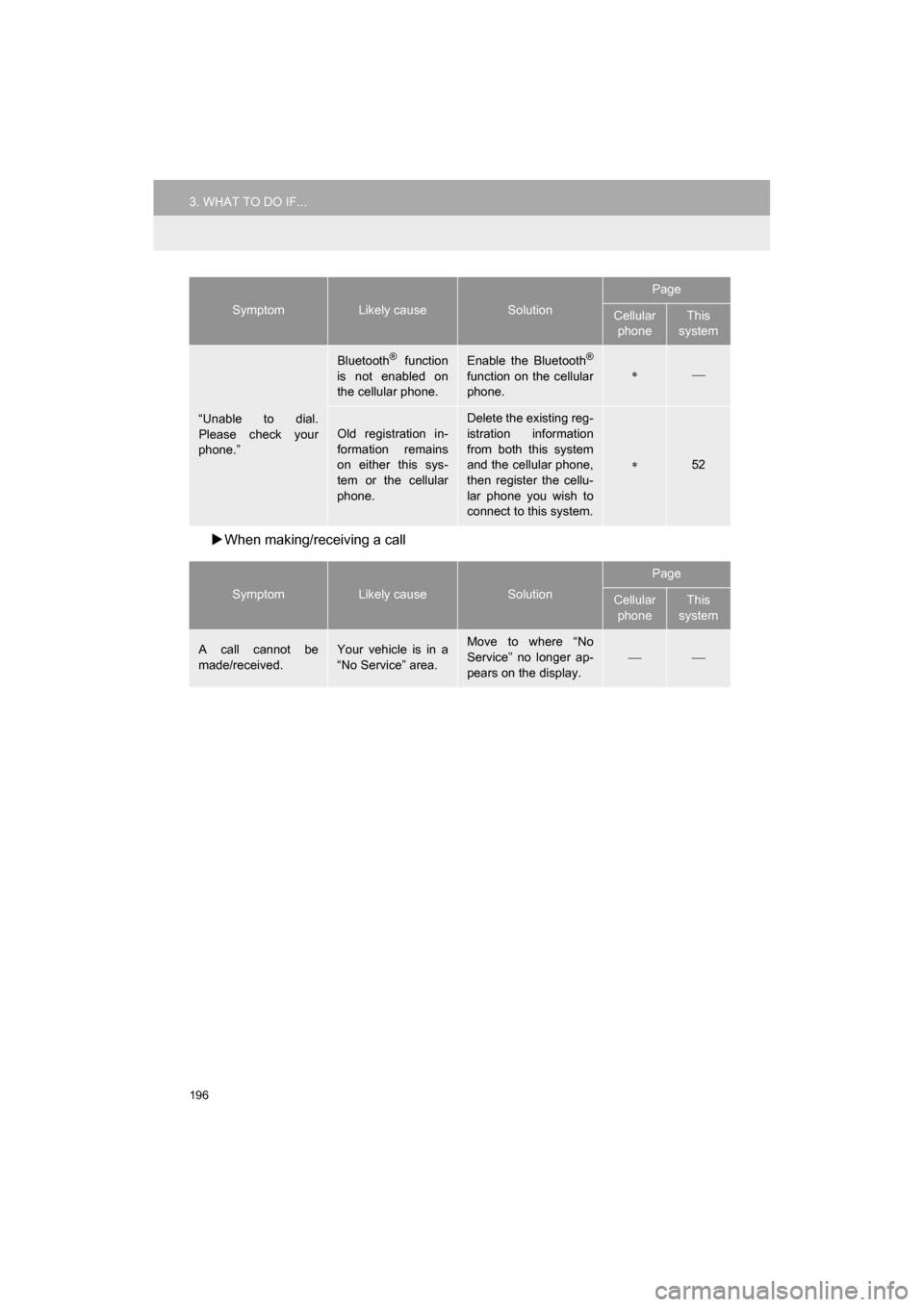

3. WHAT TO DO IF...
CAMRY_NAVI_U_OM33C67U
When making/receiving a call
“Unable to dial.
Please check your
phone.”
Bluetooth® function
is not enabled on
the cellular phone.Enable the Bluetooth®
function on the cellular
phone.
Old registration in-
formation remains
on either this sys-
tem or the cellular
phone.Delete the existing reg-
istration information
from both this system
and the cellular phone,
then register the cellu-
lar phone you wish to
connect to this system.
52
SymptomLikely causeSolution
Page
Cellular phoneThis
system
A call cannot be
made/received.Your vehicle is in a
“No Service” area.Move to where “No
Service” no longer ap-
pears on the display.

SymptomLikely causeSolution
Page
Cellular phoneThis
system

199
3. WHAT TO DO IF...
CAMRY_NAVI_U_OM33C67U
PHONE
7
In other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine switch is in
following.
 Vehicles without
a smart key sys-
tem
The engine switch is
in the “ACC” or “ON”
position.
Vehicles with a
smart key system
The engine
switch is in ACCES-
SORY or IGNITION
ON mode.
Connection confir-
mation display on
this system is set to
on.To turn off the display,
set connection confir-
mation display on this
system to off.
56

202
CAMRY_NAVI_U_OM33C67U
1. QUICK REFERENCE ................... 204
MAP SCREEN ..................................... 204
NAVIGATION OPTIONS SCREEN...... 206
2. MAP SCREEN OPERATION ....... 207
CURRENT POSITION DISPLAY ......... 207
MAP SCALE ........................................ 207
ORIENTATION OF THE MAP ............. 208
SWITCHING THE MAP MODE............ 209
SCREEN SCROLL OPERATION ........ 211
ADJUSTING LOCATION IN SMALL INCREMENTS ...................... 211
3. MAP SCREEN INFORMATION .......................... 212
DISPLAYING MAP INFORMATION .... 212
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET ...................... 214
STANDARD MAP ICONS .................... 215
4. TRAFFIC INFORMATION ............ 216
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 218
1. DESTINATION SEARCH SCREEN .................................... 219
2. SEARCH OPERATION.. .............. 221
SELECTING SEARCH AREA .............. 222
SETTING HOME
AS DESTINATION ............................. 222
SETTING PRESET DESTINATIONS AS DESTINATION ............................. 222
SEARCHING BY ADDRESS ................ 223
SEARCHING BY POINT OF INTEREST ....................... 224
SEARCHING FROM PREVIOUS DESTINATIONS............. 227
SEARCHING BY ADDRESS BOOK .... 227
SEARCHING BY EMERGENCY .......... 228
SEARCHING BY INTERSECTION AND FREEWAY ................................ 228
SEARCHING BY MAP ......................... 230
SEARCHING BY COORDINATES ....... 230
3. STARTING ROUTE GUIDANCE ....... ......................... 231
STARTING ROUTE GUIDANCE.......... 231
PAUSING GUIDANCE ......................... 234
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM*

204
CAMRY_NAVI_U_OM33C67U
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
208
Options buttonSelect to display the “Navigation Options” screen.206
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.265
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD Radio
broadcast, HD mark is displayed on the right.
216
Scale indicatorThis figure indicates the map scale.207

205
1. BASIC OPERATION
CAMRY_NAVI_U_OM33C67U
NAVIGATION SYSTEM
8
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.207
Current position
button/voice
guidance buttonSelect to display the current position address.
 Select to repeat voice guidance.240
Destination but-
tonSelect to display the “Destination” screen.219
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.212
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
235
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
235
No.NameFunctionPage

206
1. BASIC OPERATION
CAMRY_NAVI_U_OM33C67U
NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to change the map configuration.209
Select to change the displayed map information such as POI icons,
route trace, speed limit, etc.212
Select to display the map version and coverage area.267
Select to edit the set route.241
Select to pause or resume route guidance.234
Select to display the overview of the entire route.236

207
1. BASIC OPERATION
CAMRY_NAVI_U_OM33C67U
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 2 5 7
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the 12-volt battery disconnection,
or on a new vehicle, the current position
may not be correct. As soon as the sys-
tem receives signals from the GPS, the
correct current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.

209
1. BASIC OPERATION
CAMRY_NAVI_U_OM33C67U
NAVIGATION SYSTEM
8
1Select “Options” on the map screen.
2Select “Map Mode” .
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
■MAP ONLY
■DUAL MAP
The map on the left is the main map.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 209
Select to display the dual
map screen.209
Select to display the com-
pass mode screen.210
Select to display the turn list
screen.239
Select to display the free-
way exit list screen.237
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
238
Select to display the turn-
by-turn arrow screen.239
