Steering wheel controls
FEATURES/OPERATIONS
23
Instrument panel
OVERVIEW
1 If equipped.2 For vehicles with Entune Premium Audio or Entune Audio Plus, refer to th\
e
“Navigation System Owner’s Manual” and “2017 Entune™ Audi\
o Quick
Reference Guide.”
Meter control switches
Air conditioning controls
Emergency flasher button
Wiper and washer controls
Seat heater controls1
Tire Pressure Monitoring (warning) System
(TPMS) reset switch1
Outside rearview mirror/
Rear window defogger button
Headlight and turn signal controls/
Headlight, turn signal and front DRL
(Daytime Running Light)
controls1
Lane Departure Alert (LDA) switch1
Blind Spot Monitor (BSM) main switch1
VSC OFF switch
Pre-Collison System (PCS) switch1
Tilt and telescopic
steering lock release
Key ignition1
“ENGINE START STOP” button (Smart Key)1Audio system1/
Navigation system1,2
Telephone controls2
Voice command button2
Dynamic Radar Cruise Control
(DRCC) Vehicle-to-vehicle
distance button
1
Cruise control
Paddle shift levers1
Steering wheel
audio controls2
See ‘Air conditioning/heating’ section
of this book for more details about your unit.
OVERVIEW
SAFETY AND EMERGENCY FEATURES

2223
AudioUSB/AUX port
Wireless charging (if equipped)
Eject CD
Push to turn
ON/OFF
1
Refer to the “Navigation System Owner’s Manual” and “2017 E\
ntune™ Audio Quick Reference
Guide.”
Map card
insert 1
Touch screen display
Entune™
Audio
Entune™ Premium (JBL®) Audio with Integrated Navigation and App Suite
NOTE: Concentrating on the road should always be your first priority whi\
le driving. Do not
use the Entune system if it will distract you.
AUDIO Button
Push to display
audio screen
or access audio
functions.
HOME Button
Access to navigation
system
1 and Home
screen.
Seek station/
CD track select
Turn to tune radio
stations manually or
select tracks or files
Push to display
telephone option
screen
APPS Button
Access to traffic
and weather
APPS Button
Access to traffic
and weather
HOME Button
Access to Home
screen.
AUDIO Button
Push to display
audio screen
or access audio
functions.
AUDIO Button
Push to display
audio screen
or access audio
functions.
HOME SCREEN - The home screen offers a two and three panel layout. Infor\
mation and layout will vary
depending on selected set up. HOME SCREEN - The home screen offers a two and three panel layout. Infor\
mation and layout will vary
depending on selected set up.
Entune™ Audio Plus With Connected Navigation App (JBL® Audio)
FEATURES/OPERATIONS
By connecting a USB-compatible portable audio device or USB memory to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.
Open lid
A mobile device can be charged wirelessly on the tray. Open the lid and \
press
the wireless charger switch. Place a mobile device on the tray as shown \
in the
illustration. An amber indicator is illuminated while charging is in pro\
gress. When
charging is complete, a green indicator will also be illuminated. Some p\
hones,
cases or cover type wireless chargers may not cause the green indicator \
to
illuminate even though it is fully charged.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
Push
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

2425

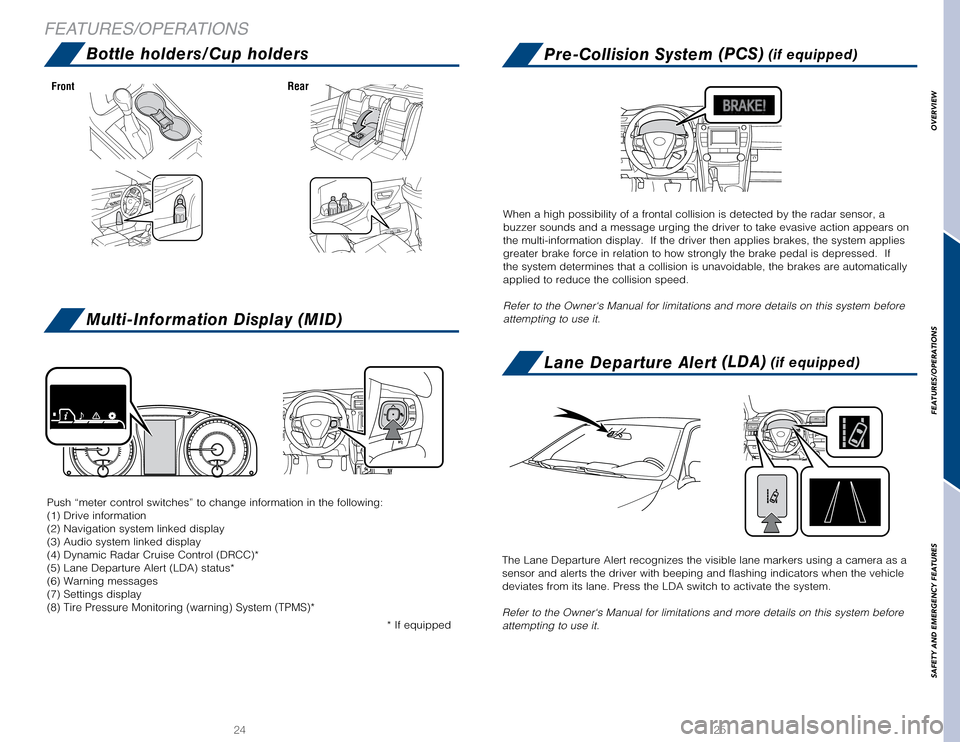

Bottle holders/Cup holdersPre-Collision System (PCS) (if equipped)
Lane Departure Alert (LDA) (if equipped)
Multi-Information Display (MID)
FrontRear
* If equipped
Push “meter control switches” to change information in the followi\
ng:
(1) Drive information
(2) Navigation system linked display
(3) Audio system linked display
(4) Dynamic Radar Cruise Control (DRCC)*
(5) Lane Departure Alert (LDA) status*
(6) Warning messages
(7) Settings display
(8) Tire Pressure Monitoring (warning) System (TPMS)*
When a high possibility of a frontal collision is detected by the radar \
sensor, a
buzzer sounds and a message urging the driver to take evasive action app\
ears on
the multi-information display. If the driver then applies brakes, the s\
ystem applies
greater brake force in relation to how strongly the brake pedal is depre\
ssed. If
the system determines that a collision is unavoidable, the brakes are au\
tomatically
applied to reduce the collision speed.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
The Lane Departure Alert recognizes the visible lane markers using a cam\
era as a
sensor and alerts the driver with beeping and flashing indicators when t\
he vehicle
deviates from its lane. Press the LDA switch to activate the system.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
