For safety and security
CAMRY_U (01999-06139)
1-3. Theft deterrent system
Vehicles without a smart key sys-
tem:
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

721-3. Theft deterrent system
CAMRY_U (01999-06139)■
Certifications for the engine immobilizer system
For vehicles sold in the U.S.A.
For vehicles sold in Canada

731-3. Theft deterrent system
1
For safety and security
CAMRY_U (01999-06139)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

741-3. Theft deterrent system
CAMRY_U (01999-06139)
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
Vehicles without a smart key system
● A locked door is unlocked in any way other than using the wireless
remote control or key. (The doors will lock again automatically.)
● The trunk is opened in any way other than using the wireless
remote control.
● The hood is opened.
Vehicles with a smart key system
● A locked door is unlocked in an y way other than using the entry
function, wireless remote control or mechanical key. (The doors will
lock again automatically.)
● The trunk is opened in any way ot her than using the entry function
or wireless remote control.
● The hood is opened.
Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Alarm∗
∗: If equipped
The alarm
Setting the alarm system

751-3. Theft deterrent system
1
For safety and security
CAMRY_U (01999-06139)
Do one of the following to deactivate or stop the alarm:
Vehicles without a smart key system
● Unlock the doors.
● Open the trunk using the wireless remote control.
● Turn the engine switch to the “ACC” or “ON” position, or start the
engine. (The alarm will be deactivated or stopped after a few sec-
onds.)
Vehicles with a smart key system
● Unlock the doors.
● Open the trunk using the entry function or wireless remote control.
● Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
●Nobody is in the vehicle.
● The windows and moon roof or panoramic moon roof are closed before the
alarm is set.
● No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

761-3. Theft deterrent system
CAMRY_U (01999-06139)■

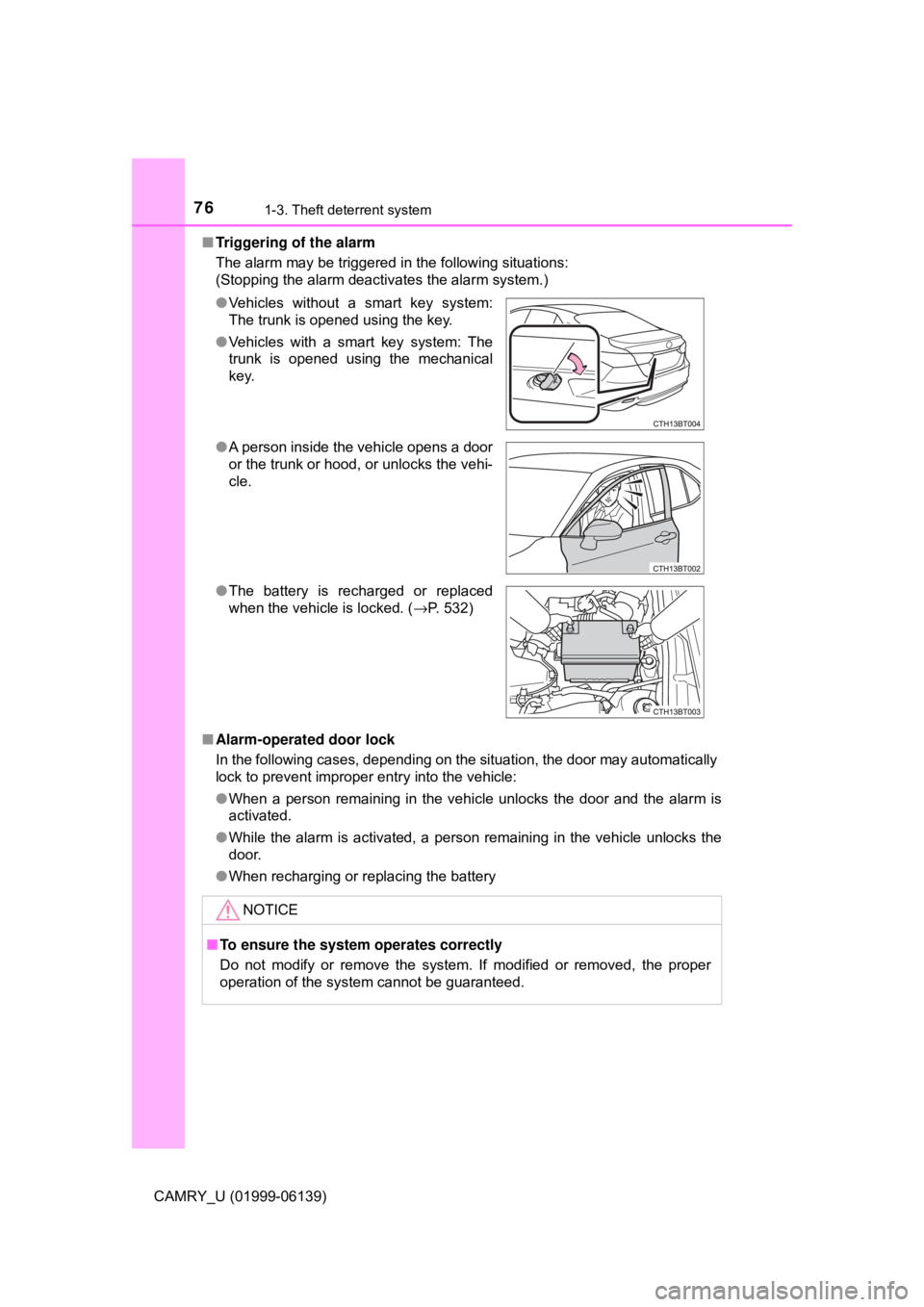

Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:
●When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the battery
●
Vehicles without a smart key system:
The trunk is opened using the key.
● Vehicles with a smart key system: The
trunk is opened using the mechanical
key.
● A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.
● The battery is recharged or replaced
when the vehicle is locked. ( →P. 532)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

77
Instrument cluster2
CAMRY_U (01999-06139)2. Instrument cluster
Warning lights and indicators .......................... 78
Gauges and meters ............ 84
Multi-information display (4.2-inch display) .............. 87
Multi-information display (7-inch display) ................. 99
Head-up display ................ 113
Fuel consumption information ...................... 120

78
CAMRY_U (01999-06139)
2. Instrument cluster
4.2-inch display
7-inch display
The units used on the meters and some indicators may differ depending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mi rrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

792. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06139)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( →P. 497)*2
(Canada)
Parking brake indicator
(→P. 498)
*1
(Canada)
(Red)
Brake system warning
light ( →P. 497)
*1, 2
(if equipped)
Brake hold operated
indicator ( →P. 498)
*1
(if equipped)
(Yellow)
Brake system warning
light ( →P. 497)
*1
(Red/yellow)
Electric power steering
system warning light
(→P. 498)
*1
(U.S.A.)
Malfunction indicator
lamp ( →P. 497)*1, 2
(if equipped)
PCS warning light
(→P. 499)
*1
(Canada)
Malfunction indicator
lamp ( →P. 497)*1, 2
(if equipped)
ICS OFF indicator
(→P. 499)
*1SRS warning light
(→P. 497)
(if equipped)
(Yellow)
LDA (Lane Departure
Alert) indicator
(→P. 498)
*1
(U.S.A.)
ABS warning light
(→P. 497)*1
Slip indicator ( →P. 499)
*1
(Canada)
ABS warning light
(→P. 497)Low fuel level warning
light ( →P. 500)
*2
(U.S.A.)
Parking brake indicator
(→P. 498)Driver’s and front
passenger’s seat belt
reminder light ( →P. 500)

802. Instrument cluster
CAMRY_U (01999-06139)
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.
*2: This light flashes to indicate a malfunction.
*3: This light illuminates on the center panel.
*3
(Type A)
Rear passengers’ seat
belt reminder lights
(→P. 500)*1
Master warning light
(→P. 500)
*3
(Type B)
Rear passengers’ seat
belt reminder lights
(→P. 500)*1
Tire pressure warning
light ( →P. 500)
