TOYOTA CAMRY 2018 Owners Manual (in English)

1012. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06139)
Select a menu icon to display its content.Warning message display ( →P. 507)
This menu icon will be displayed only when a warning message can be
displayed.
Select to display warning messages and measures to be taken if a mal-
function is detected.
Eco-friendly drivin g information (→P. 102)
Select to display fuel consumption data in various forms.
Driving assist sy stem information
Select to perform the following:
Display the operational status of the following systems:
• Dynamic radar cruise control with full-speed range ( →P. 263)
• LDA (Lane Departure Alert with steering control) ( →P. 253)
Display the following navigation system-linked information (if equipped): • Route guidance
• Compass display (heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Vehicle information
Select to perform the following:
Display the following information:• Tire inflation pressure ( →P. 445)
Enable/Disable the following systems: • Intuitive parking assist (if equipped) ( →P. 314)
• BSM (Blind Spot Monitor) function (if equipped) ( →P. 300)
• RCTA (Rear Cross Traffic Aler t) function (if equipped) (→P. 300)
This function can also be enabled/disabled on .
Settings display ( →P. 104)
Select to change the meter display settings and other settings.
Menu icons

1022. Instrument cluster
CAMRY_U (01999-06139)■
Fuel consumption
Current fuel consumption
Displays the instantaneous cur-
rent fuel consumption.
Average fuel economy (after
start)
Displays the average fuel con-
sumption since engine start.
*1
Driving range
Displays the driving range with remaining fuel.*2, 3
Gadget*4
The following items can be displayed by changing the settings for gad-
get content and fuel economy type on . ( →P. 104)
Eco-friendly driving information ( )
1
2
3
4
Displayable item
ContentGadget
contentFuel economy
type
Average
vehicle
speed Trip
(after start)
Displays the average vehicle speed since
engine start.
To t a l
(after reset)Displays the average vehicle speed since the
display was reset.
*5
Distance
Trip
(after start)Displays the distance driven since vehicle
start.
To t a l
(after reset)Displays the distance driven since the display
was reset.
*5
Elapsed
time
Trip
(after start)Displays the elapsed time since engine start.
To t a l
(after reset)Displays the elapsed time since the display
was reset.
*5

1032. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06139)
Average fuel economy
Displayed item (listed below) can be changed on the fuel economy type
screen of . (→P. 104)
●Total (after reset)
Displays the average fuel consumption since the display was reset.*1, 5
●Tank (after refuel)
Displays the average fuel consumption since the vehicle was refu-
eled.
*1, 2
*1: Use the displayed fuel consumption as a reference only.
*2: When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
*3: This distance is computed based on your average fuel consumption. Asa result, the actual distance that can be driven may differ from that dis-
played.
*4: The default setting is no display.
*5: This display can be reset by pressing and holding while it is dis-played.
■
Eco indicator • Eco Driving Indicator → P. 1 1 1
• Driving range Displays the driving range with remaining fuel.
When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
5

1042. Instrument cluster
CAMRY_U (01999-06139)
◆Changing settings
Use the meter control switches on the steering wheel to change
settings.Press or to select .
Operate the switches to select a desired item.
Press or press and hold .
The available settings will differ depending on if is pressed or
pressed and held. Follow the instructions on the display.
◆Setting items
■ LDA (Lane Departure Alert with steering control) ( →P. 253)
Press and hold to change the settings of the following items:
Settings display ( )
1
2
3
ItemSettingsDetails
Steering assist On
Select to enable/disable steering
wheel assistance.
Off
Alert sensitivityHighSelect to set the warning sensi-
tivity.
Normal
Sway warningOnSelect to enable/disable the vehi-
cle sway warning.
Off
Sway sensitivity
High
Select to set the vehicle sway
warning sensitivity.Medium
Low

1052. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06139)■
PCS (Pre-Collision System) (
→P. 242)
Press and hold to change the settings of the following items:
■ BSM (Blind Spot Monitor) (if equipped) ( →P. 300)
Press to enable/disable the Blind Spot Monitor function.
Press and hold to change the se ttings of the following item:
ItemSettingsDetails
PCS On
Select to enable/disable the pre-
collision system.
Off
Warning sensitivitySelect to change the warning
timing.
ItemSettingsDetails
BSM On
Select to enable/disable the
Blind Spot Monitor function.
Off
ItemSettingsDetails
Outside rear view
mirror indicator
brightness Bright Select to change the brightness
of the outside rear view mirror
indicators.
Dim

1062. Instrument cluster
CAMRY_U (01999-06139)■
RCTA (Rear Cross Traffic Alert) (if equipped) (
→P. 300)
Press to enable/disable the Rear Cross Traffic Alert function.
Press and hold to change the se ttings of the following item:
■ ICS (Intelligent Clearance Sonar) (if equipped) ( →P. 322)
Press to enable/disable t he Intelligent Clearance Sonar.
■ Intuitive parking assist (if equipped) ( →P. 314)
Press to enable/disable t he Intuitive parking assist.
Press and hold to change the se ttings of the following item:
ItemSettingsDetails
RCTA On
Select to enable/disable the Rear
Cross Traffic Alert function.
Off
ItemSettingsDetails
RCTA buzzer vol-
ume 1 (Low)
Select to change the volume of
the RCTA buzzer.
2 (Medium)
3 (Loud)
ItemSettingsDetails
ICS On Select to enable/disable the
Intelligent Clearance Sonar sys-
tem.
Off
ItemSettingsDetails
Intuitive parking
assist On
Select to enable/disable the intui-
tive parking assist.
Off
ItemSettingsDetails
Vol u me 1 (Low)
Select to change the volume of
the intuitive parking assist
buzzer.
2 (Medium)
3 (Loud)

1072. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06139)■
HUD (Head-up display) (if equipped) (
→P. 1 1 3 )
Press to enable/disable the head-up display.
Press and hold to change the settings of the following items:
ItemSettingsDetails
HUD On
Select to enable/disable the
head-up display.
Off
ItemSettingsDetails
HUD Brightness/Position Select to adjust the brightness/
position of the head-up display.
• Press the / switch to
adjust the display brightness.
• Press the / switch to adjust the display position.
HUD Driving sup-
port
Tachometer set-
tings
Select to change the display
between the following:
• Eco Driving Indicator
• Tachometer
• No content
Navigation sys-
tem (if equipped)
Select to enable/disable head-up
display content.Driving Assist
Compass
(if equipped)
Audio system
Rotation Select to adjust the angle of the
head-up display.
Press the / switch to
adjust the display angle.

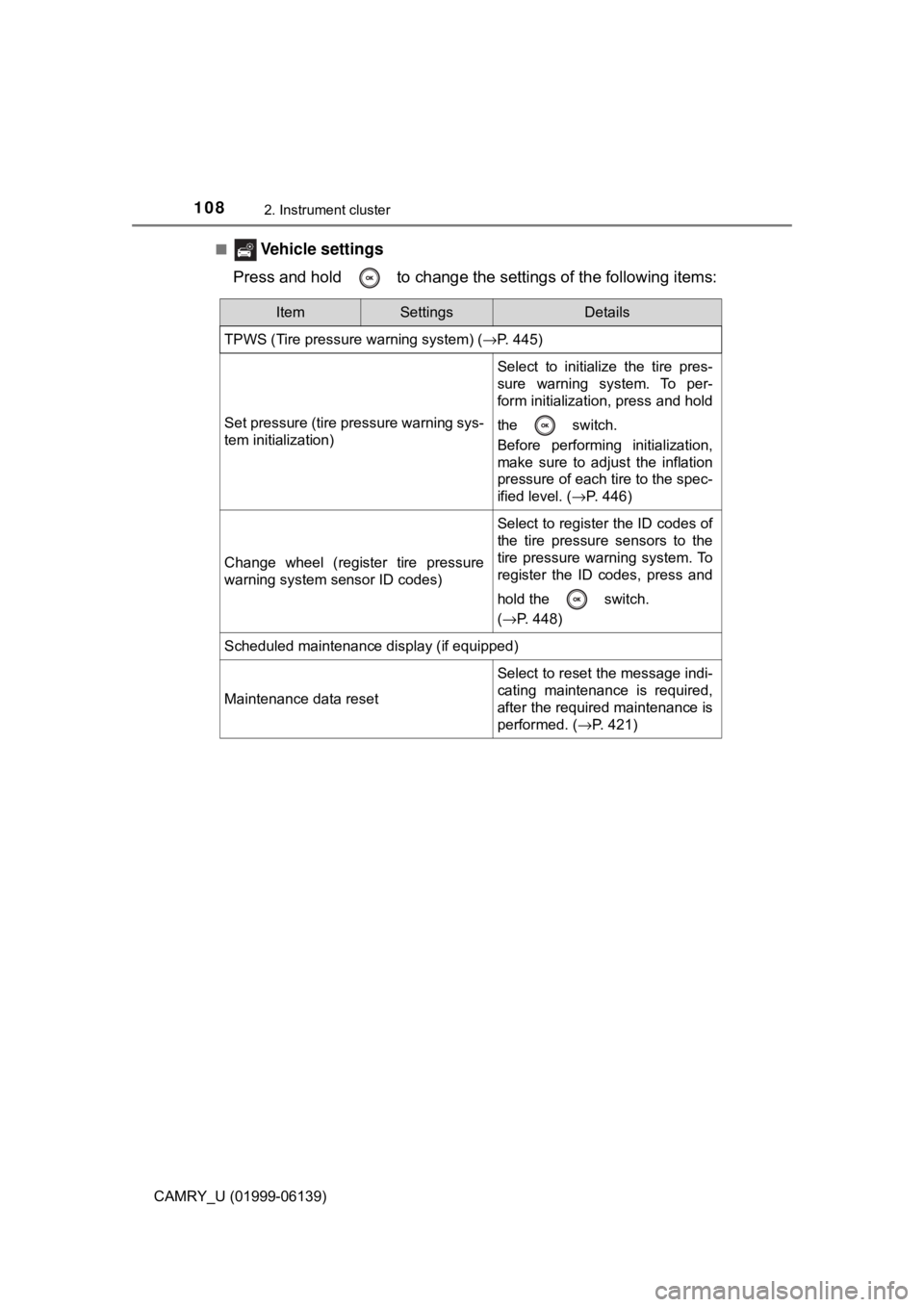

1082. Instrument cluster
CAMRY_U (01999-06139)■

Vehicle settings
Press and hold to change the settings of the following items:
ItemSettingsDetails
TPWS (Tire pressure warning system) (→P. 445)
Set pressure (tire pressure warning sys-
tem initialization)
Select to initialize the tire pres-
sure warning system. To per-
form initialization, press and hold
the switch.
Before performing initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. ( →P. 446)
Change wheel (register tire pressure
warning system sensor ID codes)
Select to register the ID codes of
the tire pressure sensors to the
tire pressure warning system. To
register the ID codes, press and
hold the switch.
(→P. 448)
Scheduled maintenance display (if equipped)
Maintenance data reset
Select to reset the message indi-
cating maintenance is required,
after the required maintenance is
performed. ( →P. 421)

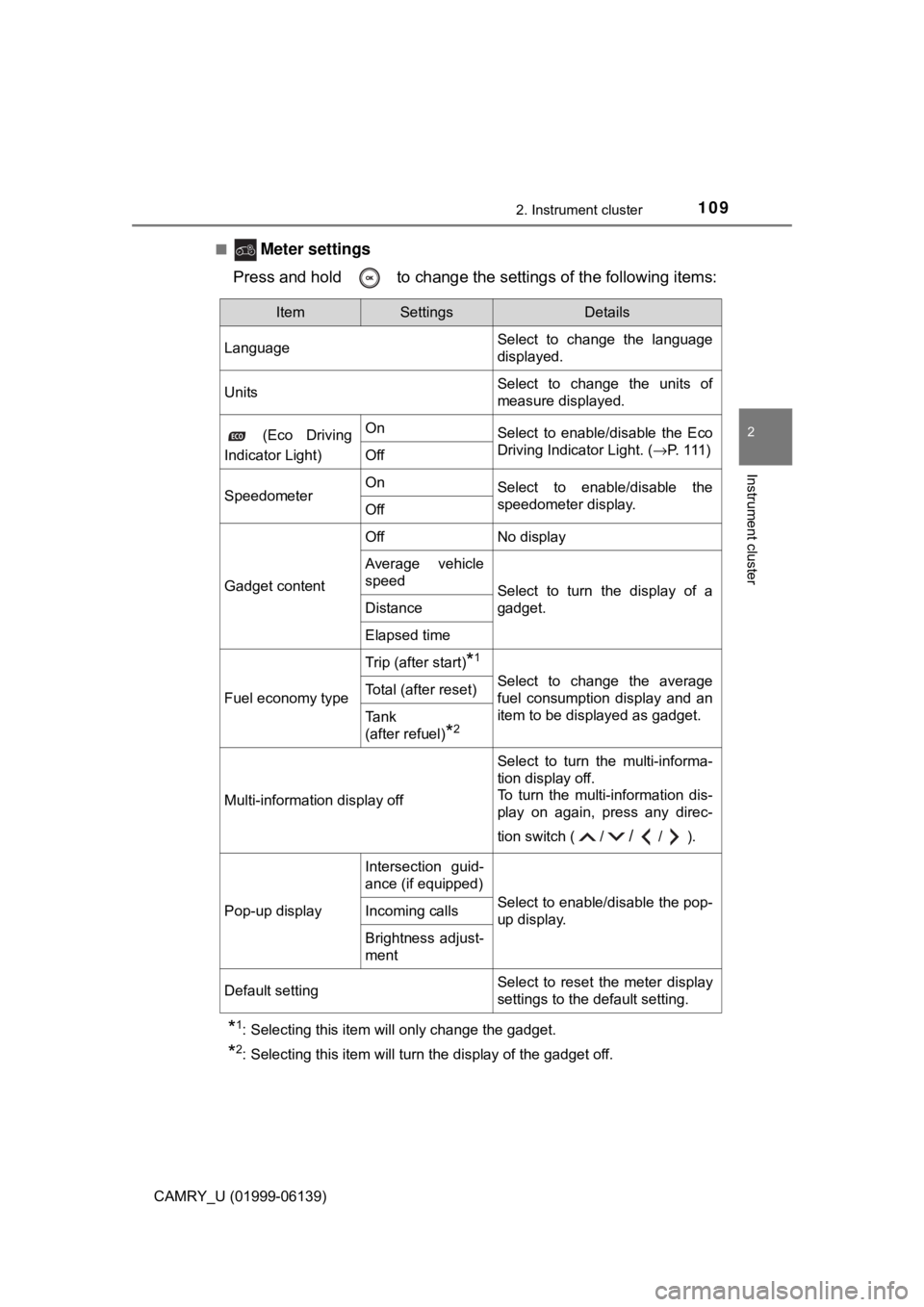

1092. Instrument cluster
2
Instrument cluster
CAMRY_U (01999-06139)■

Meter settings
Press and hold to change the settings of the following items:
*1: Selecting this item will only change the gadget.
*2: Selecting this item will turn the display of the gadget off.
ItemSettingsDetails
Language Select to change the language
displayed.
UnitsSelect to change the units of
measure displayed.
(Eco Driving
Indicator Light)OnSelect to enable/disable the Eco
Driving Indicator Light. ( →P. 1 1 1 )
Off
SpeedometerOnSelect to enable/disable the
speedometer display.
Off
Gadget content
OffNo display
Average vehicle
speed
Select to turn the display of a
gadget.
Distance
Elapsed time
Fuel economy type
Trip (after start)*1
Select to change the average
fuel consumption display and an
item to be displayed as gadget.Total (after reset)
Tank
(after refuel)
*2
Multi-information display off
Select to turn the multi-informa-
tion display off.
To turn the multi-information dis-
play on again, press any direc-
tion switch ( /
//).
Pop-up display
Intersection guid-
ance (if equipped)
Select to enable/disable the pop-
up display.Incoming calls
Brightness adjust-
ment
Default settingSelect to reset the meter display
settings to the default setting.

1102. Instrument cluster
CAMRY_U (01999-06139)■
Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicl
e has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.
Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestio n, use the meter control switches.
The suggestion function can be turned on/off.
(Customizable features: →P. 567)
■
Suggestion to turn off the headlights
If the headlights are left on for a certain amount of time after the
engine switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion mess age will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.
If a front door is opened after the engine switch is turned off, this sug-
gestion message will not be displayed.
Odometer/trip meter
Suggestion function
