TOYOTA CAMRY 2018 (in English) User Guide

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
9

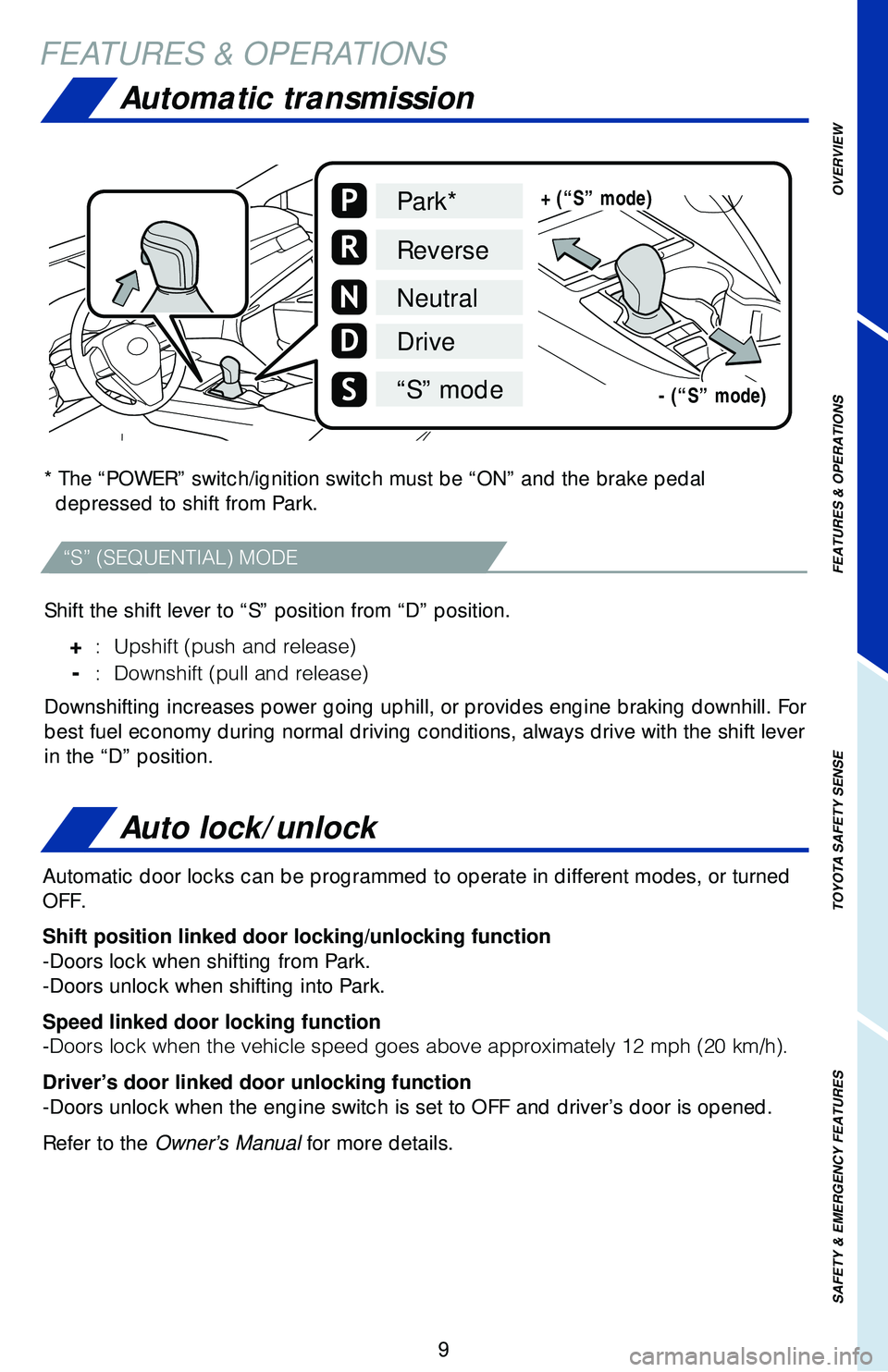

Automatic transmission
* The “POWER” switch/ignition switch must be “ON” and the br\
ake pedal
depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+  6QTIJGU QVTIBOESFMFBTF

-  %PXOTIJGU QVMMBOESFMFBTF

Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position.
N
Park*
Reverse
Neutral
Drive

10

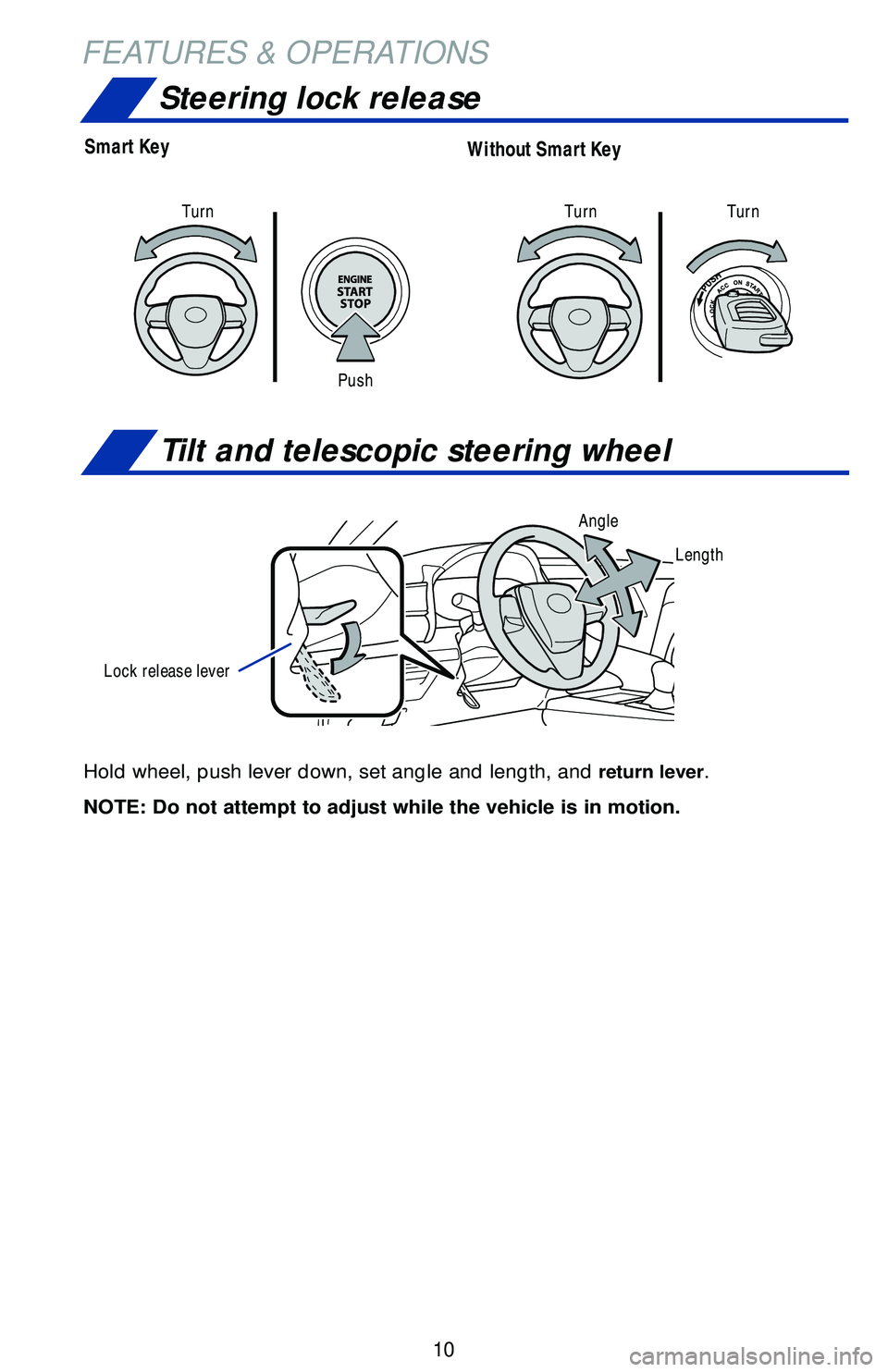

Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Smart KeyWithout Smart Key
Steering lock release
Push
Turn Turn Turn
Lock release lever Angle
Length
FEATURES & OPERATIONS

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
11
Electric parking brake (if equipped)
Automatic (shift lever operation)
Manual To turn automatic mode ON, while vehicle is stopped, pull and hold switc\
h and until
i&1#4IJGU*OUFSMPDL'VODUJPO"DUJWBUFEwEJTQMBZTJO.VMUJ*OGPSNBUJPO%JTQMBZ .*%

While depressing brake, shifting into P position will automatically set \
the brake and
turn indicator on in meter. To release brake, depress brake and shift ou\
t of P. The
indicator light turns off.
To turn automatic mode OFF, push and hold parking brake switch until “\
EPB Shift
Interlock Function Deactivated” displays on the MID.
While vehicle is stopped and brake pedal is depressed, pull to set parki\
ng brake
and display indicator light turns on in the meter. To release, press the\
brake pedal
and push switch. The indicator light turns off.
Refer to the Owner’s Manual for more details.
Parking brake (if equipped)
Driver sideAutomatic modeManual mode (Brake HOLD switch)

12
Vehicle Stability Control (VSC)/TRAC OFF Switch
FEATURES & OPERATIONSDriving mode select switches
(if equipped)
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\
ngs like
mud, dirt or snow. While car is stopped, press switch to disable the TRA\
C system.
To disable both VSC and TRAC systems, press the switch for at least 3 se\
conds.
Refer to the Owner’s Manual for more details.
Normal -
Suitable for normal driving.
SPORT mode -
Use when a higher level
of response is desired,
such as when driving in
mountainous regions.
ECO MODE -
Helps achieve lower fuel
consumption during trips
that involve frequent
accelerating and braking. Refer to the Owner’s Manual for more details.

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
13

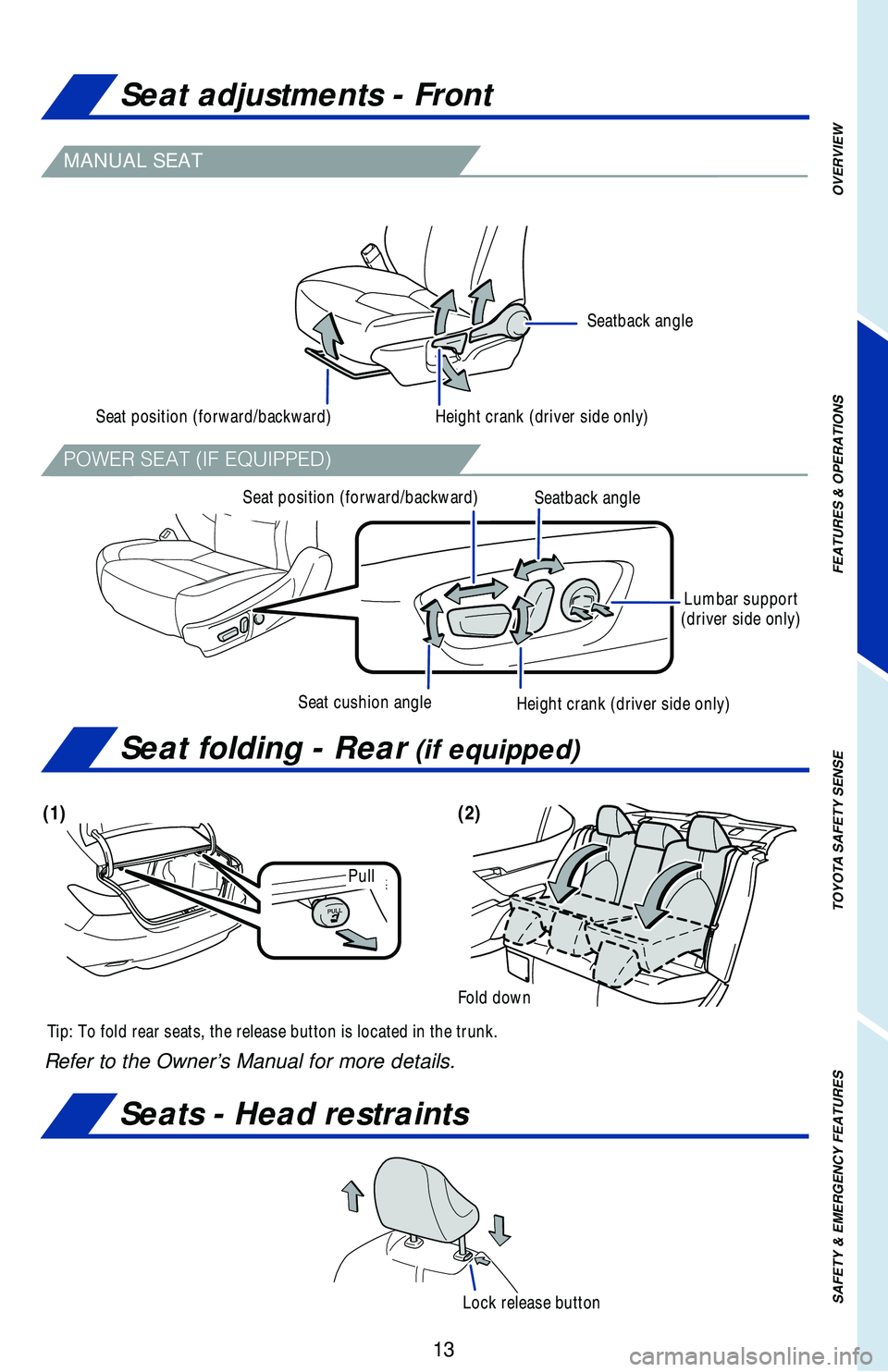

Seat adjustments - Front
Seats - Head restraints
Seat folding - Rear (if equipped)
(1)(2)
Tip: To fold rear seats, the release button is located in the trunk.
Refer to the Owner’s Manual for more details.
Seat position (forward/backward)
Seat cushion angle Height crank (driver side only)Seatback angle
Lumbar support
(driver side only)
Height crank (driver side only)
Seatback angle
Seat position (forward/backward)
Lock release button
MANUAL SEAT
108&34&"5 *'&26*11&%

Pull
Fold down

14

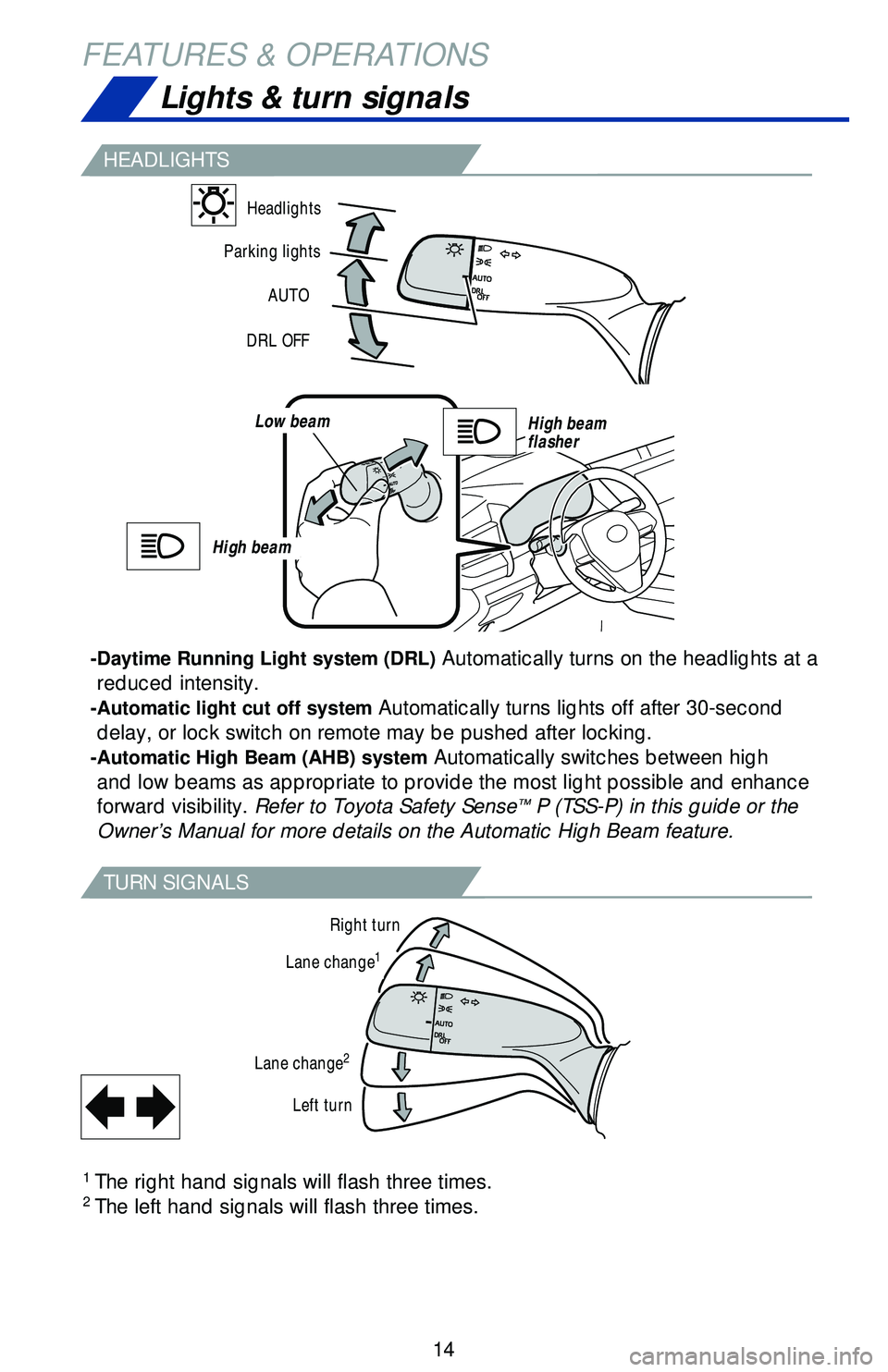

HEADLIGHTS
TURN SIGNALS
Lights & turn signals
FEATURES & OPERATIONS
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed after locking.
-Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to provide the most light possible and enha\
nce
forward visibility. Refer to Toyota Safety Sense
™ P (TSS-P) in this guide or the
Owner’s Manual for more details on the Automatic High Beam feature.
1 The right hand signals will flash three times.2 The left hand signals will flash three times.
Parking lights Headlights
DRL OFF AUTO
High beam
High beam
flasher
Right turn
Lane change1
Lane change2
Left turn
Low beam

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
15

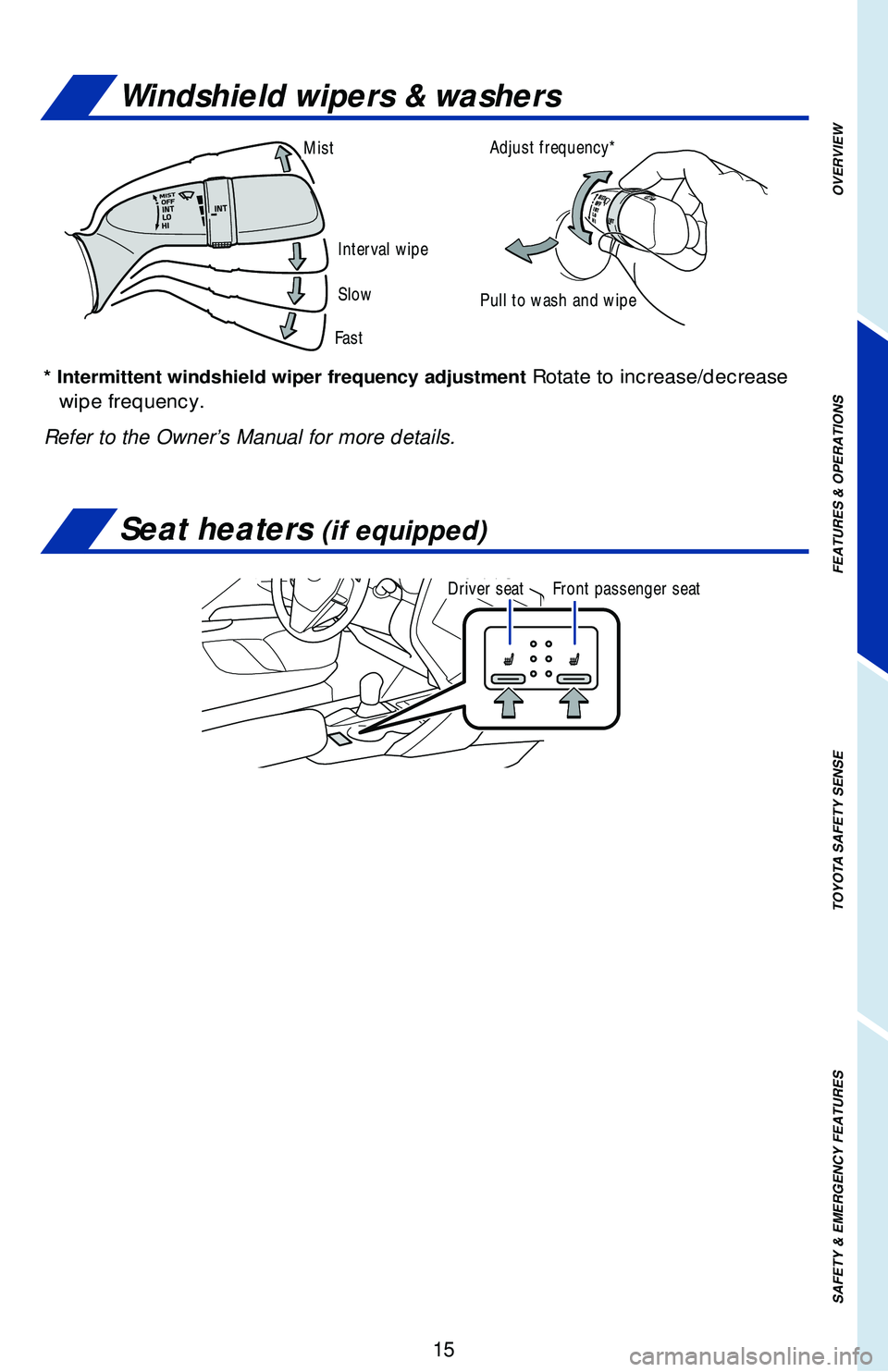

* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease
wipe frequency.
Refer to the Owner’s Manual for more details.
Windshield wipers & washers
Adjust frequency*
Pull to wash and wipeMist
Interval wipe
Slow
Fast
Seat heaters (if equipped)
Driver seatFront passenger seat

16

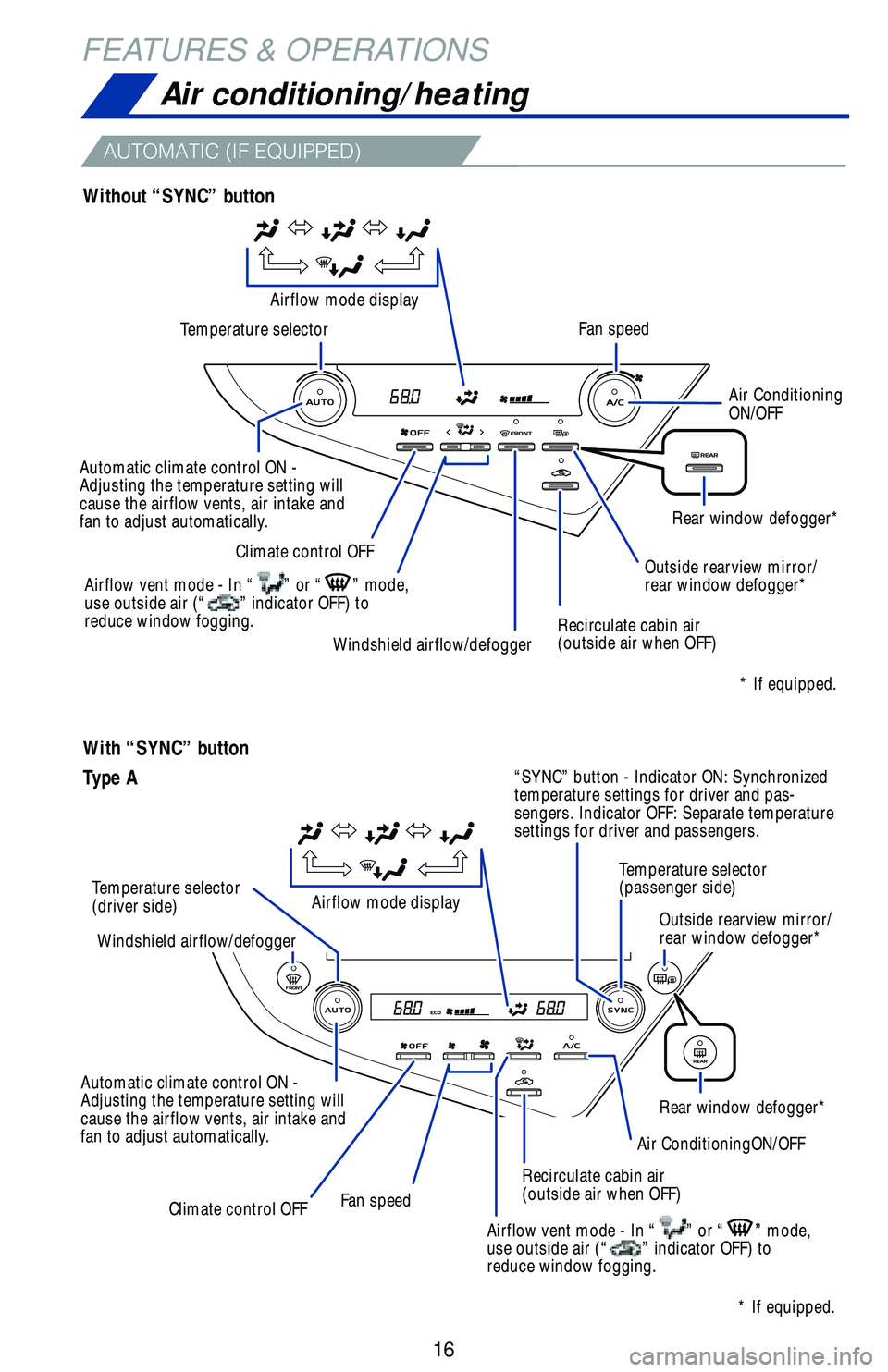

FEATURES & OPERATIONSAir conditioning/heating
"650."5*$ *'&26*11&%

With “SYNC” button
Temperature selector
(driver side) Temperature selector
Automatic climate control ON -
Adjusting the temperature setting will
cause the airflow vents, air intake and
fan to adjust automatically.
Automatic climate control ON -
Adjusting the temperature setting will
cause the airflow vents, air intake and
fan to adjust automatically.
“SYNC” button - Indicator ON: Synchronized
temperature settings for driver and pas-
sengers. Indicator OFF: Separate temperature
settings for driver and passengers.
Airflow mode display
Airflow mode display
Airflow vent mode - In “
” or “” mode,
use outside air (“” indicator OFF) to
reduce window fogging.
Airflow vent mode - In “
” or “” mode,
use outside air (“” indicator OFF) to
reduce window fogging.
Temperature selector
(passenger side)
Recirculate cabin air
(outside air when OFF) Recirculate cabin air
(outside air when OFF)
Outside rearview mirror/
rear window defogger*
* If equipped.
* If equipped.
Rear window defogger*
Outside rearview mirror/
rear window defogger*
Climate control OFF
Climate control OFF
Air ConditioningON/OFF
Rear window defogger*
Air Conditioning
ON/OFF
Fan speed
Fan speed
Windshield airflow/defogger Windshield airflow/defogger
Without “SYNC” button
Type A

17
"650."5*$ *'&26*11&%
 $0/5*/6&%

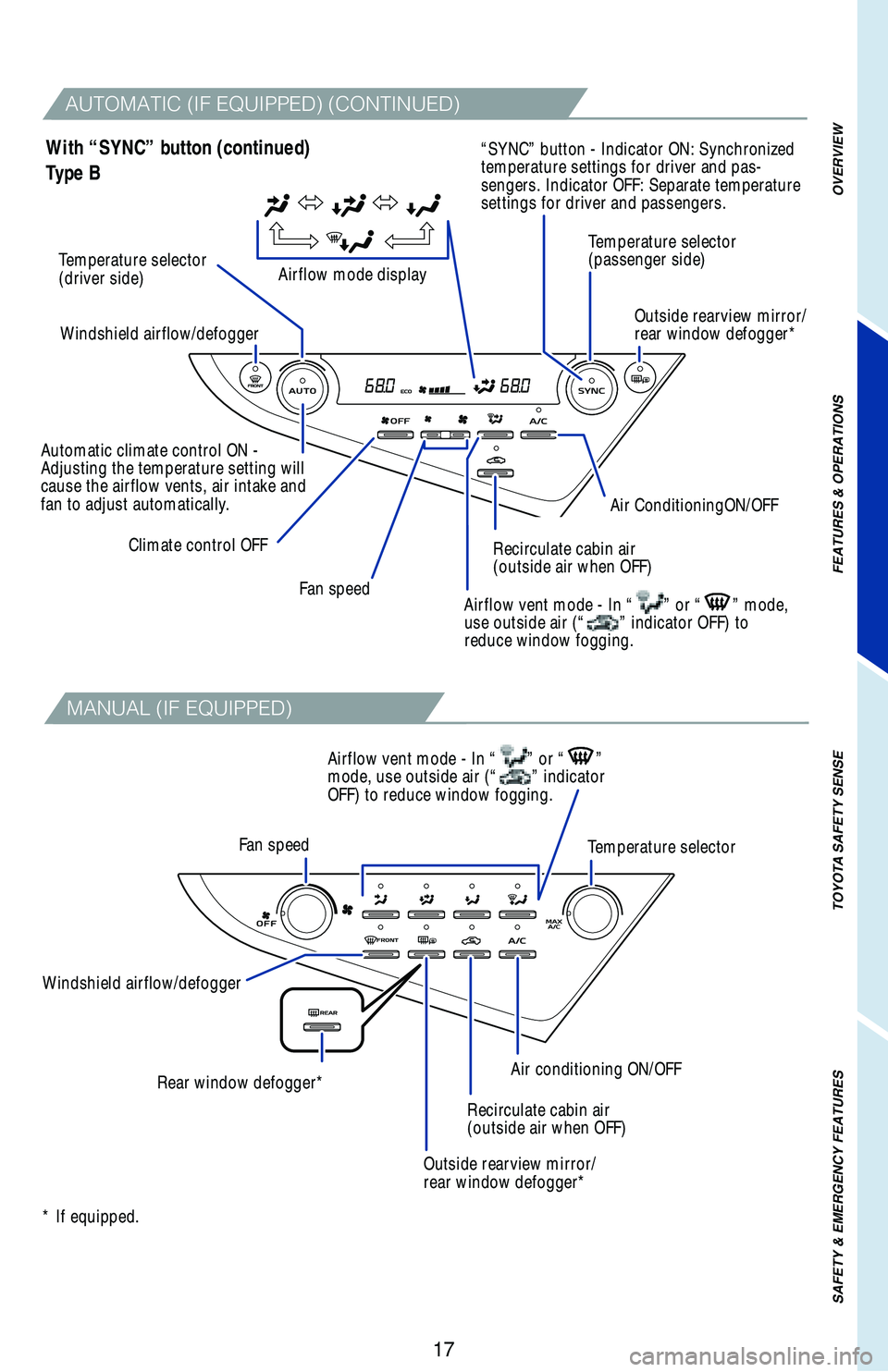

With “SYNC” button (continued)
Fan speed
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Temperature selector
(driver side)
Automatic climate control ON -
Adjusting the temperature setting will
cause the airflow vents, air intake and
fan to adjust automatically.
“SYNC” button - Indicator ON: Synchronized
temperature settings for driver and pas-
sengers. Indicator OFF: Separate temperature
settings for driver and passengers.
Airflow mode display
Airflow vent mode - In “
” or “” mode,
use outside air (“” indicator OFF) to
reduce window fogging.
Airflow vent mode - In “
” or “”
mode, use outside air (“” indicator
OFF) to reduce window fogging. Temperature selector
(passenger side)
Temperature selector
Recirculate cabin air
(outside air when OFF)
Outside rearview mirror/
rear window defogger*
Outside rearview mirror/
rear window defogger*
Air conditioning ON/OFF
Rear window defogger*
* If equipped.
Climate control OFF
Air ConditioningON/OFF
Fan speed
Windshield airflow/defogger
Windshield airflow/defogger
."/6"- *'&26*11&%

Recirculate cabin air
(outside air when OFF)
Type B

18
FEATURES & OPERATIONS

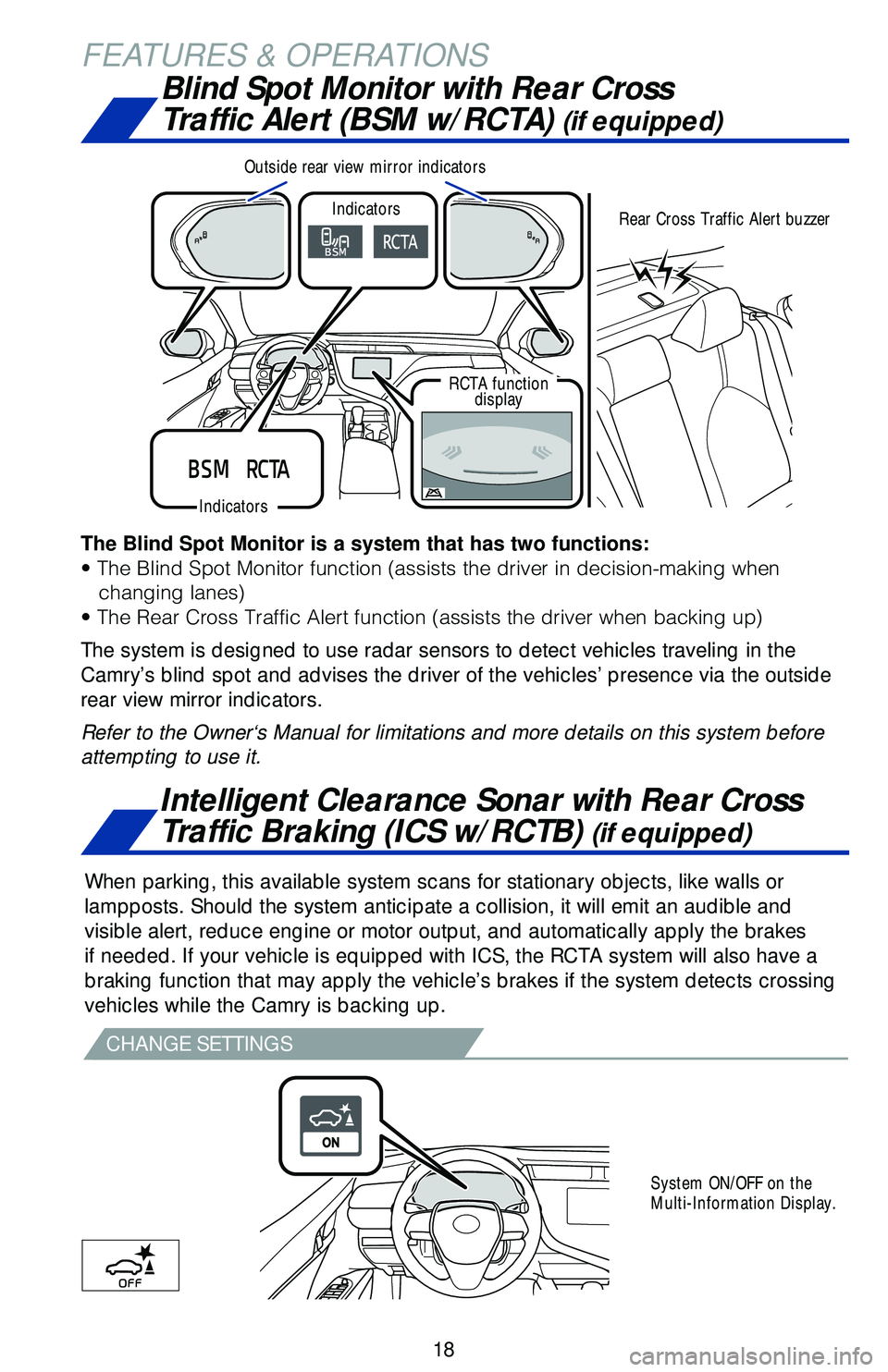

Intelligent Clearance Sonar with Rear Cross
Traffic Braking (ICS w/RCTB)
(if equipped)
When parking, this available system scans for stationary objects, like w\
alls or
lampposts. Should the system anticipate a collision, it will emit an aud\
ible and
visible alert, reduce engine or motor output, and automatically apply th\
e brakes
if needed. If your vehicle is equipped with ICS, the RCTA system will al\
so have a
braking function that may apply the vehicle’s brakes if the system de\
tects crossing
vehicles while the Camry is backing up.
System ON/OFF on the
Multi-Information Display.
CHANGE SETTINGS
The Blind Spot Monitor is a system that has two functions:
t5IF#MJOE4QPU.POJUPSGVODUJPO BTTJTUTUIFESJWFSJOEFDJTJPONBLJOHXIFO
DIBOHJOHMBOFT

t5IF3FBS$SPTT5SBGGJD"MFSUGVODUJPO BTTJTUTUIFESJWFSXIFOCBDLJOHVQ

The system is designed to use radar sensors to detect vehicles traveling\
in the
Camry’s blind spot and advises the driver of the vehicles’ presenc\
e via the outside
rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
Indicators
Indicators
RCTA function
display Rear Cross Traffic Alert buzzer
Outside rear view mirror indicators
