39
4 8 * 5 $ ) * / ( 5 0 $ 0 / 4 5 " / 5 4 1 & & % $ 3 6 * 4 &
$ 0 / 5 3 0 - . 0 % &
4 & 5 5 * / ( $ 0 / 4 5 " / 5 4 1 & & % $ 3 6 * 4 &
$ 0 / 5 3 0 -

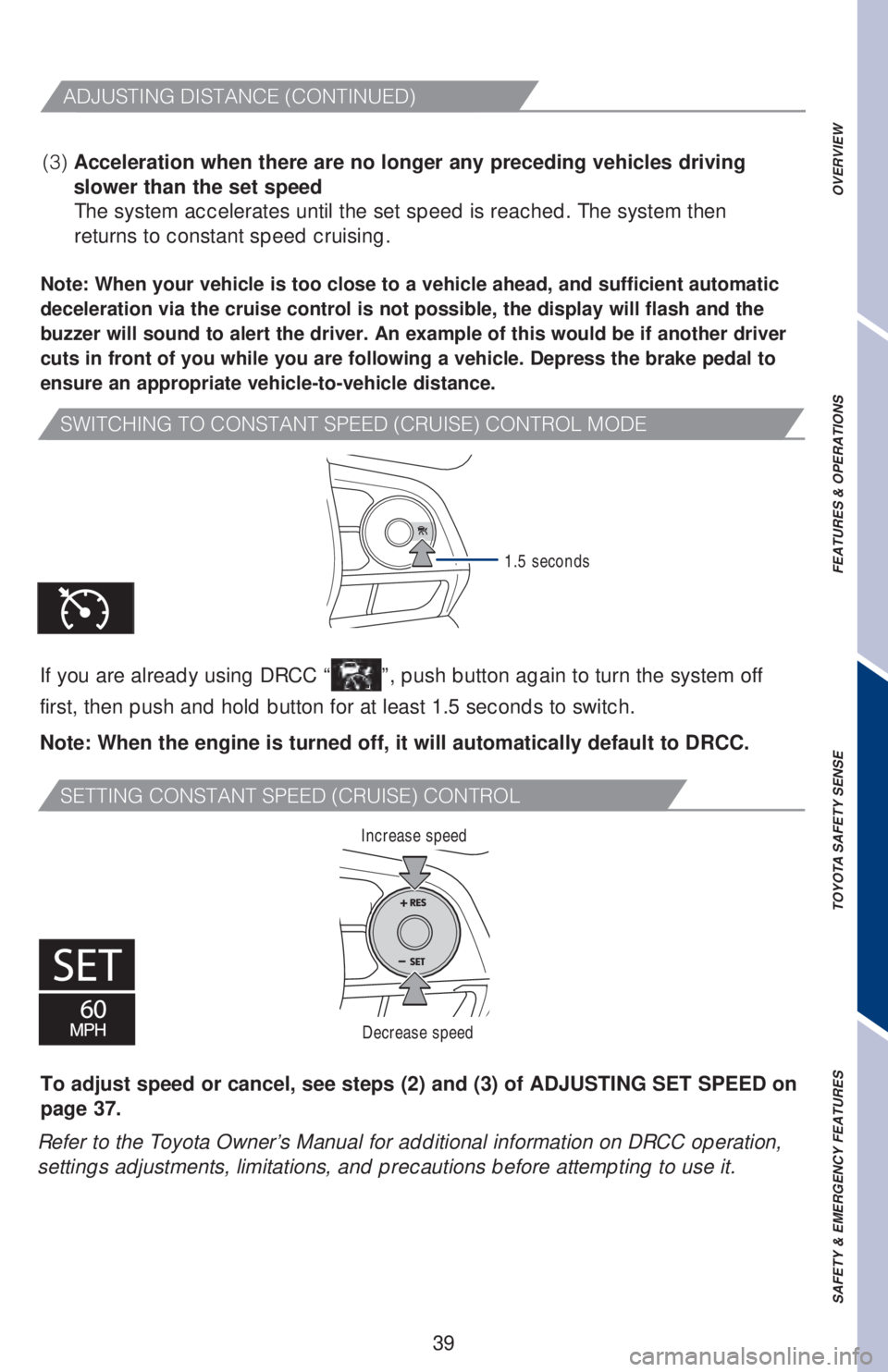

Note: When your vehicle is too close to a vehicle ahead, and sufficient automatic
deceleration via the cruise control is not possible, the display will flash and the
buzzer will sound to alert the driver. An example of this would be if another driver
cuts in front of you while you are following a vehicle. Depress the brake pedal to
ensure an appropriate vehicle-to-vehicle distance.
If you are already using DRCC “”, push button again to turn the system off
first, then push and hold button for at least 1.5 seconds to switch.
Note: When the engine is turned off, it will automatically default to DRCC.
Acceleration when there are no longer any preceding vehicles driving
slower than the set speed
The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
1.5 seconds
" % + 6 4 5 * / ( % * 4 5 " / $ & $ 0 / 5 * / 6 & %
Refer to the Toyota Owner’s Manual for additional information on DRCC operation,
settings adjustments, limitations, and precautions before attempting to use it.To adjust speed or cancel, see steps (2) and (3) of ADJUSTING SET SPEED on
page 37.
Increase speed
Decrease speed
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 42 of 52

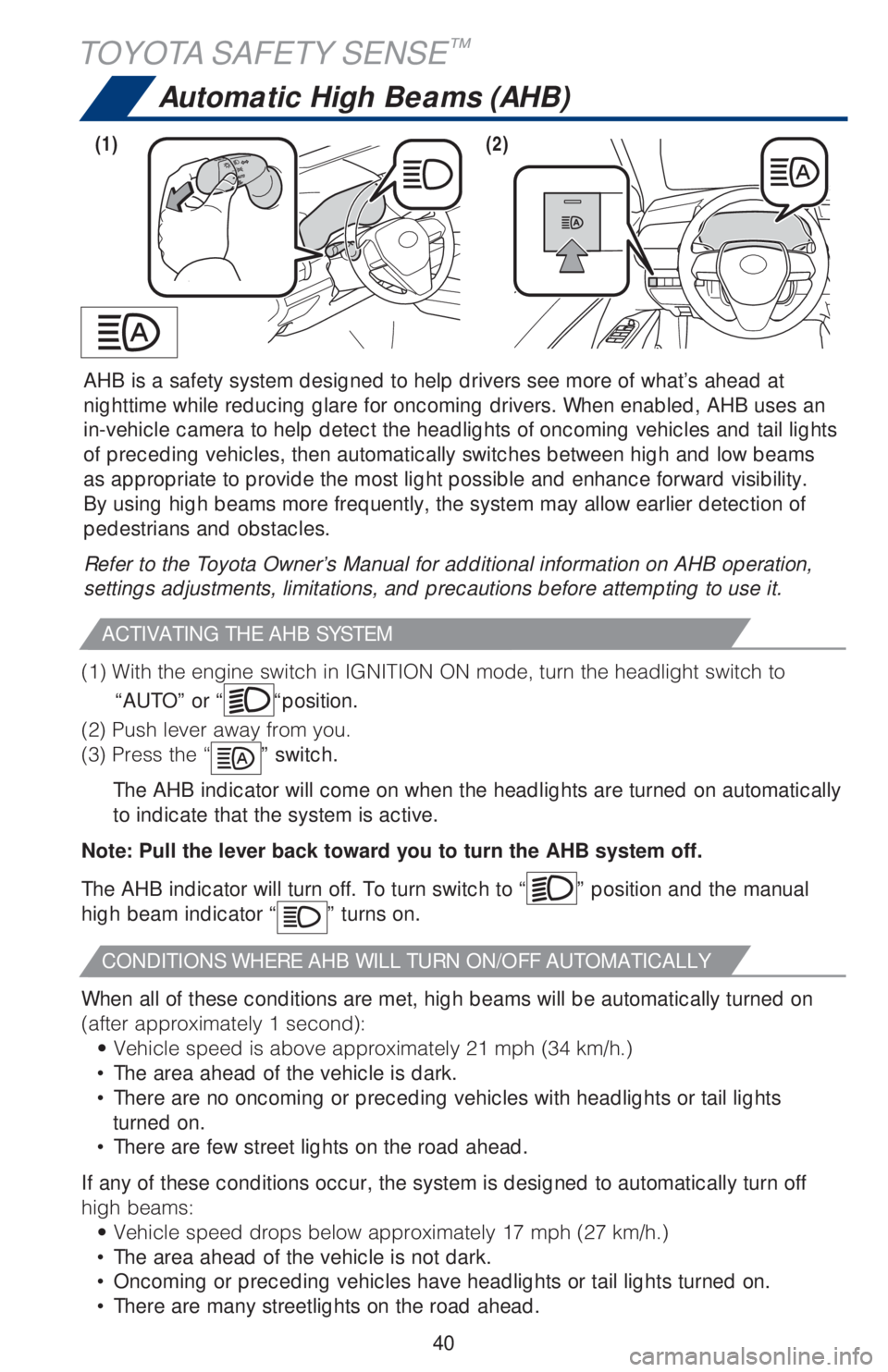

40 AHB is a safety system designed to help drivers see more of what’s ahead at
nighttime while reducing glare for oncoming drivers. When enabled, AHB uses an
in-vehicle camera to help detect the headlights of oncoming vehicles and tail lights
of preceding vehicles, then automatically switches between high and low beams
as appropriate to provide the most light possible and enhance forward visibility.
By using high beams more frequently, the system may allow earlier detection of
pedestrians and obstacles.
Refer to the Toyota Owner’s Manual for additional information on AHB operation,
settings adjustments, limitations, and precautions before attempting to use it.
Automatic High Beams (AHB)
8 J U I U I F F O H J O F T X J U D I J O * ( / * 5 * 0 / 0 / N P E F
U V S O U I F I F B E M J H I U T X J U D I U P
“AUTO” or “
“position.
1 V T I M F W F S B X B Z G S P N Z P V
1 S F T T U I F i
” switch.
The AHB indicator will come on when the headlights are turned on automatically
to indicate that the system is active.
Note: Pull the lever back toward you to turn the AHB system off.
The AHB indicator will turn off. To turn switch to “
” position and the manual
high beam indicator “
” turns on.
When all of these conditions are met, high beams will be automatically turned on
B G U F S B Q Q S P Y J N B U F M Z T F D P O E
t 7 F I J D M F T Q F F E J T B C P W F B Q Q S P Y J N B U F M Z N Q I L N I
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail lights
turned on.
• There are few street lights on the road ahead.
If any of these conditions occur, the system is designed to automatically turn off
I J H I C F B N T
t 7 F I J D M F T Q F F E E S P Q T C F M P X B Q Q S P Y J N B U F M Z N Q I L N I
• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lights turned on.
• There are many streetlights on the road ahead.
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
(1) (2)
TOYOTA SAFETY SENSE™
Page 43 of 52
41

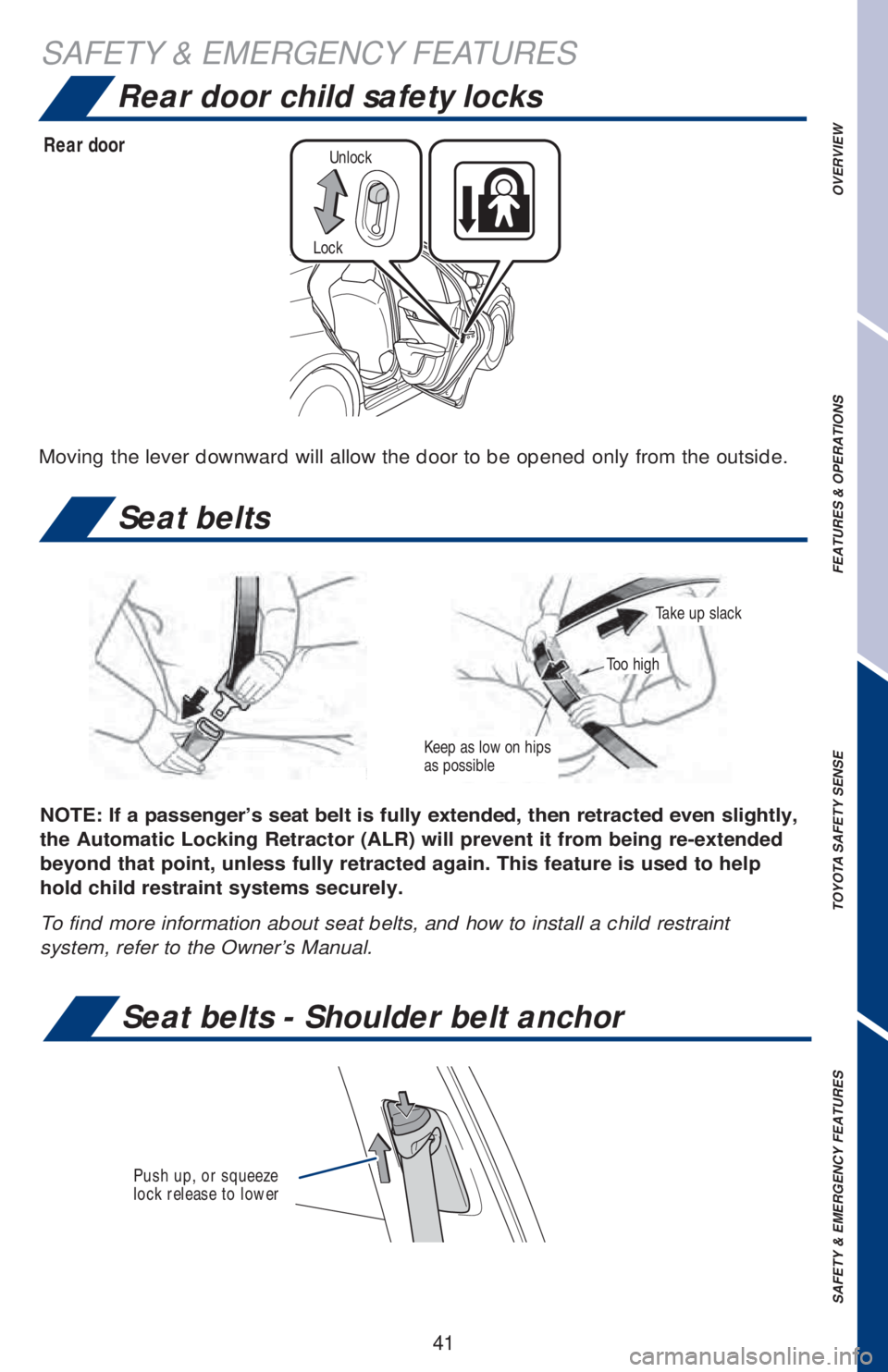

Seat belts
1 2 7 ( , I D S D V V H Q J H U
Page 44 of 52
42
SAFETY & EMERGENCY FEATURES

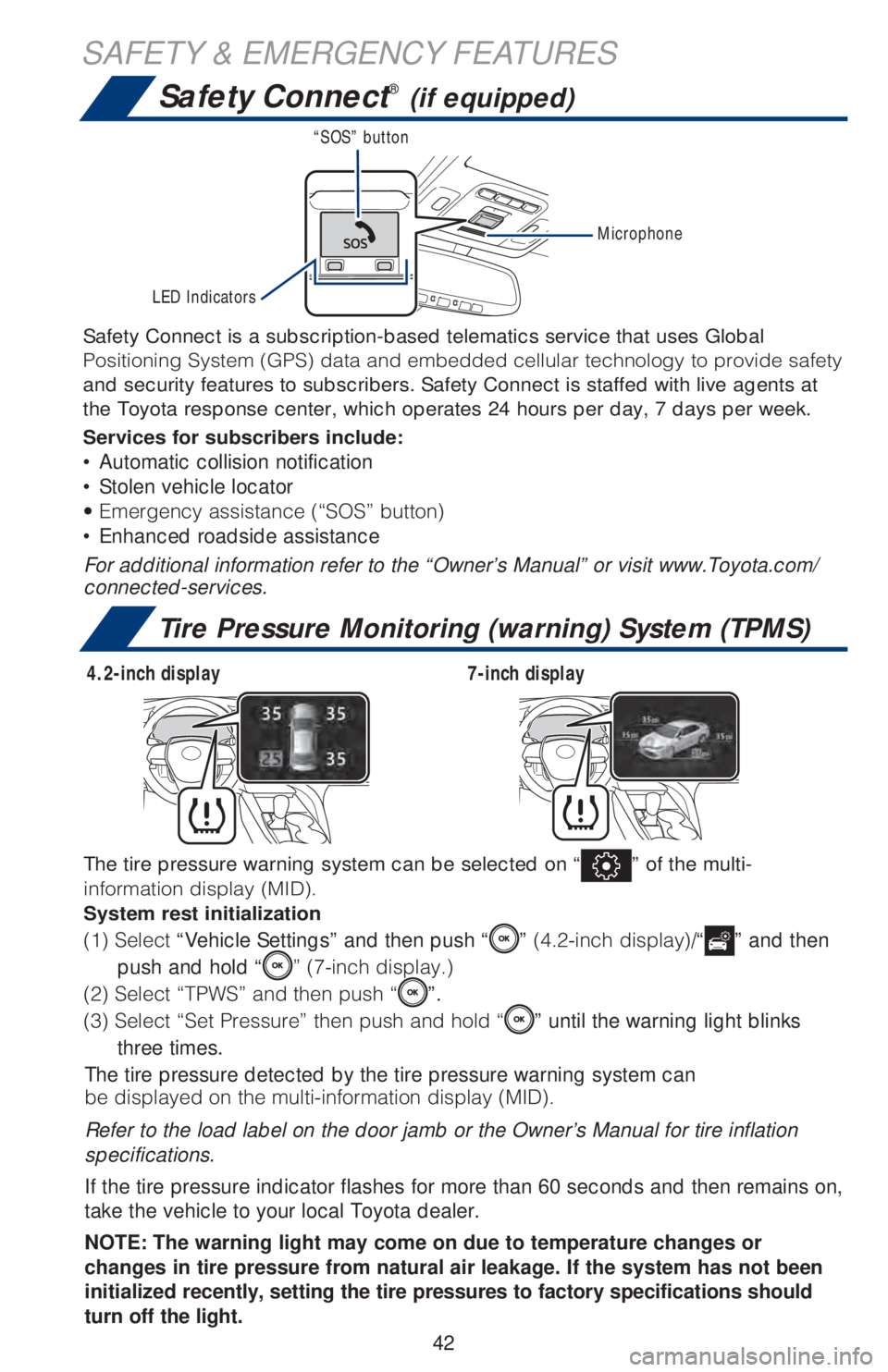

Safety Connect® (if equipped)
Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure detected by the tire pressure warning system can
C F E J T Q M B Z F E P O U I F N V M U J J O G P S N B U J P O E J T Q M B Z . * %
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
The tire pressure warning system can be selected on “” of the multi-
J O G P S N B U J P O E J T Q M B Z . * %
System rest initialization
4 F M F D U “Vehicle Settings” and then push “” J O D I E J T Q M B Z
“” and then
push and hold “
w J O D I E J T Q M B Z
4 F M F D U i 5 1 8 4 w B O E U I F O Q V T I i
”.
4 F M F D U i 4 F U 1 S F T T V S F w U I F O Q V T I B O E I P M E i
” until the warning light blinks
three times.
Safety Connect is a subscription-based telematics service that uses Global
1 P T J U J P O J O H 4 Z T U F N ( 1 4
E B U B B O E F N C F E E F E D F M M V M B S U F D I O P M P H Z U P Q S P W J E F T B G F U Z
and security features to subscribers. Safety Connect is staffed with live agents at
the Toyota response center, which operates 24 hours per day, 7 days per week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle locator
t & N F S H F O D Z B T T J T U B O D F i 4 0 4 w C V U U P O
• Enhanced roadside assistance
For additional information refer to the “Owner’s Manual” or visit www.Toyota.com/
connected-services.
Microphone
LED Indicators“SOS” button
4.2-inch display 7-inch display
Page 45 of 52
43

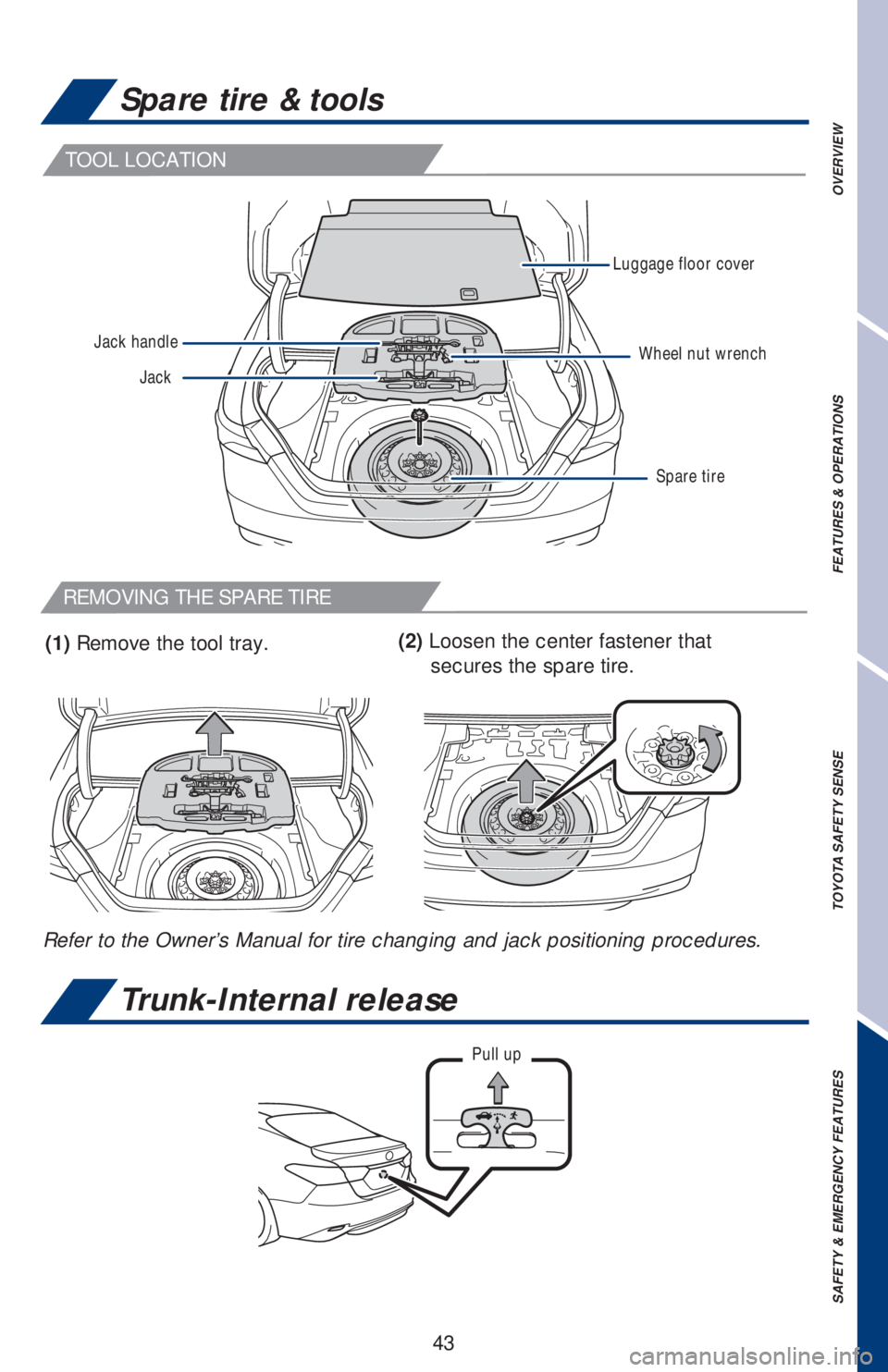

TOOL LOCATION
REMOVING THE SPARE TIRE
Spare tire & tools
Trunk-Internal release
(1) Remove the tool tray.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.(2) Loosen the center fastener that
secures the spare tire.
Pull up
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Luggage floor cover
Jack handle
JackWheel nut wrench
Spare tire
Page 46 of 52
44
SAFETY & EMERGENCY FEATURES

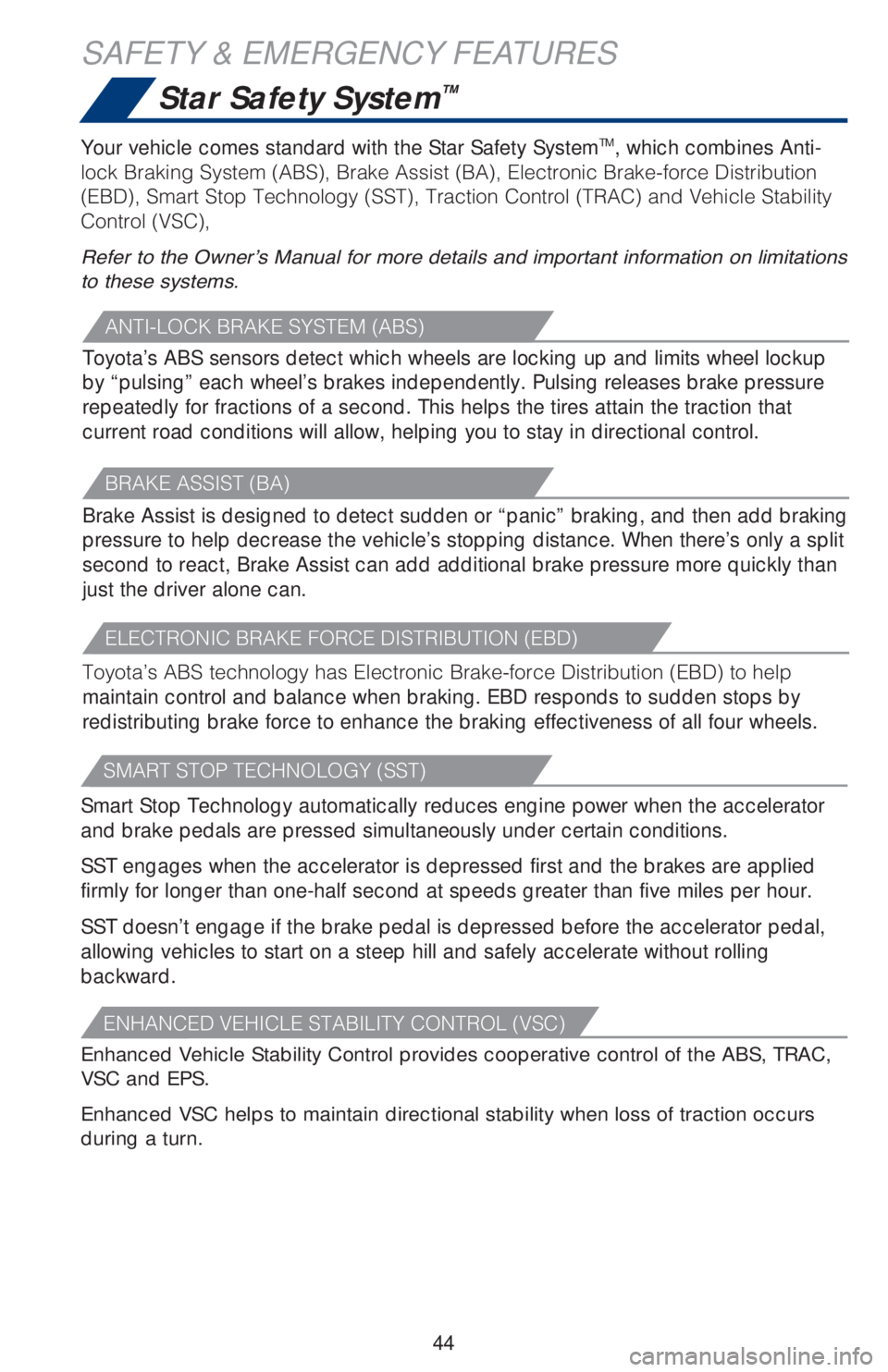

Star Safety System™
" / 5 * - 0 $ , # 3 " , & 4 : 4 5 & . " # 4
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
# 3 " , & " 4 4 * 4 5 # "
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can.
& - & $ 5 3 0 / * $ # 3 " , & ' 0 3 $ & % * 4 5 3 * # 6 5 * 0 / & # %
5 P Z P U B T " # 4 U F D I O P M P H Z I B T & M F D U S P O J D # S B L F G P S D F % J T U S J C V U J P O & # %
U P I F M Q
maintain control and balance when braking. EBD responds to sudden stops by
redistributing brake force to enhance the braking effectiveness of all four wheels. Your vehicle comes standard with the Star Safety System
TM, which combines Anti-
M P D L # S B L J O H 4 Z T U F N " # 4
# S B L F " T T J T U # "
& M F D U S P O J D # S B L F G P S D F % J T U S J C V U J P O
& # %
4 N B S U 4 U P Q 5 F D I O P M P H Z 4 4 5
5 S B D U J P O $ P O U S P M 5 3 " $
B O E 7 F I J D M F 4 U B C J M J U Z
$ P O U S P M 7 4 $
5 H I H U W R W K H 2 Z Q H U
Page 47 of 52
45
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

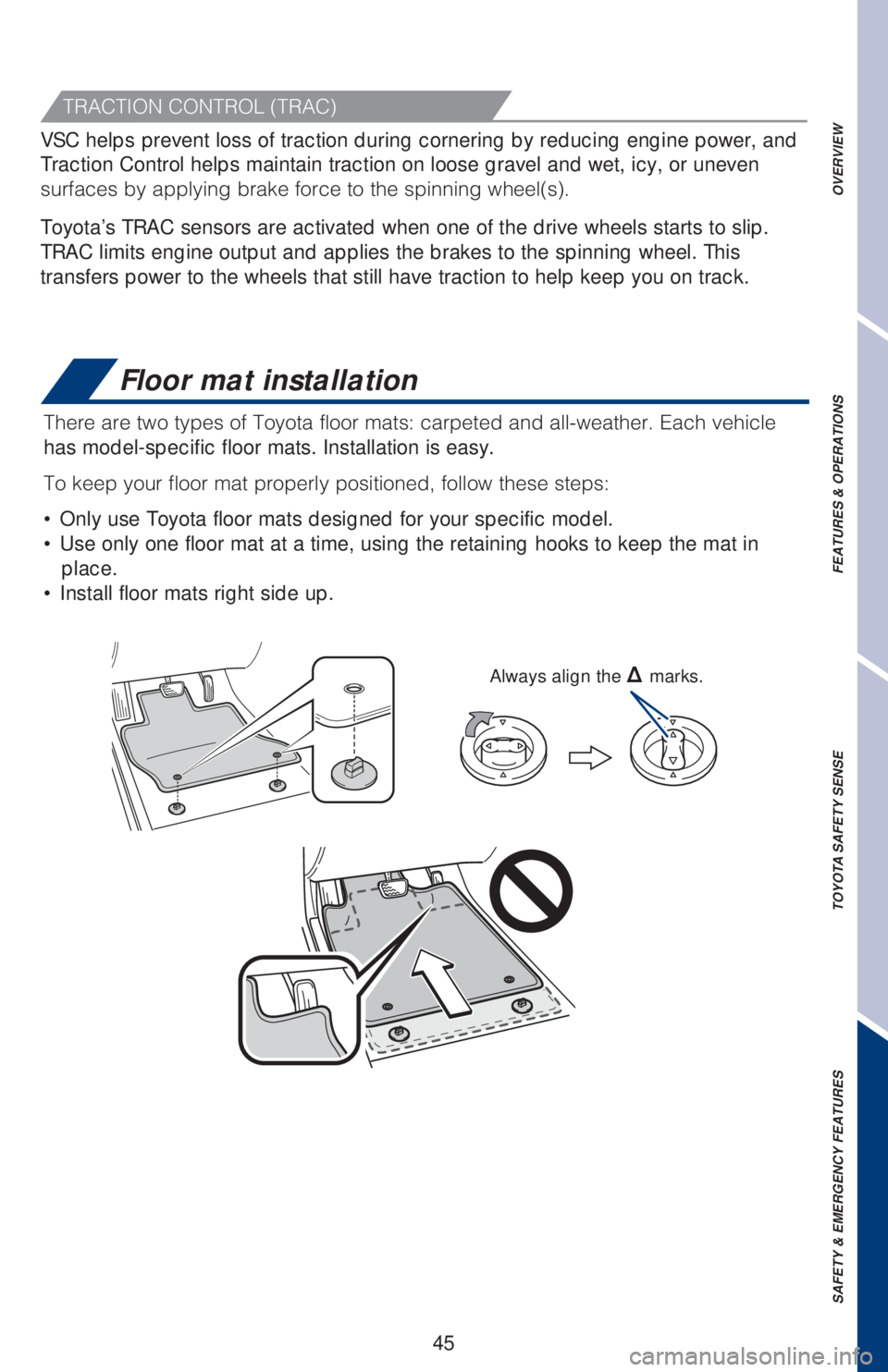

Floor mat installation
5 I F S F B S F U X P U Z Q F T P G 5 P Z P U B G M P P S N B U T D B S Q F U F E B O E B M M X F B U I F S & B D I W F I J D M F
has model-specific floor mats. Installation is easy.
5 P L F F Q Z P V S G M P P S N B U Q S P Q F S M Z Q P T J U J P O F E
G P M M P X U I F T F T U F Q T
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Always align the C marks.
5 3 " $ 5 * 0 / $ 0 / 5 3 0 - 5 3 " $
VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
T V S G B D F T C Z B Q Q M Z J O H C S B L F G P S D F U P U I F T Q J O O J O H X I F F M T
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Page 48 of 52
46

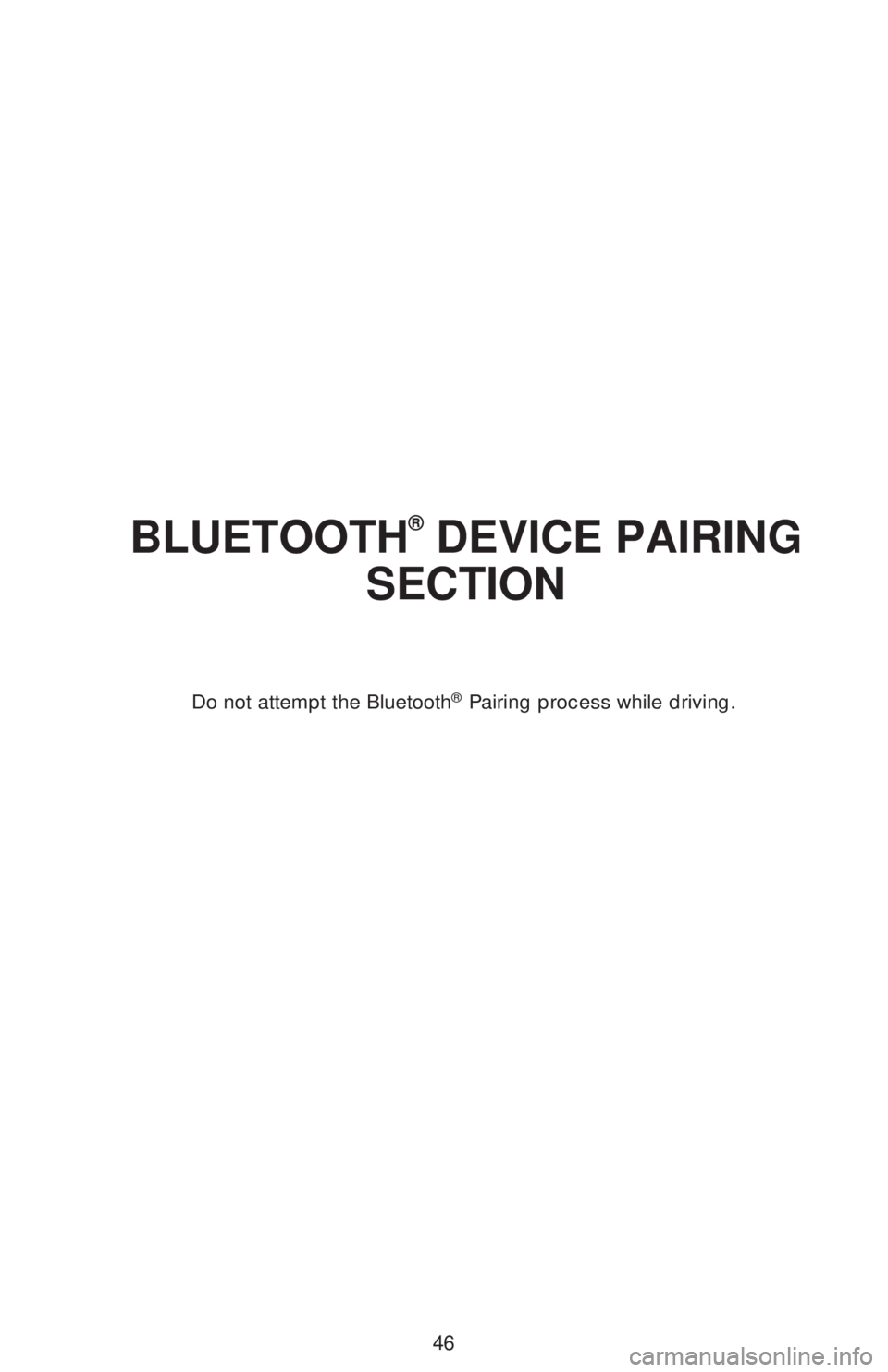

BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving.
Page 49 of 52
47

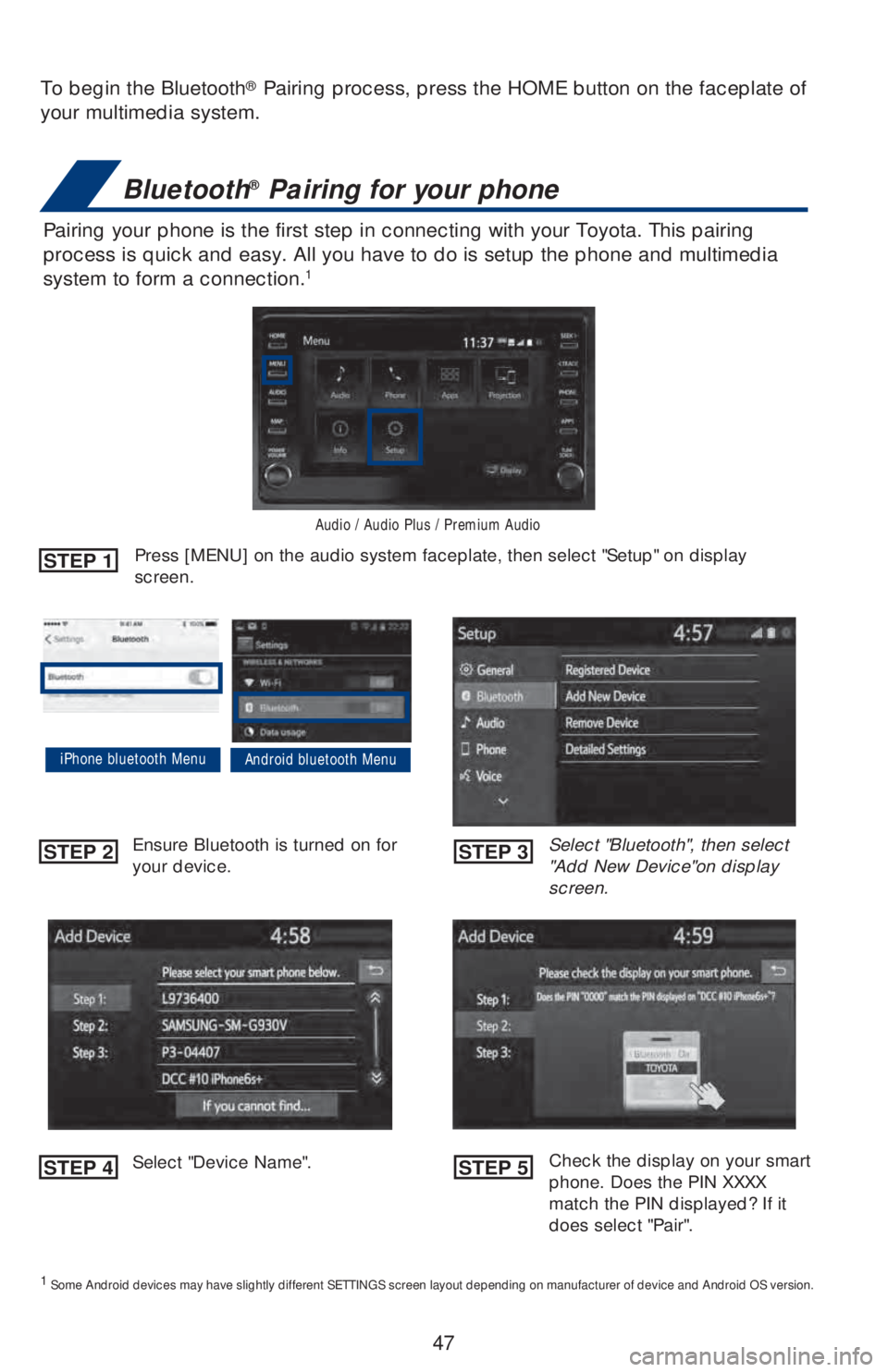

To begin the Bluetooth® Pairing process, press the HOME button on the faceplate of
your multimedia system.
Bluetooth® Pairing for your phone
Pairing your phone is the first step in connecting with your Toyota. This pairing
process is quick and easy. All you have to do is setup the phone and multimedia
system to form a connection.
1
Select "Bluetooth", then select
"Add New Device"on display
screen. Ensure Bluetooth is turned on for
your device.
Select "Device Name".
iPhone bluetooth MenuAndroid bluetooth Menu
1
Some Android devices may have slightly different SETTINGS screen layout depending on manufacturer of device and Android OS version.
Check the display on your smart
phone. Does the PIN XXXX
match the PIN displayed? If it
does select "Pair".
Press [MENU] on the audio system faceplate, then select "Setup" on display
screen.STEP 1
STEP 2
STEP 4
STEP 3
STEP 5
Audio / Audio Plus / Premium Audio
Page 50 of 52
48
BLUETOOTH® DEVICE PAIRING
Bluetooth® Pairing for your phone (cont.)

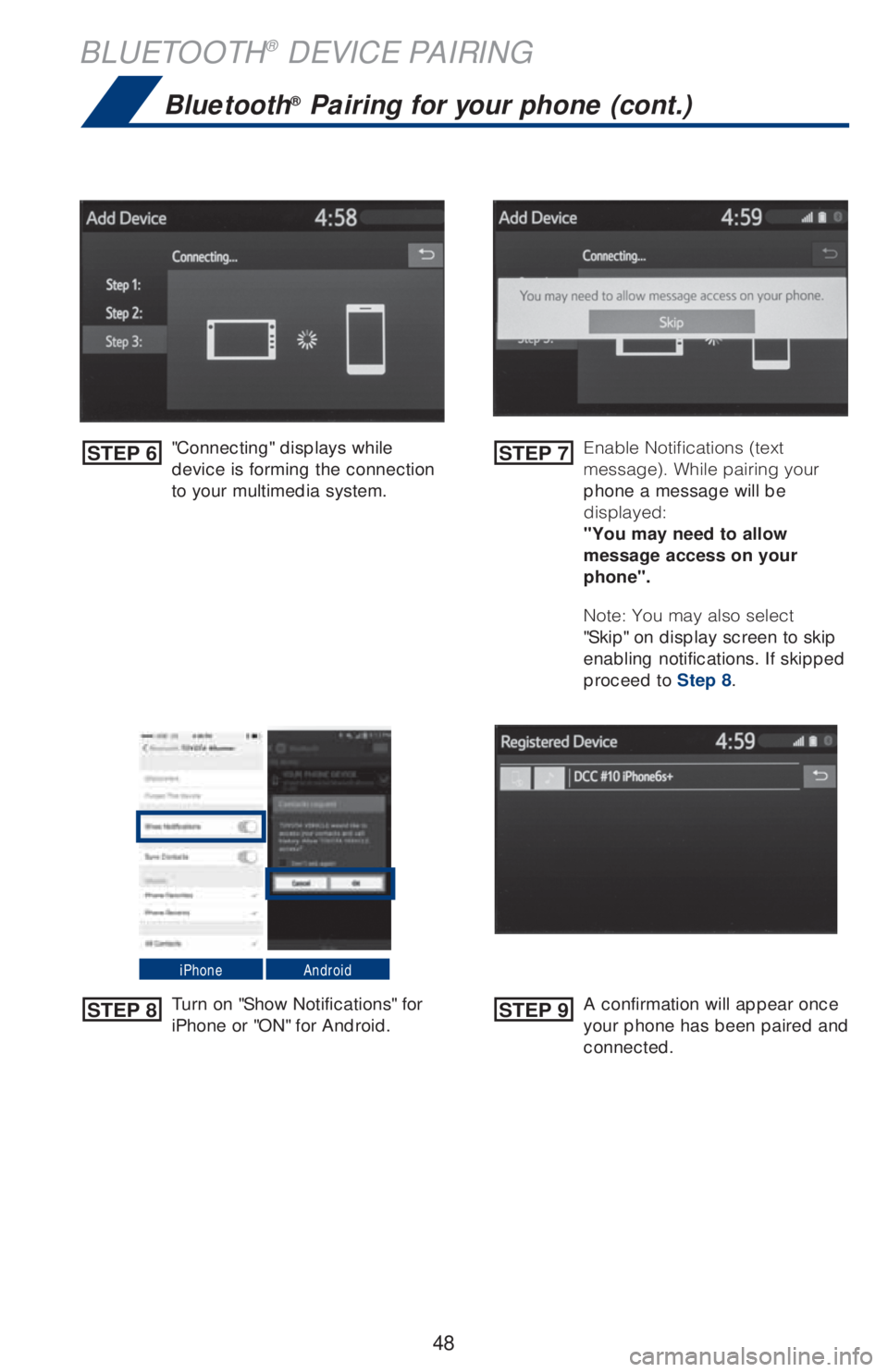

"Connecting" displays while
device is forming the connection
to your multimedia system. & O B C M F / P U J G J D B U J P O T U F Y U
N F T T B H F
8 I J M F Q B J S J O H Z P V S
phone a message will be
E J T Q M B Z F E
"You may need to allow
message access on your
phone".
/ P U F : P V N B Z B M T P T F M F D U
"Skip" on display screen to skip
enabling notifications. If skipped
proceed to
Step 8.
Turn on "Show Notifications" for
iPhone or "ON" for Android.A confirmation will appear once
your phone has been paired and
connected.
iPhoneAndroid
STEP 6
STEP 8
STEP 7
STEP 9
