TOYOTA CAMRY 2020 Owners Manual (in English)

1813-5. Opening and closing the windows
3
Operation of each component
CAMRY_U■
When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.
*1
The moon roof will close, reopen and pause for approximately 10 sec-
onds.
*2 Then it will close again, tilt up and pause for approximately 1 sec-
ond. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
● If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch
*1 until the moon roof moves into the tilt
up position and stops.
Release the “UP” switch once and then press and hold the “UP” s witch
again.
*1
The moon roof will pause for approximately 10 seconds in the tilt up posi-
tion.
*2 Then it will adjust slightly and pause for approximately 1 second.
Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
*1: If the switch is released at the incorrect time, the procedure will have to
be performed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause, automatic operation will be disabled. In that case, press and h old the
“CLOSE” or “UP” switch, and the moon roof will tilt up and paus e for
approximately 1 second. Then it will tilt down, open and close. Check to
make sure that the moon roof is completely closed and then release the
switch.
If the moon roof does not fully close even after performing the above proce-
dure correctly, have the vehicle inspected by your Toyota deale r.
■ Alarm
The alarm may be triggered if the alarm is set and the moon roo f is closed
using the door lock linked moon roof operation function. ( P. 83)
■ Moon roof open warning buzzer
A buzzer sounds and a message is shown on the multi-information display in
the instrument cluster when the engine switch is turned off and the driver's
door is opened with the moon roof open.
■ Customization
Some functions can be customized. ( P. 575)
1
2
3
1
2
3
4

1823-5. Opening and closing the windows
CAMRY_U
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
■Opening the moon roof
● Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
● The driver is responsible for moon roof opening and closing ope rations.
In order to prevent accidental operation, especially by a child , do not let a
child operate the moon roof. It is possible for children and ot her passen-
gers to have body parts caught in the moon roof.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function
● Never use any part of your body to intentionally activate the j am protection
function.
● The jam protection function may not work if something gets caught just
before the moon roof is fully closed. Also, the jam protection function is not
designed to operate while the switch is being pressed. Take care so that
your fingers, etc. do not get caught.
●Check to make sure that all passengers
do not have any part of their body in a
position where it could be caught when
the moon roof is being operated.
● When using the wireless remote con-
trol, key or mechanical key and operat-
ing the moon roof, operate the moon
roof after checking to make sure that
there is no possibility of any passenger
having any of their body parts caught in
the moon roof. Also, do not let a child
operate moon roof by the wireless
remote control, key or mechanical key.
It is possible for children and other pas-
sengers to get caught in the moon roof.

1833-5. Opening and closing the windows
3
Operation of each component
CAMRY_U
Opens the electronic sunshade
Slide and hold the switch
backward. The electronic sun-
shade will fully open automati-
cally.
*
Closes the electronic sunshade
Slide and hold the switch for-
ward. The electronic sunshade will
fully close automatically.
*
*
: Quickly slide and release the switch in either direction to s top the
electronic sunshade partway.
Tilts the panoramic moon roof up
(press)
*
When the panoramic moon roof is
tilted up, the electronic sunshade
will open to the half-open position
of the roof.
*: Lightly press the switch
again to stop the panoramic moon
roof partway.
Tilts the panoramic moon roof down (press and hold)
The panoramic moon roof can be tilted down only when it is in t he tilt-up
position.
Panoramic moon roof
: If equipped
Use the overhead switches to operate the panoramic moon roof
and electronic sunshade.
Opening and closing th e electronic sunshade
1
2
Tilting the panoramic moon roof up and down

1843-5. Opening and closing the windows
CAMRY_U
Opens the panoramic moon roof*
Slide and hold the switch
backward. The panoramic moon
roof and electronic sunshade will
open automatically.
The panoramic moon roof can be
opened from the tilt-up position.
*: Quickly slide and release the switch in either direction to stop the
panoramic moon roof partway.
Closes the panoramic moon roof
Slide and hold the switch
forward. The panoramic moon
roof will fully cl ose automatically.
■The panoramic moon roof can be operated when
The engine switch is in IGNITION ON mode.
■ Operating the panoramic moon roo f after turning the engine off
The panoramic moon roof and electronic sunshade can be operated for
approximately 45 seconds after the engine switch is turned to A CCESSORY
mode or turned off. They cannot, however, be operated once eith er front door
is opened.
■ Jam protection function
If an object is detected between the panoramic moon roof and th e frame in
the following situations, travel is stopped and the panoramic m oon roof opens
slightly:
● The panoramic moon roof is closing or tilting down.
● The electronic sunshade is closing.
■ Door lock linked panoramic moon roof operation
● The panoramic moon roof can be opened and closed using the mech anical
key.
* (  P. 530)
● The panoramic moon roof can be opened using the wireless remote con-
trol.
* (P. 142)
*: These settings must be customized at your Toyota dealer.
Opening and closing the panoramic moon roof

1853-5. Opening and closing the windows
3
Operation of each component
CAMRY_U■
Closing both the panoramic moon roof and electronic sunshade
Slide the
switch forward.
The electronic sunshade will close to the half-open position an d pause. The
panoramic moon roof will then fully close. Then the electronic sunshade will
fully close.
■ When the panoramic moon roof or electronic sunshade does not close
normally
Perform the following procedure:
Stop the vehicle.
Turn the engine switch to IGNITION ON mode.
Slide and hold the switch or switch forward. Continue pressing
the switch for approximately 10 seconds after the panoramic moo n roof or
electronic sunshade closes and reopens. The panoramic moon roof and
electronic sunshade will start to close.
*
Check that the panoramic moon roof and electronic sunshade are fully
closed and release the switch.
*: If the switch is released at the incorrect time, the procedure will have to be
performed again from the beginning.
If the panoramic moon roof or electronic sunshade does not fully close even
after performing the above procedure correctly, have the vehicle inspected by
your Toyota dealer.
■ Alarm
The alarm may be triggered if the alarm is set and the panorami c moon roof is
closed using the door lock linked panoramic moon roof operation function.
( P. 83)
■ Panoramic moon roof open warning buzzer
A buzzer sounds and a message is shown on the multi-information display in
the instrument cluster when the engine switch is turned off and the driver’s
door is opened with the panoramic moon roof open.
■ Customization
Some functions can be customized. ( P. 575)
1
2
3
4

1863-5. Opening and closing the windows
CAMRY_U
WARNING
Observe the following precautions.
Failing to do so may cause death or serious injury.
■Opening and closing the electronic sunshade
■ Opening and closing the panoramic moon roof
● The driver is responsible for panoramic moon roof opening and c losing
operations.
In order to prevent accidental operation, especially by a child , do not let a
child operate the panoramic moon roof. It is possible for child ren and other
passengers to have body parts caught in the panoramic moon roof.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
● Check to make sure that all passengers
do not have any part of their body in a
position where it could be caught when
the electronic sunshade is being oper-
ated.
● Do not let a child operate the electronic
sunshade. Closing the electronic sun-
shade on someone can cause death or
serious injury.
●Check to make sure that all passengers
do not have any part of their body in a
position where it could be caught when
the panoramic moon roof is being oper-
ated.
● When using the wireless remote control
or mechanical key and operating the
panoramic moon roof, operate the pan-
oramic moon roof after checking to
make sure that there is no possibility of
any passenger having any of their body
parts caught in the panoramic moon
roof. Also, do not let a child operate
panoramic moon roof by the wireless
remote control or mechanical key. It is
possible for children and other passen-
gers to get caught in the panoramic
moon roof.

1873-5. Opening and closing the windows
3
Operation of each component
CAMRY_U
WARNING
■Jam protection function
● Never use any part of your body to intentionally activate the j am protection
function.
● The jam protection function may not work if something gets caught just
before the panoramic moon roof or electronic sunshade is fully closed.
Also, the jam protection function is not designed to operate wh ile the
switch is being pressed. Take care so that your fingers, etc. do not get
caught.
■ To prevent burns or injuries
Do not touch the area between the underside of the panoramic mo on roof
and the electronic sunshade. Your hand may get caught and you c ould
injure yourself. Also, if the vehicle is left in direct sunligh t for a long time, the
underside of the panoramic moon roof could become very hot and could
cause burns.
NOTICE
■ To prevent damage to the panoramic moon roof
● Before opening the panoramic moon roof, make sure that there are no for-
eign objects, such as stones or ice, around the opening.
● Do not hit the surface or edge of the panoramic moon roof with hard
objects.
● Do not continuously press the switch after the panoramic moon
roof has been fully opened or closed.
■ After the vehicle has been washed or rained on
Before opening the panoramic moon roof, wipe any water off the panoramic
moon roof. Otherwise, water may enter the cabin when the panora mic
moon roof is opened.

1883-5. Opening and closing the windows
CAMRY_U

189
4Driving
CAMRY_U4-1. Before driving
Driving the vehicle ............. 190
Cargo and luggage ........... 199
Vehicle load limits ............. 202
Trailer towing..................... 203
Dinghy towing ................... 204
4-2. Driving procedures Engine (ignition) switch (vehicles without a
smart key system) ........... 205
Engine (ignition) switch (vehicles with a
smart key system) ........... 207
Automatic transmission ..... 213
Turn signal lever................ 219
Parking brake .................... 220
Electric parking brake........ 221
Brake Hold ........................ 225
4-3. Operating the lights and wipers
Headlight switch ................ 227
Automatic High Beam ....... 231
Windshield wipers and washer ............................ 235
4-4. Refueling Opening the fuel tank cap .................................. 239 4-5. Using the driving
support systems
Toyota Safety Sense P ..... 243
PCS (Pre-Collision System) .... 249
LDA (Lane Departure Alert
with steering control) ....... 259
Dynamic radar cruise control with full-speed
range............................... 269
Dynamic radar cruise control ............................. 283
Cruise control .................... 297
Driving assist systems ...... 302
BSM (Blind Spot Monitor) ........ 310
• BSM function ................ 314
• RCTA function .............. 316
Rear Camera Detection Function .......................... 320
Intuitive parking assist....... 324
Intelligent Clearance Sonar (ICS) ..................... 332
Driving mode select switches .......................... 353
4-6. Driving tips Winter driving tips ............. 355

190
CAMRY_U
4-1. Before driving
P. 205, 207
With the brake pedal depressed , shift the shift lever to D.
(  P. 213)
Release the parking brake. ( P. 220, 221)
Gradually release the brake pedal and gently depress the accele ra-
tor pedal to accelerate the vehicle.
With the shift lever in D , depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. ( P. 213)
With the shift lever in D , depress the brake pedal.
Set the parking brake ( P. 220, 221), and shift the shift lever to P
(  P. 213).
Vehicles without a smart key system:
Turn the engine switch to the “LOC K” position to stop the engine.
Vehicles with a smart key system:
Press the engine switch to stop the engine.
Lock the door, making sure that you have the key on your person.
If parking on a hill, block the wheels as needed.
Make sure that the parking brake is set and shift the shift lev er to D.
Gently depress the accelerator pedal.
Release the parking brake.

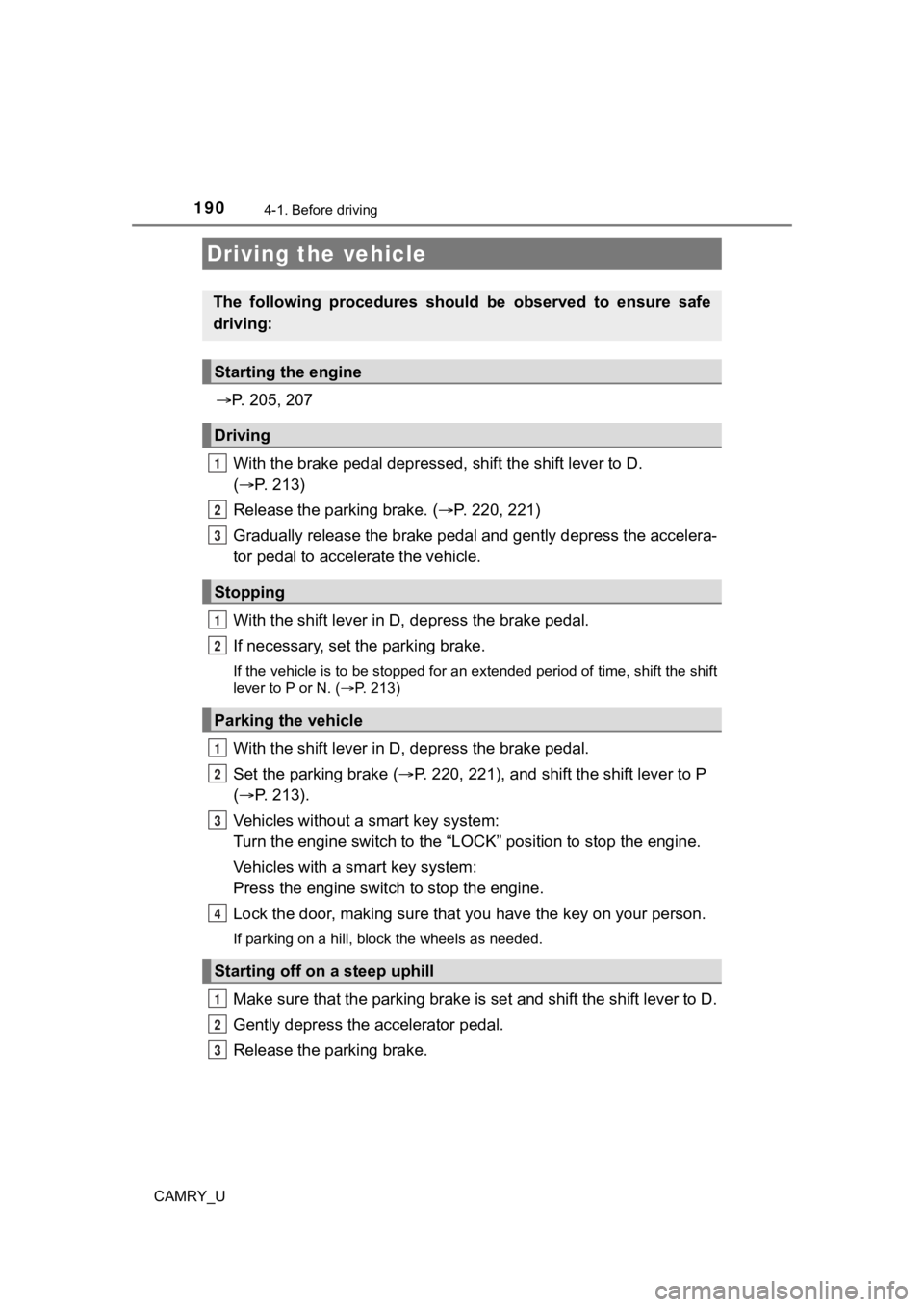

Driving the vehicle
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
Stopping
Parking the vehicle
Starting off on a steep uphill
1
2
3
1
2
1
2
3
4
1
2
3
