Instrument cluster
CAMRY_U
The indicators inform the driver of the operating state of the vehicle’s
various systems.

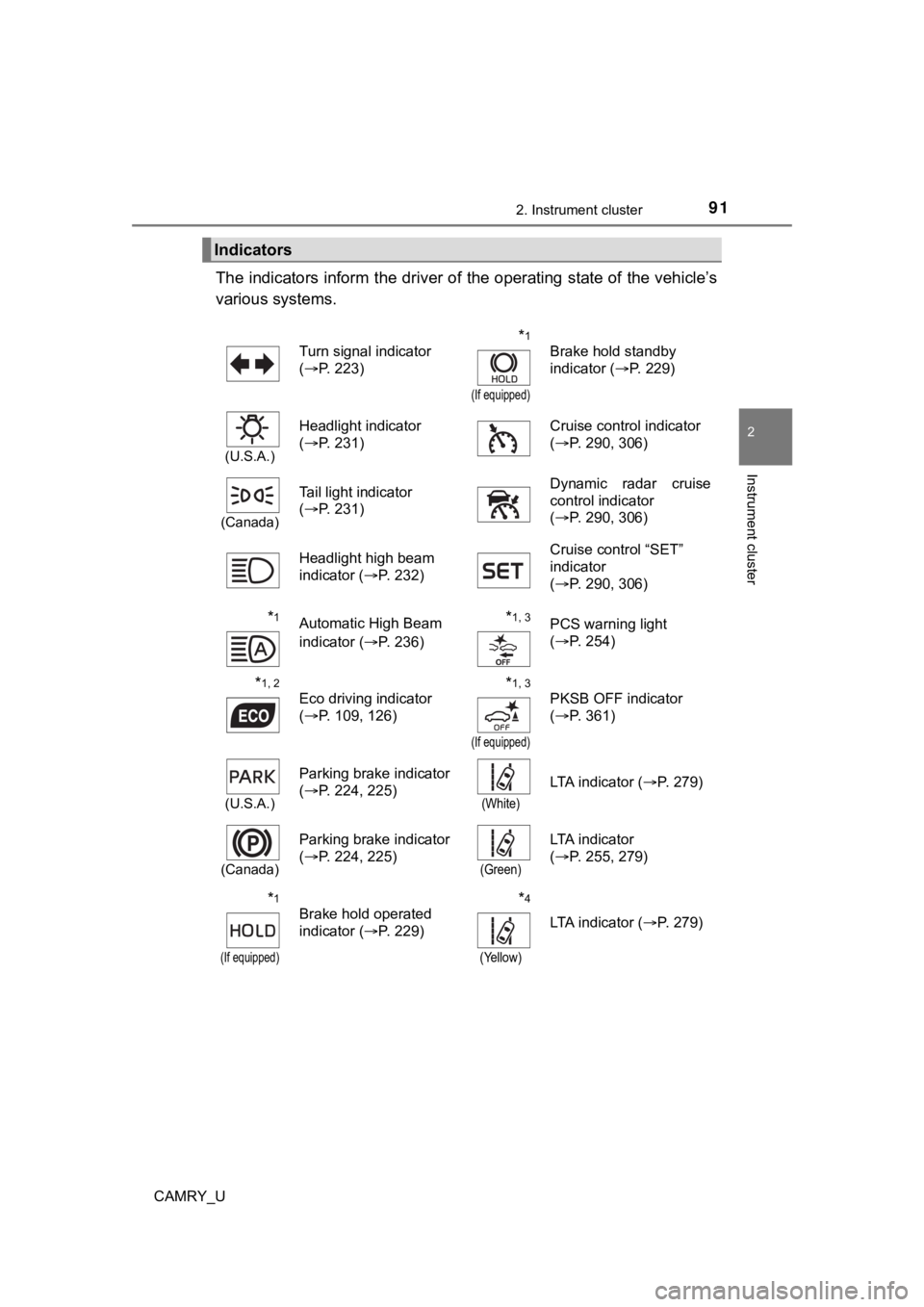

Indicators
Turn signal indicator
( P. 223)*1
(If equipped)
Brake hold standby
indicator ( P. 229)
(U.S.A.)
Headlight indicator
(P. 231) Cruise control indicator
(
P. 290, 306)
(Canada)
Tail light indicator
(P. 231) Dynamic radar cruise
control indicator
(
P. 290, 306)
Headlight high beam
indicator ( P. 232) Cruise control “SET”
indicator
(
P. 290, 306)
*1Automatic High Beam
indicator ( P. 236)*1, 3PCS warning light
(P. 254)
*1, 2
Eco driving indicator
(P. 109, 126)*1, 3
(If equipped)
PKSB OFF indicator
(P. 361)
(U.S.A.)
Parking brake indicator
(P. 224, 225)
(White)
LTA indicator ( P. 279)
(Canada)
Parking brake indicator
(P. 224, 225)
(Green)
LTA indicator
(P. 255, 279)
*1
(If equipped)
Brake hold operated
indicator ( P. 229)*4
(Yellow)
LTA indicator ( P. 279)

922. Instrument cluster
CAMRY_U
*1, 4
Slip indicator (P. 323)
*7Security indicator
(P. 80, 82)
*1, 3VSC OFF indicator
(P. 325)
(If equipped)

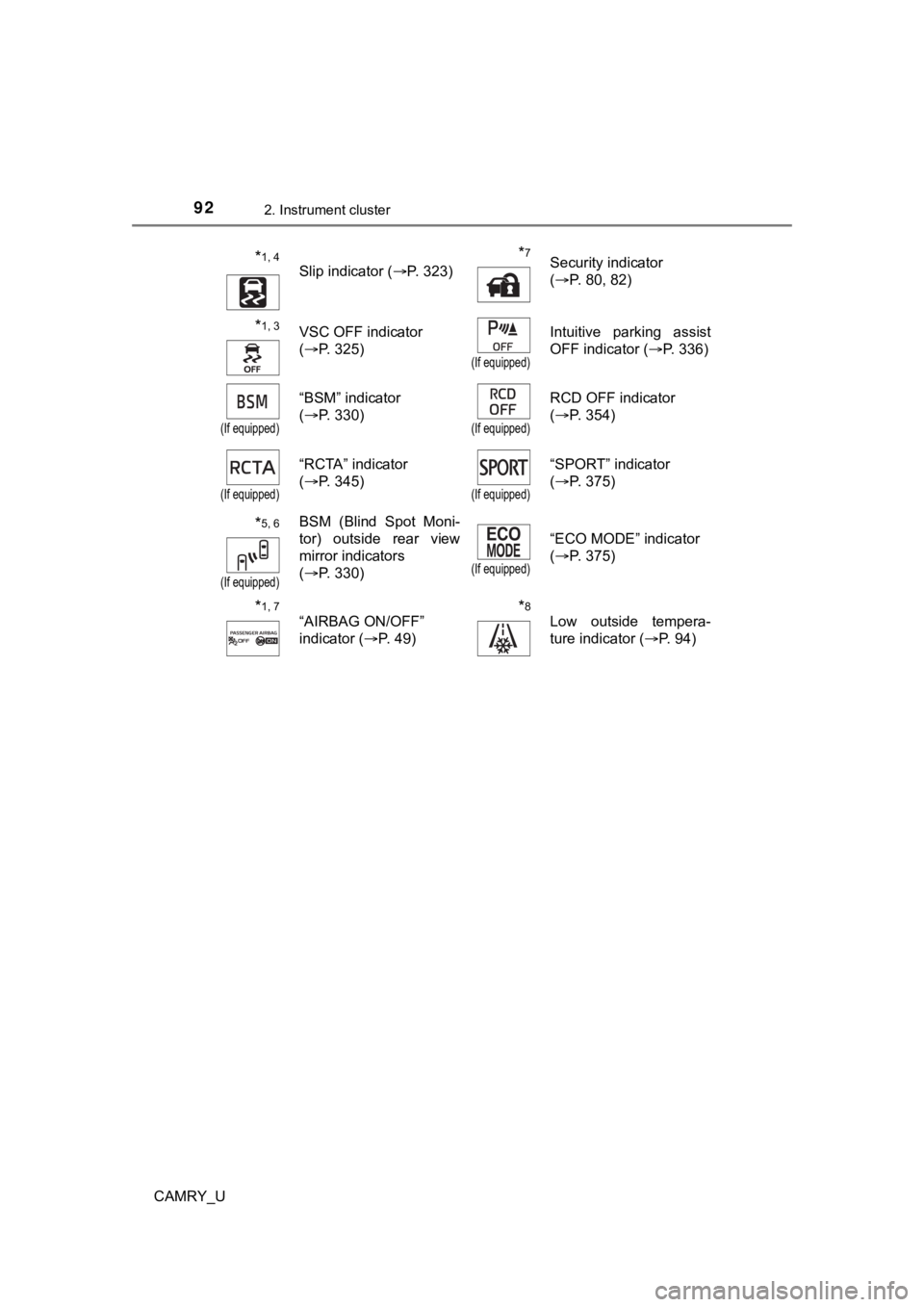

Intuitive parking assist
OFF indicator ( P. 336)
(If equipped)
“BSM” indicator
(P. 330)
(If equipped)
RCD OFF indicator
(P. 354)
(If equipped)
“RCTA” indicator
(P. 345)
(If equipped)
“SPORT” indicator
(P. 375)
*5, 6
(If equipped)
BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(P. 330)
(If equipped)
“ECO MODE” indicator
(P. 375)
*1, 7
“AIRBAG ON/OFF”
indicator ( P. 4 9 )*8
Low outside tempera-
ture indicator ( P. 94)

932. Instrument cluster
2
Instrument cluster
CAMRY_U
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehi cles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.
*2: This light does not turn on when the system is disabled.
*3: This light turns on when the system is off.
*4: This light flashes to indicate that the system is operating.
*5: These indicators will illuminate in the following situations to indicate that the system initial check is being performed:
• When the BSM function or RCTA function is enabled and the engi ne
switch is turned to the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
• When the engine switch is in the “ON” position (vehicles witho ut a smart
key system) or IGNITION ON mode (vehicles with a smart key syst em)
and the BSM function is enabled.
• When the engine switch is in the “ON” position (vehicles witho ut a smart
key system) or IGNITION ON mode (vehicles with a smart key syst em)
and the RCTA function is enabled. (At this time, a buzzer will also
sound.)
The indicators will turn off after a few seconds. If the indica tors do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion is enabled, the system may be malfunctioning. Have the vehicle
inspected by your Toyota dealer.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
*8: When the outside temperature is approximately 37°F (3°C) or lo wer, this
indicator will flash for approximately 10 seconds, then stay on .
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

942. Instrument cluster
CAMRY_U
4.2-inch display
7-inch display
Gauges and meters

952. Instrument cluster
2
Instrument cluster
CAMRY_U
Tachometer
Displays the engine speed in revolutions per minute
Shift position (P. 2 1 7 )
Outside temperature
Displays the outside temperature within the range of -40°F (-40 °C) to
122°F (50°C). Low outside temperat ure indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P. 98, 111)
Displays warning messages in case of a malfunction ( P. 538)
Speedometer
Fuel gauge
Displays the fuel level. In the following situations, the actua l fuel level may
not be displayed correctly: • After refueling only a small amount (approximately 5 L or less )
• When stopped on a hill or other slope
• When driving on a slope or around a curve
Odometer and trip meter ( P. 108, 125)
Engine coolant temperature gauge
Displays the engine coolant temperature
The brightness of the instrumen t panel lights can be adjusted.
Darker
Brighter
• The brightness of the instrument panel lights can be adjusted
individually for day mode and
night mode
*.
• If the brightness is adjusted when the surroundings are
bright and the tail lights are on
(day mode brightness adjust-
ment), the brightness level of
night mode will be adjusted at
the same time.
*: Day mode and night mode: P. 96
Instrument panel light control
1
2
3
4
5
6
7
8
1
2

962. Instrument cluster
CAMRY_U
■The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■ Brightness of the meters ( day mode and night mode)
● The brightness of the meters is changed between day mode and ni ght
mode.
• Day mode: When the tail lights are off or when the tail lights are on but
the surrounding area is bright
• Night mode: When the tail lights are on and the surrounding ar ea is dark
● When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.
■ Outside temperature display
In the following situations, the correct outside temperature ma y not be dis-
played, or the display may take longer than normal to change:
● When stopped, or driving at low speeds (less than 16 mph [25 km/h])
● When the outside temperature has changed suddenly (at the entra nce/exit
of a garage, tunnel, etc.)
● When “ ” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.
■ Fuel gauge and driving range display
The fuel gauge and driving range display are linked. If the fue l gauge and
driving range display do not update after refueling a small amount, they can
be updated by performing the following procedure:
Stop the vehicle on a level surface.
Wait until the fuel in the fuel tank stabilizes.
Press the ODO/TRIP switch to change the odometer and trip meter display
to the odometer.
Turn the engine switch off.
Vehicles without a smart key system:
While pressing and holding the ODO/TRIP switch, turn the engine switch to
the “ON” position.
Vehicles with a smart key system:
While pressing and holding the ODO/TRIP switch, turn the engine switch to
IGNITION ON mode.
Continue holding the ODO/TRIP switch for approximately 5 second s.
Release the switch when the odometer begins blinking.
Updating will be complete when the odometer blinks for approximately 5
seconds and then returns to the normal display.
1
2
3
4
5

972. Instrument cluster
2
Instrument cluster
CAMRY_U
NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 567)

982. Instrument cluster
CAMRY_U
The multi-information display presents the driver with a variety of driv-
ing-related data, such as the cur rent outside temperature. The multi-
information display can also be used to change the display sett ings
and other settings.
Shift position ( P. 2 1 7 )
Menu icon display area
Displays the following items.
When a menu icon is not selected, the outside temperature and c lock are
displayed. • Menu icons ( P. 100)
• Outside temperature ( P. 94)
•Clock
*
*
: For clock settings, refer to “NAVIGATION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Content display area
A variety of information can be displayed by selecting a menu i con. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.
• Menu icon content ( P. 1 0 0 )
• Suggestion function ( P. 108)
• Warning message ( P. 538)
Odometer/trip meter ( P. 108)
Indicators ( P. 88)
Multi-infor mation display (4.2-inch display)
Summary of functions
1
2
3
4
5

992. Instrument cluster
2
Instrument cluster
CAMRY_U
RSA (Road Sign Assist) (if equipped) (P. 285)
“ODO/TRIP” switch ( P. 9 9 )
Meter control switches ( P. 99)

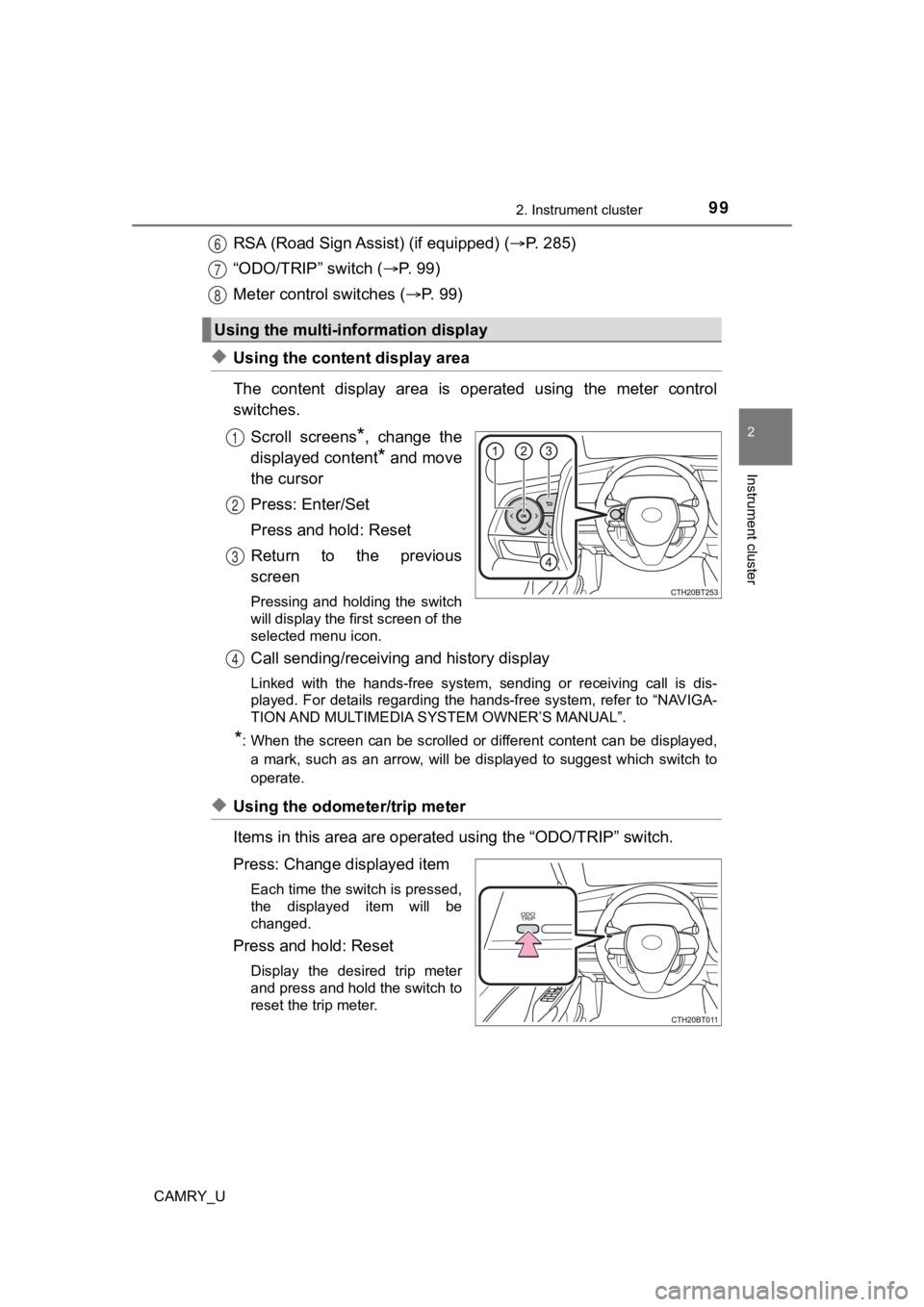

◆Using the content display area
The content display area is operated using the meter control
switches.
Scroll screens
*, change the
displayed content
* and move
the cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous
screen
Pressing and holding the switch
will display the first screen of the
selected menu icon.
Call sending/receiving and history display
Linked with the hands-free system, sending or receiving call is dis-
played. For details regarding the hands-free system, refer to “ NAVIGA-
TION AND MULTIMEDIA SYS TEM OWNER’S MANUAL”.
*: When the screen can be scrolled or different content can be di splayed,
a mark, such as an arrow, will be displayed to suggest which sw itch to
operate.
◆Using the odometer/trip meter
Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item
Each time the switch is pressed,
the displayed item will be
changed.
Press and hold: Reset
Display the desired trip meter
and press and hold the switch to
reset the trip meter.
Using the multi-information display
6
7
8
1
2
3
4

1002. Instrument cluster
CAMRY_U

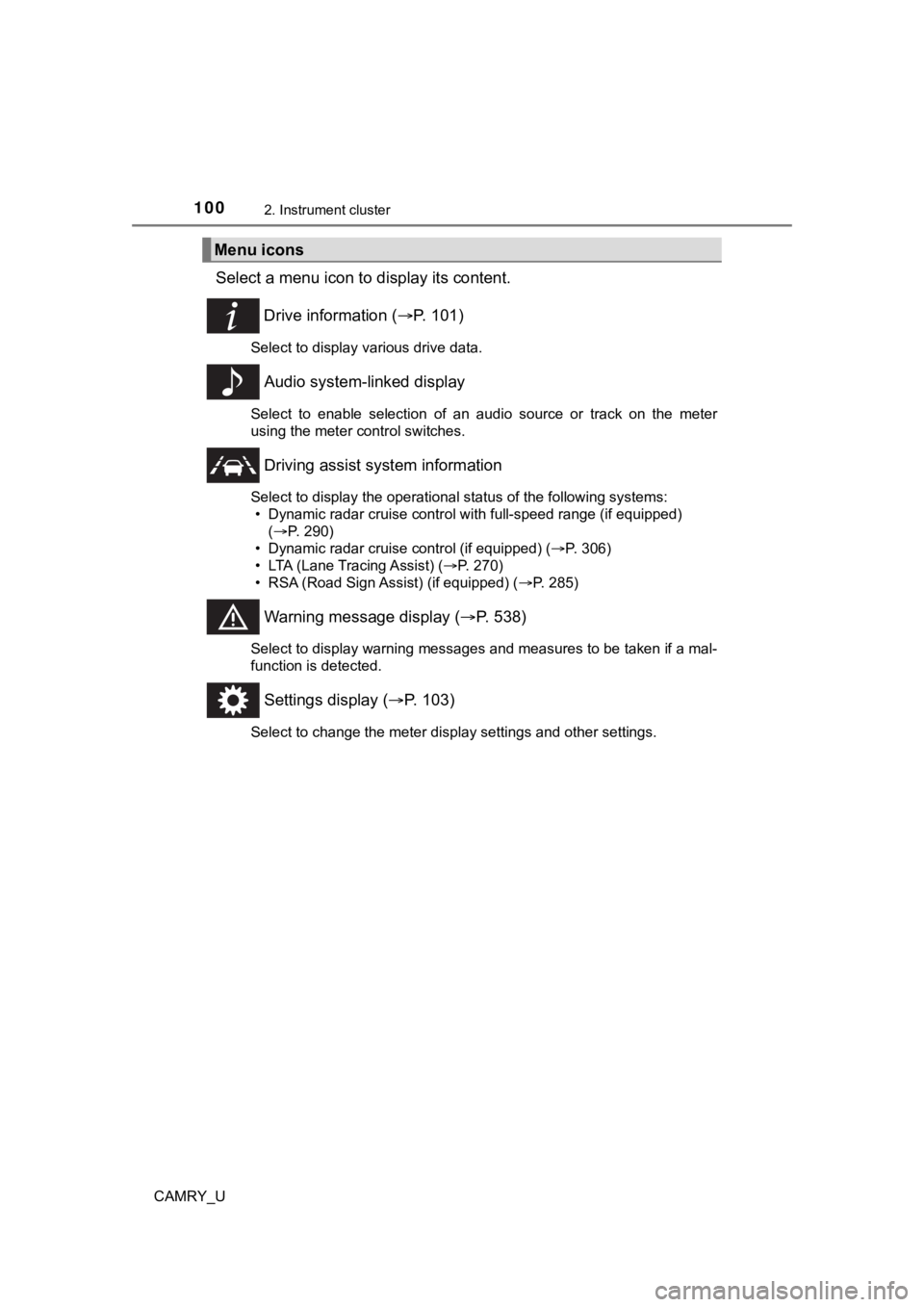

Select a menu icon to display its content.
Drive information ( P. 1 0 1 )
Select to display various drive data.
Audio system-linked display
Select to enable selection of an audio source or track on the m eter
using the meter control switches.
Driving assist sys tem information
Select to display the operational status of the following syste ms:
• Dynamic radar cruise control with full-speed range (if equippe d)
( P. 290)
• Dynamic radar cruise control (if equipped) ( P. 306)
• LTA (Lane Tracing Assist) ( P. 270)
• RSA (Road Sign Assist) (if equipped) ( P. 285)
Warning message display (P. 538)
Select to display warning messages and measures to be taken if a mal-
function is detected.
Settings display ( P. 103)
Select to change the meter display settings and other settings.
Menu icons
