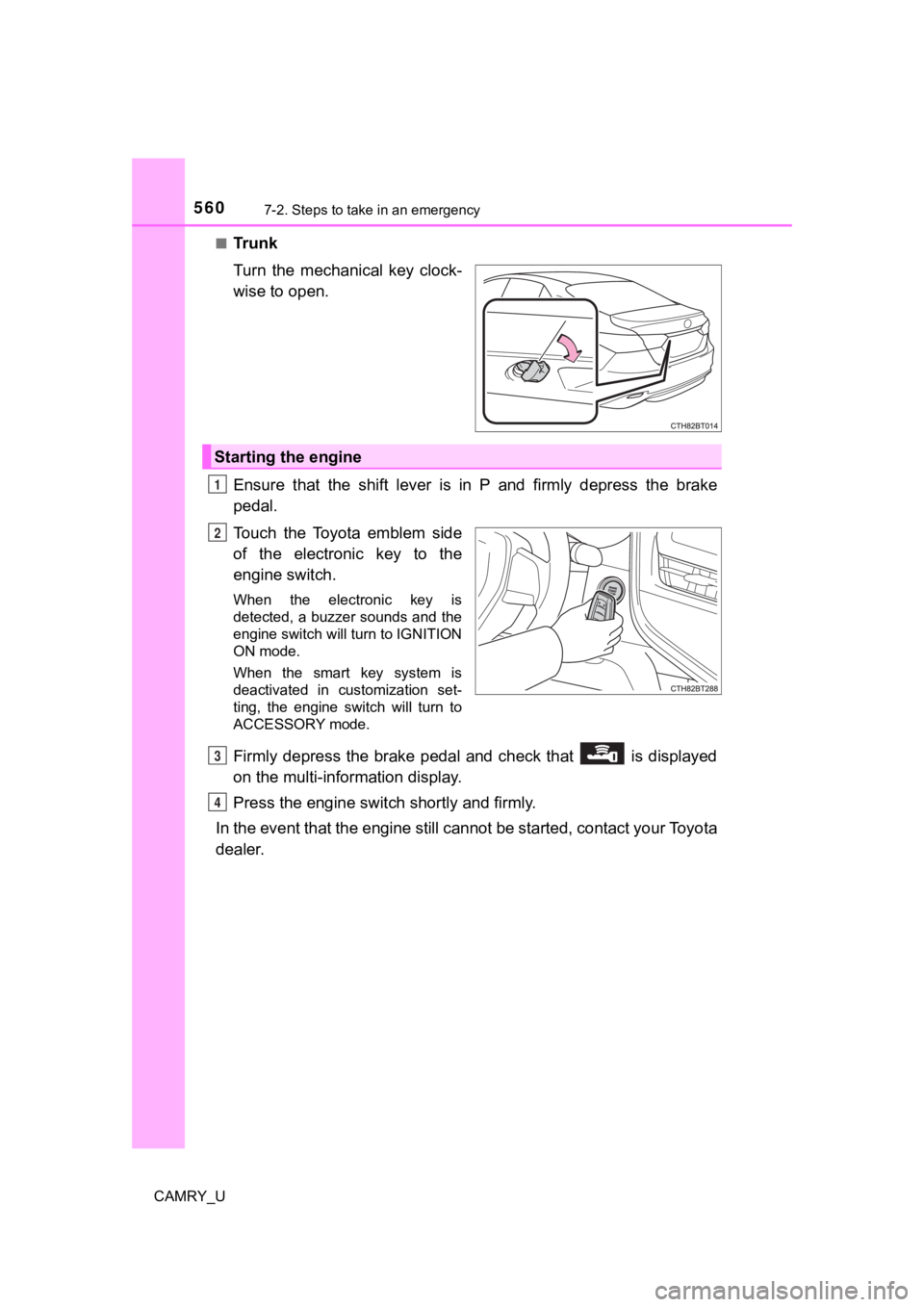

5607-2. Steps to take in an emergency
CAMRY_U■
Tr u n k
Turn the mechanical key clock-
wise to open.
Ensure that the shift lever is in P and firmly depress the brak
e
pedal.
Touch the Toyota emblem side
of the electronic key to the
engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart key system is
deactivated in customization set-
ting, the engine switch will turn to
ACCESSORY mode.
Firmly depress the brake pedal and check that is displayed
on the multi-information display.
Press the engine switch shortly and firmly.
In the event that the engine still cannot be started, contact your Toyota
dealer.
Starting the engine
1
2
3
4

5617-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 494)
■ Alarm (for Canada only)
Using the mechanical key to lock the doors will not set the ala rm system.
If a door is unlocked using the mechanical key when the alarm s ystem is set,
the alarm may be triggered.
■ Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time t he switch is
pressed. (P. 213)
■ When the electronic key does not work properly
●Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features: P. 606)
● Check if battery-saving mode is set. If it is set, cancel the f unction.
( P. 163)
WARNING
■ When using the mechanical key and operating the power windows or
the moon roof or panoramic moon roof
Operate the power window or the moon roof or panoramic moon roo f after
checking to make sure that there is no possibility of any passe nger having
any of their body parts caught in the window or the moon roof o r panoramic
moon roof. Also, do not allow children to operate the mechanical key. It is
possible for children and other passengers to get caught in the power win-
dow or the moon roof or panoramic moon roof.
3

5697-2. Steps to take in an emergency
CAMRY_U
7
When trouble arises
Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly. (The fan may not operate in freezing tem-
peratures.)
If the fan is not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fan is operating:
Have the vehicle inspected at the neare st Toyota dealer.
WARNING
■To prevent an accident or injury when inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the ho od until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the radiator cap and the coolant reservoir cap while the
engine and radiator are hot.
High temperature steam or coolant could spray out.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine cool ant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additives.
6
7

5788-1. Specifications
CAMRY_U■
Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used whe
n changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
2.5 L 4-cylinder (A25A-FKS) engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat -
isfy the following grade and viscosity.
Oil grade: ILSAC GF-6B multigrade engine oil
Recommended viscosity: SAE 0W-16
SAE 0W-16 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-16 is not available, SAE
0W-20 oil may be used. However,
it must be replaced with SAE 0W-
16 at the next oil change.
Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for ea sier starting of
the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

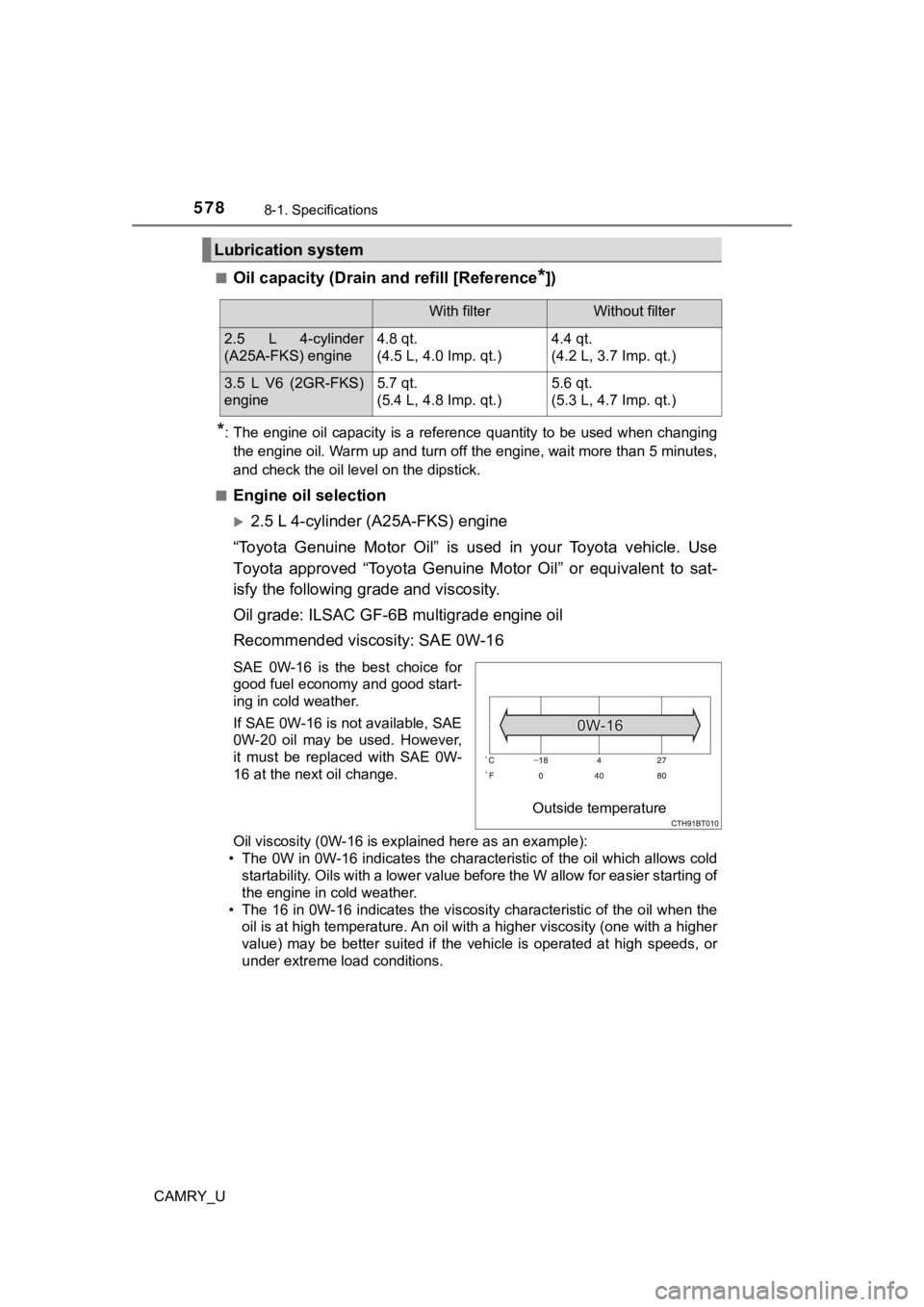

Lubrication system
With filterWithout filter
2.5 L 4-cylinder
(A25A-FKS) engine4.8 qt.
(4.5 L, 4.0 Imp. qt.)4.4 qt.
(4.2 L, 3.7 Imp. qt.)
3.5 L V6 (2GR-FKS)
engine5.7 qt.
(5.4 L, 4.8 Imp. qt.)5.6 qt.
(5.3 L, 4.7 Imp. qt.)
Outside temperature

5818-1. Specifications
8
Vehicle specifications
CAMRY_U
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Toyota dealer.

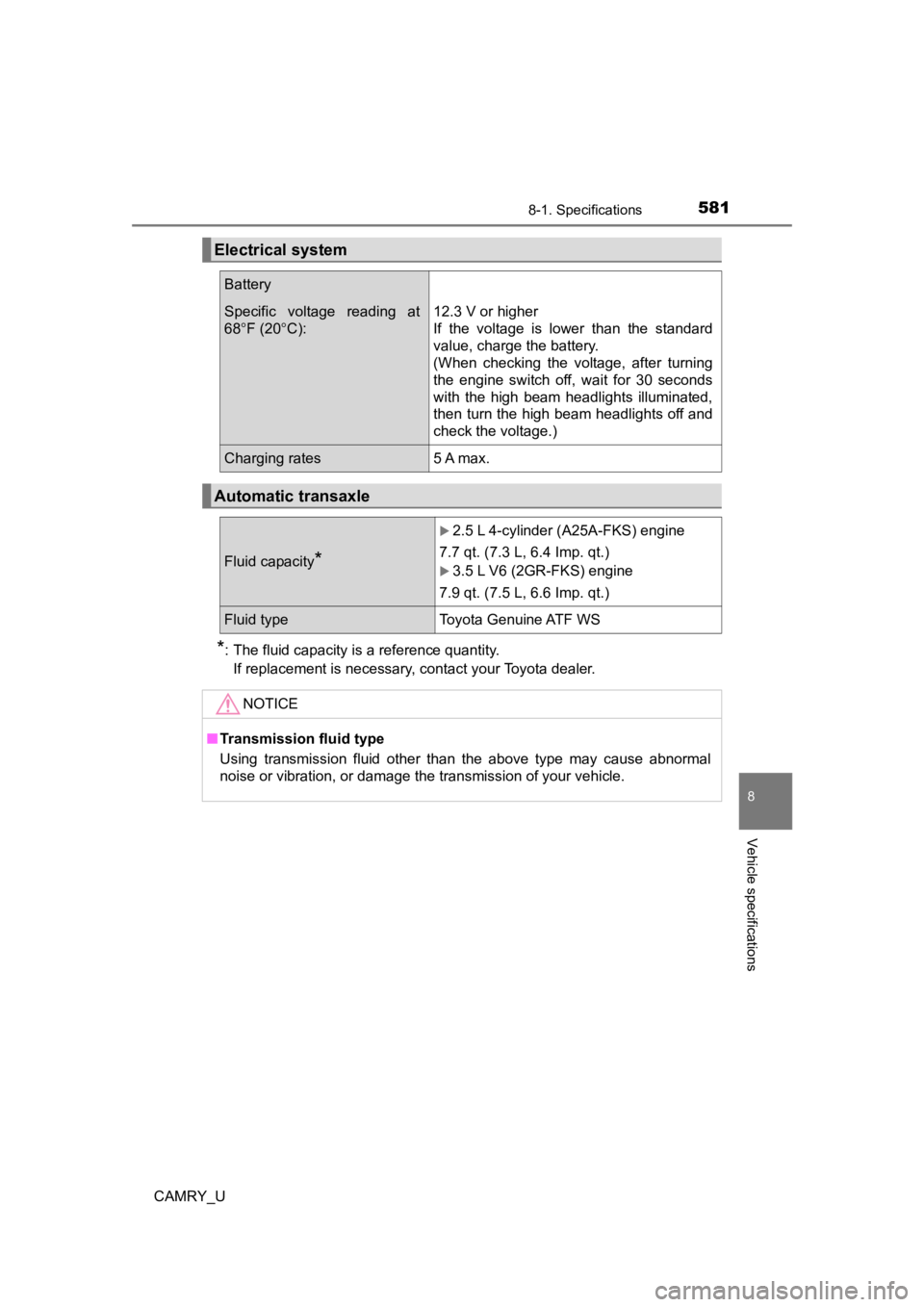

Electrical system
Battery
Specific voltage reading at
68 F (20 C):12.3 V or higher
If the voltage is lower than the standard
value, charge the battery.
(When checking the voltage, after turning
the engine switch off, wait for 30 seconds
with the high beam headlights illuminated,
then turn the high beam headlights off and
check the voltage.)
Charging rates5 A max.
Automatic transaxle
Fluid capacity*
2.5 L 4-cylinder ( A25A-FKS) engine
7.7 qt. (7.3 L, 6.4 Imp. qt.)
3.5 L V6 (2GR-FKS) engine
7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than the above type may cause abnormal
noise or vibration, or damage the transmission of your vehicle.

630
CAMRY_U
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by your Toyota dealer. (P. 144)
●If you lose your keys or electronic keys, the risk of vehicle t heft increases
significantly. Contact your Toyota dealer immediately. ( P. 146)
●Is the key battery weak or depleted? (P. 494)
●Vehicles with a smart key system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 213)
Vehicles with a smart key system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of t he radio
wave. ( P. 144, 163)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( P. 152)
●The function to prevent the electronic key from being left insi de the trunk
will operate and you can open the trunk as usual. Take the key out from the
trunk. ( P. 158)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
The trunk lid is closed with the electronic key left inside
(vehicles with a smart key system)

633What to do if... (Troubleshooting)
CAMRY_U
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 82)
●Vehicles without a smart key system:
To stop the alarm, turn the engine switch to the “ON” position or start the
engine.
Vehicles with a smart key system:
To stop the alarm, turn the engine switch to IGNITION ON mode o r start
the engine.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. ( P. 538)
●When a warning light turns on or a warning message is displayed , refer to
P. 528, 538.
●Stop the vehicle in a safe place and replace the flat tire with the spare
tire. ( P. 543)
●Try the procedure for when the vehicle becomes stuck in mud, di rt, or
snow. ( P. 570)
An alarm is activated and the horn sounds
A warning buzzer sounds w hen leaving the vehicle
(vehicles with a smart key system)
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

637Alphabetical index
CAMRY_U
Clock ................................... 98, 111
Coat hooks ............................... 431
Condenser ................................ 467
Connected Services
*
Console box ............................. 410
Consumption screen............................. 134, 136
Coolant
Capacity ................................ 580
Checking ............................... 466
Preparing and checking before winter....................... 377
Cooling system ........................ 466 Engine overheating ............... 567
Cruise control Dynamic radar cruise control................................. 306
Dynamic radar cruise control with full-speed range .......... 290
Cup holders.............................. 412
Curtain shield airbags ............... 37
Customizable features ............ 606
Daytime running light
system .................................... 233
Defogger
Outside rear view mirrors ................ 383, 389, 397
Rear window ......... 383, 389, 397
Windshield ............ 383, 389, 397
Dimensions .............................. 574
Dinghy towing .......................... 208 Display
Dynamic radar cruise
control ................................ 306
Dynamic radar cruise control with full-speed range .......... 290
LTA (Lane Tracing Assist) .... 270
Multi-information display .......................... 98, 111
Warning messages ............... 538
Do-it-yourself maintenance .... 455
Door courtesy lights Location ................................ 405
Wattage ................................ 589
Door lock
Doors .................................... 147
Key ....................................... 149
Smart key system ................. 147
Wireless remote control ........ 148
Doors ........................................ 147 Automatic door locking
and unlocking systems ....... 152
Door lock .............................. 151
Outside rear view mirrors ..... 177
Rear door child-protector ...... 152
Side doors ............................ 147
Side windows........................ 179
Drive information..................... 101
Drive-Start Control (DSC) ....... 195
Sudden start restraint control ................................ 195
Driving Break-in tips.......................... 196
Correct posture ....................... 28
Procedures ........................... 194
Winter drive tips .................... 377
DSC (Drive-Start Control) ....... 195
Sudden start restraint control ................................ 195
Dynamic radar cruise
control .................................... 306
D
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

638Alphabetical index
CAMRY_U
Dynamic radar cruise control with full-speed range ............ 290
Dynamic Torque Control AWD system .......................... 323
Eco drive mode ........................ 375
Eco Driving Indicator ...... 109, 126
Eco-friendly driving information ............................ 115
EDR (Event data recorder) ........ 11
Electric Power Steering
(EPS)....................................... 323 Warning light ......................... 529
Electronic key .......................... 140 Battery-saving function ......... 163
If the electronic key does not operate properly ................. 559
Replacing the battery ............ 494
Emergency flashers ................ 516
Emergency, in case of
If a warning buzzer sounds ................................ 528
If a warning light turns on...... 528
If a warning message is displayed ............................ 538
If the battery is discharged.... 562
If the electronic key does not
operate properly ................. 559
If the engine will not start ...... 557
If the vehicle is submerged
or water on the road is
rising ................................... 519
If you have a flat tire ............. 543
If you lose your keys ............. 144
If you think something is wrong.................................. 526
If your vehicle becomes stuck ................................... 570 If your vehicle has to be
stopped in an emergency ... 517
If your vehicle needs to be towed.................................. 520
If your vehicle overheats....... 567
Engine ACCESSORY mode ............. 213
Compartment ........................ 460
Engine switch ............... 209, 211
Hood ..................................... 457
How to start the engine ........................ 209, 211
Identification number ............ 577
If your vehicle has to be stopped in an
emergency ......................... 517
Ignition switch
(engine switch) ........... 209, 211
Overheating .......................... 567
Engine coolant
Capacity................................ 580
Checking............................... 466
Preparing and checking before winter ...................... 377
Engine coolant temperature gauge ....................................... 94
Engine immobilizer system ...... 80
Engine oil
Capacity................................ 578
Checking............................... 462
Preparing and checking before winter ...................... 377
Engine switch .................. 209, 211
Enhanced VSC ......................... 322
EPS (Electric Power Steering) ..... 323
Warning light......................... 529
Event data recorder (EDR)........ 11
E

647Alphabetical index
CAMRY_U
Seat heater switches ............ 402
“SOS” button ........................... 75
Talk switch
*
Trunk opener switch ............. 156
Vehicle-to-vehicle distance switch ........... 290, 306
VSC OFF switch ................... 324
Window lock switch............... 179
Windshield wiper and washer switch ..................... 240
Tachometer ................................ 94
Tail lights Light switch ........................... 231
Replacing light bulbs............. 512
Talk switch
*
Theft deterrent system
Alarm ...................................... 82
Engine immobilizer system ..... 80
Tire inflation pressure ............. 487 Maintenance data ................. 584
Warning light ......................... 531
Tire information ....................... 593 Glossary................................ 600
Size ....................................... 596
Tire identification number ..... 595
Uniform Tire Quality Grading............................... 598 Tire pressure warning system
Initializing .............................. 475
Installing tire pressure
warning valve and
transmitters ........................ 475
Registering ID codes ............ 477
Warning light......................... 531
Tires .......................................... 473
Chains .................................. 378
Checking............................... 473
Glossary ............................... 600
If you have a flat tire ............. 543
Inflation pressure .................. 584
Replacing.............................. 543
Rotating tires ........................ 473
Size....................................... 584
Snow tires ............................. 379
Spare tire .............................. 543
Tire pressure warning system .......... ...................... 474
Uniform Tire Quality Grading .............................. 598
Warning light......................... 531
Tools ......................................... 544
Top tether strap ......................... 72
Total load capacity .................. 206
Towing Dinghy towing ....................... 208
Emergency towing ................ 520
Trailer towing ........................ 207
T
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
