display TOYOTA CAMRY 2022 Owners Manual

TABLE OF CONTENTS2
CAMRY_UFor your information....................... 8
Reading this manual .................... 14
How to search .............................. 15
Pictorial index .............................. 16
1-1. For safe use
Before driving ...................... 26
For safe driving ................... 28
Seat belts ............................ 30
SRS airbags ........................ 36
Front passenger occupant classification system ......... 49
Exhaust gas precautions ..... 54
1-2. Child safety Riding with children ............. 55
Child restraint systems ........ 56
1-3. Emergency assistance Safety Connect.................... 75
1-4. Theft deterrent system Engine immobilizer system............................... 80
Alarm ................................... 82 2. Instrument cluster
Warning lights and indicators ........................... 88
Gauges and meters ............. 94
Multi-information display (4.2-inch display) ............... 98
Multi-information display (7-inch display) ................ 111
Head-up display................. 128
Fuel consumption information....................... 134
1For safety and security
2Instrument cluster

TABLE OF CONTENTS6
CAMRY_U7-1. Essential information
Emergency flashers .......... 516
If your vehicle has to be stopped in
an emergency ................. 517
If the vehicle is submerged or water on the road is
rising ............................... 519
7-2. Steps to take in an emergency
If your vehicle needs to be towed ..................... 520
If you think something is wrong........................... 526
Fuel pump shut off system............................. 527
If a warning light turns on or a warning
buzzer sounds................. 528
If a warning message is displayed ..................... 538
If you have a flat tire .......... 543
If the engine will not start ................................. 557
If the electronic key does not operate properly
(vehicles with a
smart key system) ........... 559
If the vehicle battery is discharged ................... 562
If your vehicle overheats ........................ 567
If the vehicle becomes stuck................................ 570 8-1. Specifications
Maintenance data (fuel, oil level, etc.) .......... 574
Fuel information ................. 590
Tire information.................. 593
8-2. Customization Customizable features ....... 606
8-3. Items to initialize Items to initialize ................ 614
Reporting safety defects for U.S. owners ........................ 616
Reporting safety defects for Canadian owners ................ 617
Seat belt instructions for Canadian owners
(in French)................................ 618
SRS airbag instructions for Canadian owners
(in French)................................ 619
7When trouble arises8Vehicle specifications
9For owners

18Pictorial index
CAMRY_U
■Instrument panel
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209, 211
Starting the engine/changing the positions or modes . . . P. 209, 211
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 517
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 557
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Precautions for towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 520
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 221
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
Reading the meters/adjusting the instrument panel lights . . . . . P. 94
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 88
When a warning light comes on . . . . . . . . . . . . . . . . . . . . . . . . P. 528
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . P. 98, 111
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98, 111
When the warning messages are displayed . . . . . . . . . . . . . . P. 5381
2
3

691-2. Child safety
1
For safety and security
CAMRY_U■
Child restraint LATCH anchors
LATCH anchors are provided
for the outboard rear seats.
(Marks displaying the location
of the anchors are attached to
the seats.)
■When installing in the rear outboard seats
Install the child restraint system in accordance to the operati
on
manual enclosed with the child restraint system.
If the head restraint interferes
with the child restraint sys-
tem installation and the head
restraint can be removed,
remove the head restraint.
(  P. 171)
Remove the cover.
Child restraint system fixed with a child restraint LATCH ancho r
1
2

87
Instrument cluster2
CAMRY_U2. Instrument cluster
Warning lights and indicators .......................... 88
Gauges and meters ............ 94
Multi-information display (4.2-inch display) .............. 98
Multi-information display (7-inch display) ............... 111
Head-up display ................ 128
Fuel consumption information ...................... 134

88
CAMRY_U
2. Instrument cluster
4.2-inch display
7-inch display
The units used on the meters and some indicators may differ depending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, ce n-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, t he following illustrations dis-
play all warning lights a nd indicators illuminated.

902. Instrument cluster
CAMRY_U
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display with a message.
*3: This light flashes to indicate a malfunction.
*4: This light illuminates on the center panel.

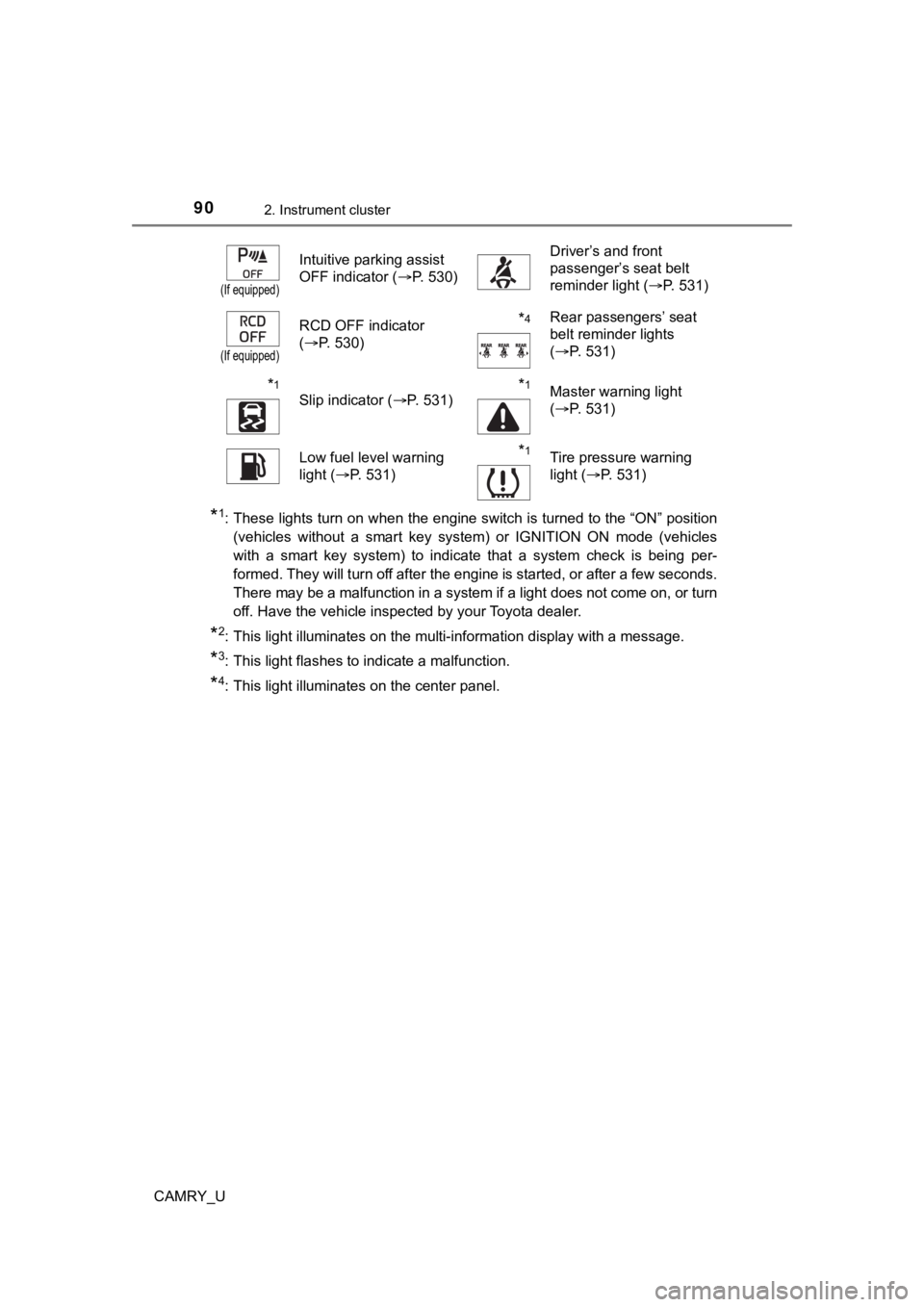

(If equipped)
Intuitive parking assist
OFF indicator (P. 530)Driver’s and front
passenger’s seat belt
reminder light (P. 531)
(If equipped)
RCD OFF indicator
(P. 530)*4Rear passengers’ seat
belt reminder lights
(P. 531)
*1
Slip indicator ( P. 531)*1Master warning light
(P. 531)
Low fuel level warning
light ( P. 531)*1Tire pressure warning
light (P. 531)

942. Instrument cluster
CAMRY_U
4.2-inch display
7-inch display
Gauges and meters

952. Instrument cluster
2
Instrument cluster
CAMRY_U
Tachometer
Displays the engine speed in revolutions per minute
Shift position (P. 2 1 7 )
Outside temperature
Displays the outside temperature within the range of -40°F (-40 °C) to
122°F (50°C). Low outside temperat ure indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P. 98, 111)
Displays warning messages in case of a malfunction ( P. 538)
Speedometer
Fuel gauge
Displays the fuel level. In the following situations, the actua l fuel level may
not be displayed correctly: • After refueling only a small amount (approximately 5 L or less )
• When stopped on a hill or other slope
• When driving on a slope or around a curve
Odometer and trip meter ( P. 108, 125)
Engine coolant temperature gauge
Displays the engine coolant temperature
The brightness of the instrumen t panel lights can be adjusted.
Darker
Brighter
• The brightness of the instrument panel lights can be adjusted
individually for day mode and
night mode
*.
• If the brightness is adjusted when the surroundings are
bright and the tail lights are on
(day mode brightness adjust-
ment), the brightness level of
night mode will be adjusted at
the same time.
*: Day mode and night mode: P. 96
Instrument panel light control
1
2
3
4
5
6
7
8
1
2

962. Instrument cluster
CAMRY_U
■The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■ Brightness of the meters ( day mode and night mode)
● The brightness of the meters is changed between day mode and ni ght
mode.
• Day mode: When the tail lights are off or when the tail lights are on but
the surrounding area is bright
• Night mode: When the tail lights are on and the surrounding ar ea is dark
● When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.
■ Outside temperature display
In the following situations, the correct outside temperature ma y not be dis-
played, or the display may take longer than normal to change:
● When stopped, or driving at low speeds (less than 16 mph [25 km/h])
● When the outside temperature has changed suddenly (at the entra nce/exit
of a garage, tunnel, etc.)
● When “ ” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.
■ Fuel gauge and driving range display
The fuel gauge and driving range display are linked. If the fue l gauge and
driving range display do not update after refueling a small amount, they can
be updated by performing the following procedure:
Stop the vehicle on a level surface.
Wait until the fuel in the fuel tank stabilizes.
Press the ODO/TRIP switch to change the odometer and trip meter display
to the odometer.
Turn the engine switch off.
Vehicles without a smart key system:
While pressing and holding the ODO/TRIP switch, turn the engine switch to
the “ON” position.
Vehicles with a smart key system:
While pressing and holding the ODO/TRIP switch, turn the engine switch to
IGNITION ON mode.
Continue holding the ODO/TRIP switch for approximately 5 second s.
Release the switch when the odometer begins blinking.
Updating will be complete when the odometer blinks for approximately 5
seconds and then returns to the normal display.
1
2
3
4
5
