—Headlights
Low beamHi beam
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.2. Unplug the connector while depress-
ing the lock release.
If the connector is tight, wiggle it.3. Install a new bulb and connector
into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your authorized Toyota
CNG dealer.

’01CAMRY CNG (L/O0009)
1962001 CAMRY CNG_U (OM33542U)
Use a flat−bladed screwdriver. Remove
and install the cover clips as shown in
the following illustrations.Removing the cover clips
Installing the cover clips
Use a flat−bladed screw driver. To protect
the surface, place several sheets of paper
over the surface.
—Parking, front side marker
and front turn signal lights

’01CAMRY CNG (L/O0009)
1972001 CAMRY CNG_U (OM33542U)
Use a Phillips−head screwdriver. Remove
and install the cover clips as shown in
the following illustrations.Removing the cover clips
Installing the cover clips
—Rear side maker, rear turn
signal and stop/tail lights

’01CAMRY CNG (L/O0009)
1982001 CAMRY CNG_U (OM33542U)
a: Rear side marker light
b: Rear turn signal light
c: Stop/tail light
—Stop/tail lights

’01CAMRY CNG (L/O0009)
1992001 CAMRY CNG_U (OM33542U)

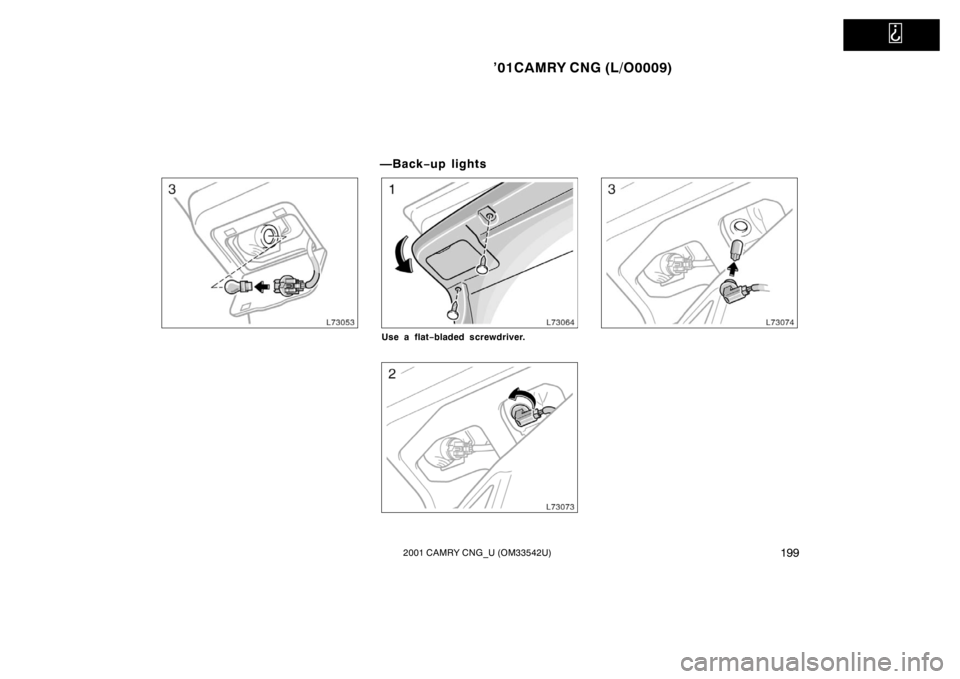

—Back−up lights
Use a flat−bladed screwdriver.

’01CAMRY CNG (L/O0009)
2002001 CAMRY CNG_U (OM33542U)

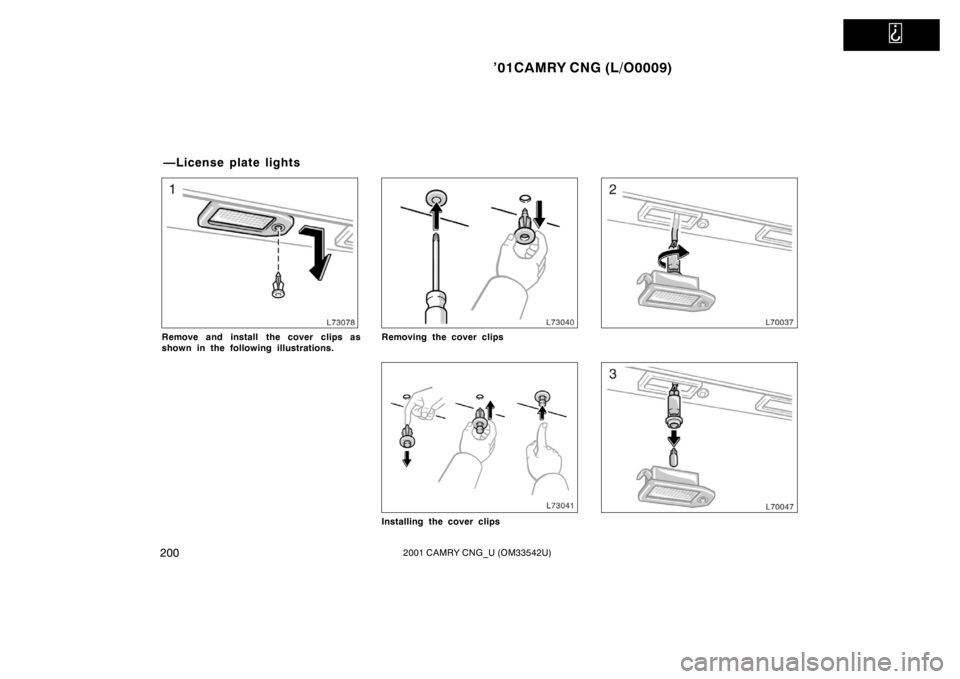

Remove and install the cover clips as
shown in the following illustrations.Removing the cover clips
Installing the cover clips
—License plate lights

’01CAMRY CNG (L/O0009)
2012001 CAMRY CNG_U (OM33542U)

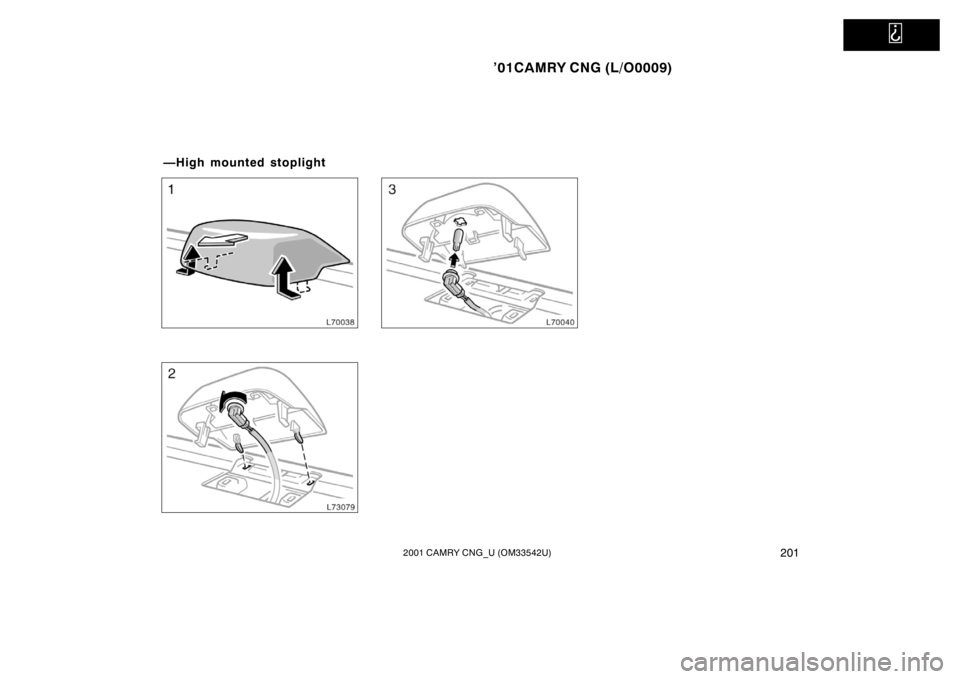

—High mounted stoplight

’01CAMRY CNG (L/O0009)
2022001 CAMRY CNG_U (OM33542U)

’01CAMRY CNG (L/O0009)
2032001 CAMRY CNG_U (OM33542U)
SPECIFICATIONS
Dimensions and weight204 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine204 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel204 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications205 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires207 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses207 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8

’01CAMRY CNG (L/O0009)
2042001 CAMRY CNG_U (OM33542U)
Dimensions and weight
Overall length mm (in.) 4790 (188.6)
Overall width mm (in.) 1780 (70.1)
Overall height mm (in.) 1419 (55.9)
∗
Wheelbase mm (in.) 2670 (105.1)
Front tread mm (in.) 1548 (60.9)
Rear tread mm (in.) 1519 (59.8)
Vehicle capacity weight
(occupants + luggage)
kg (lb) 410 (900)
∗: Unladen vehicle
Engine
Model:
5S−FNE
Type:
4 cylinder in line, CNG (Compressed
Natural Gas)
Bore and stroke, mm (in.):
87.091.0 (3.433.58)
Displacement, cm
3 (cu. in.):
2164 (132.0)
Fuel
Fuel type:
Compressed natural gas
Service pressure:
24800 kPa (3600 psig)
Equivalent gasoline capacity:
43 L (11.4 gal., 9.5 lmp.gal.)
Water volume:
135 L (35.7 gal., 29.7 lmp.gal.)
