2-2. Instrument cluster
2
When driving
NOTICE
■
To prevent damage to the engine and its components
The gasoline engine may be overheating if the engine coolant temperature
gauge is in the red zone (H). In this case, immediately stop the vehicle in a
safe place. Check the gasoline engine after it has cooled completely.
(
→P. 389)

142
2-2. Instrument cluster

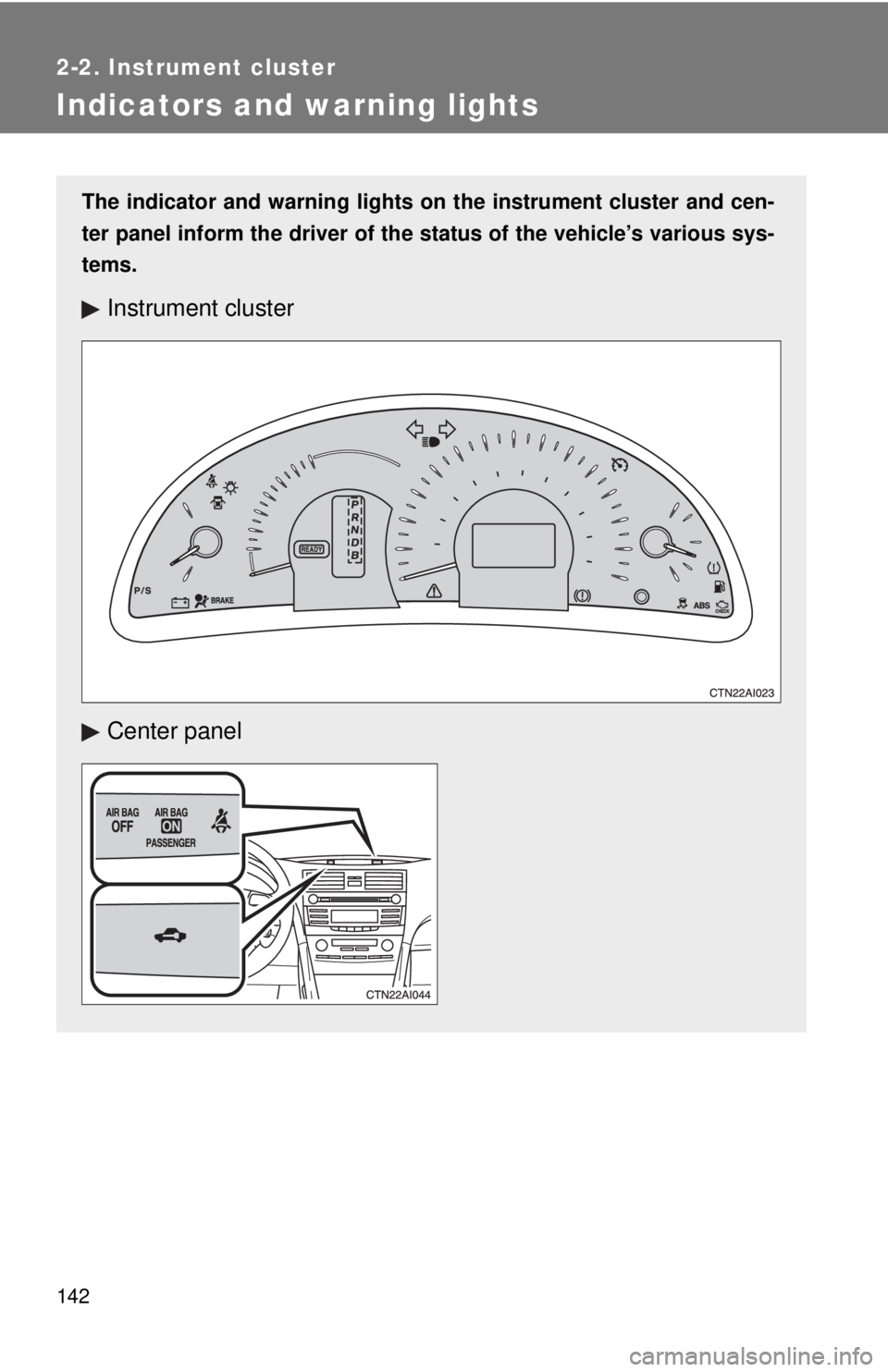

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Center panel

143
2-2. Instrument cluster
2
When driving
■

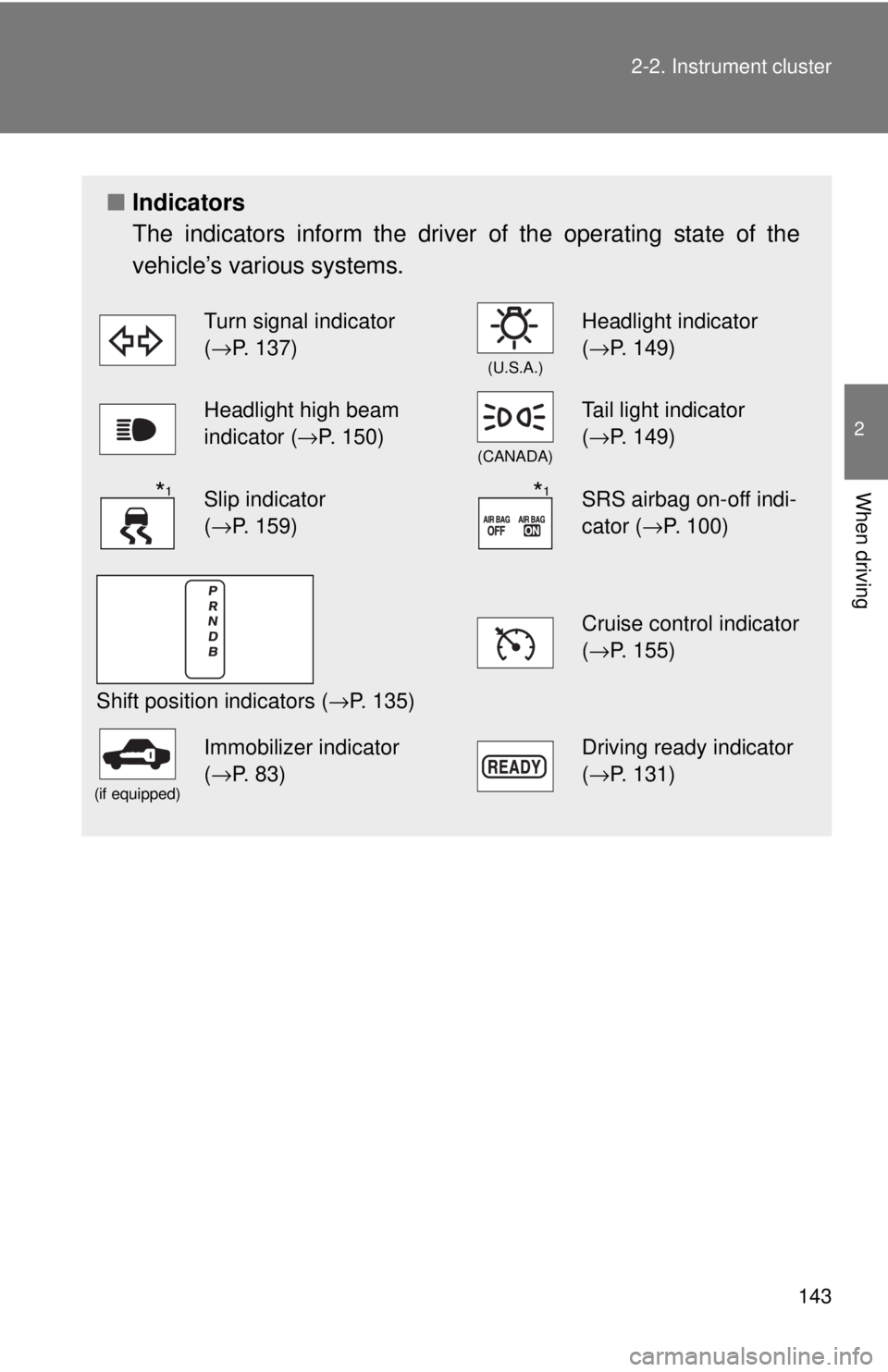

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
( →P. 137)
(U.S.A.)
Headlight indicator
( →P. 149)
Headlight high beam
indicator ( →P. 150)
(CANADA)
Tail light indicator
(→P. 149)
Slip indicator
(→P. 159)SRS airbag on-off indi-
cator (→P. 100)
Shift position indicators ( →P. 135)
Cruise control indicator
(→P. 155)
(if equipped)
Immobilizer indicator
(→P. 83)Driving ready indicator
( →P. 131)
*1*1

144 2-2. Instrument cluster
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS or the SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

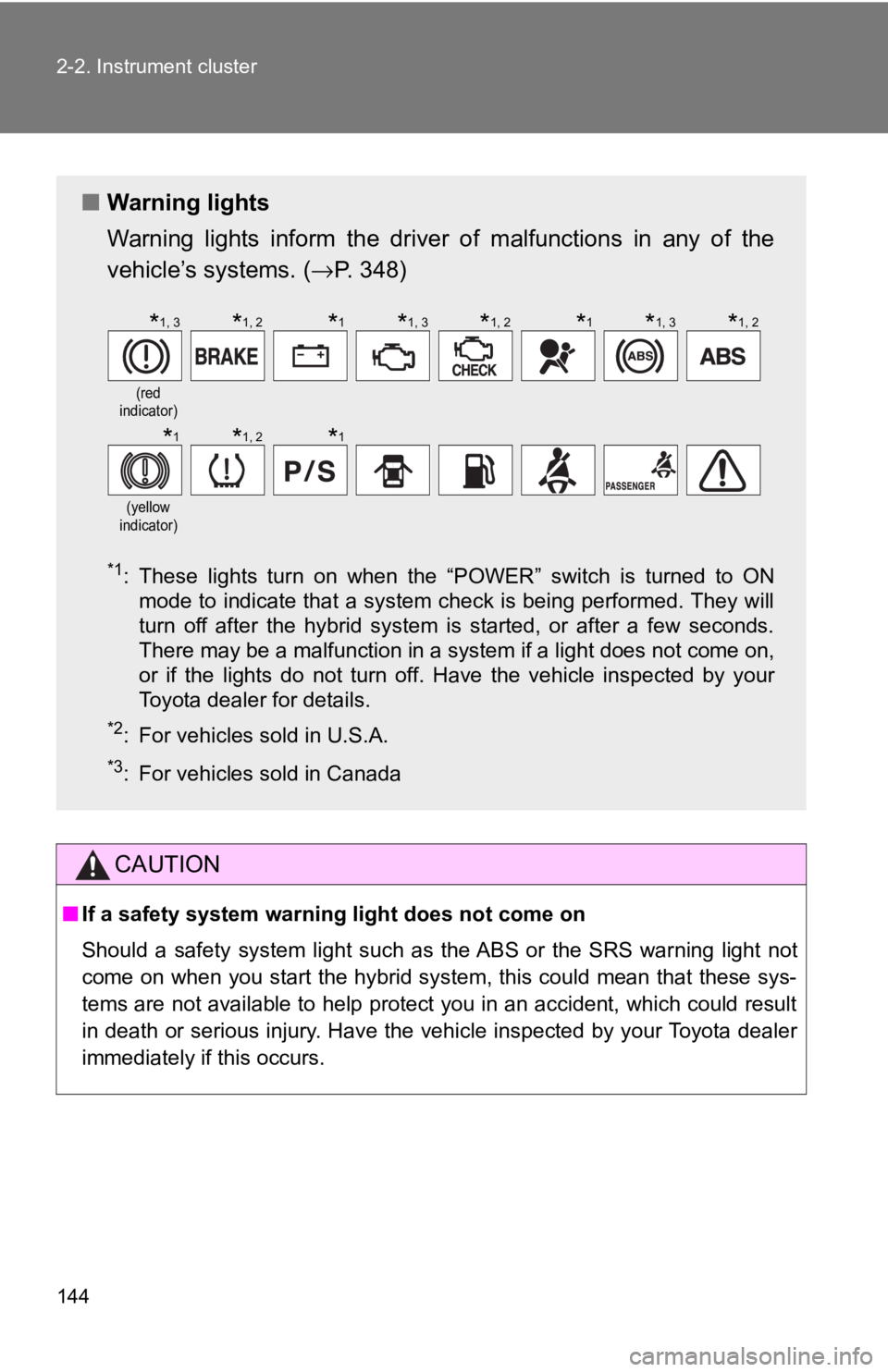

■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( →P. 348)
*1: These lights turn on when the “POWER” switch is turned to ON
mode to indicate that a system check is being performed. They will
turn off after the hybrid system is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by your
Toyota dealer for details.
*2: For vehicles sold in U.S.A.
*3: For vehicles sold in Canada
(red
indicator)
(yellow
indicator)
*1, 3*1, 2*1*1, 3*1, 2*1*1, 3*1, 2
*1*1, 2*1

145
2-2. Instrument cluster
2
When driving

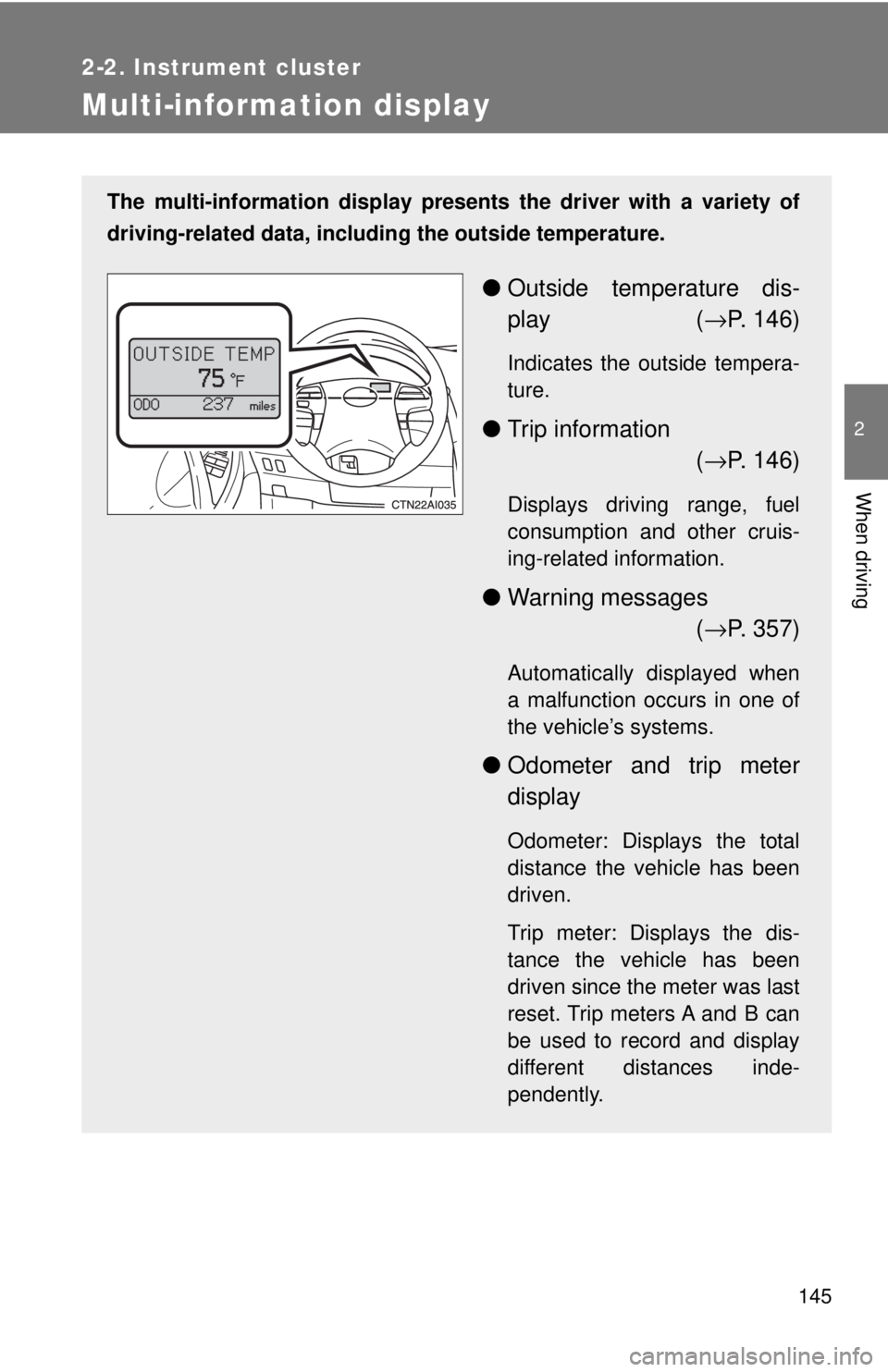

Multi-information display
The multi-information display presents the driver with a variety of
driving-related data, including the outside temperature.
● Outside temperature dis-
play ( →P. 146)
Indicates the outside tempera-
ture.
● Trip information
(→ P. 146)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
● Warning messages
(→ P. 357)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s systems.
● Odometer and trip meter
display
Odometer: Displays the total
distance the vehicle has been
driven.
Trip meter: Displays the dis-
tance the vehicle has been
driven since the meter was last
reset. Trip meters A and B can
be used to record and display
different distances inde-
pendently.

146 2-2. Instrument cluster

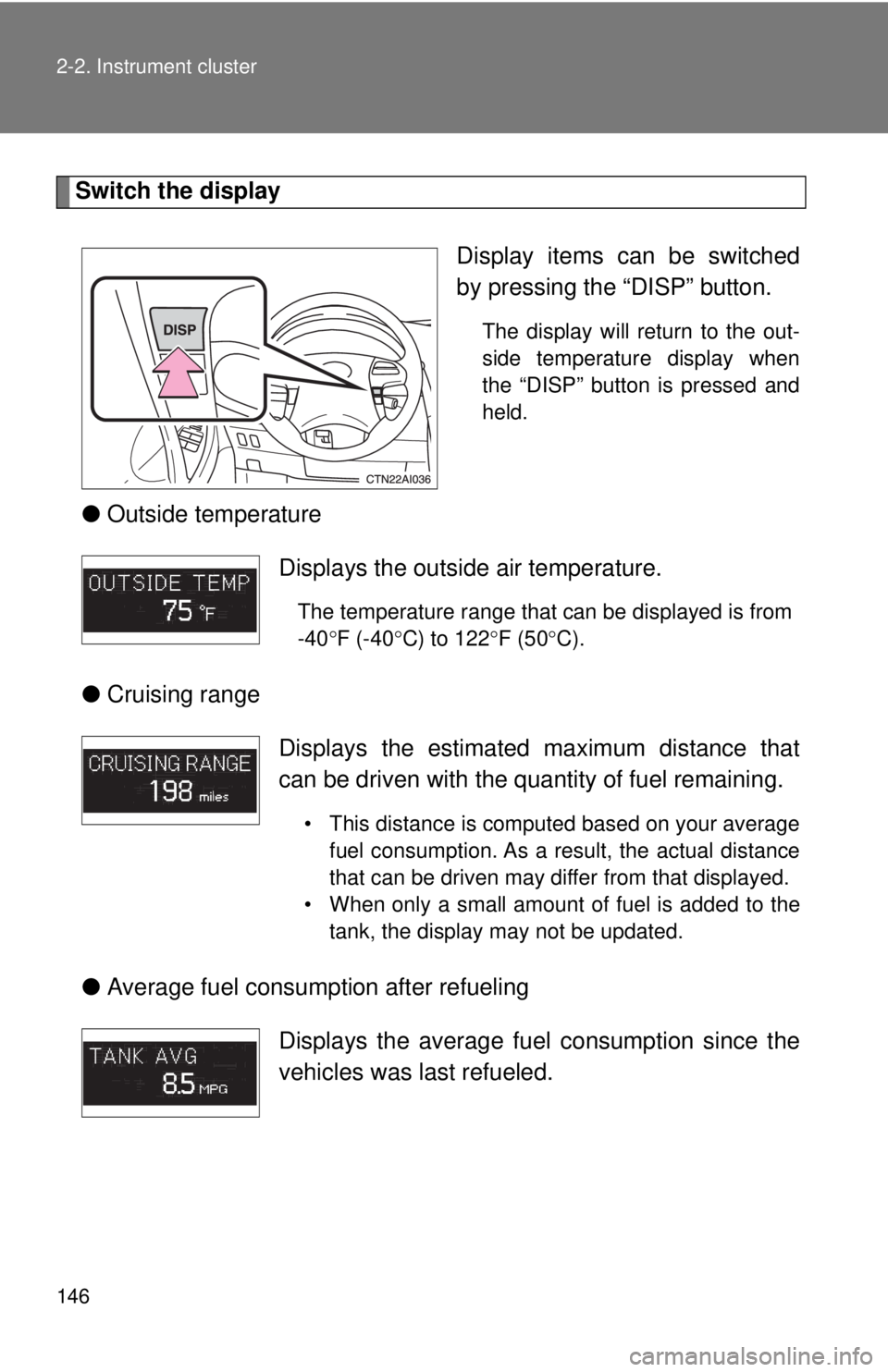

Switch the displayDisplay items can be switched
by pressing the “DISP” button.
The display will return to the out-
side temperature display when
the “DISP” button is pressed and
held.
●Outside temperature
● Cruising range
● Average fuel consumption after refueling
Displays the outsi de air temperature.
The temperature range that can be displayed is from
-40°F (-40 °C) to 122° F (50°C).
Displays the estimat ed maximum distance that
can be driven with the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
Displays the average fuel consumption since the
vehicles was last refueled.

147
2-2. Instrument cluster
2
When driving
●

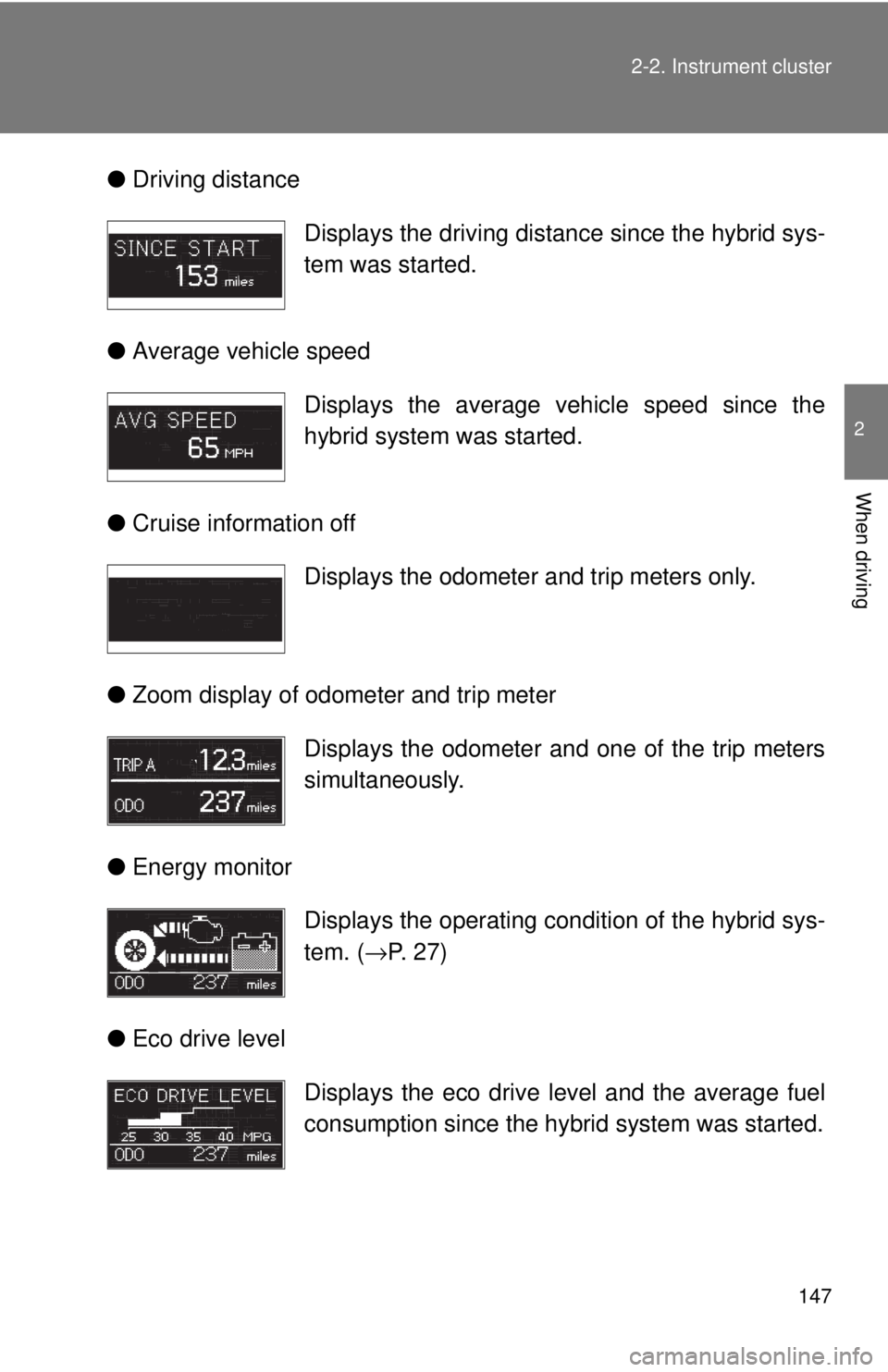

Driving distance
● Average vehicle speed
● Cruise information off
● Zoom display of odometer and trip meter
● Energy monitor
● Eco drive level Displays the driving distan
ce since the hybrid sys-
tem was started.
Displays the average vehicle speed since the
hybrid system was started.
Displays the odometer and trip meters only.
Displays the odometer and one of the trip meters
simultaneously.
Displays the operating condi tion of the hybrid sys-
tem. ( →P. 27)
Displays the eco drive level and the average fuel
consumption since the hybrid system was started.

148 2-2. Instrument cluster
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

149
2
When driving
2-3. Operating the lights and wipers
Headlight switch

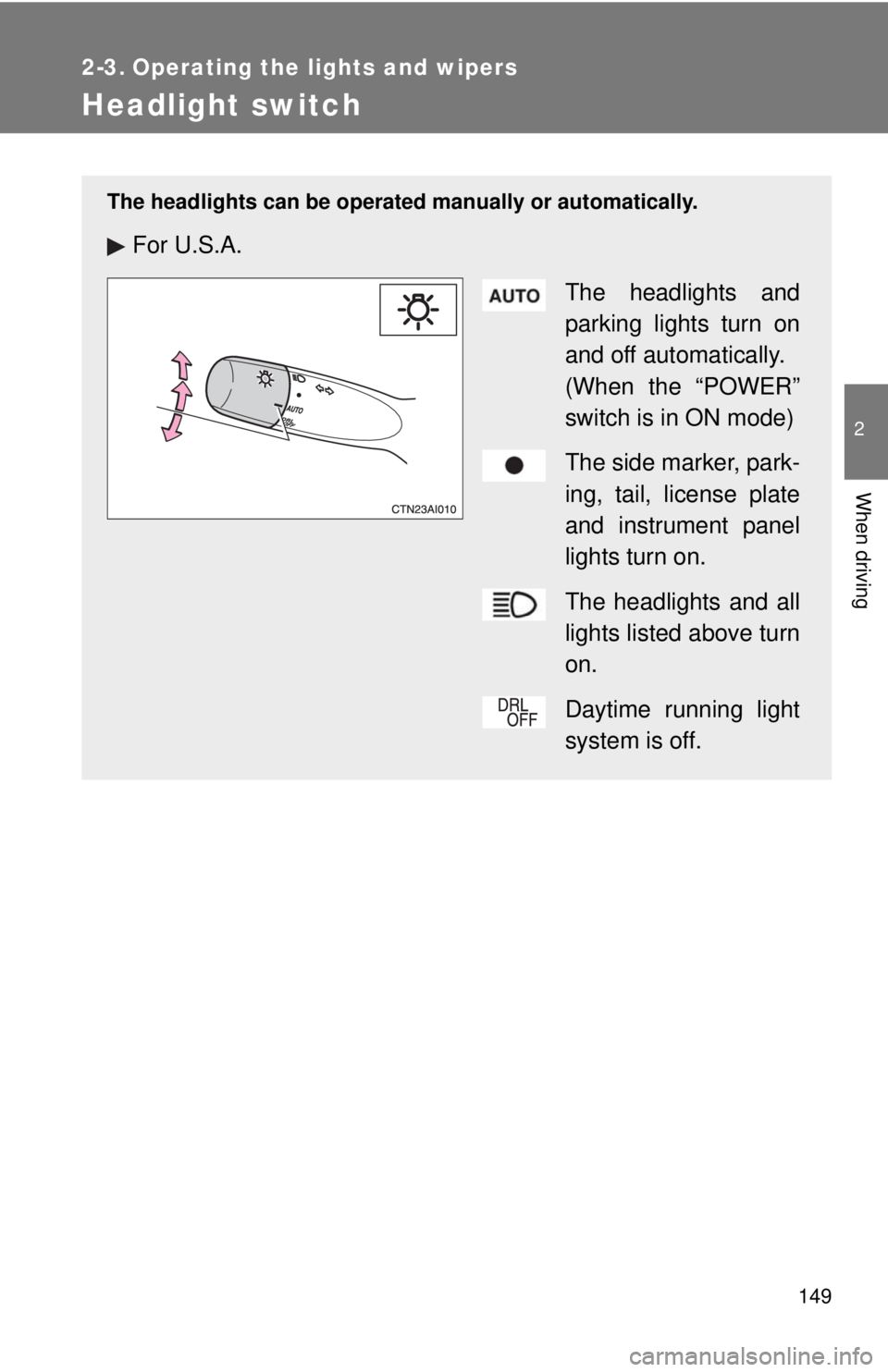

The headlights can be operated manually or automatically.
For U.S.A.
The headlights and
parking lights turn on
and off automatically.
(When the “POWER”
switch is in ON mode)
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
lights listed above turn
on.
Daytime running light
system is off.

150 2-3. Operating the lights and wipers
Turning on the high beam headlightsWith the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.

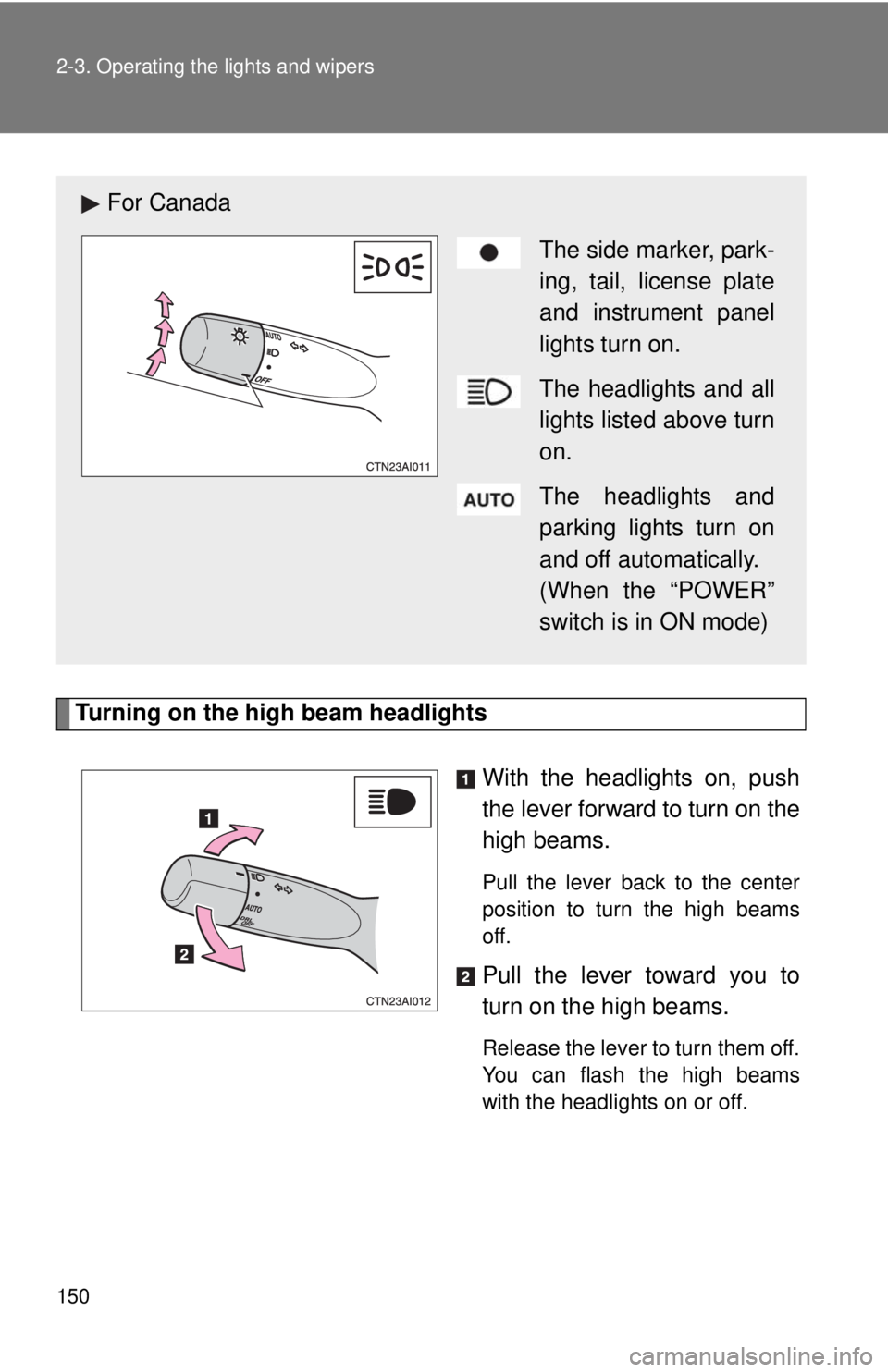

For Canada The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
lights listed above turn
on.
The headlights and
parking lights turn on
and off automatically.
(When the “POWER”
switch is in ON mode)
