When trouble arises
391
5-2. Steps to take in an emergency
After the hybrid system has
cooled down, check the power
control unit coolant level and
inspect the cooling system for
leaks.
Add power control unit coolant if
necessary.
Water can be used in an emer-
gency if power control unit cool-
ant is unavailable. (
→P. 401)
Have the vehicle checked at the nearest Toyota dealer as soon as
possible.
STEP4
STEP5
■Overheating
The following symptoms may occur when your vehicle is overheating:
●Hybrid system output decreases.
● Steam is coming from the engine area.

392 5-2. Steps to take in an emergency
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
● With a hybrid vehicle, there are times when the gasoline engine automati-
cally starts to run or the cooling fans suddenly start to operate. Do not
touch or approach the rotating parts of the belt or fans. Doing so may lead
to fingers, clothes or tools getting caught, resulting in an accidental injury.
● Do not loosen the coolant reservoir cap while the hybrid system and radia-
tor are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power
control unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid sys-
tem too quickly can cause damage to the hybrid system.

5
When trouble arises
393
5-2. Steps to take in an emergency
If the vehicle becomes stuck
■Emergency hooks (if equipped)
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the hybrid system. Set the parking brake and put the
shift lever in P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the hybrid system.
Shift the shift lever to the D or R position and carefully apply
the accelerator to free the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your vehi-
cle out in an emergency.
Your vehicle is not designed to tow
another vehicle.

394 5-2. Steps to take in an emergency
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.

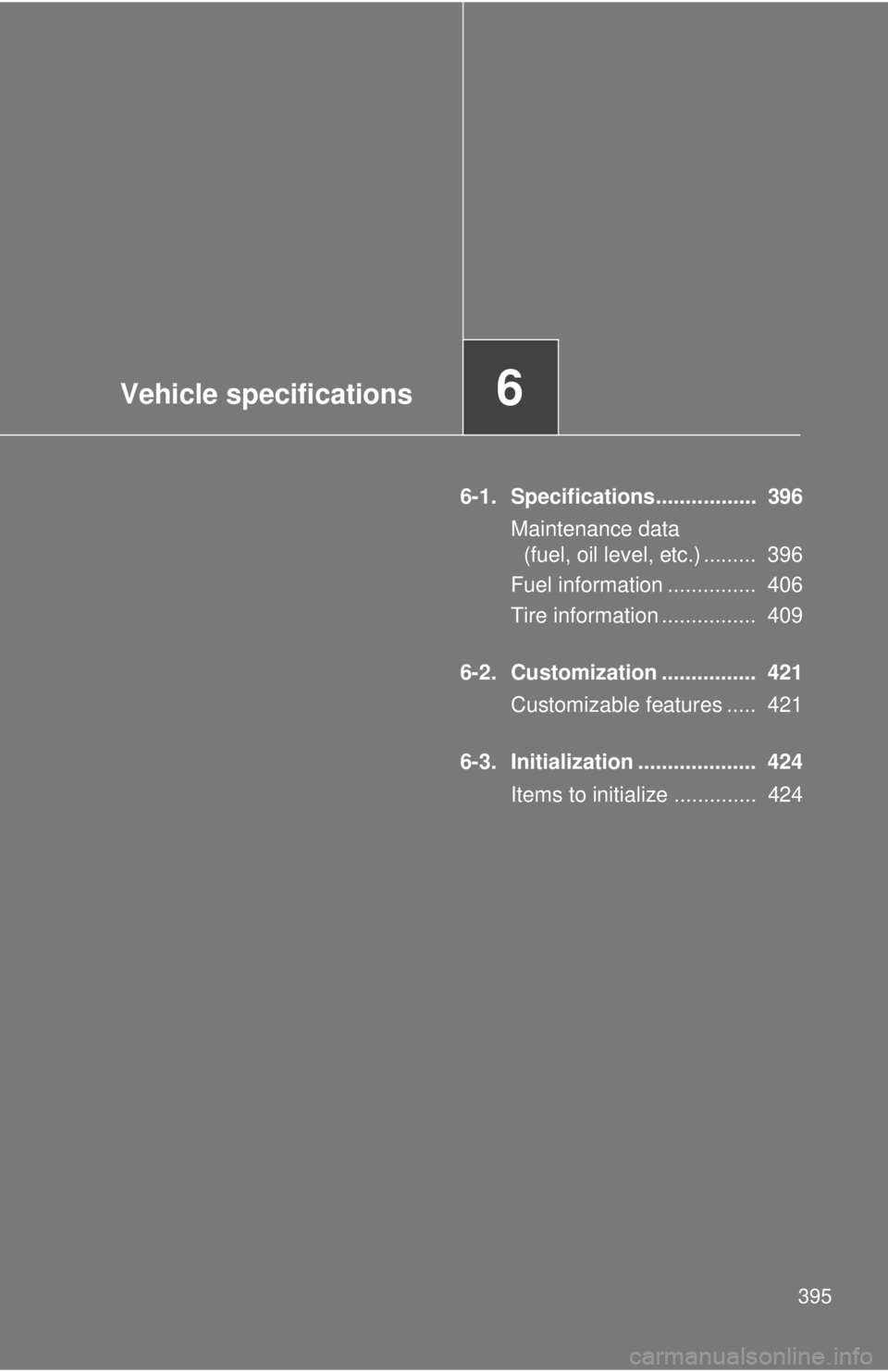

Vehicle specifications6
395
6-1. Specifications................. 396Maintenance data (fuel, oil level, etc.) ......... 396
Fuel information ............... 406
Tire information ................ 409
6-2. Customization ................ 421 Customizable features ..... 421
6-3. Initialization .................... 424 Items to initialize .............. 424

396
6-1. Specifications
Maintenance data (fuel, oil level, etc.)

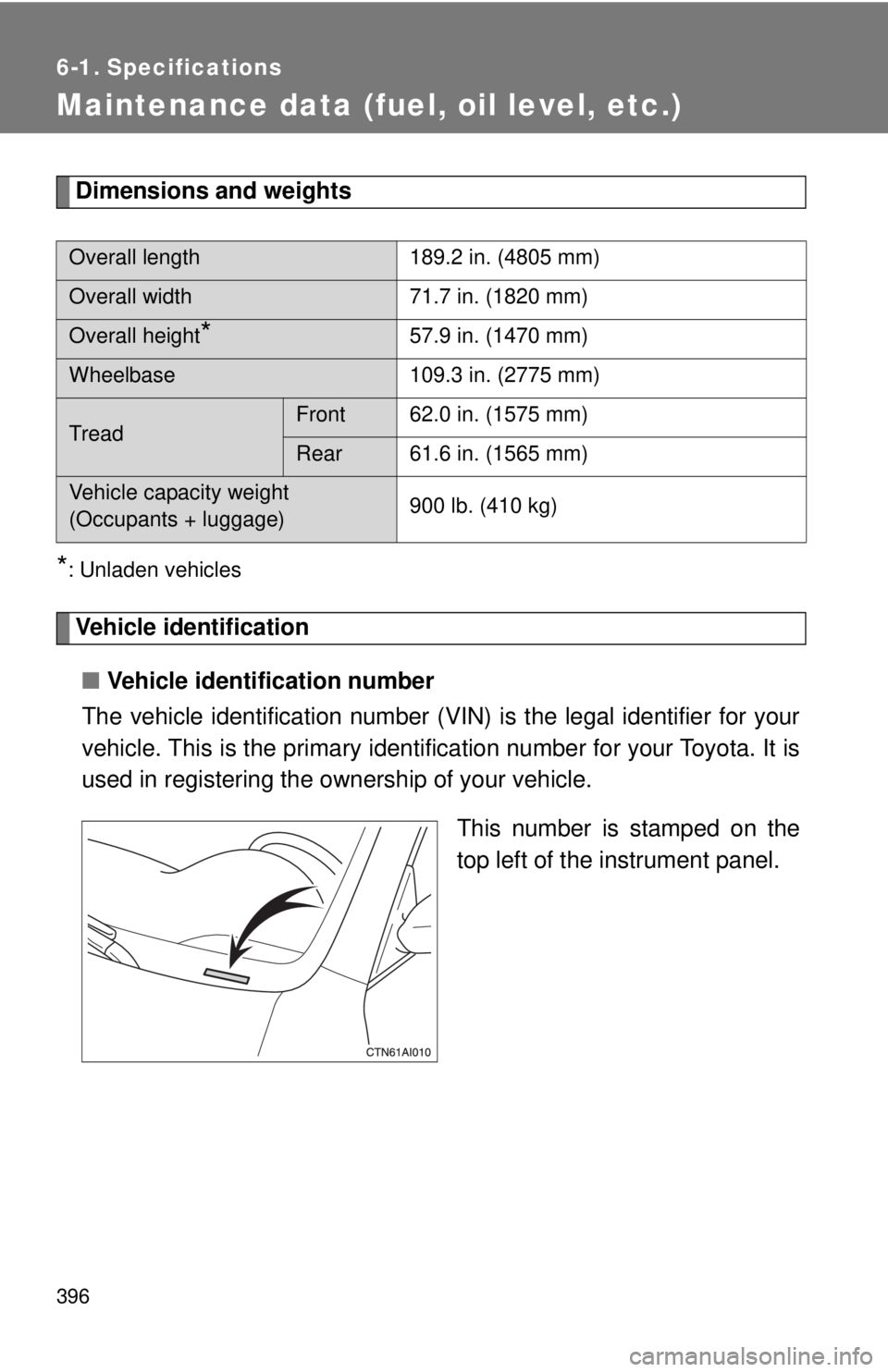

Dimensions and weights
*: Unladen vehicles
Vehicle identification■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identific ation number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Overall length 189.2 in. (4805 mm)
Overall width 71.7 in. (1820 mm)
Overall height*57.9 in. (1470 mm)
Wheelbase109.3 in. (2775 mm)
TreadFront 62.0 in. (1575 mm)
Rear 61.6 in. (1565 mm)
Vehicle capacity weight
(Occupants + luggage) 900 lb. (410 kg)

397
6-1. Specifications
6
Vehicle specifications
This number is also on the Certi-
fication label on the driver’s side
center pillar.
■ Gasoline engine number and el ectric motor (traction motor)
number
The gasoline engine number and el ectric motor (traction motor) num-
ber are stamped as shown.
Gasoline engine number
Electric motor (traction motor)
number

398 6-1. Specifications

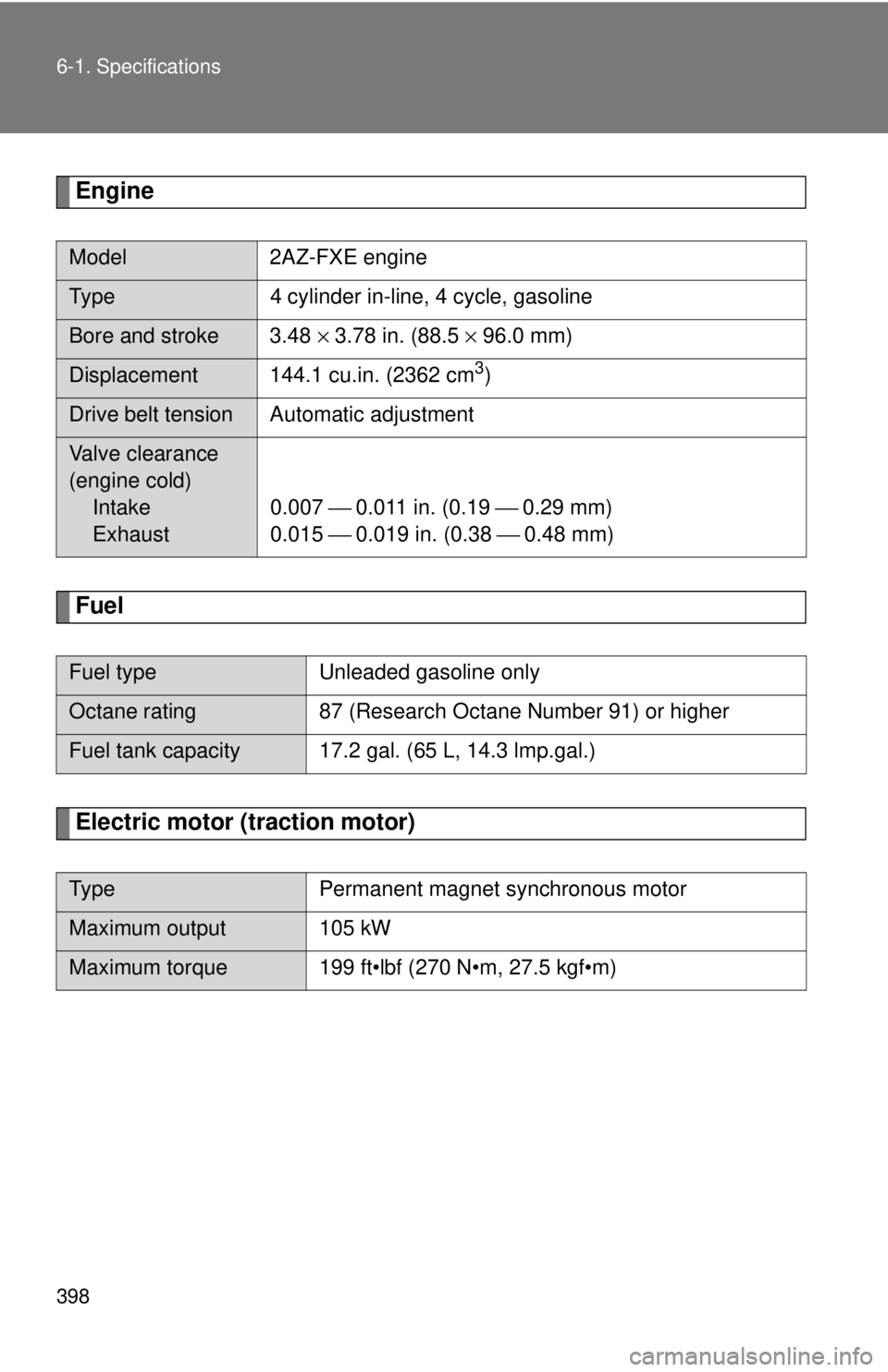

Engine
Fuel
Electric motor (traction motor)
Model2AZ-FXE engine
Type 4 cylinder in-line, 4 cycle, gasoline
Bore and stroke 3.48 × 3.78 in. (88.5 × 96.0 mm)
Displacement 144.1 cu.in. (2362 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
Intake
Exhaust 0.007 ⎯
0.011 in. (0.19 ⎯ 0.29 mm)
0.015 ⎯ 0.019 in. (0.38 ⎯ 0.48 mm)
Fuel type Unleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity 17.2 gal. (65 L, 14.3 lmp.gal.)
Type Permanent magnet synchronous motor
Maximum output 105 kW
Maximum torque 199 ft•lbf (270 N•m, 27.5 kgf•m)

399
6-1. Specifications
6
Vehicle specifications

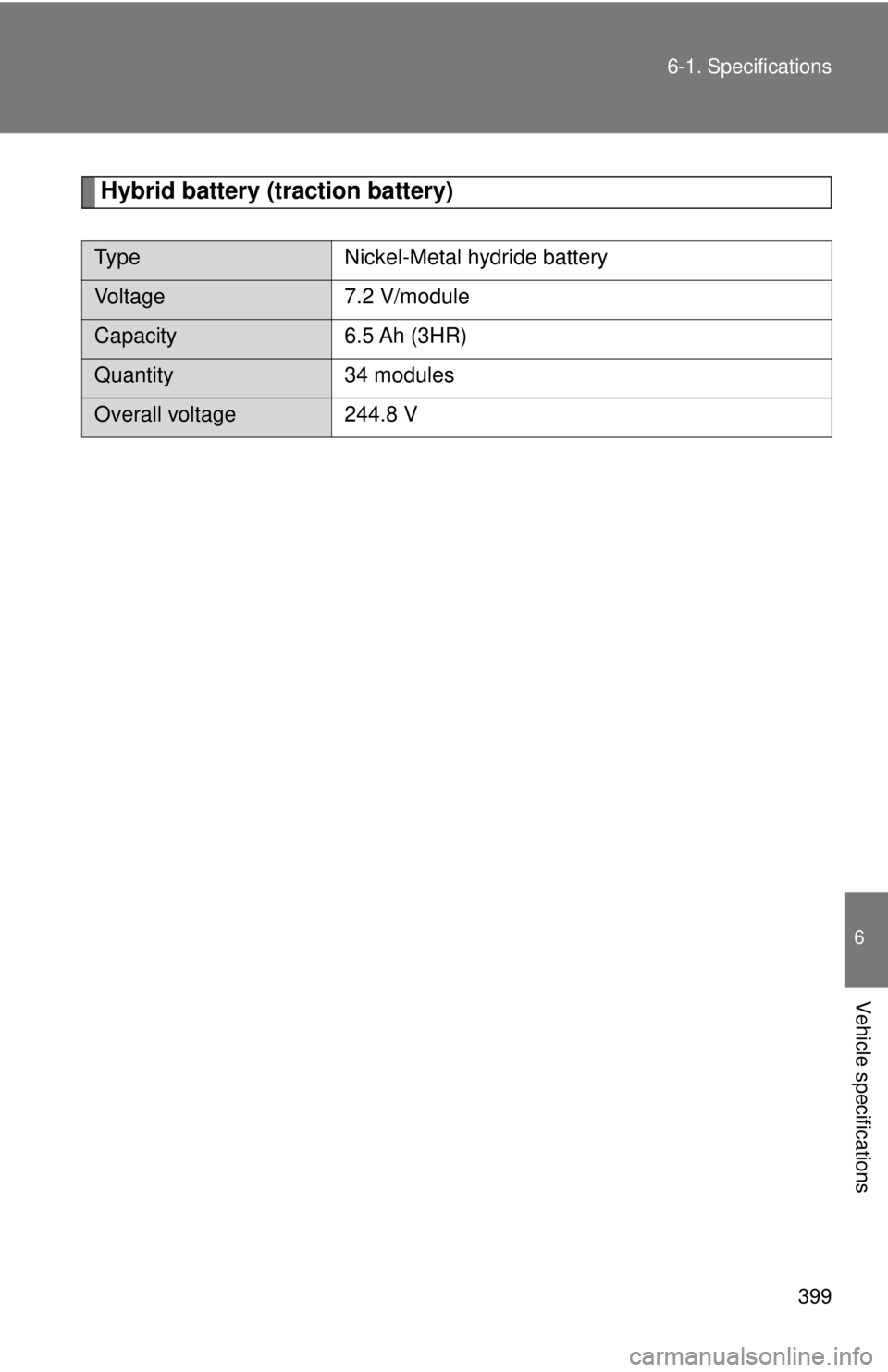

Hybrid battery (traction battery)
Type
Nickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity 34 modules
Overall voltage 244.8 V

400 6-1. Specifications
Lubrication system
*: 0W-20 is the oil that provides the optimal level of fuel efficiency.
Oil viscosity
●The 0W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startabi lity. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the oil visc osity when the oil is at its oper-
ating temperature. An oil with a hi gher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
ditions.

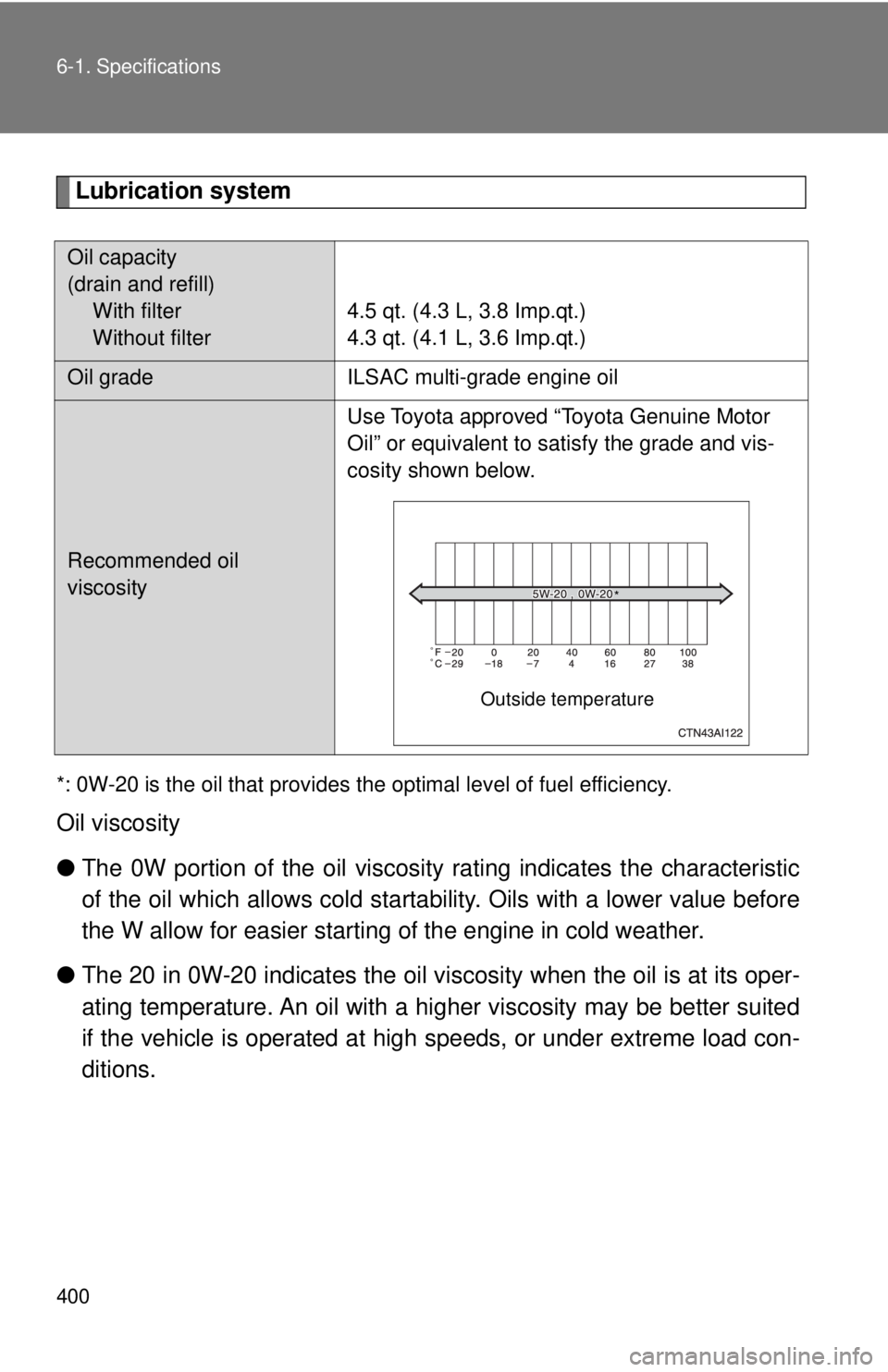

Oil capacity
(drain and refill) With filter
Without filter 4.5 qt. (4.3 L, 3.8 Imp.qt.)
4.3 qt. (4.1 L, 3.6 Imp.qt.)
Oil grade
ILSAC multi-grade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and vis-
cosity shown below.
Outside temperature
*
