TOYOTA CAMRY HYBRID 2007 XV40 / 8.G Owners Manual

’07Camry hybrid_U (L/O 0610)
199
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Compact disc player
Use this button to skip up or down to a
different track.
Push “” or “ ” side of the
“SEEK·TRACK” button until the number of
the track you want to listen to appears on
the display. If you want to return to the
beginning of the current track, quickly
pus h the “ ” side of the button one time.
MP3/WMA player
Use this button to file up or down to a
different file.
Push “ ” or “ ” side of the
“SEEK·TRACK” several times until the file
you want to listen to appears on the dis-
play. If you want to return to the begin-
ning of the current file, push the “ ” side
of the button one time. ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TEXT
XM satellite radio
∗
1—
When you push the “TEXT” button, the
display changes as follows:
CH NAME → TITLE (SONG/PROGRAM
TITLE) → NAME (ARTIST NAME/FEA-
TURE) → CH NUMBER → CH NAME
Up to 10 alphanumeric characters can be
displayed. (Some information will not be
fully displayed.)
The message display will be canceled if
any button that affects the display is
pushed.
If there is no song/program title or artist
name/feature associated with the channel
at that time, “ −−−−−” will appear on the
display. This XM tuner supports “Audio Services”
(Music and Talk) of only XM satellite radio
and “Text Information”
∗
2 linked to the re-
spective audio services.
∗ 1: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
∗2: Text Information includes, Channel
Name, (Artist) Name, (Song) Title and
Category Name.
Compact disc player
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.

’07Camry hybrid_U (L/O 0610)
200
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
MP3/WMA player
This button is used to change the display
for the MP3/WMA file that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the
MP3/WMA file is playing. The display
changes in the order from the elapsed
time to folder name to file name to album
title to track title to artist name, then back
to the elapsed time.
If this button is pushed while an
MP3/WMA file that does not contain text
data is playing, “NO TITLE” will appear on
the display.
If the entire text data is not displayed,
push and hold it until you hear a beep.
The rest of the text data will appear.TUNE·FILE (Tuning and File up/down)
Radio
Turn the “TUNE·FILE” knob clockwise to
step up the frequency. Turn the knob
counterclockwise to step down the fre-
quency.
XM satellite radio
∗—
Turn the “TUNE·FILE” knob clockwise to
step up the channel. Turn the knob coun-
terclockwise to step down the channel.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.
MP3/WMA player
Turn the “TUNE·FILE” knob clockwise to
file up. Turn the knob counterclockwise to
file down. TYPE·FOLDER (Type/Folder up/down)
Radio
XM satellite radio
∗—
When you push the “ ” or “” side of
the “TYPE·FOLDER” button while receiving
a XM channel, the current channel catego-
ry appears on the display.
When the channel category appears, push
either “ ” or “ ” side of the
“TYPE·FOLDER” button to switch to the
next or previous category.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.
MP3/WMA player
To skip up or down to a different folder:
Push “ ” or “ ” side of the “TYPE·FOLD-
ER” several times until the number of the
folder you want to listen to appears on
the display.
To jump to the first file in the first folder:
Push and hold the “ ” side of the button
until you hear a beep.
When playing a disc featuring both audio
data (CD −DA) and MP3/WMA files, audio
data (CD −DA) is played.

’07Camry hybrid_U (L/O 0610)
201
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Some parts of the audio system can be
adjusted using the switches on the steer-
ing wheel.
Details of the specific switches, controls,
and features are described below.1. Volume control switch
2. “ ” switch
3. “MODE” switch 1. Volume control switch
Push the “+” side to increase the volume.
The volume continues to increase while
the switch is being pushed.
Push the “ −” side to decrease the volume.
The volume continues to decrease while
the switch is being pushed.
2. “   ” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “ ” or “ ”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “ ” or “ ” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
To step up or down the frequency, push
and hold the switch even after you hear
a beep. When you release the switch, the
radio will begin seeking up or down for a
station. Do this again to find the next
station. XM satellite radio
∗—
To select a preset channel, push the “ ”
or “ ” side of the switch. Repeat until a
desired channel is found.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.
Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release the “ ” or “ ”
side of the switch until the track you want
to listen to is set. If you want to return
to the beginning of the current track, push
the “ ” side of the switch once, quickly.
Push and hold the “ ” or “” side of the
switch until the disc you want to listen to
is set.
Audio remote controls
(steering switches)

’07Camry hybrid_U (L/O 0610)
202
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
MP3/WMA player
To select a desired file:
Quickly push and release the “” or “ ”
side of the switch until the file you want
to listen to is set. If you want to return
to the beginning of the current file, push
the “ ” side of the switch once, quickly.
To select a desired folder:
Push and hold the “ ” or “” side of the
switch until you hear a beep. Repeat this
until the folder you want to listen to is
set.
To select a desired disc:
Push and hold the “ ” or “” side of the
switch until you hear a beep. Repeat this
until the disc you want to listen to is set.
3. “MODE” switch
Push the “MODE” switch to select an au-
dio mode. Each push changes the mode
sequentially if the desired mode is ready
to use.
To turn the audio system on, push the
“MODE” switch.
To turn the audio system off, push and
hold the “MODE” switch until the system
turns off.

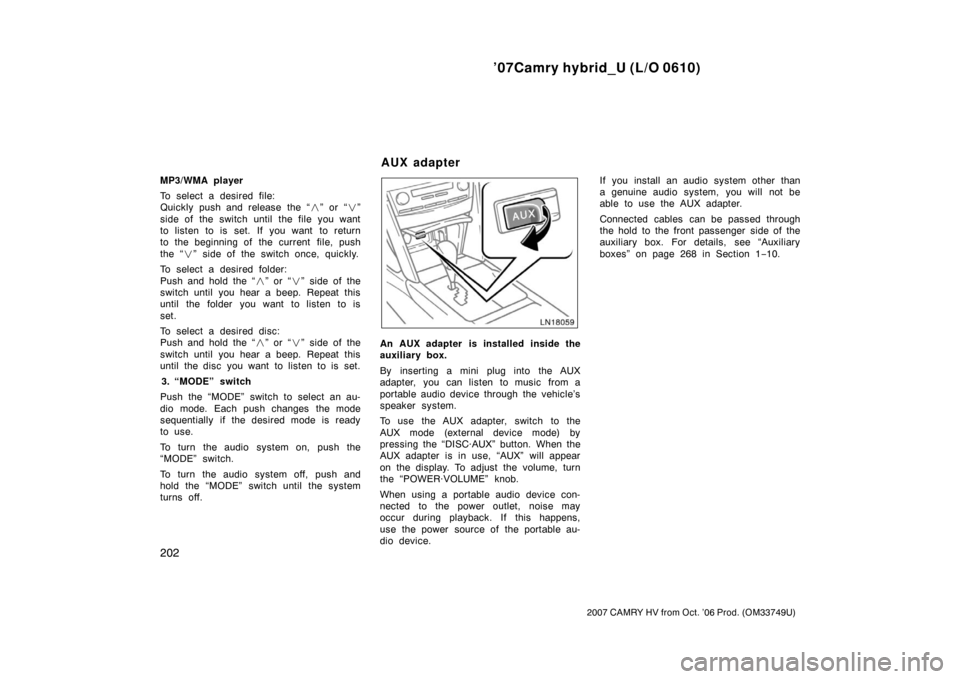

An AUX adapter is installed inside the
auxiliary box.
By inserting a mini plug into the AUX
adapter, you can listen to music from a
portable audio device through the vehicle’s
speaker system.
To use the AUX adapter, switch to the
AUX mode (external device mode) by
pressing the “DISC·AUX” button. When the
AUX adapter is in use, “AUX” will appear
on the display. To adjust the volume, turn
the “POWER·VOLUME” knob.
When using a portable audio device con-
nected to the power outlet, noise may
occur during playback. If this happens,
use the power source of the portable au-
dio device. If you install an audio system other than
a genuine audio system, you will not be
able to use the AUX adapter.
Connected cables can be passed through
the hold to the front passenger side of the
auxiliary box. For details, see “Auxiliary
boxes” on page 268 in Section 1
−10.
AUX adapter

’07Camry hybrid_U (L/O 0610)
203
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
NOTICE
To ensure correct audio system op-
erations:
Be careful not to spill beverages
over the audio system.
 Do not put anything other than a
compact disc into the slot.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the au-
dio system which you are listening
to. However, this does not indicate
a malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves. Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi
−path—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again. AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
XM
∗
Alternation or modifications carried out
without appropriate authorization may in-
validate the user ’s right to operate the
equipment.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
Audio system operating hints

’07Camry hybrid_U (L/O 0610)
204
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to
Part 15 of the FCC Rules. These lim-
its are designed to provide reasonable
protection against harmful interfer-
ence in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio commu-
nications. However, there is no guar-
antee that interference will not occur
in a particular installation.
If this equipment does cause harmful
interference to radio or television re-
ception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of
the following measures:
—Reorient or relocate the receiving
antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an out-
let on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experi-
enced radio/TV technician for help.CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Your compact disc player is intended
for use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.

’07Camry hybrid_U (L/O 0610)
205
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

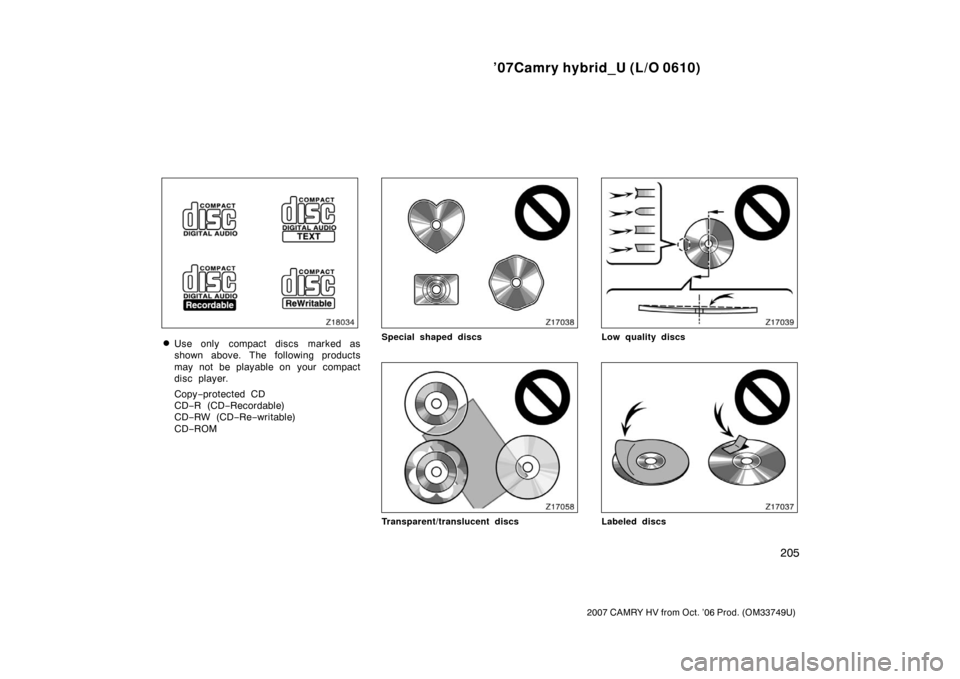

Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copy−protected CD
CD− R (CD −Recordable)
CD− RW (CD −Re −writable)
CD− ROMSpecial shaped discs
Transparent/tr anslucent discs
Low quality discs
Labeled discs

’07Camry hybrid_U (L/O 0610)
206
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
NOTICE
Do not use special shaped, transpar-
ent/translucent, low quality or labeled
discs such as those shown in the il-
lustrations. The use of such discs
may damage the player, or it may be
impossible to eject the disc.
CorrectWrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scratches, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device.

’07Camry hybrid_U (L/O 0610)
207
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
MP3/WMA FILES
MP3 (MPEG Audio Layer 3) and WMA
(Windows Media Audio) are audio com-
pression standards.
The MP3/WMA player can play MP3
and WMA files on CD−ROM, CD −R and
CD− RW discs.
The unit can play disc recordings com-
patible with ISO 9660 level 1 and level
2 and with the Romeo and Joliet file
system.
When naming an MP3 or WMA file,
add the appropriate file extension (.mp3
or .wma).
The MP3/WMA player plays back files
with .mp3 or .wma file extensions as
MP3 or WMA files. To prevent noise
and playback errors, use the appropri-
ate file extensions.
Multi −session compatible CDs can also
be played.
MP3 files are compatible with the ID3
Tag Ver. 1.0, Ver. 1.1, Ver. 2.2, and
Ver. 2.3 formats. The unit cannot dis-
play disc title, track title and artist
name in other formats.
WMA files can contain a WMA tag that
is used in the same way as an ID3
tag. WMA tags carry information such
as track title, artist name.
The emphasis function is available only
when playing MP3/WMA files recorded
at 32, 44.1 and 48 kHz. (The system
can play MP3 files with sampling fre-
quencies of 16, 22.05, and 24 kHz.
However, the emphasis function is not
available for files recorded at these fre-
quencies.)
The sound quality of MP3/WMA files
generally improves with higher bit
rates. In order to achieve a reasonable
level of sound quality, discs recorded
with a bit rate of at least 128 kbps are
recommended.
Playable bit rates
MP3 files:
MPEG1 LAYER3—64 to 320 kbps
MPEG2 LSF LAYER3—64 to 160 kbps
WMA files:
Ver. 7, 8 CBR—48 to 192 kbps
Ver. 9 CBR—48 to 320 kbps
The MP3/WMA player does not play
back MP3/WMA files from discs record-
er using packet write data transfer
(UDF format). Discs should be re-
corded using “pre −mastering” software
rather than packet −write software.
M3u playlists are not compatible with
the audio player.
MP3i (MP3 interactive) and MP3PRO
formats are not compatible with the au-
dio player.
The MP3 player is compatible with
VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.
MP3/WMA files in folders up to 8 lev-
els deep can be played. However, the
start of playback may be delayed when
using discs containing numerous levels
of folders. For this reason, we recom-
mend creating discs with no more than
two levels of folders.
It is possible to play up to 192 folders
or 255 files on one disc.

’07Camry hybrid_U (L/O 0610)
208
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
001.mp3
002.wmaFolder 1
003.mp3
Folder 2
004.wma
005.mp3 Folder 3
006.mp3
The play order of the compact disc
with the structure shown on the left is
as follows:
CDR and CDRW discs
CD−R/CD− RW discs that have not been
subject to the “finalizing process” (a
process that allows discs to be played
on a conventional CD player) cannot
be played.
It may not be possible to play CD −
R/CD− RW discs recorded on a music
CD recorder or a personal computer
because of disc characteristics,
scratches or dirt on the disc, or dirt,
condensation, etc. on the lens of the
unit.
It may not be possible to play discs
recorded on a personal computer de-
pending on the application settings and
the environment. Record with the cor-
rect format. (For details, contact the
appropriate application manufacturers of
the applications.)
CD− R/CD− RW discs may be damaged
by direct exposure to sunlight, high
temperatures or other storage condi-
tions. The unit may be unable to play
some damaged di scs.
If you insert a CD −RW disc into the
MP3/WMA player, playback will begin
more slowly than with a conventional
CD or CD −R disc.
Recordings on CD −R/CD− RW cannot
be played using the DDCD (Double
Density CD) system.
