TOYOTA CAMRY HYBRID 2007 XV40 / 8.G Owners Manual

’07Camry hybrid_U (L/O 0610)
179
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)

’07Camry hybrid_U (L/O 0610)
180
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio and handsfree phone systems
Reference181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 181
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 201
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
AUX adapter 202
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio system operating hints 203
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hands −free phone system 210
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 8

’07Camry hybrid_U (L/O 0610)
181
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)Type 2: AM·FM radio/compact disc player
with changer (with XM satellite radio∗ con-
troller)
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details. This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
switch is set at ACC or ON.
CAUTION
For vehicles sold in U.S.A. and
Canada:
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifi-
cations to this equipment will void
the user’s authority to operate this
device.
Reference Using your audio system—
—Some basics

’07Camry hybrid_U (L/O 0610)
182
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Laser products
Do not take this unit apart or at-
tempt to make any changes your-
self. This is an intricate unit that
uses a laser pickup to retrieve in-
formation from the surface of
compact discs. The laser is care-
fully shielded so that its rays re-
main inside the cabinet. There-
fore, never try to disassemble the
player or alter any of its parts
since you may be exposed to la-
ser rays and dangerous voltages.
This product utilizes a laser. Use
of controls or adjustments or per-
formance of procedures other
than those specified herein may
result in hazardous radiation ex-
posure.
TURNING THE SYSTEM ON AND OFF
Push “POWER·VOLUME” to turn the audio
system on and off.
Push “AM”, “FM1”, “FM2”,
“AM·SAT”∗ or
“DISC·AUX” to turn on that function with-
out pushing “POWER·VOLUME”.
You can turn on the compact disc player
by inserting a compact disc.
You can turn off the compact disc player
by ejecting the compact disc. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject the compact disc. If the radio was
previously on, it will come on again.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM1”, “FM2”,
“AM·SAT”∗ or
“DISC·AUX” if the system is already on
but you want to switch from one function
to other.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details. LISTENING TO THE XM SATELLITE
RADIO BROADCAST
∗ (type 2)
To listen to a satellite radio broadcast in
your vehicle, an additional genuine Toyota
satellite receiver and antenna (or equiva-
lents) must be purchased and installed. A
subscription to the XM satellite radio ser-
vice is also necessary.
How to subscribe to an XM satellite
radio
An XM satellite radio is a tuner designed
exclusively to receive broadcasts provided
under a separate subscription. Availability
is limited to the 48 contiguous states.

’07Camry hybrid_U (L/O 0610)
183
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
How to subscribe:
You must enter into a separate service
agreement with the XM radio in order to
receive satellite broadcast programming in
the vehicle. Additional activation and ser-
vice subscription fees apply that are not
included in the purchase price of the ve-
hicle and optional digital satellite tuner.
For complete information on subscription
rates and terms, or to subscribe to the
XM radio, visit XM on the web at
www.xmradio.com
or call an XM’s Listener
Care at (800) 967 −2346. The XM radio is
solely responsible for the quality, availabil-
ity and content of the satellite radio ser-
vices provided, which are subject to the
terms and conditions of the XM radio cus-
tomer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “channel 000” on the radio. For
details, see “Displaying the radio ID” be-
low.
All fees and programming are the respon-
sibility of the XM satellite radio and are
subject to change. Satellite tuner technology notice:
Toyota’s satellite radio tuners are awarded
Type Approval Certificates from XM Satel-
lite Radio Inc. as proof of compatibility
with the services offered by the XM satel-
lite radio.
Displaying the radio ID
Each XM tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM service or when reporting a
problem.
If you select the “CH 000” using the
“TUNE·FILE” knob, the ID code of 8 al-
phanumeric characters appears. If you se-
lect another channel, display of the ID
code is canceled. The channel (000) alter-
nates the display between the radio ID
and the specific radio ID code.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system. SRS

(type 1 only)
The audio systems utilize SRS FOCUS
and SRS TruBass audio enhancement
technologies, under license from SRS
Labs, Inc., in all mode except AM radio
mode.
FOCUS, TruBass, SRS and
symbol are
trademarks of SRS Labs, Inc.
FOCUS and TruBass technologies are
incorporated under license from SRS
Labs, Inc.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (type 2 only), and
bass levels. In fact, different kinds of mu-
sic and vocal programs usually sound bet-
ter with different mixes of treble, midrange
and bass.
You can adjust sound characteristics. Dif-
ferent sound characteristics can be re-
corded for each audio source.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.

’07Camry hybrid_U (L/O 0610)
184
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of other.
YOUR RADIO ANTENNA
Your vehicle has an antenna printed on
the inside of the rear window.
NOTICE
Putting a film (especially a conductive
or metallic film) on the rear window
will noticeably reduce the sensitivity
of the radio.
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. The compact disc
player will play from track 1 through to
the end of the disc. Then it will play from
track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diameter −smaller than standard
discs.
NOTICE
Do not use an adaptor for compact
disc singles —it could cause tracking
errors or interfere with the ejection of
compact discs.
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. This compact disc play-
er can store up to six discs. The player
will play from track 1 through to the end
of the disc. Then it will play from track
1 of the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.NOTICE
 Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc player. Insert only
one compact disc into slot at a
time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.

’07Camry hybrid_U (L/O 0610)
185
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Details of specific buttons, controls and
features are described in the alphabetical
list that follows.

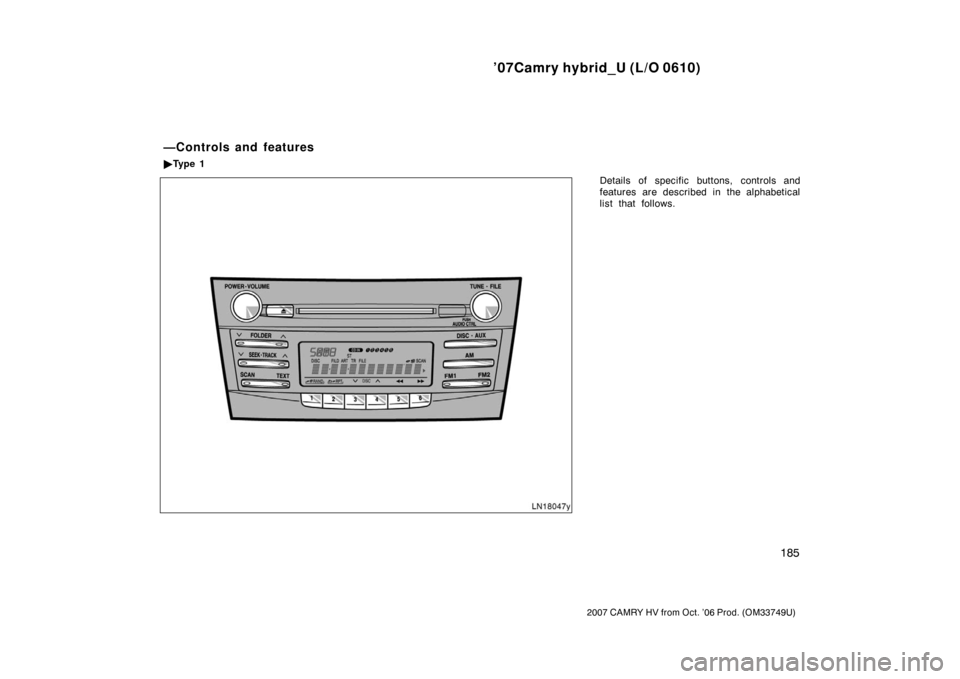

—Controls and features
Ty p e 1

’07Camry hybrid_U (L/O 0610)
186
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE·FILE” or
“SEEK·TRACK”.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The preset but-
ton number will appear on the display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button. (The display
will show “AM”, “FM1” or “FM2” when you
push “AM”, “FM1” or “FM2” button.)
(Eject button)
Push the compact disc eject button to
eject a compact disc.
(Reverse/Fast forward button)
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the player will resume
playing.
AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CTRL (Tone and sound balance
controls)
Each time you push the “AUDIO CTRL”
knob, the mode changes. To adjust the
tone and balance, turn the knob.
BAS: Adjusts low −pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7. Switching over the Speed Automatic
Sound Levelizer (ASL) level
ASL: The Automatic Sound Levelizer can
be turned on by turning the knob. In addi-
tion, turning the knob allows you to select
from LOW, MID, and HIGH volume and
tone settings. The ASL system automati-
cally adjusts volume and tone in accor-
dance with the driving speed.
DISC·AUX (Compact disc)
Push the “DISC·AUX” button to play a
compact disc.
When the audio system is set to compact
disc operation, the display shows the
track number currently being played.
To switch between CD and AUX (external
device) modes, press the “DISC·AUX”
button. The AUX mode is only available
when AUX adapter is connected to the
system. When the AUX adapter is in use,
“AUX” will appear on the display.

’07Camry hybrid_U (L/O 0610)
187
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”: The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (up −side
down). Clean the disc and re −insert it.
“NO DISC”: The compact disc changer of
the separate unit is empty. Insert a disc.
“ERROR 3”: There is a problem inside
the system.
“ERROR 4”: Over−current. Ask your
Toyota dealer to inspect.
“CD OPEN”: The compact disc changer
lid of the separate unit is open. Close the
compact disc changer lid.
If “NO MUSIC” appears on the display,
it indicates that a disc with no MP3/WMA
data has been inserted. Remove the disc
from the player and insert an MP3/WMA
data disc.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
DISC
With compact disc changer only—
Use these buttons to select a disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
FM1 FM2
Push the “FM1” or “FM2” button to turn on
the radio and select the FM band. “FM1”
or “FM2” will appear on the display. This
system allows you to set twelve FM sta-
tions, two for each of the preset button.
FOLDER (Folder up/down)
To skip up or down to a different folder:
Push “ ” or “ ” side of the “FOLDER”
several times until the number of the fold-
er you want to listen to appears on the
display.
To jump to the first file in the first folder:
Push and hold the “ ” side of the button
until you hear a beep.
When playing a disc featuring both audio
data (CD −DA) and MP3/WMA files, audio
data (CD −DA) is played. POWER·VOLUME (Power and Volume)
Push “POWER·VOLUME” to turn the audio
system on and off. Turn
“POWER·VOLUME” to adjust the volume.
RAND (Random)
Compact disc player
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
With compact disc changer only—
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will
appear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again.

’07Camry hybrid_U (L/O 0610)
188
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
MP3/WMA player
There are two random playback features—
you can either listen to all of the files on
the compact discs in random order. You
can also listen to the files in a single
folder in random order.
To randomly play the files in a folder:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display.
To randomly play all of the files on the
compact disc:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will
appear on the display and the player will
play all of the files on the disc in random
order. To turn off the random playback
feature, push this button again. RPT (Repeat)
Compact disc player
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.
With compact disc changer only—
Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again. MP3/WMA player
There are two repeat features—you can
repeat a signal file or an entire folder.
Repeating a file:
Quickly push and release “RPT” (preset
button 2) while the file is playing.
“
” will appear on the display. When
the file ends, it will repeat automatically.
This process will be continued until you
push the button again to turn off the re-
peat feature.
Repeating a folder:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all of the files in the folder. When the last
file in the folder ends, the folder will re-
peat from the beginning. To turn off the
repeat feature, push this button again.
