Make sure your coolant is properly pro-
tected against freezing.
Only use “Toyota Super Long Life Coolant”
or similar high quality ethylene glycol
based non−silicate, non −amine, non− nitrite,
and non− borate coolant with long −life
hybrid organic acid technology. (Coolant
with long −life hybrid organic acid
technology is a combination of low
phosphates and organic acids.)
See “Checking the coolant level” on page
357 in Section 7 −2 for details of coolant
type selection.
For the U.S.A.—“Toyota Super Long Life
Coolant” is a mixture of 50% coolant and
50% deionized water. This coolant pro-
vides protection down to about −35 C
( − 31 F).
For Canada—“Toyota Super Long Life
Coolant” is a mixture of 55% coolant and
45% deionized water. This coolant pro-
vides protection down to about −42 C
( − 44 F).
NOTICE
Do not use plain water alone.
Check the condition of the 12 volt bat-
tery and cables.
Cold temperatures lower the performance
of the 12 volt battery, so it must be in top
shape to provide enough power for winter
starting. Section 7 −3 tells you how to
visually inspect the 12 volt battery. Your
Toyota dealer and most service stations
will be pleased to check the level of
charge.
Make sure the engine oil viscosity is
suitable for the cold weather.
See page 356 in Sec t i on 7 −2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealer—they will be pleased
to help.
Keep the door locks from freezing.
Squirt lock de −icer or glycerine into the
locks to keep them from freezing. Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” and block the rear wheels. Do not use
the parking brake, or snow or water accu-
mulated in and around the parking brake
mechanism may freeze, making it hard to
release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Winter driving tips

’07Camry hybrid_U (L/O 0610)
310
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.

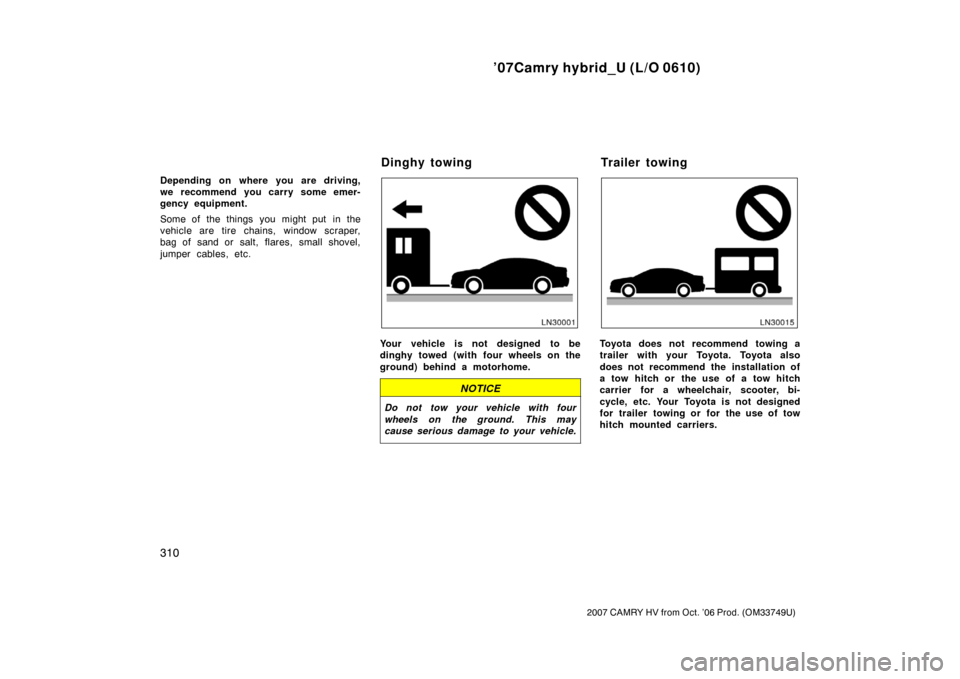

Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Toyota does not recommend towing a
trailer with your Toyota. Toyota also
does not recommend the installation of
a tow hitch or the use of a tow hitch
carrier for a wheelchair, scooter, bi-
cycle, etc. Your Toyota is not designed
for trailer towing or for the use of tow
hitch mounted carriers.
Dinghy towingTrailer towing

’07Camry hybrid_U (L/O 0610)
311
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Improving fuel economy is easy—just take
it easy. It will help make your vehicle last
longer, too. Here are some specific tips
on how to save money on both fuel and
repairs:
Keep your tires inflated at the cor-
rect pressure. Underinflation causes
tire wear and wastes fuel. See page
359 in Section 7 −2 for instructions.
Do not carry unneeded weight in
your vehicle. Excess weight puts a
heavier load on the hybrid system,
causing greater fuel consumption.
Accelerate slowly and smoothly.
Avoid jackrabbit starts. Get into high
gear as quickly as possible.
Avoid continuous speeding up and
slowing down. Stop−and− go driving
wastes fuel.
Avoid unnecessary stopping and
braking. Maintain a steady pace. Try
to time the traffic signals so you only
need to stop as little as possible or
take advantage of through streets to
avoid traffic lights. Keep a proper dis-
tance from other vehicles to avoid sud-
den braking. This will also reduce wear
on your brakes.
When parking, be sure to put the
transmission into the “P” position. In
the “N” position, the engine operates
but electricity cannot be generated. The
hybrid battery will be discharged requir-
ing unnecessary engine power to re-
charge.
Avoid heavy traffic or traffic jams
whenever possible.
Do not rest your foot on the brake
pedal. This causes premature wear,
overheating and poor fuel economy.
Maintain a moderate speed on high-
ways. The faster you drive, the greater
the fuel consumption. By reducing your
speed, you will cut down on fuel con-
sumption.
Keep the front wheels in proper
alignment. Avoid hitting the curb and
slow down on rough roads. Improper
alignment not only causes faster tire
wear but also puts an extra load on
the hybrid system, which, in turn,
wastes fuel.
Keep the bottom of your vehicle free
from mud, etc. This not only lessens
weight but also helps prevent corro-
sion.
Keep your vehicle tunedup and in
top shape. A dirty air cleaner, improp-
er valve clearance, dirty plugs, dirty oil
and grease, brakes not adjusted, etc.
all lower engine performance and con-
tribute to poor fuel economy. For longer
life of all parts and lower operating
costs, keep all maintenance work on
schedule, and if you often drive under
severe conditions, see that your vehicle
receives more frequent maintenance.
(For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner ’s Manu-
al Supplement”.)
CAUTION
Never turn off the hybrid system to
coast down hills. Your power steering
and brake booster do not function
when the hybrid system is off. In
addition, the emission control system
operates properly only when the hy-
brid system is operating.
How to save fuel and make
your vehicle last longer

’07Camry hybrid_U (L/O 0610)
312
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
IN CASE OF AN EMERGENCY
In case of an emergency
If your vehicle will not start313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your hybrid system stalls while driving 317
. . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
If you have a flat tire 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
If your vehicle becomes stuck 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot shift transmission selector lever 329
. . . . . . . . . . . . . . . . . .
If you lose your keys 330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 4

’07Camry hybrid_U (L/O 0610)
313
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Before making these checks, make sure
you have sufficient fuel and that you have
followed the correct starting procedure giv-
en in “How to start the hybrid system” on
page 301 in Section 3. If your vehicle is
equipped with the engine immobilizer sys-
tem, also check whether the other keys
will start the hybrid system. If they work,
your key may be broken. Have the key
checked at your Toyota dealer. If none of
your keys work, there may be a malfunc-
tion in the immobilizer system. Call your
Toyota dealer. (See “Keys” on page 22 in
Section 1−2.) If the instrument cluster displays with
normal brightness levels with the
“POWER” switch set at ON...
You may try emergency start. See “(b)
Emergency start” for further instructions.
If the instrument cluster dims or the
instrument cluster display turns off
with the “POWER” switch set at ON...
1. Check that the 12 volt battery terminals are tight and clean.
2. If the 12 volt battery terminals are O.K., the 12 volt battery is discharged.
You may try jump starting. See “(c)
Jump starting” that follows for further
instructions.
NOTICE
Hybrid vehicles cannot be push
started.
When the hybrid system cannot be
started, the following procedure can be
used if the hybrid system and “POWER”
switch function normally.
1. Put the transmission in “P”.
2. Set the mode to ACC by pushing the “POWER” switch once.
3. Push and hold the “POWER” switch for about 15 seconds while depressing the
brake pedal firmly.
Even if the hybrid system can be started
using the above procedure, the system
may be malfunctioning. Have the vehicle
checked by your Toyota dealer.
If the hybrid system cannot be started
using the above procedure, immediately
contact your Toyota dealer.
CAUTION
Do not place any objects close to the
“POWER” switch. If the object pushes
on the switch, the hybrid system may
be started unexpectedly.
If your vehicle will not start—
(a) Simple checks ( b ) Emerg en cy st art

’07Camry hybrid_U (L/O 0610)
314
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
If the 12 volt battery is discharged, the
hybrid system can be started by jump
starting. Depending on the vehicle con-
dition, however, the hybrid system may
not start.
To avoid serious injury and damage to
your vehicle which might result from an
explosion of the battery, acid burns,
electrical burns, or damaged electronic
components, follow instructions careful-
ly.
If you are unsure about how to follow this
procedure, we strongly recommend that
you seek the help of a competent me-
chanic or towing service.
CAUTION
Batteries contain sulfuric acid
which is poisonous and corrosive.
Wear protective safety glasses when
jump starting, and avoid spilling
acid on your skin, clothing, or ve-
hicle.
If you should accidentally get acid
on yourself or in your eyes, remove
any contaminated clothing and flush
the affected area with water im-
mediately. Then get immediate medi-
cal attention. If possible, continue
to apply water with a sponge or
cloth while en route to the medical
office.
The gas normally produced by a
battery will explode if a flame or
spark is brought near. Use only
standardized jumper cables and do
not smoke or light a match while
jump starting.
NOTICE
The battery used for boosting must
be 12 V. Do not jump start unless you
are sure that the booster battery is
correct.

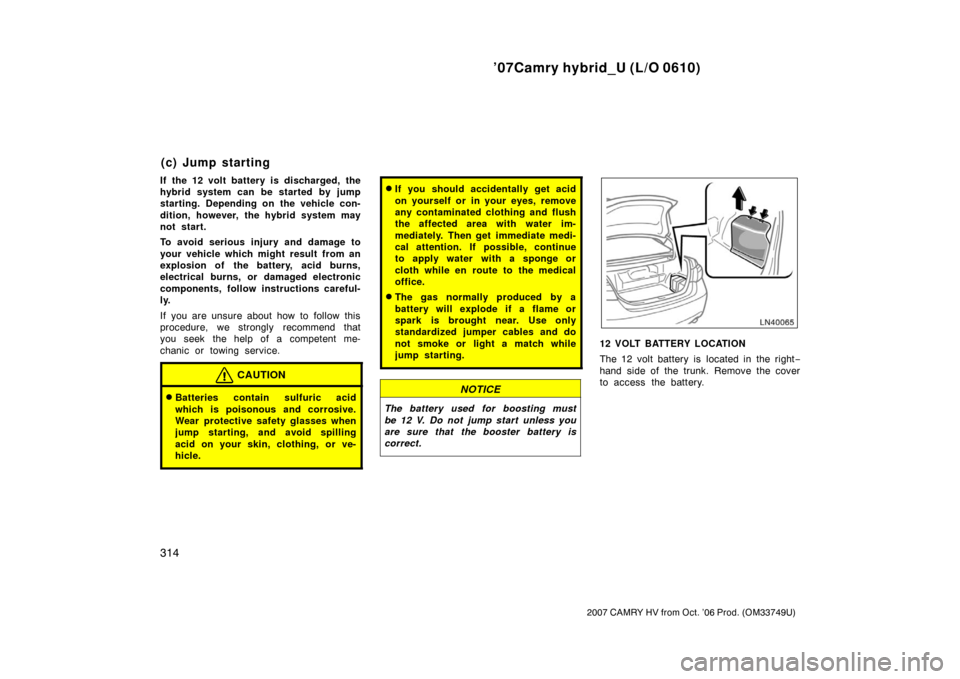

12 VOLT BATTERY LOCATION
The 12 volt battery is located in the right−
hand side of the trunk. Remove the cover
to access the battery.
(c) Jump starting

’07Camry hybrid_U (L/O 0610)
315
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
JUMP STARTING PROCEDURE1. If the booster battery is installed in another vehicle, make sure the vehicles
are not touching. Turn off all unneces-
sary lights and accessories.
When boosting, use the battery of
matching or higher quality. Any other
battery may be difficult to jump start
with.
If jump starting is difficult, charge the
battery for several minutes.
2. If required, remove all the vent plugs from the booster battery. Lay a cloth
over the open vents on the battery.
(This helps reduce the explosion haz-
ard, personal injuries and burns.)
3. If the engine in the vehicle with the booster battery is not running, start it
and let it run for a few minutes. During
jump starting, run the engine at about
2000 rpm with the accelerator pedal
lightly depressed.Discharged battery
Booster
battery
Positive
terminal
(“+” mark) Jumper cable Positive terminal
(“+”mark)
4. Make the cable connections in the or-
der a, b, c, d.
a. Connect the clamp of the positive
(red) jumper cable to the positive (+)
terminal of the discharged 12 volt bat-
tery.
b. Connect the clamp at the other end
of the positive (red) jumper cable to
the positive (+) terminal of the booster
battery.
Jumper cable
Booster
battery
Discharged battery
Negative terminal (“ −”mark)
c. Connect the clamp of the negative
(black) jumper cable to the negative ( −)
terminal on the booster battery.
d. Connect the clamp at the other end
of the negative (black) jumper cable to
a solid, stationary, unpainted, metallic
point of the vehicle with the discharged
battery.

’07Camry hybrid_U (L/O 0610)
316
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
The recommended connecting point
is
in the above illustration.
CAUTION
When making the connections, to
avoid serious injury, do not lean over
the battery or accidentally let the
jumper cables or clamps touch any-
thing except the correct battery termi-
nals or the ground.
5. Start the hybrid system. Make sure the“READY” light is on.
If the ”READY” light will not come on
and the hybrid system will not start
after you recharge the battery, perform
the following procedure. Turn the hybrid
system off. Open and close the driver’s
door. Then push the ”POWER” switch
briefly and firmly.
If the the message “LOW T. BATTERY
STOP THE VEHICLE SHIFT TO P” ap-
pears on the multi −information display,
the hybrid battery is also discharged.
In this condition, the hybrid system
may not start. Contact your Toyota
dealer.
6. Carefully disconnect the cables in the exact reverse order: the negative cable
and then the positive cable.
7. Carefully dispose of the battery cover cloths—they may now contain sulfuric
acid.
8. If removed, replace all the battery vent plugs.
If the cause of the 12 volt battery dis-
charging is not apparent (for example,
lights left on), have the battery checked
by your Toyota dealer. If the first start attempt is not success-
ful...
Check that the clamp on the jumper
cables are tight. Recharge the discharged
battery with the jumper cables connected
for several minutes and restart the hybrid
system in the normal way.
If the another attempt is not successful,
the battery may be depleted. Have it ch-
ecked at your Toyota dealer.

’07Camry hybrid_U (L/O 0610)
317
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
If your hybrid system stalls while driving...1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Set the “POWER” switch at ACC or off, and try starting the hybrid system
again.
If the hybrid system will not start, see “If
your vehicle will not start” on page 313 in
this Section.
CAUTION
If the hybrid system is not operat-
ing, the power assist for the brakes
and steering will not work so steer-
ing and braking will be much hard-
er than usual.
If the hybrid system stalls while
driving, do not open the driver’s
door until the vehicle comes to a
complete stop. Opening the driver’s
door locks the steering wheel, re-
sulting in loss of steering control.
Any of the following may indicate that
the hybrid system has overheated:
The engine coolant temperature
gauge indicates overheating.
The message “WATER TEMP” or
“HYBRID SYSTEM OVER HEAT” ap-
pears on the multiinformation dis-
play.
A loss of power is experienced.
A loud knocking or pinging noise is
heard.
If the hybrid system overheats, follow
the procedures below:
1. Pull safely off the road, stop the ve- hicle and turn on your emergency
flashers. Put the transmission in “P”
and apply the parking brake. Turn off
the air conditioning if it is being used.
2. If coolant or steam is boiling out of the radiator or reservoir, stop the hybrid
system. Wait until the steam subsides
before opening the hood. If there is no
coolant boiling over or steam, leave the
hybrid system turned on and make
sure the electric cooling fan is operat-
ing. If it is not, turn the hybrid system
off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
3. Look for obvious coolant leaks from theradiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the hybrid system is on, keep
hands and clothing away from the
moving fan.
4. If the coolant is leaking, stop the hy-
brid system immediately. Call a Toyota
dealer for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the hy-
brid system is on. Fill it about half full.
For the coolant type, see “Coolant type
selection” on page 357 in Section 7 −2.
If your hybrid system stalls
while driving If your vehicle overheats

’07Camry hybrid_U (L/O 0610)
318
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
CAUTION
Do not attempt to remove the radiator
cap when the hybrid system and ra-
diator are hot. Serious injury could
result from scalding hot fluid and
steam blown out under pressure.
6. After the coolant temperature hascooled to normal, again check the cool-
ant level in the reservoir. If necessary,
bring it up to half full again. Serious
coolant loss indicates a leak in the
system. You s hould have it checked as
soon as possible at your Toyota dealer.
1. Reduce your speed gradually, keeping a straight line. Move cau-
tiously off the road to a safe place
well away from the traffic. Avoid
stopping on the center divider of
a highway. Park on a level spot
with firm ground.
2. Stop the hybrid system and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission in “P”.
4. Have everyone get out of the ve- hicle on the side away from traffic.
5. Read the following instructions thoroughly.CAUTION
When jacking, be sure to observe
the following to reduce the possi-
bility of death or serious injury:
Follow jacking instructions.
 Do not put any part of your
body under the vehicle sup-
ported by the jack. Otherwise,
personal injury may occur.
 Do not start the hybrid system
while your vehicle is supported
by the jack.
 Stop the vehicle on a level firm
ground, firmly set the parking
brake and put the transmission
in “P”. Block the wheel diago-
nally opposite to the one being
changed if necessary.
If you have a flat tire—
