TOYOTA CAMRY HYBRID 2009 XV40 / 8.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2009, Model line: CAMRY HYBRID, Model: TOYOTA CAMRY HYBRID 2009 XV40 / 8.GPages: 444, PDF Size: 6.46 MB
Page 441 of 444
441
Alphabetical index
Page 442 of 444
442

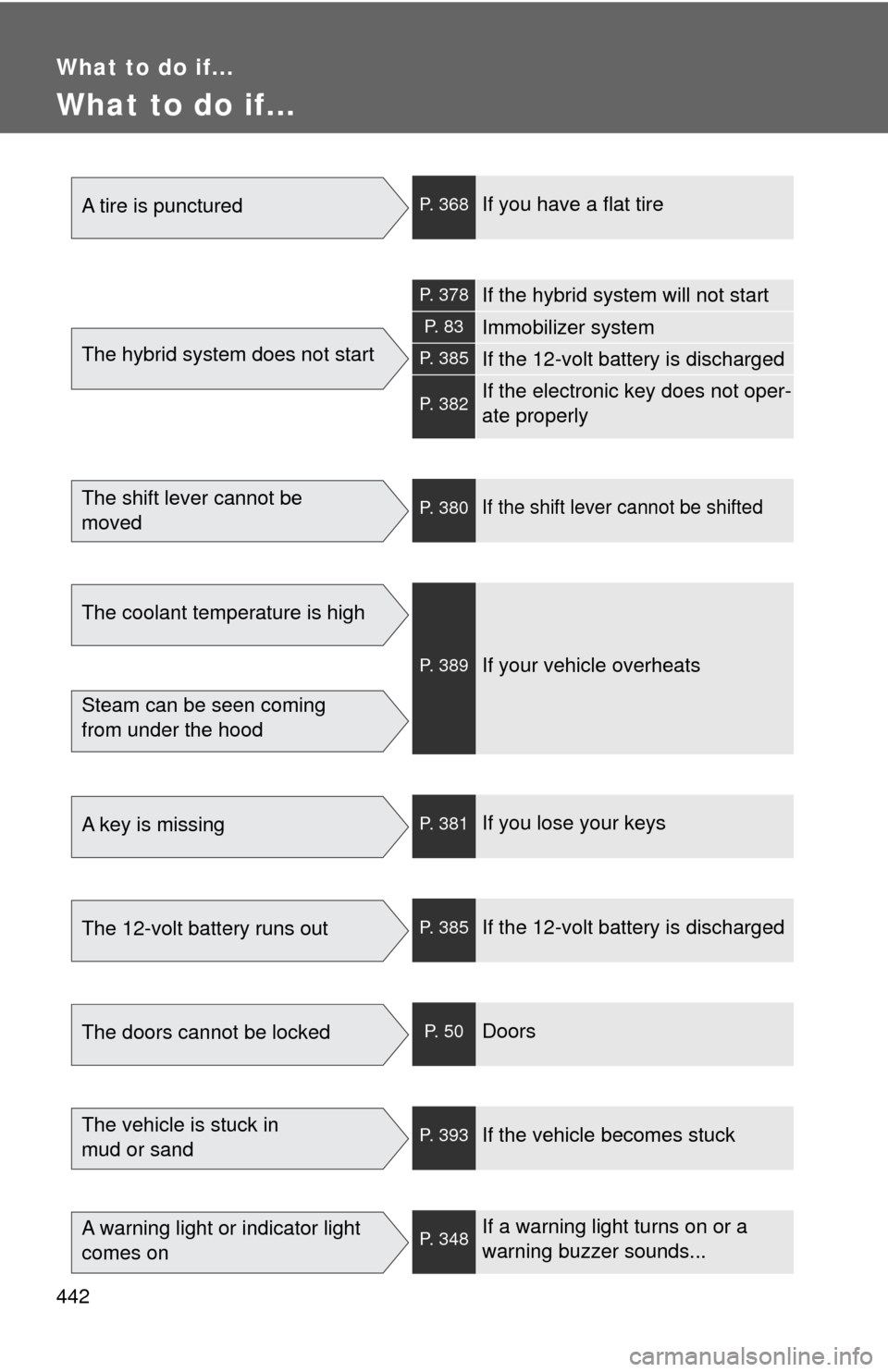

What to do if...
What to do if...
A tire is puncturedP. 368If you have a flat tire
The hybrid system does not start
P. 378If the hybrid system will not start
P. 8 3Immobilizer system
P. 385If the 12-volt battery is discharged
P. 382If the electronic key does not oper-
ate properly
The shift lever cannot be
movedP. 380If the shift lever cannot be shifted
The coolant temperature is high
Steam can be seen coming
from under the hood
P. 389If your vehicle overheats
A key is missingP. 381If you lose your keys
The 12-volt battery runs outP. 385If the 12-volt battery is discharged
The doors cannot be lockedP. 5 0Doors
The vehicle is stuck in
mud or sandP. 393If the vehicle becomes stuck
A warning light or indicator light
comes onP. 348If a warning light turns on or a
warning buzzer sounds...
Page 443 of 444
443
What to do if...
■
Warning lights
P. 351
or
P. 3 4 8P. 351
P. 3 4 8P. 351
P. 351
or
P. 3 4 9P. 351
P. 3 4 9P. 351
P. 349
or
P. 3 4 9
P. 3 4 9
Brake system warning
light (red indicator)Tire pressure warning
light
Open door warning light
Charging system warn-
ing lightLow fuel level warning
light
Malfunction indicator
lampDriver’s seat belt
reminder light
Front passenger’s seat belt
reminder light
SRS warning lightMaster warning light
ABS warning lightElectric power steering
warning light
Brake system warning light
(yellow indicator)
The warning message is
displayedP. 357If a warning message is displayed
Page 444 of 444
444
GAS STATION INFORMATION
Auxiliary catch leverP. 288Trunk openerP. 5 4Fuel filler door P. 7 8
Hood lock release lever
P. 2 8 8
Fuel filler door opener P. 7 8Tire inflation pressure
P. 404
Fuel tank capacity 17.2 gal. (65 L, 14.3 lmp.gal.)
Fuel type Unleaded gasoline only P. 80, 398
Cold tire inflation pressure P. 404
Engine oil
capacity
(Drain and refill)qt. (L, lmp.qt.)
With filter 4.5 (4.3, 3.8)
Without filter 4.3 (4.1, 3.6)
Engine oil type Toyota Genuine Motor Oil or equivalent
Oil grade: ILSAC multigrade engine oil
P. 4 0 0
Recommended oil viscosity:
SAE 5W-20 or 0W-20
