TOYOTA CAMRY HYBRID 2009 XV40 / 8.G Quick Reference Guide

MN 00505-QRG09-CAMH
Printed in the USA 1/08
POWERED
BY
2009
Quick Reference Guide

This iGuideis not intended as a substitute for theOwner’s Manual
located in the vehicle’s glove box. We strongly encourage you to
review theOwner’s Manual and supplementary manuals so you will
have a better understanding of the vehicle’s capabilities and
limitations. Important Cautions, to help you avoid injuries, and
Notices, to help you avoid equipment damage or malfunction, can
also be found in the Owner’s Manual.
www.ToyotaiGuide.com
Interactive Owner’s Guide
Have a question about the main features of your new Toyota? Find
the answers quickly and easily in this Quick Reference Guide, which
includes highlights from the Owner’s Manual. For more detailed
information, and helpful interactive demonstrations and tips, visit
www.Toyotaiguide.com. This user-friendly website makes learning
all about your new vehicle fun and easy.
25

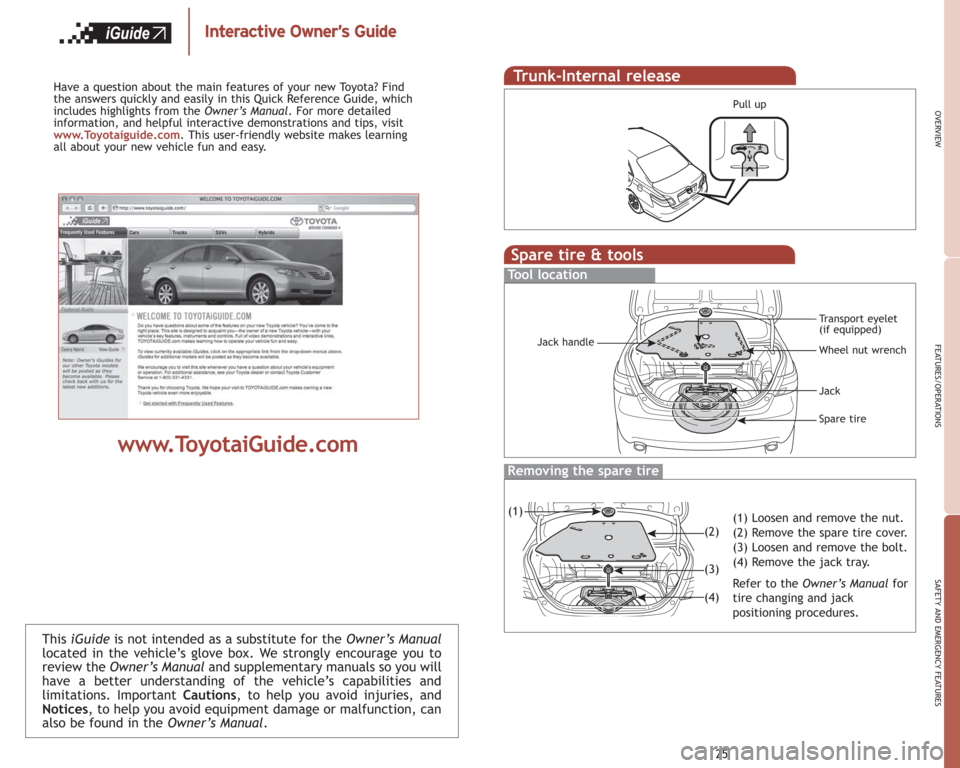

Spare tire & tools
Tool location
Wheel nut wrench Jack handle
Transport eyelet
(if equipped)
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Removing the spare tire
(1) Loosen and remove the nut.
(2) Remove the spare tire cover.
(3) Loosen and remove the bolt.
(4) Remove the jack tray.
Refer to the Owner’s Manualfor
tire changing and jack
positioning procedures.
Jack
Spare tire
Trunk-Internal release
Pull up
(1)
(4)
(3)
(2)

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2009 Camry Hybrid Quick Reference Guide
Engine maintenance 9Fuel tank door release and cap 8Hood release 9Indicator symbols 5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 8
Smart Key system1,27
Air Conditioning/Heating 20-21Audio 18-19Auto lock functions211Clock 21Cruise control 15Cup holders 22Door locks 22Garage door opener (HomeLink®)315Hybrid Synergy Drive System 10Lights1& turn signals 13Moonroof 17Multi-information display 17Parking brake 12Power outlets 22Seat adjustments-Front 14Seat heaters 21Seats-Folding rear seats 14Seats-Head restraints 14Steering lock release 11Steering wheel switches 19Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel 12Transmission 11Windows-Power 12
Windshield wipers & washers 13
Child comfort guide 24Doors-Child safety locks 23Fuel filler door-Internal release 23Seat belts 23Seat belts-Shoulder belt anchor 24Spare tire & tools 25Tire Pressure Warning System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
OVERVIEW

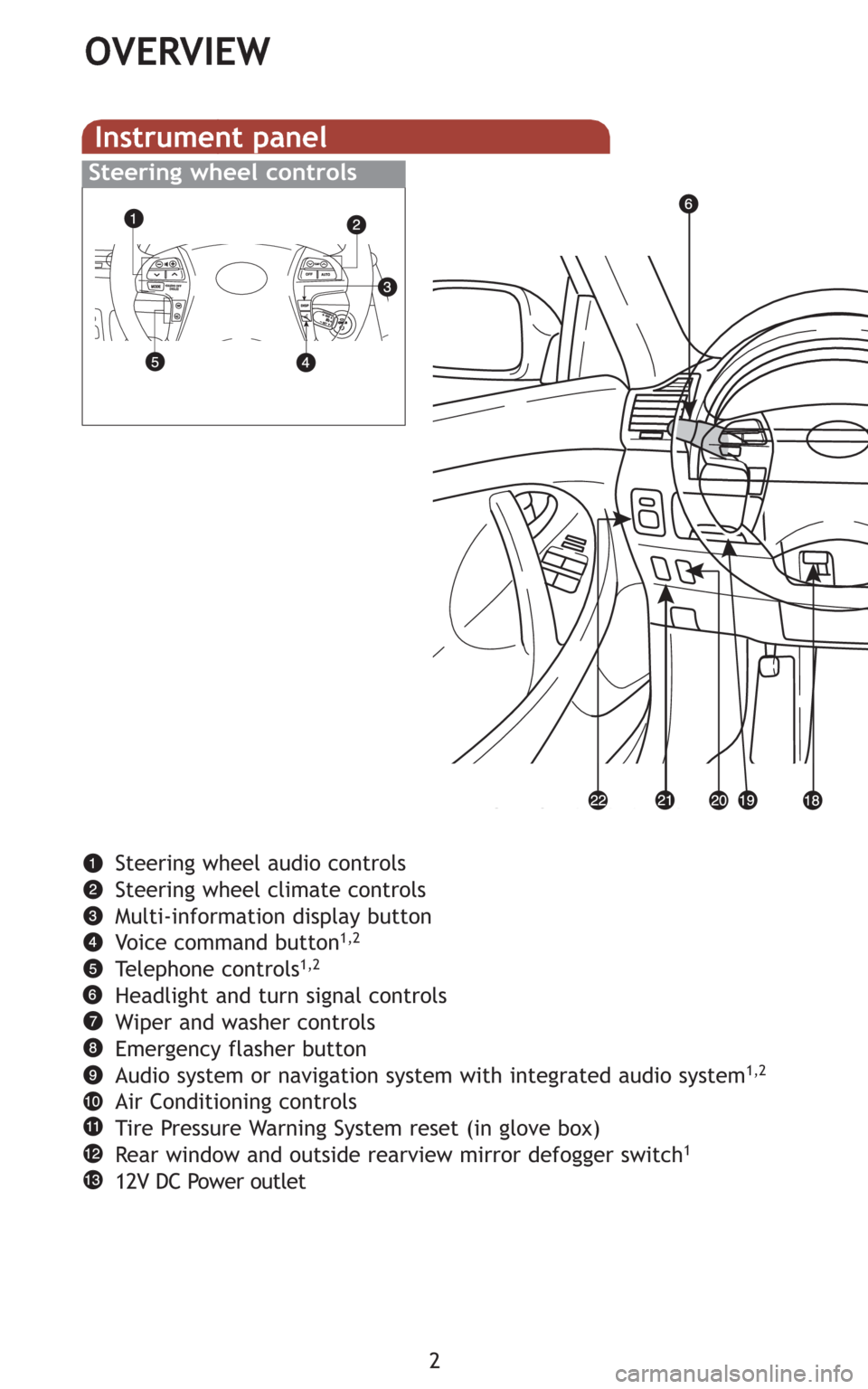

Instrument panel
Steering wheel audio controls
Steering wheel climate controls
Multi-information display button
Voice command button
1,2
Telephone controls1,2
Headlight and turn signal controls
Wiper and washer controls
Emergency flasher button
Audio system or navigation system with integrated audio system
1,2
Air Conditioning controls
Tire Pressure Warning System reset (in glove box)
Rear window and outside rearview mirror defogger switch
1
12V DC Power outlet
Steering wheel controls

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

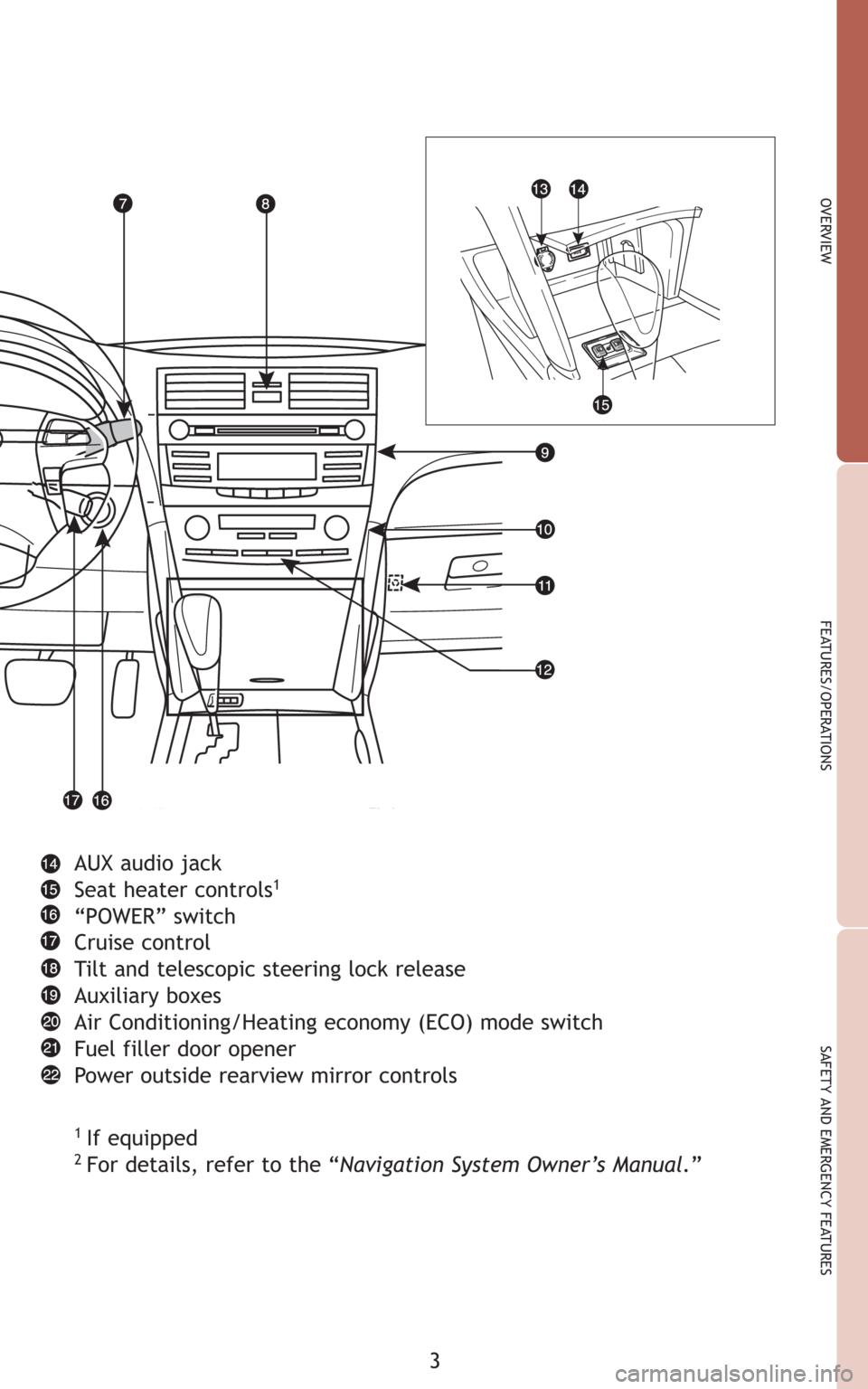

AUX audio jack
Seat heater controls1
“POWER” switch
Cruise control
Tilt and telescopic steering lock release
Auxiliary boxes
Air Conditioning/Heating economy (ECO) mode switch
Fuel filler door opener
Power outside rearview mirror controls
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”

4
OVERVIEW

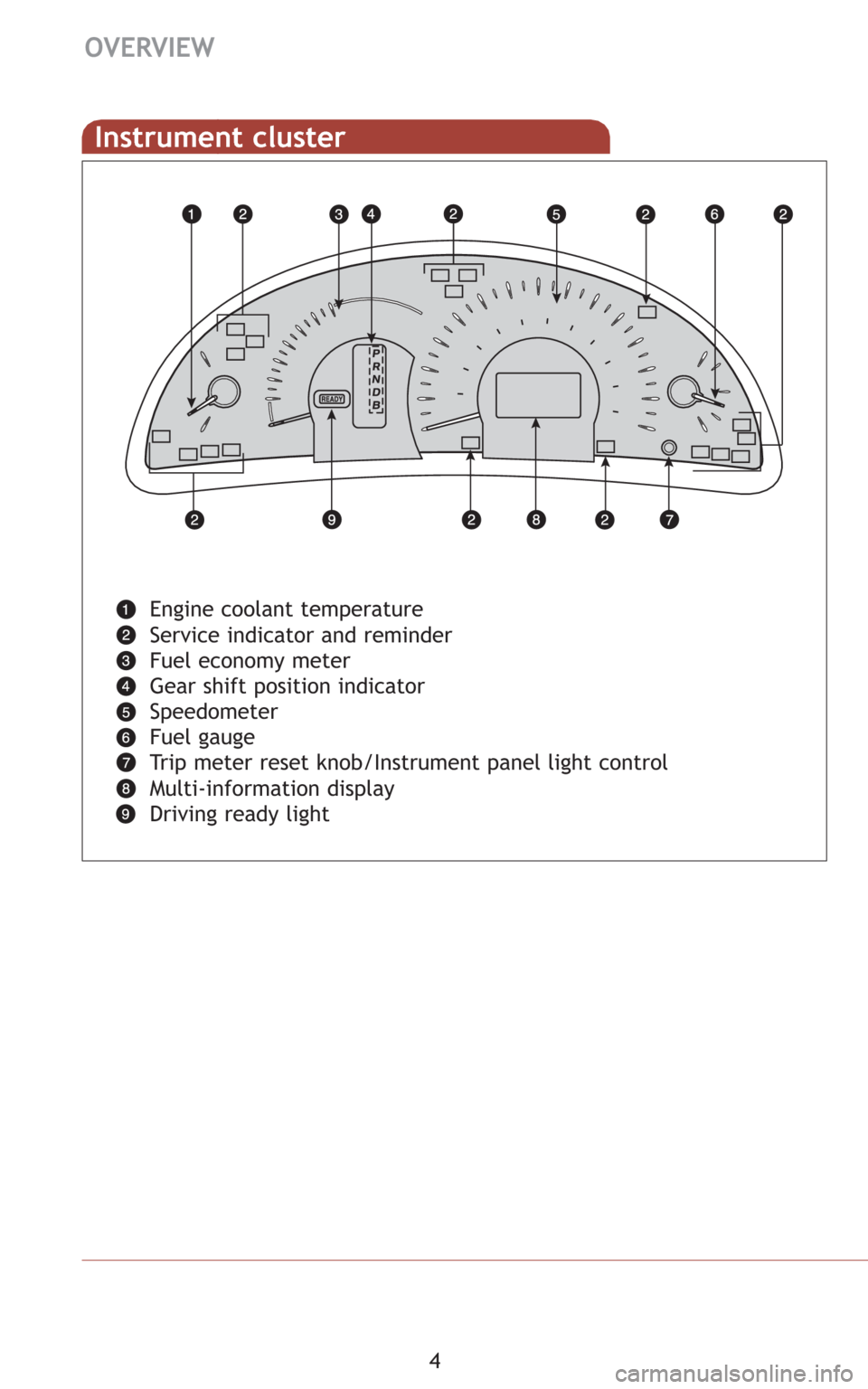

Instrument cluster
Engine coolant temperature
Service indicator and reminder
Fuel economy meter
Gear shift position indicator
Speedometer
Fuel gauge
Trip meter reset knob/Instrument panel light control
Multi-information display
Driving ready light

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

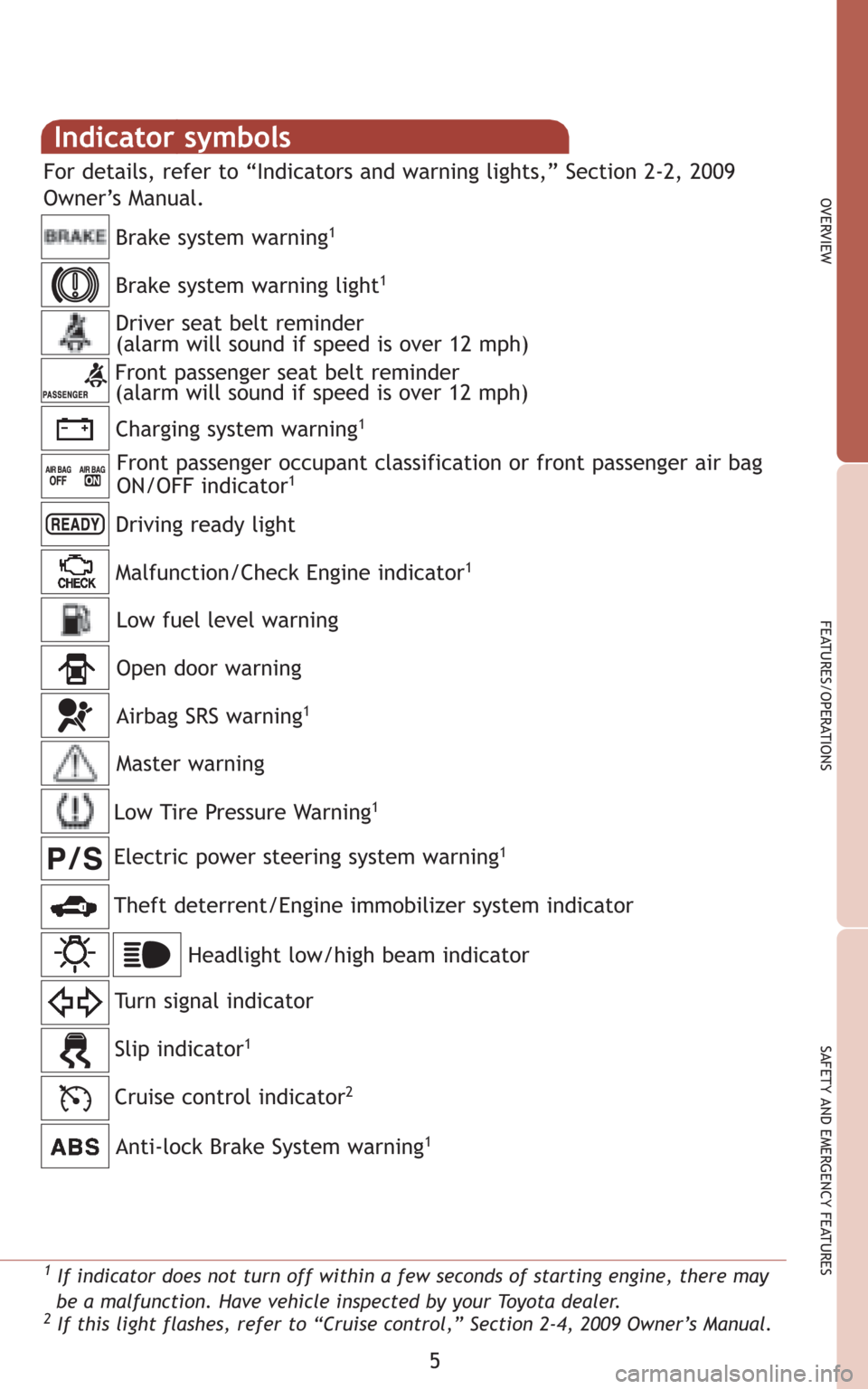

Indicator symbols
Charging system warning1
Brake system warning1
Front passenger occupant classification or front passenger air bag
ON/OFF indicator1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 2009 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Driving ready light
Malfunction/Check Engine indicator
1
Low fuel level warning
Electric power steering system warning1
Brake system warning light1
For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.

6
OVERVIEW

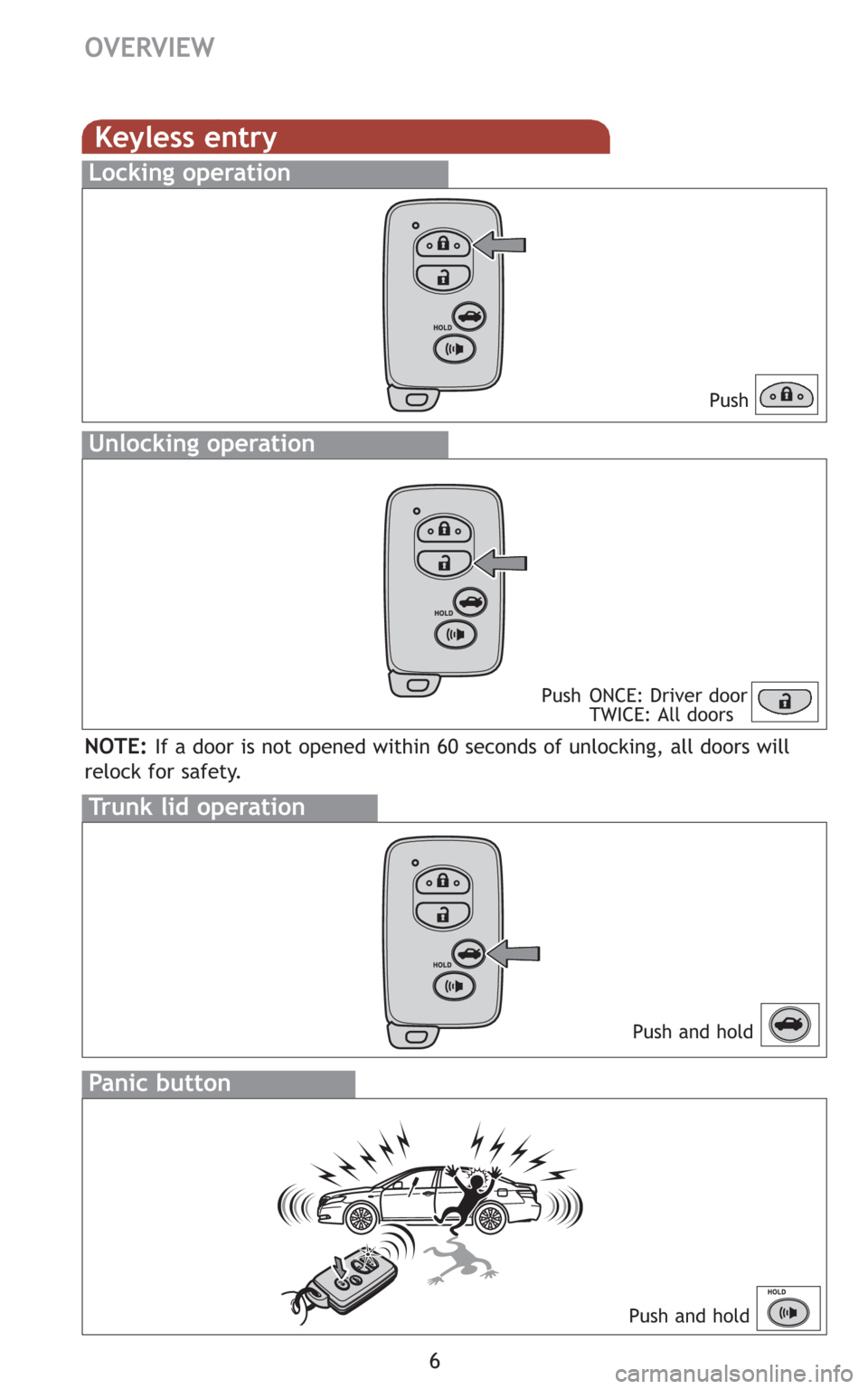

Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Trunk lid operation
Push and hold
Panic button
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

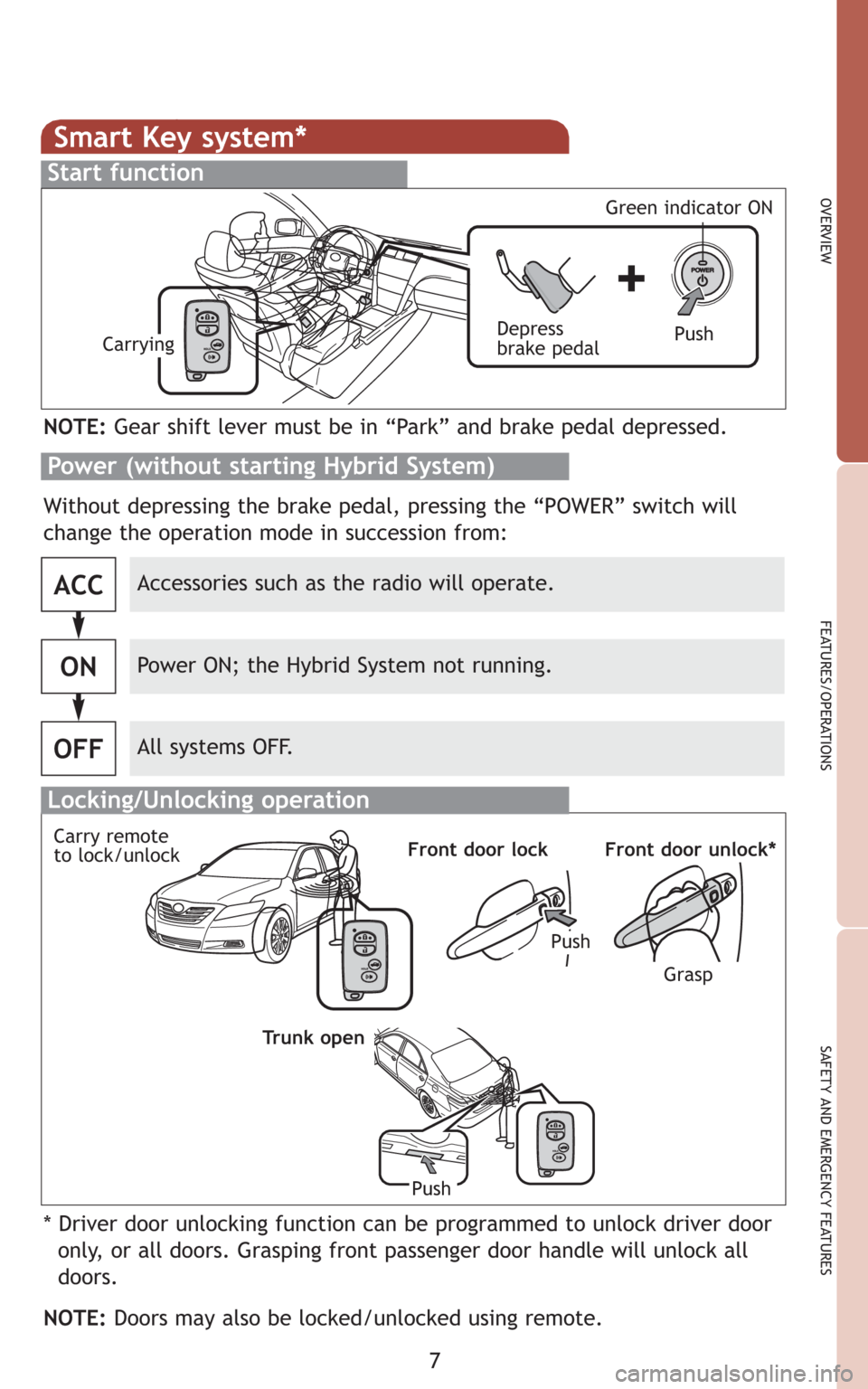

Smart Key system*
Start function
Accessories such as the radio will operate.
Power ON; the Hybrid System not running.
All systems OFF.
ACC
ON
OFF
NOTE:Gear shift lever must be in “Park” and brake pedal depressed.
Push Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “POWER” switch will
change the operation mode in succession from:
Locking/Unlocking operation
Carry remote
to lock/unlock
Push
Front door unlock*
GraspFront door lock
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping front passenger door handle will unlock all
doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting Hybrid System)
Push
Trunk open

8

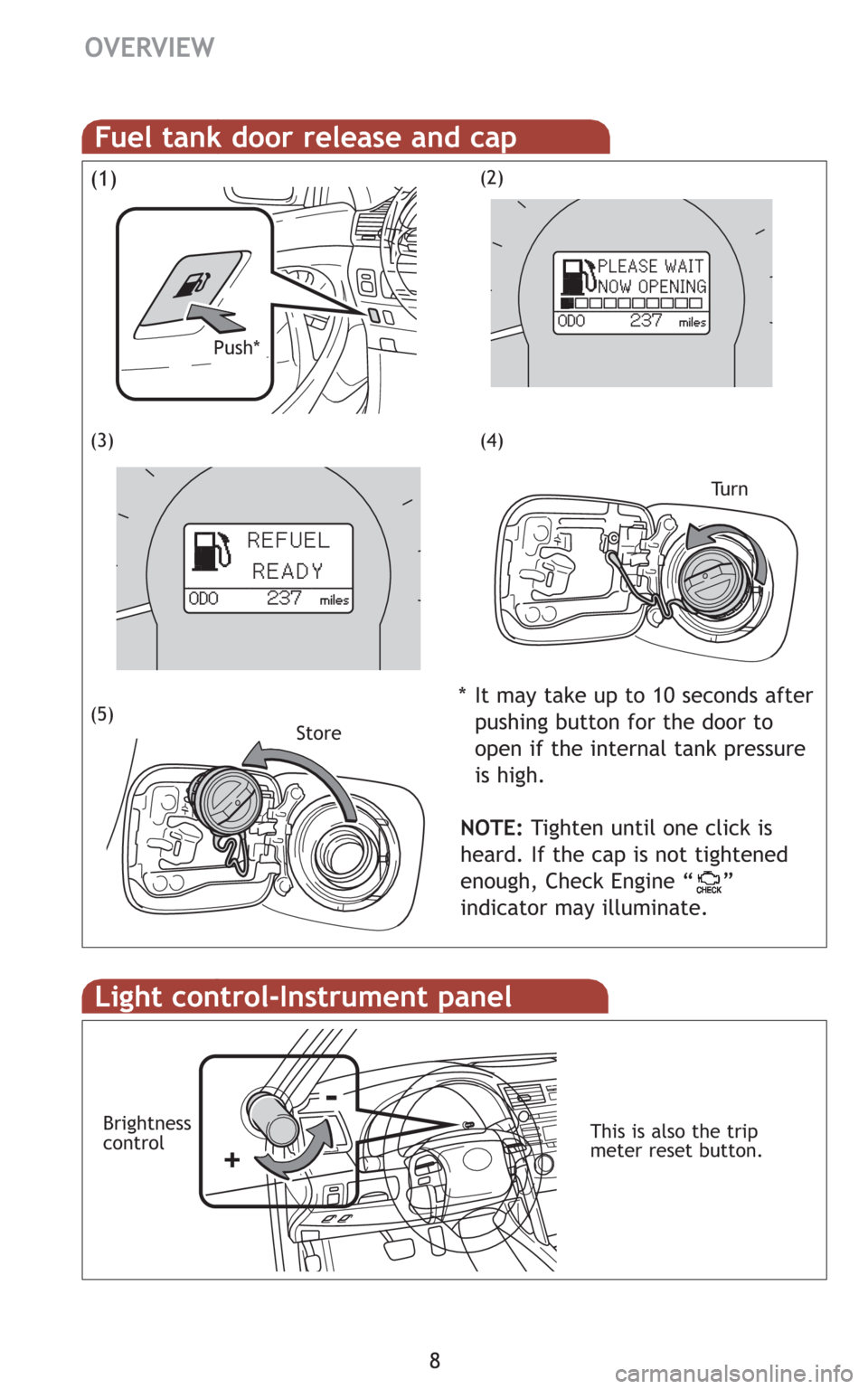

Fuel tank door release and cap
* It may take up to 10 seconds after
pushing button for the door to
open if the internal tank pressure
is high.
Push*
Light control-Instrument panel
Brightness
control-
+
Store
Tu r n
OVERVIEW
(1)
(3)
(5)(2)
(4)
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
This is also the trip
meter reset button.
