air conditioning TOYOTA CAMRY HYBRID 2009 XV40 / 8.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2009 Camry Hybrid Quick Reference Guide
Engine maintenance 9Fuel tank door release and cap 8Hood release 9Indicator symbols 5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 8
Smart Key system1,27
Air Conditioning/Heating 20-21Audio 18-19Auto lock functions211Clock 21Cruise control 15Cup holders 22Door locks 22Garage door opener (HomeLink®)315Hybrid Synergy Drive System 10Lights1& turn signals 13Moonroof 17Multi-information display 17Parking brake 12Power outlets 22Seat adjustments-Front 14Seat heaters 21Seats-Folding rear seats 14Seats-Head restraints 14Steering lock release 11Steering wheel switches 19Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel 12Transmission 11Windows-Power 12
Windshield wipers & washers 13
Child comfort guide 24Doors-Child safety locks 23Fuel filler door-Internal release 23Seat belts 23Seat belts-Shoulder belt anchor 24Spare tire & tools 25Tire Pressure Warning System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
OVERVIEW
Instrument panel
Steering wheel audio controls
Steering wheel climate controls
Multi-information display button
Voice command button
1,2
Telephone controls1,2
Headlight and turn signal controls
Wiper and washer controls
Emergency flasher button
Audio system or navigation system with integrated audio system
1,2
Air Conditioning controls
Tire Pressure Warning System reset (in glove box)
Rear window and outside rearview mirror defogger switch
1
12V DC Power outlet
Steering wheel controls

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
AUX audio jack
Seat heater controls1
“POWER” switch
Cruise control
Tilt and telescopic steering lock release
Auxiliary boxes
Air Conditioning/Heating economy (ECO) mode switch
Fuel filler door opener
Power outside rearview mirror controls
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”

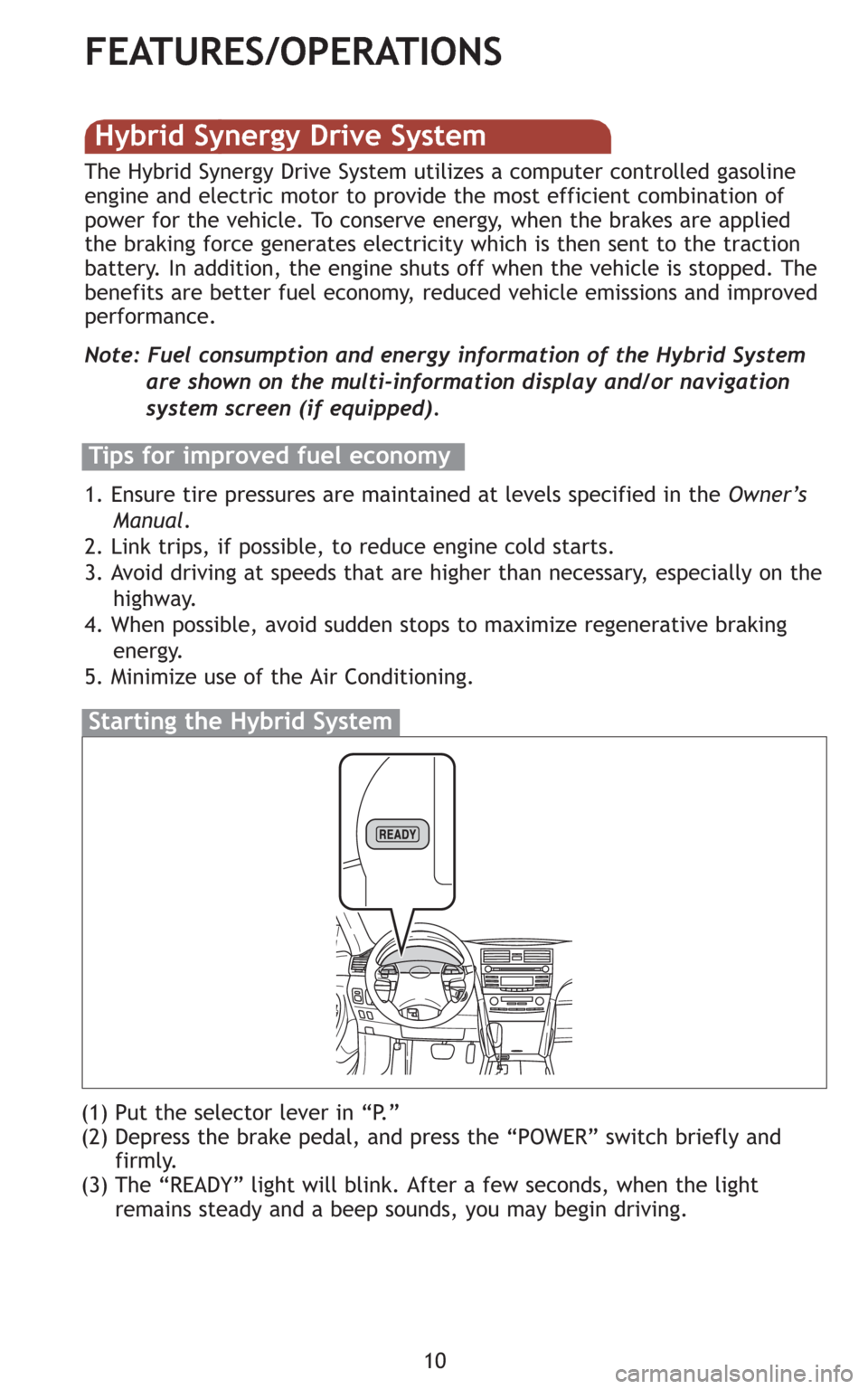

10
FEATURES/OPERATIONS
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and press the “POWER” switch briefly and
firmly.
(3) The “READY” light will blink. After a few seconds, when the light
remains steady and a beep sounds, you may begin driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
Note: Fuel consumption and energy information of the Hybrid System
are shown on the multi-information display and/or navigation
system screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s
Manual.
2. Link trips, if possible, to reduce engine cold starts.
3. Avoid driving at speeds that are higher than necessary, especially on the
highway.
4. When possible, avoid sudden stops to maximize regenerative braking
energy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System

20
FEATURES/OPERATIONS
Air Conditioning/Heating
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passengers.
Indicator OFF:Synchronize temperature settings for driver and
passengers.
Temperature (driver side)
Fan speed
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Temperature (passenger side)
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Rear defogger
Windshield airflow/defogger
Climate control OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
