OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2009 Camry Hybrid Quick Reference Guide
Engine maintenance 9Fuel tank door release and cap 8Hood release 9Indicator symbols 5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 8
Smart Key system1,27
Air Conditioning/Heating 20-21Audio 18-19Auto lock functions211Clock 21Cruise control 15Cup holders 22Door locks 22Garage door opener (HomeLink®)315Hybrid Synergy Drive System 10Lights1& turn signals 13Moonroof 17Multi-information display 17Parking brake 12Power outlets 22Seat adjustments-Front 14Seat heaters 21Seats-Folding rear seats 14Seats-Head restraints 14Steering lock release 11Steering wheel switches 19Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel 12Transmission 11Windows-Power 12
Windshield wipers & washers 13
Child comfort guide 24Doors-Child safety locks 23Fuel filler door-Internal release 23Seat belts 23Seat belts-Shoulder belt anchor 24Spare tire & tools 25Tire Pressure Warning System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

4
OVERVIEW
Instrument cluster
Engine coolant temperature
Service indicator and reminder
Fuel economy meter
Gear shift position indicator
Speedometer
Fuel gauge
Trip meter reset knob/Instrument panel light control
Multi-information display
Driving ready light

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Indicator symbols
Charging system warning1
Brake system warning1
Front passenger occupant classification or front passenger air bag
ON/OFF indicator1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 2009 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Driving ready light
Malfunction/Check Engine indicator
1
Low fuel level warning
Electric power steering system warning1
Brake system warning light1
For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.

8
Fuel tank door release and cap
* It may take up to 10 seconds after
pushing button for the door to
open if the internal tank pressure
is high.
Push*
Light control-Instrument panel
Brightness
control-
+
Store
Tu r n
OVERVIEW
(1)
(3)
(5)(2)
(4)
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
This is also the trip
meter reset button.

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
Pull up latch and
raise hoodPull
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance

10
FEATURES/OPERATIONS
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and press the “POWER” switch briefly and
firmly.
(3) The “READY” light will blink. After a few seconds, when the light
remains steady and a beep sounds, you may begin driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
Note: Fuel consumption and energy information of the Hybrid System
are shown on the multi-information display and/or navigation
system screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s
Manual.
2. Link trips, if possible, to reduce engine cold starts.
3. Avoid driving at speeds that are higher than necessary, especially on the
highway.
4. When possible, avoid sudden stops to maximize regenerative braking
energy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

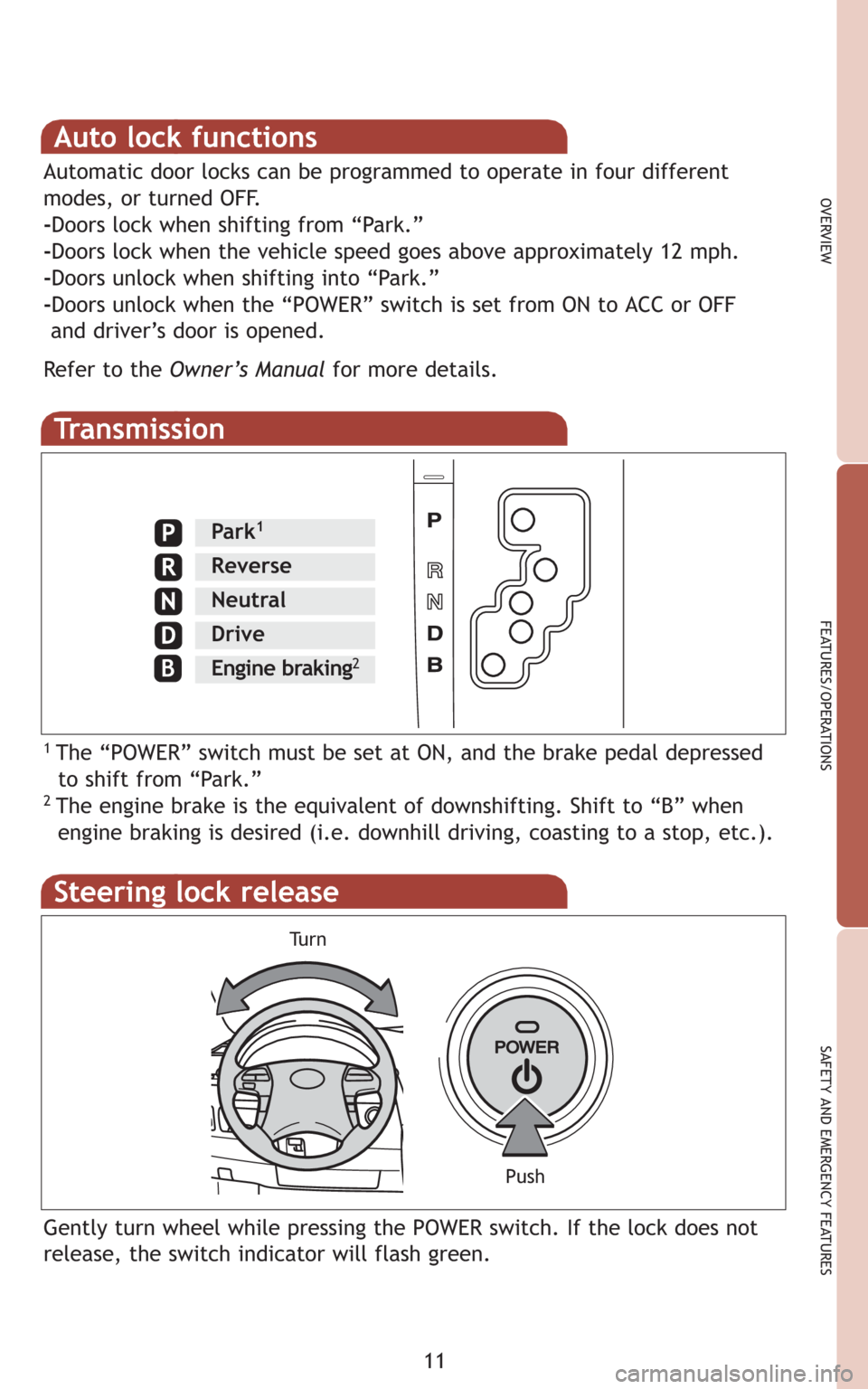

Transmission
1 The “POWER” switch must be set at ON, and the brake pedal depressed
to shift from “Park.”
2 The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park1
Reverse
Neutral
Drive
BEngine braking2
Steering lock release
Tu r n
Push
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from “Park.”
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into “Park.”
-Doors unlock when the “POWER” switch is set from ON to ACC or OFF
and driver’s door is opened.
Refer to the Owner’s Manualfor more details.
Gently turn wheel while pressing the POWER switch. If the lock does not
release, the switch indicator will flash green.

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Moonroof (if equipped)
Sliding operationTilting operation
Open
Tilt
Close
Close
Recommended driving
position to minimize
wind noise.
Multi-information display
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multi-information display OFF
(7) Zoom display of odometer and trip meter
(8) Energy monitor
(9) Average gas mileage
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
