TOYOTA CAMRY HYBRID 2010 XV40 / 8.G Owners Manual

300
3-7. Other interior features

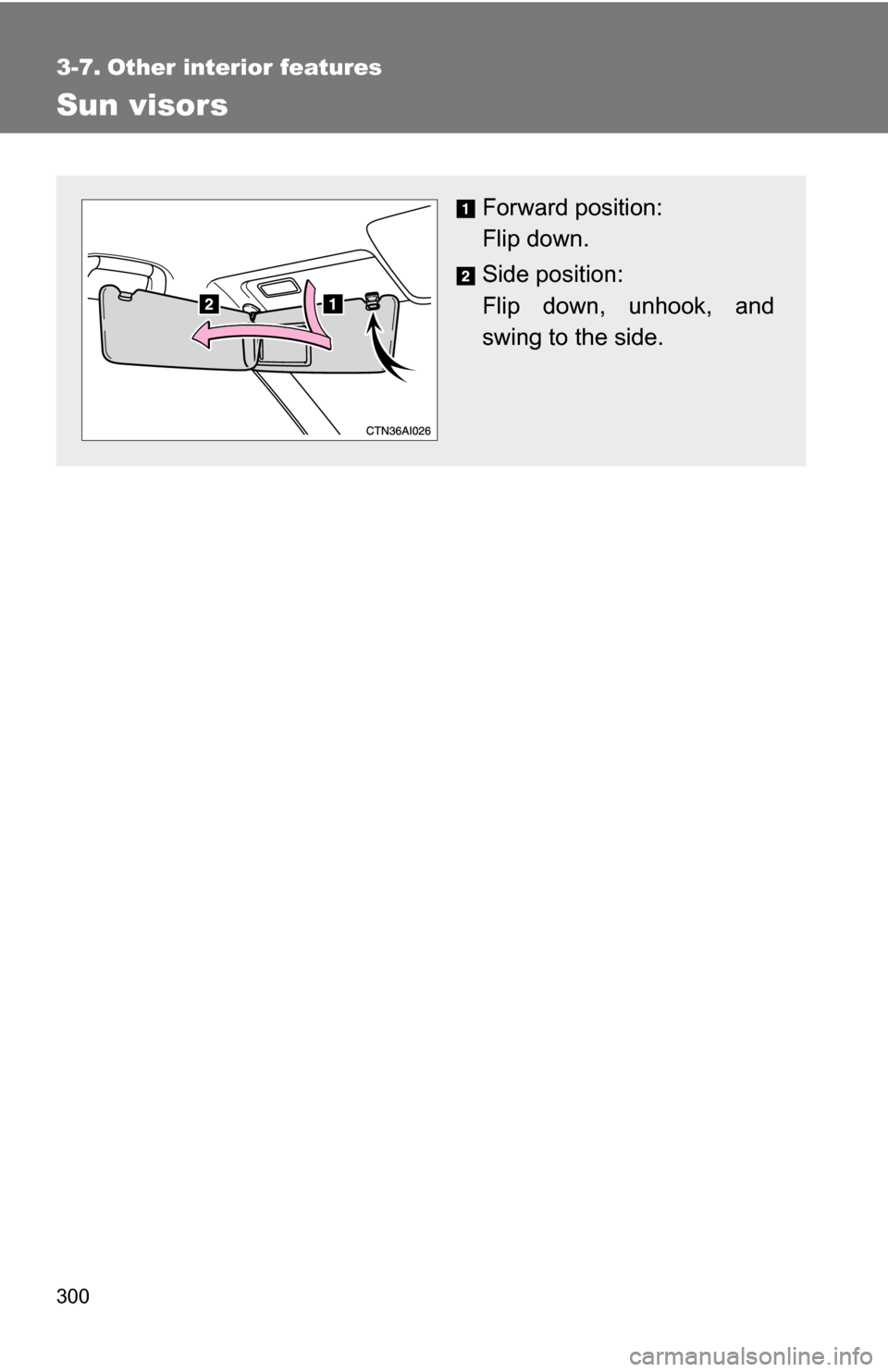

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

301
3-7. Other interior features
3
Interior features

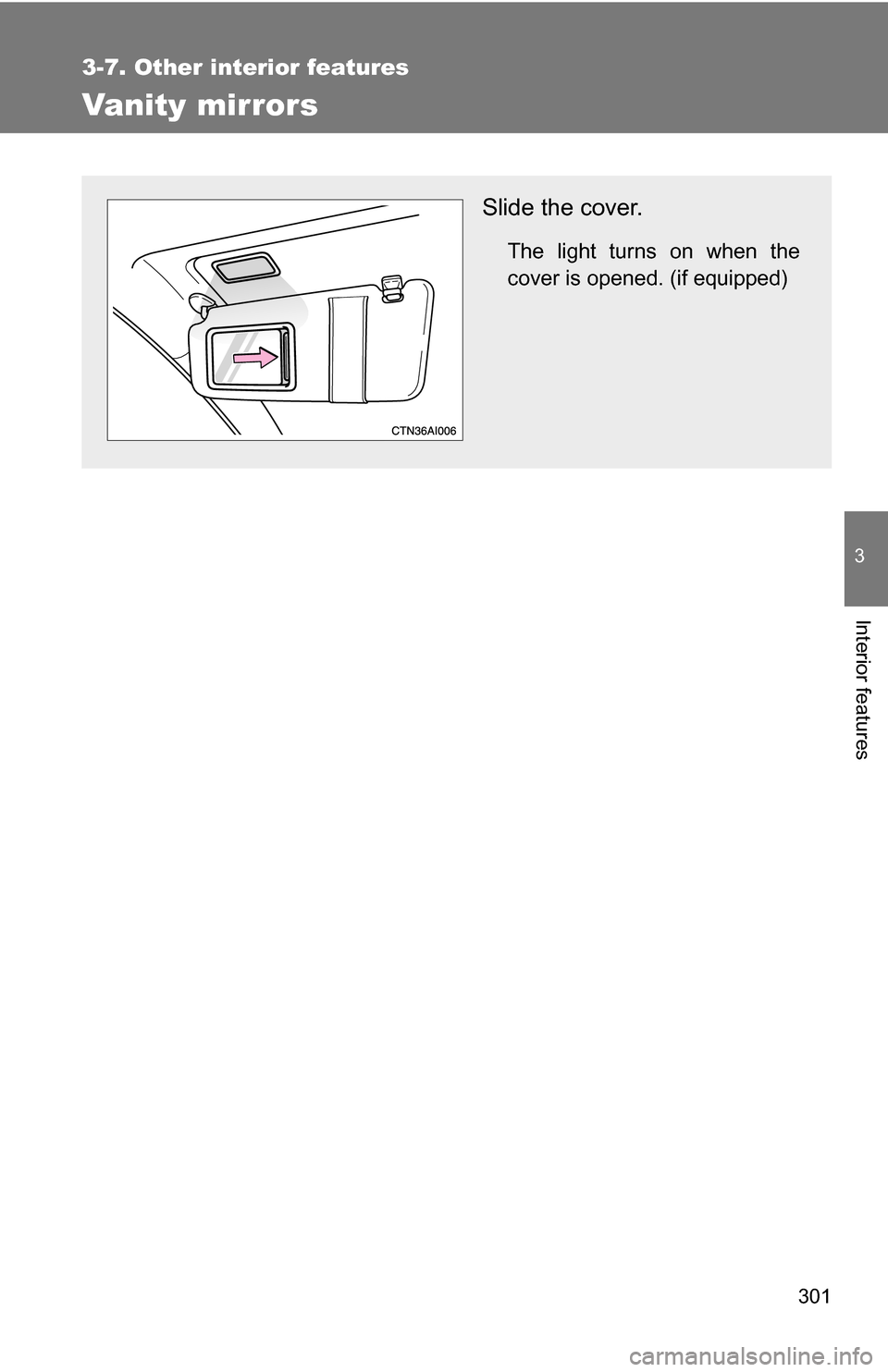

Vanity mirrors
Slide the cover.
The light turns on when the
cover is opened. (if equipped)

302
3-7. Other interior features

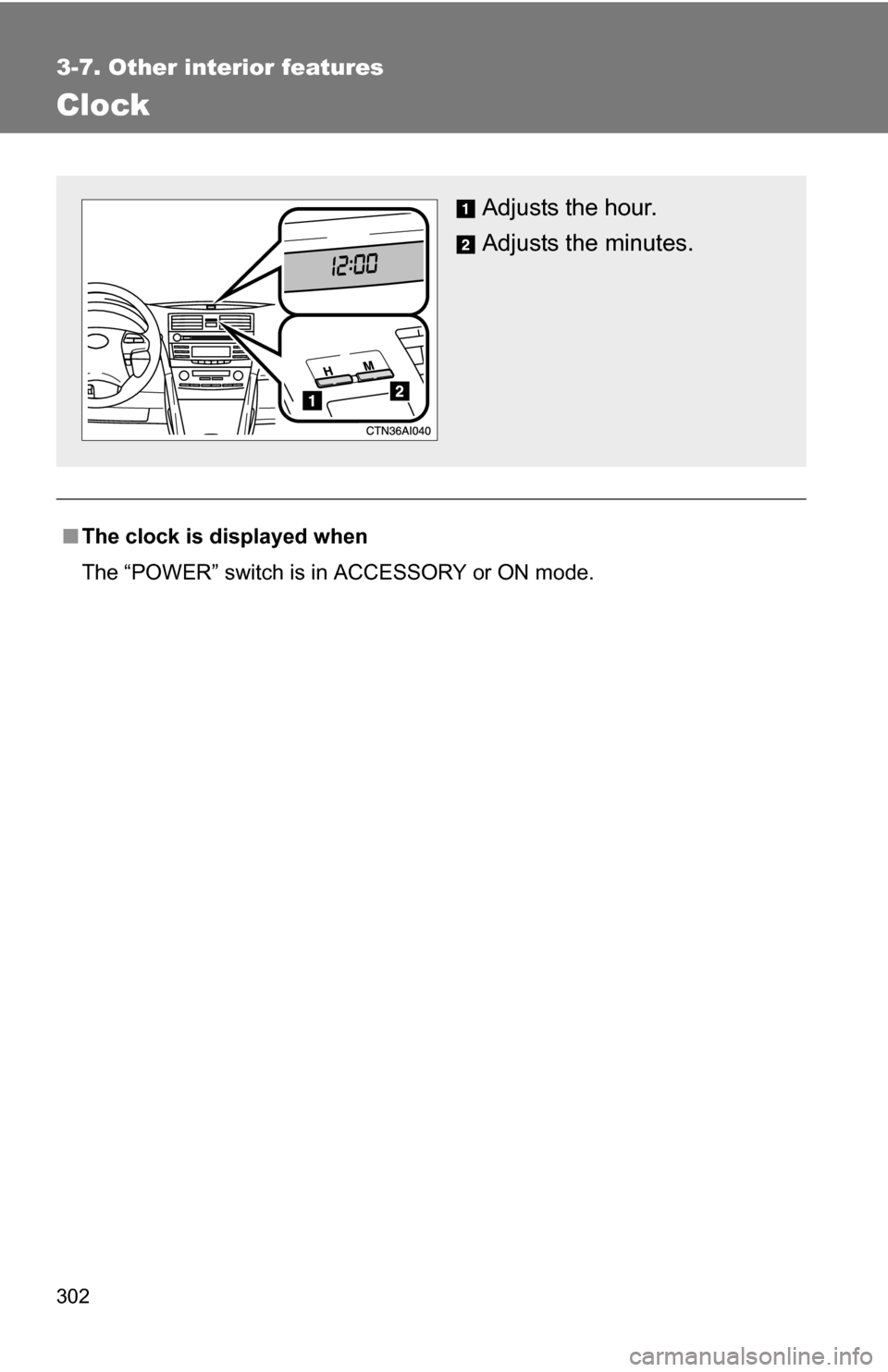

Clock
■The clock is displayed when
The “POWER” switch is in ACCESSORY or ON mode.
Adjusts the hour.
Adjusts the minutes.

303
3-7. Other interior features
3
Interior features

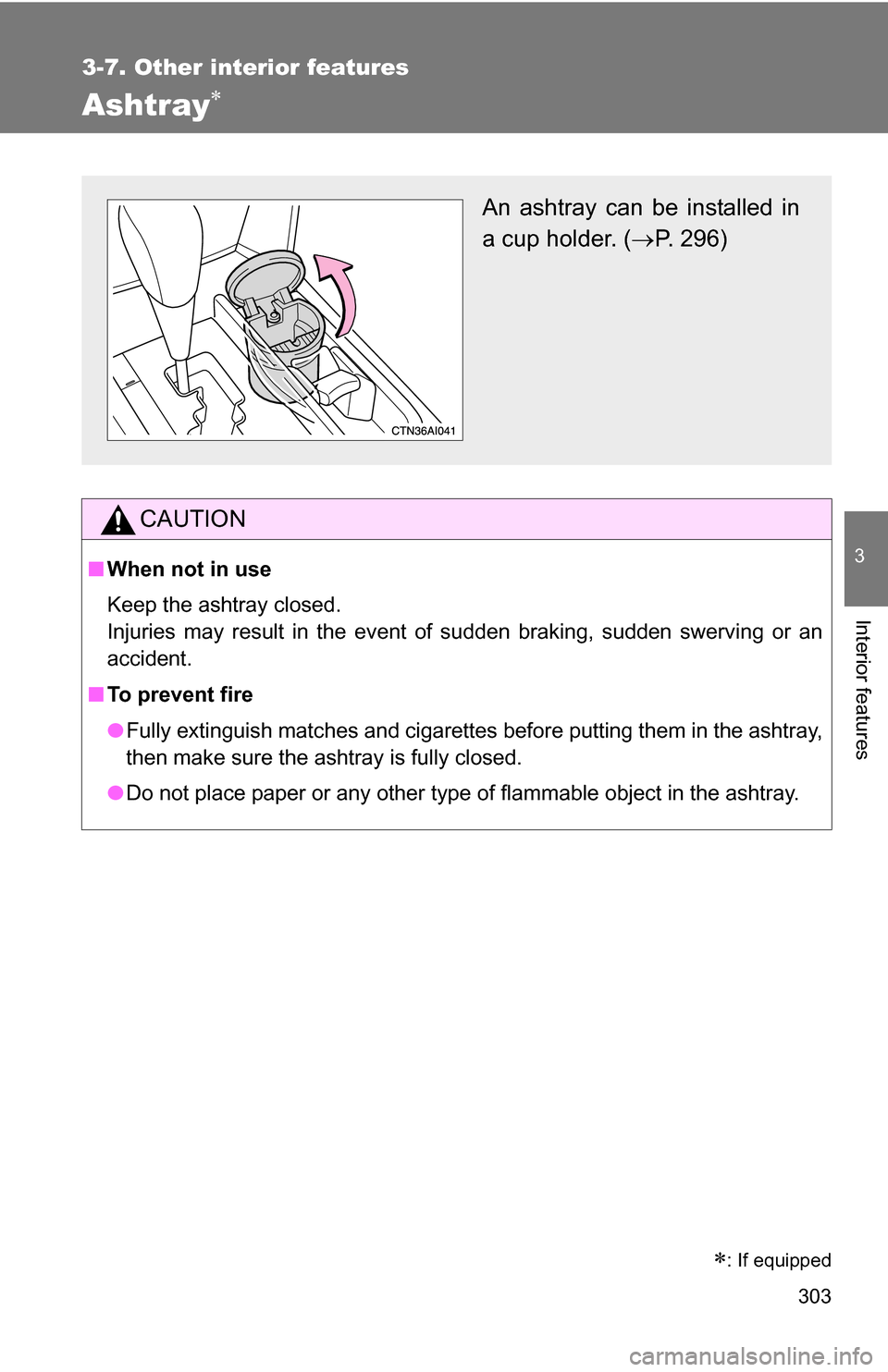

Ashtray
CAUTION
■When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
■ To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.
An ashtray can be installed in
a cup holder. ( P. 296)
: If equipped

304
3-7. Other interior features

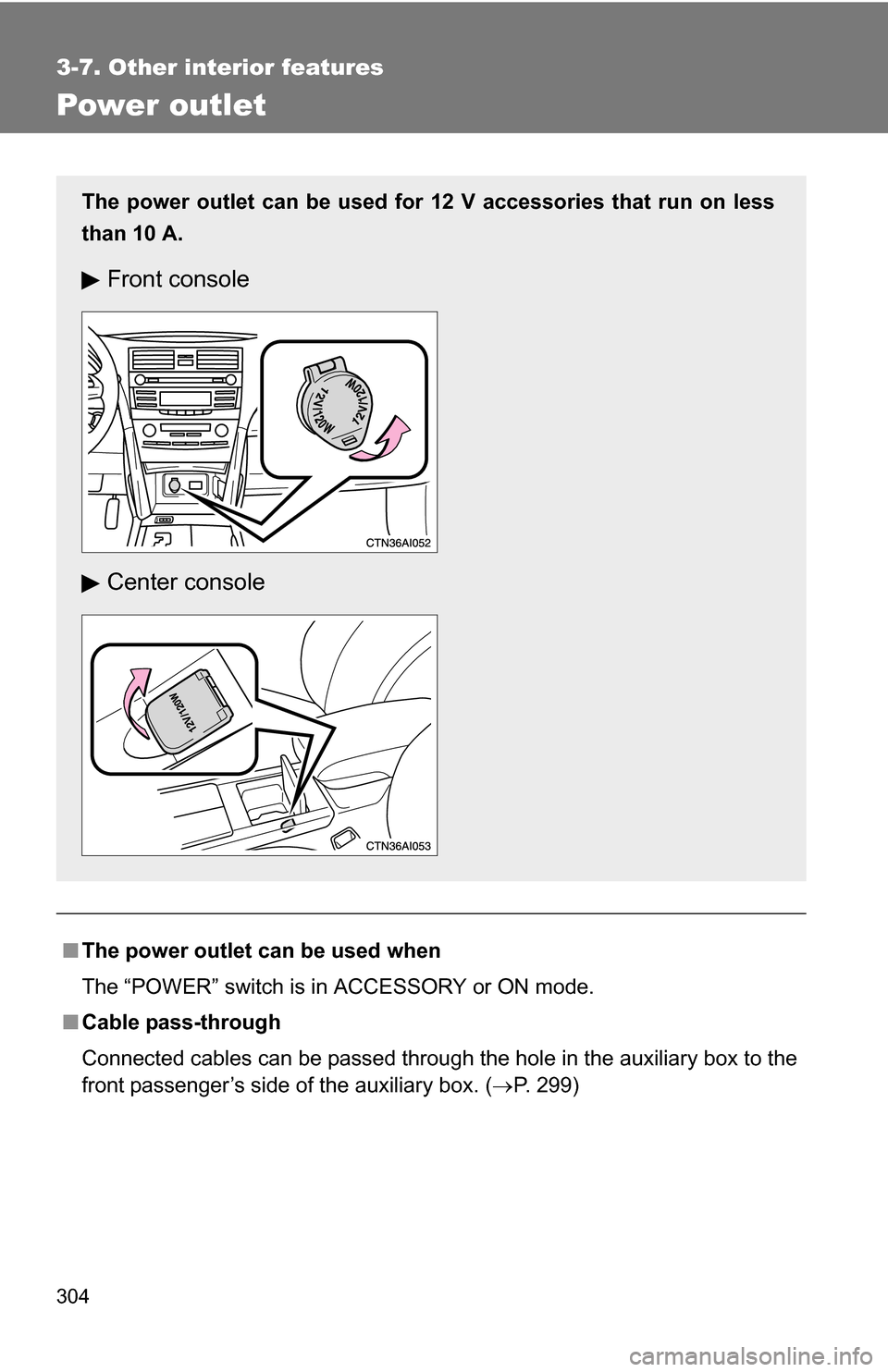

Power outlet
■The power outlet can be used when
The “POWER” switch is in ACCESSORY or ON mode.
■ Cable pass-through
Connected cables can be passed through the hole in the auxiliary box to the
front passenger’s side of the auxiliary box. ( P. 299)
The power outlet can be used for 12 V accessories that run on less
than 10 A.
Front console
Center console

305
3-7. Other interior features
3
Interior features

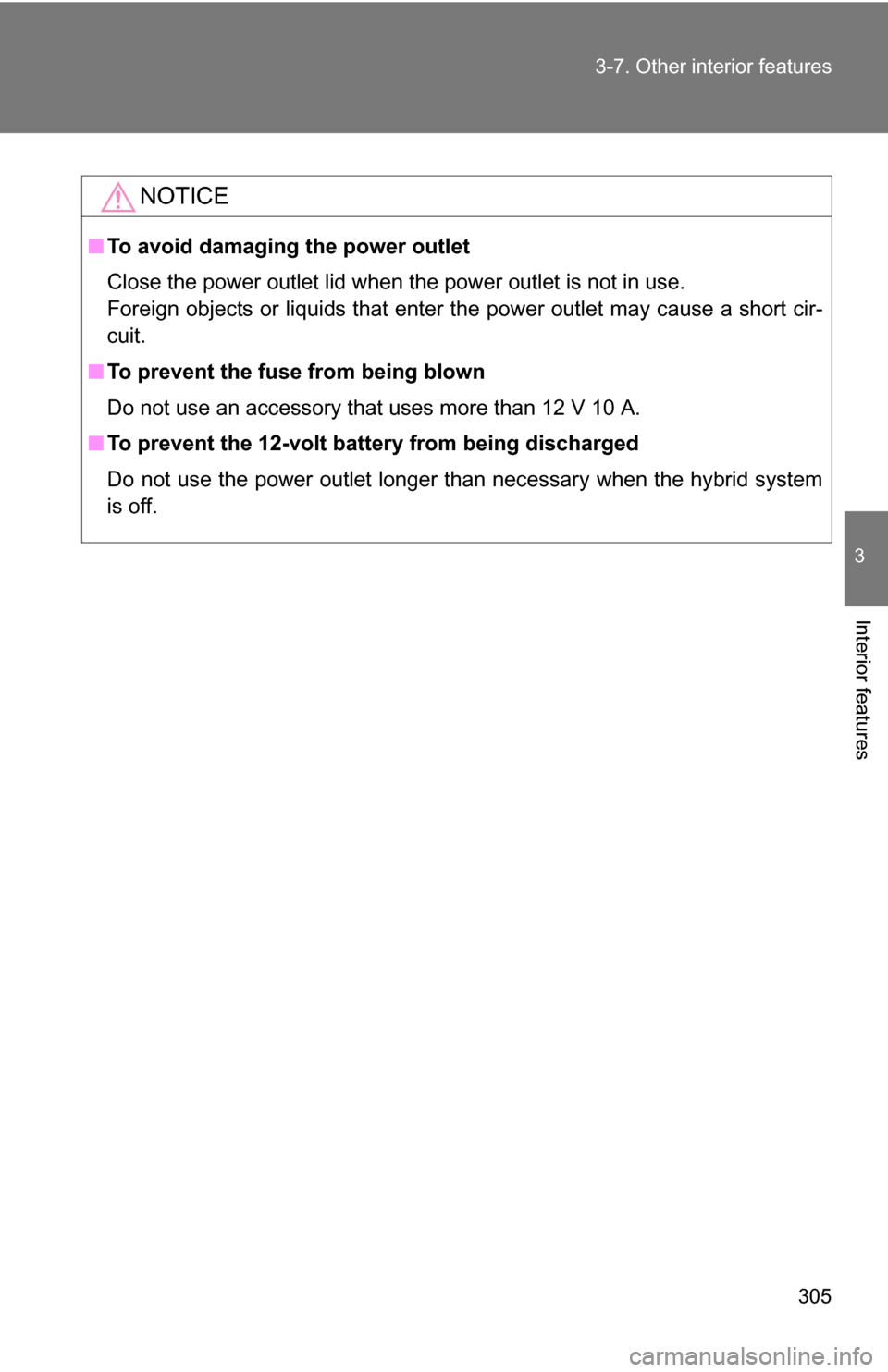

NOTICE
■
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent the 12-volt battery from being discharged
Do not use the power outlet longer than necessary when the hybrid system
is off.

306
3-7. Other interior features
Seat heaters
■The seat heaters can be used when
The “POWER” switch is in ON mode.
■ When not in use
Turn the seat heater off. The indicator light turns off.
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Heats the left front seat
Heats the right front seat
The indicator light comes on.
: If equipped

307
3-7. Other interior features
3
Interior features

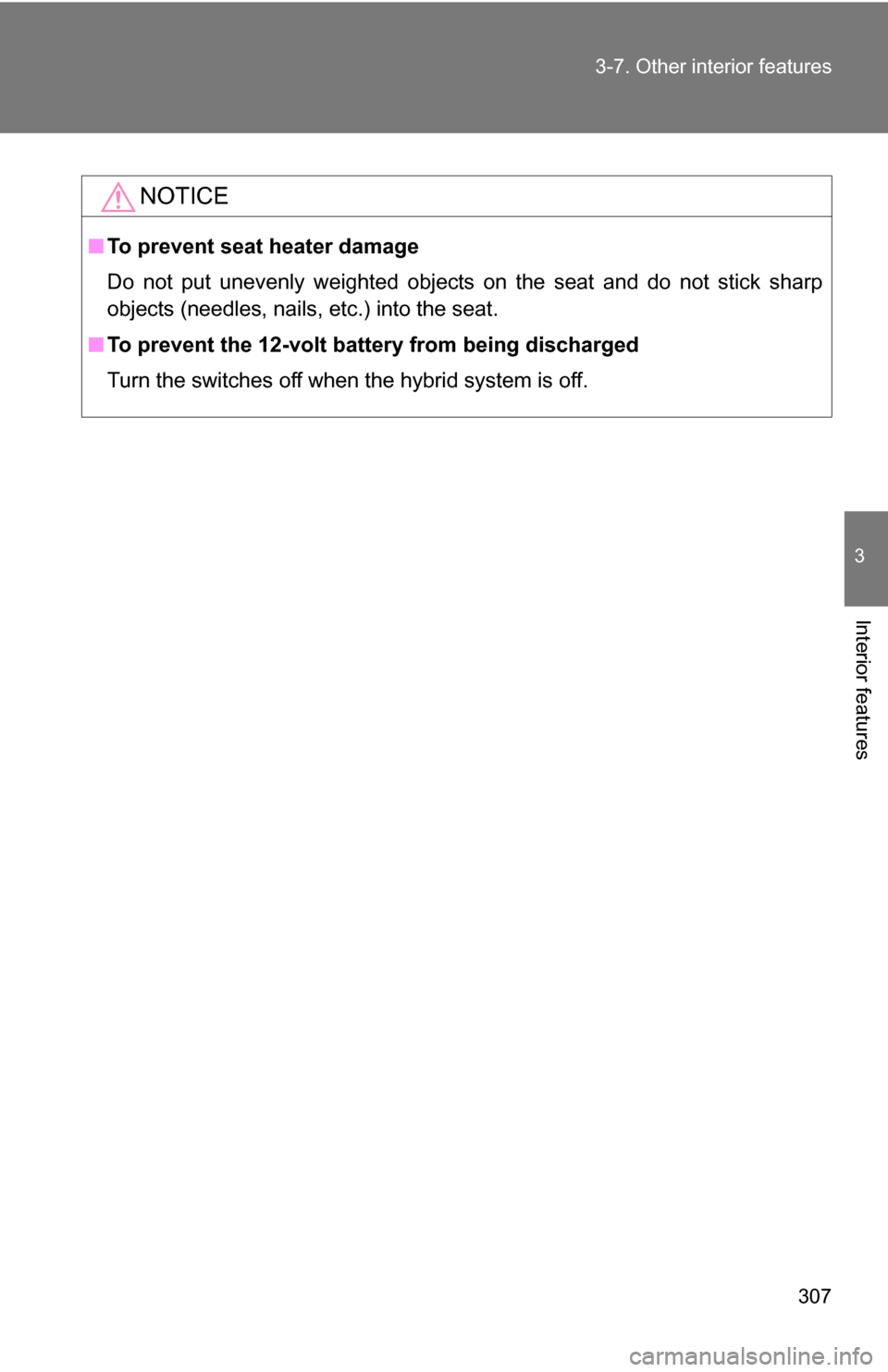

NOTICE
■
To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent the 12-volt battery from being discharged
Turn the switches off when the hybrid system is off.

308
3-7. Other interior features

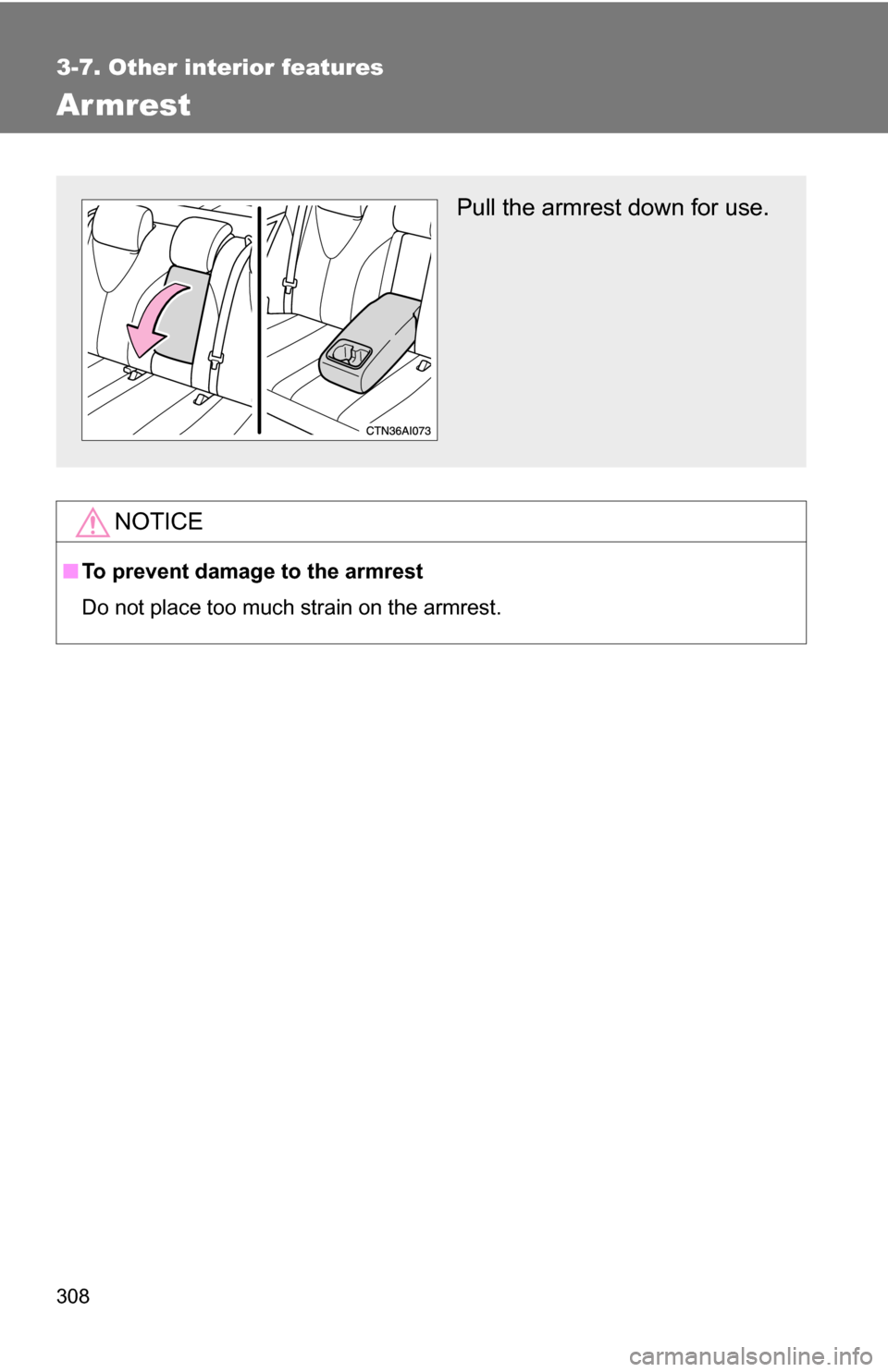

Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.

309
3-7. Other interior features
3
Interior features
Floor mat
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering wi\
th the
movement of the pedals during driving, resulting in an accident.
●Make sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
● Do not place floor mats on the top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the driver's floor mat
using the hooks provided.
