TOYOTA CAMRY HYBRID 2011 XV50 / 9.G Quick Reference Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
8

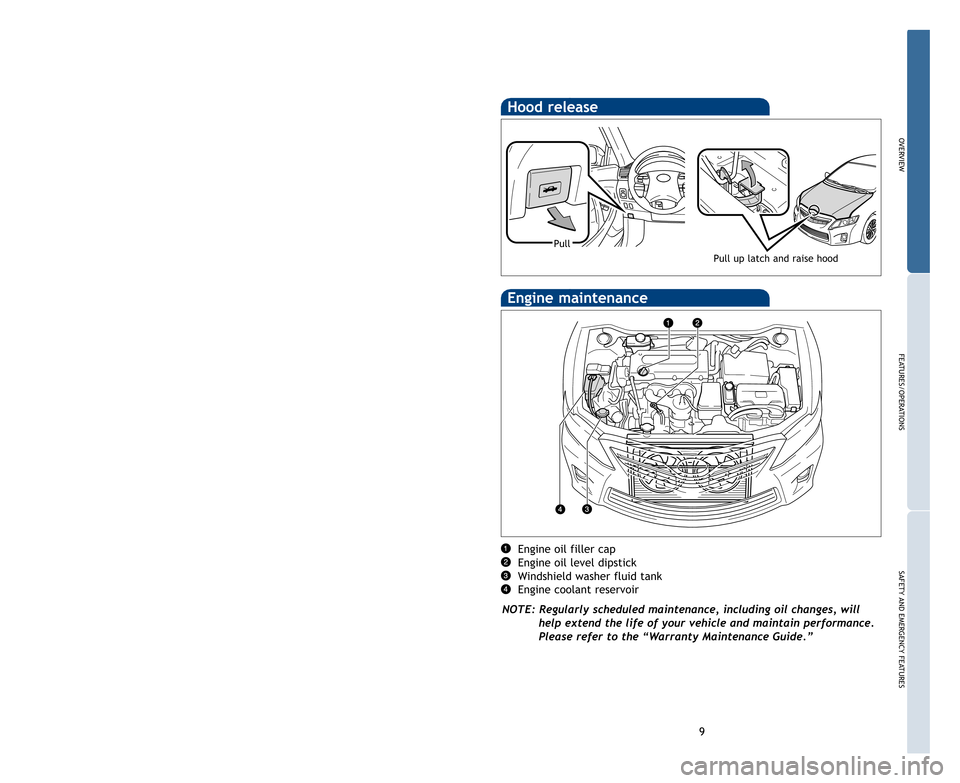

Hood release
Pull up latch and raise hood
Pull
Fuel tank door release and cap
Push*
Engine oil filler cap
Engine oil level dipstickWindshield washer fluid tank
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light controlInstrument panel
Brightness
control
+
Store
Turn
OVERVIEW
(1)
(3)
(5)(2)
(4)
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
NOTE: This is also the
trip meter reset button.
*It may take up to 10 seconds after
pushing button for the door to open
if the internal tank pressure is high.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 8

1011
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS
Transmission
1The “POWER” switch must be set at “ON” and the brake pedal depressed
to shift from Park.
2The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park1
Reverse
Neutral
Drive
BEngine braking2
Steering lock release
Turn
Push
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
Doors lock when shifting from Park.
Doors lock when the vehicle speed goes above approximately 12 mph.
Doors unlock when shifting into Park.
Doors unlock when the “POWER” switch is set from ON to ACC or OFF
and driver’s door is opened.
Refer to the
Owner’s Manualfor more details.

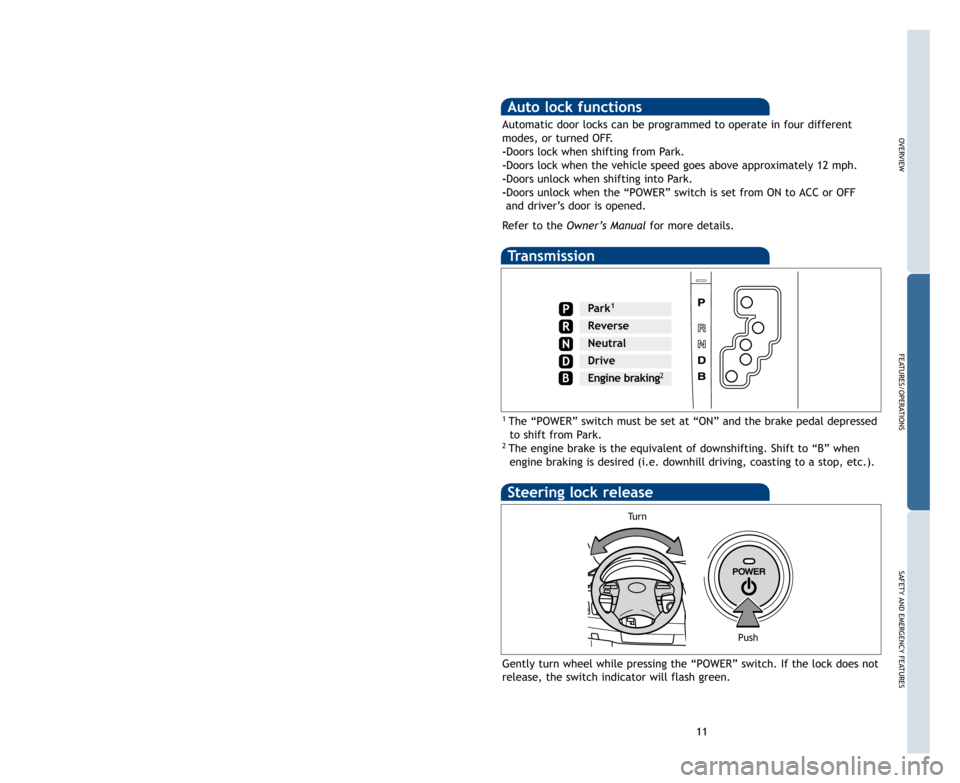

(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and press the “POWER” switch briefly
and firmly.
(3) The “READY” light will blink. After a few seconds, when the light
remains steady and a beep sounds, you may begin driving.
Starting the Hybrid System

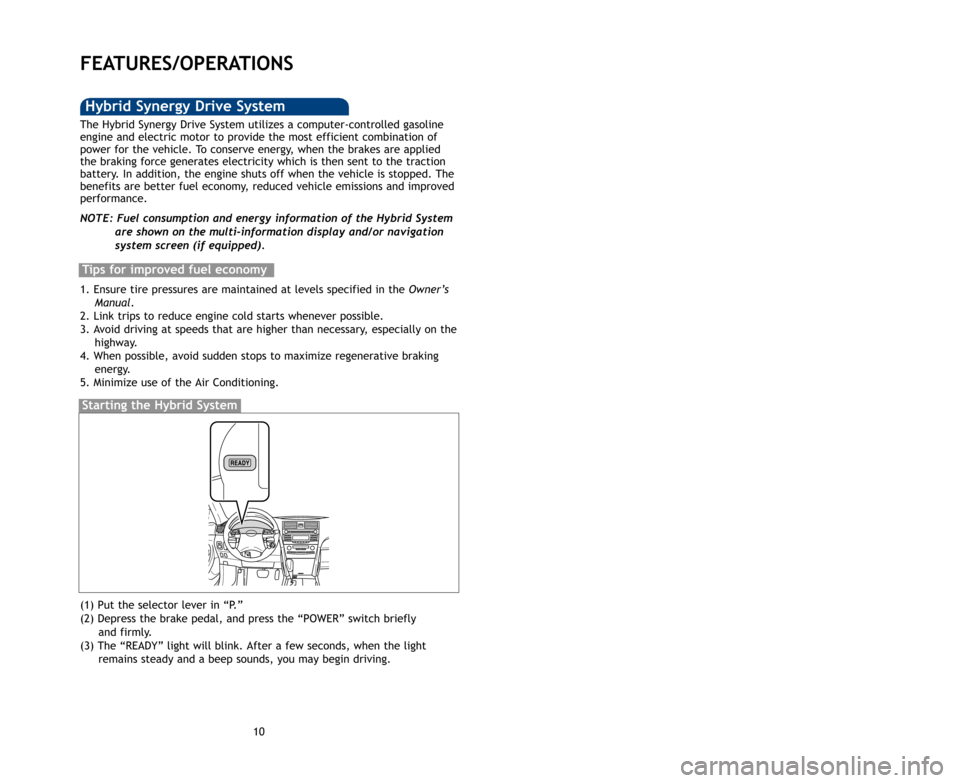

The Hybrid Synergy Drive System utilizes a computercontrolled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
NOTE: Fuel consumption and energy information of the Hybrid System
are shown on the multiinformation display and/or navigation
system screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s
Manual
.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on the
highway.
4. When possible, avoid sudden stops to maximize regenerative braking
energy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Gently turn wheel while pressing the “POWER” switch. If the lock does not
release, the switch indicator will flash green.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 10

1011
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS
Transmission
1The “POWER” switch must be set at “ON” and the brake pedal depressed
to shift from Park.
2The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park1
Reverse
Neutral
Drive
BEngine braking2
Steering lock release
Turn
Push
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
Doors lock when shifting from Park.
Doors lock when the vehicle speed goes above approximately 12 mph.
Doors unlock when shifting into Park.
Doors unlock when the “POWER” switch is set from ON to ACC or OFF
and driver’s door is opened.
Refer to the
Owner’s Manualfor more details.
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and press the “POWER” switch briefly
and firmly.
(3) The “READY” light will blink. After a few seconds, when the light
remains steady and a beep sounds, you may begin driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computercontrolled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
NOTE: Fuel consumption and energy information of the Hybrid System
are shown on the multiinformation display and/or navigation
system screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s
Manual
.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on the
highway.
4. When possible, avoid sudden stops to maximize regenerative braking
energy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Gently turn wheel while pressing the “POWER” switch. If the lock does not
release, the switch indicator will flash green.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 10

1213
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS

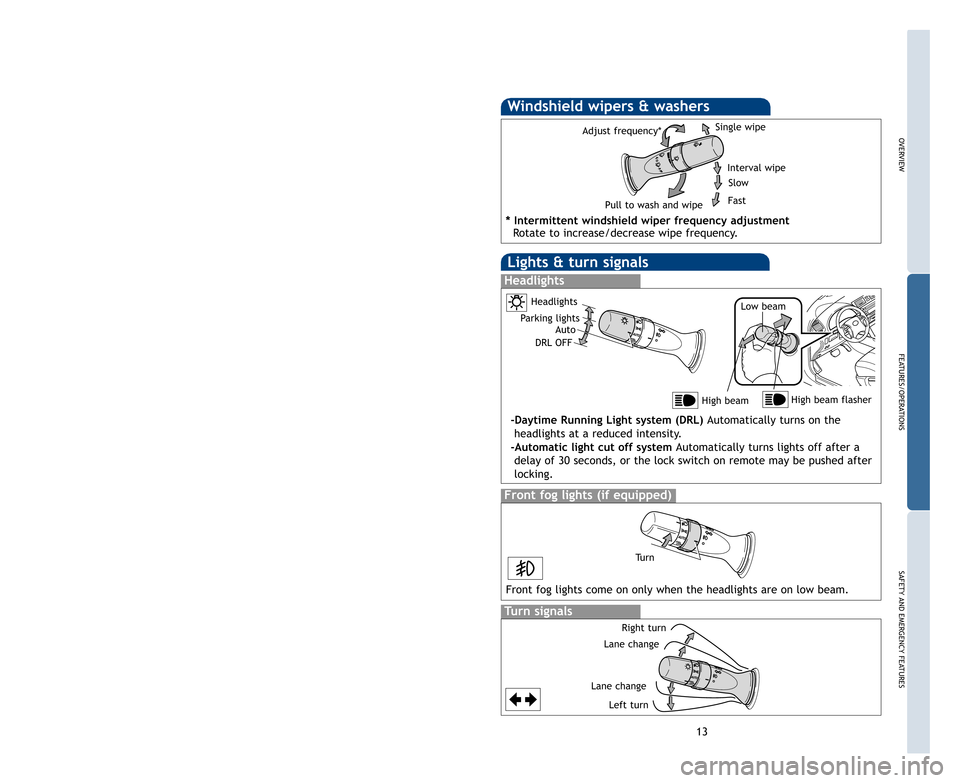

Windshield wipers & washers
Interval wipe Single wipe
Slow
FastPull to wash and wipe
WindowsPower
Up
Down
Driver sideWindow lock switch
Automatic operationPush the switch completely down or pull it
completely up and release to fully open and close. To stop window
midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Parking brake
Set: Depress
Release: Depress again

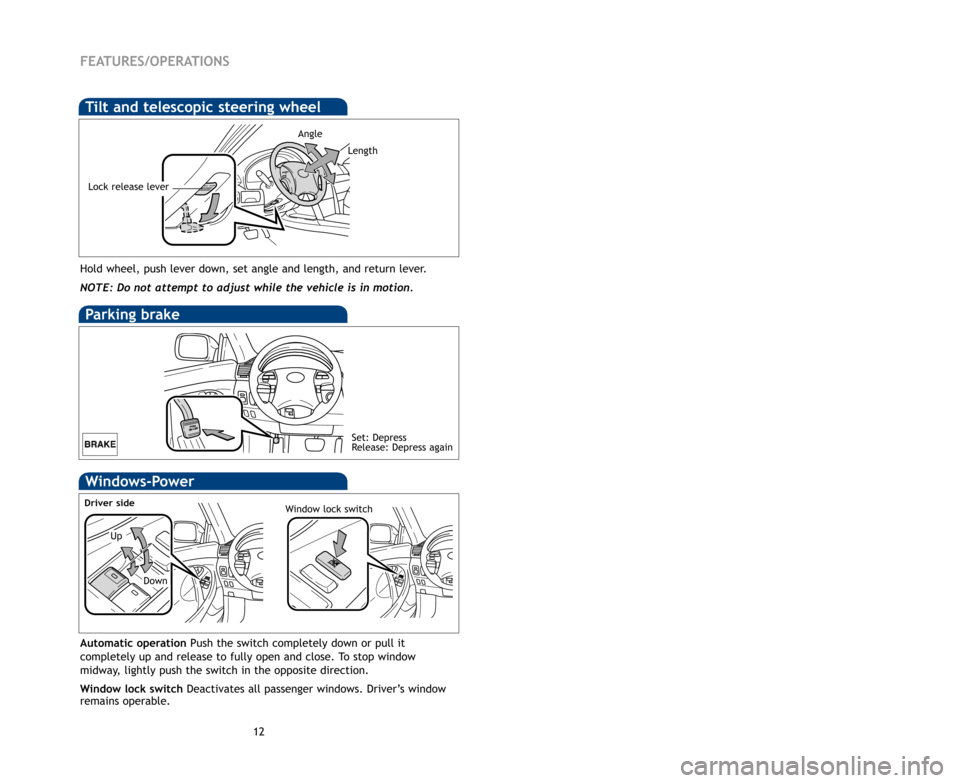

Hold wheel, push lever down, set angle and length, and return lever.
Angle
Length
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam Headlights
Daytime Running Light system (DRL) Automatically turns on the
headlights at a reduced intensity.
Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
Parking lights
Right turn
Lane change
Lane change
Left turnHigh beamAuto
DRL OFF
*Intermittent windshield wiper frequency adjustmentRotate to increase/decrease wipe frequency.
Adjust frequency*
Front fog lights (if equipped)
Turn
Front fog lights come on only when the headlights are on low beam.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 12

1213
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS
Windshield wipers & washers
Interval wipe Single wipe
Slow
FastPull to wash and wipe
WindowsPower
Up
Down
Driver sideWindow lock switch
Automatic operationPush the switch completely down or pull it
completely up and release to fully open and close. To stop window
midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
Angle
Length
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam Headlights
Daytime Running Light system (DRL) Automatically turns on the
headlights at a reduced intensity.
Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
Parking lights
Right turn
Lane change
Lane change
Left turnHigh beamAuto
DRL OFF
*Intermittent windshield wiper frequency adjustmentRotate to increase/decrease wipe frequency.
Adjust frequency*
Front fog lights (if equipped)
Turn
Front fog lights come on only when the headlights are on low beam.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 12

15
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
14
FEATURES/OPERATIONS

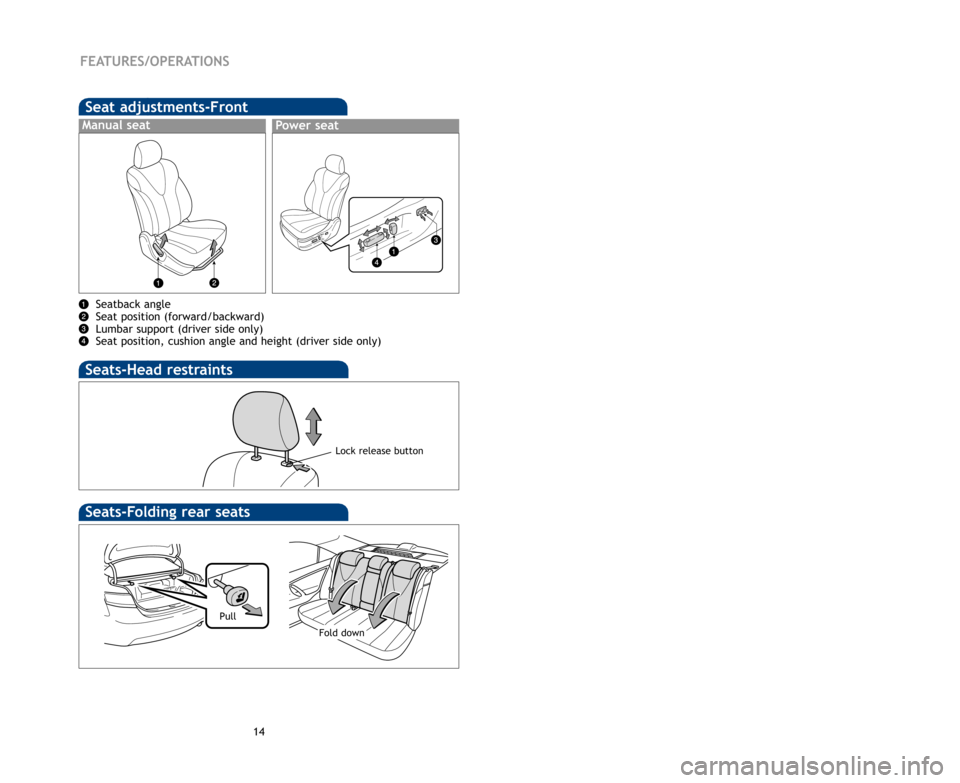

Seat adjustmentsFront
Seatback angle
Seat position (forward/backward)
Lumbar support (driver side only)
Seat position, cushion angle and height (driver side only)
Manual seatPower seat
SeatsHead restraints
Lock release button
Fold down Pull
SeatsFolding rear seats
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®*can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 37 in the
Owner’s Manualfor
more details.
For programming assistance, contact HomeLink
®at 18003553515, or
visit http://www.homelink.com.
*HomeLink®is a registered trademark of Johnson Controls, Inc.

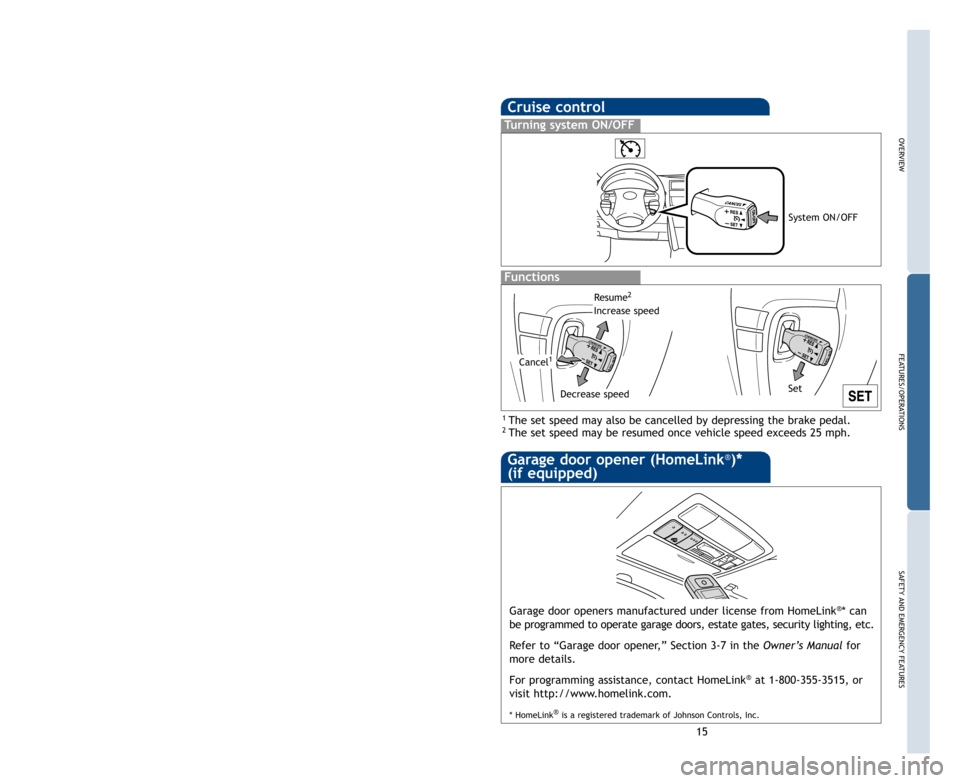

Cruise control
1The set speed may also be cancelled by depressing the brake pedal.2The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
14
FEATURES/OPERATIONS
Seat adjustmentsFront
Seatback angle
Seat position (forward/backward)
Lumbar support (driver side only)
Seat position, cushion angle and height (driver side only)
Manual seatPower seat
SeatsHead restraints
Lock release button
Fold down Pull
SeatsFolding rear seats
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®*can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 37 in the
Owner’s Manualfor
more details.
For programming assistance, contact HomeLink
®at 18003553515, or
visit http://www.homelink.com.
*HomeLink®is a registered trademark of Johnson Controls, Inc.
Cruise control
1The set speed may also be cancelled by depressing the brake pedal.2The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 14

1617
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS

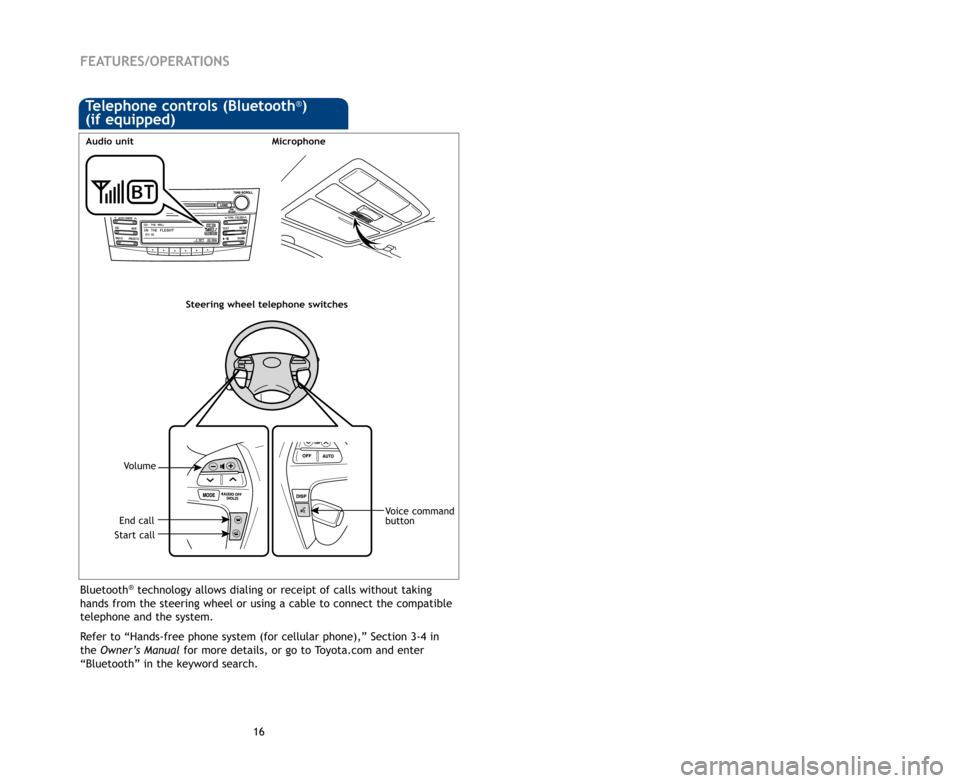

Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Handsfree phone system (for cellular phone),” Section 34 in
the
Owner’s Manualfor more details, or go to Toyota.com and enter
“Bluetooth” in the keyword search.
MicrophoneAudio unit
Steering wheel telephone switches
Volume
Start call
End callVoice command
button

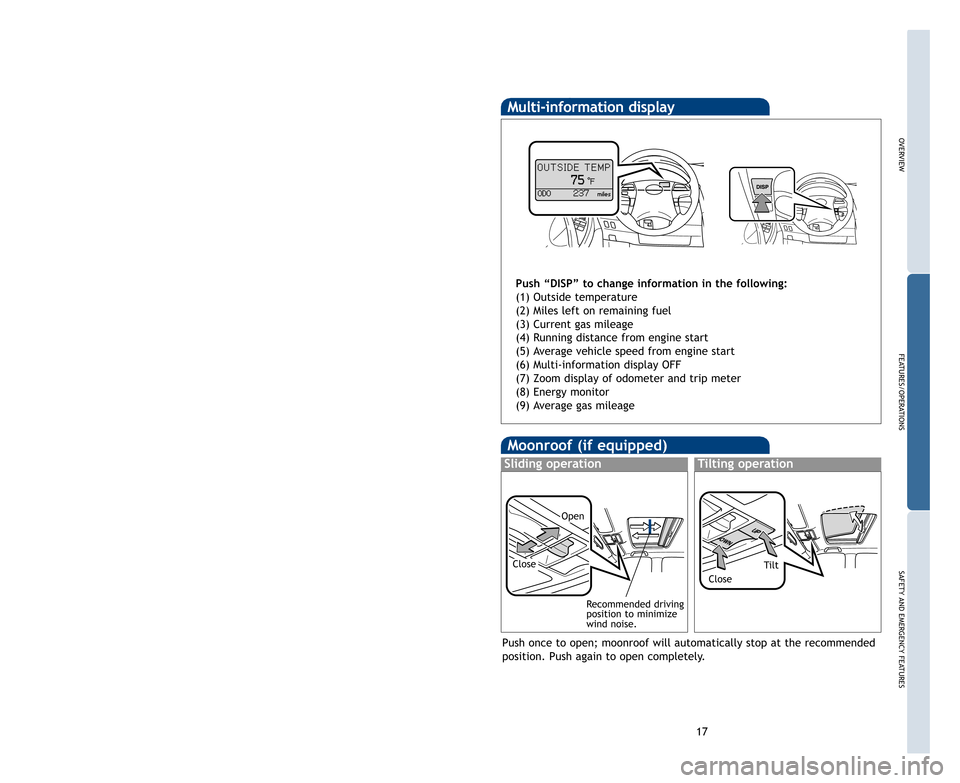

Moonroof (if equipped)
Sliding operationTilting operation
Open
Tilt
Close
Close
Recommended driving
position to minimize
wind noise.
Multiinformation display
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multiinformation display OFF
(7) Zoom display of odometer and trip meter
(8) Energy monitor
(9) Average gas mileage
Telephone controls (Bluetooth®)
(if equipped)
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 16

1617
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Handsfree phone system (for cellular phone),” Section 34 in
the
Owner’s Manualfor more details, or go to Toyota.com and enter
“Bluetooth” in the keyword search.
MicrophoneAudio unit
Steering wheel telephone switches
Volume
Start call
End callVoice command
button
Moonroof (if equipped)
Sliding operationTilting operation
Open
Tilt
Close
Close
Recommended driving
position to minimize
wind noise.
Multiinformation display
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multiinformation display OFF
(7) Zoom display of odometer and trip meter
(8) Energy monitor
(9) Average gas mileage
Telephone controls (Bluetooth®)
(if equipped)
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 16

18
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS
Steering wheel switches
Audio controlA/C control
“MODE”Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
“”Use to search within the selected audio medium (radio, CD, iPod, etc.).
vv
Volume controlTemperature
selector
Auto A/C
ON
A/C OFF

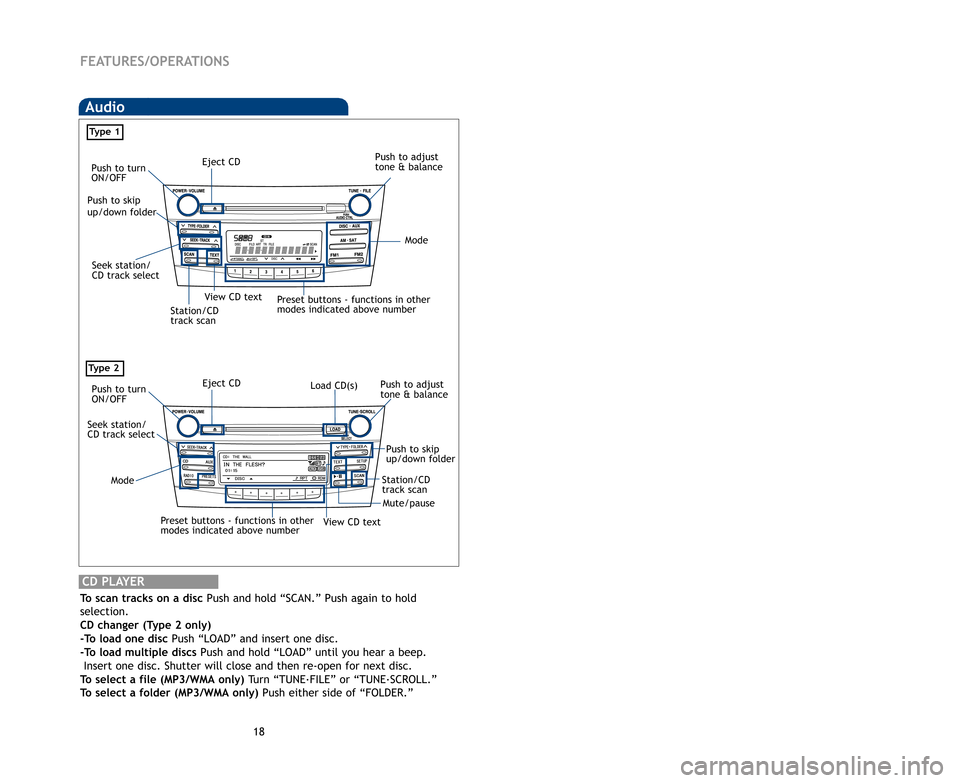

Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
Toload one disc
Push “LOAD” and insert one disc.
To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then reopen for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE” or “TUNE.
SCROLL.”
Toselect a folder (MP3/WMA only) Push either side of “FOLDER.”
Type 2
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track select
Station/CD
track scanMode
Preset buttons functions in other
modes indicated above number
Load CD(s)
Push to skip
up/down folder
View CD text
Type 1
RADIO
To preset stations Tune in the desired station and hold down a preset
button until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
By inserting a mini plug into the AUX or USB/AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX or USB/AUX mode.
AUX or USB/AUX audio jack
19
Wire pass through
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track select
Mode
Preset buttons functions in other
modes indicated above number
Push to skip
up/down folder
View CD text
Mute/pause Station/CD
track scan
USB/AUX audio jack
(if equipped)
AUX audio jack
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 18
