OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS
Steering wheel switches
Audio controlA/C control
“MODE”Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
“”Use to search within the selected audio medium (radio, CD, iPod, etc.).
vv
Volume controlTemperature
selector
Auto A/C
ON
A/C OFF
Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
Toload one disc
Push “LOAD” and insert one disc.
To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then reopen for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE” or “TUNE.
SCROLL.”
Toselect a folder (MP3/WMA only) Push either side of “FOLDER.”
Type 2
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track select
Station/CD
track scanMode
Preset buttons functions in other
modes indicated above number
Load CD(s)
Push to skip
up/down folder
View CD text
Type 1
RADIO
To preset stations Tune in the desired station and hold down a preset
button until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
By inserting a mini plug into the AUX or USB/AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX or USB/AUX mode.
AUX or USB/AUX audio jack
19
Wire pass through
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track select
Mode
Preset buttons functions in other
modes indicated above number
Push to skip
up/down folder
View CD text
Mute/pause Station/CD
track scan
USB/AUX audio jack
(if equipped)
AUX audio jack
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 18

2021
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS
Seat heaters (if equipped)
Front passenger seatDriver seat
Clock
HHour setMMinute set
Refer to the Owner’s Manualfor adjusting time.
Air Conditioning/Heating
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passengers.
Indicator OFF:Synchronize temperature settings for driver and
passengers.
Temperature selector (driver side)
Fan speed
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Temperature selector (passenger side)
Air Conditioning ON/OFF
Fresh or recirculated cabin airRear window defogger/Outside rearview mirror defoggers (if
equipped)
Windshield airflow/defogger
Climate controlOFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
21
“ECO HEAT/COOL” switch
Economical mode
ON/OFF
NOTE:Slightly improves gas mileage. It may take longer to reach set cabin
temperature.
PlasmaclusterTM*
*This system adopts the plasmacluster technology,manufactured under license from SHARP
Corporation. PlasmaclusterTMis a trademark of SHARP Corporation.
Improves air quality by emitting positive and negative ions into the cabin.
This system operates from the driver side vent and a low system noise is
normal.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 20

2021
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
FEATURES/OPERATIONS
Seat heaters (if equipped)
Front passenger seatDriver seat
Clock
HHour setMMinute set
Refer to the Owner’s Manualfor adjusting time.
Air Conditioning/Heating
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passengers.
Indicator OFF:Synchronize temperature settings for driver and
passengers.
Temperature selector (driver side)
Fan speed
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Temperature selector (passenger side)
Air Conditioning ON/OFF
Fresh or recirculated cabin airRear window defogger/Outside rearview mirror defoggers (if
equipped)
Windshield airflow/defogger
Climate controlOFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
21
“ECO HEAT/COOL” switch
Economical mode
ON/OFF
NOTE:Slightly improves gas mileage. It may take longer to reach set cabin
temperature.
PlasmaclusterTM*
*This system adopts the plasmacluster technology,manufactured under license from SHARP
Corporation. PlasmaclusterTMis a trademark of SHARP Corporation.
Improves air quality by emitting positive and negative ions into the cabin.
This system operates from the driver side vent and a low system noise is
normal.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 20

OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
22
FEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
Door locks
LockUnlock

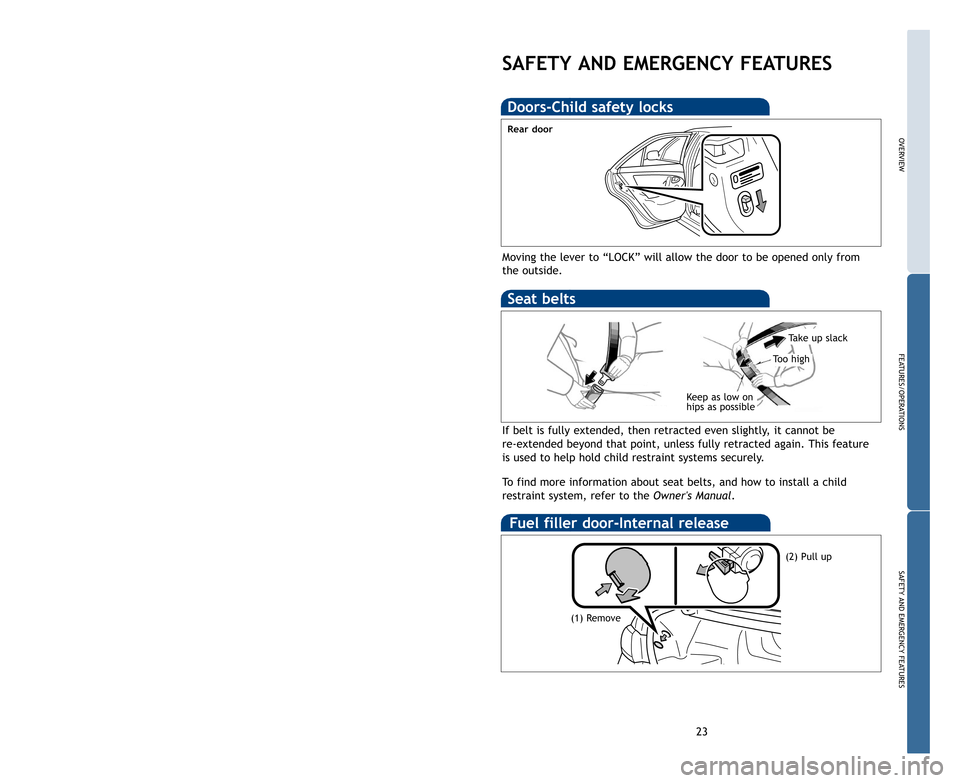

Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
DoorsChild safety locks
If belt is fully extended, then retracted even slightly,it cannot be
reextended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the
Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Fuel filler doorInternal release
(2) Pull up
(1) Remove
23

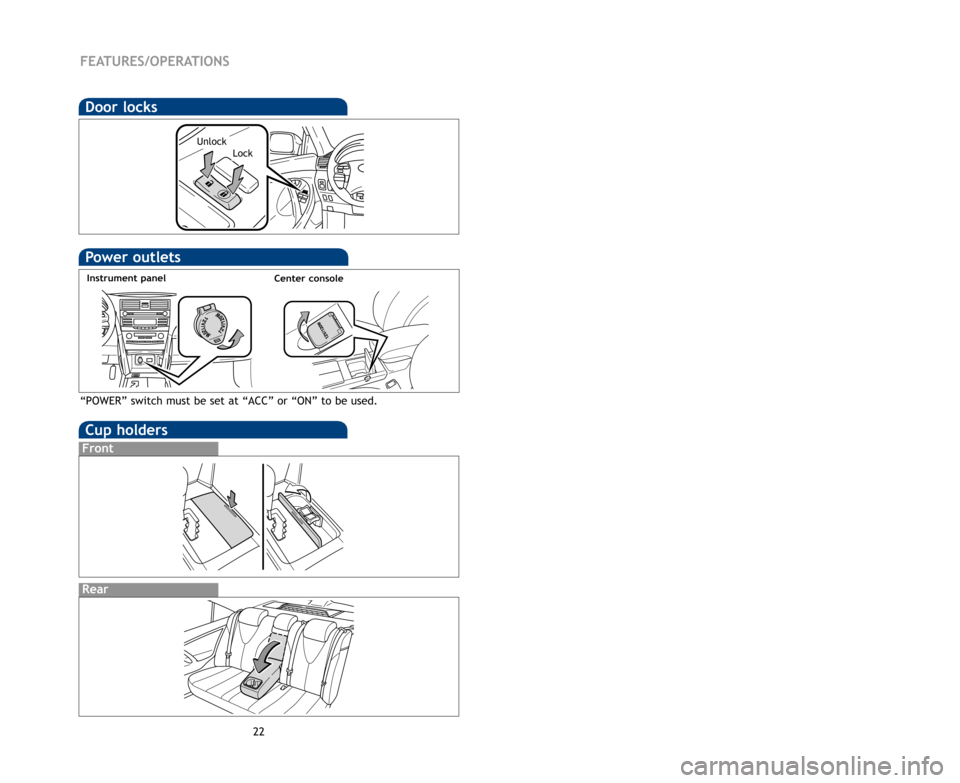

Power outlets
Instrument panel
“POWER” switch must be set at “ACC” or “ON” to be used.
Center console
Cup holders
Front
Rear
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 22

OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
22
FEATURES/OPERATIONSSAFETY AND EMERGENCY FEATURES
Door locks
LockUnlock
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
DoorsChild safety locks
If belt is fully extended, then retracted even slightly,it cannot be
reextended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the
Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Fuel filler doorInternal release
(2) Pull up
(1) Remove
23
Power outlets
Instrument panel
“POWER” switch must be set at “ACC” or “ON” to be used.
Center console
Cup holders
Front
Rear
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 22

25
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
24
SAFETY AND EMERGENCY FEATURE
Push up, or
squeeze lock
release to lower
System reset initialization
1.Push and hold “ SET” button
until the indicator blinks three
times.
2. Wait a few minutes to allow
initialization to complete.
Seat beltsShoulder belt anchor
Rear seat outside position guides provide added comfort for children who
have outgrown child restraints.
Child comfort guide
Spare tire & tools
Tool location
Wheel nut wrench Jack handle
Transport eyelet
(if equipped)
Removing the spare tire
(1) Loosen and remove the nut.
(2) Remove the spare tire cover.
(3) Loosen and remove the bolt.
(4) Remove the jack tray.
Jack
Spare tire
TrunkInternal release
Pull up
(1)
(4)
(3)
(2)
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the POWER switch to “ON” mode, and press and hold the
Owner’sManualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently,setting the tire pressures to factory
specifications should turn off the light.
Refer to the Owner’s Manualfor
tire changing and jack
positioning procedures.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 24

25
OVERVIEW
FEATURES/OPERATIONS
SAFETYANDEMERGENCYFEATURES
24
SAFETY AND EMERGENCY FEATURE
Push up, or
squeeze lock
release to lower
System reset initialization
1.Push and hold “ SET” button
until the indicator blinks three
times.
2. Wait a few minutes to allow
initialization to complete.
Seat beltsShoulder belt anchor
Rear seat outside position guides provide added comfort for children who
have outgrown child restraints.
Child comfort guide
Spare tire & tools
Tool location
Wheel nut wrench Jack handle
Transport eyelet
(if equipped)
Removing the spare tire
(1) Loosen and remove the nut.
(2) Remove the spare tire cover.
(3) Loosen and remove the bolt.
(4) Remove the jack tray.
Jack
Spare tire
TrunkInternal release
Pull up
(1)
(4)
(3)
(2)
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the POWER switch to “ON” mode, and press and hold the
Owner’sManualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently,setting the tire pressures to factory
specifications should turn off the light.
Refer to the Owner’s Manualfor
tire changing and jack
positioning procedures.
11_CamryHV_i.qxd 12/22/09 2:26 PM Page 24
