mirror TOYOTA CAMRY HYBRID 2012 XV50 / 9.G Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel audio controls2,3
Telephone controls1,2
Voice command button1,2,3
Cruise control
“DISP” switch
Headlight and turn signal controls/Headlight, turn signal and front fog light
1
controls
Wiper and washer controls
Clock
Audio system
1/Navigation system1,2/Display audio system1,3
Tire Pressure Monitoring (warning) System
“POWER” switch
Tilt and telescopic steering lock release
Air Conditioning controls
Emergency flasher button
Outside rearview mirror
1/Rear window defogger button
1
A
S
“
“
B
V
H
C
1
2
3
NOT
Syst
Steering wheel controls
resize-camry.qxd 10/12/11 4:37 AM Page 2

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
5
ay
2If this light flashes, refer to “Cruise control,” Section 2-4, 2012 \
Owner’s Manual.
SRS AIR BAG ON/OFF indicator
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2/Cruise control SET indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
EV indicator
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
ECO MODE indicator
Low fuel level warning
Front fog light indicator
Master warning light
1
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1
Shift position indicator
Blind Spot Monitor warning/Blind Spot Monitor outside
rearview mirror indicators
High engine coolant temperature warning
READY indicator
EV drive mode indicator
resize-camry.qxd 10/12/11 4:48 AM Page 5

16
FEATURES/ OPERATIONS
The Blind Spot Monitor is a system that assists the driver to confirm sa\
fety when
changing lanes. It uses radar sensors to detect vehicles that are travel\
ing in an
adjacent lane in the area that is not reflected in the outside rearview \
mirror (the
blind spot), and advises the driver of the vehicles’ existence via t\
he outside
rearview mirror indicator.
Refer to the Owner‘s Manualfor more details on this system before attempting to
use it.
Mo
Slid
Mu
Pu
(1
(2
(3
(4
(5
(6
Push
posit

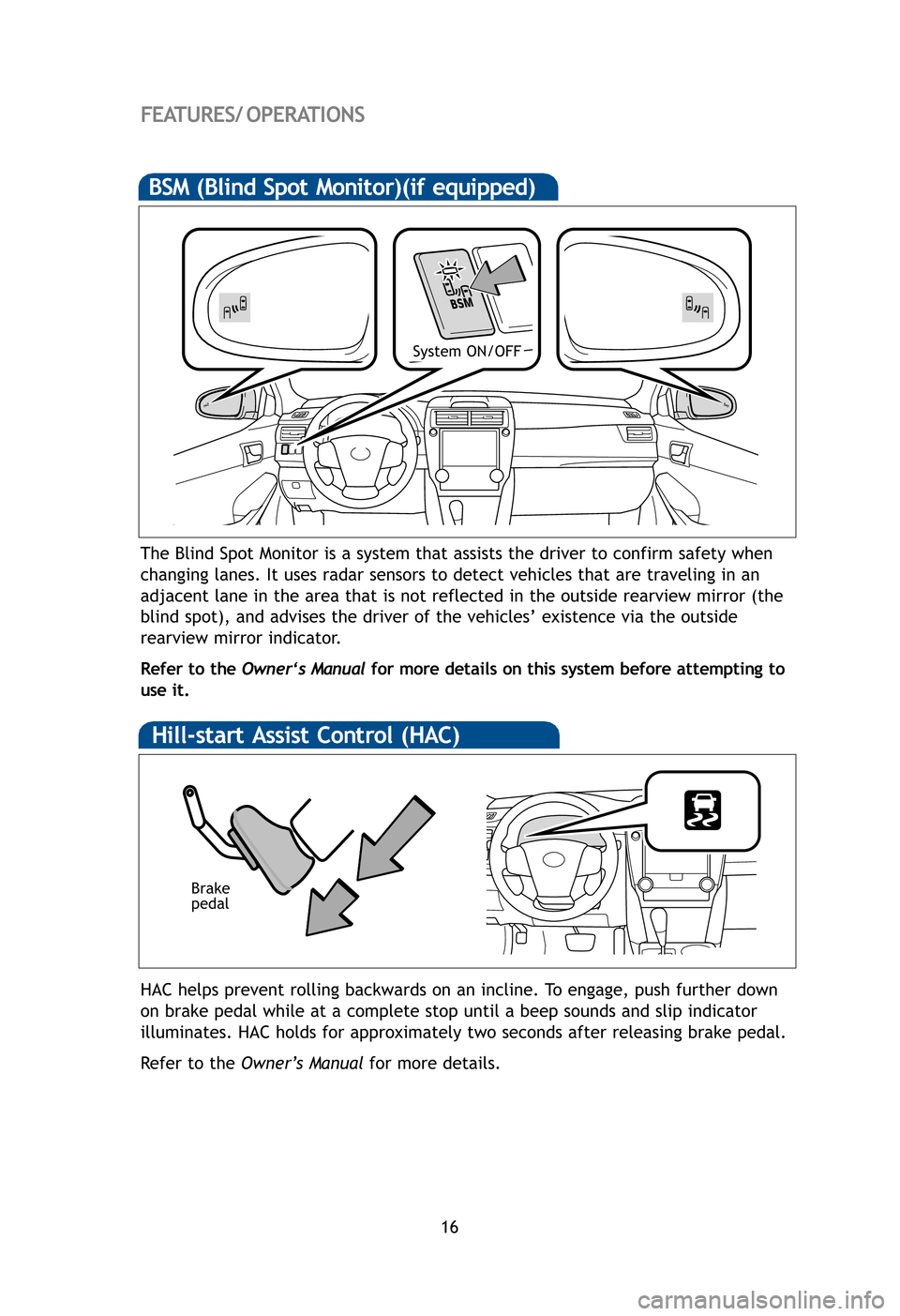

BSM (Blind Spot Monitor)(if equipped)
System ON/OFF
Hill-start Assist Control (HAC)
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip ind\
icator
illuminates. HAC holds for approximately two seconds after releasing bra\
ke pedal.
Refer to the Owner’s Manual for more details.
Brake
pedal
resize-camry.r1_Layout 1 10/13/11 10:21 PM Page 16

20
FEATURES/OPERATIONS
Se
Clo
Refe

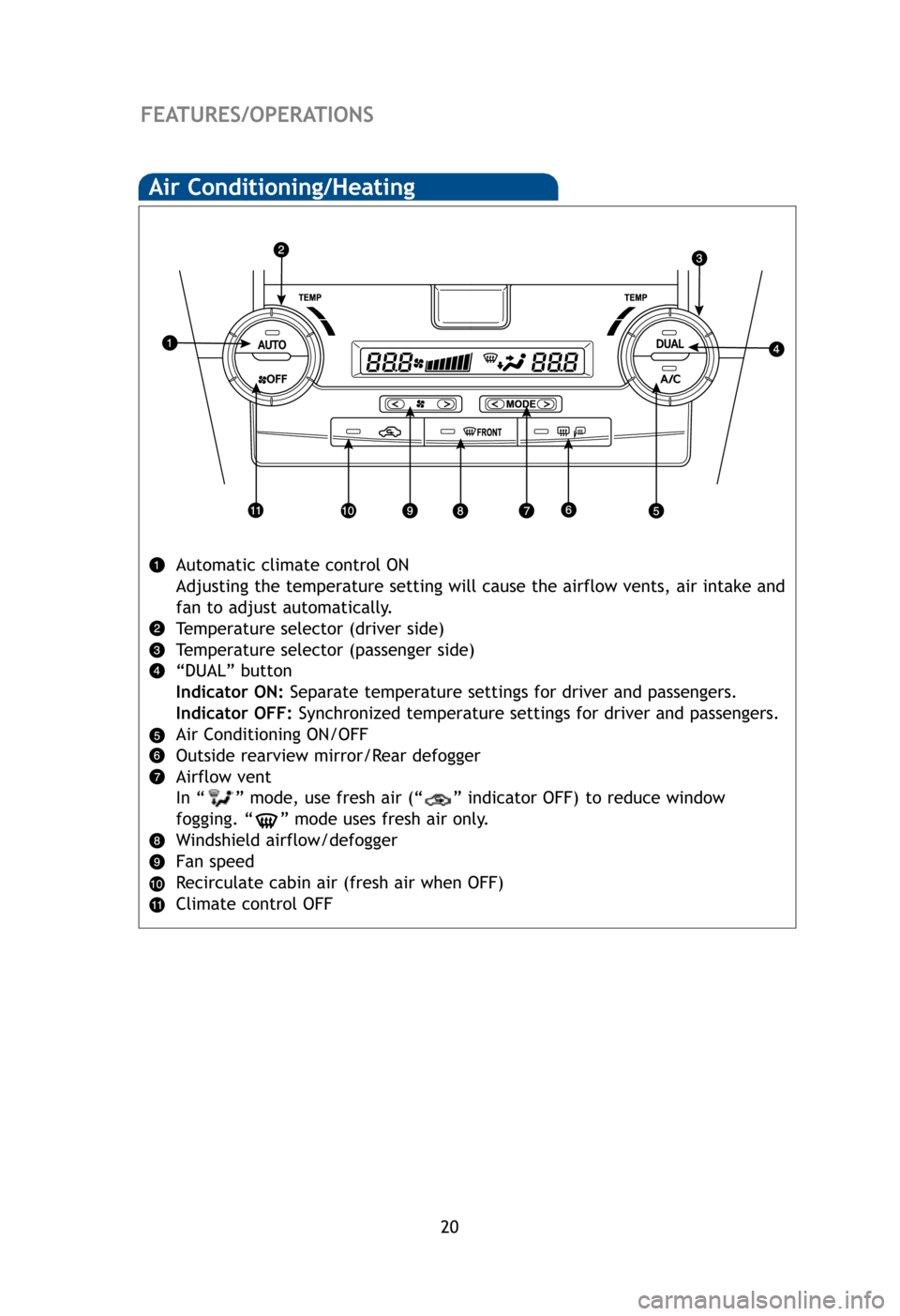

Air Conditioning/Heating
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Temperature selector (driver side)
Temperature selector (passenger side)
“DUAL” button
Indicator ON:Separate temperature settings for driver and passengers.
Indicator OFF: Synchronized temperature settings for driver and passengers.
Air Conditioning ON/OFF
Outside rearview mirror/Rear defogger
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF)to reduce window
fogging. “ ” mode uses fresh air only.
Windshield airflow/defogger
Fan speed
Recirculate cabin air (fresh air when OFF)
Climate control OFF
Po
Inst
“POW
resize-camry.qxd 10/12/11 4:57 AM Page 20
