TOYOTA CAMRY HYBRID 2012 XV50 / 9.G Quick Reference Guide

Quick Re f eRence Guide
00505-QRG12- cAMH
Ca m ry hybrid
2 0 1 2
11-TCS-04983_QRG_CamryHybrid_1_0F_lm.indd 210/12/11 4:00 AM

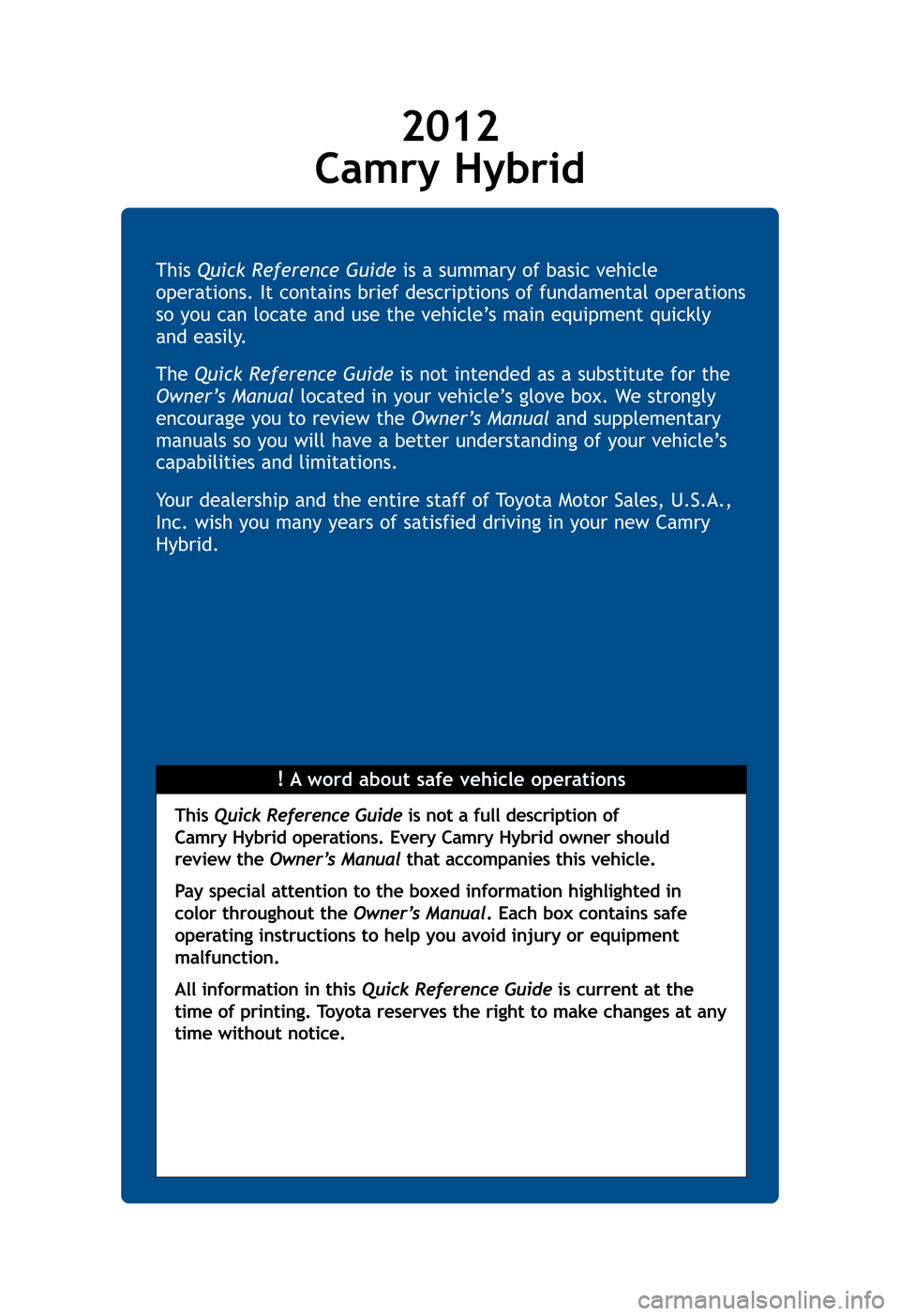

!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Camry
Hybrid.
This Quick Reference Guideis not a full description of
Camry Hybrid operations. Every Camry Hybrid owner should
review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual . Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at the
time of printing. Toyota reserves the right to make changes at any
time without notice.
2012
Camry HybridIND
OVE
F E AT
SAF
EME
1Visi2 Prog
mor
3Hom
resize-camry.qxd 10/12/11 4:36 AM Page ii

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
1

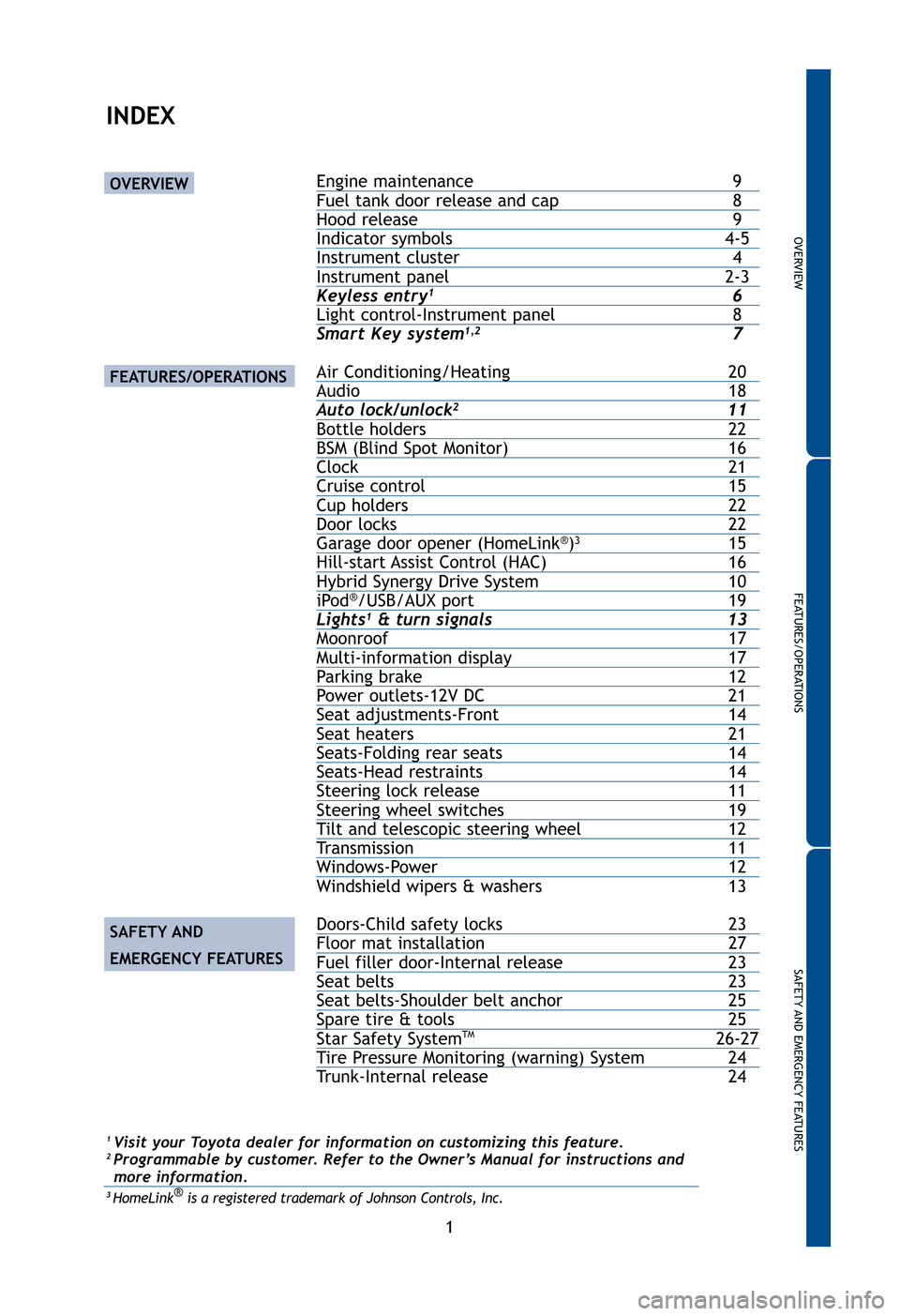

INDEX
Engine maintenance 9Fuel tank door release and cap8Hood release 9Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel 8
Smart Key system1,27
Air Conditioning/Heating 20Audio 18Auto lock/unlock211Bottle holders22BSM (Blind Spot Monitor)16Clock 21Cruise control15Cup holders22Door locks 22Garage door opener (HomeLink®)315Hill-start Assist Control (HAC)16Hybrid Synergy Drive System10iPod®/USB/AUX port19Lights1& turn signals13Moonroof 17Multi-information display17Parking brake 12Power outlets-12V DC21Seat adjustments-Front14Seat heaters 21Seats-Folding rear seats14Seats-Head restraints14Steering lock release 11Steering wheel switches19Tilt and telescopic steering wheel12Transmission 11Windows-Power12
Windshield wipers & washers 13
Doors-Child safety locks 23Floor mat installation27Fuel filler door-Internal release23Seat belts 23Seat belts-Shoulder belt anchor25Spare tire & tools 25Star Safety SystemTM26-27Tire Pressure Monitoring (warning) System24
Trunk-Internal release 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
resize-camry.qxd 10/12/11 4:37 AM Page 1

2
OVERVIEW

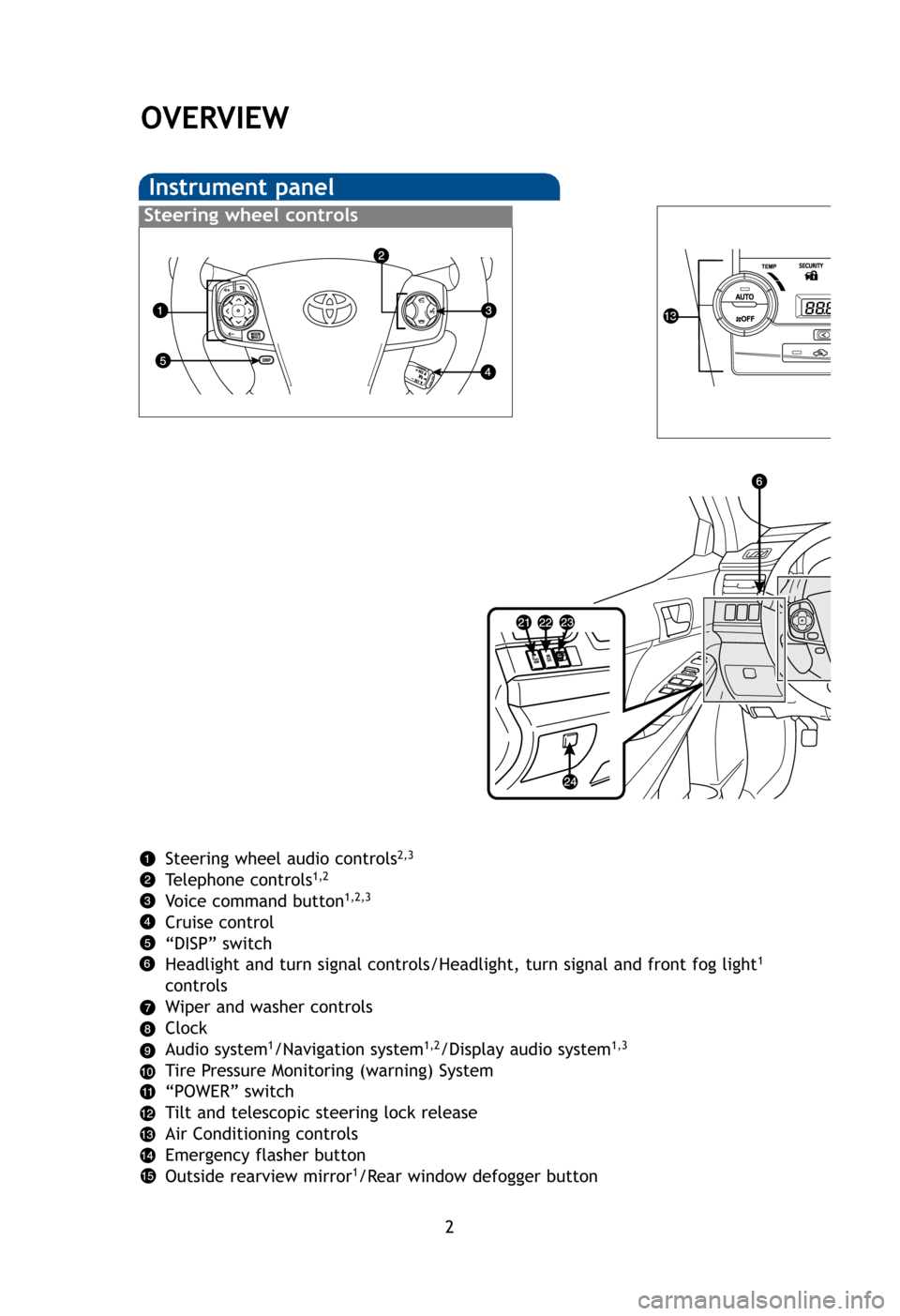

Instrument panel
Steering wheel audio controls2,3
Telephone controls1,2
Voice command button1,2,3
Cruise control
“DISP” switch
Headlight and turn signal controls/Headlight, turn signal and front fog light
1
controls
Wiper and washer controls
Clock
Audio system
1/Navigation system1,2/Display audio system1,3
Tire Pressure Monitoring (warning) System
“POWER” switch
Tilt and telescopic steering lock release
Air Conditioning controls
Emergency flasher button
Outside rearview mirror
1/Rear window defogger button
1
A
S
“
“
B
V
H
C
1
2
3
NOT
Syst
Steering wheel controls
resize-camry.qxd 10/12/11 4:37 AM Page 2

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
3

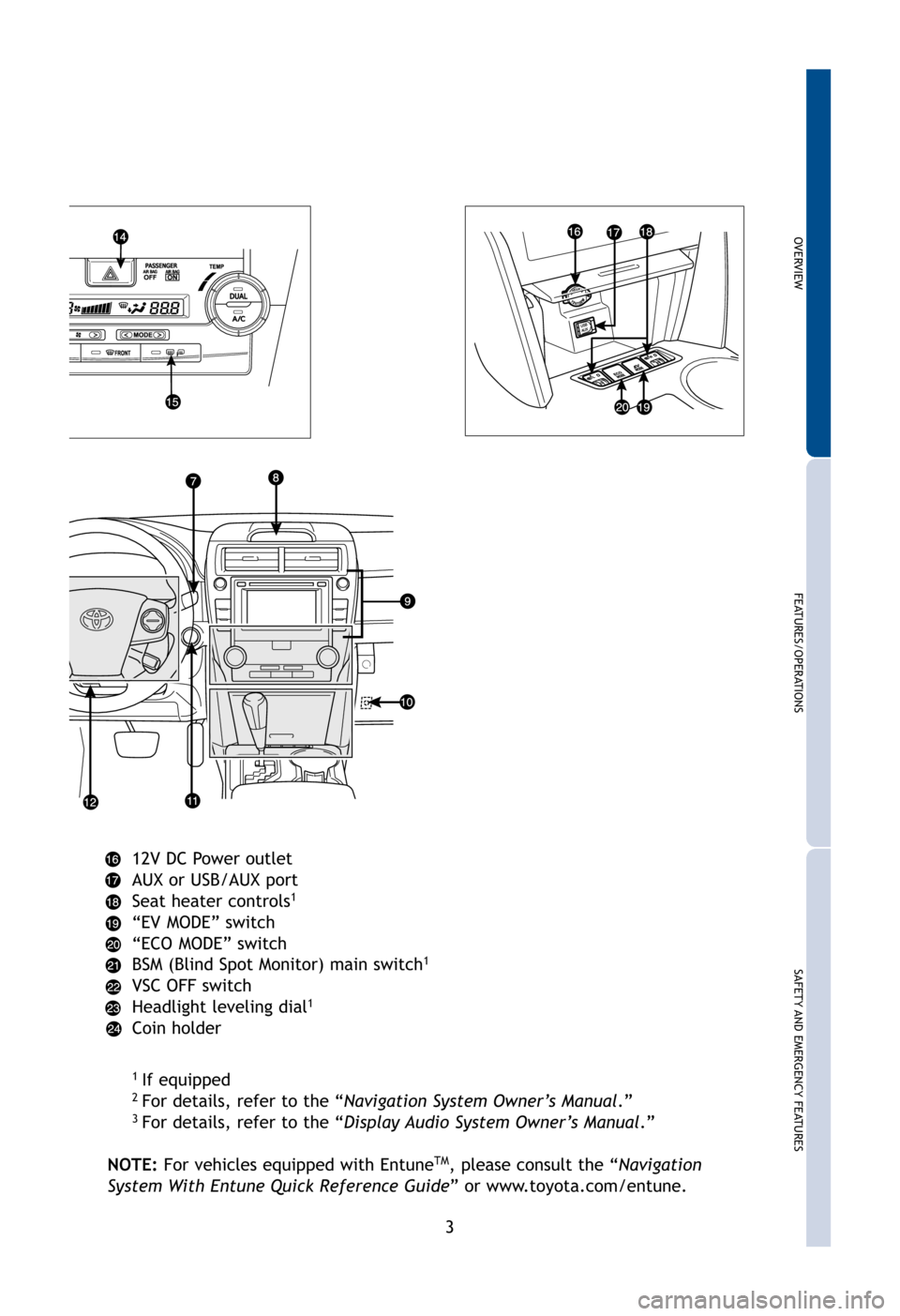

12V DC Power outlet
AUX or USB/AUX port
Seat heater controls
1
“EV MODE” switch
“ECO MODE” switch
BSM (Blind Spot Monitor) main switch
1
VSC OFF switch
Headlight leveling dial1
Coin holder
1If equipped2For details, refer to the “ Navigation System Owner’s Manual .”3For details, refer to the “Display Audio System Owner’s Manual .”
NOTE: For vehicles equipped with Entune
TM, please consult the “ Navigation
System With Entune Quick Reference Guide ” or www.toyota.com/entune.
resize-camry.qxd 10/12/11 4:37 AM Page 3

4
OVERVIEW

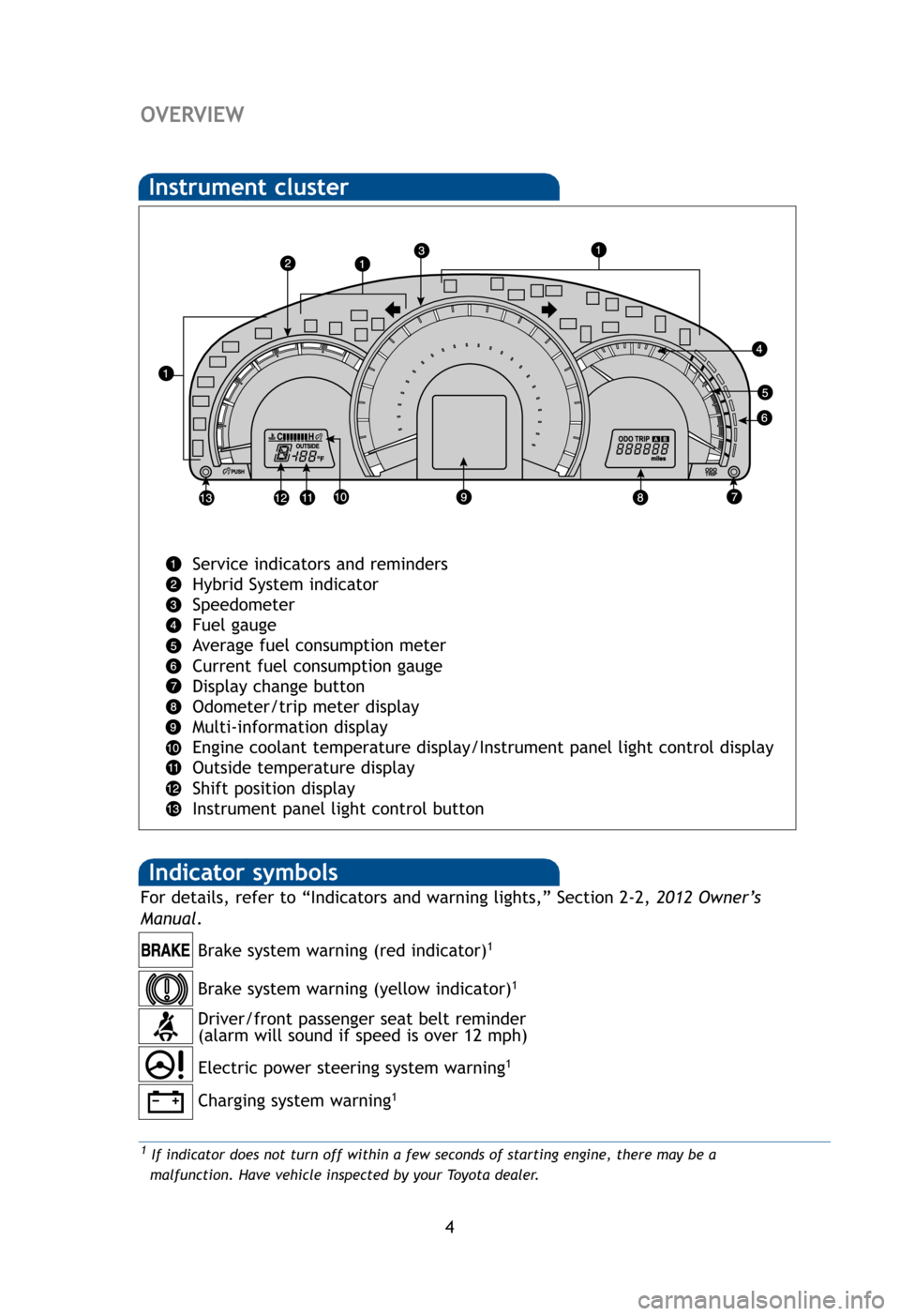

Instrument cluster
Service indicators and reminders
Hybrid System indicator
Speedometer
Fuel gauge
Average fuel consumption meter
Current fuel consumption gauge
Display change button
Odometer/trip meter display
Multi-information display
Engine coolant temperature display/Instrument panel light control display
Outside temperature display
Shift position display
Instrument panel light control button
2If th1If indicator does not turn off within a few seconds of starting engine, th\
ere may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Indicator symbols
Brake system warning (red indicator)1
For details, refer to “Indicators and warning lights,” Section 2-2, 2012 Owner’s
Manual .
Brake system warning (yellow indicator)1
Charging system warning1
Driver/front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Electric power steering system warning
1
resize-camry.qxd 10/12/11 4:38 AM Page 4

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
5
ay
2If this light flashes, refer to “Cruise control,” Section 2-4, 2012 \
Owner’s Manual.

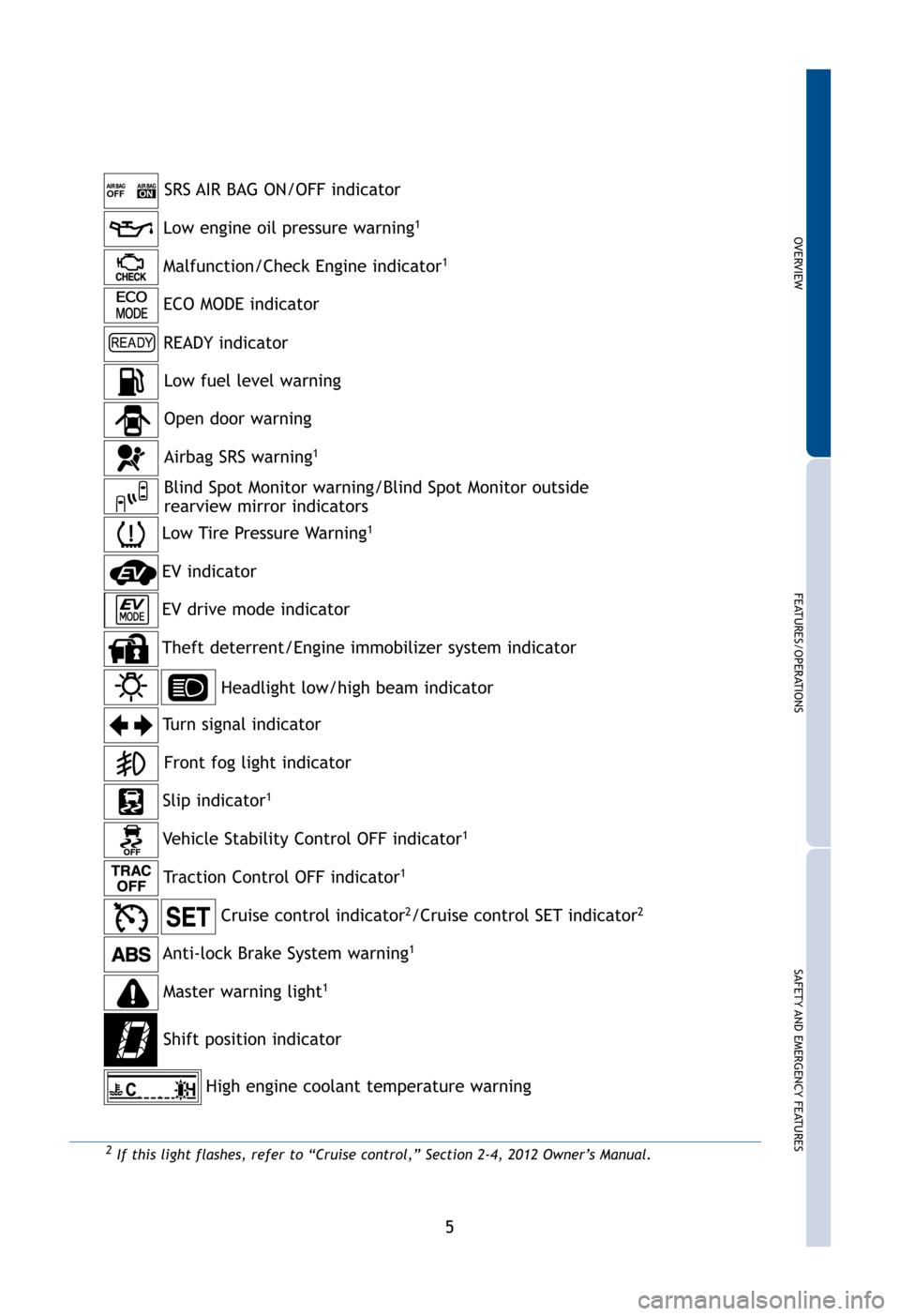

SRS AIR BAG ON/OFF indicator
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2/Cruise control SET indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
EV indicator
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
ECO MODE indicator
Low fuel level warning
Front fog light indicator
Master warning light
1
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1
Shift position indicator
Blind Spot Monitor warning/Blind Spot Monitor outside
rearview mirror indicators
High engine coolant temperature warning
READY indicator
EV drive mode indicator
resize-camry.qxd 10/12/11 4:48 AM Page 5

6
OVERVIEW

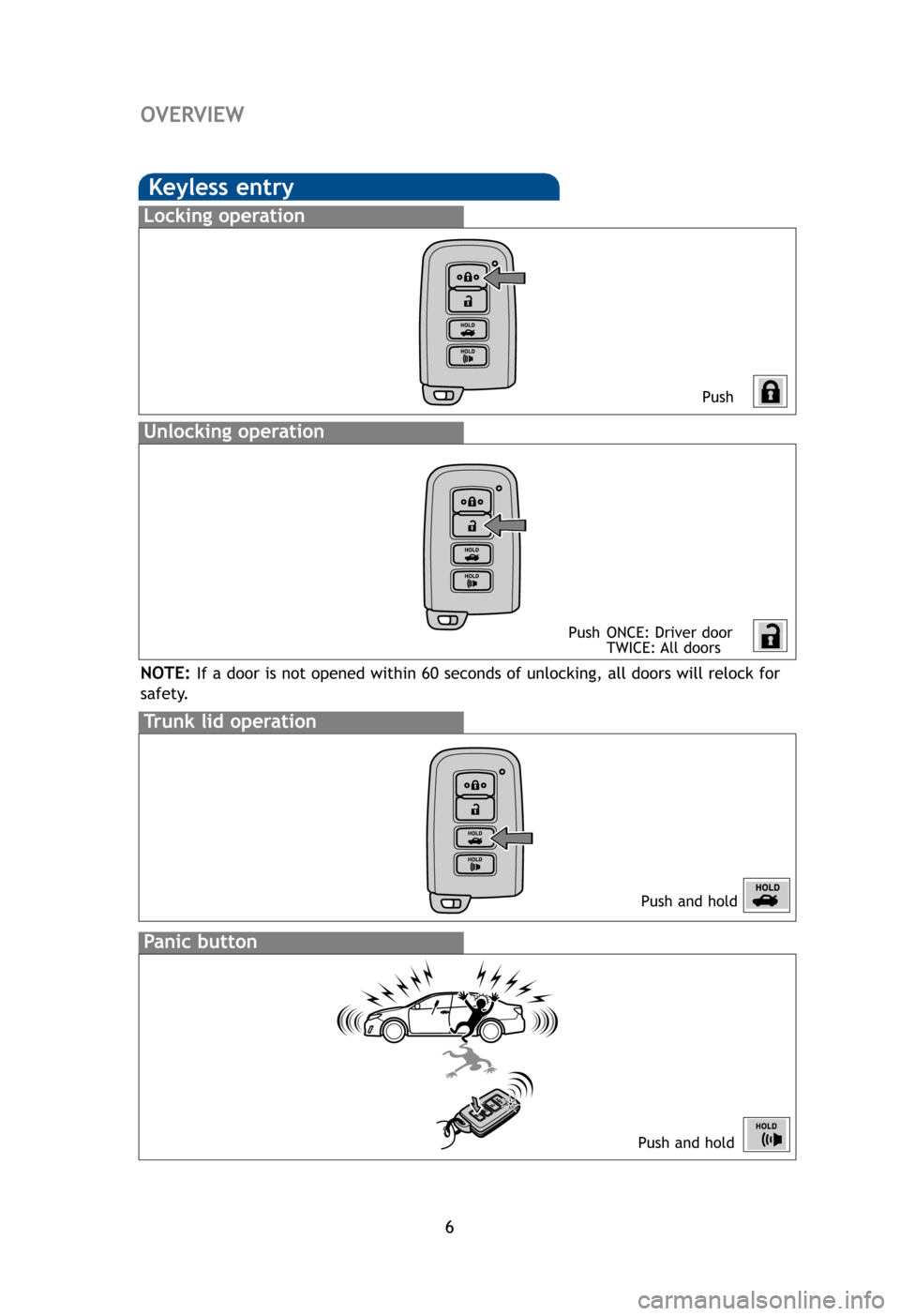

Keyless entry
Push
Push ONCE: Driver door TWICE: All doors
Locking operation
Unlocking operation
Sm
Star
AC
ON
OF
NOT
With
oper
* Dri
all
NOT
Pow
Trunk lid operation
Push and hold
Panic button
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will rel\
ock for
safety.
Tr u
Loc
Carr
Fro
Carr
resize-camry.qxd 10/12/11 4:49 AM Page 6
LocLocLoc

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
7
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the Hybrid System not running.
All systems OFF.
ACC
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedalCarrying
Without depressing the brake pedal, pressing the “POWER” switch will chan\
ge the
operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door \
only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting Hybrid System)
for
Trunk lock/unlock
Push
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Front door lock
Carry remote to lock/unlock
Front door unlock*
TouchGrasp
resize-camry.qxd 10/12/11 4:49 AM Page 7

8

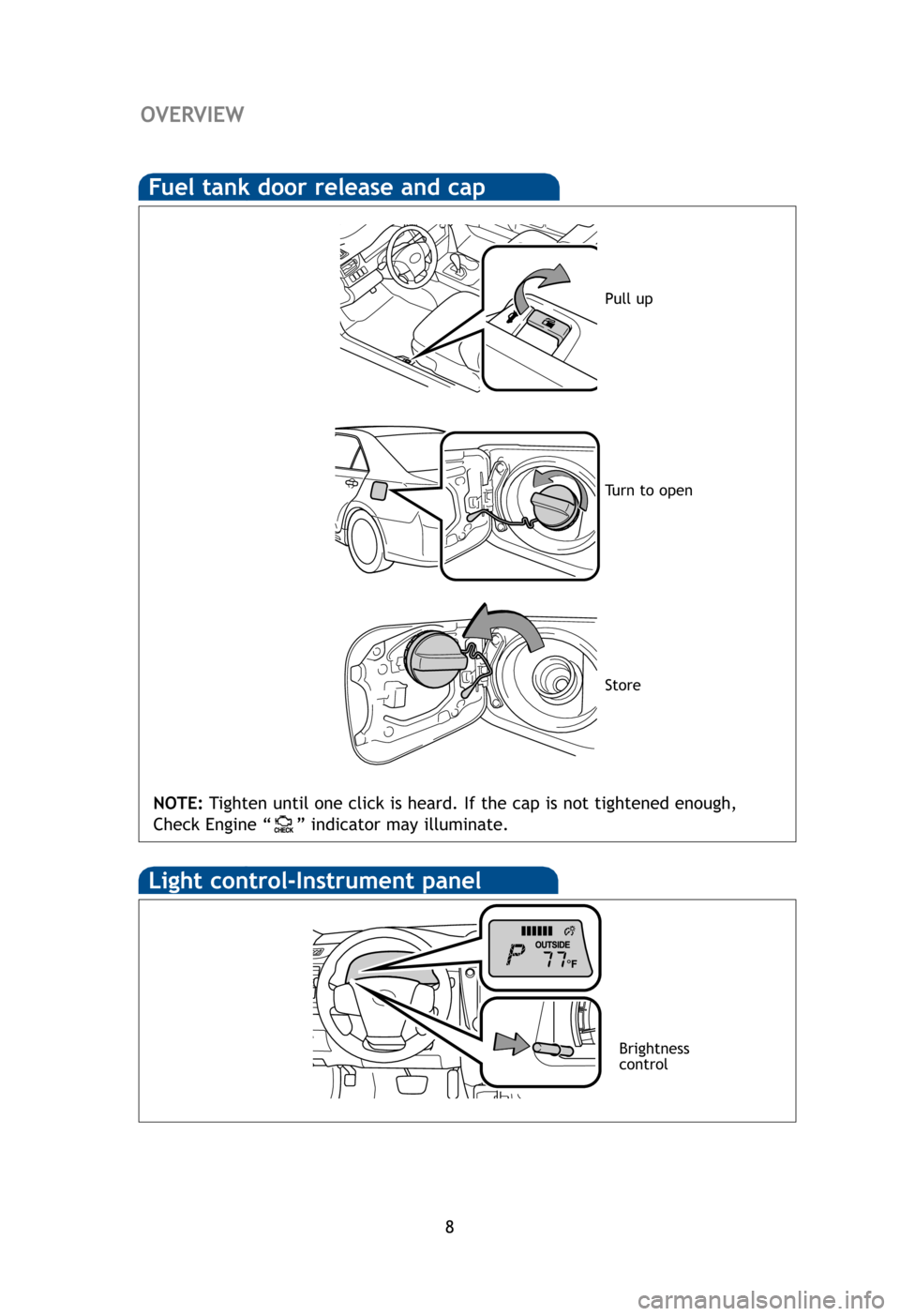

HoFuel tank door release and cap
E
E
E
W
NOT
En
Light control-Instrument panel
Brightness
control
OVERVIEW
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
Pull up
Turn to open
Store
resize-camry.qxd 10/12/11 4:49 AM Page 8
