OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
1
INDEX
Engine maintenance 9Fuel tank door release and cap8Hood release 9Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel 8
Smart Key system1,27
Air Conditioning/Heating 20Audio 18Auto lock/unlock211Bottle holders22BSM (Blind Spot Monitor)16Clock 21Cruise control15Cup holders22Door locks 22Garage door opener (HomeLink®)315Hill-start Assist Control (HAC)16Hybrid Synergy Drive System10iPod®/USB/AUX port19Lights1& turn signals13Moonroof 17Multi-information display17Parking brake 12Power outlets-12V DC21Seat adjustments-Front14Seat heaters 21Seats-Folding rear seats14Seats-Head restraints14Steering lock release 11Steering wheel switches19Tilt and telescopic steering wheel12Transmission 11Windows-Power12
Windshield wipers & washers 13
Doors-Child safety locks 23Floor mat installation27Fuel filler door-Internal release23Seat belts 23Seat belts-Shoulder belt anchor25Spare tire & tools 25Star Safety SystemTM26-27Tire Pressure Monitoring (warning) System24
Trunk-Internal release 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
resize-camry.qxd 10/12/11 4:37 AM Page 1

2
OVERVIEW
Instrument panel
Steering wheel audio controls2,3
Telephone controls1,2
Voice command button1,2,3
Cruise control
“DISP” switch
Headlight and turn signal controls/Headlight, turn signal and front fog light
1
controls
Wiper and washer controls
Clock
Audio system
1/Navigation system1,2/Display audio system1,3
Tire Pressure Monitoring (warning) System
“POWER” switch
Tilt and telescopic steering lock release
Air Conditioning controls
Emergency flasher button
Outside rearview mirror
1/Rear window defogger button
1
A
S
“
“
B
V
H
C
1
2
3
NOT
Syst
Steering wheel controls
resize-camry.qxd 10/12/11 4:37 AM Page 2

4
OVERVIEW
Instrument cluster
Service indicators and reminders
Hybrid System indicator
Speedometer
Fuel gauge
Average fuel consumption meter
Current fuel consumption gauge
Display change button
Odometer/trip meter display
Multi-information display
Engine coolant temperature display/Instrument panel light control display
Outside temperature display
Shift position display
Instrument panel light control button
2If th1If indicator does not turn off within a few seconds of starting engine, th\
ere may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Indicator symbols
Brake system warning (red indicator)1
For details, refer to “Indicators and warning lights,” Section 2-2, 2012 Owner’s
Manual .
Brake system warning (yellow indicator)1
Charging system warning1
Driver/front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Electric power steering system warning
1
resize-camry.qxd 10/12/11 4:38 AM Page 4

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
5
ay
2If this light flashes, refer to “Cruise control,” Section 2-4, 2012 \
Owner’s Manual.
SRS AIR BAG ON/OFF indicator
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2/Cruise control SET indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
EV indicator
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
ECO MODE indicator
Low fuel level warning
Front fog light indicator
Master warning light
1
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1
Shift position indicator
Blind Spot Monitor warning/Blind Spot Monitor outside
rearview mirror indicators
High engine coolant temperature warning
READY indicator
EV drive mode indicator
resize-camry.qxd 10/12/11 4:48 AM Page 5

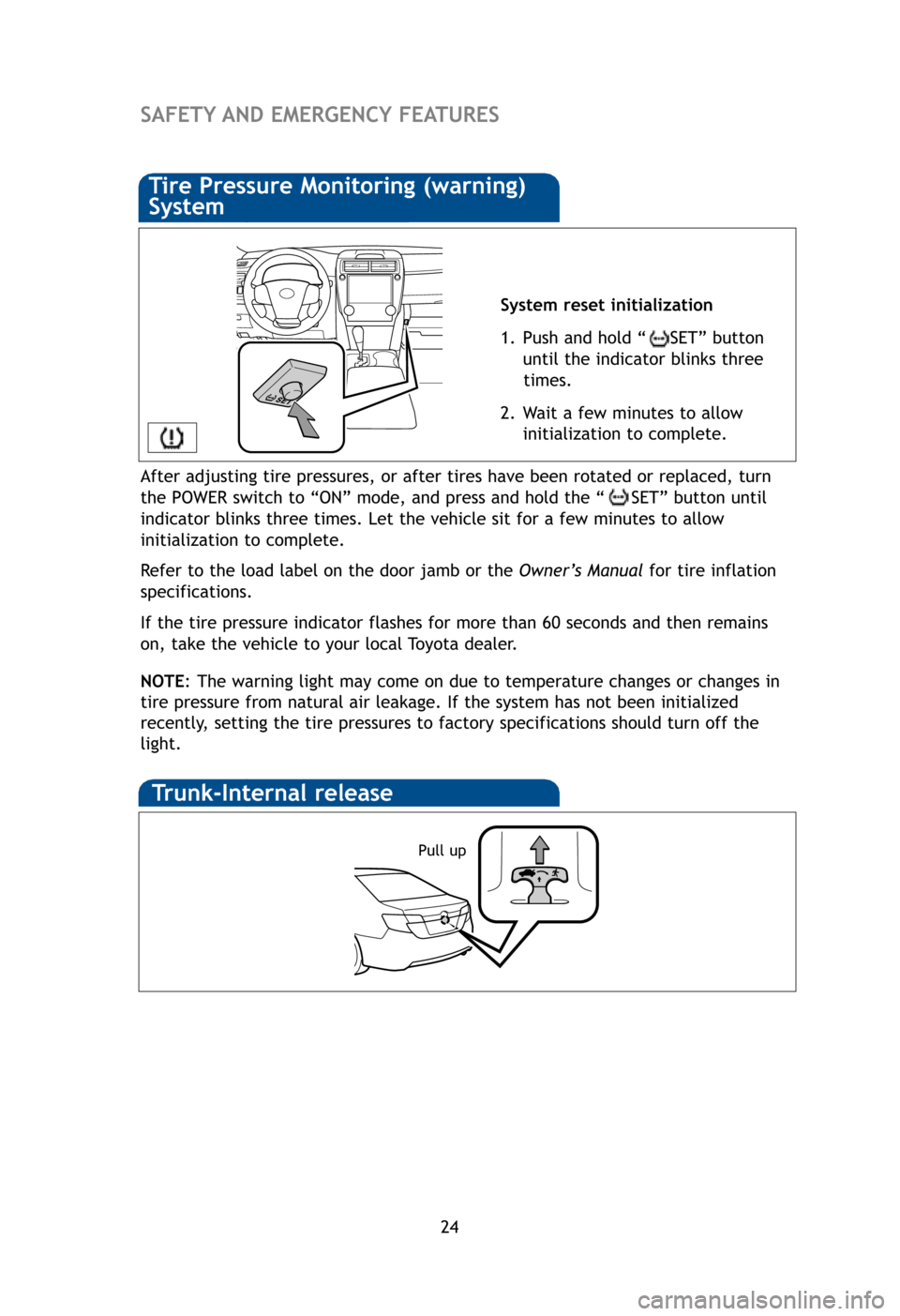

24
SAFETY AND EMERGENCYFEATURES
System reset initialization
1. Push and hold “SET” button
until the indicator blinks three times.
2. Wait a few minutes to allow initialization to complete.
Se
Sp
Trunk-Internal release
Pull up
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or replaced,\
turn
the POWER switch to “ON” mode, and press and hold the “ SET” button until
indicator blinks three times. Let the vehicle sit for a few minutes to allow
initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then r\
emains
on, take the vehicle to your local Toyota dealer.
NOTE : The warning light may come on due to temperature changes or changes in
tire pressure from natural air leakage. If the system has not been initializ\
ed
recently, setting the tire pressures to factory specifications should turn off th\
e
light.
To o
Rem
(1)
Refe
resize-camry.qxd 10/12/11 4:58 AM Page 24
