TOYOTA CAMRY HYBRID 2017 XV50 / 9.G Owners Manual

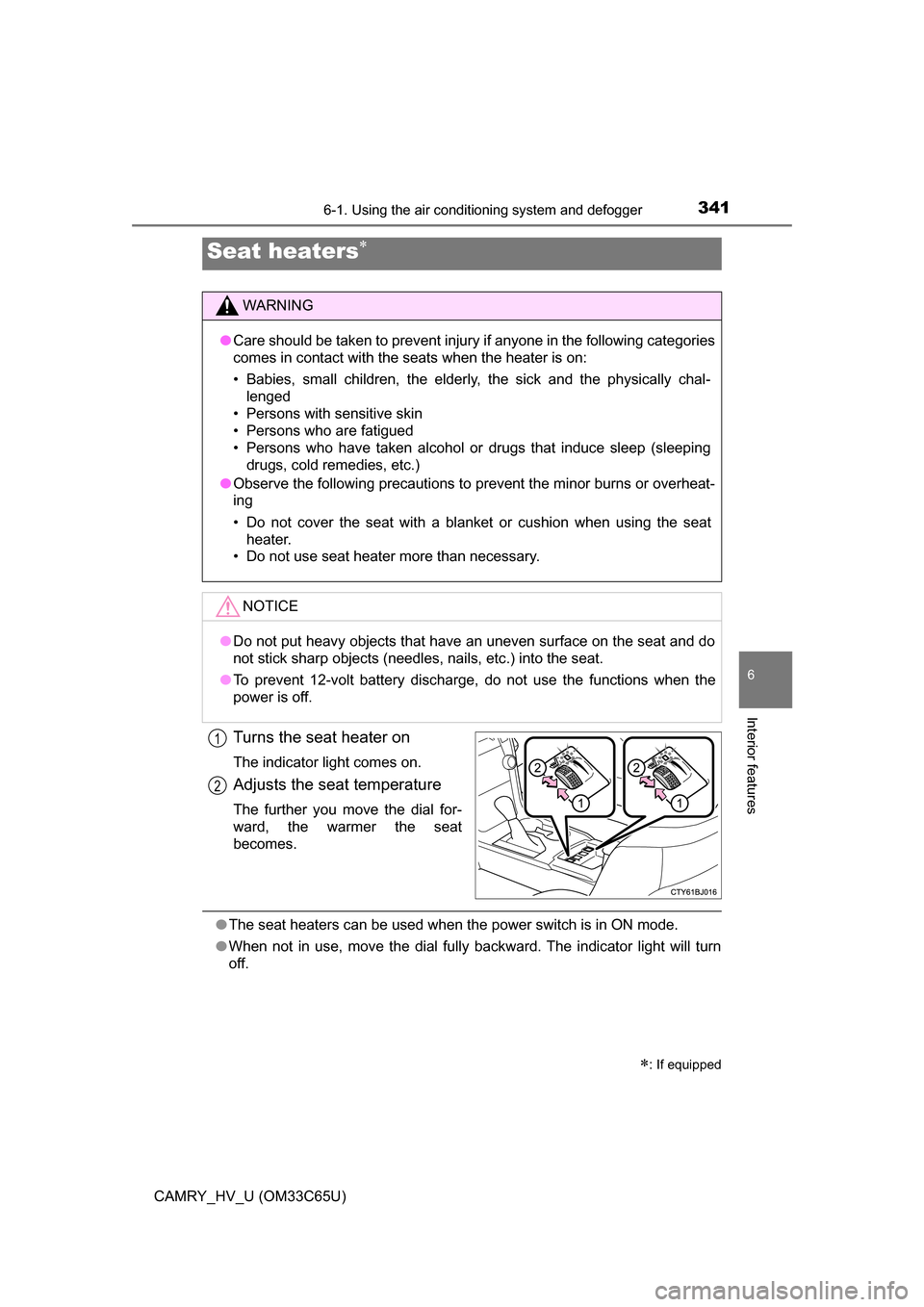

3416-1. Using the air conditioning system and defogger
6
Interior features
CAMRY_HV_U (OM33C65U)
Turns the seat heater on
The indicator light comes on.
Adjusts the seat temperature
The further you move the dial for-
ward, the warmer the seat
becomes.
●The seat heaters can be used when the power switch is in ON mode.
● When not in use, move the dial fully backward. The indicator light will turn
off.
Seat heaters
: If equipped
WARNING
●Care should be taken to prevent injury if anyone in the following categories
comes in contact with the seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Observe the following precautions to prevent the minor burns or overheat-
ing
• Do not cover the seat with a blanket or cushion when using the seat
heater.
• Do not use seat heater more than necessary.
NOTICE
● Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
● To prevent 12-volt battery discharge, do not use the functions when the
power is off.
1
2

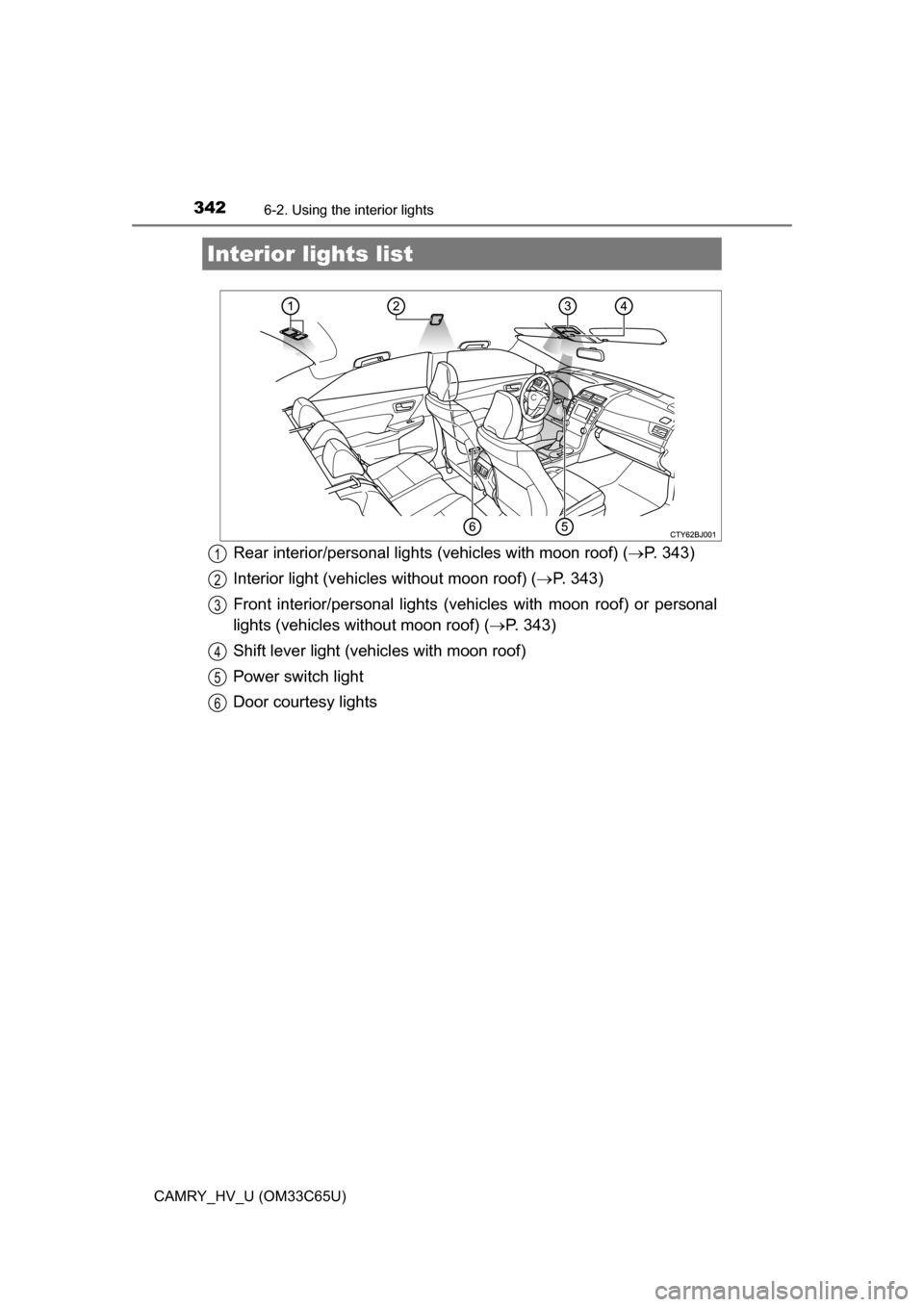

342
CAMRY_HV_U (OM33C65U)
6-2. Using the interior lights
Rear interior/personal lights (vehicles with moon roof) (P. 343)
Interior light (vehicles without moon roof) ( P. 343)
Front interior/personal lights (vehi cles with moon roof) or personal
lights (vehicles without moon roof) ( P. 343)
Shift lever light (vehicles with moon roof)
Power switch light
Door courtesy lights
Interior li ghts list
1
2
3
4
5
6

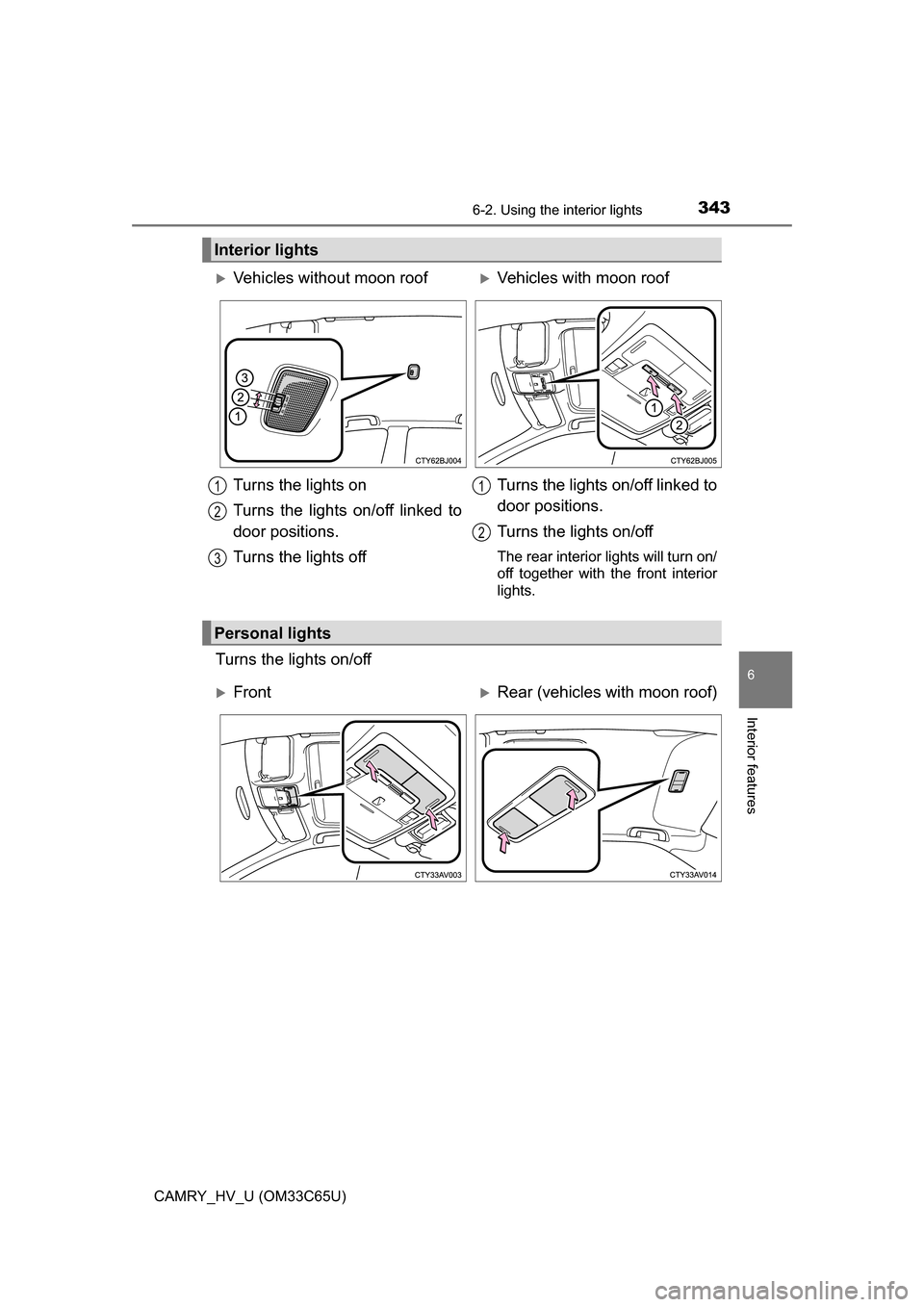

3436-2. Using the interior lights
6
Interior features
CAMRY_HV_U (OM33C65U)
Turns the lights on/off
Interior lights
Vehicles without moon roofVehicles with moon roof
Turns the lights on
Turns the lights on/off linked to
door positions.
Turns the lights off Turns the lights on/off linked to
door positions.
Turns the lights on/off
The rear interior lights will turn on/
off together with the front interior
lights.
1
2
3
1
2
Personal lights
FrontRear (vehicles with moon roof)

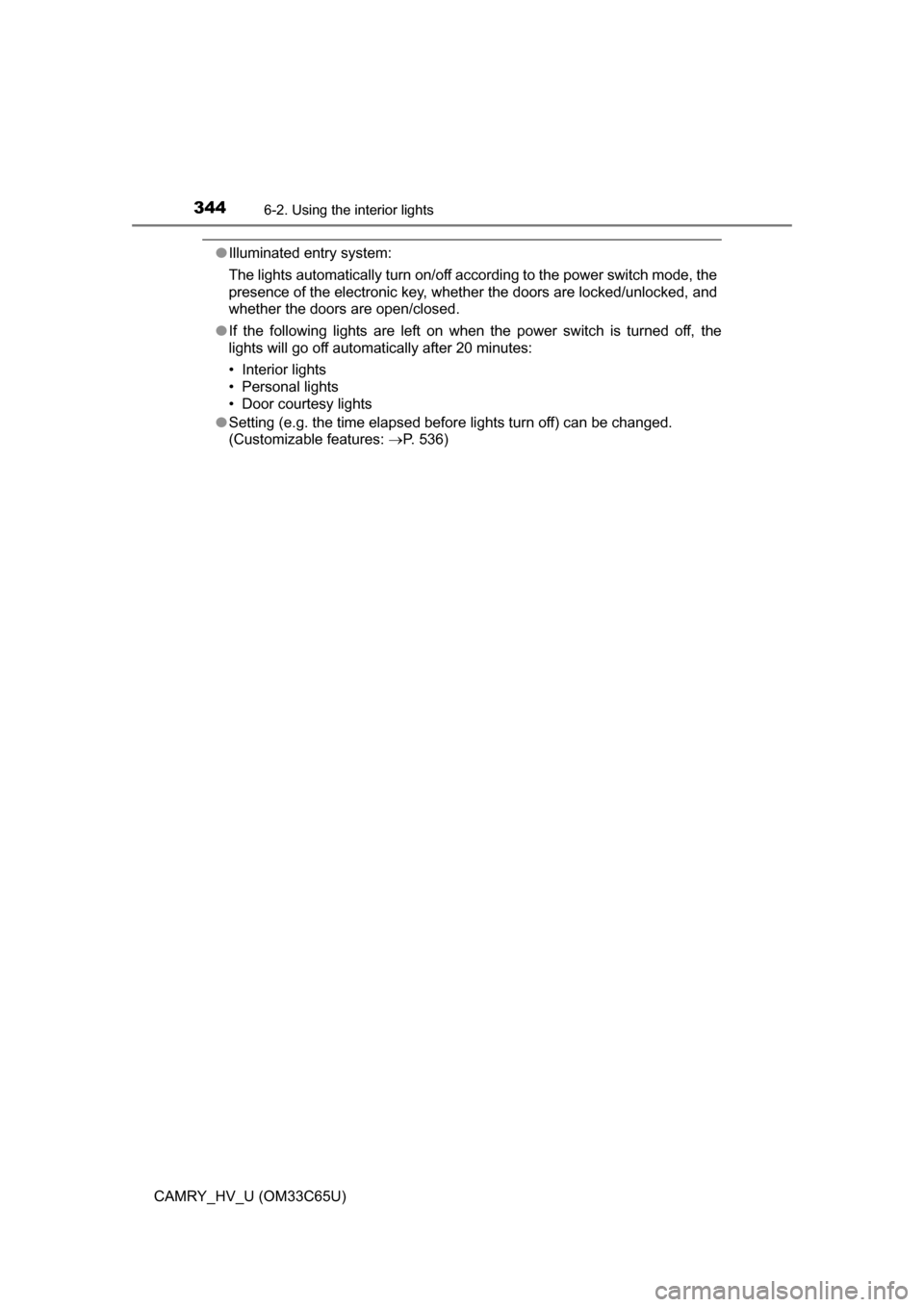

3446-2. Using the interior lights
CAMRY_HV_U (OM33C65U)
●Illuminated entry system:
The lights automatically turn on/off according to the power switch mode, the
presence of the electronic key, whet her the doors are locked/unlocked, and
whether the doors are open/closed.
● If the following lights are left on when the power switch is turned off, the
lights will go off automatically after 20 minutes:
• Interior lights
• Personal lights
• Door courtesy lights
● Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 536)

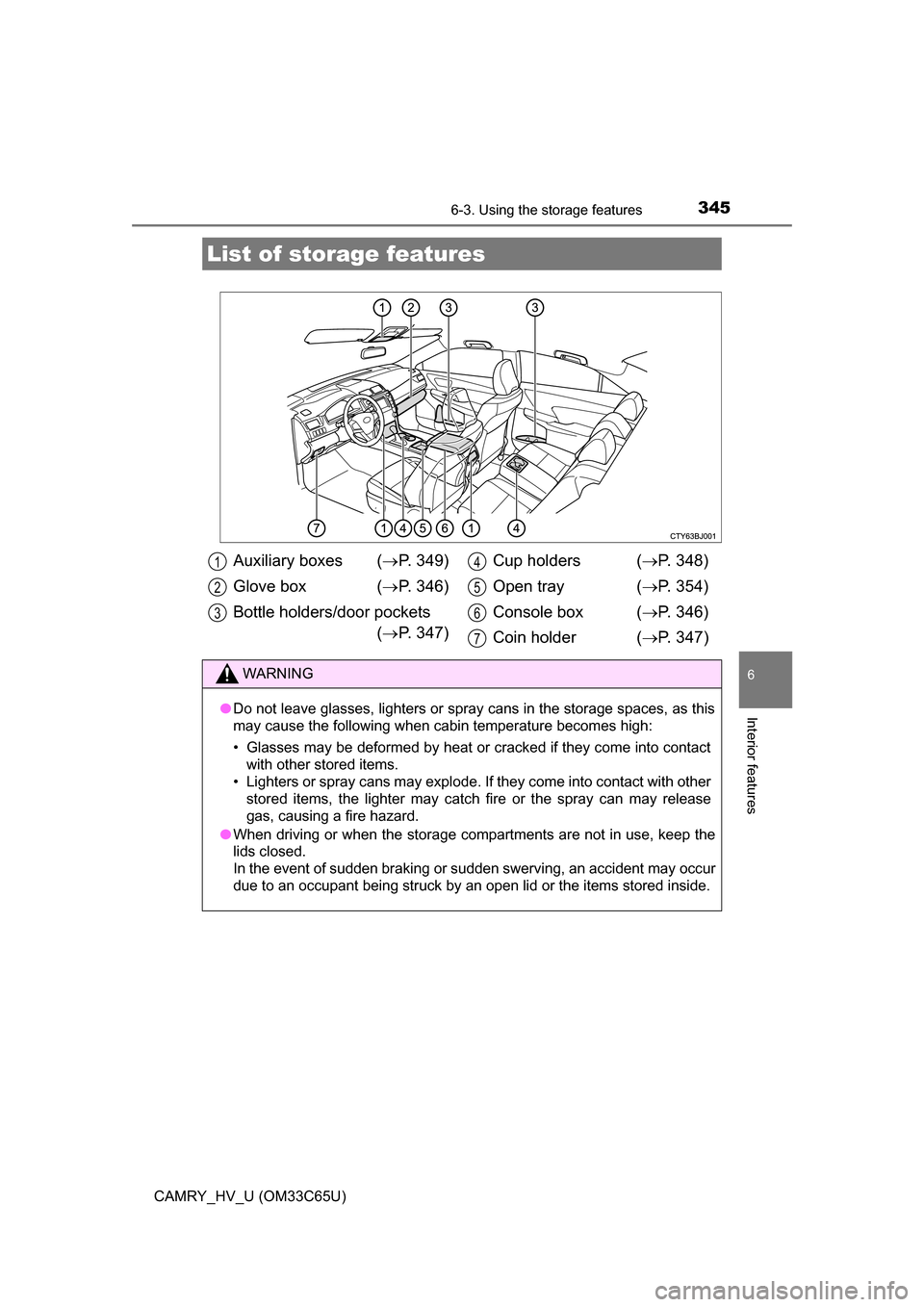

345
6
Interior features
CAMRY_HV_U (OM33C65U)
6-3. Using the storage features
List of storage features
Auxiliary boxes (P. 349)
Glove box ( P. 346)
Bottle holders/door pockets ( P. 347) Cup holders (
P. 348)
Open tray ( P. 354)
Console box ( P. 346)
Coin holder ( P. 347)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
● When driving or when the storage com partments are not in use, keep the
lids cl osed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4
5
6
7

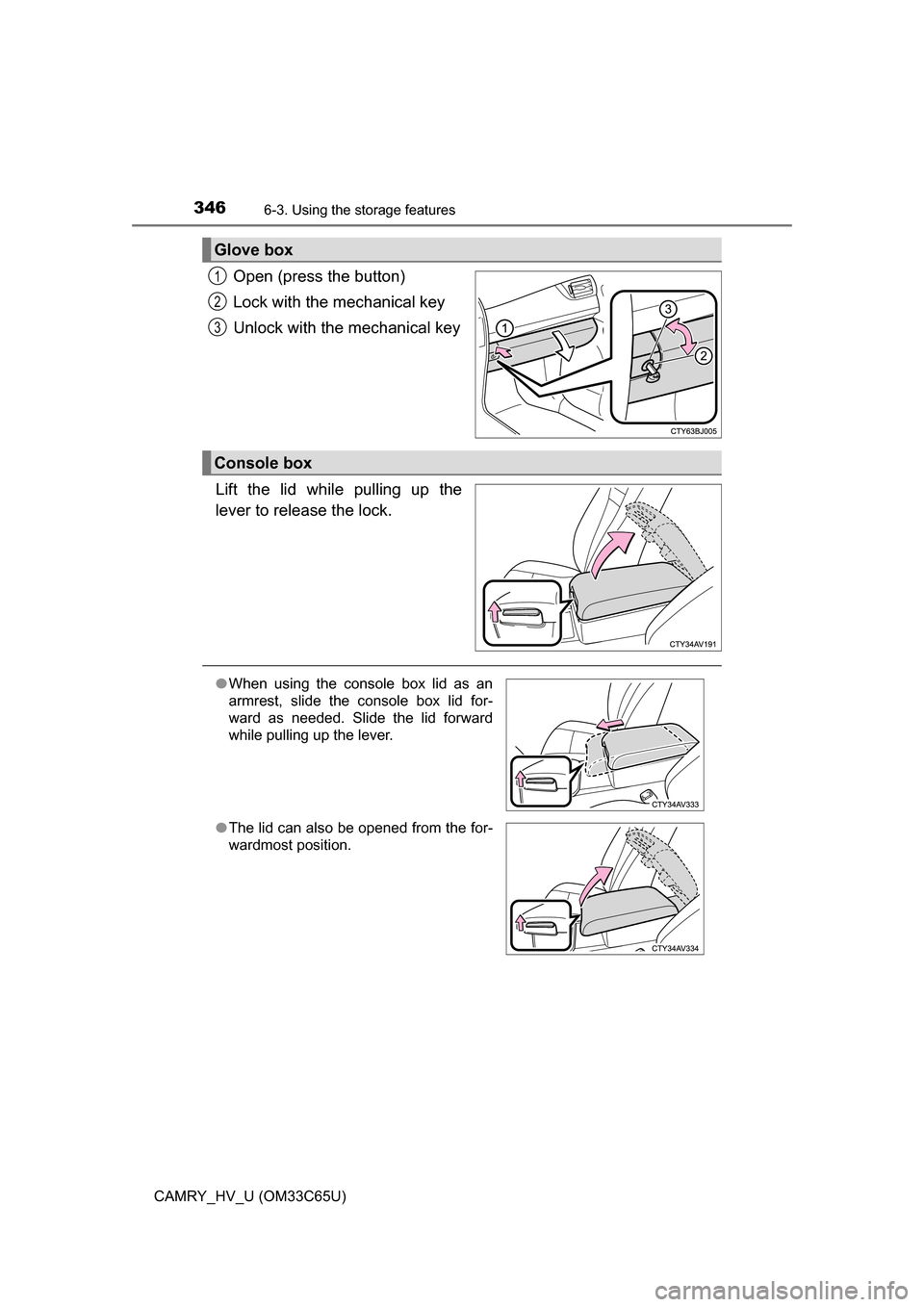

3466-3. Using the storage features
CAMRY_HV_U (OM33C65U)
Open (press the button)
Lock with the mechanical key
Unlock with the mechanical key
Lift the lid while pulling up the
lever to release the lock.
Glove box
1
2
3
Console box
● When using the console box lid as an
armrest, slide the console box lid for-
ward as needed. Slide the lid forward
while pulling up the lever.
● The lid can also be opened from the for-
wardmost position.

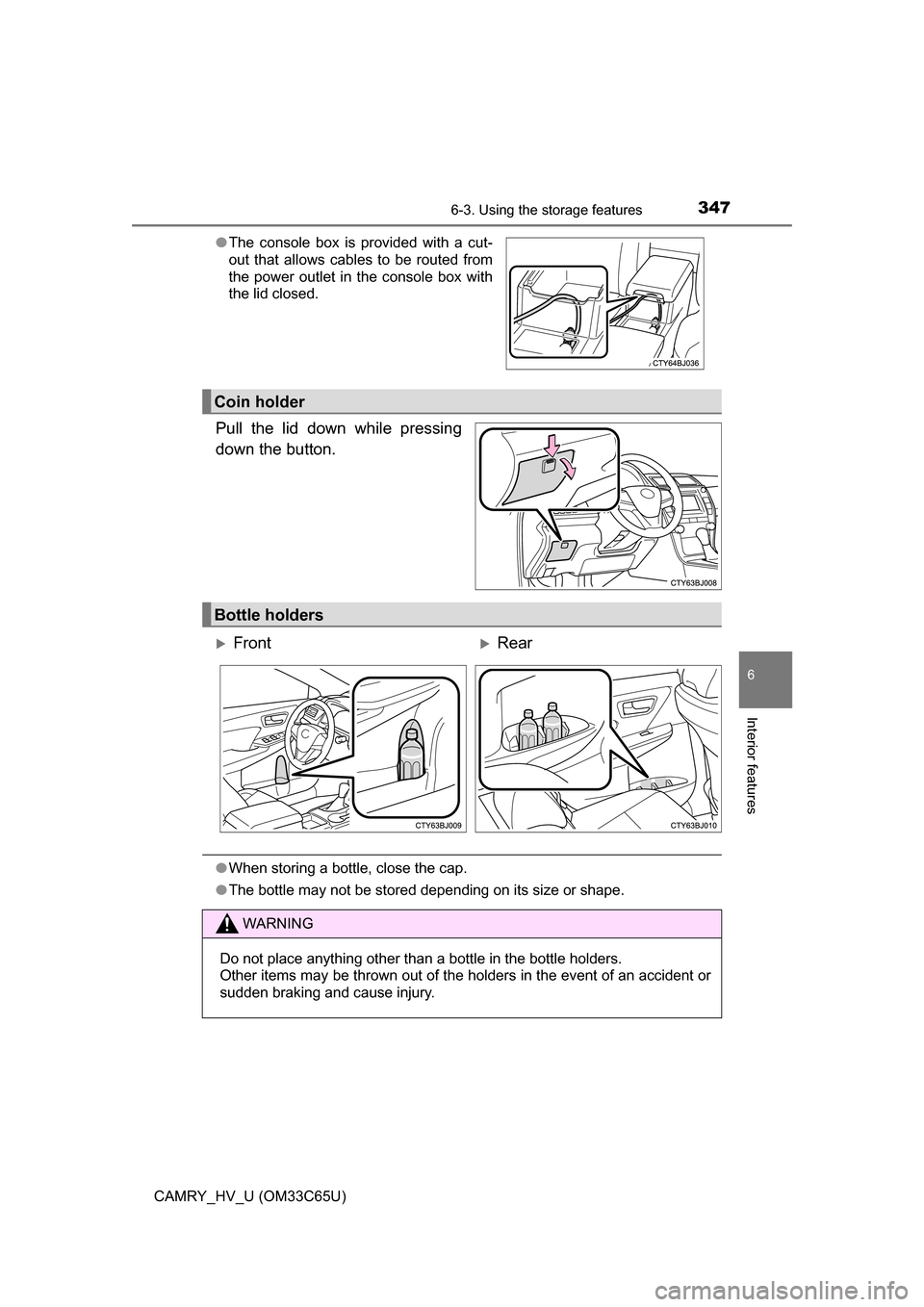

3476-3. Using the storage features
6
Interior features
CAMRY_HV_U (OM33C65U)
Pull the lid down while pressing
down the button.
●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
●
The console box is provided with a cut-
out that allows cables to be routed from
the power outlet in the console box with
the lid closed.
Coin holder
Bottle holders
FrontRear
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.

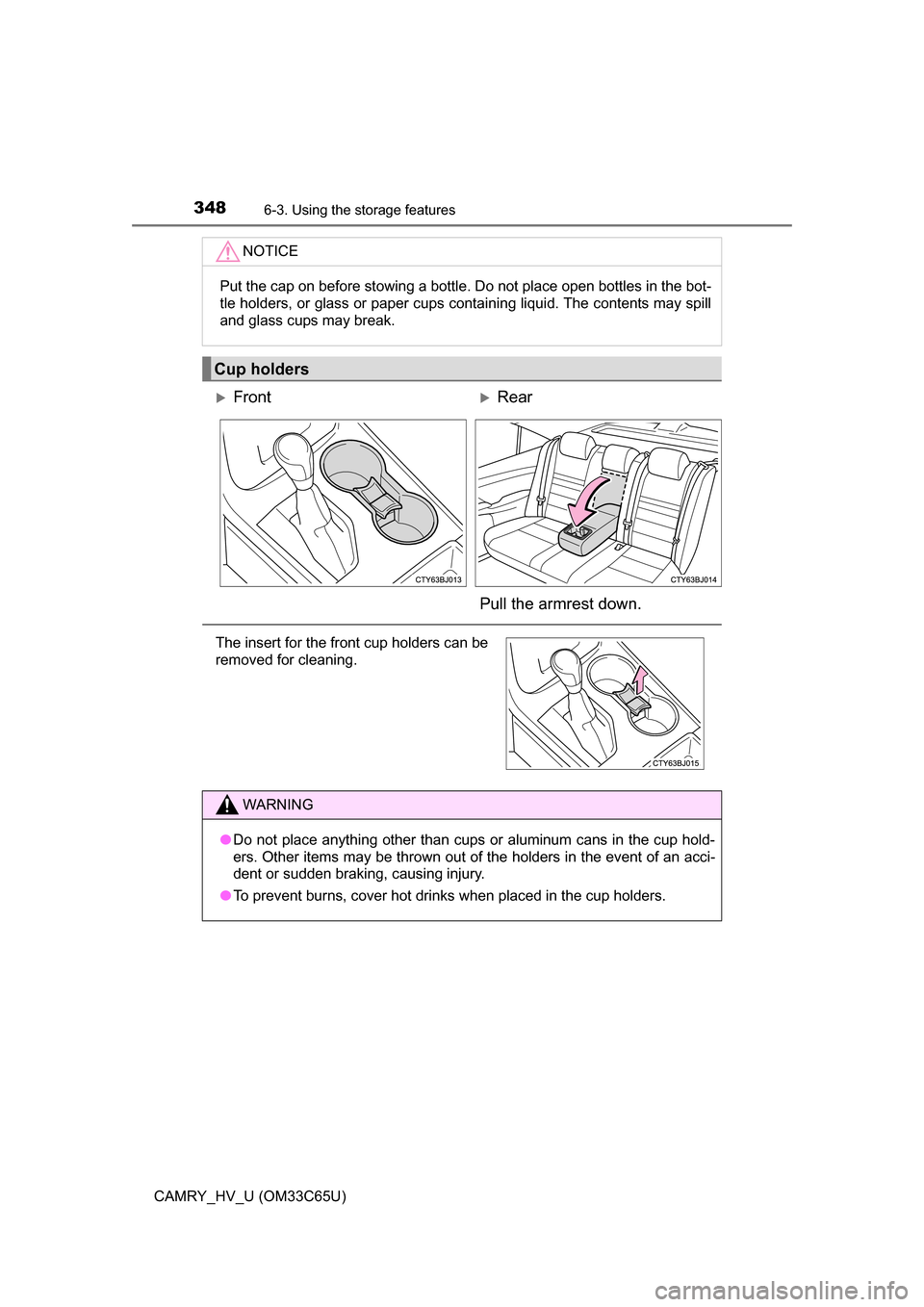

3486-3. Using the storage features
CAMRY_HV_U (OM33C65U)
NOTICE
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glass or paper cups containing liquid. The contents may spill
and glass cups may break.
Cup holders
FrontRear
Pull the armrest down.
The insert for the front cup holders can be
removed for cleaning.
WARNING
● Do not place anything other than cups or aluminum cans in the cup hold-
ers. Other items may be thrown out of the holders in the event of an acci-
dent or sudden braking, causing injury.
● To prevent burns, cover hot drinks when placed in the cup holders.

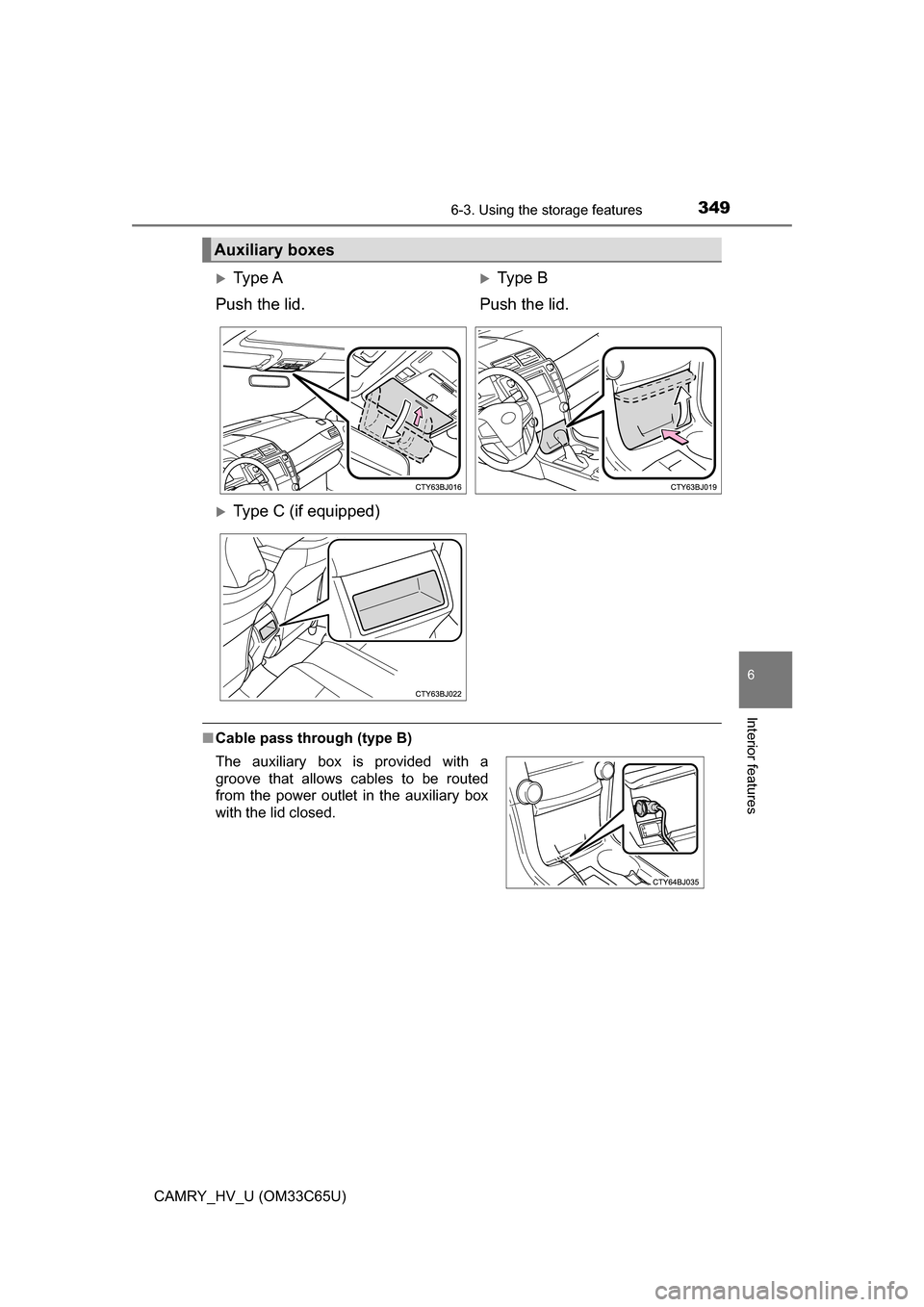

3496-3. Using the storage features
6
Interior features
CAMRY_HV_U (OM33C65U)
■Cable pass through (type B)
Auxiliary boxes
Ty p e A
Push the lid.Type B
Push the lid.
Type C (if equipped)
The auxiliary box is provided with a
groove that allows cables to be routed
from the power outlet in the auxiliary box
with the lid closed.

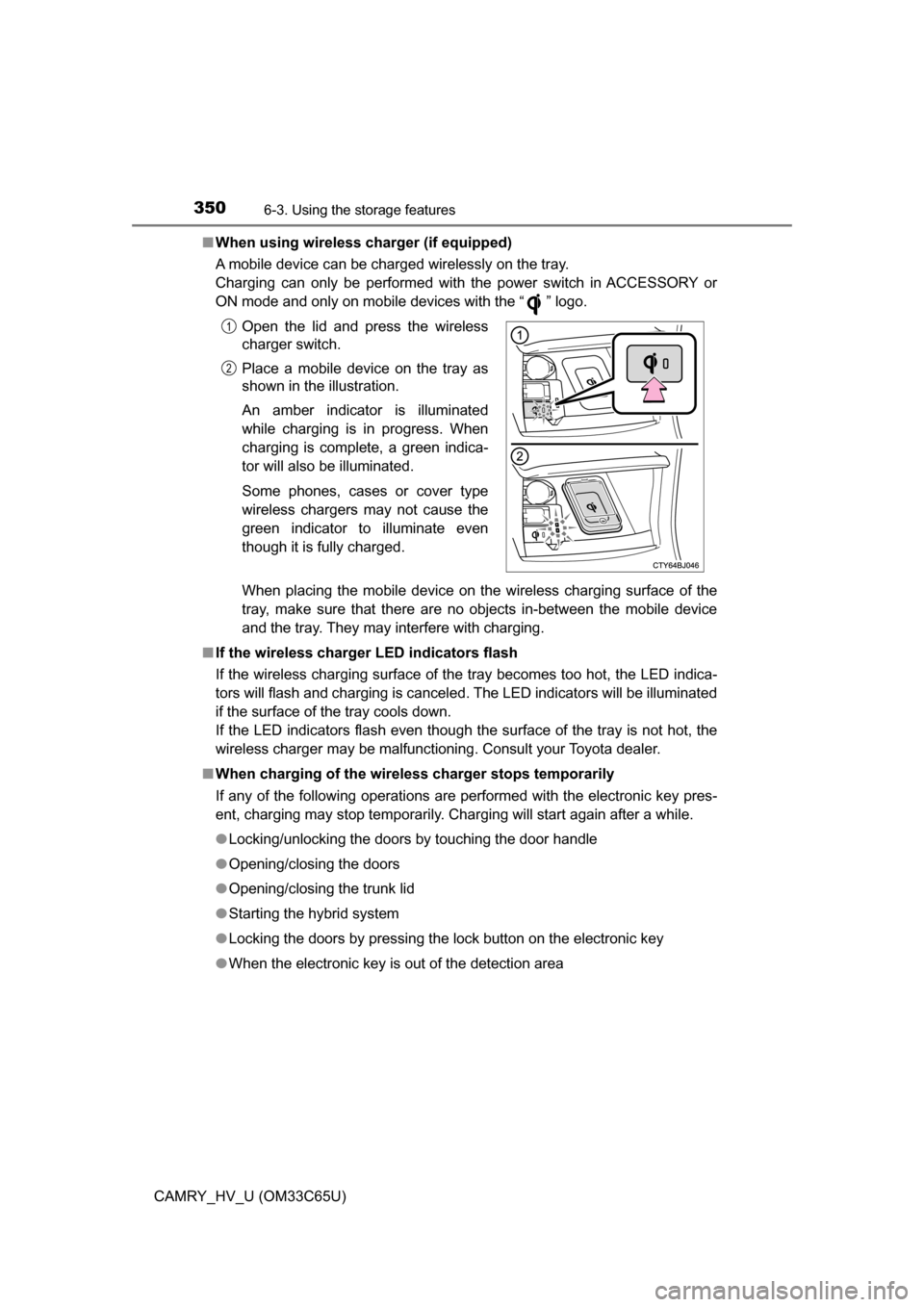

3506-3. Using the storage features
CAMRY_HV_U (OM33C65U)■
When using wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray.
Charging can only be performed with the power switch in ACCESSORY or
ON mode and only on mobile devices with the “ ” logo.
When placing the mobile device on the wireless charging surface of the
tray, make sure that there are no objects in-between the mobile device
and the tray. They may interfere with charging.
■ If the wireless charger LED indicators flash
If the wireless charging surface of the tray becomes too hot, the LED indica-
tors will flash and charging is canceled. The LED indicators will be illuminated
if the surface of the tray cools down.
If the LED indicators flash even though the surface of the tray is not hot, the
wireless charger may be malfunctioning. Consult your Toyota dealer.
■ When charging of the wirel ess charger stops temporarily
If any of the following operations are performed with the electronic key pres-
ent, charging may stop temporarily. Charging will start again after a while.
● Locking/unlocking the doors by touching the door handle
● Opening/closing the doors
● Opening/closing the trunk lid
● Starting the hybrid system
● Locking the doors by pressing the lock button on the electronic key
● When the electronic key is out of the detection areaOpen the lid and press the wireless
charger switch.
Place a mobile device on the tray as
shown in the illustration.
An amber indicator is illuminated
while charging is in progress. When
charging is complete, a green indica-
tor will also be illuminated.
Some phones, cases or cover type
wireless chargers may not cause the
green indicator to illuminate even
though it is fully charged.
1
2
