3516-3. Using the storage features
6
Interior features
CAMRY_HV_U (OM33C65U)■

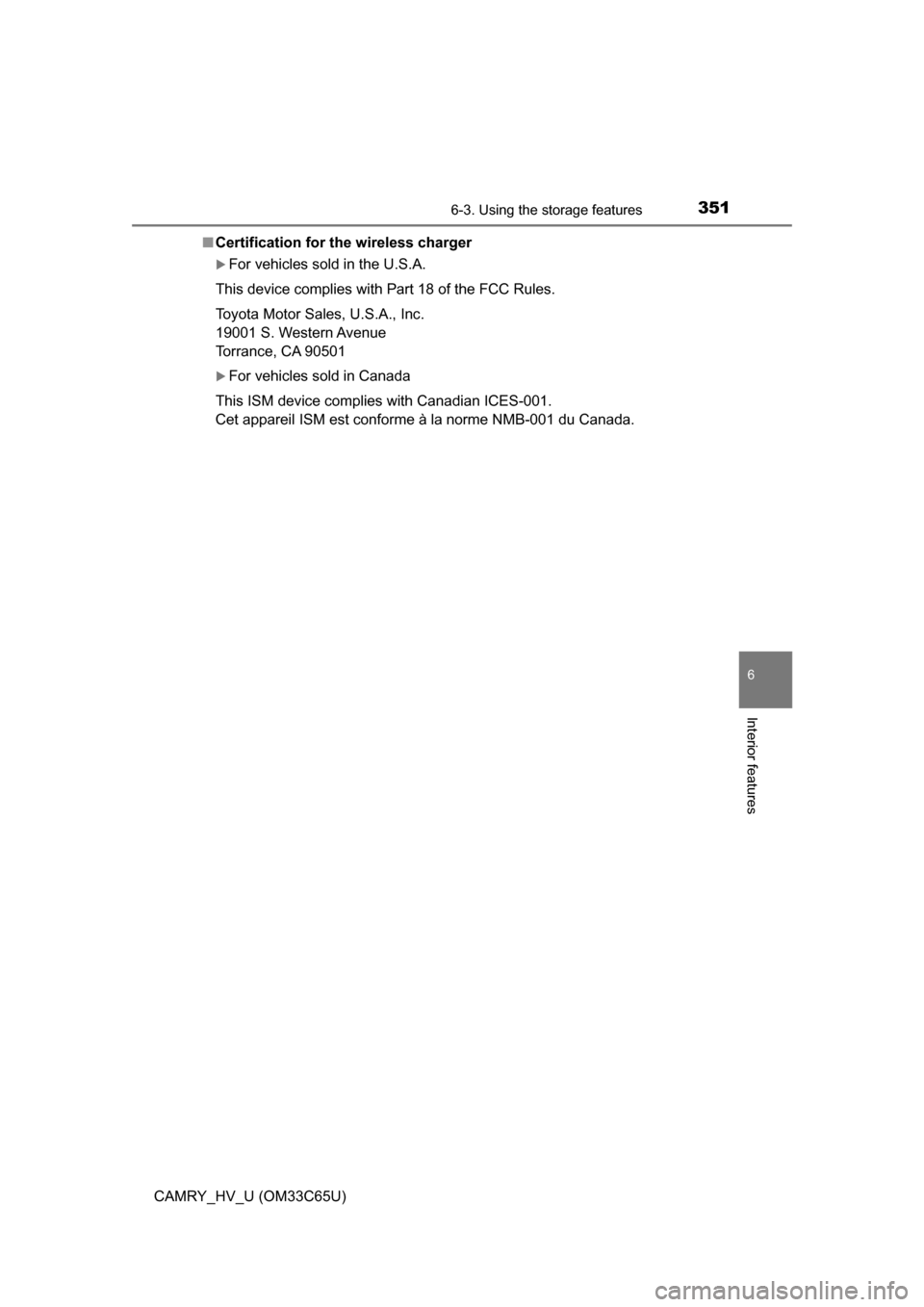

Certification for the wireless charger
For vehicles sold in the U.S.A.
This device complies with Part 18 of the FCC Rules.
Toyota Motor Sales, U.S.A., Inc.
19001 S. Western Avenue
Torrance, CA 90501
For vehicles sold in Canada
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme à la norme NMB-001 du Canada.

3526-3. Using the storage features
CAMRY_HV_U (OM33C65U)

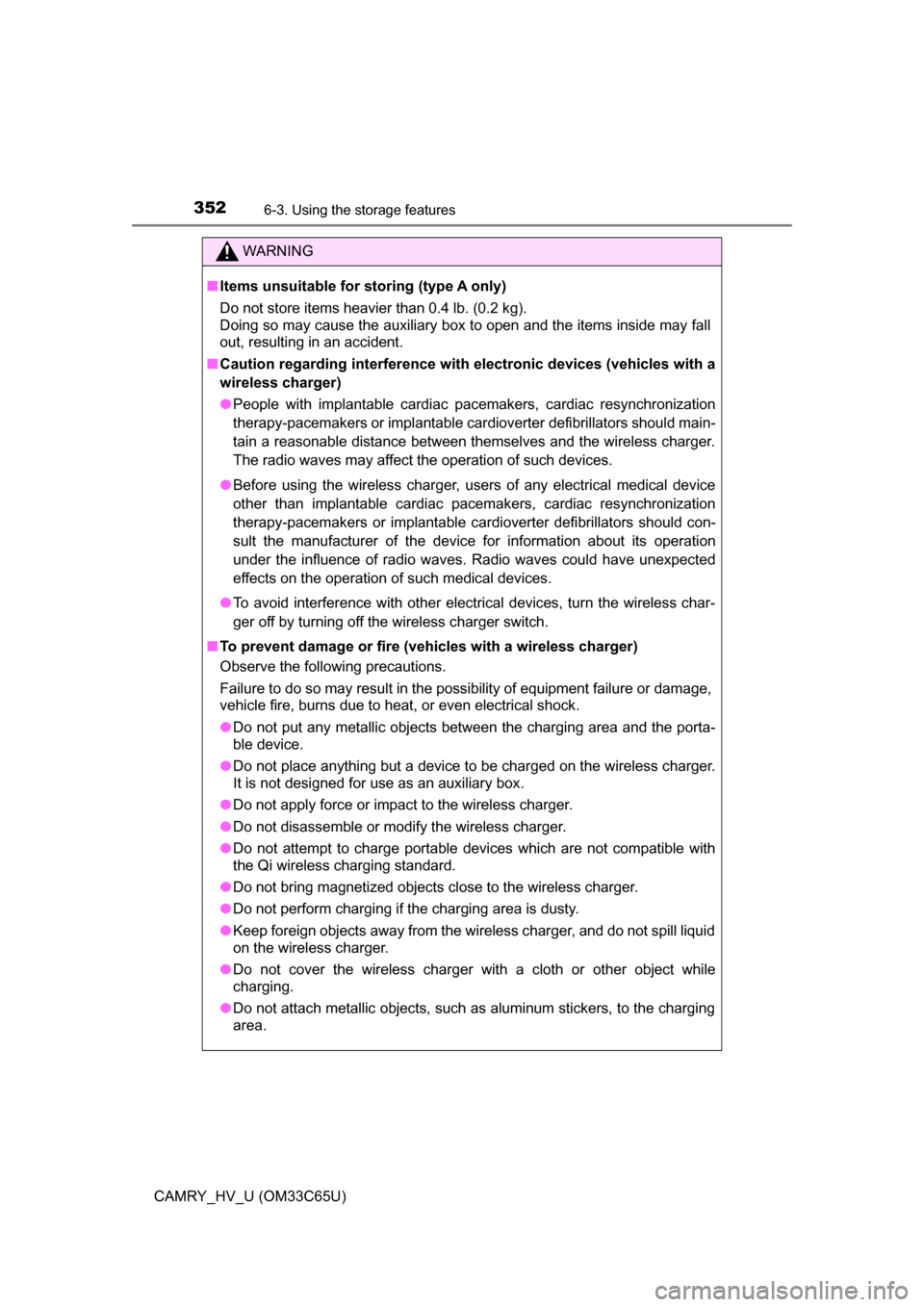

WARNING
■Items unsuitable for storing (type A only)
Do not store items heavier than 0.4 lb. (0.2 kg).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.
■ Caution regarding interference with electronic devices (vehicles with a
wireless charger)
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the wireless charger.
The radio waves may affect the operation of such devices.
● Before using the wireless charger, us ers of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con\
-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
● To avoid interference with other electrical devices, turn the wireless char-
ger off by turning off the wireless charger switch.
■ To prevent damage or fire (vehicles with a wireless charger)
Observe the following precautions.
Failure to do so may result in the possibility of equipment failure or damage,
vehicle fire, burns due to heat, or even electrical shock.
● Do not put any metallic objects between the charging area and the porta-
ble device.
● Do not place anything but a device to be charged on the wireless charger.
It is not designed for use as an auxiliary box.
● Do not apply force or impact to the wireless charger.
● Do not disassemble or modify the wireless charger.
● Do not attempt to charge portable devices which are not compatible with
the Qi wireless charging standard.
● Do not bring magnetized objects close to the wireless charger.
● Do not perform charging if the charging area is dusty.
● Keep foreign objects away from the wireless charger, and do not spill liquid
on the wireless charger.
● Do not cover the wireless charger with a cloth or other object while
charging.
● Do not attach metallic objects, such as aluminum stickers, to the charging
area.

3536-3. Using the storage features
6
Interior features
CAMRY_HV_U (OM33C65U)

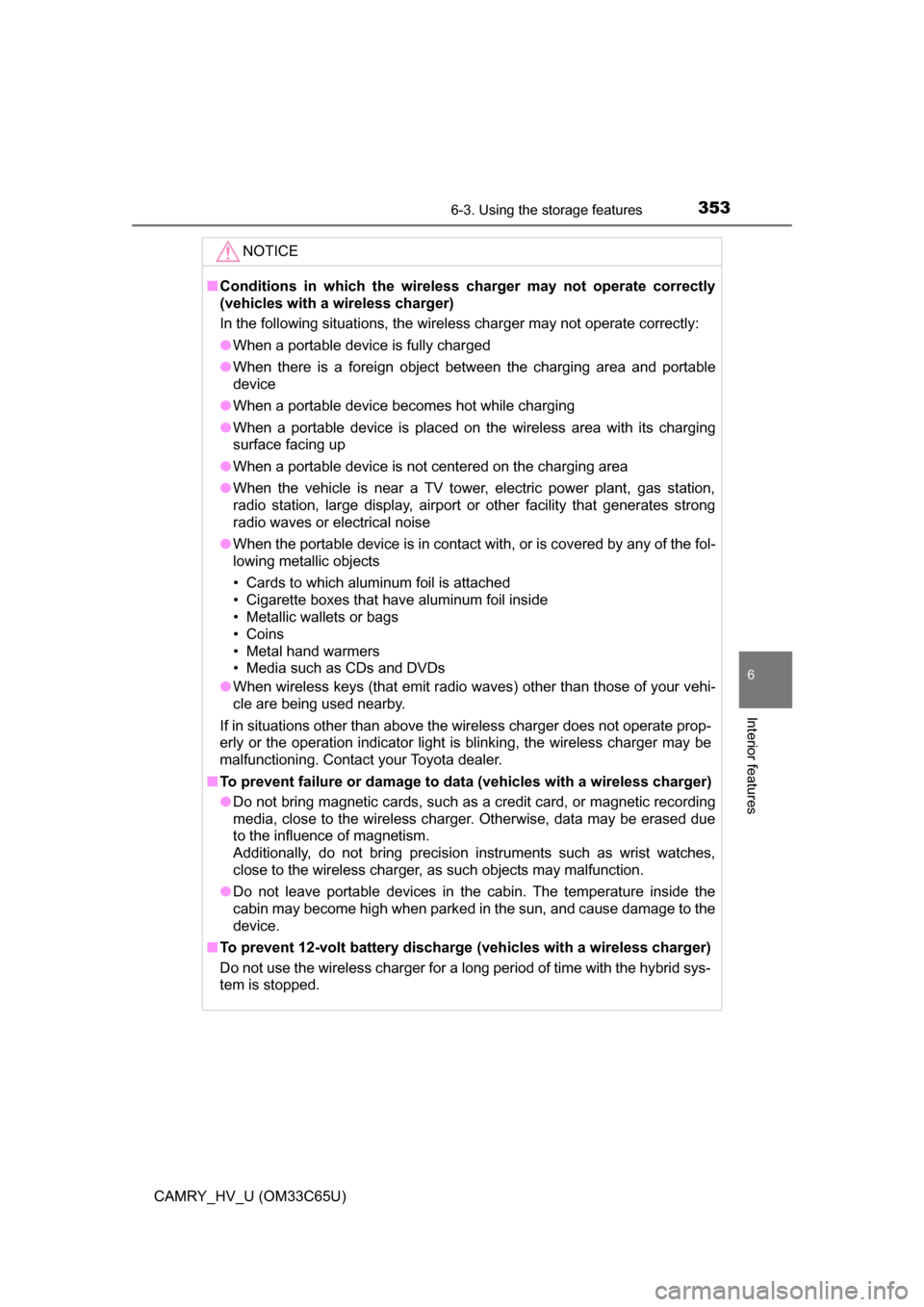

NOTICE
■Conditions in which the wireless ch arger may not operate correctly
(vehicles with a wireless charger)
In the following situations, the wireless charger may not operate correctly:
● When a portable device is fully charged
● When there is a foreign object between the charging area and portable
device
● When a portable device becomes hot while charging
● When a portable device is placed on the wireless area with its charging
surface facing up
● When a portable device is not centered on the charging area
● When the vehicle is near a TV tower, electric power plant, gas station,
radio station, large display, airport or other facility that generates strong
radio waves or electrical noise
● When the portable device is in contact with, or is covered by any of the fol-
lowing metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Metal hand warmers
• Media such as CDs and DVDs
● When wireless keys (that emit radio waves) other than those of your vehi-
cle are being used nearby.
If in situations other than above the wireless charger does not operate prop-
erly or the operation indicator light is blinking, the wireless charger may be
malfunctioning. Contact your Toyota dealer.
■ To prevent failure or damage to data (vehicles with a wireless charger)
● Do not bring magnetic cards, such as a credit card, or magnetic recording
media, close to the wireless charger. Otherwise, data may be erased due
to the influence of magnetism.
Additionally, do not bring precision instruments such as wrist watches,
close to the wireless charger, as such objects may malfunction.
● Do not leave portable devices in the cabin. The temperature inside the
cabin may become high when parked in the sun, and cause damage to the
device.
■ To prevent 12-volt battery discharge (vehicles with a wireless charger)
Do not use the wireless charger for a long period of time with the hybrid sys-
tem is stopped.

3546-3. Using the storage features
CAMRY_HV_U (OM33C65U)

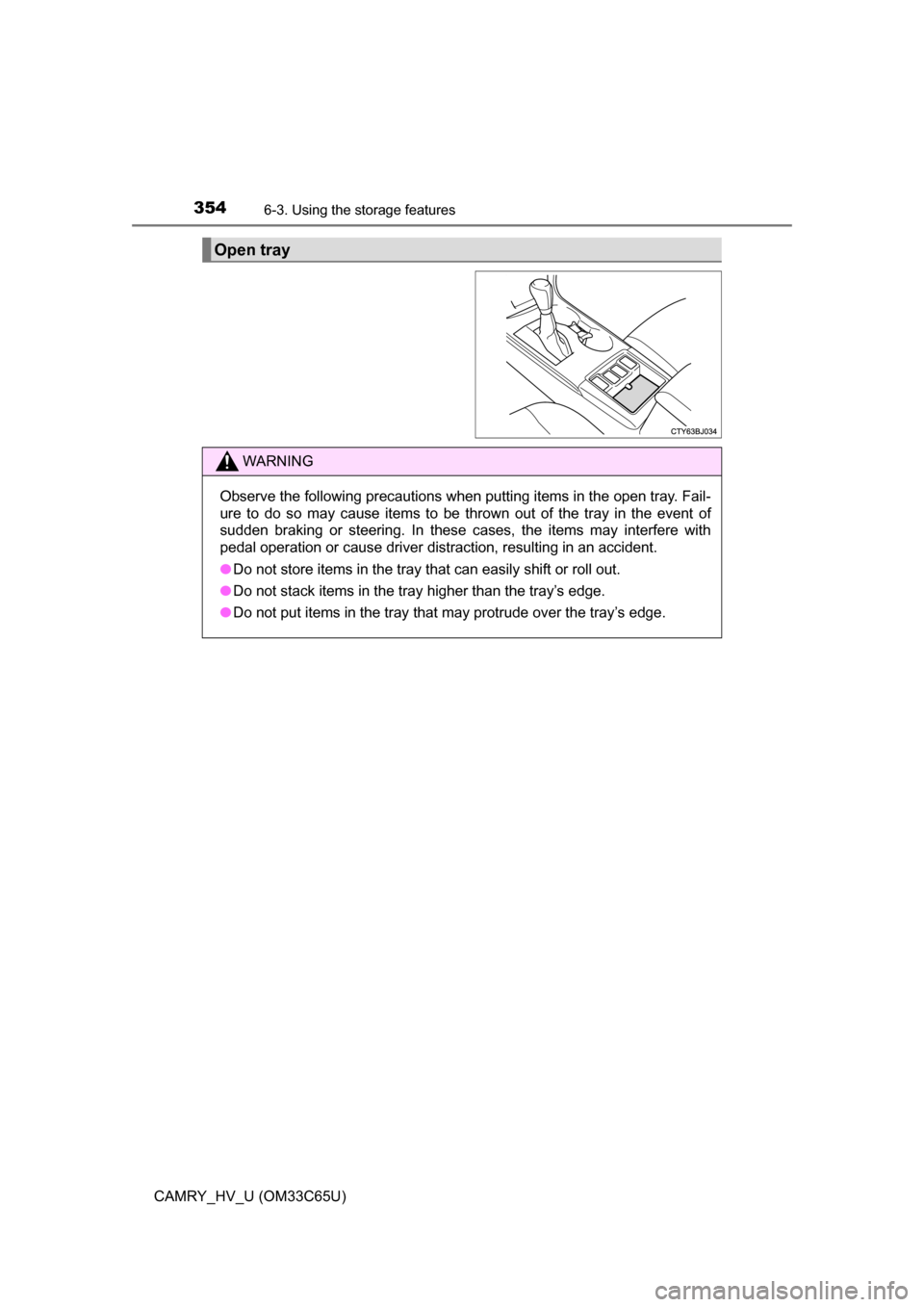

Open tray
WARNING
Observe the following precautions when putting items in the open tray. Fail-
ure to do so may cause items to be thrown out of the tray in the event of
sudden braking or steering. In these cases, the items may interfere with
pedal operation or cause driver distraction, resulting in an accident.
●Do not store items in the tray that can easily shift or roll out.
● Do not stack items in the tray higher than the tray’s edge.
● Do not put items in the tray that may protrude over the tray’s edge.

3556-3. Using the storage features
6
Interior features
CAMRY_HV_U (OM33C65U)

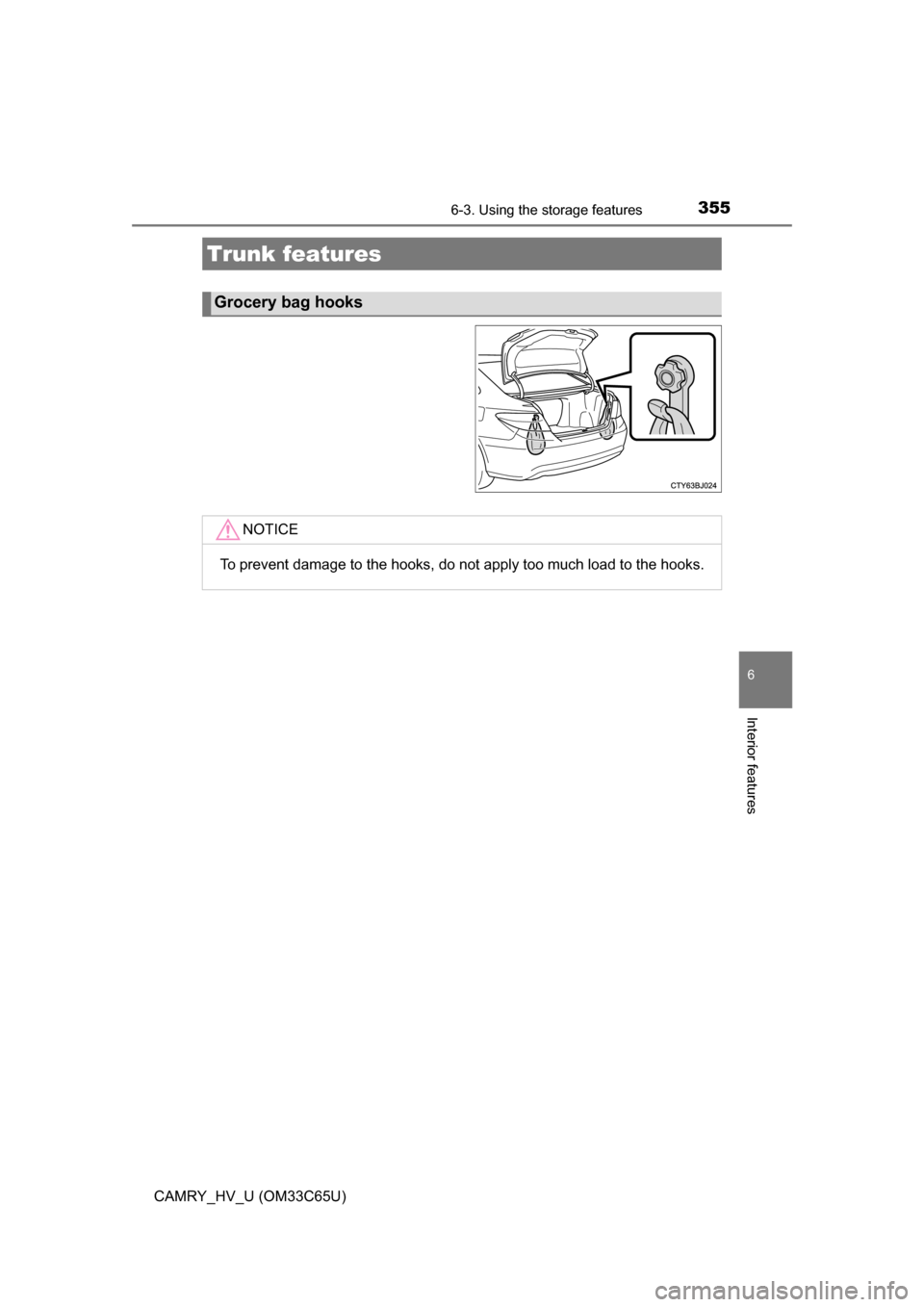

Trunk features
Grocery bag hooks
NOTICE
To prevent damage to the hooks, do not apply too much load to the hooks.

356
CAMRY_HV_U (OM33C65U)
6-4. Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
To use the side extender, place
the visor in the side position,
then slide it backward.
Slide the cover to open.
Vehicles with vanity lights: The light
turns on when the cover is opened.
Vehicles with vanity lights: If the vanity lights remain on for 20 minutes while
the power is off, the lights will turn off automatically.
Other interior features
Sun visors
1
2
3
Vanity mirrors

3576-4. Other interior features
6
Interior features
CAMRY_HV_U (OM33C65U)

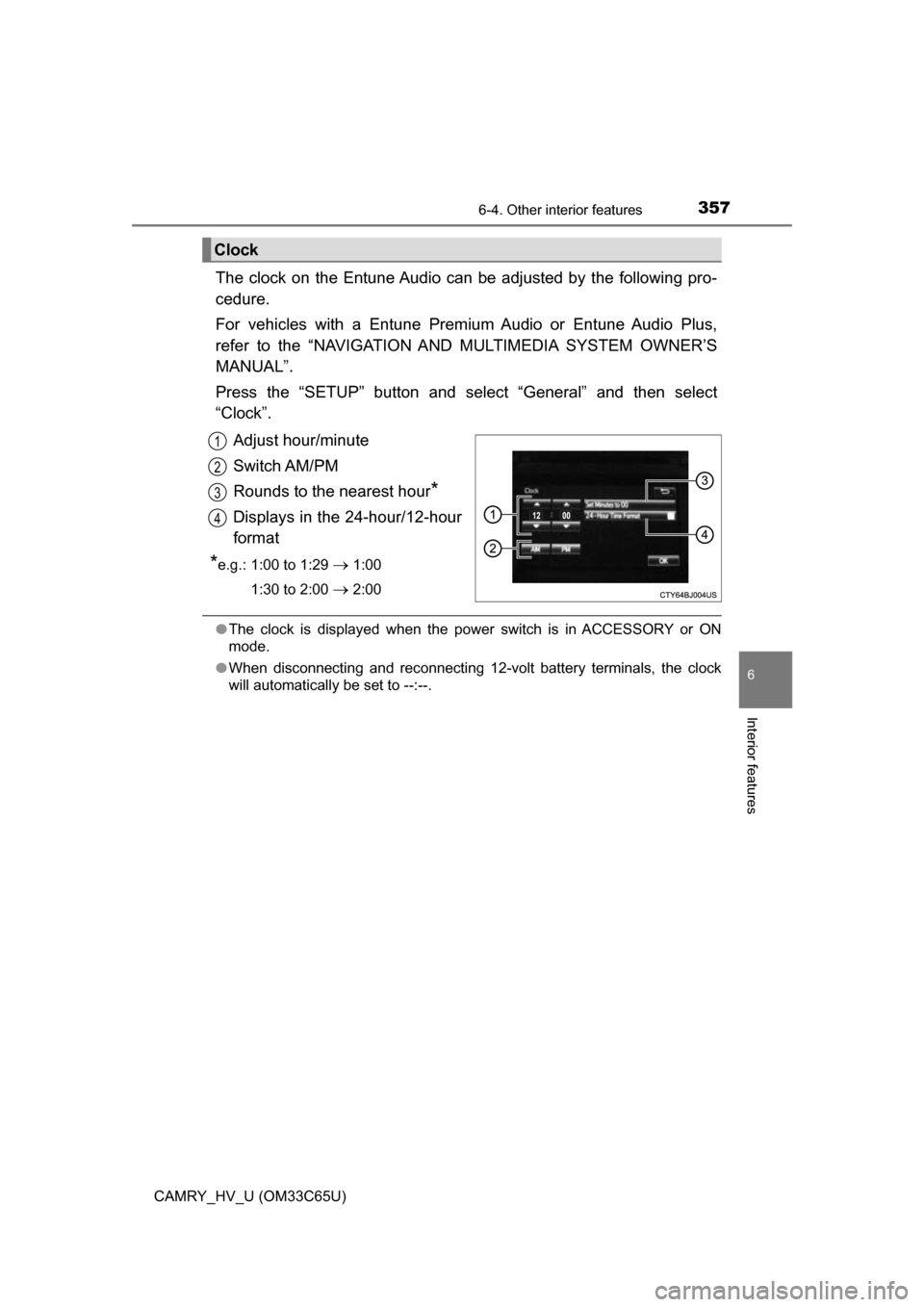

The clock on the Entune Audio can be adjusted by the following pro-
cedure.
For vehicles with a Entune Premium Audio or Entune Audio Plus,
refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
Press the “SETUP” button and se lect “General” and then select
“Clock”.
Adjust hour/minute
Switch AM/PM
Rounds to the nearest hour
*
Displays in the 24-hour/12-hour
format
*e.g.: 1:00 to 1:29  1:00
1:30 to 2:00
 2:00
● The clock is displayed when the power switch is in ACCESSORY or ON
mode.
● When disconnecting and reconnecting 12-volt battery terminals, the clock
will automatically be set to --:--.
Clock
1
2
3
4

3586-4. Other interior features
CAMRY_HV_U (OM33C65U)

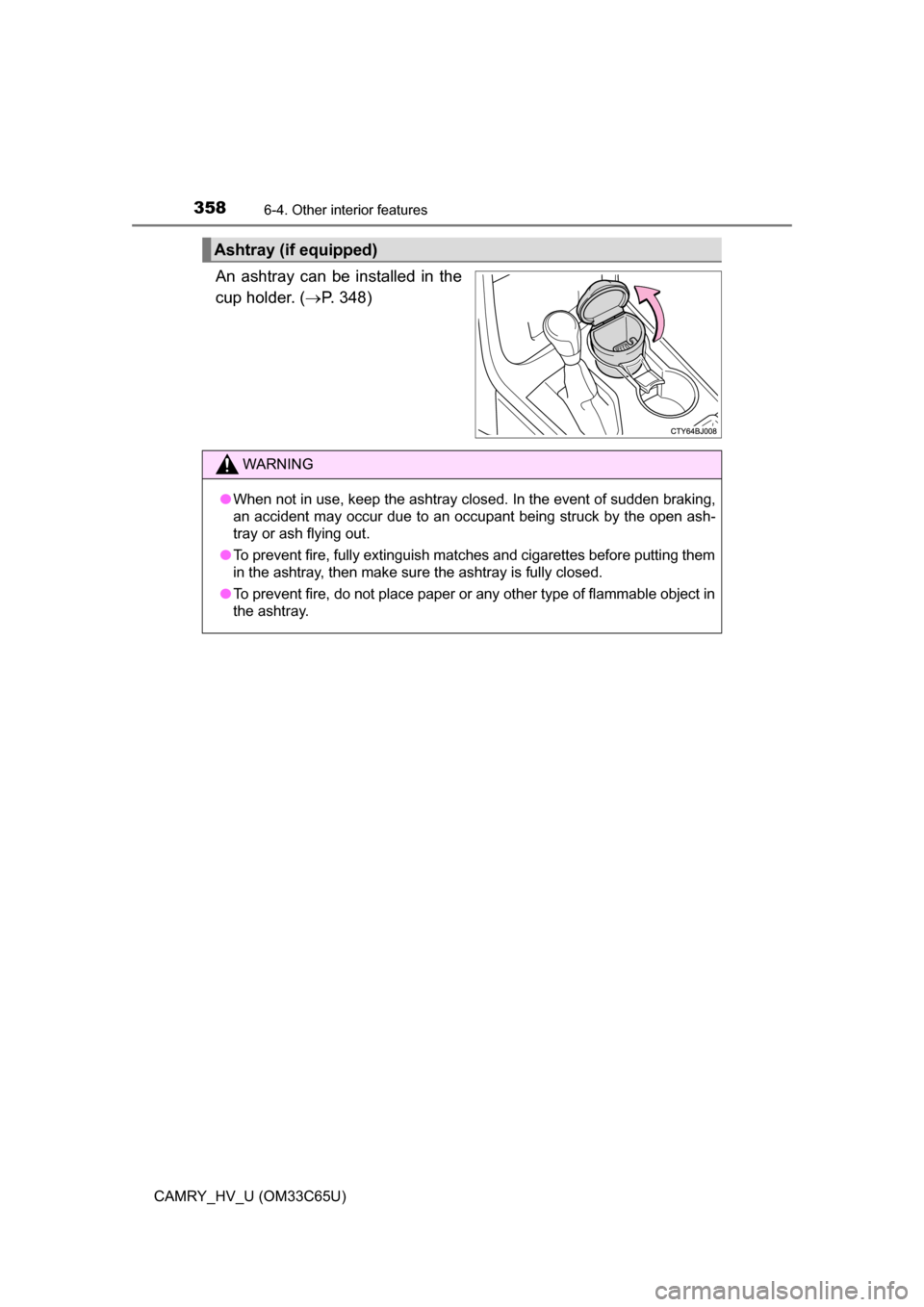

An ashtray can be installed in the
cup holder. (P. 348)
Ashtray (if equipped)
WARNING
●When not in use, keep the ashtray closed. In the event of sudden braking,
an accident may occur due to an occupant being struck by the open ash-
tray or ash flying out.
● To prevent fire, fully extinguish matches and cigarettes before putting them
in the ashtray, then make sure the ashtray is fully closed.
● To prevent fire, do not place paper or any other type of flammable object in
the ashtray.

3596-4. Other interior features
6
Interior features
CAMRY_HV_U (OM33C65U)

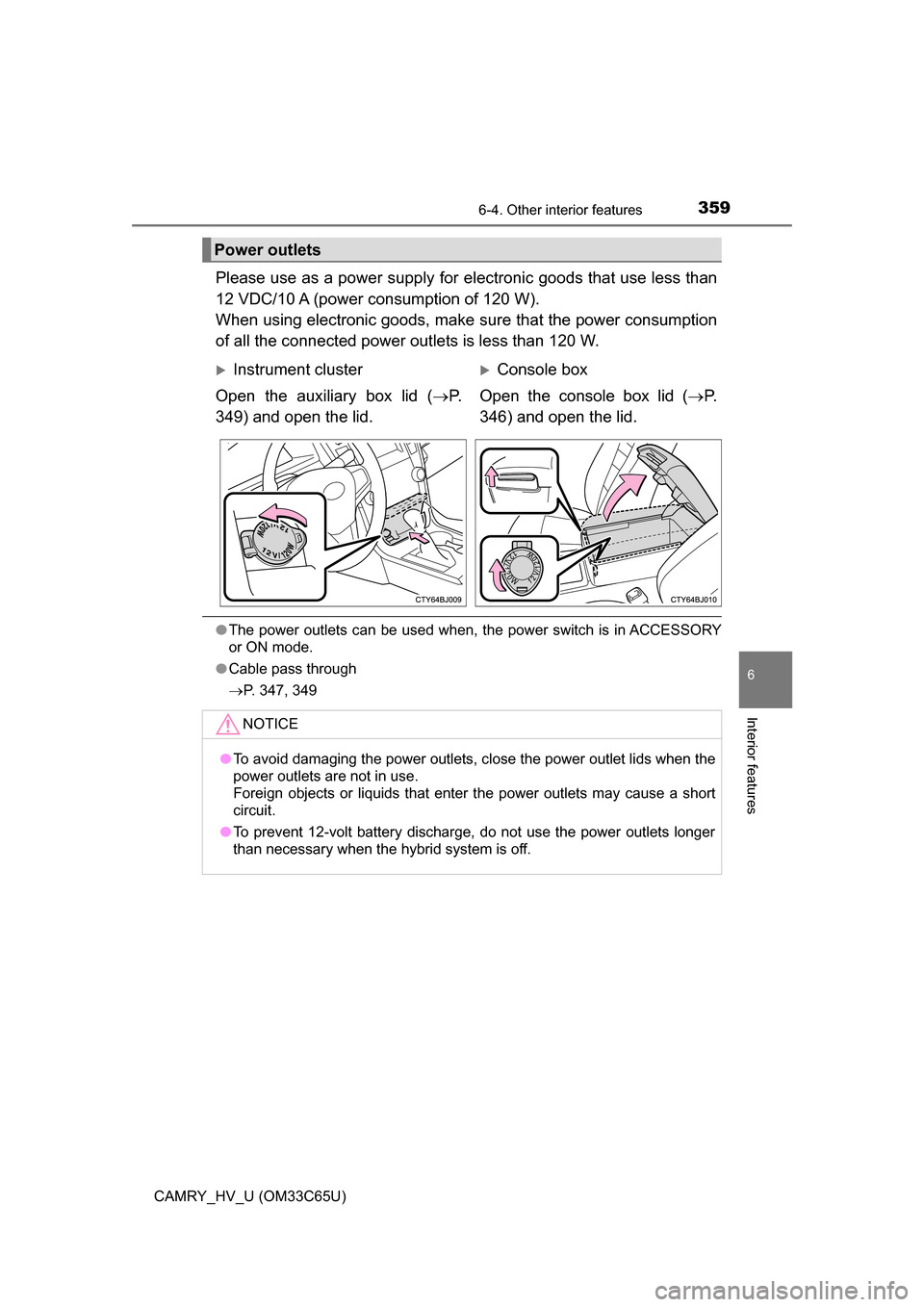

Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
When using electronic goods, make sure that the power consumption
of all the connected power outlets is less than 120 W.
● The power outlets can be used when, the power switch is in ACCESSORY
or ON mode.
● Cable pass through
P. 347, 349
Power outlets
Instrument cluster
Open the auxiliary box lid ( P.
349) and open the lid.Console box
Open the console box lid ( P.
346) and open the lid.
NOTICE
● To avoid damaging the power outlets, close the power outlet lids when the
power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outlets longer
than necessary when the hybrid system is off.

3606-4. Other interior features
CAMRY_HV_U (OM33C65U)

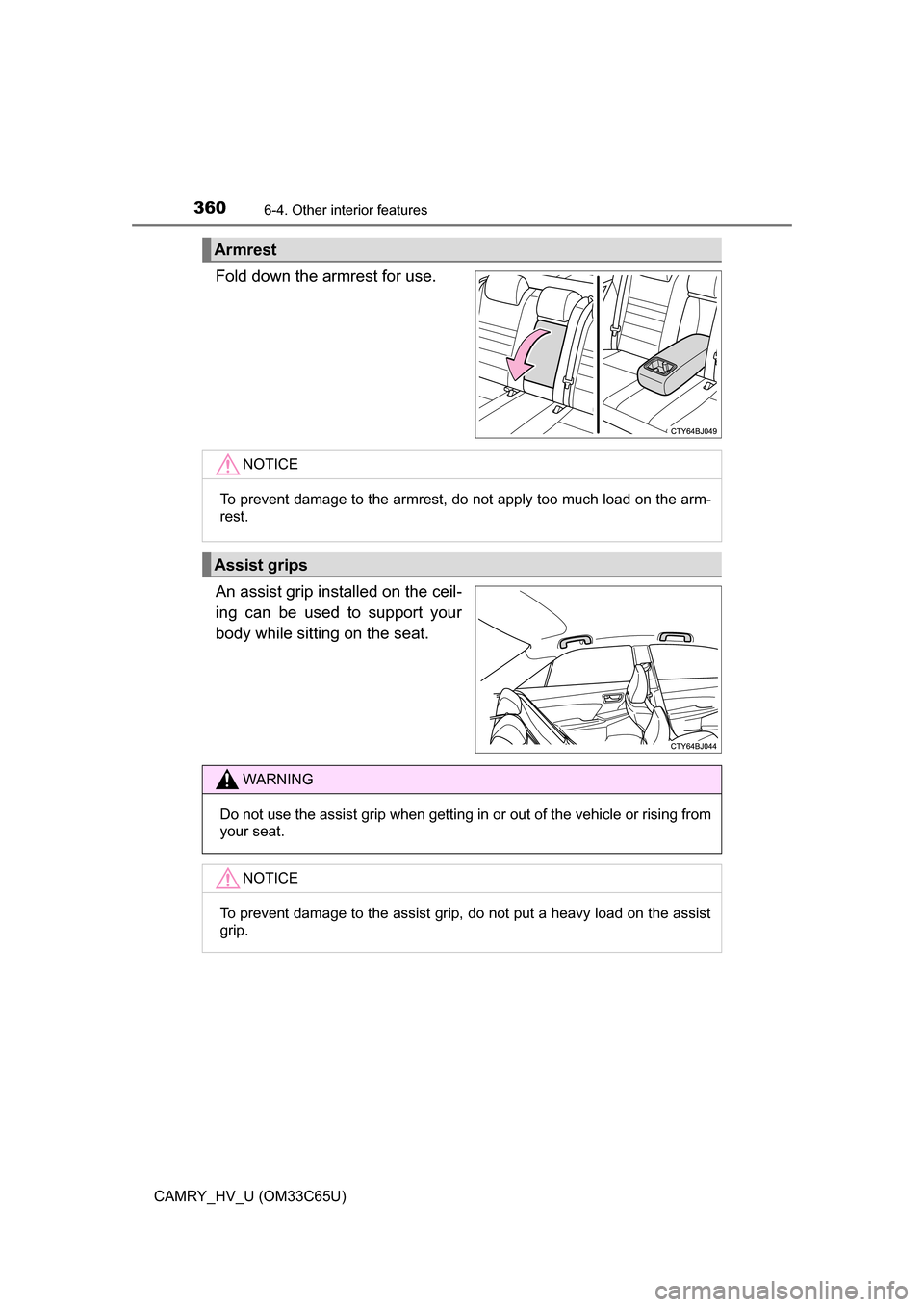

Fold down the armrest for use.
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Armrest
NOTICE
To prevent damage to the armrest, do not apply too much load on the arm-
rest.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist
grip.
