4317-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_HV_U (OM33C65U)■

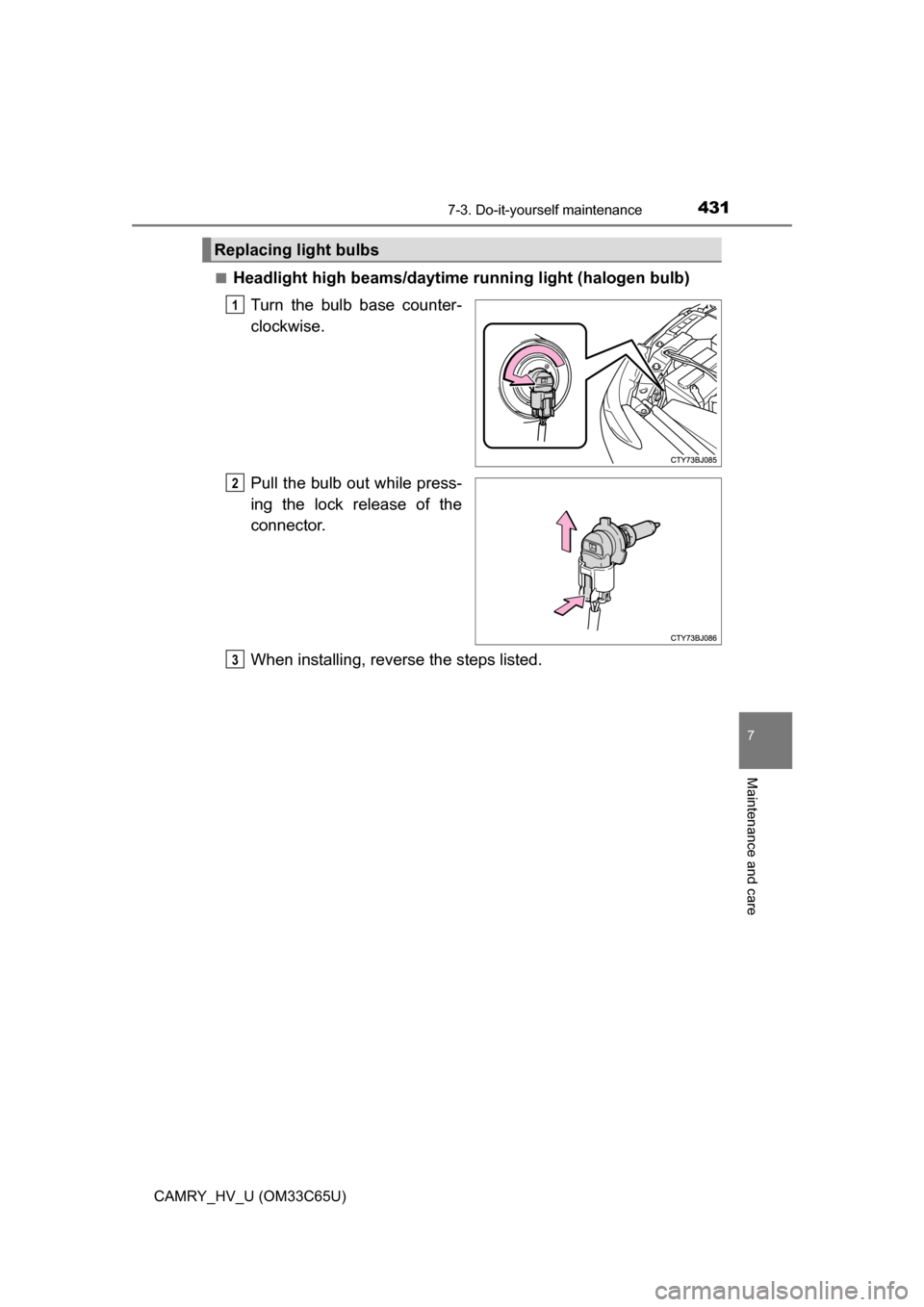

Headlight high beams/daytime running light (halogen bulb)
Turn the bulb base counter-
clockwise.
Pull the bulb out while press-
ing the lock release of the
connector.
When installing, reve rse the steps listed.
Replacing light bulbs
1
2
3

4327-3. Do-it-yourself maintenance
CAMRY_HV_U (OM33C65U)■

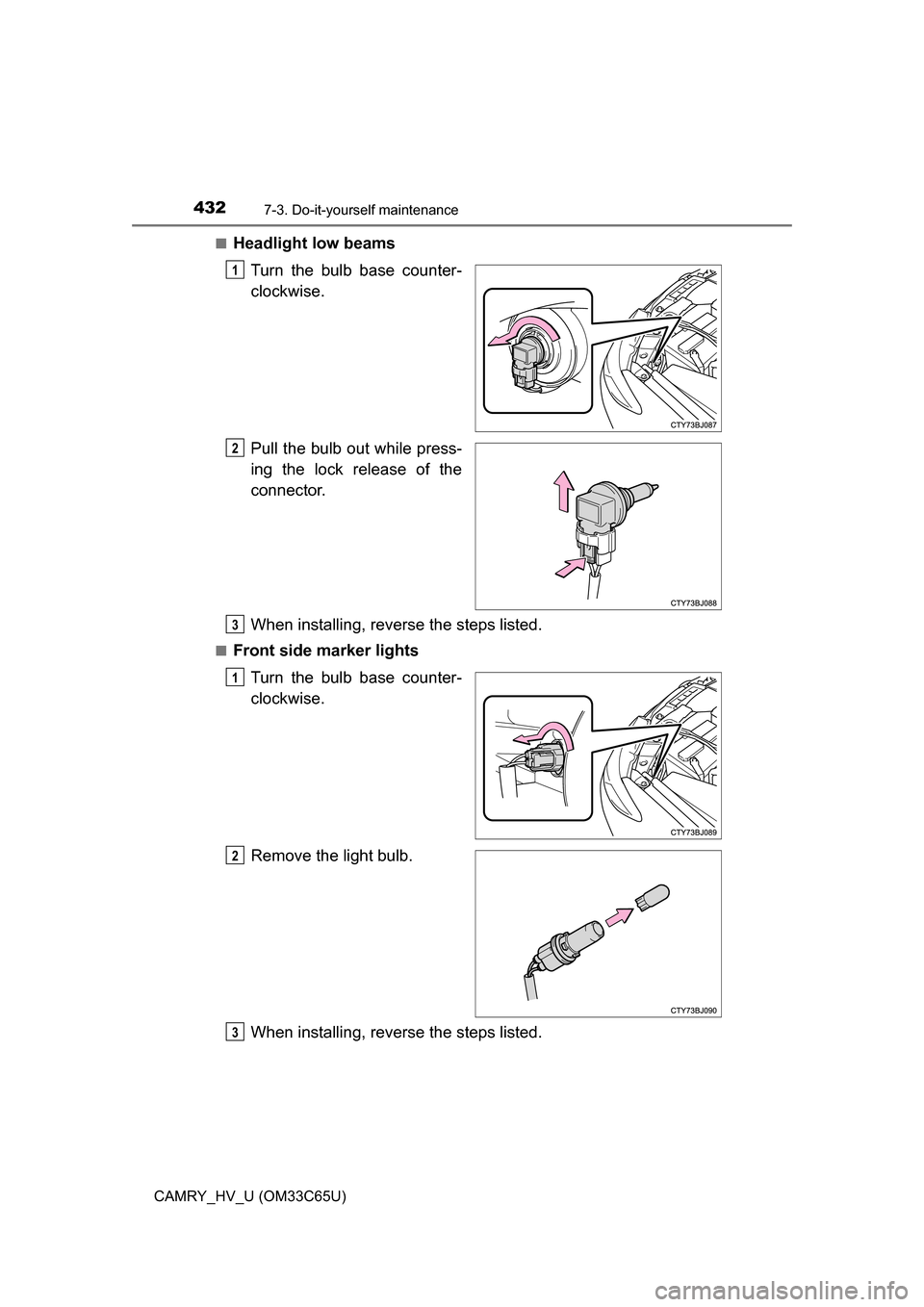

Headlight low beams
Turn the bulb base counter-
clockwise.
Pull the bulb out while press-
ing the lock release of the
connector.
When installing, reve rse the steps listed.
■Front side marker lights
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
3
1
2
3

4337-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_HV_U (OM33C65U)■

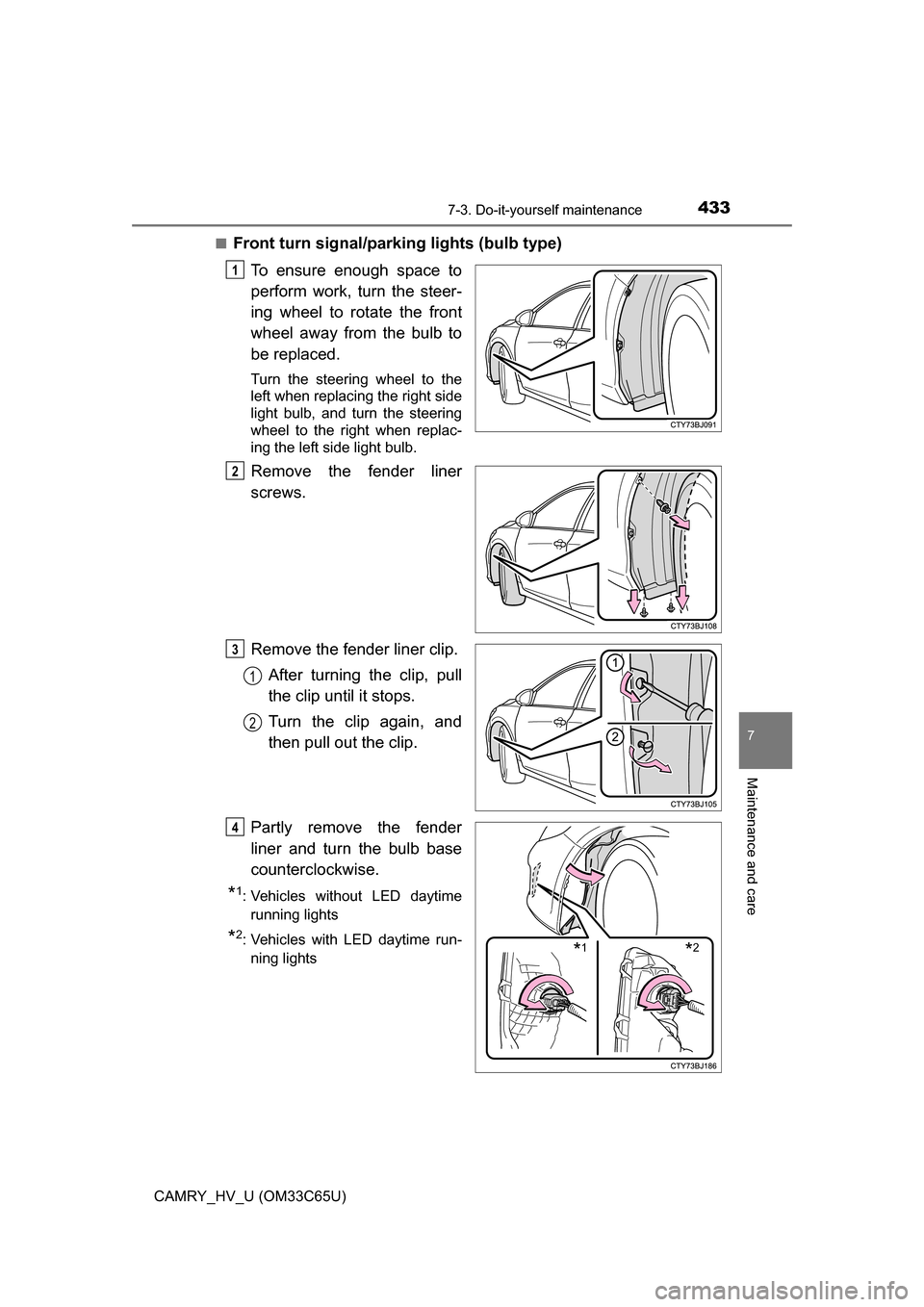

Front turn signal/parking lights (bulb type)
To ensure enough space to
perform work, turn the steer-
ing wheel to rotate the front
wheel away from the bulb to
be replaced.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Remove the fender liner
screws.
Remove the fender liner clip.After turning the clip, pull
the clip until it stops.
Turn the clip again, and
then pull out the clip.
Partly remove the fender
liner and turn the bulb base
counterclockwise.
*1: Vehicles without LED daytime running lights
*2: Vehicles with LED daytime run-ning lights
1
2
3
1
2
*1*2
4

4347-3. Do-it-yourself maintenance
CAMRY_HV_U (OM33C65U)
Remove the light bulb.
When installing, reverse the steps listed.

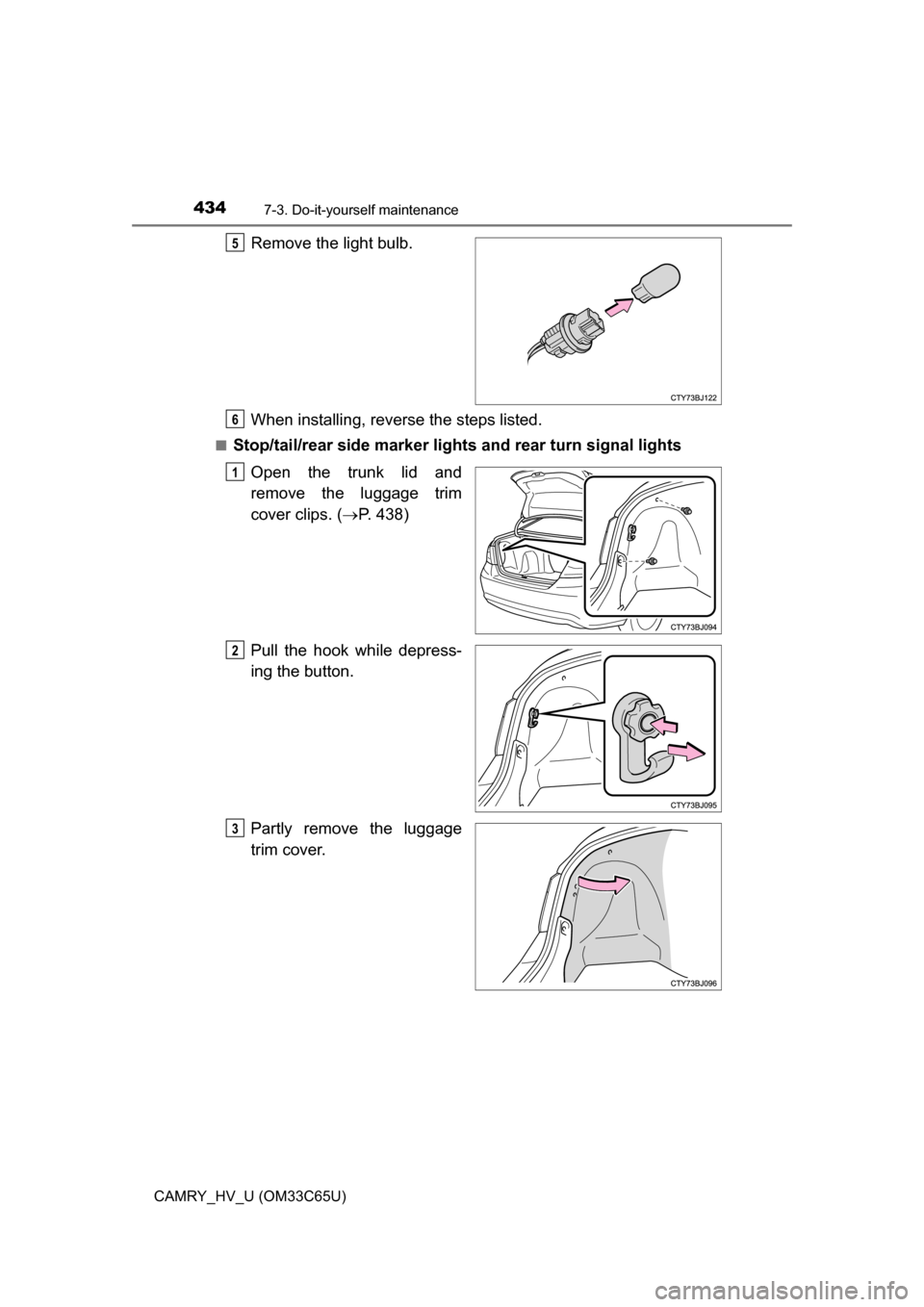

■Stop/tail/rear side marker lights and rear turn signal lights
Open the trunk lid and
remove the luggage trim
cover clips. ( P. 438)
Pull the hook while depress-
ing the button.
Partly remove the luggage
trim cover.
5
6
1
2
3

4357-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_HV_U (OM33C65U)

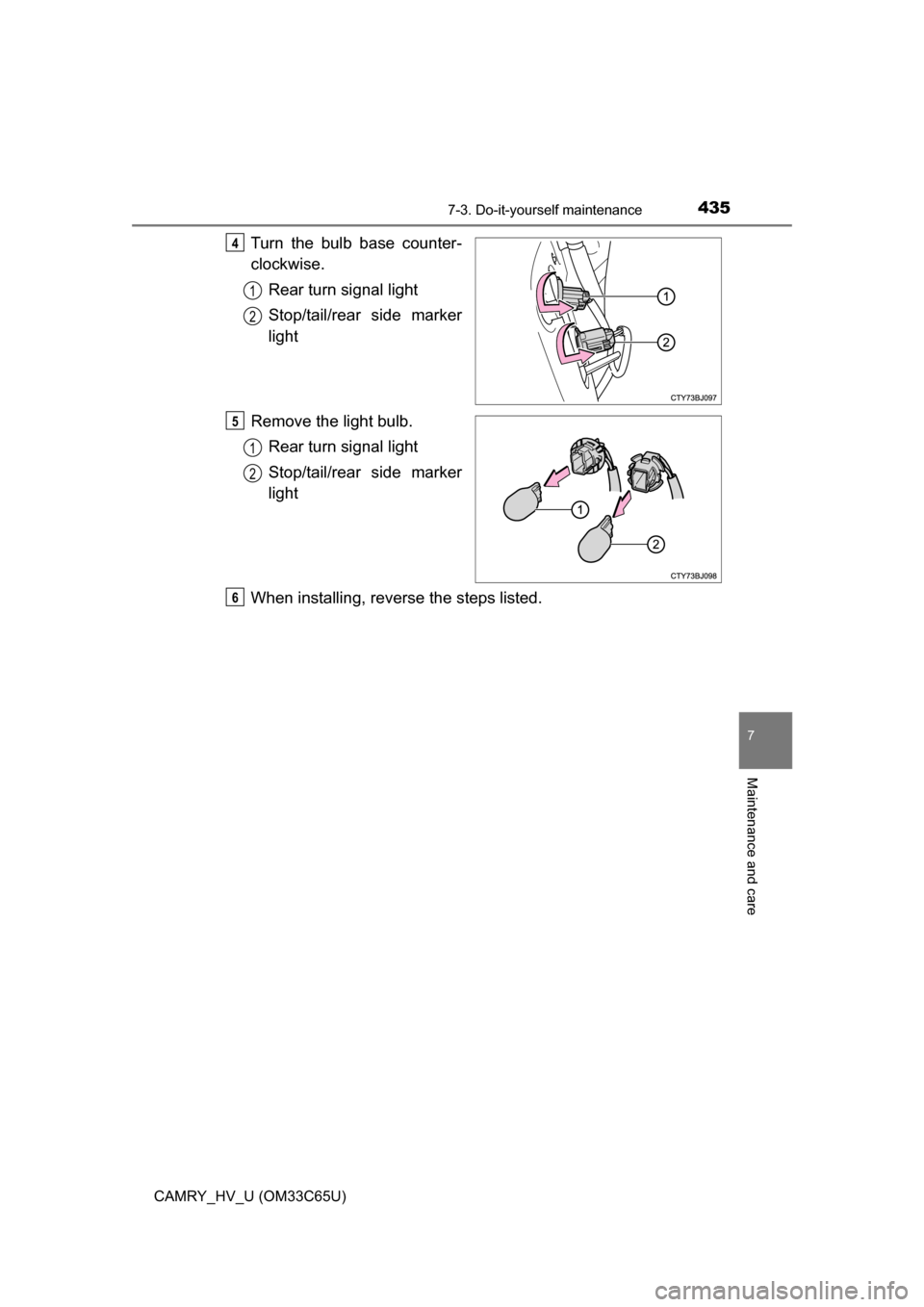

Turn the bulb base counter-
clockwise.Rear turn signal light
Stop/tail/rear side marker
light
Remove the light bulb. Rear turn signal light
Stop/tail/rear side marker
light
When installing, reve rse the steps listed.4
1
2
5
1
2
6

4367-3. Do-it-yourself maintenance
CAMRY_HV_U (OM33C65U)■

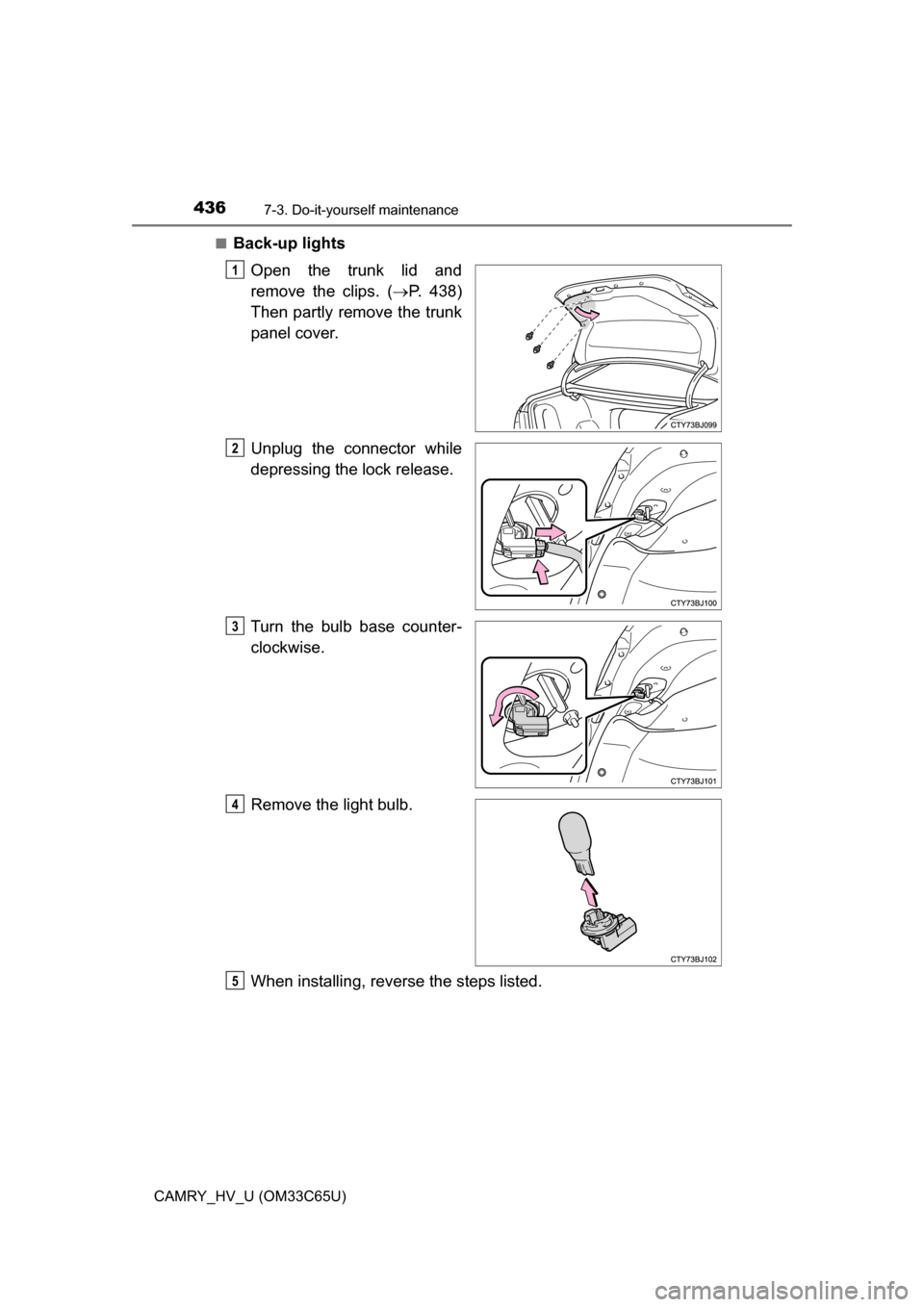

Back-up lights
Open the trunk lid and
remove the clips. ( P. 438)
Then partly remove the trunk
panel cover.
Unplug the connector while
depressing the lock release.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
3
4
5

4377-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_HV_U (OM33C65U)■

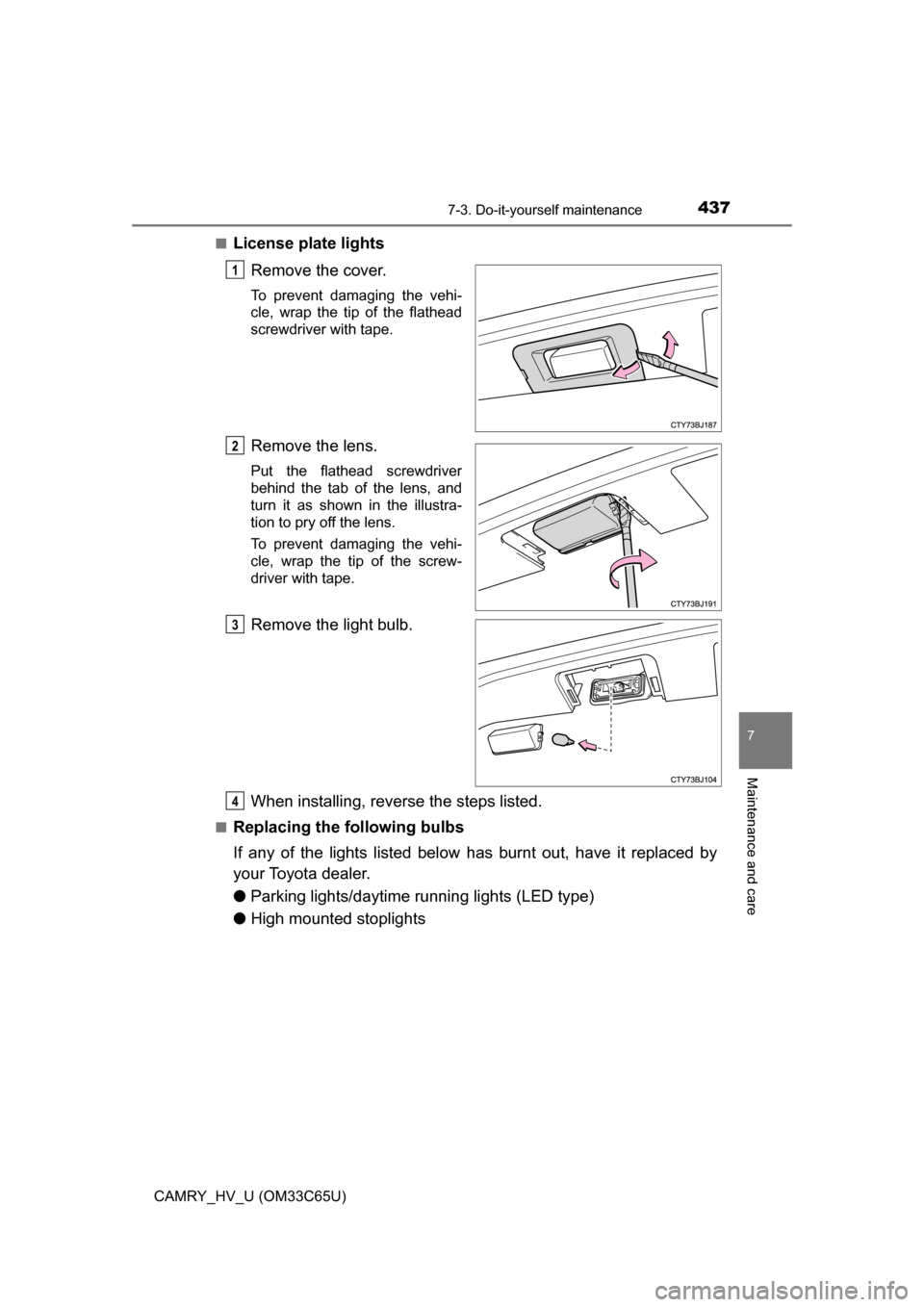

License plate lights
Remove the cover.
To prevent damaging the vehi-
cle, wrap the tip of the flathead
screwdriver with tape.
Remove the lens.
Put the flathead screwdriver
behind the tab of the lens, and
turn it as shown in the illustra-
tion to pry off the lens.
To prevent damaging the vehi-
cle, wrap the tip of the screw-
driver with tape.
Remove the light bulb.
When installing, reve rse the steps listed.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Parking lights/daytime running lights (LED type)
● High mounted stoplights
1
2
3
4

4387-3. Do-it-yourself maintenance
CAMRY_HV_U (OM33C65U)

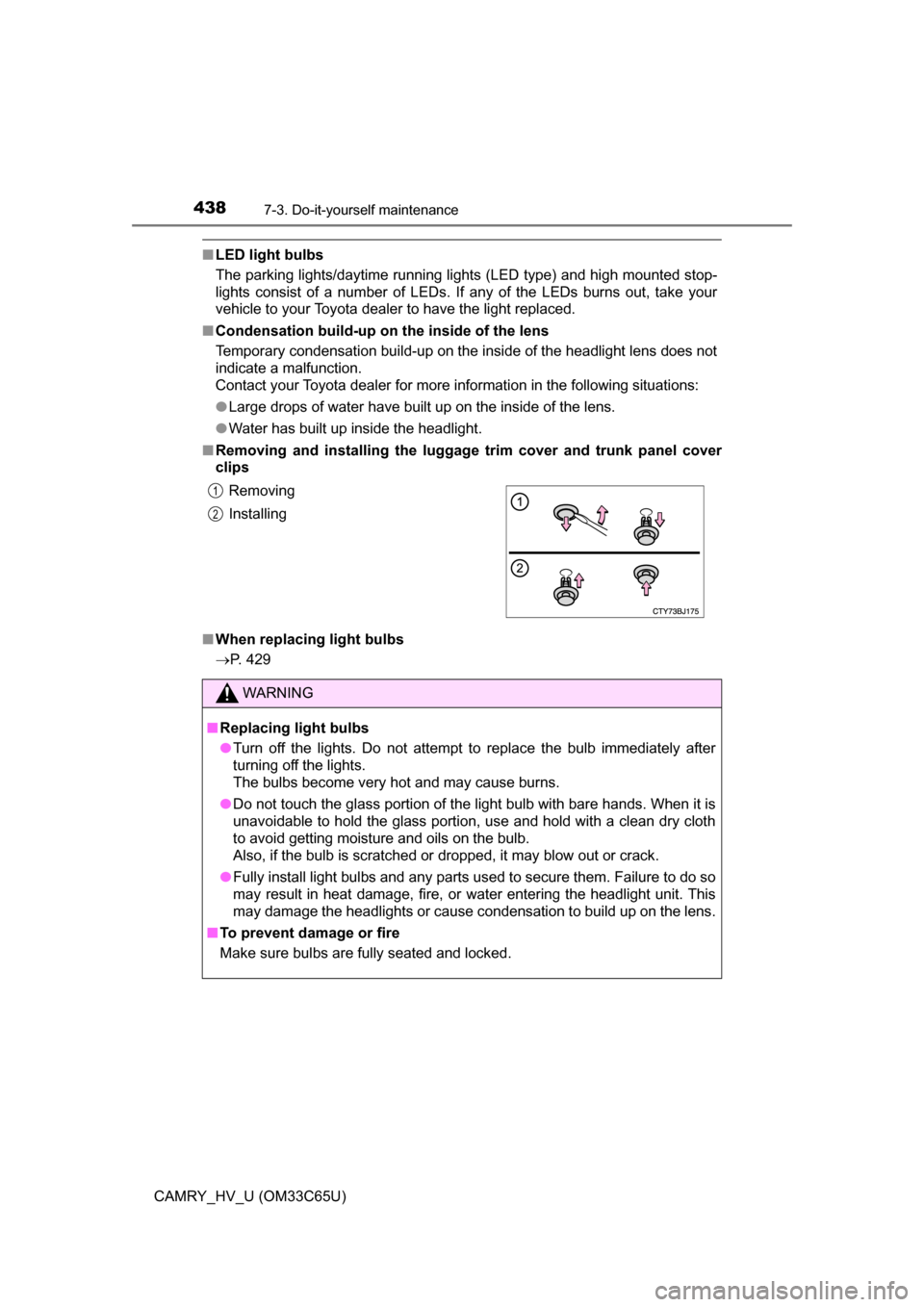

■LED light bulbs
The parking lights/daytime running lights (LED type) and high mounted stop-
lights consist of a number of LEDs. If any of the LEDs burns out, take your
vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ Removing and installing the luggag e trim cover and trunk panel cover
clips
■ When replacing light bulbs
P. 429Removing
Installing
WARNING
■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
1
2

439
8When trouble arises
CAMRY_HV_U (OM33C65U)8-1. Essential information
Emergency flashers .......... 440
If your vehicle has to be stopped
in an emergency ............. 441
8-2. Steps to take in an emergency
If your vehicle needs to be towed ..................... 442
If you think something is wrong .............................. 445
If a warning light turns on or a warning
buzzer sounds ................ 446
If a warning message or indicator is displayed ...... 455
If you have a flat tire.......... 473
If the hybrid system will not start ..................... 484
If the shift lever cannot be shifted from P............. 486
If the electronic key does not
operate properly.............. 487
If the vehicle 12-volt battery is discharged ....... 490
If your vehicle overheats ........................ 496
If the vehicle becomes stuck ................ 500

440
CAMRY_HV_U (OM33C65U)

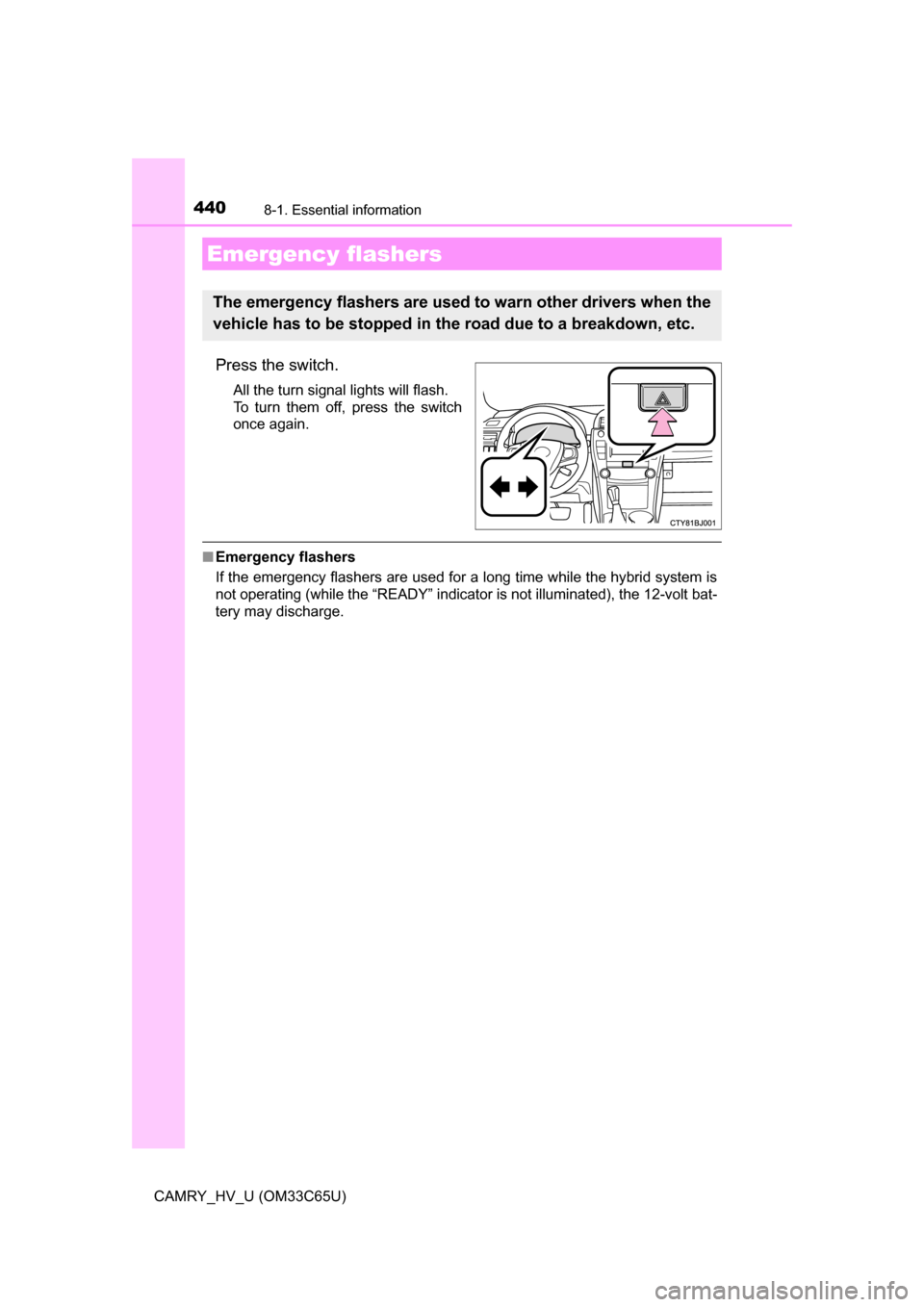

8-1. Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt \
bat-
tery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in th e road due to a breakdown, etc.
