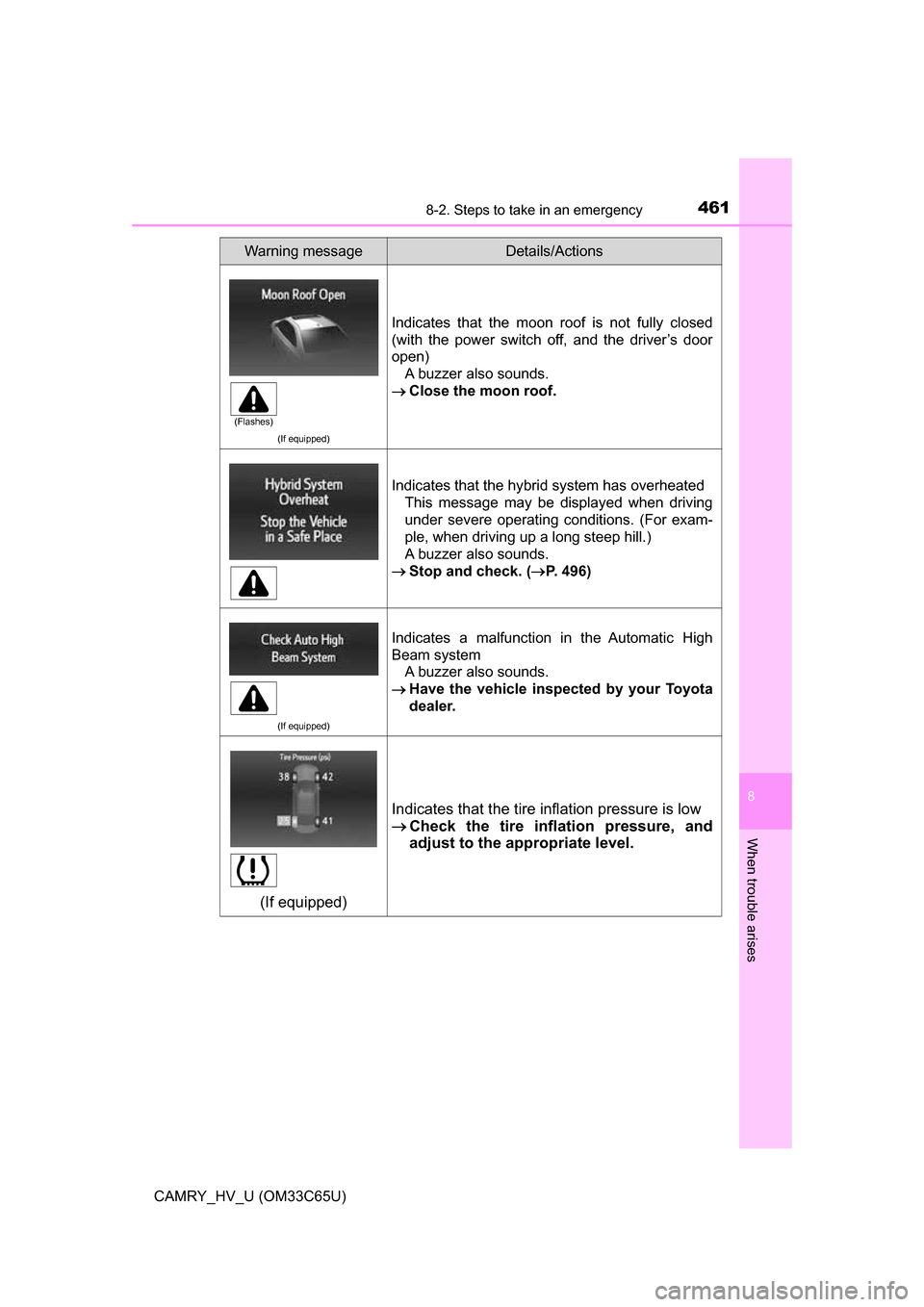

4618-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33C65U)
(If equipped)
Indicates that the moon roof is not fully closed
(with the power switch off, and the driver’s door
open)A buzzer also sounds.
 Close the moon roof.
Indicates that the hybrid system has overheated
This message may be displayed when driving
under severe operating conditions. (For exam-
ple, when driving up a long steep hill.)
A buzzer also sounds.
 Stop and check. ( P. 496)
(If equipped)
Indicates a malfunction in the Automatic High
Beam system
A buzzer also sounds.
 Have the vehicle inspect ed by your Toyota
dealer.
(If equipped)
Indicates that the tire inflation pressure is low
 Check the tire inflation pressure, and
adjust to the appropriate level.
Warning messageDetails/Actions
(Flashes)

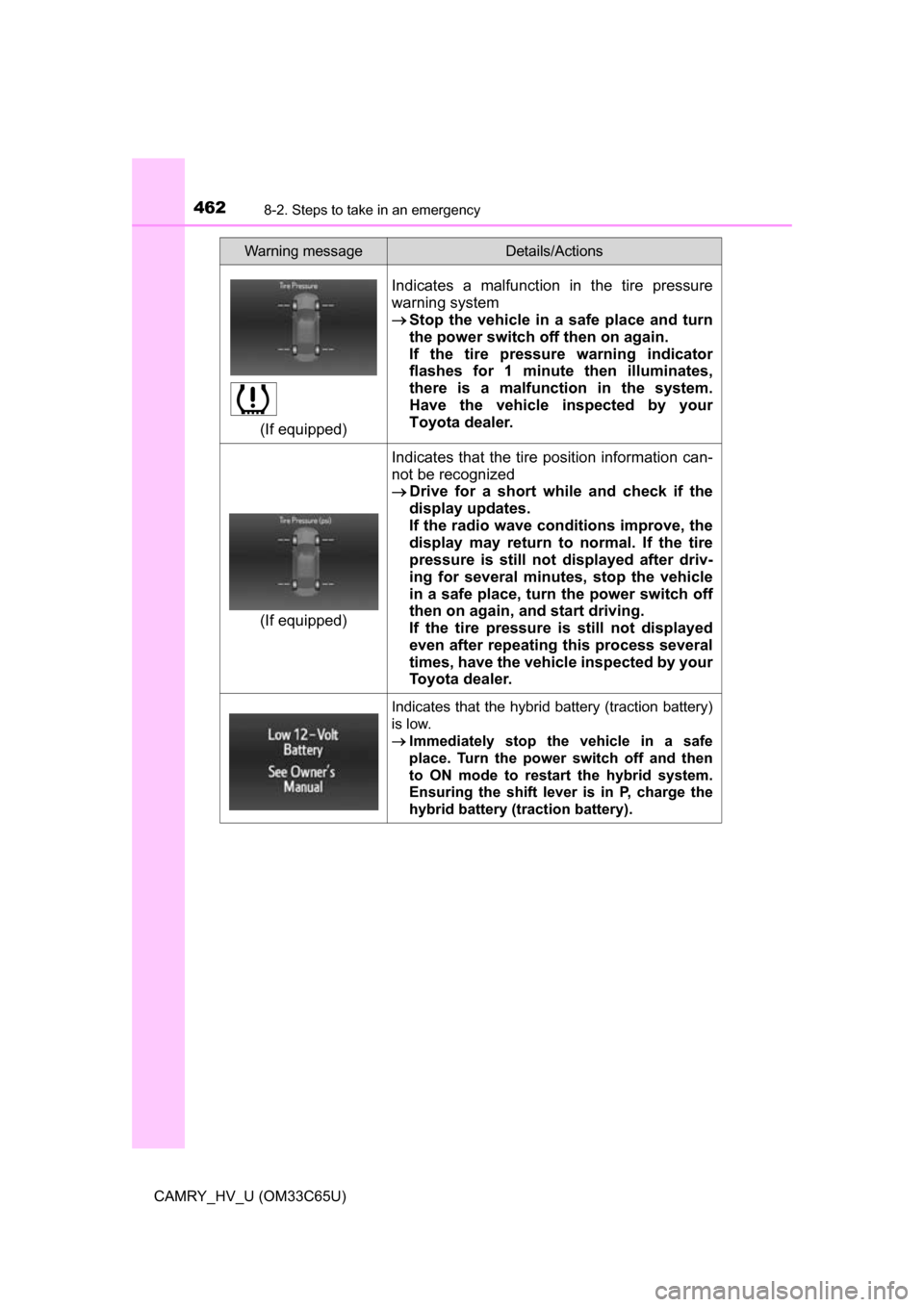

4628-2. Steps to take in an emergency
CAMRY_HV_U (OM33C65U)
(If equipped)
Indicates a malfunction in the tire pressure
warning system
Stop the vehicle in a safe place and turn
the power switch off then on again.
If the tire pressure warning indicator
flashes for 1 minute then illuminates,
there is a malfunction in the system.
Have the vehicle inspected by your
Toyota dealer.
(If equipped)
Indicates that the tire position information can-
not be recognized
 Drive for a short while and check if the
display updates.
If the radio wave conditions improve, the
display may return to normal. If the tire
pressure is still not displayed after driv-
ing for several minutes, stop the vehicle
in a safe place, turn the power switch off
then on again, and start driving.
If the tire pressure is still not displayed
even after repeating this process several
times, have the vehicle inspected by your
Toyota dealer.
Indicates that the hybrid battery (traction battery)
is low.
 Immediately stop the vehicle in a safe
place. Turn the power switch off and then
to ON mode to rest art the hybrid system.
Ensuring the shift lever is in P, charge the
hybrid battery (traction battery).
Warning messageDetails/Actions

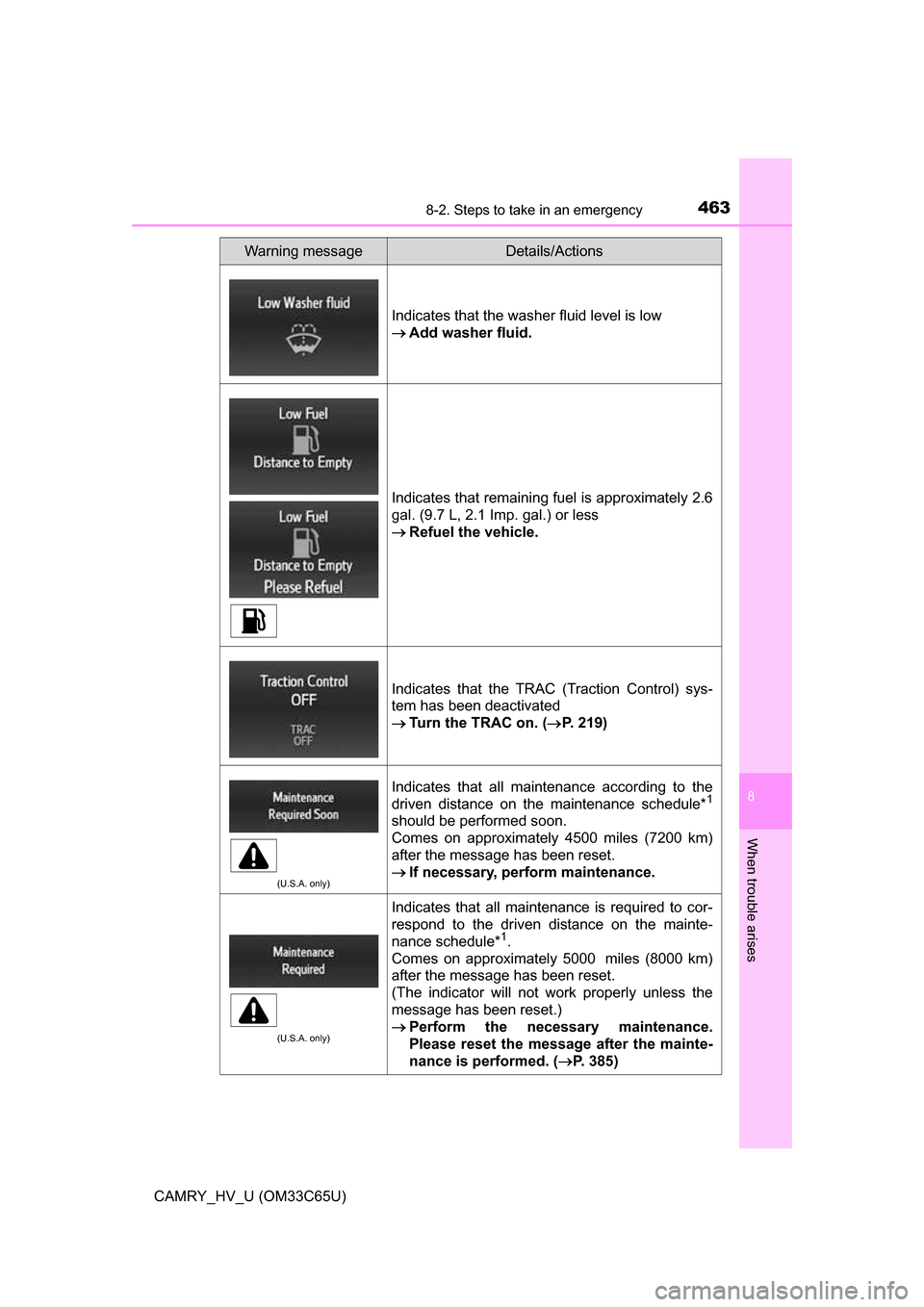

4638-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33C65U)
Indicates that the washer fluid level is low
Add washer fluid.
Indicates that remaining fuel is approximately 2.6
gal. (9.7 L, 2.1 Imp. gal.) or less
Refuel the vehicle.
Indicates that the TRAC (Traction Control) sys-
tem has been deactivated
Turn the TRAC on. ( P. 219)
(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule*1
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the message has been reset.
 If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule*
1.
Comes on approximately 5000 miles (8000 km)
after the message has been reset.
(The indicator will not work properly unless the
message has been reset.)
 Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed. ( P. 385)
Warning messageDetails/Actions

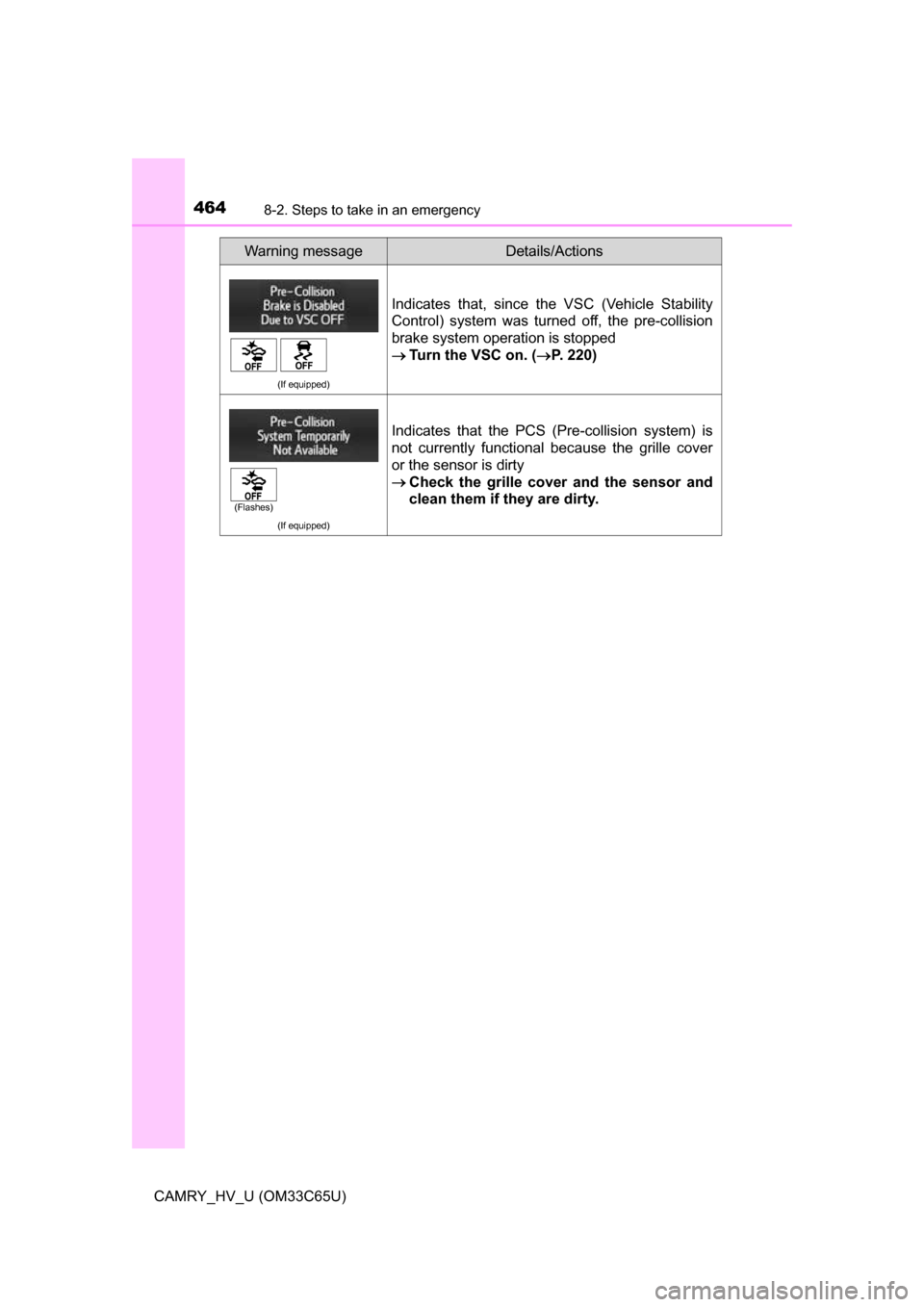

4648-2. Steps to take in an emergency
CAMRY_HV_U (OM33C65U)
(If equipped)
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped
Turn the VSC on. ( P. 220)
(If equipped)
Indicates that the PCS (Pre-collision system) is
not currently functional because the grille cover
or the sensor is dirty
 Check the grille cover and the sensor and
clean them if they are dirty.
Warning messageDetails/Actions
(Flashes)

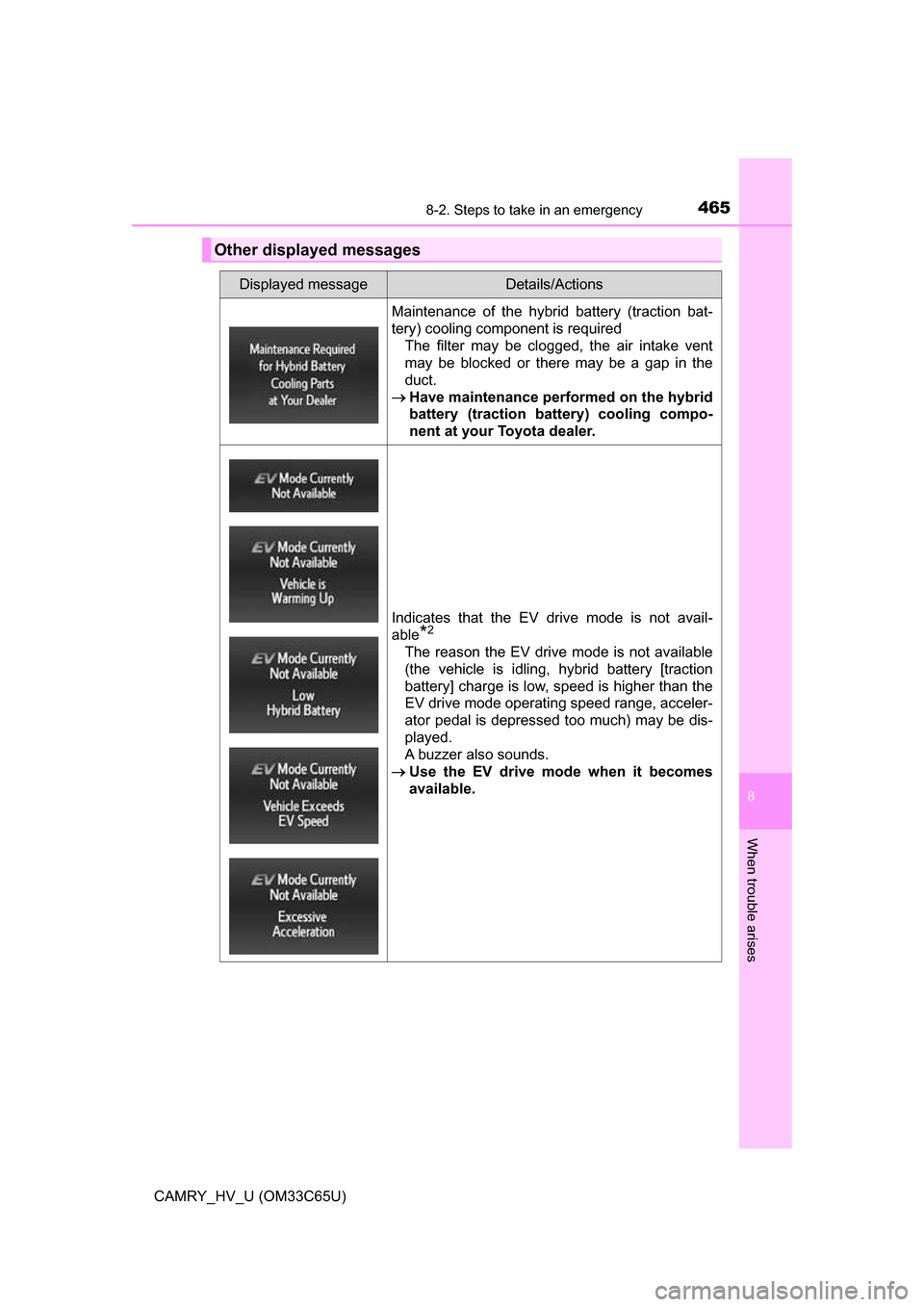

4658-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33C65U)
Other displayed messages
Displayed messageDetails/Actions
Maintenance of the hybrid battery (traction bat-
tery) cooling component is required The filter may be clogged, the air intake vent
may be blocked or there may be a gap in the
duct.
 Have maintenance performed on the hybrid
battery (traction batt ery) cooling compo-
nent at your Toyota dealer.
Indicates that the EV drive mode is not avail-
able
*2
The reason the EV drive mode is not available
(the vehicle is idling, hybrid battery [traction
battery] charge is low, speed is higher than the
EV drive mode operating speed range, acceler-
ator pedal is depressed too much) may be dis-
played.
A buzzer also sounds.
 Use the EV drive mode when it becomes
available.

4668-2. Steps to take in an emergency
CAMRY_HV_U (OM33C65U)
*1: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
*2: For the EV drive mode operating conditions: P. 166
■Warning message in dynamic radar cr uise control mode (if equipped)
In the following situations, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
● When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
■ The LDA (Lane Departure Alert) lane departure warning function (if
equipped)
In the following situations, a warning message will not be displayed even if a
lane line is crossed.
●When the vehicle speed deviates from the operating range of the LDA sys-
tem functions
● When the lane lines cannot be recognized
■
When a tire is replaced with the spare tire
The compact spare tire is not equipped with a tire pressure warning valve
and transmitter. If a tire goes flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function
properly (vehicles with a tire pressure warning system)
 P. 3 8 5
■Warning buzzer
P. 451
Indicates that the EV drive mode has been auto-
matically canceled
*2
The reason the EV drive mode is not available
(the hybrid battery [traction battery] charge is
low, speed is higher than the EV drive mode
operating speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
 Drive the vehicle for a while.
Displayed messageDetails/Actions

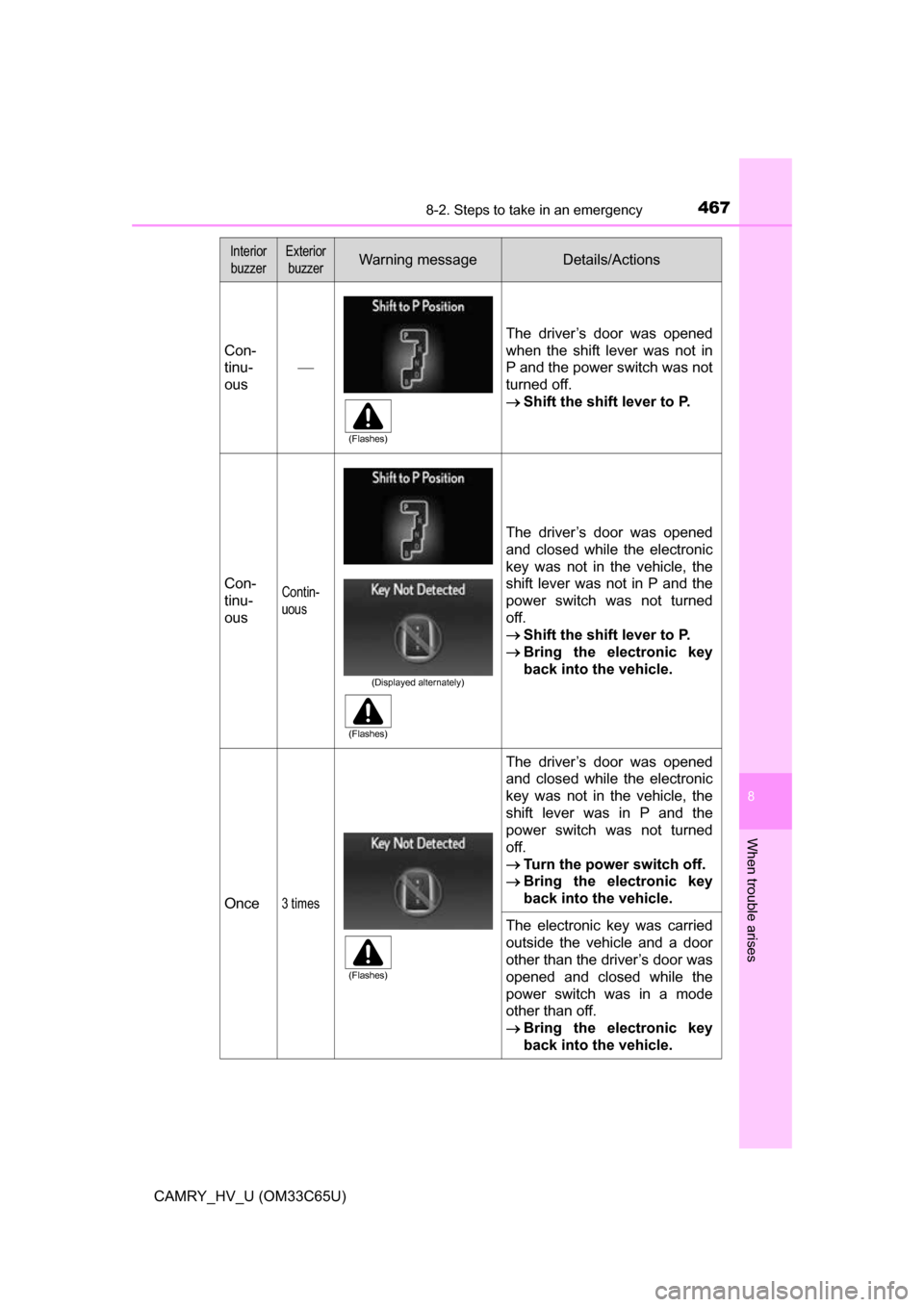

4678-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33C65U)
InteriorbuzzerExterior buzzerWarning messageDetails/Actions
Con-
tinu-
ous  The driver’s door was opened
when the shift lever was not in
P and the power switch was not
turned off.

Shift the shift lever to P.
Con-
tinu-
ousContin-
uous
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was not in P and the
power switch was not turned
off.
Shift the shift lever to P.
 Bring the electronic key
back into the vehicle.
Once3 times
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was in P and the
power switch was not turned
off.
Turn the power switch off.
 Bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
power switch was in a mode
other than off.
Bring the electronic key
back into the vehicle.
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

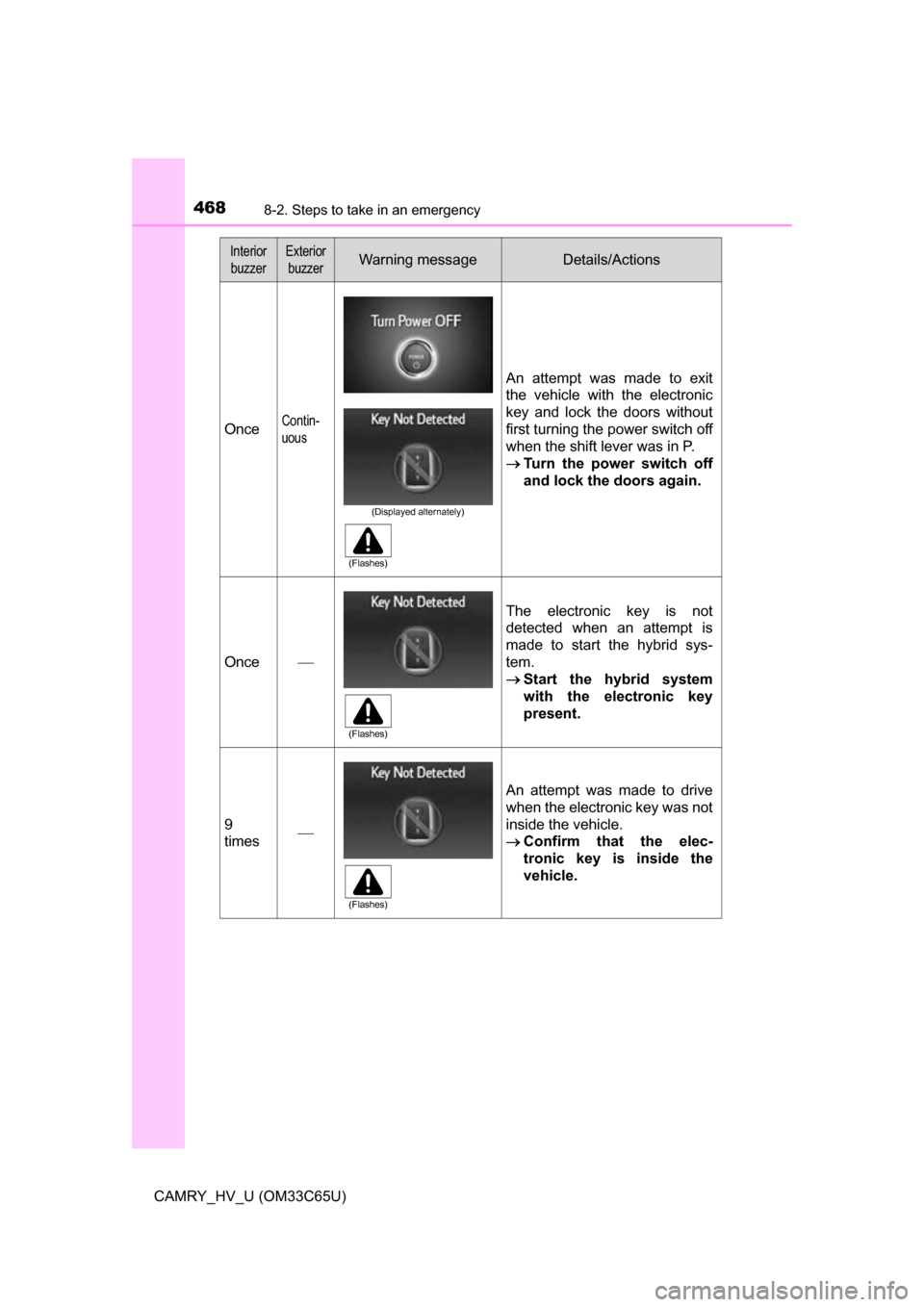

4688-2. Steps to take in an emergency
CAMRY_HV_U (OM33C65U)
OnceContin-
uous
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the power switch off
when the shift lever was in P.
Turn the power switch off
and lock the doors again.
Once
The electronic key is not
detected when an attempt is
made to start the hybrid sys-
tem.
Start the hybrid system
with the electronic key
present.
9
times
An attempt was made to drive
when the electronic key was not
inside the vehicle.
Confirm that the elec-
tronic key is inside the
vehicle.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

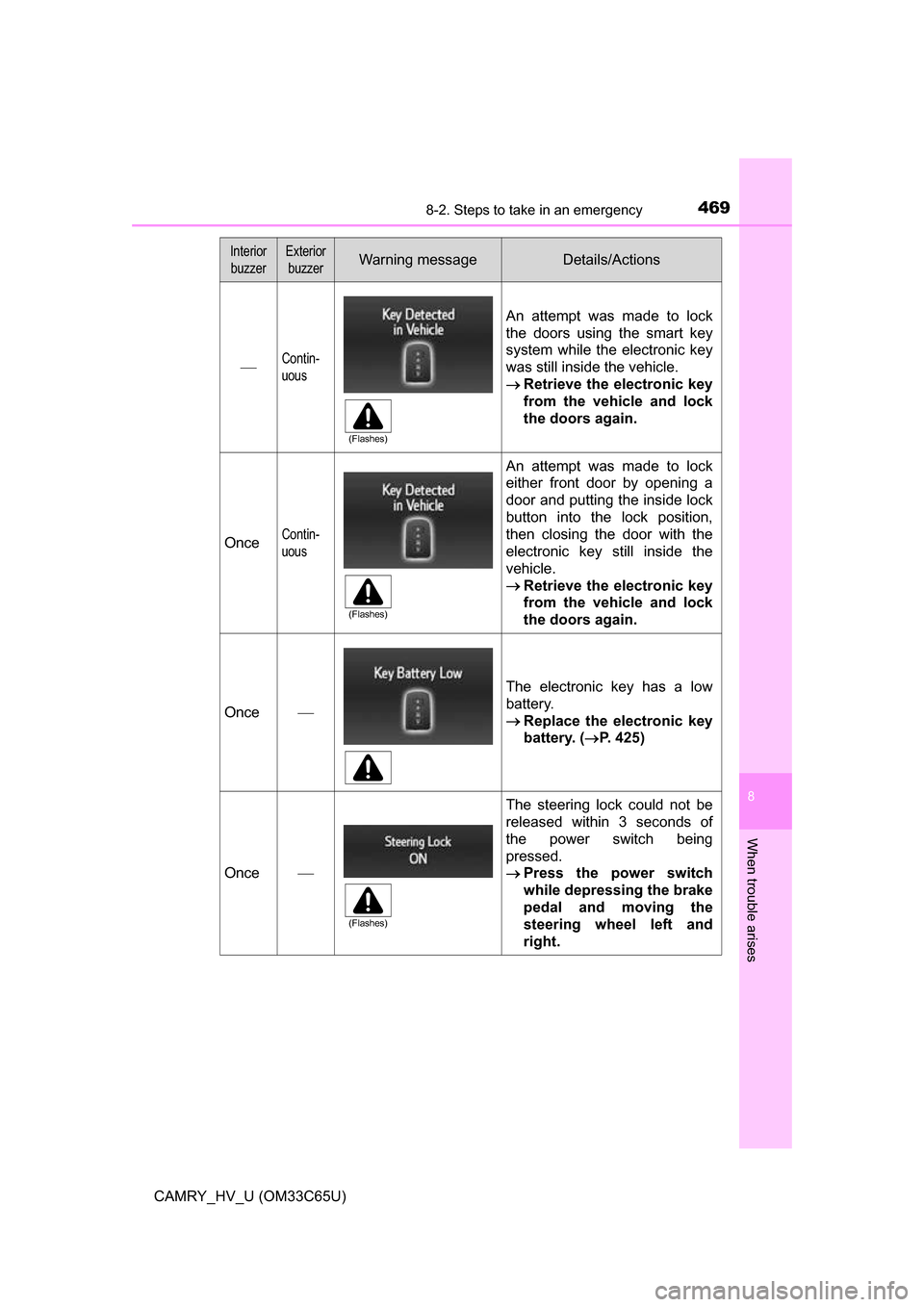

4698-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33C65U)
Contin-
uous
An attempt was made to lock
the doors using the smart key
system while the electronic key
was still inside the vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
OnceContin-
uous
An attempt was made to lock
either front door by opening a
door and putting the inside lock
button into the lock position,
then closing the door with the
electronic key still inside the
vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
The electronic key has a low
battery.
Replace the electronic key
battery. ( P. 425)
Once
The steering lock could not be
released within 3 seconds of
the power switch being
pressed.
Press the power switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

4708-2. Steps to take in an emergency
CAMRY_HV_U (OM33C65U)
Once
Indicates a malfunction in the
smart key system
Have the vehicle inspected
by your Toyota dealer.
Once
• When the doors were
unlocked with the mechanical
key and then the power
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the power switch
was pressed two consecu-
tive times.
 Touch the electronic key to
the power switch while
depressing the brake
pedal.
Once
Indicates that:
• With the power switch off, the
doors were unlocked and
then the driver’s door was
opened and closed; or
• The power switch was turned
to ACCESSORY mode with-
out starting the hybrid system
 Press the power switch
while depressing the brake
pedal.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
