TOYOTA CAMRY HYBRID 2019 Owners Manual (in English)

2 0 1 9 www.toyota.com/owners
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
Printed in U.S.A. 08/18
18 -MKG -12085
QUICK REFERENCE GUIDE
CAMRY HYBRID

45

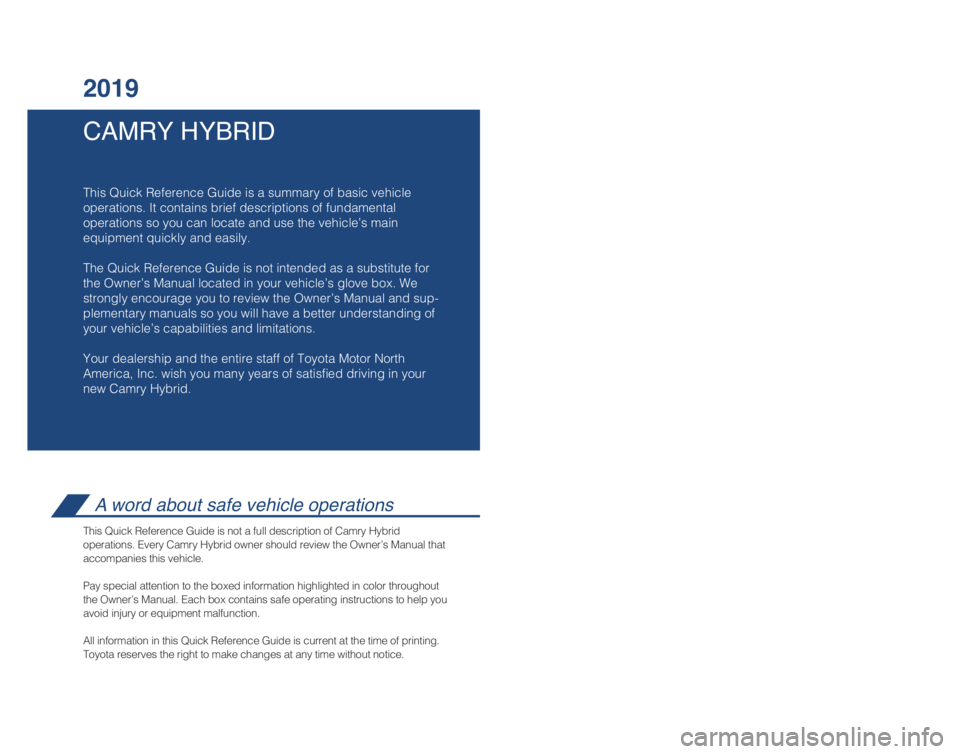

CAMRY HYBRID 2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Camry Hybrid.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Camry Hybrid
operations. Every Camry Hybrid owner should review the Owner’s Manual\
that
accompanies this vehicle.
Pay special attention to the boxed information highlighted in color thro\
ughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
"Connecting" displays while
device is forming the connection
to your multimedia system.Enable Notifications (text
message). While pairing your
device message will display:
"You may need to allow
message access on your
phone".
Note: You may also select
"Skip" on display screen to skip
enabling notifications. If skipped
proceed to Step 8.
Turn on "Show Notifications" for
iPhone or "ON" for Android.
A confirmation will appear once
your phone has been paired and
connected.
iPhoneAndroid
Bluetooth® Pairing for your phone (cont.)
STEP 6
STEP 8
STEP 7
STEP 9

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY &
EMERGENCY FEATURES

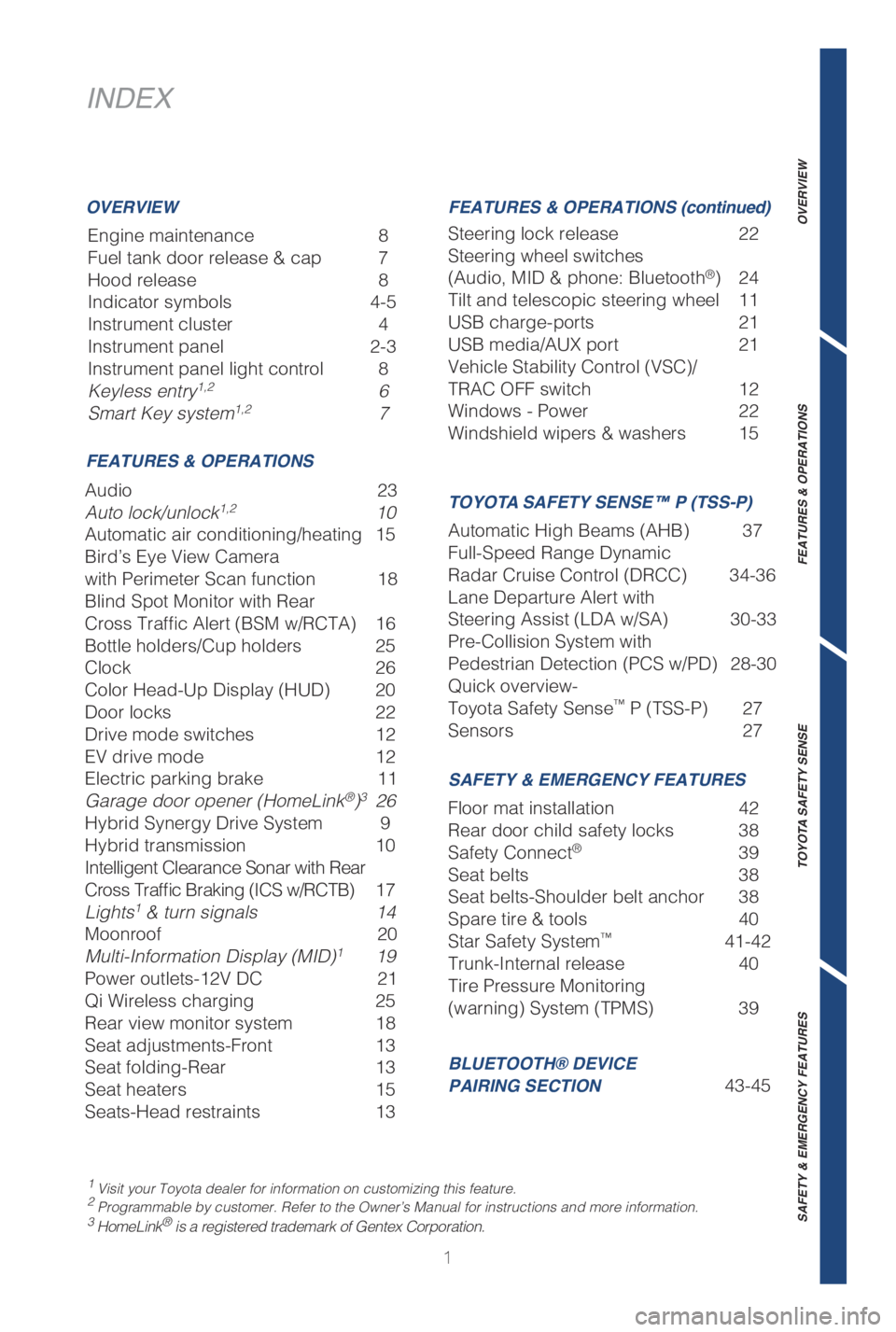

INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instruction\
s and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
BLUETOOTH® DEVICE
PAIRING SECTION
43-45
Audio
23
Auto lock/unlock
1,2 10
Automatic air conditioning/heating 15
Bird’s Eye View Camera
with Perimeter Scan function 18
Blind Spot Monitor with Rear
$ross 5raffic AMert #4. w3$5A

Bottle holders/Cup holders 25
$MocL
$oMor )ead6Q %isQMay )6%

Door locks 22
Drive mode switches 12
EV drive mode 12
Electric parking brake 11
Garage door opener (HomeLink
®)3 26
Hybrid Synergy Drive System 9
)yCrid transmission
Intelligent Clearance Sonar with Rear
$ross 5raffic #raLing I$4 w3$5#

Lights
1 & turn signals 14
.oonroof
Multi-Information Display (MID)
1 19
Power outlets-12V DC 21
Qi Wireless charging 25
Rear view monitor system 18
Seat adjustments-Front 13
Seat folding-Rear 13
Seat heaters 15
Seats-Head restraints 13Floor mat installation
42
Rear door child safety locks 38
Safety Connect
® 39
Seat belts 38
Seat belts-Shoulder belt anchor 38
4Qare tire  tooMs
Star Safety System
™ 41-42
5runLInternaM reMease
Tire Pressure Monitoring
warning
4ystem 51.4

FEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ P (TSS-P)
Steering lock release 22
Steering wheel switches
Audio, .I%  Qhone #Muetooth
®

Tilt and telescopic steering wheel 11
USB charge-ports 21
USB media/AUX port 21
7ehicMe 4taCiMity $ontroM 74$

TRAC OFF switch 12
Windows - Power 22
Windshield wipers & washers 15
Automatic )igh #eams A)#

Full-Speed Range Dynamic
3adar $ruise $ontroM %3$$

Lane Departure Alert with
4teering Assist -%A w4A

Pre-Collision System with
1edestrian %etection 1$4 w1%

Quick overview-
Toyota Safety Sense
™ 1 5441
27
Sensors 27

Steering wheel controls
2

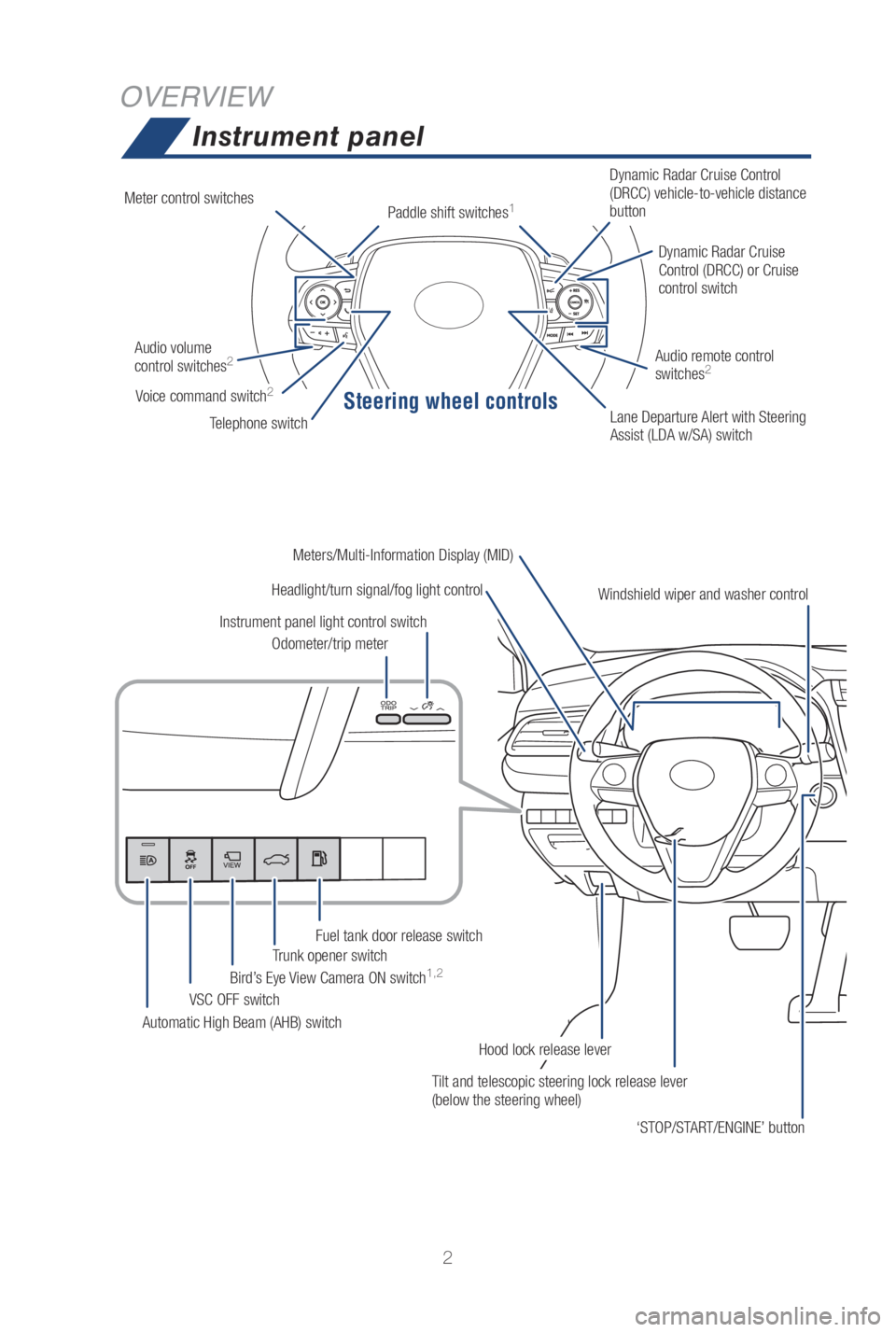

OVERVIEWInstrument panel
Tilt and telescopic steering lock release lever
(below the steering wheel)
Headlight/turn signal/fog light control
Automatic High Beam (AHB) switch VSC OFF switch
Bird’s Eye View Camera ON switch
1,2Trunk opener switch
Fuel tank door release switch
Odometer/trip meter
Instrument panel light control switch
‘STOP/START/ENGINE’ button
Hood lock release leverDynamic Radar Cruise
Control (DRCC) or Cruise
control switch
Dynamic Radar Cruise Control
(DRCC) vehicle-to-vehicle distance
button
Lane Departure Alert with Steering
Assist (LDA w/SA) switch
Audio volume
control switches
2
Telephone switch
Audio remote control
switches
2
Paddle shift switches1
Windshield wiper and washer control
Meters/Multi-Information Display (MID)
Meter control switches
Voice command switch2

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

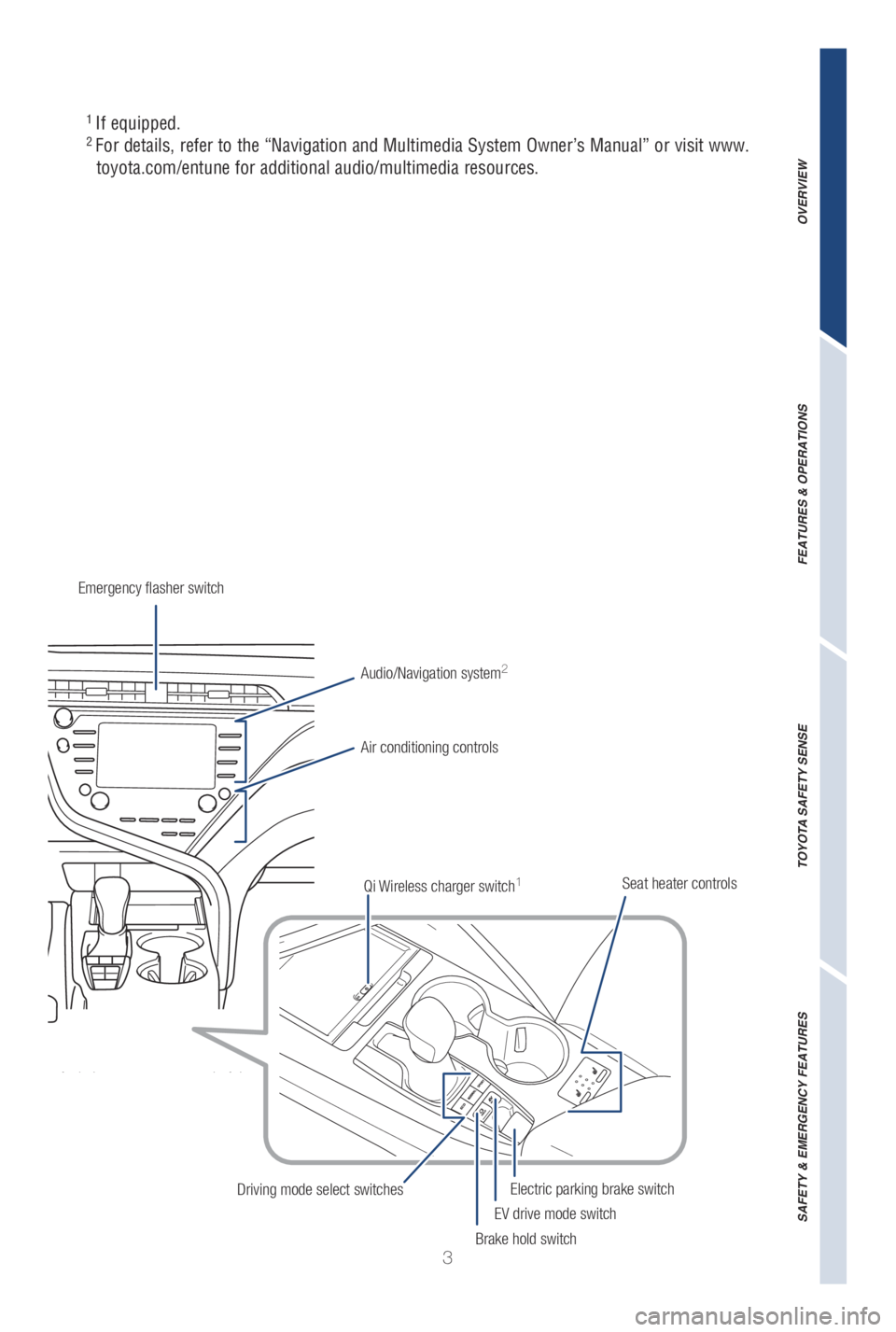

1
If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit www.
toyota.com/entune for additional audio/multimedia resources.
Emergency flasher switch
Air conditioning controls
EV drive mode switchElectric parking brake switch
Driving mode select switches
Seat heater controls
Audio/Navigation system
2
Qi Wireless charger switch1
Brake hold switch

4
For details, refer to “Indicators and warning lights,” Section 2, \
2019 Owner’s
Manual.
Anti-lock Brake System warning1
Airbag SRS warning1
OVERVIEW

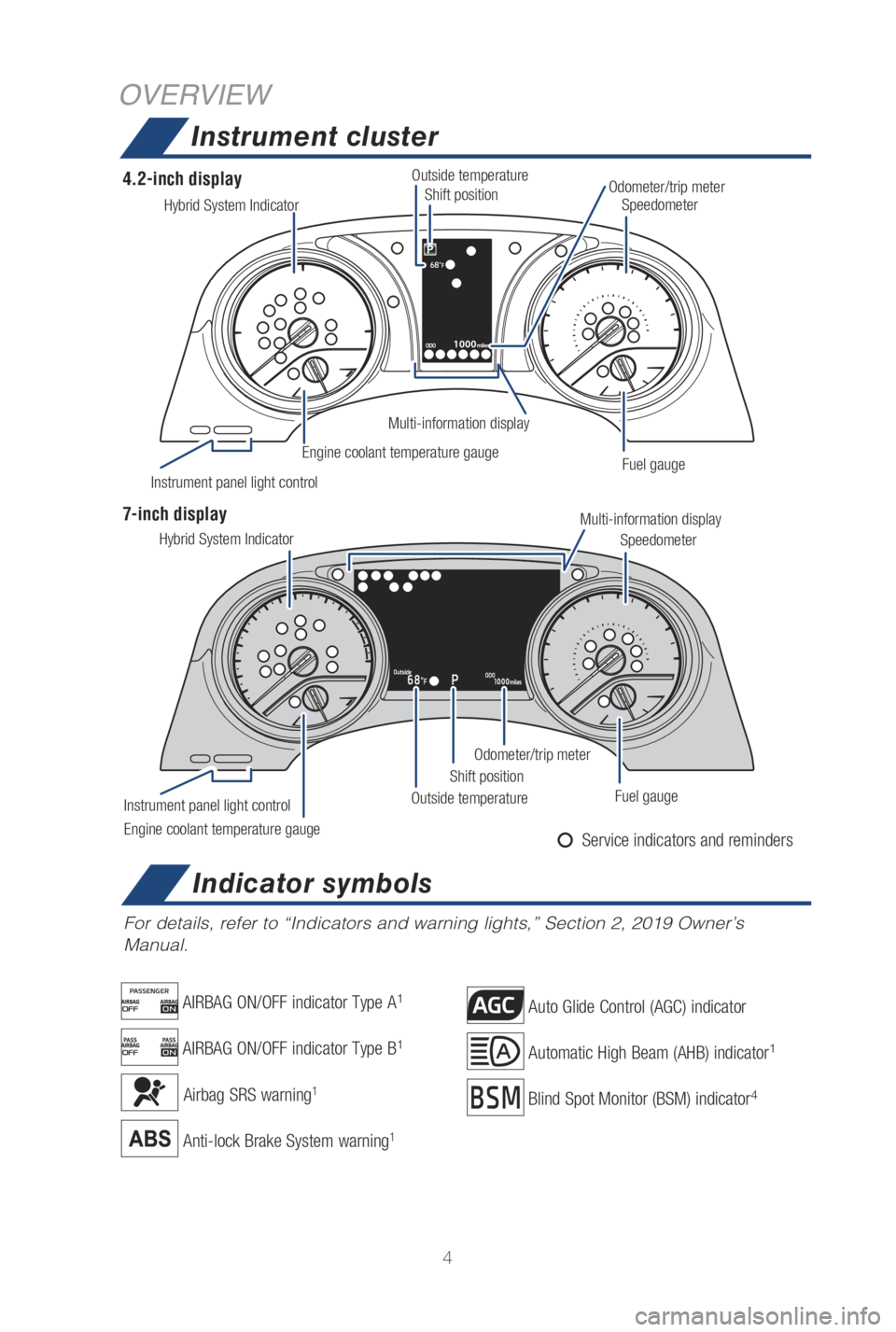

Instrument cluster
Automatic High Beam (AHB) indicator1
Auto Glide Control (AGC) indicator
Blind Spot Monitor (BSM) indicator4
AIRBAG ON/OFF indicator Type A1
AIRBAG ON/OFF indicator Type B1
Indicator symbols
Hybrid System Indicator
Hybrid System Indicator Outside temperature
Outside temperature Speedometer
Speedometer
Odometer/trip meter
Odometer/trip meter
Shift position
Shift position Fuel gauge
Fuel gauge
Multi-information display
Multi-information display
Engine coolant temperature gauge
Engine coolant temperature gauge Instrument panel light control
Instrument panel light control
Service indicators and reminders
4.2-inch display
7-inch display

5
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE

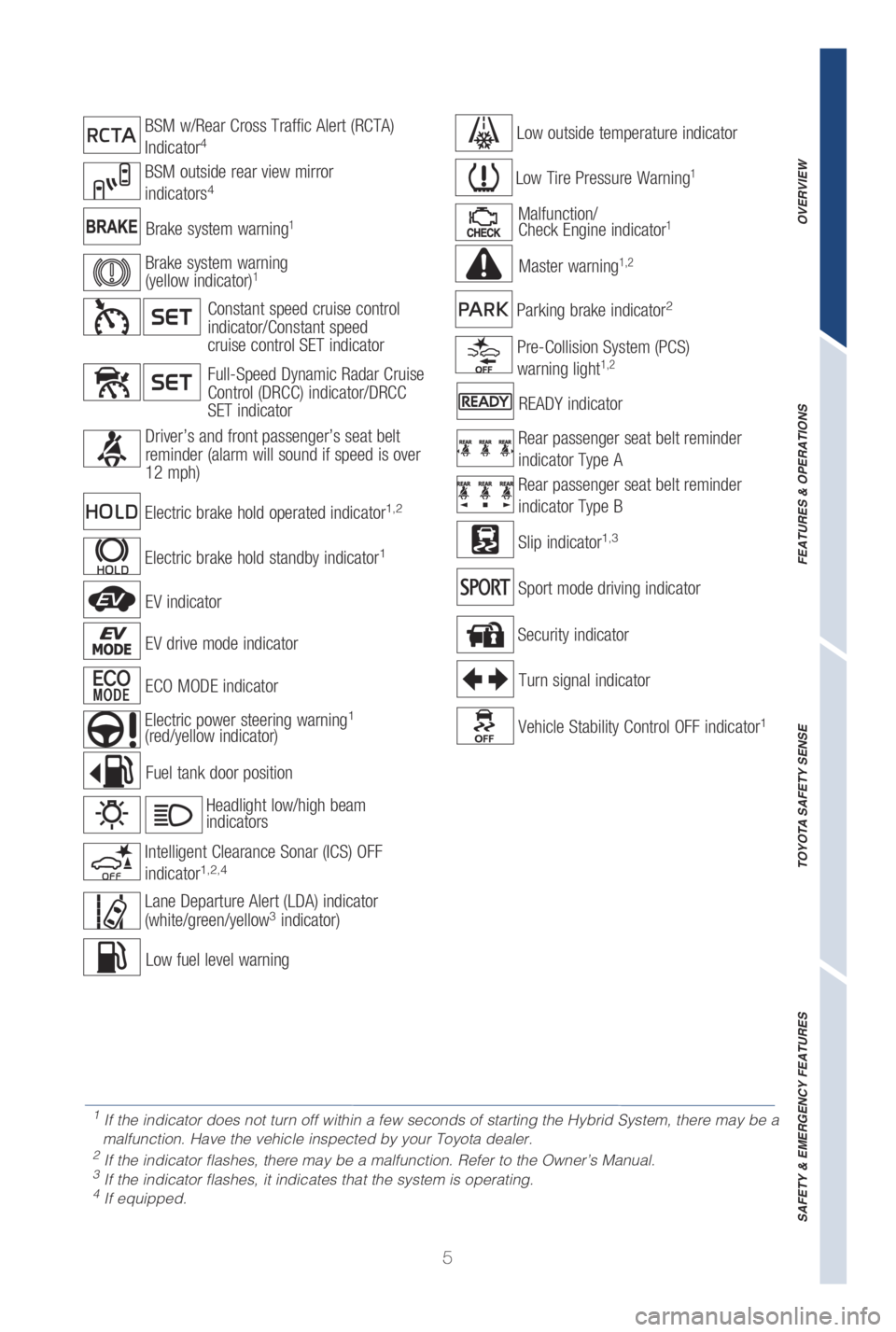

SAFETY & EMERGENCY FEATURESBrake system warning1Malfunction/
Check Engine indicator1
Low Tire Pressure Warning1
Low fuel level warning
Security indicator
Fuel tank door position
READY indicator
Master warning
1,2
Headlight low/high beam
indicators
Turn signal indicator
Pre-Collision System (PCS)
warning light1,2
Lane Departure Alert (LDA) indicator
(white/green/yellow3 indicator)
Slip indicator,
Vehicle Stability Control OFF indicator1
Parking brake indicator2
Electric power steering warning1
(red/yellow indicator)
Intelligent Clearance Sonar (ICS) OFF
indicator,,
Rear passenger seat belt reminder
indicator Type A
Rear passenger seat belt reminder
indicator Type B
Electric brake hold operated indicator,
Electric brake hold standby indicator1
BSM w/Rear Cross Traffic Alert (RCTA)
Indicator4
BSM outside rear view mirror
indicators4
Sport mode driving indicator
ECO MODE indicator
EV drive mode indicator
EV indicator
Low outside temperature indicator
Brake system warning
(yellow indicator)1
Full-Speed Dynamic Radar Cruise
Control (DRCC) indicator/DRCC
SET indicator
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Driver’s and
front passenger’s seat belt
reminder (alarm will sound if speed is over
12 mph)
1 If the indicator does not turn off within a few seconds of starting the \
Hybrid System, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.

6

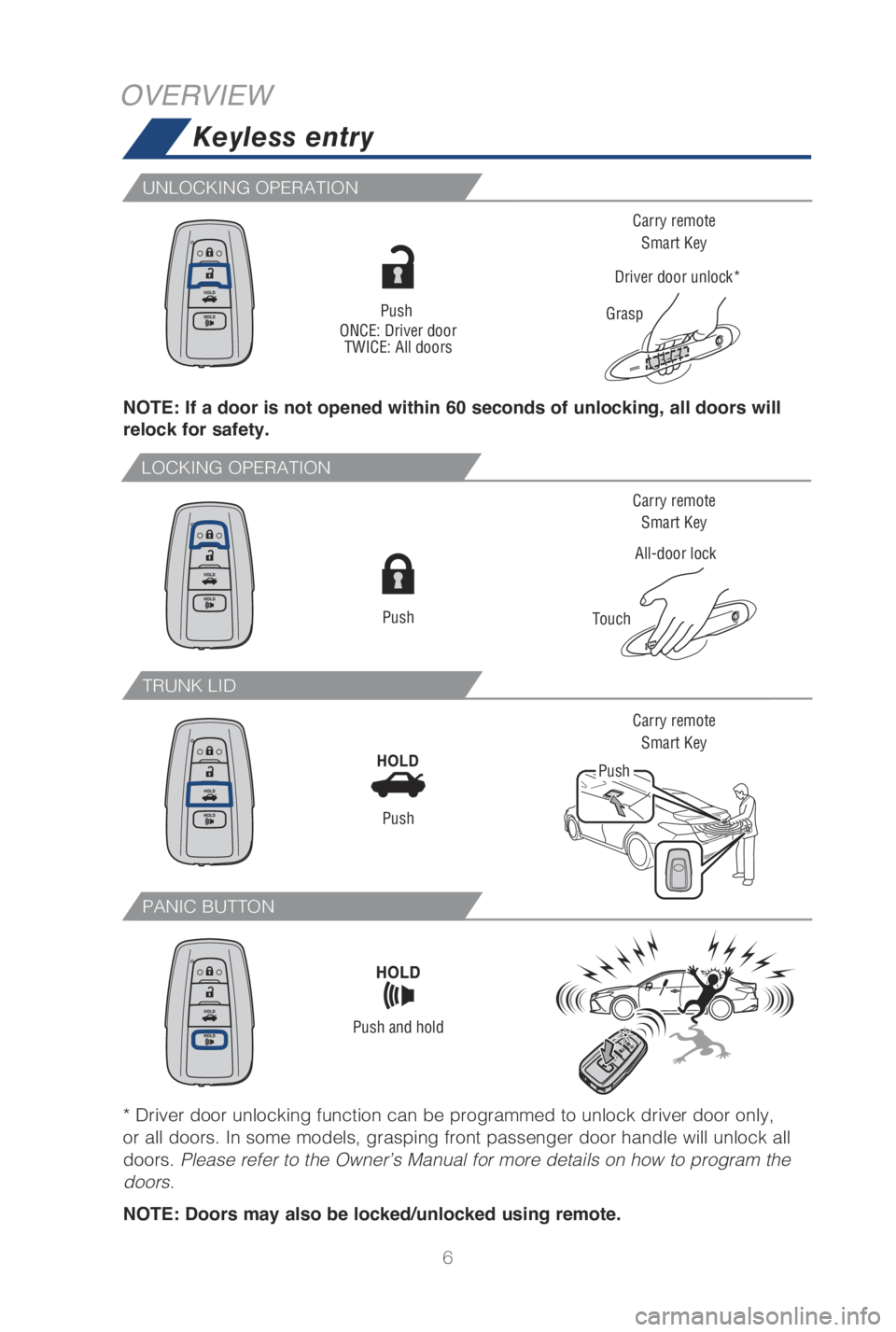

LOCKING OPERATION
UNLOCKING OPERATION
TRUNK LID
PANIC BUTTON
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
OVERVIEWKeyless entry
All-door lock
Touch
Carry remote Smart Key
Carry remote Smart Key
Carry remote Smart Key
Grasp
Driver door unlock*
Push
ONCE: Driver door TWICE: All doors
Push
Push
Push and hold
 %river door unMocLing function can Ce Qrogrammed to unMocL driver door onMy,
or aMM doors. In some modeMs, grasQing front Qassenger door handMe wiMM unMocL aMM
doors. Please refer to the Owner’s Manual for more details on how to program\
the
doors.
NOTE: Doors may also be locked/unlocked using remote.
Push

7

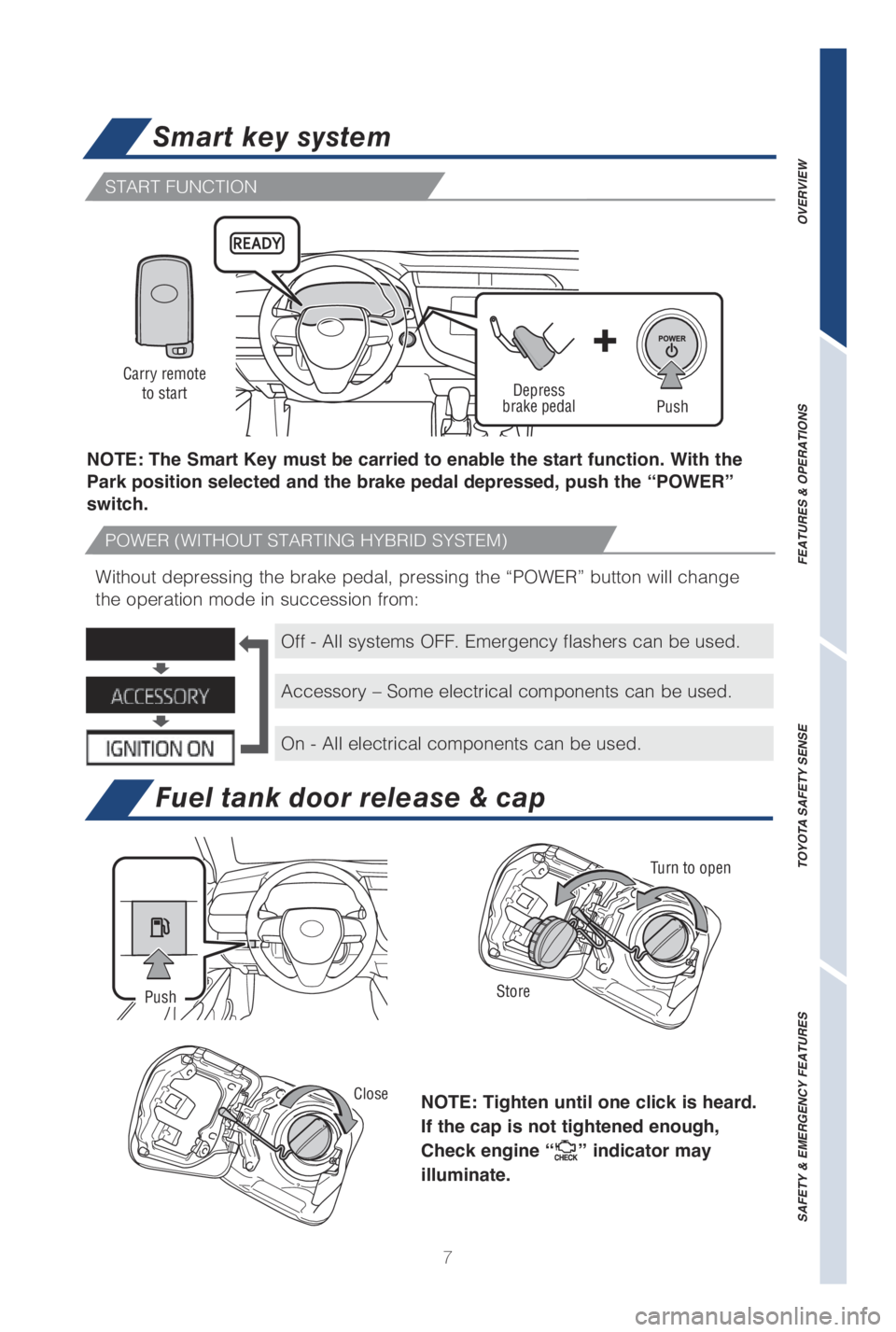

START FUNCTION
Fuel tank door release & cap
Smart key system
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check engine “
” indicator may
illuminate.
Turn to open
Store
Push
Close
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
108&3 8I5)065 45A35I/( ):#3I% 4:45&.

8ithout deQressing the CraLe QedaM, Qressing the i108&3w Cutton wiMM change
the oQeration mode in succession from
NOTE: The Smart Key must be carried to enable the start function. With the
Park position selected and the brake pedal depressed, push the “POWER”
switch.
Depress
brake pedalPush
Carry remote
to start
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.

8

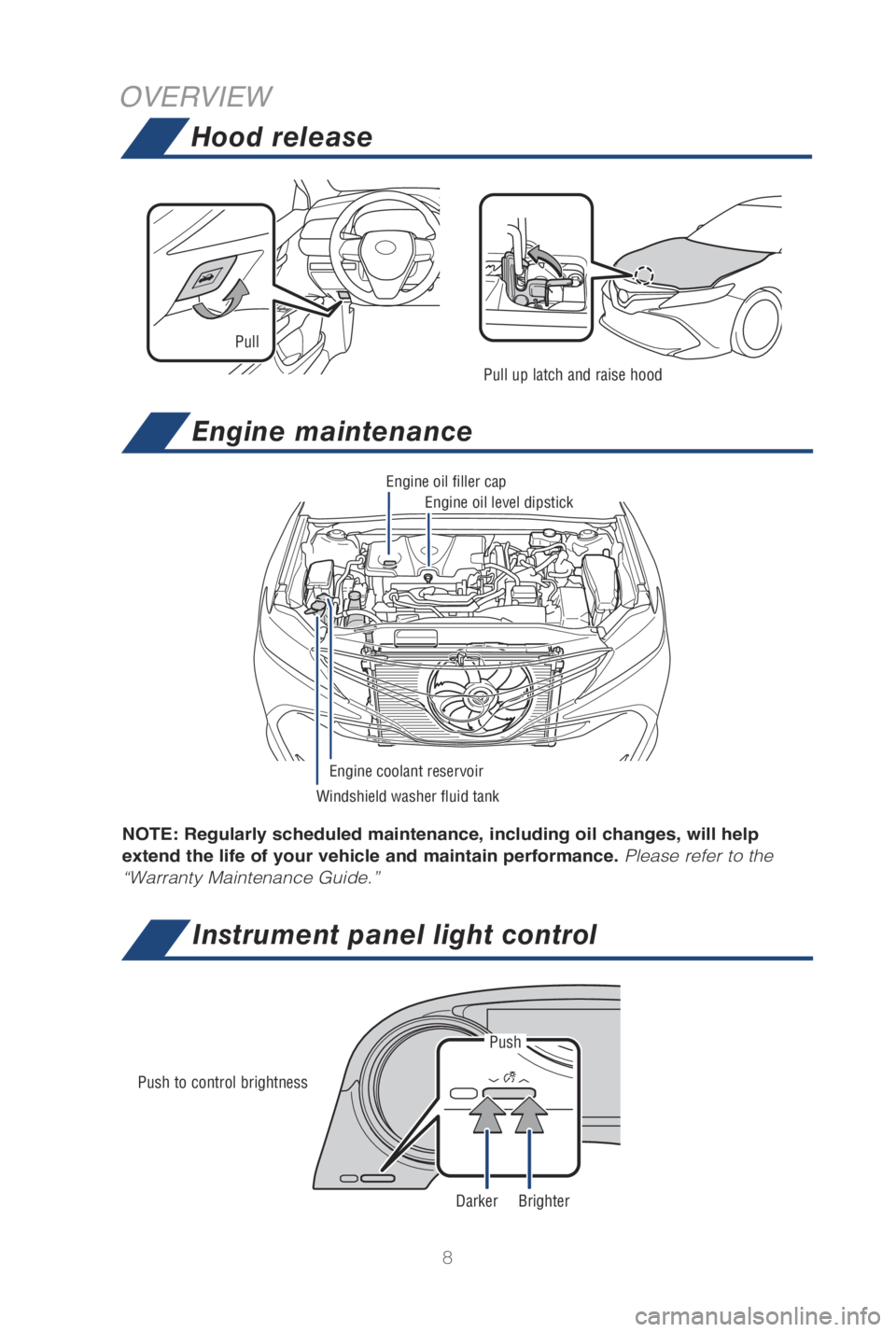

OVERVIEWHood release
Engine maintenance
Instrument panel light control
Push to control brightness
Windshield washer fluid tank Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
Pull up latch and raise hood
Pull
Push
DarkerBrighter
