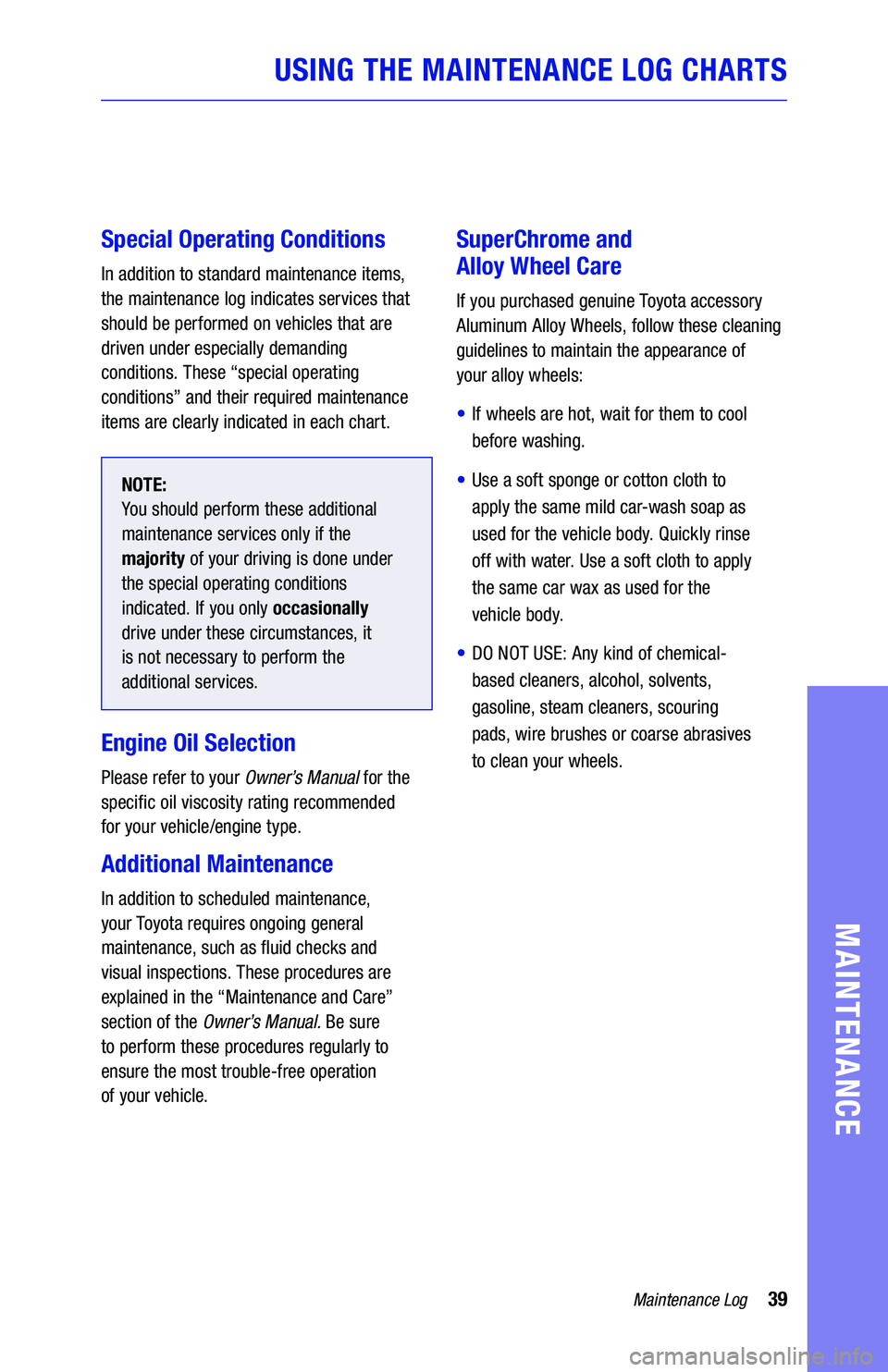

39Maintenance Log
MAINTENANCE
Special Operating Conditions
In addition to standard maintenance items,
the maintenance log indicates services that
should be performed on vehicles that are
driven under especially demanding
conditions. These “special operating
conditions” and their required maintenance
items are clearly indicated in each chart.
NOTE:
You should perform these additional
maintenance services only if the
majority of your driving is done under
the special operating conditions
indicated. If you only occasionally
drive under these circumstances, it
is not necessary to perform the
additional services.
Engine Oil Selection
Please refer to your Owner’s Manual for the
specific oil viscosity rating recommended
for your vehicle/engine type.
Additional Maintenance
In addition to scheduled maintenance,
your Toyota requires ongoing general
maintenance, such as fluid checks and
visual inspections. These procedures are
explained in the “Maintenance and Care”
section of the Owner’s Manual. Be sure
to perform these procedures regularly to
ensure the most trouble-free operation
of your vehicle.
SuperChrome and
Alloy Wheel Care
If you purchased genuine Toyota accessory
Aluminum Alloy Wheels, follow these cleaning
guidelines to maintain the appearance of
your alloy wheels:
• If wheels are hot, wait for them to cool
before washing.
• Use a soft sponge or cotton cloth to
apply the same mild car-wash soap as
used for the vehicle body. Quickly rinse
off with water. Use a soft cloth to apply
the same car wax as used for the
vehicle body.
• DO NOT USE: Any kind of chemical-
based cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes or coarse abrasives
to clean your wheels.
USING THE MAINTENANCE LOG CHARTS

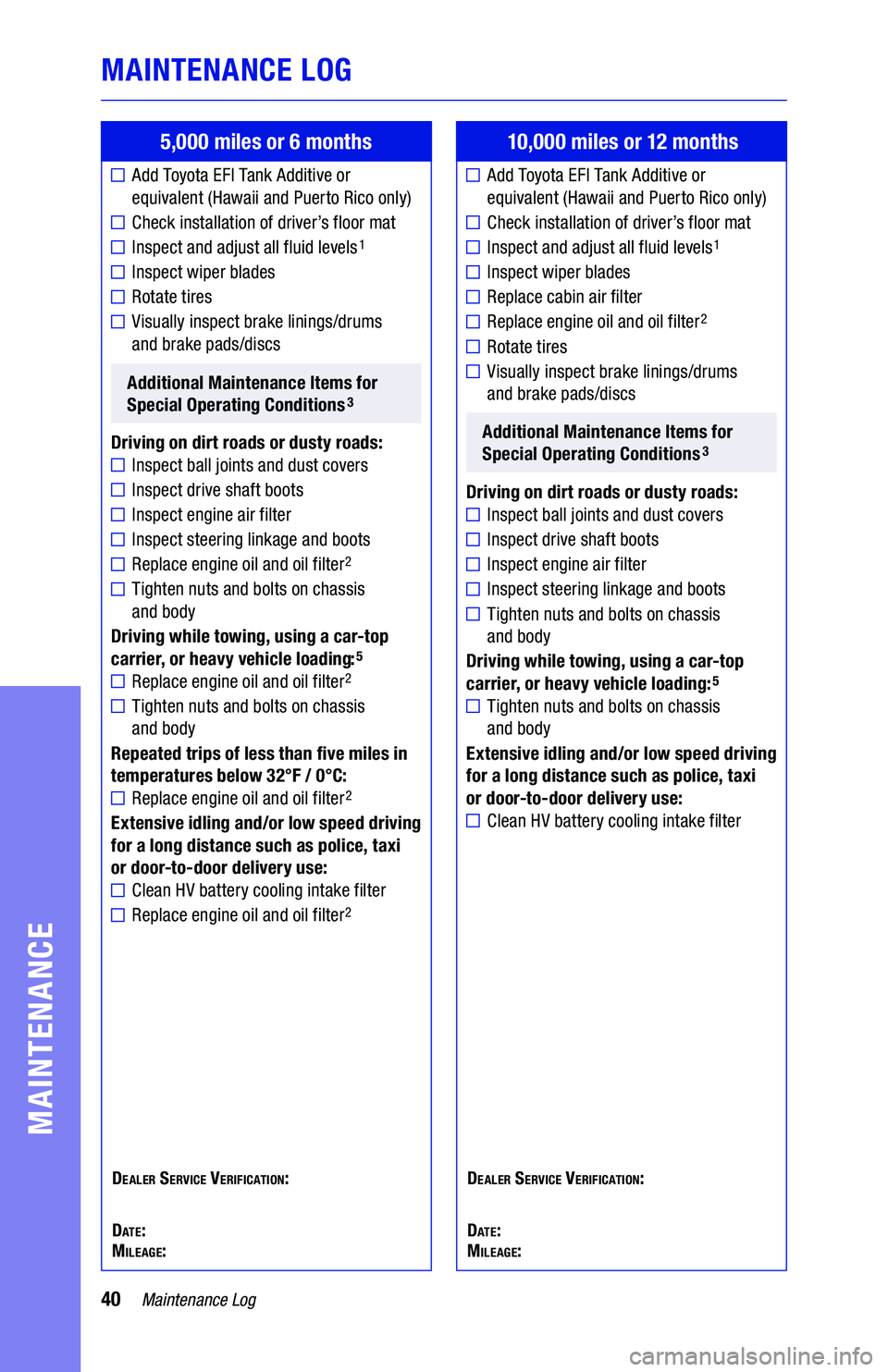

40Maintenance Log
MAINTENANCE LOG
MAINTENANCE
5,000 miles or 6 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter 2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter 2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter 2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter 2

10,000 miles or 12 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter 2
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter

Dealer Service verification:
Date:Mileage:
Dealer Service verification:
Date:Mileage:

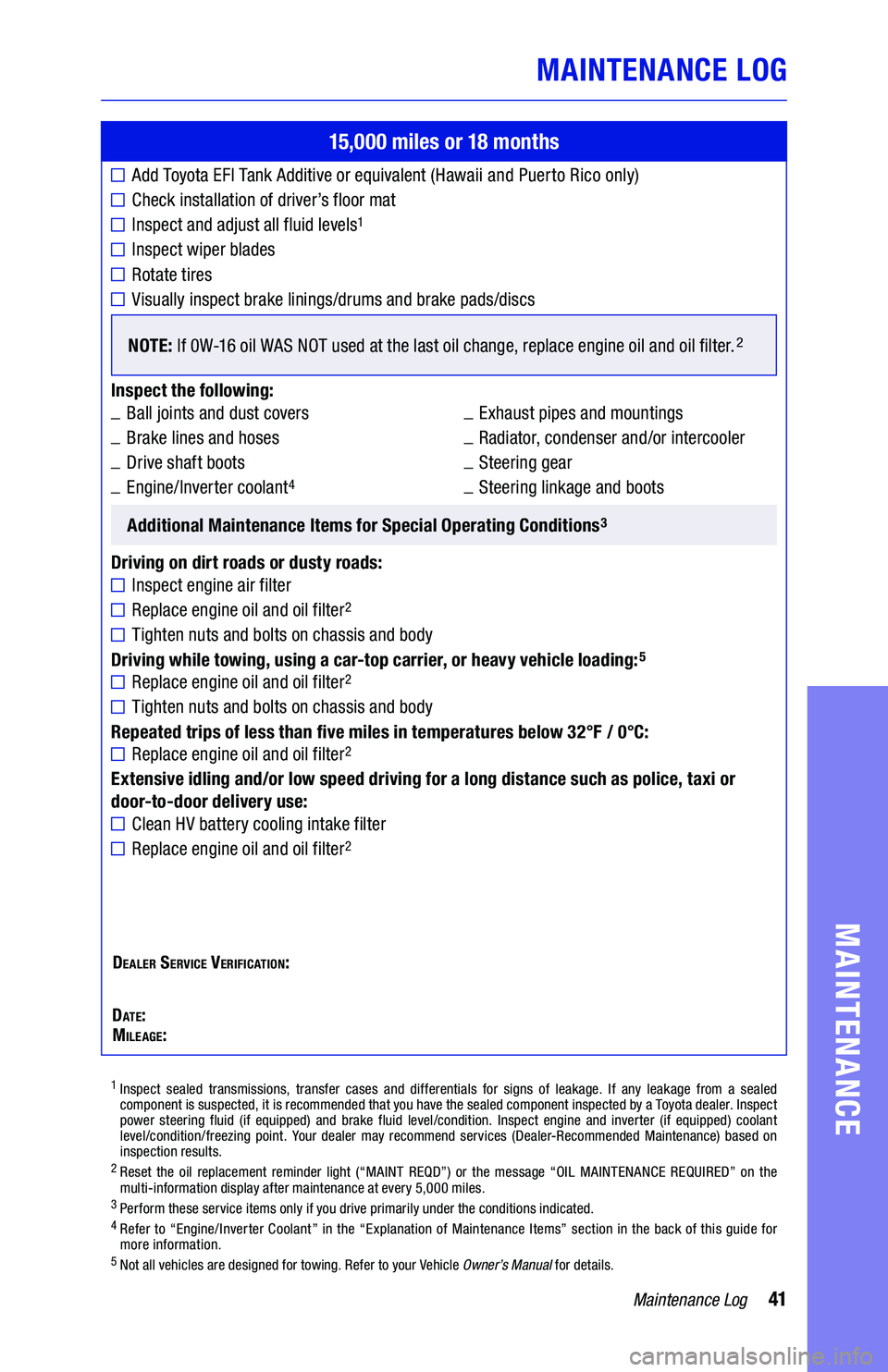

41Maintenance Log
MAINTENANCE LOG
MAINTENANCE
15,000 miles or 18 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _Ball joints and dust covers _ Exhaust pipes and mountings
_Brake lines and hoses _ Radiator, condenser and/or intercooler
_Drive shaft boots _ Steering gear
_Engine/Inverter coolant4 _ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter 2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter 2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter 2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter 2
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on inspection results.2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated. 4 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.5 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
Date:Mileage:

42Maintenance Log
MAINTENANCE LOG
MAINTENANCE
20,000 miles or 24 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
25,000 miles or 30 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
Dealer Service verification:
Date:Mileage:

43Maintenance Log
MAINTENANCE LOG
MAINTENANCE
30,000 miles or 36 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following: _ Automatic transmission for signs of leakage
_Ball joints and dust covers
_Brake lines and hoses
_ Brake linings/drums and brake pads/discs4
_Drive shaft boots
_Engine/Inverter coolant5
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on inspection results.2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated. 4 Inspect thickness measurement and disc runout.5 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
Date:Mileage:
_exhaust pipes and mountings
_ fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
_fuel tank cap gasket
_radiator, condenser and/or intercooler
_Steering gear
_Steering linkage and boots

44Maintenance Log
MAINTENANCE LOG
MAINTENANCE

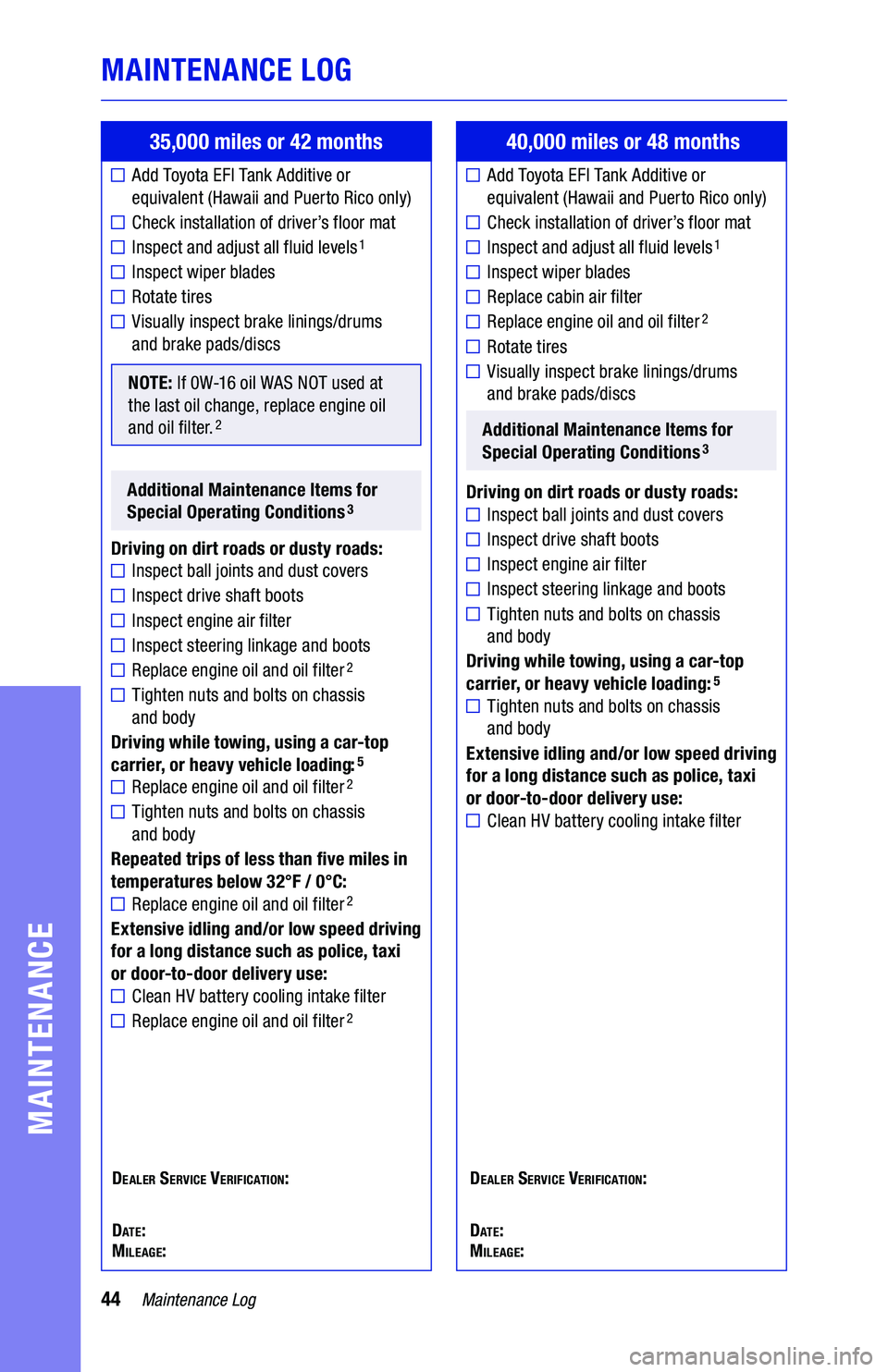

35,000 miles or 42 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
40,000 miles or 48 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
Dealer Service verification:
Date:Mileage:
Dealer Service verification:
Date:Mileage:

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE

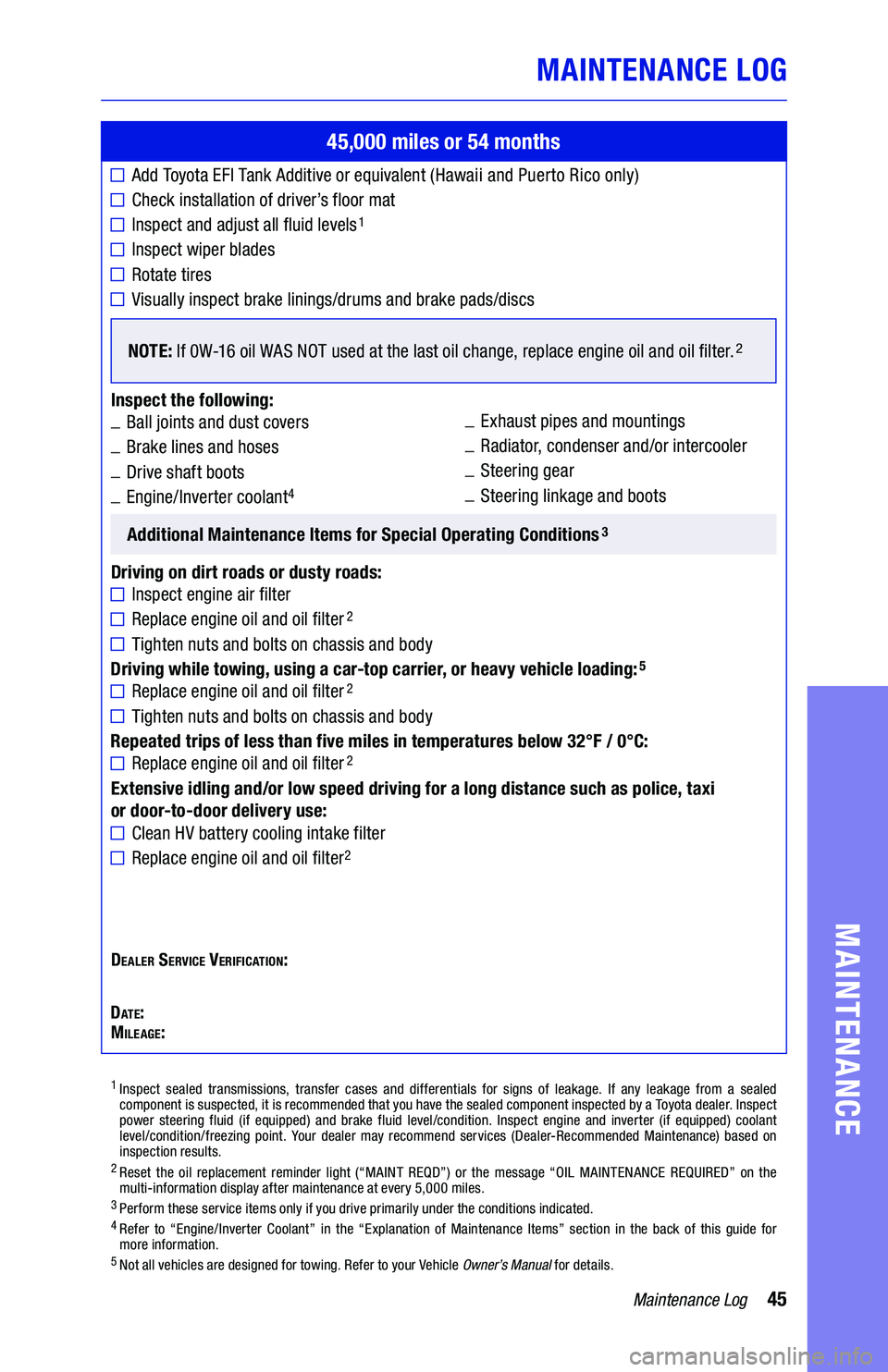

45,000 miles or 54 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _Ball joints and dust covers
_Brake lines and hoses
_Drive shaft boots
_Engine/Inverter coolant4
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results. 2 reset the oil replacement reminder light (

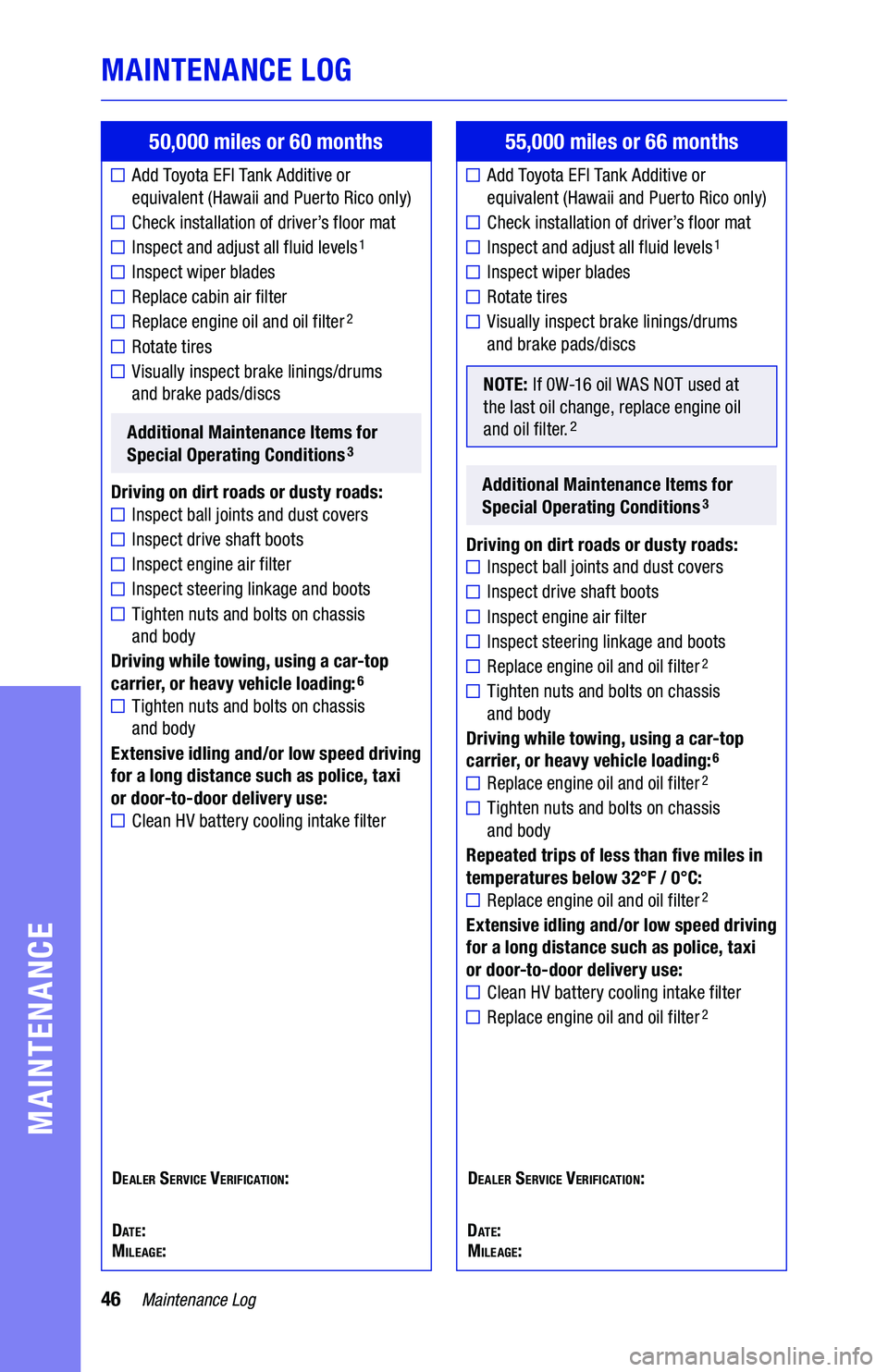

46Maintenance Log
MAINTENANCE LOG
MAINTENANCE
50,000 miles or 60 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
55,000 miles or 66 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
Dealer Service verification:
Date:Mileage:

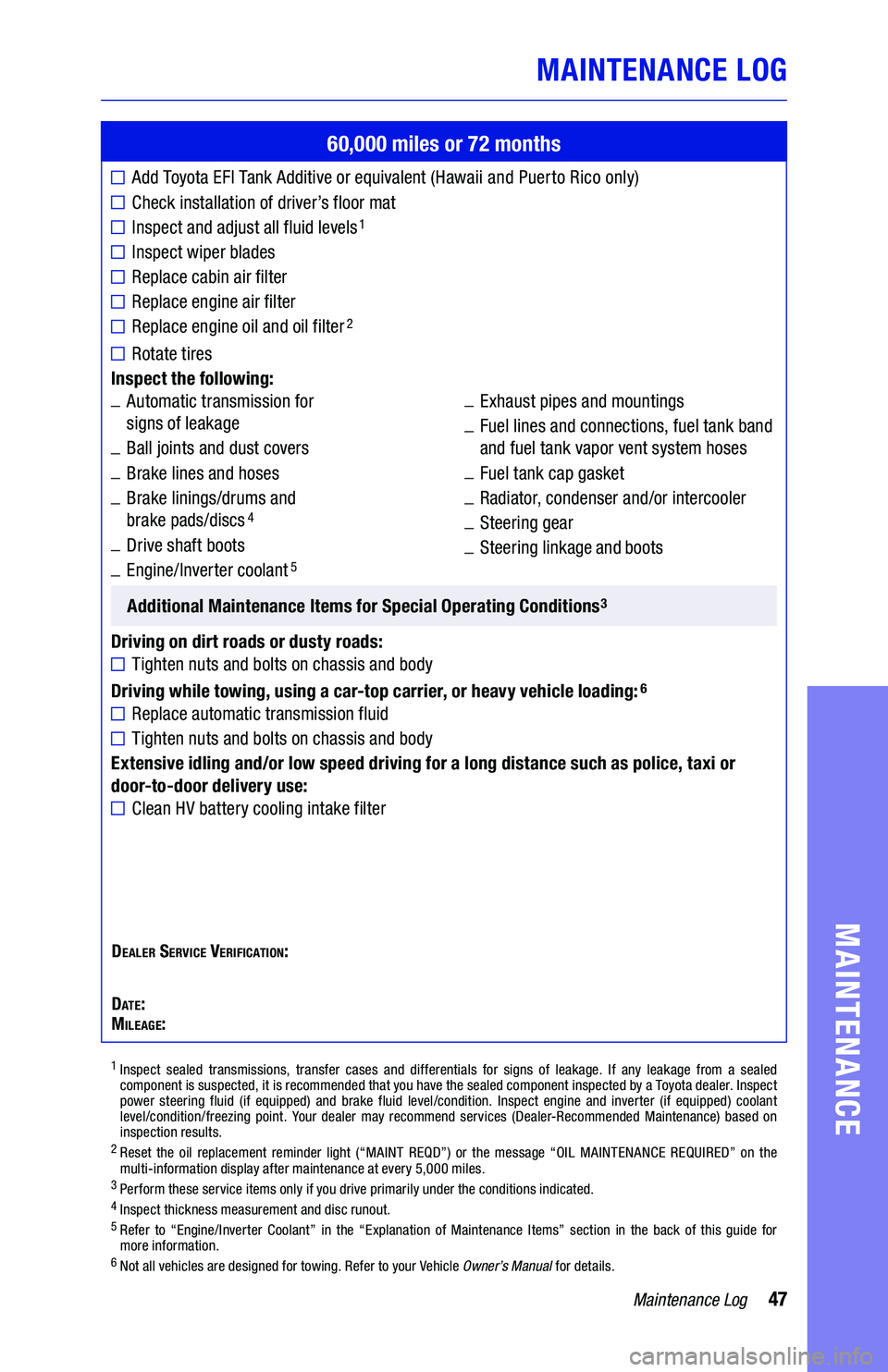

47Maintenance Log
MAINTENANCE LOG
MAINTENANCE
60,000 miles or 72 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following: _ Automatic transmission for signs of leakage
_Ball joints and dust covers
_Brake lines and hoses
_ Brake linings/drums and brake pads/discs4
_Drive shaft boots
_Engine/Inverter coolant5
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace automatic transmission fluid
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on inspection results.2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the multi-information display after maintenance at every 5,000 miles.3 Perform these service items only if you drive primarily under the conditions indicated. 4 Inspect thickness measurement and disc runout.5 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
Date:Mileage:
_exhaust pipes and mountings
_ fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
_fuel tank cap gasket
_radiator, condenser and/or intercooler
_Steering gear
_Steering linkage and boots

48Maintenance Log
MAINTENANCE LOG
MAINTENANCE
65,000 miles or 78 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
70,000 miles or 84 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Clean HV battery cooling intake filter
Dealer Service verification:
Date:Mileage:
Dealer Service verification:
Date:Mileage:
