1422. Instrument cluster
Audio system screen
Multi-information display
Meter control switches
(P. 105, 119)
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
■Display procedure
Multi-information display
Operate the meter control switches on the steering wheel to select
the energy monitor display.
Audio or Audio Plus (vehicles without Data Communication Mod-
ule)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
<002c0049000300440003005600460055004800480051000300520057004b0048005500030057004b00440051000300b30028005100480055004a005c0003005000520051004c00570052005500b40003004c005600030047004c00560053004f0044005c00
480047000f000300560048004f004800460057000300b30028[nergy”.
Audio or Audio Plus (vehicles with Data Communication Module)/
Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
<002c0049000300440003005600460055004800480051000300520057004b0048005500030057004b00440051000300b30028005100480055004a005c0003005000520051004c00570052005500b40003004c005600030047004c00560053004f0044005c00
480047000f000300560048004f004800460057000300b30028[nergy”.
Energy monitor/consumption screen
The state of the hybrid system can be viewed on the multi-infor-
mation display and navigation or multimedia system screen.
The energy monitor and fuel consumption screen can be dis-
played on the “Home” screen of the multimedia screen.
System components
1
2
3
Energy monitor
1
2
1
2
3

1432. Instrument cluster
2
Instrument cluster
■Reading the display
The arrows will appear in accordance with the energy flow.
When there is no energy flow, arrows will not be displayed.
The color of the arrows will change as follows.
Green: When the hybrid battery (traction battery) is regenerated or
charged.
Yellow: When the hybrid battery (traction battery) is in use.
Red: When the gasoline engine is in use.
Multi-information display
The image shows the arrows as an example. The actual display will
vary depending on conditions.
Gasoline engine
Hybrid battery (traction battery)
Front tires
Audio system screen
Gasoline engine
Electric motor (traction
motor)
Hybrid battery (traction bat-
tery)
Front tires
The image shows the arrows as an example. The actual display will
vary depending on conditions. Vehicles with 4.2-inch display: Vehicles with 7-inch display:
1
2
3
1
2
3
4

1442. Instrument cluster
Audio system screen (“Home” screen)
Gasoline engine
Hybrid battery (traction bat-
tery)
Front tires
The image shows the arrows as an example. The actual display will
vary depending on conditions.
■Remaining charge amount warning of hybrid battery (traction battery)
●The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift lever is in N, or the remaining
charge amount drops below a certain level. If the remaining charge amount
drops further, the buzzer sounds continuously.
●When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.
1
2
3

1452. Instrument cluster
2
Instrument cluster
■Trip information
Audio (vehicles without Data Communication Module) or Audio
Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
If the “Energy Monitor” or “History” screen is displayed, select “Trip
Information”.
Audio (vehicles with Data Communication Module), Audio Plus
(vehicles with Data Communication Module) and Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
If “Energy Monitor” or “History” screen is displayed, select “Trip Informa-
tion”.
Resetting the consumption
data
Displays the average vehicle
speed since the hybrid sys-
tem was started
Displays the elapsed time
since the hybrid system was
started
Fuel consumption in the past 15 minutes
Cruising range
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual condi-
tions.
Current fuel consumption
Fuel consumption screen
1
2
1
2
3
1
2
3
4
5
6
7

1462. Instrument cluster
■History
Audio (vehicles without Data Communication Module) or Audio
Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
If the “Energy Monitor” or “Trip Information” screen is displayed, select
“History”.
Audio (vehicles with Data Communication Module), Audio Plus
(vehicles with Data Communication Module) and Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
If “Energy Monitor” or “Trip Information” screen is displayed, select “His-
tory”.
Resetting the past record
data

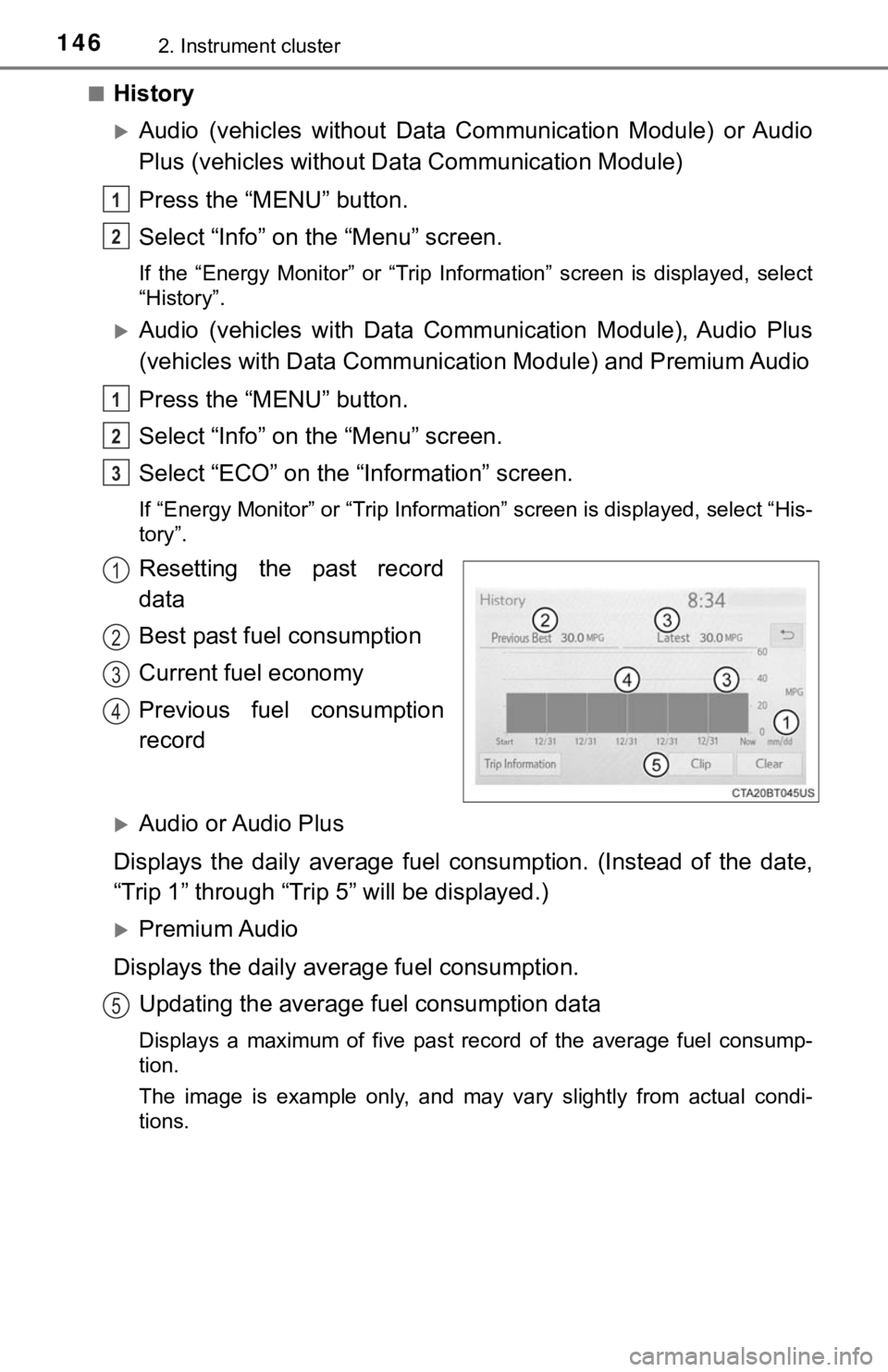

Best past fuel consumption
Current fuel economy
Previous fuel consumption
record
Audio or Audio Plus
Displays the daily average fuel consumption. (Instead of the date,
“Trip 1” through “Trip 5” will be displayed.)
Premium Audio
Displays the daily average fuel consumption.
Updating the average fuel consumption data
Displays a maximum of five past record of the average fuel consump-
tion.
The image is example only, and may vary slightly from actual condi-
tions.
1
2
1
2
3
1
2
3
4
5

1472. Instrument cluster
2
Instrument cluster
■Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “History” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following screen will confirm resetting of all the
data.
